Product Overview

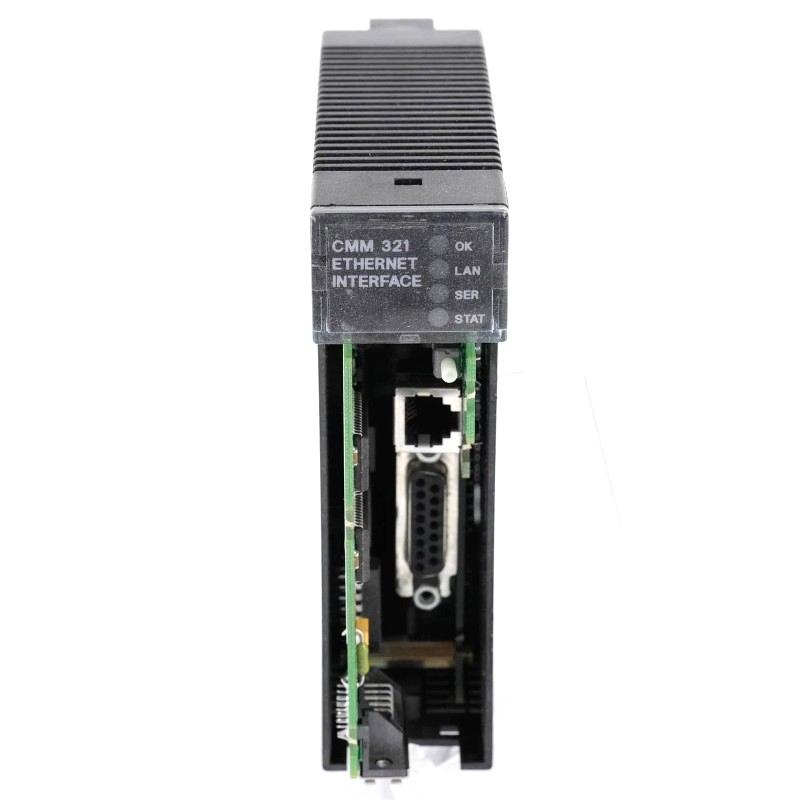

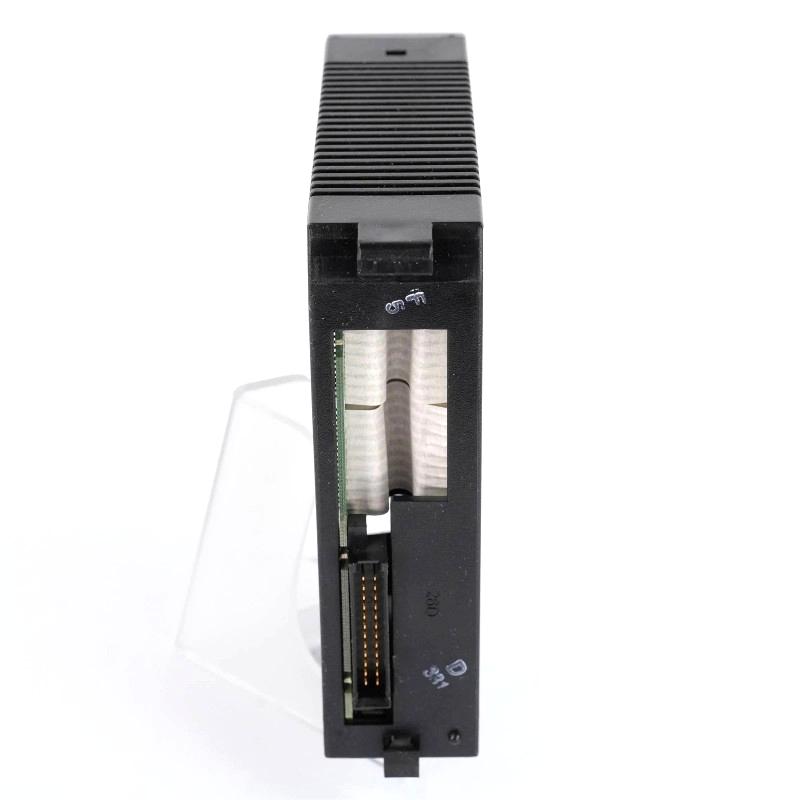

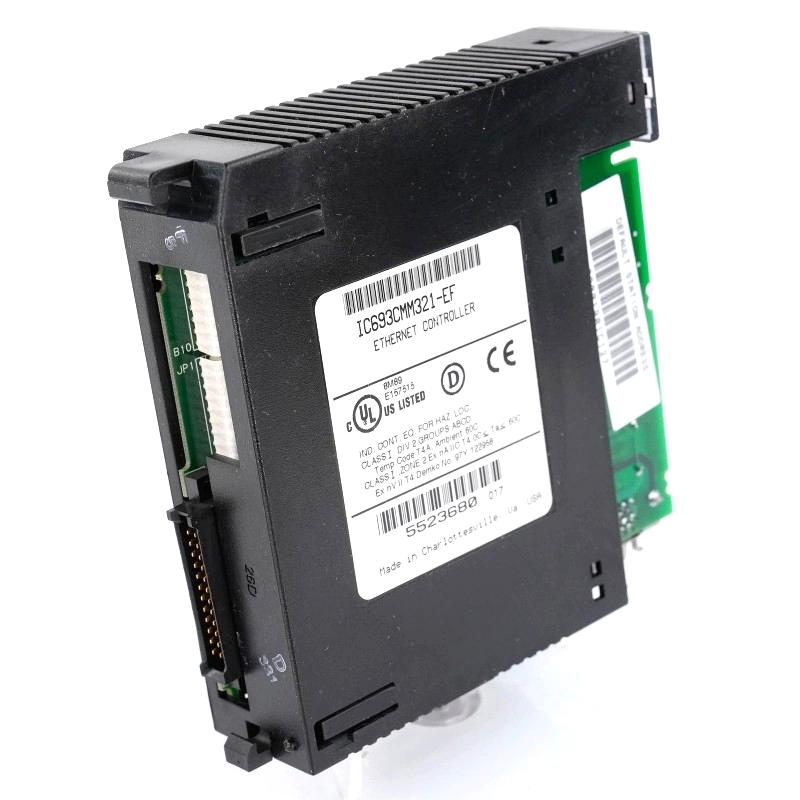

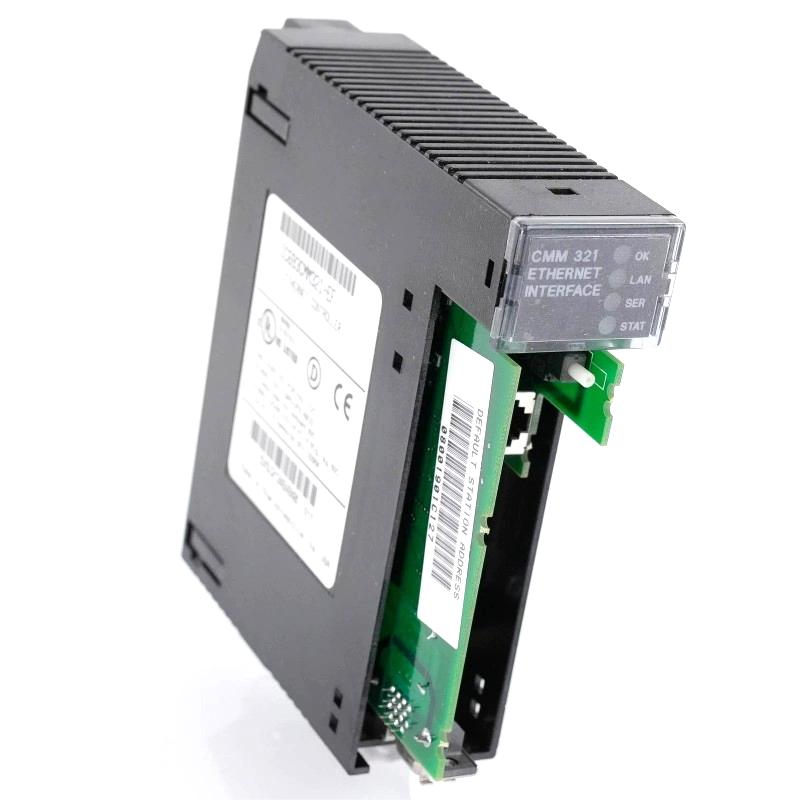

The GE IC693CMM321-EF is a Series 90-30 Ethernet Interface Module used to connect a GE Series 90-30 PLC system with Ethernet-based industrial devices. It handles the communication interface required when PLC data needs to be exchanged with supervisory computers, operator interfaces, engineering workstations, or other compatible network equipment.
The module is suited to Series 90-30 installations where controller information needs to be accessed beyond the local PLC rack. Typical data includes equipment status, process values, control information, diagnostic information, and application data exchanged between the PLC and higher-level systems.
In a manufacturing line, the IC693CMM321-EF can be used for PLC-to-supervisory communication. In a water treatment installation, it can support the transfer of controller information to a monitoring system. In a machine-control application, Ethernet communication can connect the Series 90-30 controller with an HMI or engineering workstation.
For replacement work, technicians should verify the complete model number, existing PLC configuration, communication settings, network arrangement, and connected software before removing an existing module.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693CMM321-EF |
| Product Family | Series 90-30 |
| Product Type | Ethernet Interface Module |
| Primary Function | Ethernet Communication |
| System Role | PLC Network Interface |
| Application | Industrial Automation / PLC Networking |
| Installation | GE Series 90-30 PLC System |
| Dimensions | 127 × 35 × 100 mm |
| Weight | 0.45 kg |
Product Features
- GE Series 90-30 Ethernet Interface Module
- Model IC693CMM321-EF
- Ethernet connectivity for Series 90-30 PLC systems
- Supports communication between PLC data and networked devices
- Suitable for HMI and supervisory communication
- Applicable to industrial PLC networking
- Useful for existing Series 90-30 installations
- Suitable for maintenance and replacement projects
- Supports connection between controller-level and supervisory equipment
- Can be incorporated into machine and process-control communication architectures
Working Principle
The IC693CMM321-EF handles Ethernet communication between the Series 90-30 PLC and connected network devices.
Series 90-30 PLC → IC693CMM321-EF → Ethernet Network → External Device
The Series 90-30 CPU generates application data through the execution of the PLC program. The Ethernet interface handles the network communication associated with the configured application. Ethernet-connected equipment exchanges the required information with the PLC through the network connection.
Typical communication data can include:
- PLC status information
- Equipment operating states
- Process-related data
- Control commands
- Diagnostic information
- Application data required by supervisory systems
The communication path depends on the PLC configuration, network arrangement, connected equipment, and software used by the application.
Role in a Series 90-30 Control Architecture
The IC693CMM321-EF operates at the communication layer of a Series 90-30 PLC system.
PLC I/O → Series 90-30 CPU → IC693CMM321-EF → Ethernet Network → HMI / SCADA / Engineering Workstation
| System Element | Function |
|---|---|
| IC693CMM321-EF | Provides Ethernet communication for the PLC |
| Series 90-30 CPU | Executes the PLC control program |
| Series 90-30 I/O Modules | Interface with field sensors and actuators |
| Ethernet Network | Carries communication data between connected devices |
| HMI | Displays PLC and equipment information |
| SCADA System | Provides supervisory monitoring and data collection |
| Engineering Workstation | Supports system configuration and maintenance |
| Ethernet Switch | Connects network devices within the industrial network |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Automation | PLC data communication with supervisory systems |
| Machine Control | Connecting Series 90-30 PLCs with HMI and engineering equipment |
| Water Treatment | Monitoring pump, valve, and equipment information |
| Process Automation | Transferring controller data to higher-level systems |
| Material Handling | Monitoring conveyor and equipment operating states |
| Packaging Machinery | Exchanging production and machine-status information |
| Utility Systems | Network communication between PLC control and monitoring equipment |
| Legacy PLC Systems | Maintaining Ethernet communication in existing Series 90-30 installations |
Installation and Maintenance
- Confirm the complete IC693CMM321-EF model before installation or replacement.
- Check the existing Series 90-30 rack and controller configuration.
- Record current communication settings before removing an installed module.
- Inspect Ethernet cabling and network connections.
- Verify the network configuration used by the PLC application.
- Check the associated Ethernet switch or network equipment.
- Install the module according to the approved maintenance procedure.
- Confirm that the PLC recognizes the communication interface.
- Test communication between the PLC and the intended network device.
- Check HMI or SCADA data after communication has been restored.
- Review PLC and network diagnostics if communication remains unavailable.
- Record the final communication configuration for future maintenance.
A communication fault should be checked at the module, PLC configuration, Ethernet connection, network equipment, and remote application levels.
Related Components
| Component | Function |
|---|---|
| GE Series 90-30 CPU | Executes control logic and manages PLC application data |
| Series 90-30 I/O Modules | Acquire field signals and control equipment |
| IC693CMM321-EF | Provides Ethernet communication |
| Ethernet Switch | Connects PLC and other Ethernet devices |
| HMI | Displays machine and process information |
| SCADA System | Provides supervisory monitoring |
| Engineering Workstation | Used for configuration and maintenance |
| Ethernet Cable | Provides the physical network connection |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| GE IC693CPU Series | Series 90-30 CPU Module | PLC control and logic execution |
| GE IC693PWR Series | Series 90-30 Power Supply | PLC system power |
| GE IC693MDL Series | Series 90-30 I/O Module | Digital and analog field interfaces |
| GE IC693CMM Series | Series 90-30 Communication Module | PLC networking and data exchange |
| GE Series 90-30 | PLC Platform | Machine and process automation |
| Series 90-30 Communication Modules | Communication Modules | Controller communication and networking |
Key Advantages
- Ethernet communication for GE Series 90-30 PLC systems.
- Suitable for PLC-to-HMI and PLC-to-supervisory communication.
- Supports networked access to controller information.
- Applicable to manufacturing and process-control systems.
- Useful for maintaining existing Series 90-30 installations.
- Suitable for PLC communication expansion and replacement projects.
- Fits industrial Ethernet-based control architectures.
- Provides a dedicated communication interface between the PLC system and network devices.
Technical FAQs
What is the GE IC693CMM321-EF used for in a Series 90-30 PLC?
The IC693CMM321-EF is used as an Ethernet Interface Module for the GE Series 90-30 PLC platform. It provides the network interface required for communication between the PLC system and compatible Ethernet-connected devices.
What should be checked before replacing an IC693CMM321-EF?
The existing PLC configuration, module position, communication settings, network arrangement, and connected HMI or supervisory equipment should be checked first. Recording the original configuration can simplify restoration after replacement.
How can an engineer troubleshoot a Series 90-30 Ethernet communication problem?
Check the PLC configuration, IC693CMM321-EF status, Ethernet connection, network equipment, and remote device in sequence. Network addressing and communication configuration should also be verified before determining that the interface module itself has failed.
What types of systems can communicate with a Series 90-30 through the IC693CMM321-EF?
The module can be used within Ethernet-based control architectures involving compatible HMI systems, supervisory computers, engineering workstations, and other networked automation equipment. The actual communication method depends on the application configuration and supported communication functions.
