Product Overview

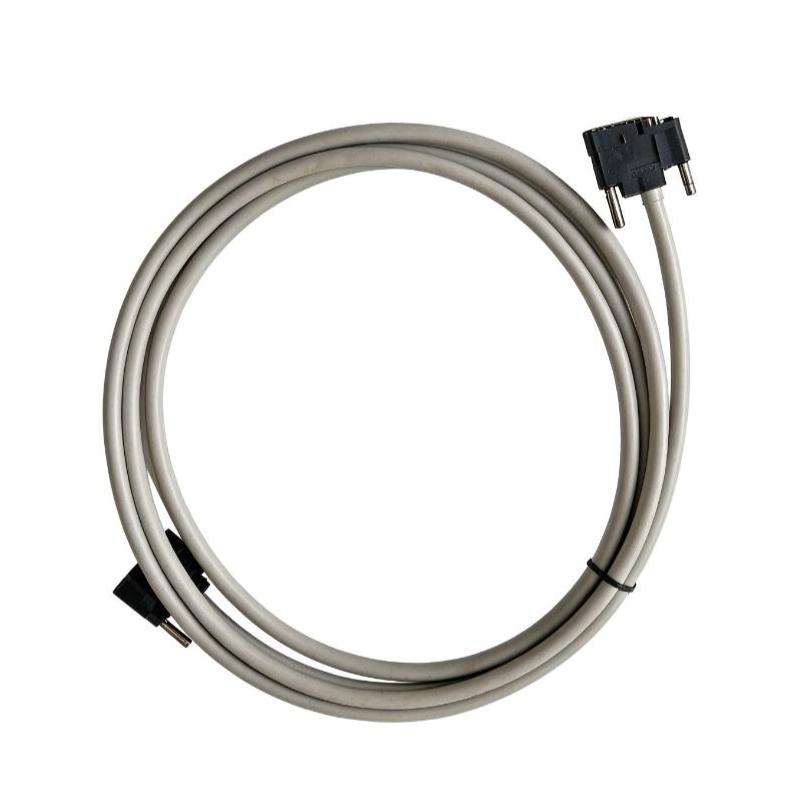

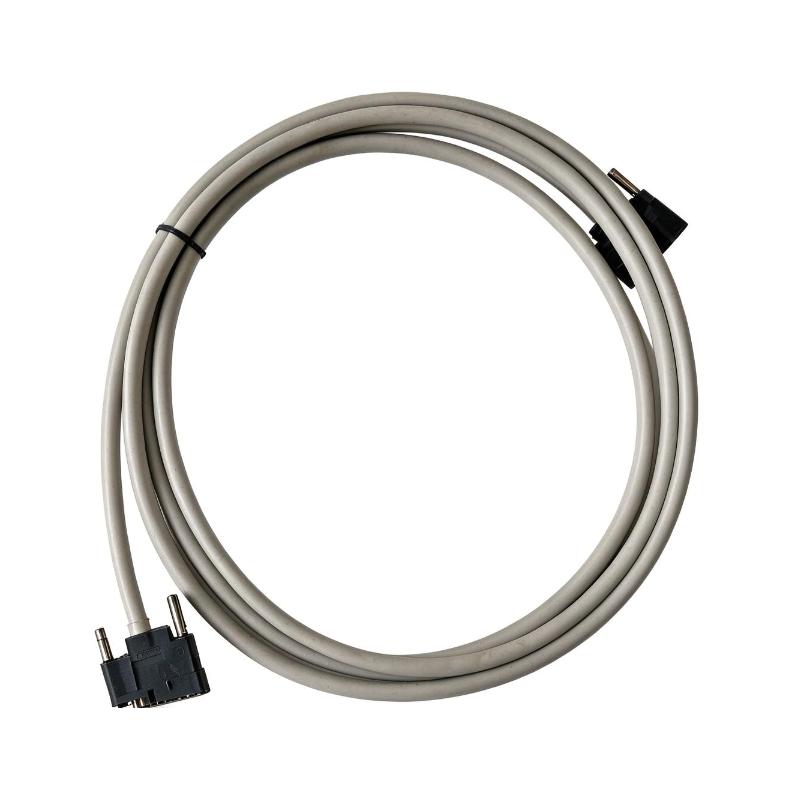

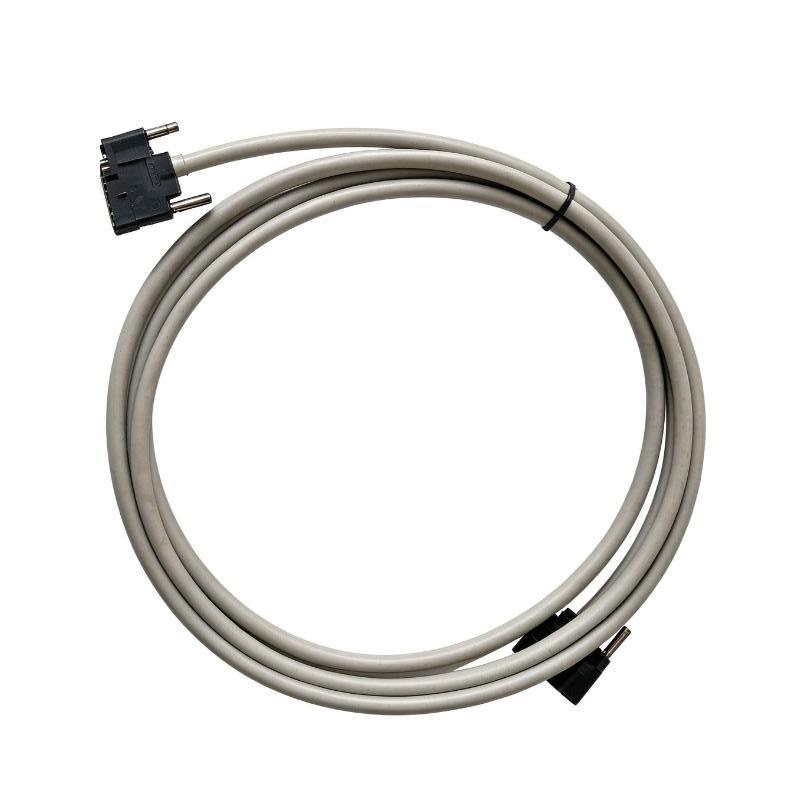

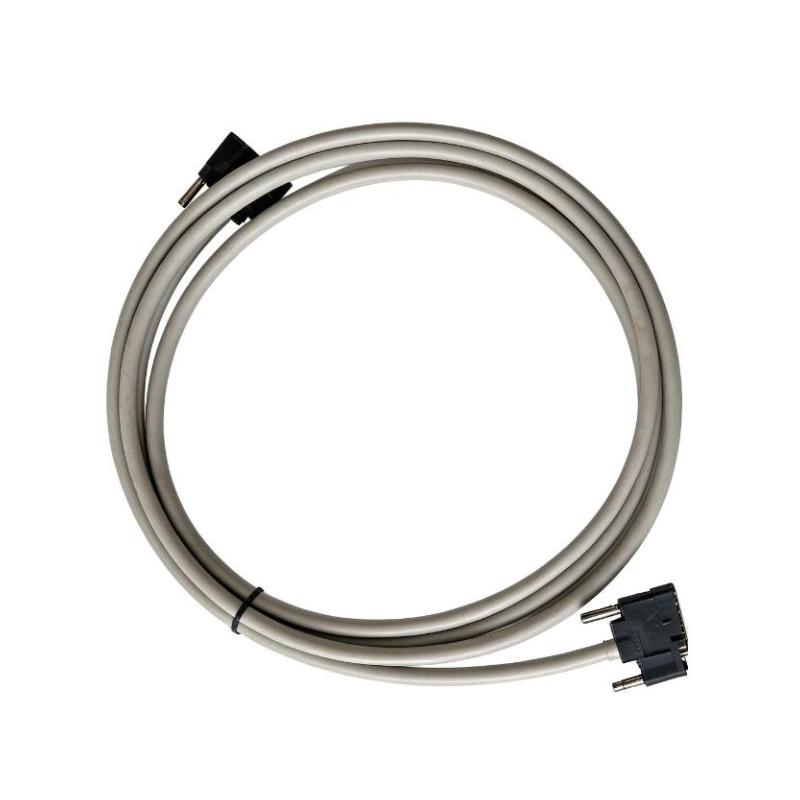

The Honeywell 2MLC-E301 MasterLogic-200 Extension Cable connects compatible I/O expansion hardware in the MasterLogic-200 programmable logic controller (PLC) system. It is intended for installations that use a main CPU base and one or more expansion bases to accommodate the I/O modules required by the machine or process.
In a control cabinet, the CPU and main base may be positioned separately from an expansion base containing additional digital or analog I/O modules. The 2MLC-E301 provides the dedicated interconnection between compatible hardware, allowing the PLC system to accommodate a wider cabinet layout without relocating all modules to the main base.
The 3-meter cable length is useful when shorter expansion cables cannot reach the intended connection points along the planned routing path. It gives control-panel designers more room to arrange expansion hardware while keeping the complete cable route within the system’s permitted expansion distance.
For example, a manufacturing line may use the main PLC base for sequence control and an expansion base for additional sensor signals, valve feedback, and motor-status inputs. The 2MLC-E301 can connect the expansion hardware when the required route and system configuration are compatible.
The cable is a dedicated expansion accessory rather than a general-purpose communication lead. Its model number and connection requirements should be checked against the installed MasterLogic-200 hardware before replacement or system extension.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model / Part Number | 2MLC-E301 |
| Product Family | MasterLogic-200 |
| Product Type | Expansion I/O Cable |
| Cable Length | 3.0 meters |
| Weight | 0.39 kg |
Product Features
- Dedicated expansion connection: Connects compatible MasterLogic-200 expansion hardware.
- 3-meter cable length: Supports cabinet layouts that require a longer connection than the shorter cable variants.
- System-specific design: Intended for the designated expansion-I/O arrangement rather than general-purpose signal wiring.
- Modular PLC expansion: Supports installations that distribute I/O modules across compatible bases.
- Cable-length selection: Forms part of a range of expansion cables available for different equipment layouts.
- Clear spare-parts identification: The 2MLC-E301 model number distinguishes this cable from other length variants.
Working Principle
The 2MLC-E301 establishes the physical connection between compatible MasterLogic-200 expansion components. It carries the signals required for the connected expansion hardware to participate in the supported PLC architecture.
A typical arrangement follows this path:
MasterLogic-200 CPU and Main Base → 2MLC-E301 Extension Cable → I/O Expansion Base → Installed I/O Modules
The CPU executes the control program, while the I/O modules acquire field signals or provide control outputs. The expansion cable connects the additional base to the system so that its installed modules can be used by the PLC application.
Consider a conveyor installation where the main base handles the machine sequence and an expansion base collects additional photoelectric sensor signals and motor feedback. The cable connects the designated hardware, allowing the controller to incorporate those signals into its programmed logic.
The total cable route is an important design consideration. For the applicable MasterLogic-200 expansion arrangement, the distance between the CPU and the farthest I/O expansion base must not exceed 15 meters. The selected cable length should therefore be assessed together with the other connections in the complete expansion system.
The 2MLC-E301 does not execute control logic, convert analog signals, or operate as an independent network switch. Its function is to establish the required physical interconnection between compatible expansion components.
Role in the MasterLogic-200 PLC Architecture
The 2MLC-E301 occupies the interconnection layer between the main PLC hardware and an expansion base. It allows additional I/O capacity to be incorporated into a compatible system while accommodating the intended cabinet layout.
PLC CPU and Main Base → Expansion Cable → Expansion Base → Digital and Analog I/O Modules
| System Component | Function |
|---|---|
| Honeywell 2MLC-E301 | Connects compatible expansion-system hardware |
| MasterLogic-200 CPU | Executes the PLC program and coordinates system operation |
| Main CPU Base | Hosts the CPU and supported main-base modules |
| I/O Expansion Base | Provides additional positions for I/O modules |
| Digital Input Modules | Acquire discrete signals from sensors and switches |
| Digital Output Modules | Control compatible field devices through designated output circuits |
| Analog Input Modules | Acquire supported process measurements |
| Analog Output Modules | Supply configured analog control signals |
| Field Devices | Provide sensor feedback or receive control commands |
| Control Cabinet | Houses the PLC bases, modules, and associated wiring |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Connecting expansion bases for additional sensors and actuators |
| Conveyor Systems | Extending I/O capacity for motor feedback and position switches |
| Assembly Lines | Linking expansion bases serving separate machine stations |
| Material Handling | Connecting expansion hardware for equipment status and interlocks |
| Process Control Panels | Extending the PLC’s field-signal capacity |
| Water Treatment Systems | Connecting additional I/O for pumps, valves, and instrumentation |
| Manufacturing Equipment | Incorporating extra control points into an existing PLC arrangement |
| Industrial Utility Systems | Connecting compatible expansion bases in utility-control cabinets |
| Machine-Building Projects | Accommodating expansion hardware within the planned cabinet layout |
| PLC Retrofit Projects | Reconnecting expansion hardware during control-panel modifications |
Installation and Maintenance
- Verify the model reference: Confirm that the required cable is 2MLC-E301 and that its 3-meter length suits the intended connection.
- Check hardware compatibility: Identify the MasterLogic-200 CPU and expansion-base models before installation.
- Review the cabinet layout: Confirm that the cable reaches both connection points without tension or interference with cabinet doors and other equipment.
- Isolate the equipment: Follow the approved PLC shutdown and electrical isolation procedure before disconnecting or installing the cable.
- Inspect the connectors: Check both ends for damaged contacts, contamination, or mechanical deformation.
- Check the cable route: Avoid crushing, sharp bends, abrasion, and contact with moving equipment.
- Verify the connection points: Match both ends to the designated interfaces in the system installation documentation.
- Secure the cable arrangement: Route and support the cable so that the connectors are not subjected to unnecessary mechanical stress.
- Check the total expansion distance: Confirm that the complete CPU-to-farthest-expansion-base cable route remains within the applicable 15-meter limit.
- Restore the system: Reassemble the cabinet and restore power according to the approved commissioning procedure.
- Verify expansion communication: Confirm that the PLC recognizes the connected expansion hardware and that the installed I/O modules operate as expected.
- Record the installation: Document the cable model, connected base references, and post-installation test results.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell MasterLogic-200 CPU | Executes the PLC application |
| Honeywell MasterLogic-200 Main Base | Hosts the CPU and supported main-base modules |
| Honeywell MasterLogic-200 Expansion Base | Provides additional I/O module positions |
| Digital Input Modules | Acquire discrete field signals |
| Digital Output Modules | Provide discrete control outputs |
| Analog Input Modules | Acquire process-variable signals |
| Analog Output Modules | Supply analog commands to compatible field devices |
| Control Cabinet Wiring | Connects the PLC system to field equipment |
| Honeywell 2MLC-E301 | Provides the 3-meter expansion connection |
Recommended Related Models
| Model | Product Type | Cable Length |
|---|---|---|
| Honeywell 2MLC-E041 | MasterLogic-200 Expansion I/O Cable | 0.4 m |
| Honeywell 2MLC-E061 | MasterLogic-200 Expansion I/O Cable | 0.6 m |
| Honeywell 2MLC-E121 | MasterLogic-200 Expansion I/O Cable | 1.2 m |
| Honeywell 2MLC-E301 | MasterLogic-200 Expansion I/O Cable | 3.0 m |
| Honeywell 2MLC-E501 | MasterLogic-200 Expansion I/O Cable | 5.0 m |
| Honeywell 2MLC-E102 | MasterLogic-200 Expansion I/O Cable | 10.0 m |
| Honeywell 2MLC-E152 | MasterLogic-200 Expansion I/O Cable | 15.0 m |
Key Advantages
- Connects compatible MasterLogic-200 expansion hardware.
- Provides a 3-meter connection option for suitable cabinet layouts.
- Supports additional PLC I/O capacity through compatible expansion bases.
- Simplifies cable identification during installation and spare-parts replacement.
- Offers an alternative to shorter cables when the system layout requires additional reach.
Technical FAQs
Which MasterLogic-200 hardware uses the 2MLC-E301?
The cable is specified for the expansion I/O arrangement associated with the 2MLI-CPUU configuration. Verify the installed CPU and base arrangement before using it in a replacement or expansion project.
How does the 2MLC-E301 differ from the 2MLC-E501?
The 2MLC-E301 has a cable length of 3.0 meters, while the 2MLC-E501 is 5.0 meters long. Select the shortest suitable option that accommodates the intended route and complies with the system’s total expansion-distance limit.
Can multiple expansion cables be used in one MasterLogic-200 system?
The system supports expansion-cable options of different lengths. The complete arrangement must follow the supported base configuration, and the total distance between the CPU and the farthest I/O expansion base must remain within the specified 15-meter limit.
What should be checked if an expansion base is not recognized after installation?
Inspect the cable for connector damage and confirm that both ends are correctly seated. Check the CPU and expansion-base compatibility, installed module configuration, and PLC expansion status before replacing the cable.
