Product Overview

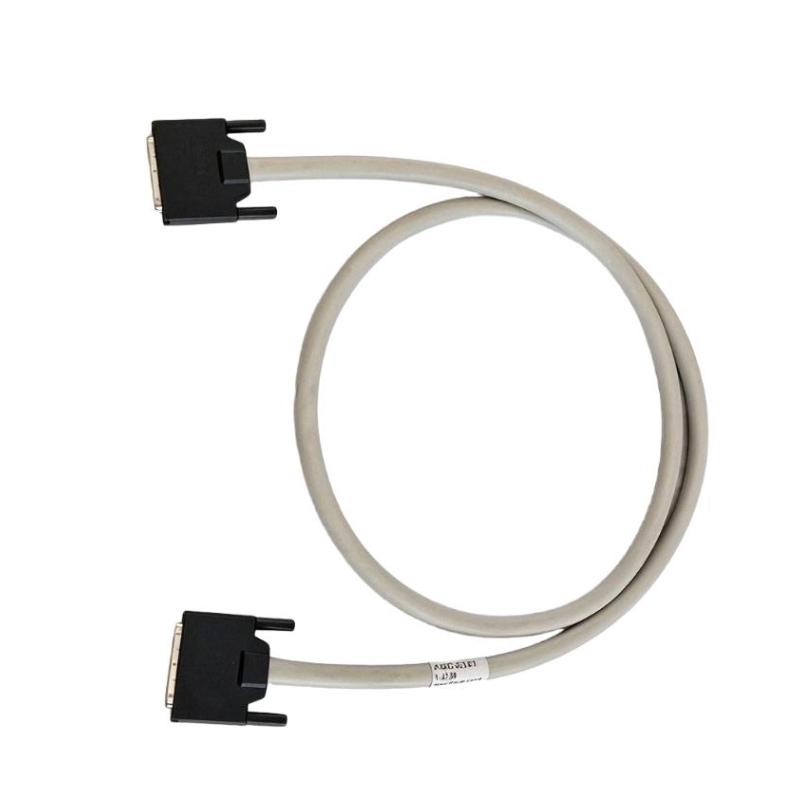

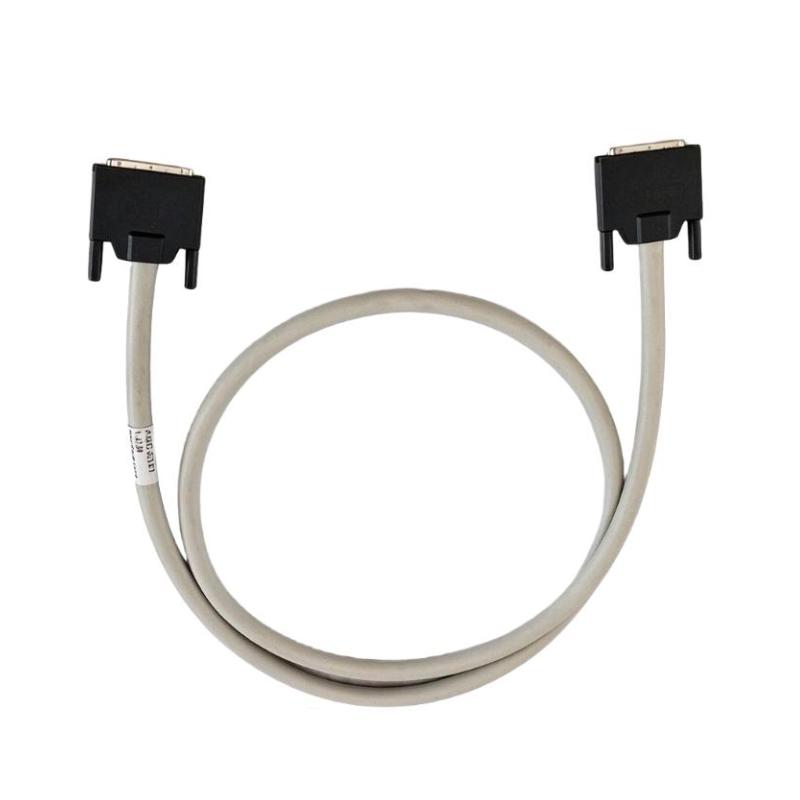

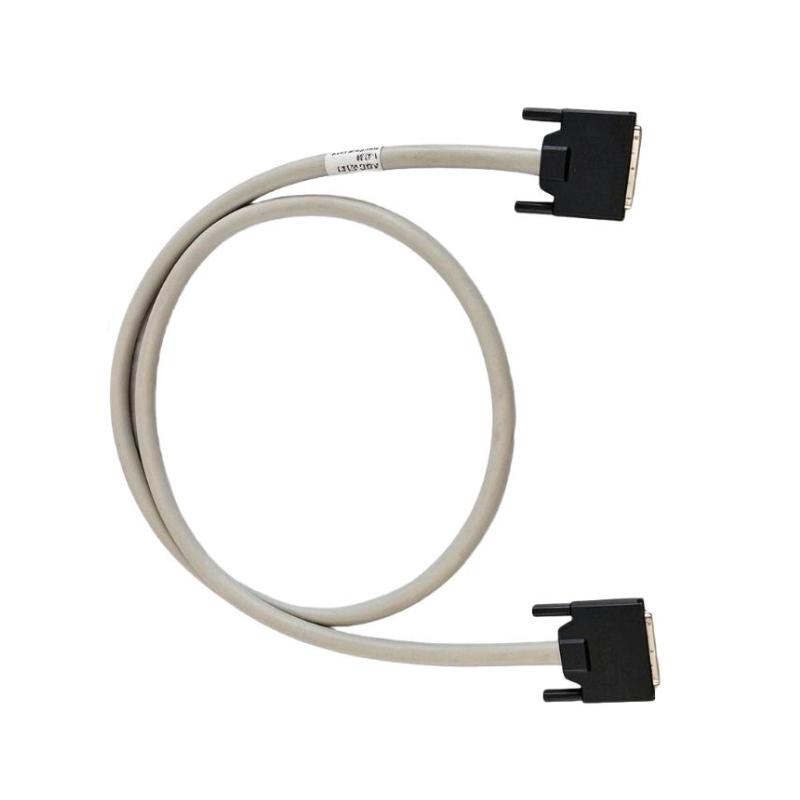

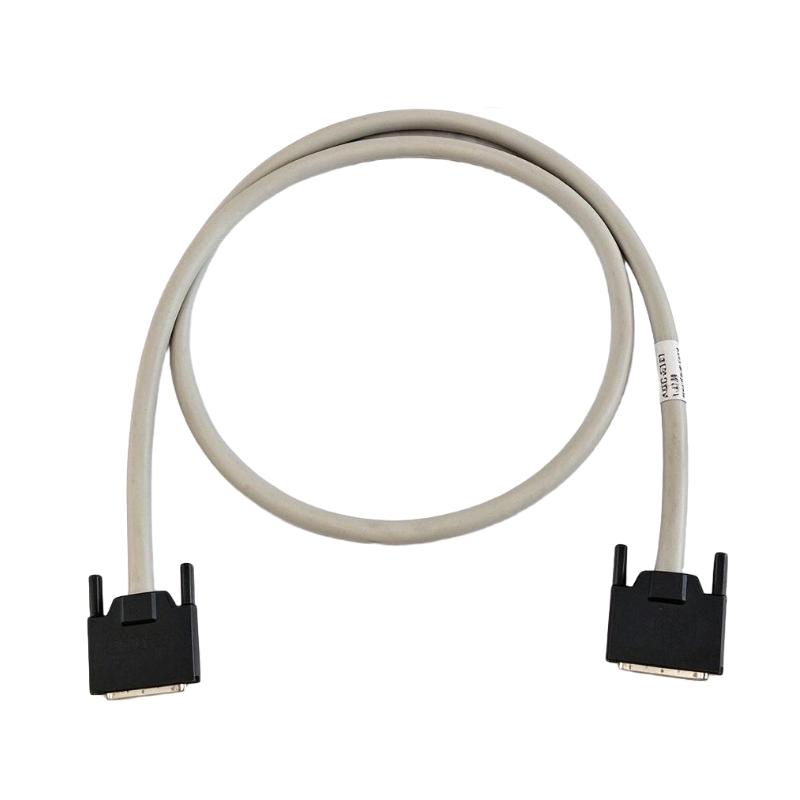

The Honeywell 2MLC-E102 MasterLogic-200 Extension Cable is a dedicated expansion I/O cable for the MasterLogic-200 programmable logic controller (PLC) system. It connects compatible CPU-base and expansion-base hardware, allowing additional I/O modules to be incorporated into the control architecture.
In a machine control cabinet, the main CPU base may handle sequence execution while an expansion base accommodates additional digital inputs, analog measurements, and output modules. The 2MLC-E102 provides a 10-meter connection option for supported configurations, making it useful when the intended expansion route extends beyond the reach of shorter cables.
For example, a manufacturing line may use the main PLC base for machine sequencing and an expansion base for additional conveyor sensors, motor-status signals, and valve feedback. The extension cable connects the designated hardware so that the additional I/O can participate in the programmed control sequence.
The 2MLC-E102 belongs to the MasterLogic-200 expansion I/O cable range, which includes seven standard length options from 0.4 meters to 15 meters. The choice depends on the required connection route and the total permitted distance between the CPU and the farthest expansion base.
This model is specifically associated with the 2MLI-CPUU configuration. It should not be confused with the separate cable arrangements used by other MasterLogic-200 architectures, which may use different interfaces and expansion methods.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model / Part Number | 2MLC-E102 |
| Product Family | MasterLogic-200 |
| Product Type | Expansion I/O Cable |
| Compatible CPU Configuration | 2MLI-CPUU |
| Application | Connection between compatible CPU-base and I/O expansion-base hardware |
| Cable Length | 10 meters |
| Cable Weight | 1.20 kg |
| Maximum CPU-to-Farthest-Expansion-Base Distance | 15 meters |
| Expansion Cable Length Options | 0.4 m, 0.6 m, 1.2 m, 3 m, 5 m, 10 m, 15 m |
| Shortest Cable in the Series | 2MLC-E041, 0.4 m |
| Longest Cable in the Series | 2MLC-E152, 15 m |
Product Features
- 10-meter connection length: Provides additional reach for compatible expansion-base arrangements where shorter cable variants are insufficient.
- Dedicated expansion I/O connection: Connects hardware within the designated MasterLogic-200 expansion architecture.
- 2MLI-CPUU compatibility: Identifies the CPU configuration for which this expansion-cable family is specified.
- Modular I/O expansion: Supports installations using separate main and expansion bases to accommodate additional field signals.
- Multiple cable-length choices: Offers alternatives for different cabinet layouts and permitted expansion distances.
- Defined cable-weight specification: The 1.20 kg cable weight supports handling and inventory planning.
- System-distance coordination: Allows the expansion route to be planned against the specified 15-meter CPU-to-farthest-base limit.
Working Principle
The 2MLC-E102 provides the physical interconnection required for compatible MasterLogic-200 expansion hardware. It carries the signals needed for the expansion base to participate in the supported PLC architecture.
A typical arrangement follows this path:
MasterLogic-200 CPU and Main Base → 2MLC-E102 Extension Cable → I/O Expansion Base → Installed I/O Modules
The CPU executes the application program, while the I/O modules acquire field signals or provide control outputs. The cable connects the designated expansion hardware so that the PLC can use the additional I/O in its programmed control tasks.
Consider a production system in which the main base handles the machine sequence and an expansion base acquires additional sensor inputs and actuator feedback. The 10-meter cable provides the connection when the physical route requires this length and the complete expansion arrangement remains within the permitted distance.
Cable length must be evaluated across the entire path. The specified maximum distance from the CPU to the farthest I/O expansion base is 15 meters. A 10-meter cable therefore leaves only 5 meters of nominal distance allowance for any other cable sections along that path.
The 2MLC-E102 does not execute PLC logic, perform analog signal conversion, or act as an independent Ethernet switch. Its function is to connect the compatible expansion hardware through the designated system interface.
Role in the MasterLogic-200 PLC Architecture
The 2MLC-E102 forms part of the physical connection between the main CPU base and a compatible I/O expansion base. It allows the system to accommodate additional I/O modules while maintaining the designated MasterLogic-200 expansion arrangement.
PLC CPU and Main Base → Expansion Cable → Expansion Base → Digital and Analog I/O Modules
| System Component | Function |
|---|---|
| Honeywell 2MLC-E102 | Connects compatible expansion-system hardware |
| 2MLI-CPUU | Executes the PLC program in the associated non-redundant CPU configuration |
| Main CPU Base | Hosts the CPU and supported main-base modules |
| I/O Expansion Base | Provides additional module positions for field I/O |
| Digital Input Modules | Acquire discrete signals from sensors and switches |
| Digital Output Modules | Control compatible field devices through designated output circuits |
| Analog Input Modules | Acquire supported process measurements |
| Analog Output Modules | Supply configured analog control signals |
| Field Devices | Provide feedback or receive control commands |
| Control Cabinet | Houses the PLC bases, modules, and associated wiring |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Connecting expansion bases for additional sensors and actuators |
| Conveyor Systems | Extending I/O capacity for motor feedback and position switches |
| Assembly Lines | Linking expansion hardware serving separate machine stations |
| Material Handling | Connecting additional equipment-status and interlock signals |
| Process Control Panels | Extending the available field-I/O arrangement |
| Water Treatment Systems | Connecting expansion hardware for pumps, valves, and instrumentation |
| Manufacturing Equipment | Incorporating additional control points into an existing PLC system |
| Industrial Utility Systems | Connecting compatible expansion bases within larger control installations |
| Machine-Building Projects | Accommodating expansion hardware in the planned cabinet layout |
| PLC Retrofit Projects | Reconnecting supported expansion hardware during cabinet modifications |
Installation and Maintenance
- Verify the model reference: Confirm that the required cable is 2MLC-E102 and that the 10-meter length suits the intended connection.
- Check CPU compatibility: Verify that the installation uses the supported 2MLI-CPUU configuration and compatible expansion-base hardware.
- Calculate the cable route: Measure the complete path between the CPU and the farthest expansion base, including any additional cable sections.
- Isolate the equipment: Follow the approved PLC shutdown and electrical isolation procedure before disconnecting or installing the cable.
- Inspect the connectors: Check both ends for damaged contacts, contamination, or mechanical deformation.
- Protect the cable: Avoid crushing, sharp bends, abrasion, and interference with cabinet doors or moving equipment.
- Verify the connection points: Match both ends to the designated interfaces shown in the system installation documentation.
- Secure the cable arrangement: Route and support the cable to prevent tension or mechanical loading at the connectors.
- Check the total expansion distance: Ensure that the CPU-to-farthest-expansion-base distance does not exceed 15 meters.
- Restore the system: Reassemble the cabinet and restore power according to the approved commissioning procedure.
- Verify expansion operation: Confirm that the PLC recognizes the connected expansion hardware and that the installed I/O modules operate as expected.
- Record the installation: Document the cable model, connected base references, routing arrangement, and commissioning results.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell 2MLI-CPUU | Provides the compatible CPU configuration for this expansion-cable arrangement |
| Honeywell MasterLogic-200 Main Base | Hosts the CPU and supported main-base modules |
| Honeywell MasterLogic-200 Expansion Base | Provides additional I/O module positions |
| Digital Input Modules | Acquire discrete field signals |
| Digital Output Modules | Provide discrete control outputs |
| Analog Input Modules | Acquire process-variable signals |
| Analog Output Modules | Supply analog commands to compatible field devices |
| Field Wiring and Terminal Assemblies | Connect the installed I/O modules to sensors and actuators |
| Honeywell 2MLC-E102 | Provides the 10-meter expansion connection |
Recommended Related Models
| Model | Product Type | Cable Length | Cable Weight |
|---|---|---|---|
| Honeywell 2MLC-E041 | MasterLogic-200 Expansion I/O Cable | 0.4 m | 0.15 kg |
| Honeywell 2MLC-E061 | MasterLogic-200 Expansion I/O Cable | 0.6 m | 0.16 kg |
| Honeywell 2MLC-E121 | MasterLogic-200 Expansion I/O Cable | 1.2 m | 0.22 kg |
| Honeywell 2MLC-E301 | MasterLogic-200 Expansion I/O Cable | 3.0 m | 0.39 kg |
| Honeywell 2MLC-E501 | MasterLogic-200 Expansion I/O Cable | 5.0 m | 0.62 kg |
| Honeywell 2MLC-E102 | MasterLogic-200 Expansion I/O Cable | 10.0 m | 1.20 kg |
| Honeywell 2MLC-E152 | MasterLogic-200 Expansion I/O Cable | 15.0 m | 1.80 kg |
Key Advantages
- Provides a dedicated connection for compatible MasterLogic-200 expansion hardware.
- Offers a 10-meter cable option for installations requiring greater routing distance.
- Supports additional I/O capacity through compatible expansion bases.
- Has a documented cable weight of 1.20 kg for inventory and handling purposes.
- Allows cable selection from a defined family of seven lengths.
Technical FAQs
Which CPU is compatible with the 2MLC-E102 expansion cable?
The 2MLC-E102 belongs to the expansion I/O cable range specified for the 2MLI-CPUU configuration. Verify the installed CPU and base architecture before using it in a replacement or expansion project.
How much additional cable distance is available when using the 2MLC-E102?
The maximum distance from the CPU to the farthest expansion base is 15 meters. A 10-meter cable uses most of that allowance, leaving up to 5 meters of nominal distance for other cable sections along the same route.
How does the 2MLC-E102 compare with the 2MLC-E152?
The 2MLC-E102 is 10 meters long and weighs 1.20 kg, while the 2MLC-E152 is 15 meters long and weighs 1.80 kg. Both belong to the same expansion-cable range, but the total permitted CPU-to-expansion-base distance remains 15 meters.
What should be checked if the PLC cannot access I/O modules on the expansion base?
Check the cable connectors, the CPU and expansion-base compatibility, and the configured expansion arrangement. Also verify that the complete cable route meets the system’s distance limit and that the PLC reports the expected module status.
