Product Overview

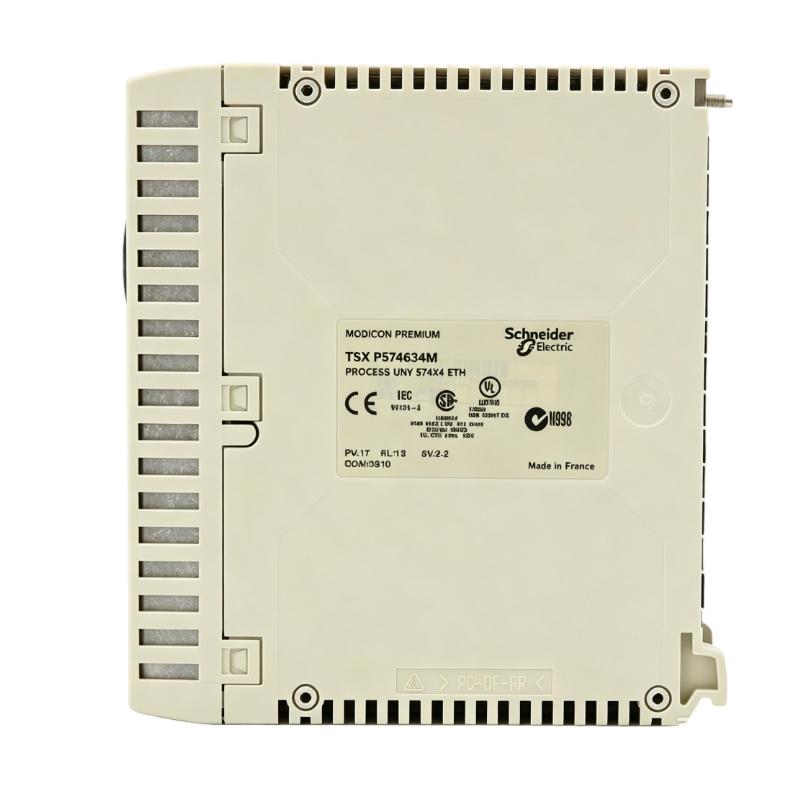

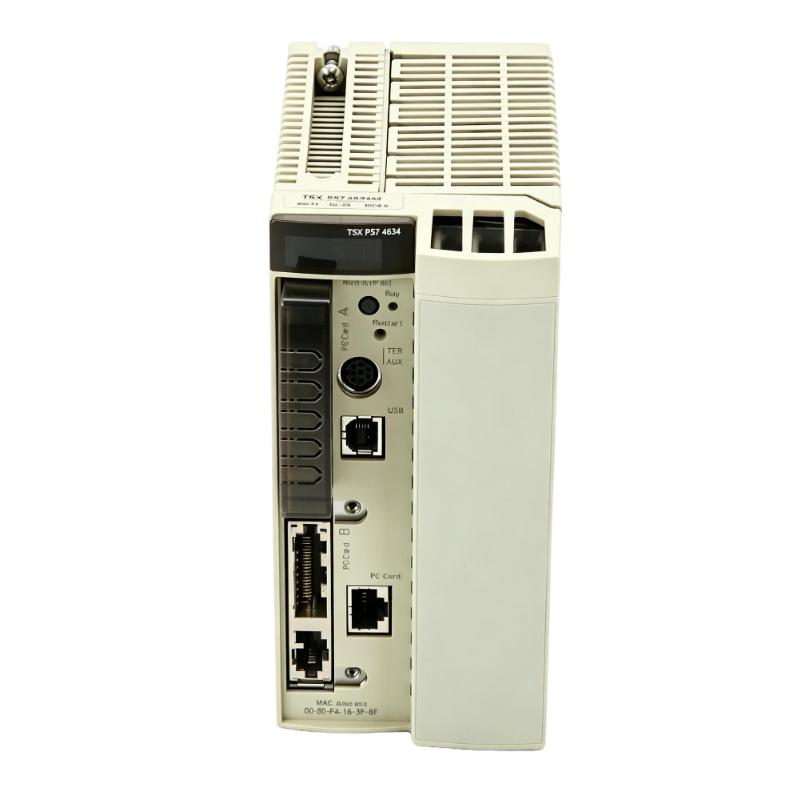

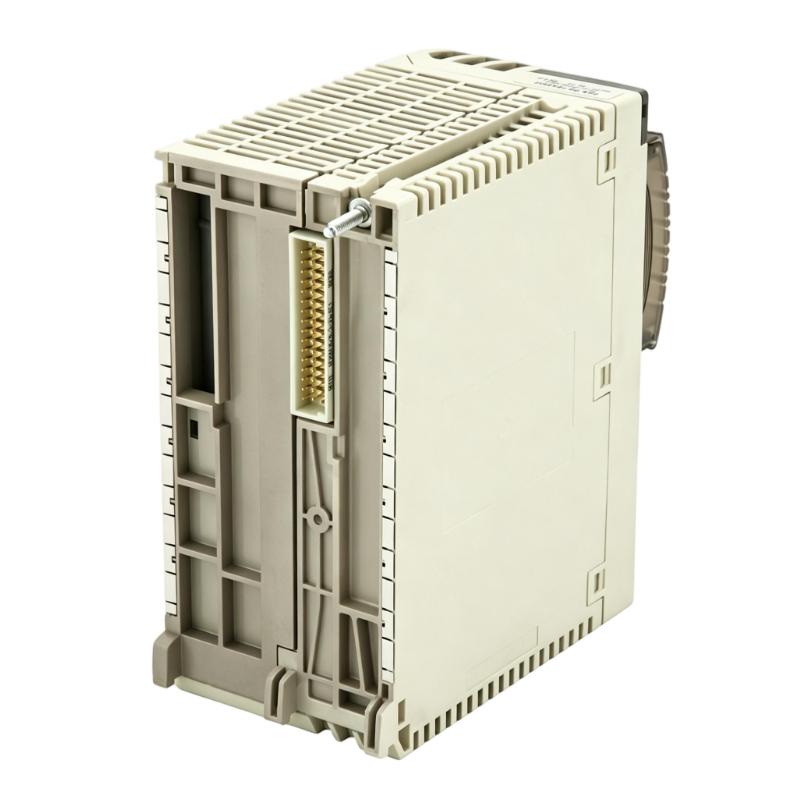

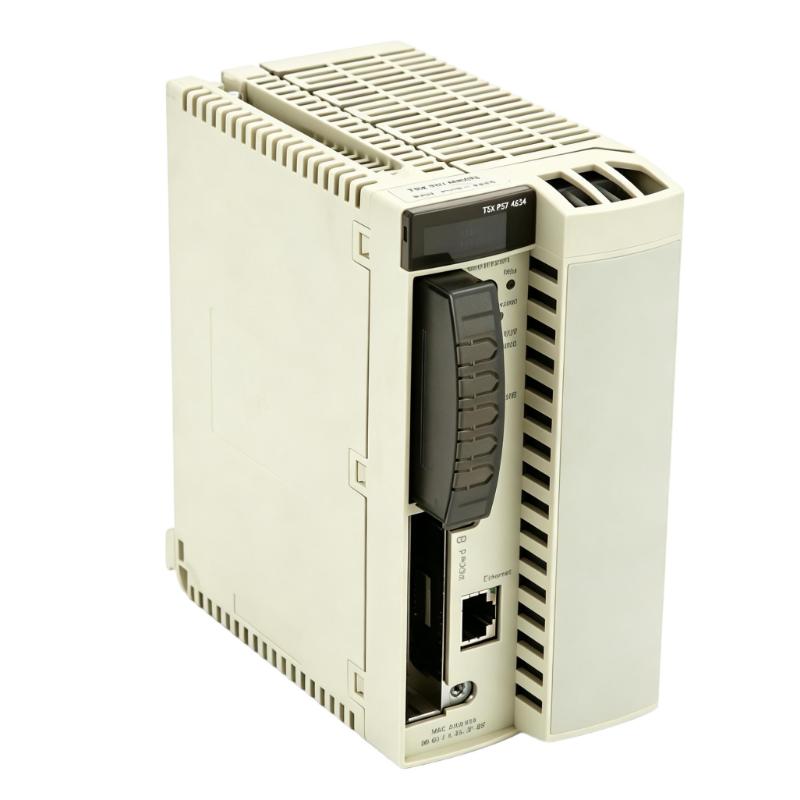

The Schneider Electric TSXP574634M Unity Processor is a high-capacity programmable logic controller (PLC) CPU designed for the Modicon Premium automation platform. It manages application logic, coordinates connected input and output modules, processes communication data, and supports automated control tasks in industrial production and process-control systems.

As a Unity processor, the TSXP574634M is designed for programming with Unity Pro software. It integrates Ethernet communication, a USB port, and an RS-485 serial connection, allowing it to exchange data with compatible industrial equipment and engineering systems.

The processor supports large Modicon Premium configurations, including up to eight racks with 12 slots or up to 16 racks with 4-, 6-, or 8-slot configurations, subject to the applicable system architecture. Its published capacity includes up to 2,040 discrete I/O points and 256 analog I/O points, making it suitable for complex automation applications that require centralized control of multiple field devices.

The TSXP574634M provides 440 KB of internal program and data memory without a PCMCIA memory card. With a compatible memory card, its documented memory configuration supports up to 2,048 KB of program memory and 440 KB of data memory. Additional data storage is available through a supported PCMCIA card.

This processor is relevant to existing industrial installations that use the Modicon Premium platform. Since the model has been discontinued, maintenance teams and procurement specialists should verify the complete part number, firmware and software compatibility, memory configuration, and installed rack architecture before selecting a replacement.

Technical Specifications

Note: I/O capacity and memory figures depend on the system configuration and installed memory options. The supplied dimensions are retained for the product listing; verify the mechanical drawing before designing a mounting arrangement.

Function and Working Principle

The TSXP574634M operates as the central processing unit of a Modicon Premium PLC system. It executes the control program, evaluates input data, updates output commands, and coordinates communication between the controller and connected automation equipment.

1. Program Execution

The processor executes the application logic developed in Unity Pro. The program may include Boolean logic, timers, counters, arithmetic calculations, sequencing, interlocks, and process-control functions.

During operation, the processor evaluates field information and determines the output states required by the control strategy. This allows machines and industrial processes to operate according to predefined conditions and real-time signals.

The processor supports a fast task, a master task, and event tasks. These task types allow engineers to organize control logic according to execution requirements and event-driven operations.

2. Input and Output Management

A PLC receives information from sensors and field devices through input modules and sends commands to actuators through output modules.

The TSXP574634M can manage a large Modicon Premium configuration with up to 2,040 discrete I/O points and 256 analog I/O points, subject to the system architecture and applicable configuration limits.

Discrete inputs may represent conditions such as limit-switch positions, equipment-ready signals, and motor feedback. Analog inputs may provide temperature, pressure, level, or flow measurements. Output modules then transmit the control commands required by the application.

3. Communication Processing

The integrated Ethernet interface supports TCP/IP communication with compatible industrial devices. Depending on the network design, this can include communication with supervisory systems, engineering workstations, and other controllers.

The processor also provides a USB interface and a non-isolated RS-485 serial connection. These interfaces serve different purposes and must be used according to the applicable hardware and software documentation.

Network addressing, protocol configuration, cabling, and device compatibility must be verified during commissioning.

4. Memory and Application Storage

The processor’s memory stores application instructions and data used during execution. Without a PCMCIA card, the documented internal memory configuration provides 440 KB for program and data.

With a compatible PCMCIA memory card, the configuration supports up to 2,048 KB of program memory and 440 KB of data memory. Additional supported cards can provide further data-storage capacity.

The correct memory configuration depends on the application size, data requirements, and installed options. Engineers should verify the actual card type and processor configuration before transferring or restoring a project.

5. Diagnostics and Fault Handling

The processor provides status indicators to assist with identifying operating conditions and system faults. These indicators can help maintenance personnel distinguish normal operation from processor, I/O, configuration, or communication problems.

Diagnostics should be interpreted alongside the application program, rack status, module indicators, and engineering-software information. A fault in a field device, power supply, cable, or I/O module may affect system operation even when the processor itself is functional.

Role in Industrial Control Systems

The TSXP574634M serves as the main logic-processing component in a Modicon Premium automation station. It coordinates connected I/O modules and communicates with other equipment to maintain the intended sequence and behavior of the controlled process.

PLC-Based Machine Control

In manufacturing systems, the processor can execute logic for conveyors, packaging equipment, material-handling systems, assembly machinery, and production sequences.

For example, the PLC may receive a sensor signal indicating that a product has reached a station. It can then check interlocks, command an actuator, wait for confirmation, and proceed to the next sequence step.

This centralized logic helps coordinate machine functions and makes operating conditions easier to monitor and troubleshoot.

Process Automation

The processor can support applications involving analog measurements, discrete control, and process sequencing. Depending on the program and connected modules, it may coordinate pumps, valves, temperature-control equipment, and other process devices.

Its documented process-control capabilities support applications with multiple simple control loops. The required performance must be assessed against the process dynamics, task configuration, and system design.

Supervisory System Integration

The integrated Ethernet interface allows the processor to exchange data with compatible supervisory and engineering systems. These connections can support monitoring, data acquisition, alarm handling, and operational diagnostics.

The actual communication capabilities depend on the configured protocols, software version, and connected devices. Network integration should be verified against the project’s communication requirements.

Distributed I/O Coordination

A Modicon Premium installation can use a suitable rack and module arrangement to connect field devices to the processor. This enables the controller to manage a broad range of discrete and analog signals.

The rack configuration, module placement, power requirements, and communication architecture must follow the applicable system design rules.

Industrial Applications

The TSXP574634M is suited to existing automation systems that require centralized control, extensive I/O management, and industrial communication.

1. Manufacturing and Assembly Lines

Manufacturing lines use PLC processors to coordinate product movement, assembly steps, sensors, actuators, and equipment interlocks.

The TSXP574634M can execute sequencing logic and coordinate multiple modules within a compatible Modicon Premium system. Its suitability depends on application size, execution requirements, and the condition of the existing control infrastructure.

2. Packaging and Material Handling

Packaging systems commonly require coordinated conveyor operation, product detection, counting, and machine sequencing.

The processor can combine signals from discrete inputs and commands to output devices to manage these activities. Ethernet communication can support data exchange with compatible supervisory equipment.

3. Water and Wastewater Systems

Water and wastewater installations may use PLCs to coordinate pumps, valves, tank-level monitoring, flow measurements, and alarm conditions.

When fitted with compatible I/O modules and correctly engineered control logic, the TSXP574634M can manage these functions within an existing Modicon Premium installation.

4. Energy and Utility Equipment

Industrial utility systems may require control of auxiliary machinery, monitoring signals, interlocks, and operating sequences.

The processor can serve as the central controller where its I/O capacity, processing performance, and communication capabilities meet the application requirements.

5. Process Manufacturing

Process facilities often combine analog measurements with discrete equipment control. The processor can manage signal processing, sequencing, and communication with connected automation devices.

For process-critical applications, engineers must verify the required scan times, control-loop behavior, fault response, and system availability before making changes to an established installation.

Installation and System Integration

Correct installation and configuration are essential for reliable operation of the TSXP574634M.

1. Verify the Processor and Rack Compatibility

Confirm that the processor is intended for the installed Modicon Premium rack and that the rack configuration is supported.

The CPU’s supported rack count and slot capacity depend on the selected rack types and system architecture. Do not assume that every rack or module can be combined in every configuration.

Before installation, check the CPU part number, hardware revision, rack arrangement, and connected module requirements.

2. Check the Backplane Power Requirements

The processor consumes 1,880 mA at 5 V DC through the compatible rack backplane. The system power supply must support the combined consumption of the processor and installed modules.

Calculate the power requirements for the entire rack configuration rather than checking only the CPU. Insufficient power capacity may cause startup failures, module faults, or unstable operation.

3. Plan Ethernet and Serial Connections

The integrated Ethernet port supports 10BASE-T/100BASE-TX TCP/IP communication. Confirm the required network settings, cable type, switch configuration, and communication protocol.

The RS-485 serial interface is non-isolated and uses a mini-DIN connector. Check the device requirements, wiring arrangement, grounding, and communication parameters before connecting external equipment.

4. Configure Unity Pro Software

Use a compatible version of Unity Pro and confirm that the project configuration matches the installed processor and I/O modules.

Before downloading a program, verify the CPU hardware, application version, memory configuration, and any required communication settings. Back up the existing project and current parameters before making changes to an operating installation.

5. Verify Memory Cards

If the application uses a PCMCIA memory card, confirm the card type and its intended use. Program memory, data storage, and application backup requirements should be assessed before replacing or formatting a card.

Preserve existing application data whenever possible, particularly when maintaining equipment that has been in service for many years.

6. Test the System Before Operation

After installation, verify the processor status, rack power, module indicators, communication connections, and I/O configuration.

Test field inputs and outputs in a controlled manner, confirm interlocks, and validate the application sequence before returning the equipment to normal production. Record any configuration changes for future maintenance.

Compatible System Components

The TSXP574634M is designed to operate within the Modicon Premium automation platform. Compatibility depends on the rack, power supply, I/O modules, communication devices, and software configuration.

The listed components are examples of equipment used in a compatible system; they are not necessarily included with the processor.

Alternative Models and Replacement Considerations

The TSXP574634M has been discontinued. Schneider Electric identifies the Modicon M580 BMEP583020 as a replacement direction, but this should be treated as an upgrade candidate rather than an automatic plug-in substitute.

Before choosing a replacement, review:

• The complete CPU part number and hardware revision.
• The existing rack types and number of installed modules.
• The application program and Unity Pro version.
• The I/O count and field wiring.
• The use of Ethernet, serial communication, and other network devices.
• The installed PCMCIA memory card and application backup.
• The required processing performance and task configuration.
• The availability of spare parts and long-term maintenance support.

When migrating to a newer platform, assess whether the original program can be converted directly or requires modification. Also verify I/O addressing, communication drivers, data types, alarm handling, and the commissioning procedure.

Key Advantages

High I/O Capacity

The processor supports up to 2,040 discrete I/O points and 256 analog I/O points in an appropriate system configuration, making it suitable for large existing Modicon Premium installations.

Integrated Ethernet Connectivity

The built-in Ethernet interface supports TCP/IP communication with compatible devices and supervisory systems.

Multiple Communication Interfaces

Ethernet, USB, and RS-485 interfaces provide different options for engineering access and industrial communication, subject to the applicable software and device requirements.

Expandable Memory Configuration

Supported PCMCIA cards provide additional memory capacity for applications with larger program or data requirements.

Structured Task Execution

Fast, master, and event tasks allow engineers to organize application logic according to execution needs.

Established Platform Compatibility

For facilities already using Modicon Premium hardware, maintaining the correct processor can help preserve the existing rack layout and field wiring while a longer-term migration plan is developed.

Technical FAQs

1. What is the Schneider Electric TSXP574634M?

It is a Unity processor for the Modicon Premium PLC platform. It executes application logic, manages connected I/O modules, and supports industrial communication.

2. Which programming software does it use?

The TSXP574634M is designed for Unity Pro. Verify the software version and project compatibility before connecting to an installed controller or transferring an application.

3. What is its maximum I/O capacity?

The published capacity is up to 2,040 discrete I/O points and 256 analog I/O points, subject to the supported system configuration.

4. Does it have built-in Ethernet?

Yes. It includes an Ethernet TCP/IP interface supporting 10BASE-T/100BASE-TX. The communication protocol and application settings must be configured appropriately.

5. What serial interface is available?

The processor includes a non-isolated RS-485 serial interface with a mini-DIN connector, specified at 19.2 kbit/s.

6. How much memory does the processor have?

Without a PCMCIA memory card, the documented configuration provides 440 KB of program and data memory. With a compatible card, the configuration supports up to 2,048 KB of program memory and 440 KB of data memory.

7. What is the processor’s power requirement?

Its specified current consumption is 1,880 mA at 5 V DC through the rack backplane. The rack power supply must also support all other installed modules.

8. Is the TSXP574634M still in production?

No. The model has been discontinued. Availability may depend on remaining inventory, refurbished stock, and specialist industrial automation suppliers.

9. Can it be replaced with a Modicon M580 processor?

Schneider Electric lists the BMEP583020 as a replacement direction. However, an M580 is a different platform, so the change requires evaluation of hardware architecture, application conversion, I/O migration, communication, and commissioning.

10. What should be checked before purchasing a used processor?

Verify the exact part number, physical condition, connector condition, status indicators, hardware revision, and availability of suitable test results. Confirm whether the existing application and memory configuration can be supported.

Procurement and Maintenance Recommendations

Because the TSXP574634M is a discontinued processor, procurement should begin with the exact part number and the requirements of the installed Modicon Premium system.

For a replacement unit, confirm the rack configuration, memory requirements, communication interfaces, software compatibility, and application backup. A processor that looks identical may have a different part number or hardware revision, so identification should be based on the label rather than appearance alone.

When sourcing new-old-stock, refurbished, or used equipment, request clear photographs of the nameplate and connectors. Ask for details of the unit’s condition, available testing, warranty, and return policy. If the controller is used in a critical production process, consider functional testing before installation.

During maintenance, preserve the existing Unity Pro project and document the current configuration before making changes. Check rack power, connectors, communication cables, module status, and the condition of the installation environment.

For long-term planning, evaluate whether continued support of the Modicon Premium platform or migration to a modern PLC system is more appropriate. A migration plan should include hardware replacement, program conversion, I/O validation, network changes, and commissioning tests.

Conclusion

The Schneider Electric TSXP574634M Unity Processor is a central processing unit for the Modicon Premium PLC platform. It supports large I/O configurations, Unity Pro programming, integrated Ethernet TCP/IP, USB, RS-485 serial communication, and expandable memory through compatible PCMCIA cards.

Its established capabilities make it relevant to maintenance and spare-parts requirements for existing Modicon Premium systems. However, because the model is discontinued, buyers should verify hardware and software compatibility carefully. Where a platform upgrade is planned, the Modicon M580 BMEP583020 can be evaluated as a replacement direction, with appropriate engineering and commissioning work.
