Product Overview

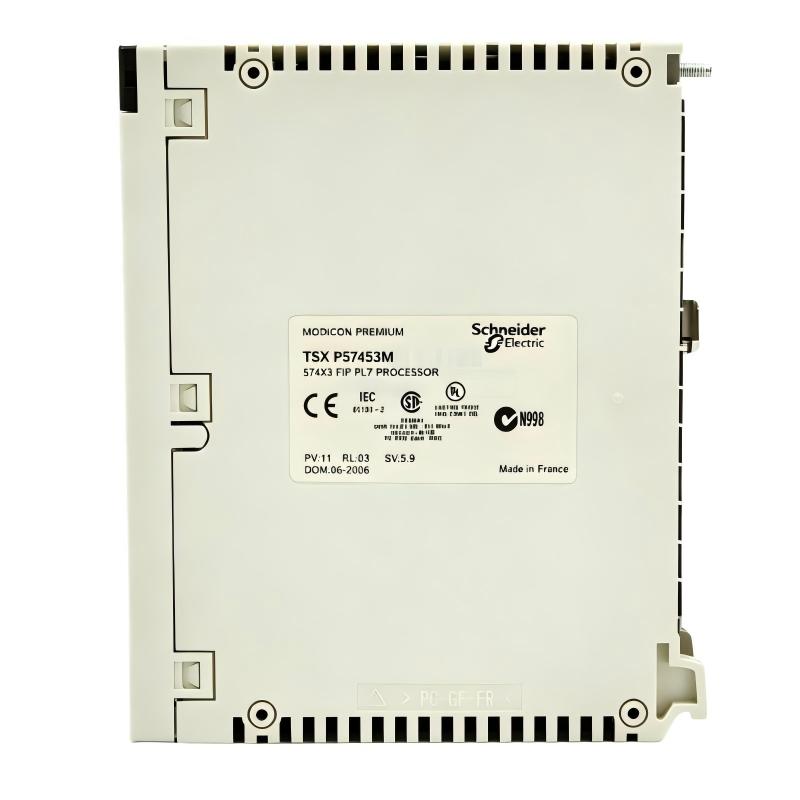

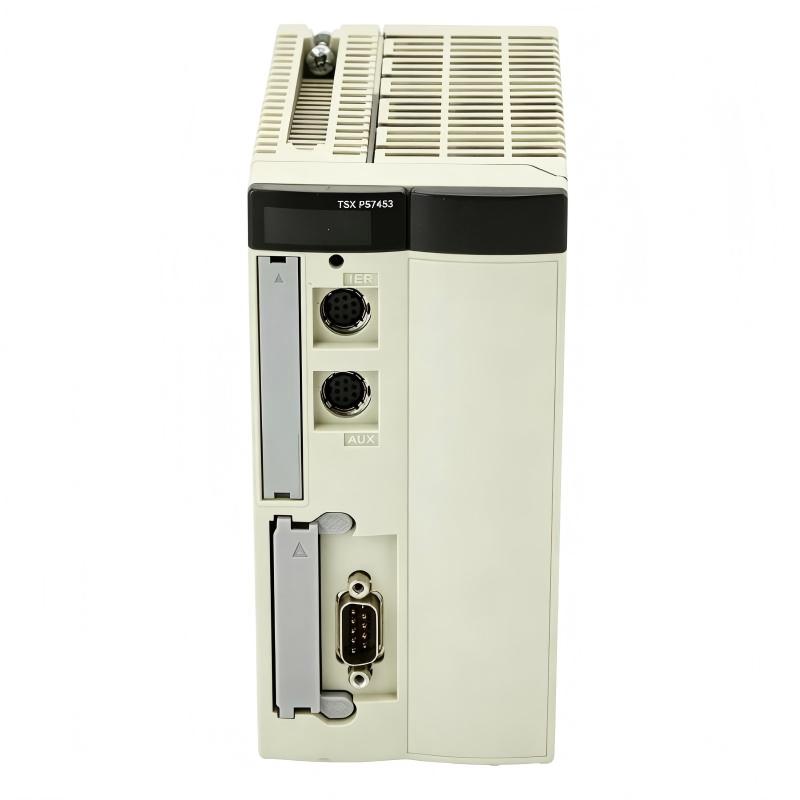

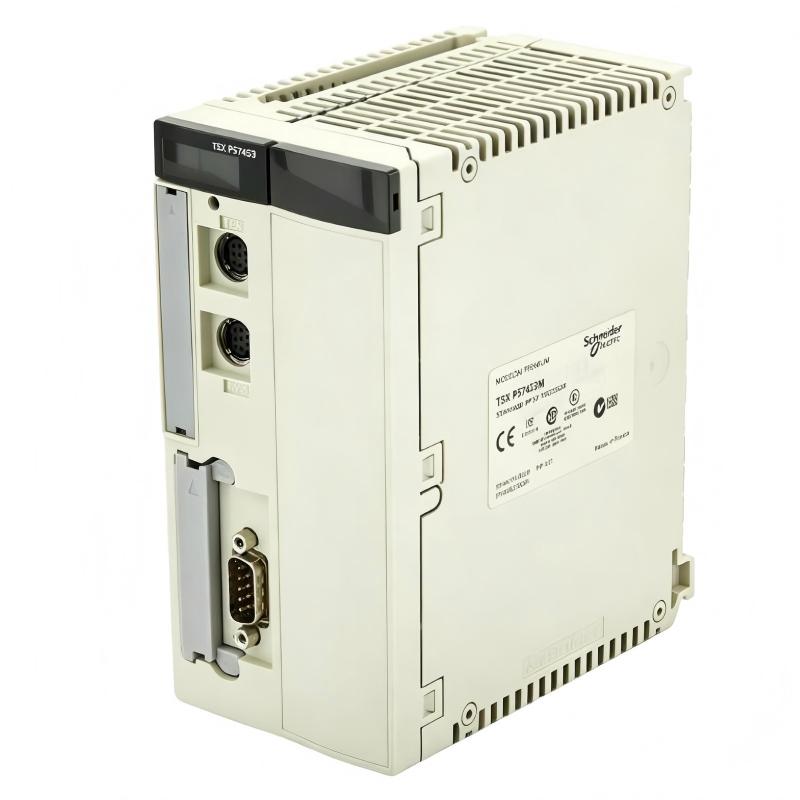

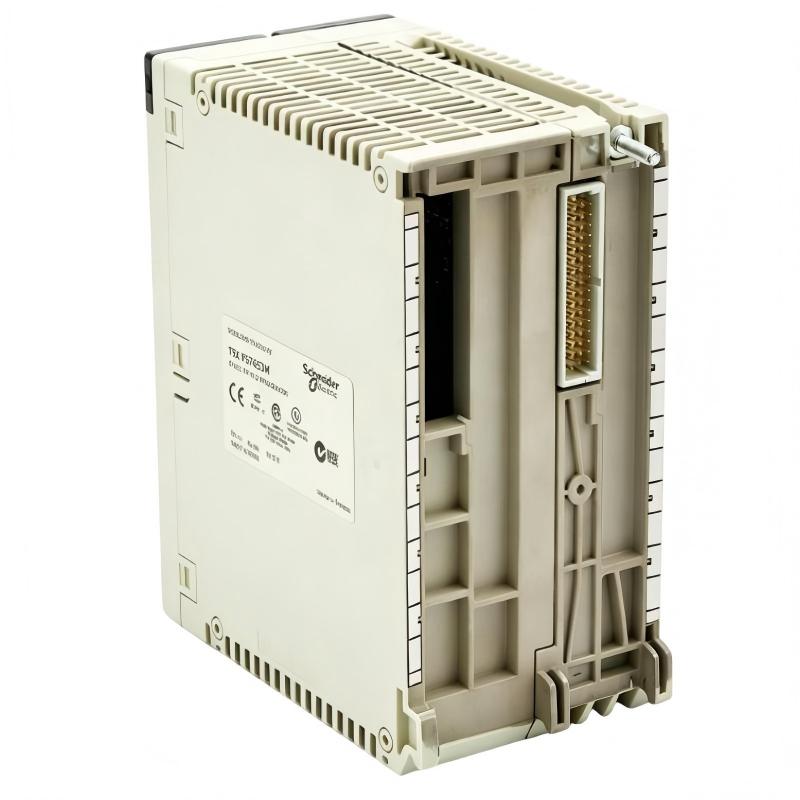

The Schneider Electric TSXP57453M FIP PL7 Processor is a programmable logic controller (PLC) processor designed for industrial automation applications using the Modicon Premium control platform. It serves as the central processing component of a PLC station, executing the control program, processing input and output data, and coordinating communication with connected automation devices.

In an industrial control system, the processor receives information from field devices and input modules, evaluates programmed logic, and updates outputs to control machinery or process equipment. This enables automated systems to perform operations such as sequencing, interlocking, equipment monitoring, and process coordination.

The TSXP57453M belongs to the 574X3 FIP PL7 processor family. Its FIPIO manager interface supports communication with compatible distributed devices, while its serial communication interfaces support connections to appropriate programming, monitoring, or control equipment. The processor is intended for systems developed using Schneider Electric’s PL7 programming environment.

As part of a modular PLC architecture, the processor operates with compatible racks, power supplies, I/O modules, and communication accessories. The precise configuration depends on the installed Modicon Premium system and the requirements of the application.

The TSXP57453M has been discontinued. It remains relevant to industrial facilities maintaining existing Modicon Premium systems, particularly where replacing the processor would require substantial changes to application software, communication settings, or control-panel hardware.

For maintenance and procurement, it is important to distinguish the TSXP57453M from related processor models with similar catalog numbers. Differences in suffixes can indicate changes in communication features, memory, or other hardware characteristics. Always verify the complete reference before ordering.

Technical Specifications

Note: The dimensions and weight are the supplied listing values. Confirm the physical dimensions and exact suffix against the product label before finalizing a technical datasheet or installation drawing.

Function and Working Principle

The TSXP57453M operates as the processing center of a PLC system. It executes the user application and manages the exchange of data between the control program, I/O system, and compatible communication devices.

1. PLC Program Execution

A PLC processor repeatedly executes the programmed control logic. Depending on the application, the program may evaluate sensor states, compare process values with configured limits, operate timers and counters, and determine when outputs should change.

For example, a production machine may use sensor signals to detect an incoming product. The processor evaluates the sensor state and the machine sequence before commanding the next operation. Similar logic can coordinate conveyors, valves, motors, and alarms.

The processor’s behavior depends on the application program, hardware configuration, and operating settings.

2. Input and Output Data Processing

The CPU exchanges data with compatible digital and analog I/O modules. Digital inputs provide on/off information from devices such as limit switches and proximity sensors. Analog inputs can provide measured values such as pressure, temperature, or flow when supported by the installed modules.

The processor uses these values in the control program and updates the appropriate output data. Actual field signals are handled by the relevant I/O modules rather than directly by the processor alone.

3. FIPIO Communication

The TSXP57453M is identified as a FIP PL7 processor with an integrated FIPIO manager interface. FIPIO is used in compatible industrial automation architectures to exchange data between the controller and distributed devices.

This capability can support communication with appropriate remote or distributed automation components. Correct operation depends on device compatibility, bus configuration, addressing, cabling, and the application configuration.

FIPIO should not be confused with Ethernet-based industrial networking. If a modernization project requires Ethernet communication, the available interfaces and the proposed replacement architecture must be assessed separately.

4. Serial Communication

The processor family uses serial communication interfaces for compatible equipment and system services. Depending on the application, serial connections may support programming, monitoring, or data exchange with suitable devices.

Before connecting equipment, confirm the exact port type, electrical interface, supported protocol, and cable requirements. A connector’s physical appearance alone does not establish protocol compatibility.

5. Diagnostics and Fault Handling

PLC processors typically use status indicators and diagnostic information to help maintenance personnel identify operating conditions and system faults. Depending on the installed hardware and software, troubleshooting may involve checking processor status, I/O configuration, communication activity, and application errors.

Correct diagnosis requires reviewing the actual system indicators and documentation rather than assuming that every fault originates in the CPU.

Role in Industrial Control Systems

The TSXP57453M is designed to coordinate control operations within a Modicon Premium PLC installation.

Centralized Machine Control

The processor executes the application logic that governs machine sequences, equipment interlocks, operating modes, and fault responses. It can coordinate multiple I/O modules so that different parts of a machine operate according to a defined sequence.

Distributed Automation

With its FIPIO manager interface, the processor can participate in a compatible distributed control architecture. Distributed devices can exchange relevant data with the PLC, allowing control logic to coordinate equipment beyond the local rack.

The exact number and type of supported devices depend on the applicable configuration and product documentation.

Process Monitoring

The processor can use data received from compatible I/O modules to evaluate process conditions and trigger control actions. For example, it may monitor a sensor threshold and command an output when the required condition is met.

Applications involving precise process control must use suitable measurement modules, control logic, and validated operating parameters.

Integration with Operator Systems

An operator interface can provide machine status, alarm displays, and control commands. The processor’s ability to communicate with a particular HMI or supervisory system depends on the interface, protocol, software, and any required communication modules.

When maintaining an older installation, preserve the original communication configuration and application documentation wherever possible.

Industrial Applications

The TSXP57453M may be found in legacy industrial automation systems where a Modicon Premium PLC controls machinery or production processes.

1. Manufacturing Machinery

PLC processors are used to coordinate machine sequences, monitor sensors, control actuators, and manage operating interlocks. The TSXP57453M can serve this role in a compatible Modicon Premium installation.

2. Material Handling

Material-handling systems use PLC logic to coordinate conveyors, transfer stations, and related equipment. The processor can evaluate sensor signals and manage sequence transitions through the installed I/O system.

3. Process Automation

Industrial processes may require monitoring and control of pressure, temperature, flow, and equipment status. With suitable I/O modules and application logic, the processor can participate in these control tasks.

4. Packaging and Assembly Lines

Packaging and assembly equipment often relies on PLC-based sequencing to coordinate product detection, positioning, feeding, and machine operation. The processor executes the programmed logic and exchanges data with the compatible control hardware.

5. Legacy Production Systems

In established plants, an older PLC processor may remain part of a validated machine or production line. Replacing it can involve application conversion, new communication interfaces, panel changes, and recommissioning. Maintaining the existing processor may therefore be considered while a longer-term modernization plan is prepared.

The suitability of the TSXP57453M for any application depends on the existing hardware configuration, program requirements, environmental conditions, and lifecycle-support needs.

Installation and System Integration

1. Verify Platform Compatibility

Confirm that the processor is intended for the installed Modicon Premium rack and system configuration. Check the full catalog number and any suffix markings before installation.

Do not assume that a processor with a similar model number is interchangeable. Related models may differ in interfaces, memory, or system capabilities.

2. Check the Rack and Power Supply

The processor must be installed in a compatible rack with an appropriate power supply. Verify the rack arrangement, module position, power requirements, and installation instructions before inserting the module.

Power down the system and follow the manufacturer’s safety procedures before removing or installing hardware unless the exact system explicitly supports a specified energized procedure.

3. Confirm Communication Wiring

Check the FIPIO connection and any serial connections used by the application. Verify cable type, connector, wiring, network configuration, and device addressing.

Incorrect cabling or configuration can cause communication failures even when the processor itself is functional.

4. Verify the Application Program

Before replacing a processor, back up the existing PLC application and relevant configuration files whenever possible. Record hardware settings, communication parameters, I/O assignments, and any system-specific documentation.

Confirm that the available programming environment and project files are appropriate for the existing controller. Avoid making changes to a running production system without an approved backup and recovery procedure.

5. Commission the System

After installation, check processor status, rack configuration, I/O operation, communication activity, and application execution. Test machine sequences and interlocks under controlled conditions before returning the equipment to normal operation.

Document any changes made during commissioning so that future maintenance personnel can reproduce the intended configuration.

Compatible System Components

The TSXP57453M is part of a modular PLC system. Its companion components must be selected according to the installed Modicon Premium platform and the application configuration.

This table describes system component categories, not an included accessories list. The actual configuration must be checked against the installed PLC system.

Alternative Models and Replacement Considerations

Schneider Electric lists the TSXP57453M as discontinued and identifies the Modicon M580 BMEP583020 as a replacement direction. This does not mean the M580 processor is a direct plug-in replacement for the existing Premium CPU.

Before selecting an alternative, evaluate:

• The existing rack and power supply.
• PLC program compatibility and conversion requirements.
• I/O modules and addressing.
• FIPIO and serial communication dependencies.
• HMI and supervisory-system interfaces.
• Required memory and application performance.
• Safety and process validation requirements.
• Commissioning, downtime, and maintenance resources.

A modernization project should include a documented migration plan, backup and recovery strategy, testing, and a controlled commissioning process.

Key Advantages

Integrated PLC Processing

The processor executes application logic and coordinates data exchange within a compatible Modicon Premium system.

FIPIO Manager Interface

The integrated FIPIO manager supports communication with compatible distributed automation devices.

Serial Communication Support

Compatible serial interfaces can support legacy programming and data communication arrangements, subject to the exact model configuration.

Modular System Architecture

The processor operates within a modular PLC platform, allowing control functions to be combined with compatible input, output, and communication modules.

Continued Relevance in Legacy Installations

The TSXP57453M remains relevant when maintaining existing production equipment where a processor replacement or platform migration must be carefully planned.

Technical FAQs

1. What is the Schneider Electric TSXP57453M?

It is a 574X3 FIP PL7 processor for the Modicon Premium PLC platform. It executes the control program and manages data exchange with compatible system components.

2. Which programming environment does it use?

The product is associated with Schneider Electric’s PL7 programming environment. Verify software and project compatibility before modifying or replacing an existing processor.

3. Does the TSXP57453M support FIPIO?

Yes. Its product designation identifies it as a FIP PL7 processor with an integrated FIPIO manager interface. Connected devices must be compatible with the configured FIPIO system.

4. Is the TSXP57453M still in production?

No. Schneider Electric lists the model as discontinued on September 5, 2022. Availability of unused, refurbished, or tested units depends on the supplier.

5. Can it be replaced with a Modicon M580 processor?

Schneider Electric identifies the BMEP583020 as a replacement direction. However, the M580 belongs to a different PLC platform, so the migration may require hardware changes, application conversion, communication updates, and commissioning.

6. Can I replace it with another Modicon Premium processor?

Possibly, but compatibility must be confirmed. Check the complete model number, rack requirements, memory, communication interfaces, application program, and I/O configuration before selecting a substitute.

7. What should be checked before purchasing a used unit?

Confirm the complete catalog number, physical condition, connector condition, available test results, and supplier warranty. If the module is intended for a critical production system, request suitable functional testing before installation.

8. Why should the dimensions be verified?

The supplied dimensions are useful for a product listing, but the actual module’s mechanical envelope and mounting requirements should be checked against the manufacturer documentation before panel or rack work.

Procurement and Maintenance Recommendations

Because the TSXP57453M is discontinued, buyers should confirm the exact model and the condition of the available unit before ordering. The complete catalog number should match the installed processor, including all suffix characters.

For surplus or refurbished equipment, request clear photographs of the label and connectors, information about the testing performed, and details of the warranty and return policy. Verify that the product is the processor itself rather than a related model or an incomplete assembly.

During maintenance, preserve the PLC application, hardware configuration, communication settings, and relevant wiring documentation. A replacement processor may require restoration of the application and system configuration before the machine can resume normal operation.

For long-term planning, evaluate the availability of compatible spare parts, programming tools, and communication accessories. If the plant intends to migrate to a newer PLC platform, prepare a documented plan covering program conversion, I/O mapping, communication changes, testing, and downtime.

Conclusion

The Schneider Electric TSXP57453M FIP PL7 Processor is a Modicon Premium PLC CPU designed for industrial control applications requiring program execution, I/O coordination, and communication with compatible automation devices. Its integrated FIPIO manager interface makes it relevant to existing distributed automation architectures.

Since the TSXP57453M has been discontinued, accurate model verification is essential for replacement and maintenance. For continued operation of an existing system, confirm hardware and software compatibility before installation. For modernization projects, assess the Modicon M580 BMEP583020 and other suitable alternatives through a complete migration and commissioning plan.
