Product Overview

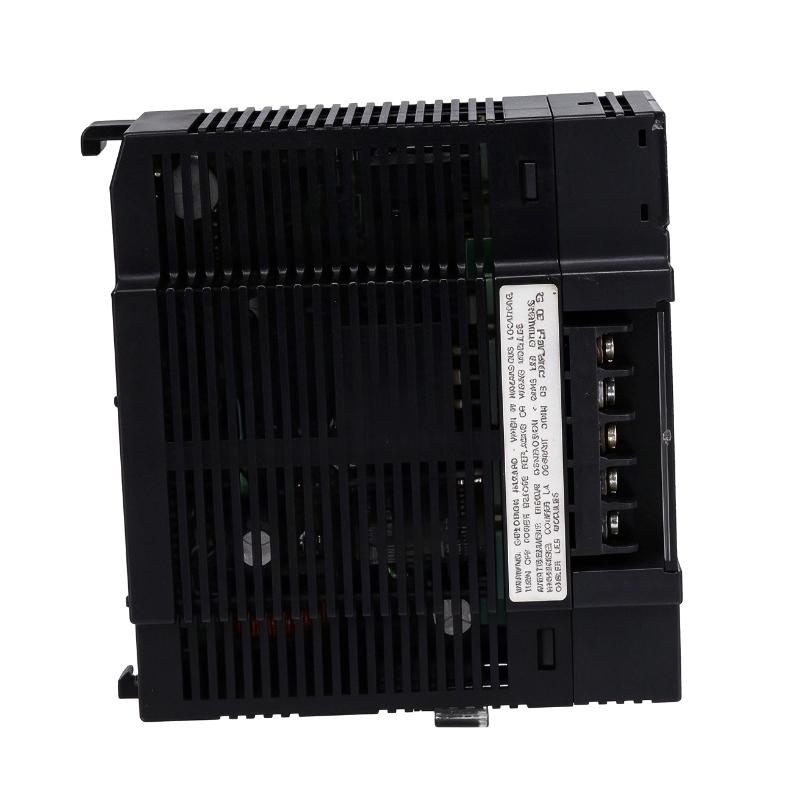

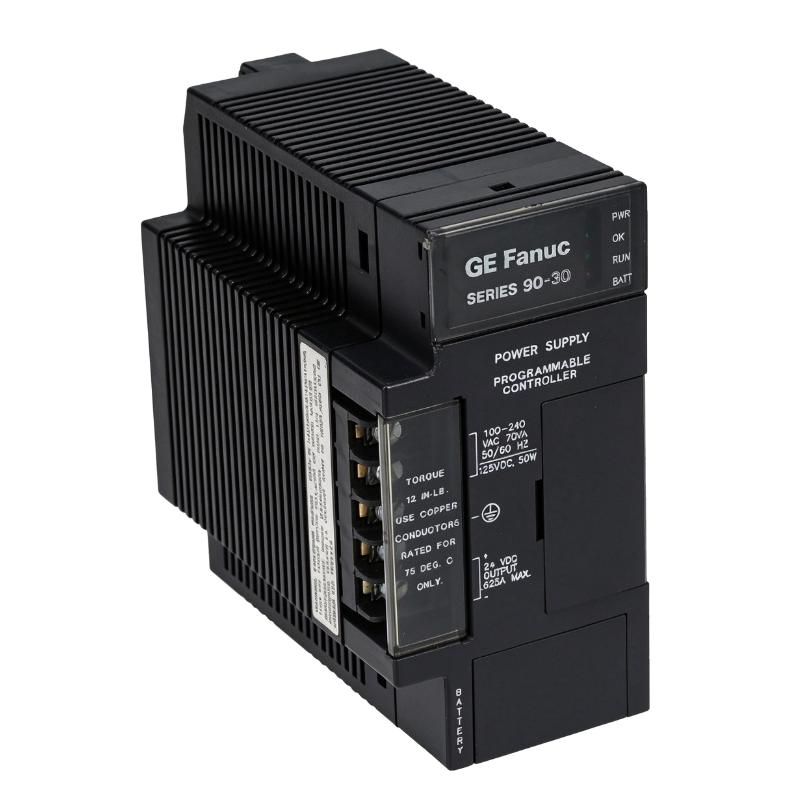

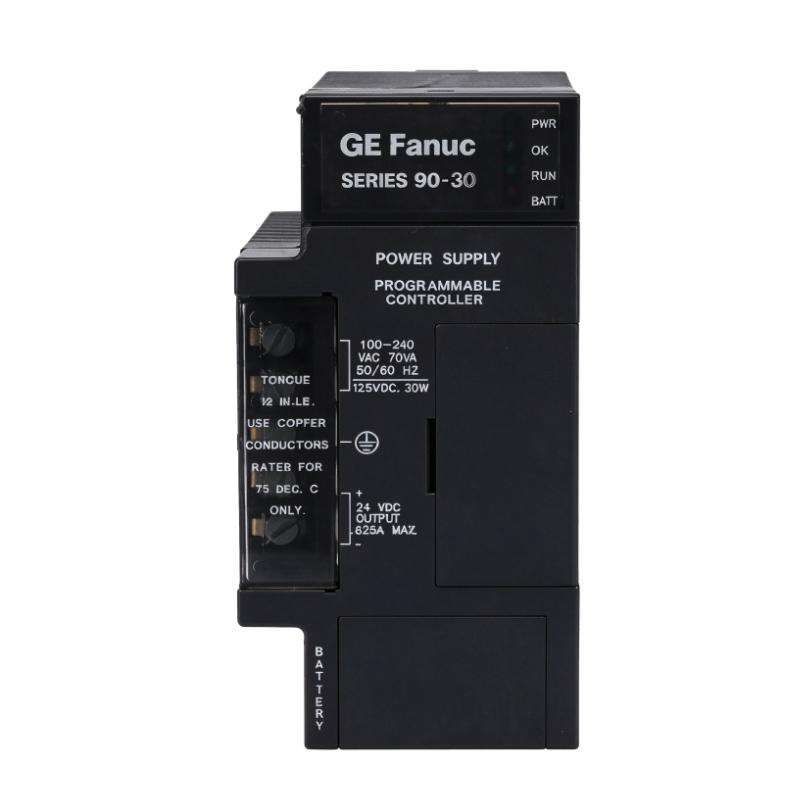

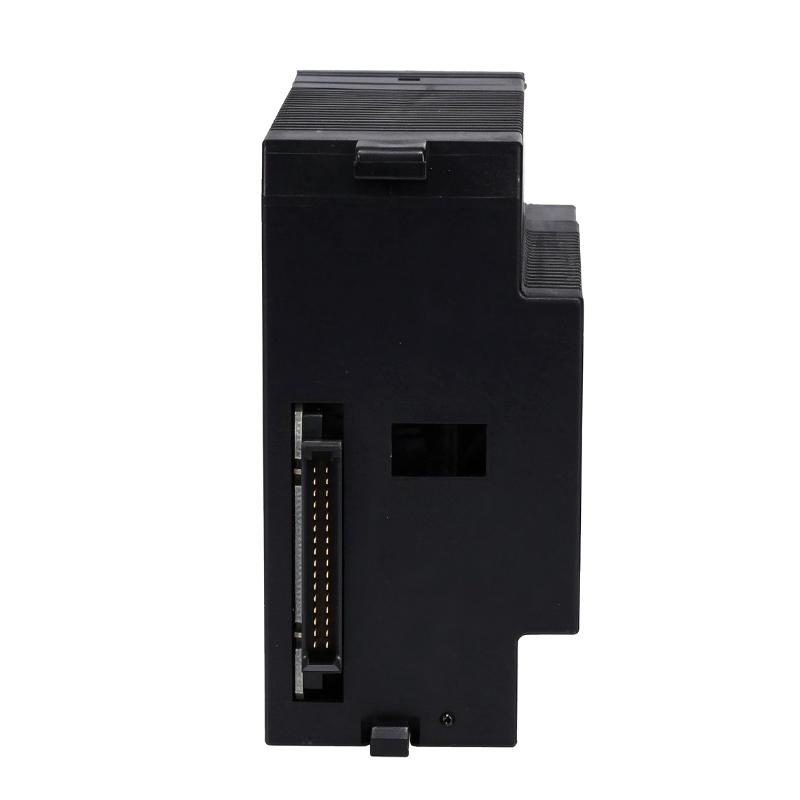

The GE Fanuc IC693PWR321W Power Supply is an industrial power supply module designed for the GE Fanuc Series 90-30 programmable logic controller (PLC) platform. It provides regulated DC power to the PLC backplane and compatible modules, supporting the operation of industrial automation and machine-control systems.

A reliable power supply is essential to PLC operation because the CPU, input and output modules, and other installed components depend on stable electrical power. The IC693PWR321W converts an appropriate AC or DC input into multiple DC output rails to support different power requirements within the control system.

This model belongs to the standard 30 W power supply family. It accepts a nominal 120/240 V AC supply or a 125 V DC supply, with a documented input range of 85–264 V AC or 100–300 V DC. Its outputs include +5 V DC, +24 V DC relay power, and isolated +24 V DC power. The combined output power must remain within the module’s 30 W capacity.

The IC693PWR321W is intended for installation in a compatible Series 90-30 PLC baseplate. The power supply occupies the leftmost slot of the baseplate, where it provides the required power to the controller assembly. System designers must verify the CPU, I/O module, and power supply revision compatibility before installation, particularly when maintaining older PLC systems.

This module is relevant to industrial maintenance, spare-parts procurement, and the continued operation of existing automation equipment. Correct model identification is important because different Series 90-30 power supplies may have different input requirements, output capacities, and compatibility characteristics.

Technical Specifications

Note: Output capacities are individual limits, not simultaneous maximums. The combined load across all outputs must not exceed 30 W. Confirm the exact unit’s nameplate and hardware revision before installation.

Function and Working Principle

The IC693PWR321W supplies the regulated DC power required by the PLC assembly. It accepts a supported AC or DC input and provides several output rails for different system loads.

1. AC and DC Input Compatibility

The power supply supports nominal 120/240 V AC or 125 V DC input. Its documented input ranges allow it to operate with compatible supply sources within specified limits.

This flexibility can be useful in industrial facilities where control cabinets have different electrical supply arrangements. However, the supply must be wired according to the correct input configuration and installation instructions.

Before energizing the module, technicians should verify the source voltage, wiring terminals, protective devices, and grounding arrangement.

2. Regulated +5 V DC Output

The +5 V DC output provides power to the PLC backplane and compatible electronic modules. The CPU and other system components depend on this supply for normal operation.

The module provides up to 15 W for the +5 V DC output, subject to the overall 30 W limit. Engineers should calculate the combined current consumption of the installed modules before commissioning or expanding a PLC rack.

3. +24 V DC Relay Power

The power supply provides a +24 V DC relay output intended for compatible relay circuits in the Series 90-30 system.

This output can support relay-related functions in appropriate output modules. The load must remain within the specified output capacity, and the connected modules must be compatible with the power supply configuration.

4. Isolated +24 V DC Output

The isolated +24 V DC output provides an additional supply for compatible modules and can support external 24 V DC input circuits where permitted by the system design.

Its isolation characteristics help separate this supply from other electrical circuits. Nevertheless, system grounding, wiring, and load requirements must follow the manufacturer’s installation instructions.

5. Combined Power Management

Although the individual output rails have separate capacity limits, their loads share a total output budget of 30 W. This distinction is important when calculating power consumption.

A rack that appears to be within the limit on one output may still exceed the total capacity when all output loads are combined. Proper load calculations help prevent unexpected power-related faults and controller instability.

Role in Industrial Control Systems

The IC693PWR321W provides the electrical foundation for a compatible Series 90-30 PLC assembly. Its performance directly affects the operation of the controller and connected automation modules.

PLC CPU Power

The PLC CPU processes the control program, evaluates input signals, and updates outputs. It requires a suitable and stable power supply to perform these functions reliably.

The IC693PWR321W supports compatible CPU configurations, subject to the required power budget and hardware revision. The exact CPU model and revision should be checked before selecting the power supply.

Input and Output Module Support

Digital and analog I/O modules allow the PLC to receive information from field devices and issue commands to actuators. These modules consume power from the PLC system and may also require specific external supply arrangements.

The available output rails and total power capacity must be considered when designing or modifying the rack. Adding I/O modules without recalculating the power budget can lead to an overloaded supply.

Industrial Process Control

In an automated production line, the PLC may control motors, valves, pumps, conveyors, sensors, and other equipment. The power supply supports the PLC hardware that executes the corresponding control logic.

The IC693PWR321W does not directly drive large motors or industrial loads. Instead, it powers the PLC assembly, which controls field equipment through suitable I/O modules, relays, drives, and other interface devices.

System Maintenance and Availability

In an established Series 90-30 installation, replacing a defective power supply can be part of restoring the controller to service. Correct replacement selection helps preserve the existing rack configuration and reduces the risk of introducing incompatible hardware.

Before replacement, technicians should verify the catalog number, revision, input supply, output requirements, and compatibility with the installed CPU and modules.

Industrial Applications

The IC693PWR321W can be used in compatible Series 90-30 PLC installations across different industrial environments.

1. Manufacturing Automation

Manufacturing systems use PLCs to coordinate sensors, actuators, machine sequences, and safety-related interlocks. The power supply supports the PLC hardware responsible for executing these control tasks.

Applications may include assembly equipment, production machinery, material-handling systems, and automated workstations.

2. Packaging Machinery

Packaging equipment commonly uses PLCs to coordinate product detection, conveyor movement, filling operations, sealing, and counting. The IC693PWR321W can support a compatible Series 90-30 controller used in these systems.

Reliable power is important because unstable PLC operation can interrupt machine sequencing and production flow.

3. Process Automation

Industrial process systems use PLCs to monitor field signals and control valves, pumps, and auxiliary equipment. The power supply supports the controller and compatible I/O modules that handle these functions.

The installed modules and their power consumption must be checked to ensure the total load remains within the power supply’s rated capacity.

4. Water and Wastewater Equipment

Water treatment and wastewater installations may use PLCs for pump sequencing, tank-level monitoring, valve control, and alarm handling.

A compatible Series 90-30 PLC system can perform these tasks, while the IC693PWR321W provides power to the controller assembly. The suitability of the complete system depends on environmental conditions, field wiring, and the required control functions.

5. Legacy Industrial Equipment

Many industrial facilities continue to operate established automation systems because replacing an entire control platform can require substantial engineering work.

For these installations, the IC693PWR321W may be relevant as a maintenance spare. Before purchasing, confirm the exact hardware revision and compatibility requirements of the installed Series 90-30 rack.

Installation and System Integration

Correct installation helps protect the power supply, PLC modules, and connected equipment.

1. Verify the Input Supply

Confirm that the available source matches the permitted AC or DC input range. The module supports 85–264 V AC or 100–300 V DC, with nominal ratings of 120/240 V AC or 125 V DC.

Use the correct wiring terminals and follow the manufacturer’s installation instructions. Do not assume that every supply terminal is interchangeable between AC and DC configurations.

2. Install in the Correct Baseplate Position

The IC693PWR321W is designed for the Series 90-30 PLC platform and must be installed in the leftmost slot of a compatible baseplate.

Check the baseplate model, mechanical fit, connectors, and module-retention arrangements before installation. Never force the module into a connector that does not align correctly.

3. Calculate the Power Budget

Before adding or replacing modules, calculate the total load on the +5 V DC, +24 V DC relay, and isolated +24 V DC outputs.

The combined output power must remain within 30 W. Each individual output must also remain within its own rating.

When planning an expansion, review the power requirements of the CPU and every installed module rather than considering only the number of available slots.

4. Check Hardware Revision Compatibility

Series 90-30 systems have multiple CPU and module revisions. Compatibility may depend on the CPU model, installed communication modules, and the revision of the power supply.

For example, some Series 90-30 Ethernet interface configurations have specific power supply revision requirements. Verify the relevant module manuals and compatibility documentation before replacing an existing supply.

5. Observe Electrical Safety Requirements

Isolate the power source before removing or installing the module, and follow the site’s lockout/tagout procedures. Verify that hazardous voltage has been removed before handling wiring or connectors.

Use suitable protective devices, maintain proper grounding, and ensure the cabinet provides an appropriate operating environment.

6. Test After Installation

After installation, verify that the power supply is seated correctly and that all input wiring is secure. Energize the system according to the commissioning procedure and inspect the module’s status indicators.

Confirm that the PLC starts normally, that installed modules are recognized, and that no power-related faults are reported. Record the installed model and revision for future maintenance.

Compatible System Components

The IC693PWR321W is intended for use within a compatible GE Fanuc Series 90-30 PLC assembly.

These components are examples of equipment used in a complete automation installation. They are not necessarily supplied with the IC693PWR321W.

Alternative Models and Replacement Considerations

Several power supply models belong to the GE Fanuc Series 90-30 family, but they are not interchangeable in every application.

When considering a replacement, compare the input voltage, output rail capacity, total power budget, physical fit, hardware revision, and compatibility with the installed CPU and I/O modules.

Do not choose a replacement based only on nominal wattage. A supply with a similar total output rating may allocate its power differently or lack a required output.

Key Advantages

Multiple Input Options

The documented AC/DC input capability supports installations with compatible AC or DC supply sources, providing flexibility for different industrial electrical arrangements.

Three DC Output Rails

The module supplies +5 V DC, +24 V DC relay power, and isolated +24 V DC, supporting different power requirements within a compatible Series 90-30 PLC assembly.

Compact PLC Power Supply Design

Its modular format allows it to be installed in the designated position on a compatible Series 90-30 baseplate.

Defined Output Capacity

The 30 W total output rating provides a clear basis for calculating the power budget of the PLC assembly and determining whether the installed modules can be supported.

Support for Existing Automation Systems

The module is relevant to maintenance and spare-parts requirements for established Series 90-30 PLC installations, helping facilities maintain existing control equipment where compatible replacement parts are available.

Technical FAQs

1. What is the GE Fanuc IC693PWR321W?

It is a standard power supply module for compatible GE Fanuc Series 90-30 PLC systems. It converts an appropriate AC or DC input into several DC output rails for the PLC assembly.

2. What input voltage does the IC693PWR321W support?

It supports 85–264 V AC or 100–300 V DC input, with nominal ratings of 120/240 V AC or 125 V DC. Confirm the nameplate and wiring instructions before applying power.

3. What is the total output power?

The module provides a maximum combined output of 30 W. The combined load across all output rails must not exceed this limit.

4. What output voltages are available?

The documented outputs are +5 V DC, +24 V DC relay power, and isolated +24 V DC. Each output has its own capacity limit.

5. Where should the module be installed?

It must be installed in the leftmost slot of a compatible Series 90-30 baseplate.

6. Can the IC693PWR321W power all modules in a PLC rack?

It can power a compatible rack only if the installed modules’ combined consumption remains within the power supply’s output limits. Calculate the load for each output and the total load before adding modules.

7. Can it be used with an Ethernet interface module?

Compatibility depends on the specific Ethernet module, CPU, and power supply revision. Some Series 90-30 Ethernet configurations require a particular power supply revision. Check the applicable compatibility documentation before installation.

8. Is the IC693PWR321W suitable as a replacement for IC693PWR330?

Not automatically. Although both are Series 90-30 power supplies, their output arrangements and capacities differ. Confirm the required output rails and compatibility with the installed system before substitution.

9. What should be checked when purchasing a replacement?

Verify the complete model number, hardware revision, condition, input ratings, output specifications, connector condition, and compatibility with the PLC baseplate and CPU.

10. What are the supplied dimensions and weight?

The supplied listing specifications are 129 × 52 × 117 mm and 0.5 kg. Verify the actual unit and packaging measurements before using them for shipping or enclosure planning.

Procurement and Maintenance Recommendations

When purchasing the GE Fanuc IC693PWR321W, verify the exact model and revision against the installed PLC system. The input voltage range, output rail capacities, and total power rating must match the application requirements.

For used, refurbished, or surplus equipment, request clear photographs of the product label and connectors. Confirm the unit’s condition, testing status, warranty terms, and return policy before ordering.

For maintenance, periodically inspect the power supply and surrounding cabinet for loose wiring, contamination, overheating, and signs of electrical damage. Follow the manufacturer’s service procedures and site safety requirements when working on the PLC assembly.

Keep a record of the installed power supply model and revision, the PLC CPU model, the installed modules, and the calculated power budget. This information helps technicians assess compatibility and identify appropriate replacements during future maintenance.

If a replacement power supply is required, check the available Series 90-30 alternatives carefully. Different models may have different input requirements or output allocations, and a substitution should not be approved solely because the nominal power rating appears similar.

Conclusion

The GE Fanuc IC693PWR321W Power Supply is a 30 W AC/DC power supply module designed for compatible Series 90-30 PLC systems. It supports 85–264 V AC or 100–300 V DC input and provides +5 V DC, +24 V DC relay power, and isolated +24 V DC outputs.

Its correct application depends on the PLC baseplate, CPU and module compatibility, hardware revision, and total power budget. For industrial maintenance and spare-parts procurement, verifying these requirements before installation helps support stable PLC operation and reduces the risk of compatibility problems.
