Product Overview

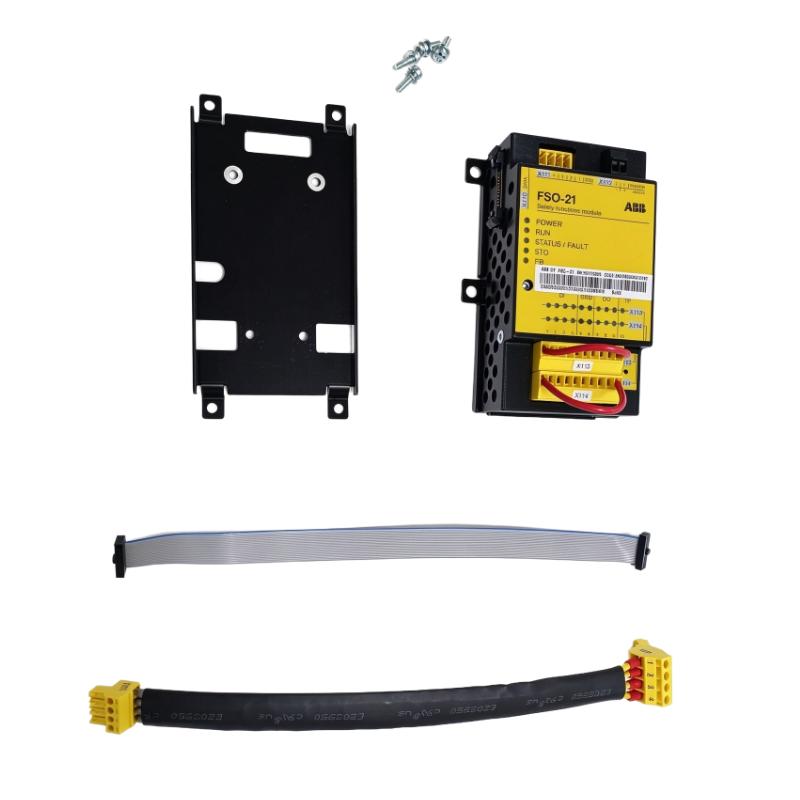

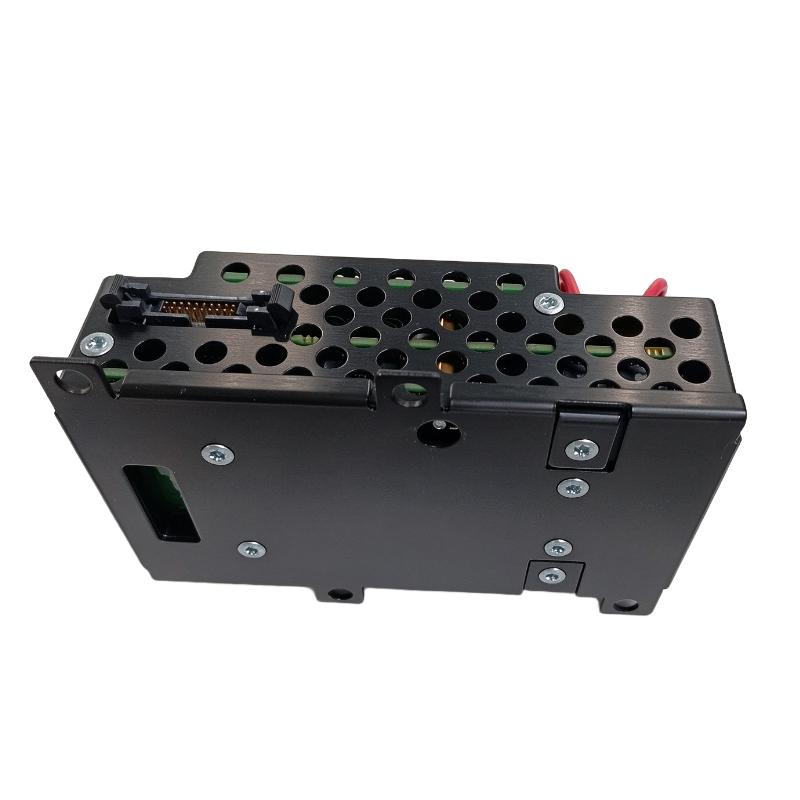

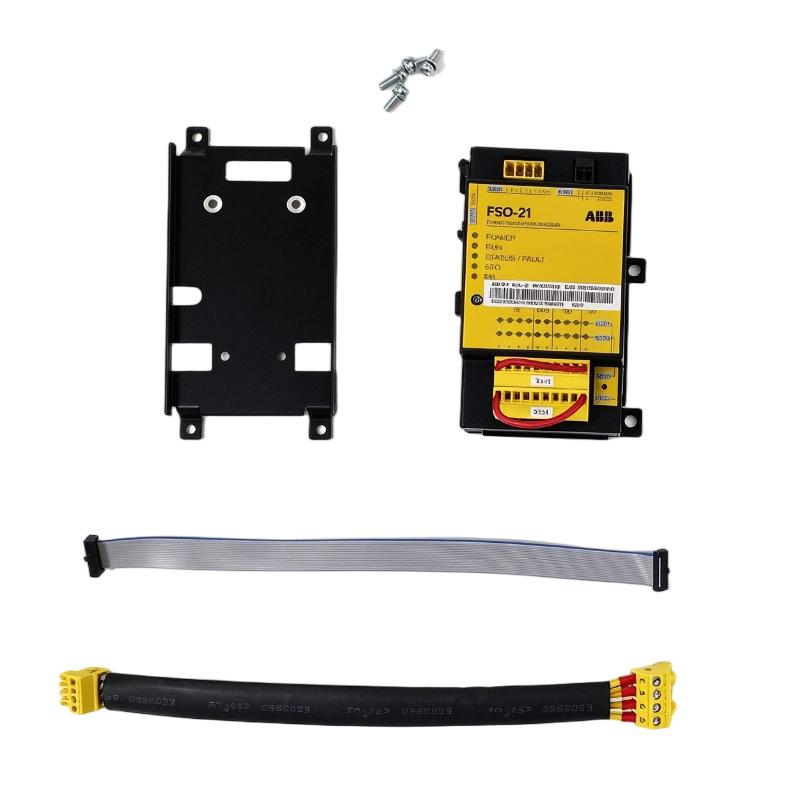

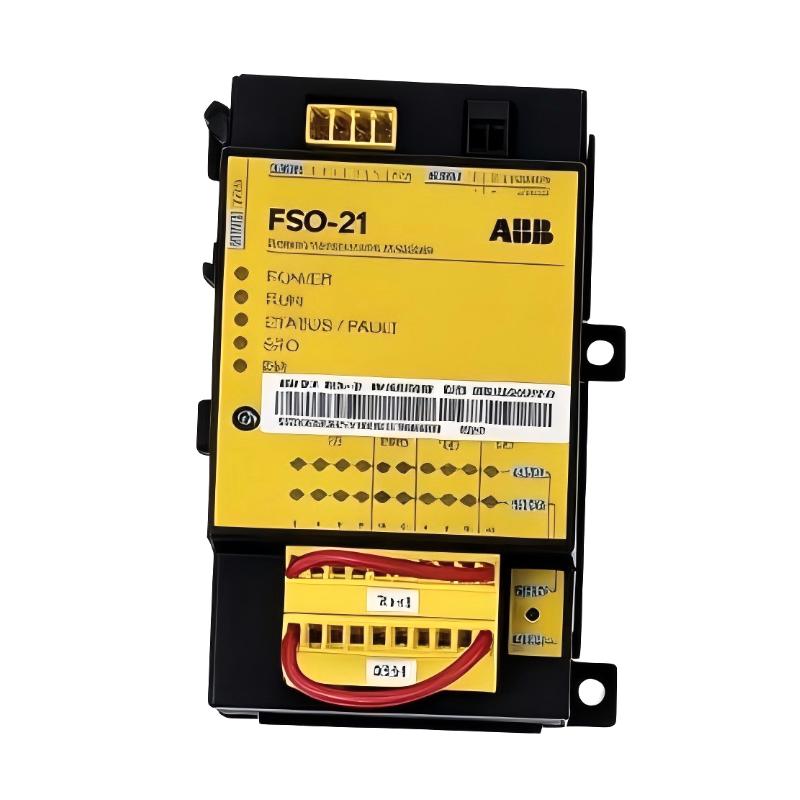

The ABB FSO-21 3AXD50000023987 Safety Function Module is an optional functional safety component designed for compatible ABB industrial drive systems. It extends the safety capabilities of supported drives by providing dedicated safety functions and diagnostic features for applications where controlled motor behavior and risk reduction are important.

In industrial automation, drives control the speed and torque of motors used in conveyors, pumps, fans, production machinery, and material-handling equipment. In applications involving moving machinery, conventional motor control alone may not provide all the safety functions required by the machine design. A suitable safety function module can help implement defined safety responses when an emergency stop, protective guard, or other safety-related condition is detected.

The FSO-21 is part of ABB’s drive functional safety offering and is intended for compatible drive platforms, including the ACS880 series. It is a plug-in module installed and wired within a supported drive system. Its functions and diagnostics can be incorporated into a properly designed machine safety architecture.

A key characteristic of the FSO-21 is its support for eight safety functions. It includes the functions available in the FSO-12 and adds two further functions associated with its extended capability, including use with encoder feedback through the appropriate FSE-31 interface where supported. The exact functions available depend on the drive, firmware, module configuration, and applicable documentation.

The FSO-21 is not a standalone motor controller or a general-purpose PLC. It operates as part of a compatible drive’s functional safety system. Correct installation, configuration, validation, and integration with the machine’s safety architecture are necessary before the equipment can be placed into service.

Technical Specifications

Note: Dimensions and weight are the supplied product-listing values. Verify the actual unit and manufacturer documentation for the specific drive and mounting arrangement before installation.

Function and Working Principle

The FSO-21 supports the implementation of safety-related functions in a compatible drive system. Its role is different from that of a standard drive control board: it is intended to support defined responses to safety-related conditions as part of the overall machine safety design.

1. Drive Functional Safety

Industrial machines may require motors to stop, remain within a safe operating condition, or respond in a defined way when a safety device is activated. The required response depends on the hazards identified during the machine risk assessment.

The FSO-21 extends the safety functionality available in supported ABB drives. It works with the drive’s control architecture and other required safety components to implement configured safety functions.

The module alone does not make a machine safe. Safety performance depends on the complete system, including input devices, logic, drive hardware, wiring, configuration, and validation.

2. Safety Function Execution

The FSO-21 provides access to eight safety functions in supported configurations. The selected functions determine how the drive responds to defined operating or fault conditions.

The exact set of functions and their availability must be checked against the relevant FSO-21 manual and the connected drive’s documentation. Not every function is necessarily available on every drive, firmware version, or hardware combination.

When a safety-related condition occurs, the configured safety system executes the response associated with that condition. The resulting motor behavior depends on the selected function, the drive’s supported capabilities, and the system design.

3. Encoder Feedback Capability

The FSO-21 can support encoder-based safety functions when used with the appropriate FSE-31 safety encoder interface and a compatible drive configuration.

Encoder feedback provides information about motor or shaft movement. In a suitable safety architecture, this information can be used to support functions that depend on monitored speed or movement.

The encoder, interface, wiring, configuration, and drive compatibility must all be verified. An encoder connection by itself does not establish that a safety function is correctly implemented or validated.

4. Safety Diagnostics

Functional safety systems need diagnostic information to help identify configuration problems, faults, and conditions that may prevent a safety function from operating as intended.

The FSO-21 supports safety-related diagnostics within the compatible drive system. Maintenance personnel should use the drive and module documentation to interpret diagnostic indications and follow the specified troubleshooting procedures.

A fault affecting the safety system should be investigated and resolved before the equipment is returned to normal production operation.

Role in Industrial Control Systems

The ABB FSO-21 typically forms one part of a machine’s safety architecture. It works with a supported drive and the wider system of safety devices and control equipment.

Integration with ABB ACS880 Drives

The FSO-21 is intended for compatible ABB industrial drive configurations, including supported ACS880 series products. It is installed inside the drive and connected according to the applicable hardware and wiring instructions.

Before installation, engineers must verify the drive model, frame, option configuration, firmware requirements, and supported safety functions. A module that shares a product family name is not automatically compatible with every drive variant.

Integration with Safety PLCs

A safety PLC may coordinate safety-related responses across several machines or drives. Depending on the architecture, the safety PLC can receive information from safety devices and manage the relevant safety commands.

Communication and control arrangements must be designed around the supported safety interfaces. Do not assume that the FSO-21 provides every industrial safety communication protocol or that it can directly replace a safety PLC.

Where networked safety communication is required, verify the supported architecture and the additional options needed for the selected drive.

Integration with Emergency Stops and Guard Interlocks

Emergency-stop devices, guard switches, light curtains, and other protective devices may be part of the machine safety system. Their signals must be processed through an appropriate safety architecture to trigger the intended response.

The FSO-21 can participate in a compatible drive-based safety arrangement, but the complete design must account for the safety devices, required performance, reset behavior, restart prevention, and fault handling.

Coordination with Standard Motor Control

A standard PLC or drive control program may continue to handle production sequencing, speed references, and normal machine operation. The safety-related functions must be designed so that ordinary control commands cannot override the required safety response.

This separation helps distinguish routine production control from the safety functions required to reduce machine risk.

Industrial Applications

The FSO-21 can be used in compatible drive installations where functional safety is required as part of the machine design.

1. Conveyor and Material-Handling Systems

Conveyors can expose personnel to moving belts, rollers, transfer mechanisms, and pinch points. Depending on the risk assessment, a machine may require safety functions that control drive behavior when protective devices are activated.

The FSO-21 may support an appropriate safety arrangement when installed in a compatible drive and validated for the application.

2. Manufacturing and Assembly Equipment

Automated production machinery may contain multiple motor-driven axes, rotating tools, and moving assemblies. Drive-based safety functions can form part of a system designed to control specific hazards during operation, setup, cleaning, or maintenance.

The selected safety functions must match the machine’s hazards and operating modes.

3. Pumps and Process Equipment

Industrial pumps and process drives may operate in installations where access control, maintenance procedures, or hazardous movement conditions require defined safety responses.

The FSO-21 may be considered where the connected drive and application require supported functional safety capabilities. Process isolation, pressure relief, and other non-electrical safety measures may still be necessary.

4. Fans and Ventilation Systems

Large industrial fans and ventilation equipment contain rotating machinery that may create hazards during inspection or maintenance. A compatible drive safety system can help implement specified safety behavior when the relevant protective measures are activated.

The appropriate function depends on the hazard analysis, drive configuration, and machine operating requirements.

5. Automated Production Lines

Production lines often contain several drives coordinated by PLCs and safety controllers. A suitable drive safety module can help integrate motor-related safety functions into the wider architecture.

Engineers must consider coordinated stopping behavior, communication dependencies, restart conditions, and the effect of one drive’s safety response on the rest of the line.

Installation and System Integration

The FSO-21 must be installed in accordance with the documentation for the exact drive and module configuration. Functional safety components require particular care because incorrect installation or configuration may compromise the intended safety response.

1. Confirm Drive Compatibility

Before ordering or installing the module, verify that the target drive supports the FSO-21. Confirm the drive model, frame size, option configuration, firmware requirements, and applicable hardware revision.

Do not assume that the module can be installed in every ABB drive or in every drive from the ACS880 family without checking the compatibility documentation.

2. Follow the Required Installation Procedure

The FSO-21 is designed to be installed and wired inside a compatible drive. Installation should follow the manufacturer’s specified procedure, including power isolation, access requirements, module positioning, wiring, and any required mounting hardware.

Disconnect the power supply and follow lockout procedures before opening the drive. Verify that hazardous voltage has been removed and observe the specified waiting time for the drive’s DC-link capacitors.

Installation should be performed by personnel qualified to work on the equipment.

3. Verify Wiring and Signal Interfaces

Check the module’s terminal assignments and wiring diagrams before connecting safety inputs, outputs, encoder interfaces, or other associated signals.

Use the correct cable types, shielding, grounding, and routing practices. The actual wiring depends on the configured safety function and the supported drive architecture.

Incorrect wiring or signal assignment can prevent the intended safety response from operating correctly.

4. Configure the Safety Functions

Select and configure the required functions according to the machine risk assessment and the drive’s supported capabilities. Confirm the required input behavior, output response, monitoring conditions, reset behavior, and restart prevention.

The configuration should be documented and reviewed against the safety requirements specification. Only functions supported by the installed hardware and software should be selected.

5. Validate the Complete Safety System

Before releasing the machine for production, validate the configured safety functions using the procedures specified by ABB and the machine safety design.

Testing should verify that each relevant safety input produces the intended response, that faults are handled appropriately, and that unexpected restart is prevented where required.

Record the test results, configuration data, and any required periodic inspection or proof-test procedures.

6. Maintain Configuration Records

Keep a record of the drive model, FSO-21 order code, firmware, configuration parameters, wiring diagrams, validation results, and any associated encoder or communication options.

These records support troubleshooting and help ensure that later replacement work does not introduce an incompatible module or change the validated safety behavior.

Compatible System Components

The FSO-21 operates within a compatible drive and machine safety system. The components listed below may be relevant depending on the selected architecture.

This table identifies typical elements of a drive safety architecture. It does not imply that all components are supplied with the FSO-21 or required in every installation.

Alternative Models and Replacement Considerations

When replacing or upgrading an FSO-21, the selection should be based on the required safety functions and the target drive’s supported options.

Before selecting a replacement, check:

• The complete module order code.
• The exact ABB drive model and hardware configuration.
• The supported firmware and safety functions.
• Whether encoder feedback is required.
• The safety communication architecture.
• The machine’s safety requirements specification.
• Wiring, mounting, and configuration requirements.
• Validation and commissioning procedures.

A related safety module should not be treated as an automatic drop-in replacement. Changing the safety module can affect available functions, configuration, wiring, and the evidence needed to validate the complete safety system.

Key Advantages

Expanded Drive Safety Functionality

The FSO-21 extends the functional safety capabilities of compatible ABB drives, supporting machine designs that require more than standard motor control.

Eight Safety Functions

Its documented eight-function capability provides a broader function set than the related FSO-12 module. Actual function availability must be checked against the selected drive and configuration.

Encoder-Based Safety Capability

With the appropriate FSE-31 interface and compatible configuration, the FSO-21 can support safety applications that require encoder feedback.

Compact Plug-In Design

The module is designed to be installed inside a compatible drive, allowing safety functions and diagnostics to be incorporated into the drive installation.

Integration with Industrial Safety Architectures

The module can form part of a wider system involving safety PLCs, protective devices, and drive control equipment, subject to the supported interfaces and system design.

Support for Maintenance and Diagnostics

Safety-related diagnostics can assist troubleshooting when used alongside the relevant drive and module documentation.

Technical FAQs

1. What is the ABB FSO-21 3AXD50000023987?

It is an ABB safety functions module designed to extend functional safety capabilities in compatible industrial drive systems, including supported ACS880 configurations.

2. What does the FSO-21 do?

It provides eight safety functions and associated safety diagnostics within a compatible drive system. The exact functions available depend on the drive and installed configuration.

3. Is the FSO-21 compatible with all ABB drives?

No. Compatibility depends on the specific drive platform, hardware configuration, firmware, and required function set. Verify the manufacturer’s compatibility documentation before installation.

4. What is the difference between the FSO-12 and FSO-21?

The FSO-12 provides six safety functions. The FSO-21 provides eight and supports encoder-feedback applications with the appropriate FSE-31 interface and compatible configuration.

5. Does the FSO-21 include an encoder?

No. The FSO-21 is a safety functions module. Encoder-feedback applications require the appropriate encoder and compatible interface, such as the FSE-31 where specified.

6. Can the FSO-21 replace a safety PLC?

No. It is a drive safety module, not a general-purpose safety PLC. A safety PLC may still be required to coordinate safety logic across devices or machines, depending on the system architecture.

7. Does installing the FSO-21 automatically make a machine safety compliant?

No. The complete safety system must be correctly designed, configured, installed, validated, and maintained. Compliance depends on the machine’s risk assessment, selected safety functions, associated devices, and applicable standards.

8. What should be checked before purchasing this module?

Verify the order code 3AXD50000023987, physical condition, compatibility with the target drive, firmware requirements, included accessories, and supplier warranty or return conditions.

9. What should be checked before replacing an existing FSO-21?

Confirm that the replacement has the correct order code and is compatible with the installed drive. Preserve the documented configuration and repeat the required safety validation before returning the machine to service.

10. Why is configuration documentation important?

Functional safety depends on more than the installed hardware. Recorded parameters, wiring diagrams, firmware details, and validation results help maintenance personnel preserve the intended safety behavior after repair or replacement.

Procurement and Maintenance Recommendations

When sourcing the ABB FSO-21 3AXD50000023987, begin by confirming the exact order code and the target drive model. The module’s physical fit alone does not establish compatibility with the drive’s hardware, firmware, or safety architecture.

For new, surplus, or used equipment, request clear photographs of the label and connectors, verify the condition of the module, and confirm whether the necessary accessories are included. Establish the supplier’s warranty, testing status, and return terms before purchase.

For maintenance, follow ABB’s prescribed procedures for power isolation, module access, wiring inspection, diagnostics, and configuration management. Do not bypass or disable safety functions to keep a machine running. If a safety-related fault occurs, identify the cause and confirm the required safety response before returning the machine to service.

After replacing the module or changing its configuration, perform the required validation and document the results. Any change to the safety architecture should be reviewed by appropriately qualified personnel.

Conclusion

The ABB FSO-21 3AXD50000023987 Safety Function Module is a functional safety accessory for compatible ABB industrial drive systems. Its eight safety functions, diagnostic capability, and support for encoder-feedback applications with the appropriate FSE-31 interface make it relevant to machine designs that require integrated drive safety functionality.

For industrial procurement and maintenance, the most important considerations are drive compatibility, the required safety functions, correct installation, configuration control, and validation of the complete safety system. Selecting and commissioning the FSO-21 according to the applicable ABB documentation helps maintain the intended safety behavior of the connected machinery.
