Product Overview

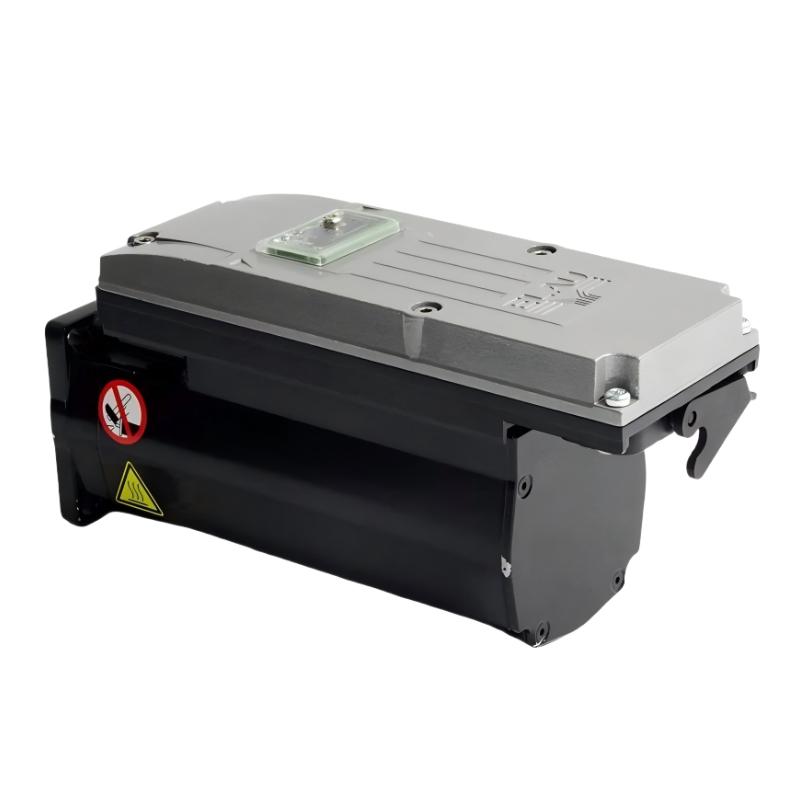

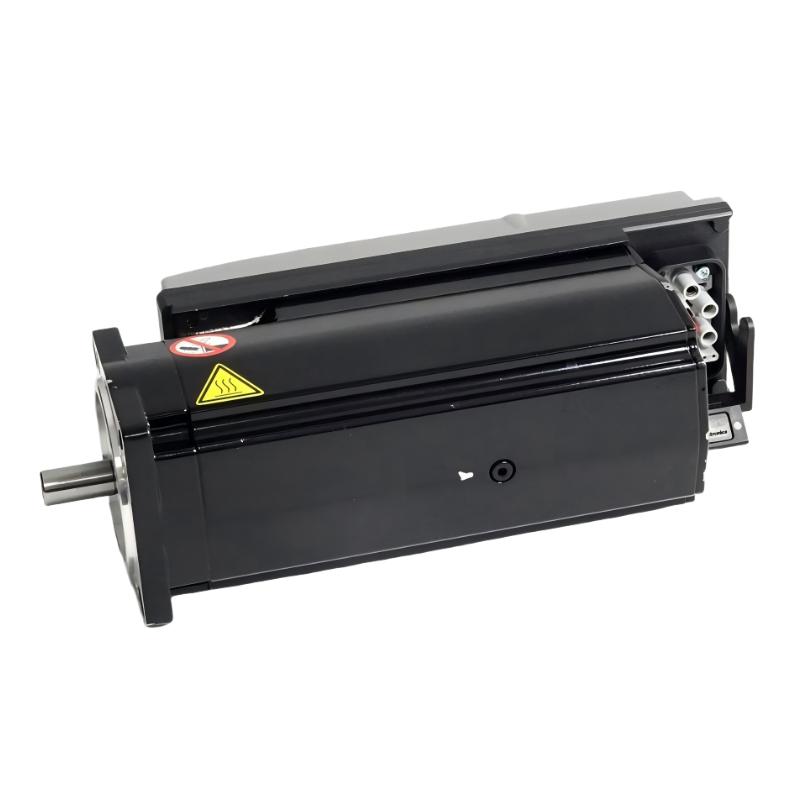

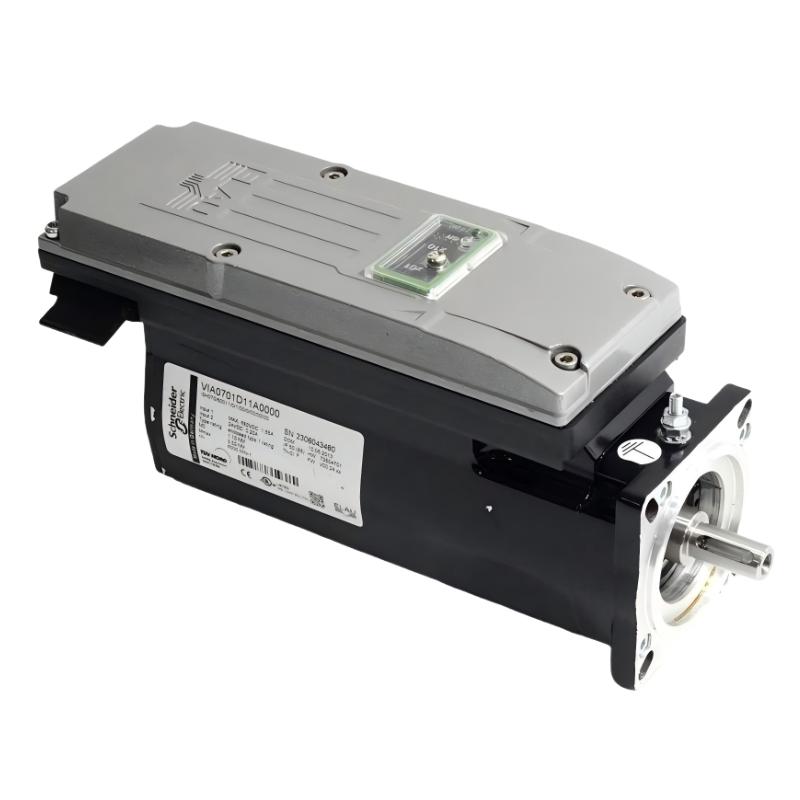

The Schneider Electric VIA0701D11A0000 Servo Motor is an integrated servo motor from the ELAU PacDrive iSH product family. It combines a compact motor assembly with integrated drive electronics, supporting distributed motion-control architectures in industrial automation equipment.

Originally associated with ELAU motion-control technology and now part of Schneider Electric’s product ecosystem, the iSH series was developed for applications that require coordinated motor operation, accurate speed control, and compact installation. Integrated servo technology can reduce the need for separate drive hardware at each motor axis, depending on the system design.

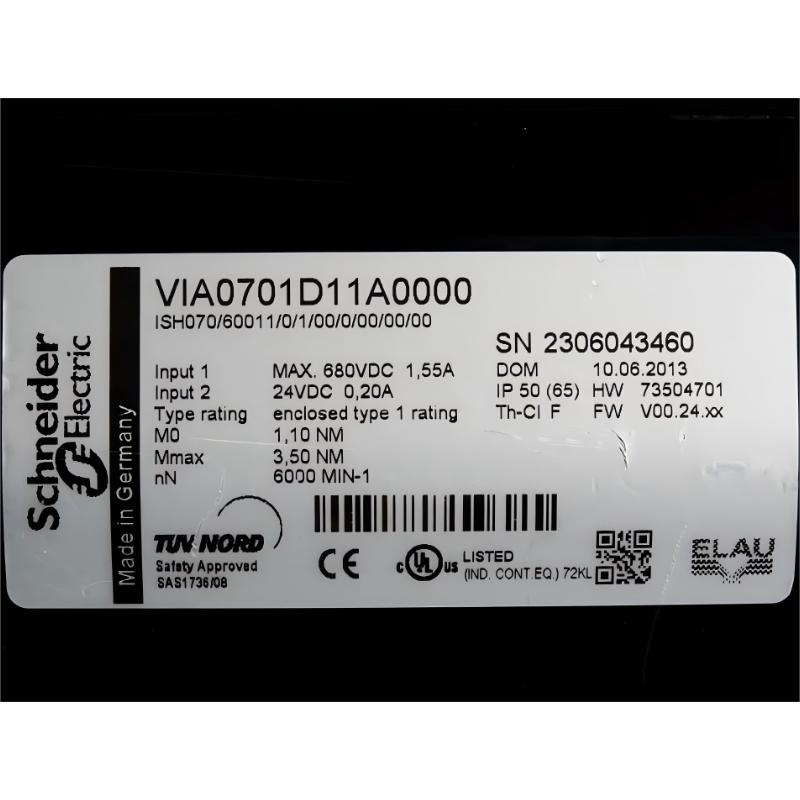

The VIA0701D11A0000 corresponds to the iSH070/60011/0/1/00/0/00/00/00 configuration. Its documented characteristics include a 70 mm motor flange, 1.1 N·m standstill torque, 3.5 N·m peak torque, and a rated operating speed of 6000 rpm. The configuration uses a keyed shaft, a SinCos SKS36 feedback encoder, and shaft sealing. It does not include a holding brake.

This servo motor is intended for use with compatible PacDrive motion-control equipment. It should not be treated as a conventional motor that can be connected directly to an arbitrary AC motor supply. The integrated electronics, DC bus requirements, feedback interface, and system configuration must all be considered during installation and replacement.

The model is associated with legacy equipment, and the manufacturer has discontinued it. For maintenance projects, accurate catalog-number identification is particularly important because related iSH motors can differ in shaft construction, encoder type, braking arrangements, and other configuration details.

Technical Specifications

Important: The length and weight above are the supplied listing values, not independently confirmed standard motor-body dimensions and weight. Verify the nameplate, physical measurements, and packaging data before finalizing the product listing.

Function and Working Principle

The VIA0701D11A0000 combines motor and drive functions within one integrated assembly. Instead of relying on a completely separate drive module mounted in a control cabinet, the integrated design places the motor-control electronics close to the motor.

This architecture can simplify some distributed motion-control installations, although it still requires a compatible power supply, motion controller, feedback configuration, and suitable cabling.

1. Servo Motor Operation

A servo motor converts electrical energy into controlled rotary motion. In a motion-control application, the controller issues a command that defines the desired movement, speed, or torque.

The integrated electronics regulate motor operation in response to the command and available feedback. The system’s achievable performance depends on the controller, motor configuration, mechanical load, and tuning parameters.

2. Integrated Drive Electronics

The integrated drive electronics provide the motor-control functions associated with the iSH architecture. This can reduce the need for a separate motor power stage for each axis, depending on the complete PacDrive installation.

However, the motor still requires compatible electrical power and control connections. Engineers should confirm the DC supply requirements, auxiliary 24 V DC supply, connector arrangement, and approved controller interface before installation.

3. Position and Speed Feedback

The identified configuration uses a SinCos SKS36 encoder. Feedback provides information about motor position and movement, allowing the motion-control system to regulate speed and coordinate axes.

Encoder type is a critical replacement parameter. A motor with a different feedback device or encoder configuration may not be recognized by the existing controller or may require different commissioning procedures.

4. Torque Production

The motor is documented with a standstill torque of 1.1 N·m and a peak torque of 3.5 N·m. Standstill torque describes the motor’s torque capability under the specified standstill conditions, while peak torque represents a higher short-duration capability under the manufacturer’s operating limits.

Peak torque should not be interpreted as a continuous operating rating. The permitted duration and duty cycle must be checked against the applicable technical documentation.

5. Motion Coordination

In automated machinery, a motion controller can coordinate the motor with other axes, sensors, and machine functions. For example, a packaging system may synchronize product feeding, cutting, and positioning.

The integrated motor provides the local motion-control hardware, while the wider automation system determines the required motion profile and sequence.

Role in Industrial Automation Systems

The VIA0701D11A0000 can serve as a motion-control component in a compatible PacDrive installation. Its integrated construction is particularly relevant to systems where compact distributed axes are preferred over a layout based entirely on cabinet-mounted motor drives.

PacDrive Motion Control

PacDrive systems coordinate motion across multiple axes in automated machinery. Depending on the controller and system generation, the overall installation can include a motion controller, integrated servo motors, power distribution, communication connections, and operator interfaces.

The exact hardware and firmware compatibility must be verified. A legacy iSH motor should not be assumed to work with every newer PacDrive controller simply because both belong to the Schneider Electric ecosystem.

PLC and Machine Control

The PLC or motion controller coordinates the motor with machine logic, safety interlocks, sensors, and other actuators. It can issue motion commands and supervise operating conditions through the supported system interface.

The motor’s integrated drive electronics do not replace the machine controller. Correct operation still depends on system-level configuration, appropriate command handling, and compatible controller hardware.

HMI and Diagnostics

A human-machine interface can display operating status, alarms, and process information through the machine-control system. Maintenance personnel may use diagnostic information to identify encoder faults, power issues, mechanical overload, or configuration mismatches.

The available diagnostic functions depend on the connected controller and the installed software configuration.

Industrial Applications

The VIA0701D11A0000 is relevant to legacy industrial machinery using ELAU PacDrive iSH motion technology. Its suitability depends on the machine’s torque, speed, positioning, and environmental requirements.

1. Packaging Machinery

Packaging systems often require coordinated motion for product feeding, sealing, cutting, and indexing. An integrated servo motor can support controlled movement and synchronization within a compatible motion-control architecture.

The motor’s torque and speed capabilities must be evaluated against the machine’s actual motion profile, including acceleration, deceleration, and peak-load requirements.

2. Food and Consumer Goods Production Equipment

Automated production lines may use servo-controlled mechanisms to position containers, transfer products, or coordinate multiple machine stations. Integrated motor technology can help reduce the need for separate drive units at individual axes.

The motor’s IP rating and shaft sealing should be assessed against the actual environment. An IP65 rating does not automatically mean the motor is suitable for every washdown, chemical exposure, or hygienic-design requirement.

3. Labeling and Material-Handling Systems

Servo motors can control the movement of rollers, feed mechanisms, and positioning assemblies. Feedback-based control supports predictable speed and coordinated movement when the motor is correctly integrated with the controller.

The keyed shaft must match the mechanical coupling or transmission used by the machine. Shaft dimensions and allowable loads should be checked before installation.

4. Automated Assembly Equipment

Assembly machines may require repeatable positioning and controlled rotary motion. A compatible servo motor can operate within a coordinated sequence involving sensors, actuators, and other motion axes.

The application’s accuracy requirements, cycle time, inertia, and peak torque demand should be assessed before confirming suitability.

5. Legacy PacDrive Installations

The model may be encountered in existing machinery that relies on older ELAU motion-control components. In such cases, maintaining the original hardware can reduce the need for immediate redesign, provided a compatible replacement is available and the equipment remains serviceable.

Since the model is discontinued, maintenance teams should also evaluate long-term spare-parts availability and consider whether a broader motion-system upgrade is necessary.

Installation and System Integration

Correct installation is essential for electrical safety, feedback accuracy, and reliable motion performance.

1. Verify the Exact Motor Configuration

Confirm the complete catalog number, corresponding iSH motor type, shaft design, encoder, brake configuration, connector arrangement, and any identification information on the nameplate.

The VIA0701D11A0000 is a keyed-shaft configuration without a holding brake. A superficially similar model with a different suffix may have a different shaft, encoder, or other feature.

2. Confirm Electrical Compatibility

The identified configuration is associated with a maximum DC input rating of 680 V DC and an auxiliary 24 V DC supply. These values should be checked against the manufacturer’s documentation and the existing PacDrive system.

Do not connect the motor to a general-purpose AC supply. Use the designated power and control architecture and follow the required isolation and discharge procedures.

3. Inspect Mechanical Mounting

Verify the flange dimensions, mounting pattern, shaft diameter, shaft length, and key dimensions before fitting the motor. Check that the coupling or driven mechanism aligns correctly.

Misalignment can cause vibration, excessive bearing loads, mechanical wear, and premature failure. The supplied 430 mm length should be verified against the physical motor and the relevant dimensional drawing before designing a mounting arrangement.

4. Connect the Feedback System

The SinCos SKS36 feedback configuration must match the controller’s supported interface. Inspect the feedback connector, cable condition, pin assignment, shielding, and grounding before commissioning.

Incorrect feedback wiring may cause startup faults, unstable motion, or failure to recognize the motor position.

5. Verify the Holding-Brake Requirement

This motor configuration does not include a holding brake. If the application must hold a vertical or gravity-loaded axis when power is removed, the machine design must provide a suitable external holding or mechanical safety arrangement.

Do not assume that servo torque can safely hold a load after power is lost. Evaluate the application’s risk and stopping requirements according to the relevant machinery-safety standards.

6. Commission the Motor

Follow the controller-specific commissioning procedure. Confirm the motor identification, feedback configuration, current and torque limits, direction of rotation, and required motion parameters.

Begin testing under controlled conditions with the mechanical system secured and personnel clear of moving parts. Check for unexpected motion, abnormal noise, overheating, and controller alarms before returning the machine to production.

Compatible System Components

The VIA0701D11A0000 should be used with components designed for its specific integrated-drive architecture.

The listed components are examples of system elements, not a claim that they are included with the motor. Confirm the complete bill of materials before procurement.

Alternative Models and Replacement Considerations

The VIA0701D11A0000 is a discontinued legacy model. A replacement should be chosen according to the exact motor configuration and the capabilities of the existing motion-control system.

Before approving a replacement, verify:

• Full catalog number and corresponding iSH type code.
• Motor flange and mechanical mounting dimensions.
• Standstill, nominal, and peak torque ratings.
• Required speed and motion duty cycle.
• DC bus and auxiliary power requirements.
• Encoder type and feedback compatibility.
• Keyed shaft dimensions and coupling arrangement.
• Holding-brake requirements.
• Protection rating and environmental suitability.
• Controller generation, firmware, and commissioning tools.

A motor with similar torque and speed ratings is not necessarily a drop-in replacement. Feedback compatibility and the integrated electronics are particularly important.

Key Advantages

Integrated Motor and Drive Architecture

The iSH design combines motor and drive electronics in one assembly, which can simplify axis-level hardware layout in compatible distributed motion-control systems.

Compact Motion-Control Design

The integrated construction can reduce the need for a separate motor power stage at each axis, depending on the overall system architecture.

High-Speed Operation

The documented rated speed of 6000 rpm supports high-speed rotary applications when the mechanical system and motion profile are designed for the required operating conditions.

Defined Torque Capability

The 1.1 N·m standstill torque and 3.5 N·m peak torque ratings provide useful reference points for evaluating compatible motion tasks.

Feedback-Based Control

The SinCos SKS36 encoder supports feedback-based motion control when correctly connected to a compatible controller.

Shaft Sealing

The identified configuration includes shaft sealing and is reported with IP65 protection. Actual suitability depends on the installation, condition of seals and connectors, and environmental requirements.

Legacy Equipment Support

For machinery already built around the PacDrive iSH platform, identifying the exact motor configuration can help maintenance teams evaluate repair, replacement, and upgrade options.

Technical FAQs

1. What is the Schneider Electric VIA0701D11A0000?

It is an ELAU PacDrive iSH integrated servo motor associated with the type code iSH070/60011/0/1/00/0/00/00/00. It combines the motor and drive electronics in one assembly.

2. What is its rated speed?

The documented nominal operating speed is 6000 rpm. The permitted operating range depends on the connected controller, mechanical load, and application settings.

3. What are its torque ratings?

The identified configuration has a standstill torque of 1.1 N·m and a peak torque of 3.5 N·m. Peak torque is not a continuous operating rating.

4. Does the motor include a holding brake?

No. The identified VIA0701D11A0000 configuration does not include a holding brake. Applications requiring load holding must provide an appropriate external solution.

5. Which encoder does it use?

The identified configuration uses a SinCos SKS36 feedback encoder. Confirm this detail on the motor label and in the system documentation before ordering a replacement.

6. Can it be connected to a standard AC servo drive?

Not automatically. This is an integrated motor-and-drive product from the PacDrive iSH family. The DC supply, feedback, control interface, and electrical connections must be compatible with the intended system.

7. Is the VIA0701D11A0000 still manufactured?

Available product listings identify the model as discontinued. Availability may vary through specialist spare-parts suppliers, so buyers should confirm the exact model, condition, test status, and warranty terms.

8. What should be checked before purchasing a used unit?

Check the full type code, nameplate, shaft and key, connectors, encoder configuration, seal condition, mounting flange, and evidence of testing. Request photographs and confirm whether the motor has been inspected or refurbished.

9. Is the supplied length of 430 mm confirmed?

The 430 mm value is the supplied listing dimension, but it has not been confirmed as the standard motor-body length. Check the actual unit and dimensional drawing before using it for mounting or cabinet planning.

10. Why might the listed weight differ from supplier data?

Different listings may report the motor’s net weight, shipping weight, or packaged weight. The supplied value of 10.2 kg should be checked against the actual unit and packaging before it is used for freight calculations.

Procurement and Maintenance Recommendations

Because the VIA0701D11A0000 is discontinued, procurement should begin with the complete catalog number and its corresponding iSH type code.

Before ordering, confirm the shaft design, encoder type, brake status, shaft sealing, electrical ratings, connector configuration, and mechanical dimensions. Do not substitute a related iSH070 motor based on frame size or torque alone.

For used or refurbished units, request clear photographs of the nameplate, shaft, mounting flange, and connectors. Confirm the motor’s operating condition, available test reports, warranty terms, and whether any cables or accessories are included.

For maintenance, inspect connectors and cables for damage, check the shaft and coupling for wear, and monitor for abnormal vibration, noise, or temperature. Follow the applicable PacDrive service procedures and avoid opening or modifying integrated electronics without appropriate technical authorization.

When planning a system upgrade, evaluate the motor and controller together. A newer motion-control platform may offer ongoing support, but migration can require replacement of cables, controller hardware, configuration files, and mechanical interfaces.

Conclusion

The Schneider Electric VIA0701D11A0000 is a legacy ELAU PacDrive iSH integrated servo motor with a 70 mm flange, 1.1 N·m standstill torque, 3.5 N·m peak torque, and a nominal speed of 6000 rpm. Its identified configuration uses a keyed shaft and SinCos SKS36 encoder, includes shaft sealing, and does not include a holding brake.

For maintenance and replacement projects, the most important considerations are the exact motor type code, electrical compatibility, feedback interface, shaft configuration, and controller support. Verifying these details helps reduce installation risk and supports reliable operation of existing industrial motion-control equipment.
