Product Overview

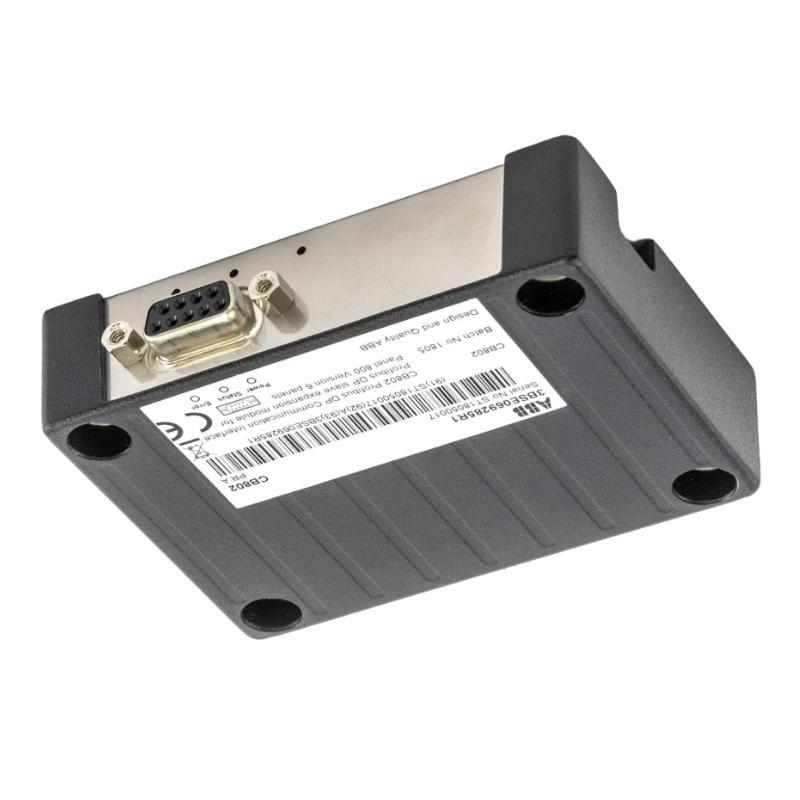

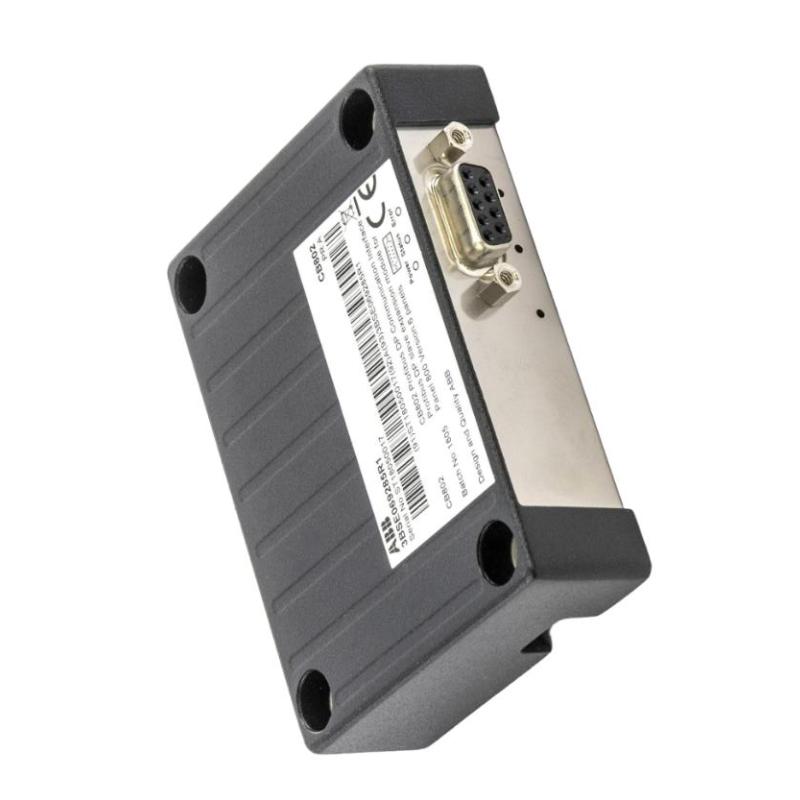

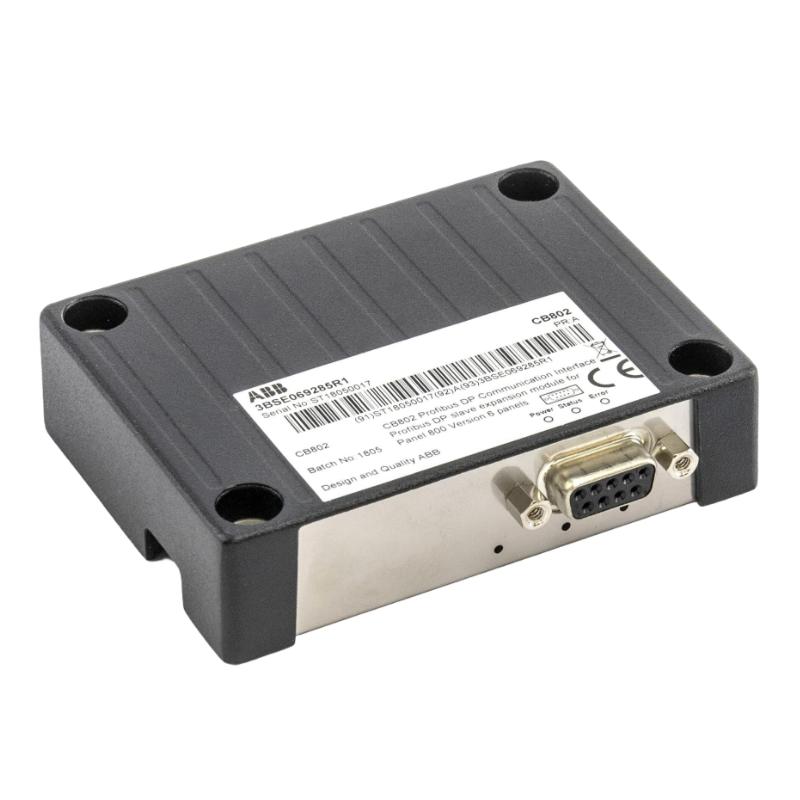

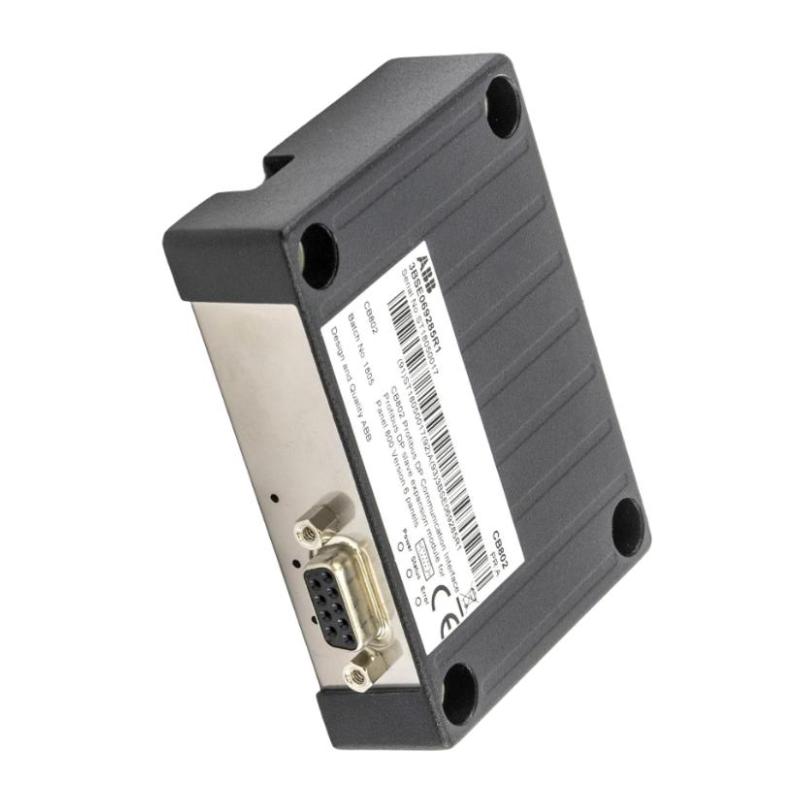

The ABB CB802 3BSE069285R1 PROFIBUS DP Interface Module is a communication expansion module designed for compatible ABB Panel 800 Version 6 operator panels. It enables a supported panel to function as a PROFIBUS DP slave device, allowing configured data to be exchanged with a PROFIBUS DP master in an industrial automation network.

In industrial control systems, operator panels provide the interface through which personnel monitor process values, review equipment status, acknowledge alarms, and interact with machine operations. Communication interfaces help connect these panels to controllers and other automation equipment, allowing information to move between the operator interface and the control system.

The CB802 provides a dedicated PROFIBUS DP communication option for supported Panel 800 configurations. PROFIBUS DP is an established fieldbus protocol used in industrial automation for communication between controllers, remote I/O, drives, and other compatible devices. Integrating an operator panel into this network can support process visualization and operator interaction without requiring a separate communication architecture for every device.

The module carries the ABB article number 3BSE069285R1. ABB documentation specifies an operating temperature range of -30°C to +70°C, a relative operating humidity range of 5% to 95% non-condensing, and a communication speed of up to 12 Mbit/s.

Compatibility is an important consideration. The CB802 is intended for Panel 800 Version 6 panels, but ABB identifies specific panel models that cannot use this module. Before purchasing a replacement or expanding an existing HMI installation, verify the exact panel model, hardware version, and supported configuration.

Technical Specifications

Note: Confirm the mechanical dimensions against the exact panel and module installation documentation before planning mounting or replacement work.

Function and Working Principle

The CB802 extends the communication capabilities of a compatible operator panel by providing a PROFIBUS DP slave interface. Its role is to support data exchange within a configured fieldbus network rather than perform the main control logic of a PLC or DCS controller.

1. PROFIBUS DP Communication

PROFIBUS DP is a fieldbus protocol commonly used for cyclic data exchange between a master and its configured slave devices. The master coordinates communication, while slave devices respond according to the network configuration.

With a compatible panel and correctly configured application, the CB802 enables the operator interface to participate in this communication structure. The actual data exchanged depends on the HMI application, the master configuration, and the data mapping supported by the system.

2. HMI Data Exchange

An operator panel may need access to process variables, equipment states, alarm information, and operator commands. The CB802 provides a communication path for configured data between the supported panel and a PROFIBUS DP master.

The module does not automatically determine which information should be displayed or controlled. The HMI application and control-system configuration define the relevant data points and their use.

3. Communication Speed

ABB lists a communication speed of up to 12 Mbit/s for the CB802. The actual operating speed depends on the network configuration and the capabilities of the connected devices.

Network speed should be selected with consideration for cable length, topology, device compatibility, and the requirements of the complete PROFIBUS DP installation.

4. Integration with Existing Automation Networks

Many industrial facilities have established fieldbus networks that connect controllers, operator panels, and field-level devices. Adding a compatible CB802-equipped panel can allow the operator interface to participate in an existing PROFIBUS DP architecture.

Before integration, engineers should verify the master configuration, slave addressing, wiring, and application data mapping. Correct setup is essential for stable communication.

Role in Industrial Control Systems

The ABB CB802 can support operator-panel communication in industrial automation systems where PROFIBUS DP is part of the established architecture.

PLC and HMI Integration

A PLC typically executes machine-control logic, processes field signals, and coordinates equipment. An HMI presents selected information to operators and allows them to interact with the configured application.

When the PLC or another compatible controller serves as the PROFIBUS DP master, the CB802 can enable a supported Panel 800 Version 6 panel to exchange configured data through the network.

Process Monitoring

Operators may need to monitor operating values, equipment states, alarm conditions, and production information. The CB802 supports the communication needed to make configured data available to the panel application.

The information shown depends on the controller program, HMI project, and network configuration.

Distributed Automation

In a distributed automation installation, control and visualization functions may be located in different devices. A PROFIBUS DP interface can help connect a compatible operator panel to the fieldbus network, supporting coordinated monitoring and operator interaction.

The module’s function is limited to its communication role; it does not replace the controller or determine the control strategy.

Industrial Applications

1. Factory Automation

Manufacturing lines use operator panels to display machine status, production information, and alarm conditions. The CB802 can support PROFIBUS DP connectivity where the installed Panel 800 Version 6 model is compatible.

2. Process Monitoring

In process-control environments, operators may need to view values and equipment states supplied by a controller. A correctly configured PROFIBUS DP connection can support the data exchange required by the HMI application.

3. Packaging and Material Handling

Packaging and material-handling systems often combine PLC control with operator interfaces. The CB802 can provide a communication option for supported panels in installations using PROFIBUS DP, subject to the network design and panel compatibility.

4. Industrial Equipment Maintenance

Legacy automation systems may depend on established fieldbus networks. When maintaining these installations, a compatible communication module can help preserve the existing architecture while replacing a failed component.

Before replacement, engineers should confirm that the replacement module supports the exact panel and that the existing network settings can be restored.

5. System Modernization

When upgrading an HMI or replacing an operator-panel component, the CB802 may be relevant if the new or existing configuration continues to require PROFIBUS DP connectivity. Compatibility should be assessed against the complete panel configuration and the intended controller interface.

Installation and System Integration

1. Verify Panel Compatibility

The CB802 is intended for ABB Panel 800 Version 6 panels. ABB identifies certain panel models that are not compatible, so do not assume that all Panel 800 units support the module.

Check the panel model, hardware version, available expansion interface, and applicable documentation before installation.

2. Confirm Network Configuration

Before connecting the panel, verify the PROFIBUS DP master configuration and the intended slave address. Ensure that the network design, communication settings, and data mapping are consistent with the controller and HMI application.

3. Inspect Cabling and Connectors

Check the PROFIBUS cable, connectors, shielding, grounding, and termination arrangements according to the network design. Incorrect wiring or termination can lead to intermittent communication or complete loss of connection.

Avoid making wiring changes while the equipment is energized unless the manufacturer’s procedures explicitly permit the work.

4. Configure the HMI Application

Installing the module alone does not configure the data exchange. The HMI project and controller settings must define the relevant variables, status information, and operator commands.

After configuration, confirm that the panel displays the expected information and that any permitted operator actions reach the intended control logic.

5. Test Communication

After installation, check whether the master recognizes the slave and whether the panel exchanges data correctly. Test normal process values, status indications, alarms, and relevant operator functions.

Document the module identification and network settings to simplify future troubleshooting and replacement.

Compatible System Components

These components are examples of a typical communication arrangement. The CB802 does not necessarily include cables, connectors, a controller, or HMI software.

Alternative Models and Replacement Considerations

The CB802 has a specific role as a PROFIBUS DP slave expansion module for compatible Panel 800 Version 6 operator panels. Other ABB communication interfaces may use the same protocol but serve different hardware platforms or network roles.

When evaluating a replacement, verify the protocol, network role, supported panel platform, hardware interface, communication settings, and HMI application requirements. A device that supports PROFIBUS DP is not automatically interchangeable with the CB802.

Key Advantages

Dedicated PROFIBUS DP Connectivity

The CB802 provides a defined communication option for compatible Panel 800 Version 6 panels operating as PROFIBUS DP slave devices.

Support for Existing Fieldbus Architectures

It can help connect a supported operator panel to an established PROFIBUS DP network, reducing the need to redesign the entire communication arrangement when the existing architecture remains suitable.

High-Speed Fieldbus Support

ABB specifies communication speeds of up to 12 Mbit/s. Actual performance depends on network settings and the connected devices.

Compact Form Factor

With a listed weight of 0.18 kg, the module is suitable for applications where compact panel expansion is required. Installation space and mounting details should be verified against the panel documentation.

Defined Environmental Specifications

The documented operating temperature range of -30°C to +70°C and non-condensing humidity range provide useful criteria for assessing installation suitability.

Support for Maintenance and Replacement Projects

The exact model and article number make it easier to identify the intended communication module when maintaining compatible existing installations.

Technical FAQs

1. What is the ABB CB802 3BSE069285R1?

It is a PROFIBUS DP communication expansion module designed for compatible ABB Panel 800 Version 6 operator panels.

2. What is the main function of the CB802?

Its main function is to enable a supported operator panel to operate as a PROFIBUS DP slave and exchange configured data with a compatible master.

3. What is the maximum communication speed?

ABB specifies a communication speed of up to 12 Mbit/s. The actual speed depends on the network configuration and connected equipment.

4. Is the CB802 a PROFIBUS DP master or slave?

It is a PROFIBUS DP slave expansion module. A compatible master coordinates communication on the network.

5. Can the CB802 connect an operator panel to a PLC?

It can support this arrangement when the panel is compatible and the PLC or another controller provides a suitable PROFIBUS DP master interface. Network configuration and application data mapping are also required.

6. Is the CB802 compatible with every ABB Panel 800 panel?

No. It is intended for Panel 800 Version 6 panels, and ABB identifies specific models that cannot use it. Confirm the exact panel model before purchasing.

7. What is the operating temperature range?

The specified operating temperature range is -30°C to +70°C. The installation must also comply with the panel’s environmental requirements.

8. What should be checked if PROFIBUS communication fails?

Check panel compatibility, module installation, cabling, connectors, shielding, termination, slave addressing, master configuration, and HMI data mapping.

9. Can another ABB PROFIBUS module replace the CB802?

Not necessarily. Other ABB modules may serve controllers, I/O systems, drives, or different panel platforms. A substitute must match the required hardware interface and communication role.

10. What information should be verified before ordering?

Confirm the CB802 model, article number 3BSE069285R1, compatible panel model, physical condition, and any included accessories. For an existing installation, record the network settings and test communication after replacement.

Procurement and Maintenance Recommendations

When purchasing the ABB CB802, verify the full model number and article number against the installed module. Confirm that the intended operator panel is a supported Panel 800 Version 6 model and that the application requires PROFIBUS DP slave connectivity.

For replacement parts, request clear photographs of the module label and physical connectors. Confirm the unit’s condition, any applicable testing, and the seller’s warranty or return conditions. Check whether the listing includes only the interface module or any additional accessories.

For maintenance, keep records of the network configuration, slave address, HMI application version, and relevant controller settings. When replacing the module, inspect the fieldbus wiring and connectors and verify communication with the master before returning the panel to normal operation.

Conclusion

The ABB CB802 3BSE069285R1 PROFIBUS DP Interface Module provides communication expansion for compatible ABB Panel 800 Version 6 operator panels. Its PROFIBUS DP slave functionality supports configured data exchange with a compatible master, while its published specifications include a maximum communication speed of 12 Mbit/s, an operating temperature range of -30°C to +70°C, and a weight of 0.18 kg.

For maintenance, replacement, and modernization projects, panel compatibility is the primary consideration. Verifying the exact panel model, network configuration, and HMI application requirements helps ensure that the CB802 can be integrated into the intended industrial automation system.
