Product Overview

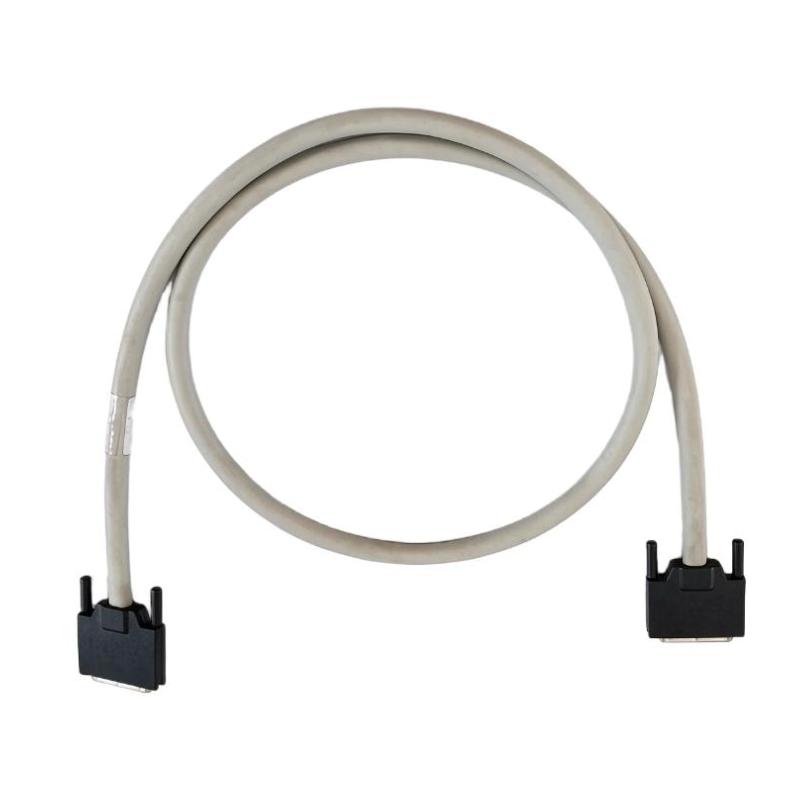

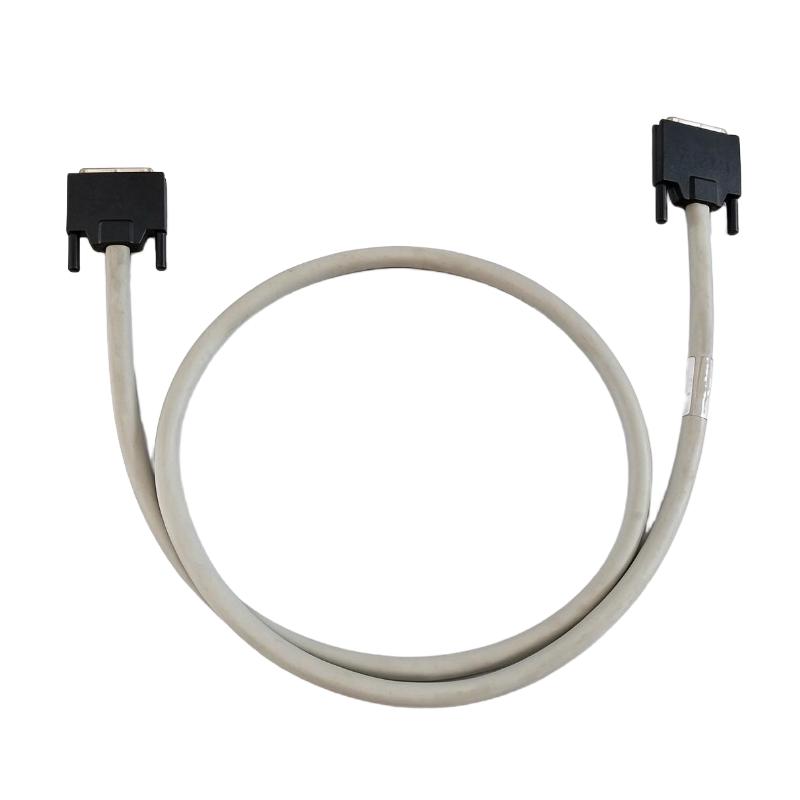

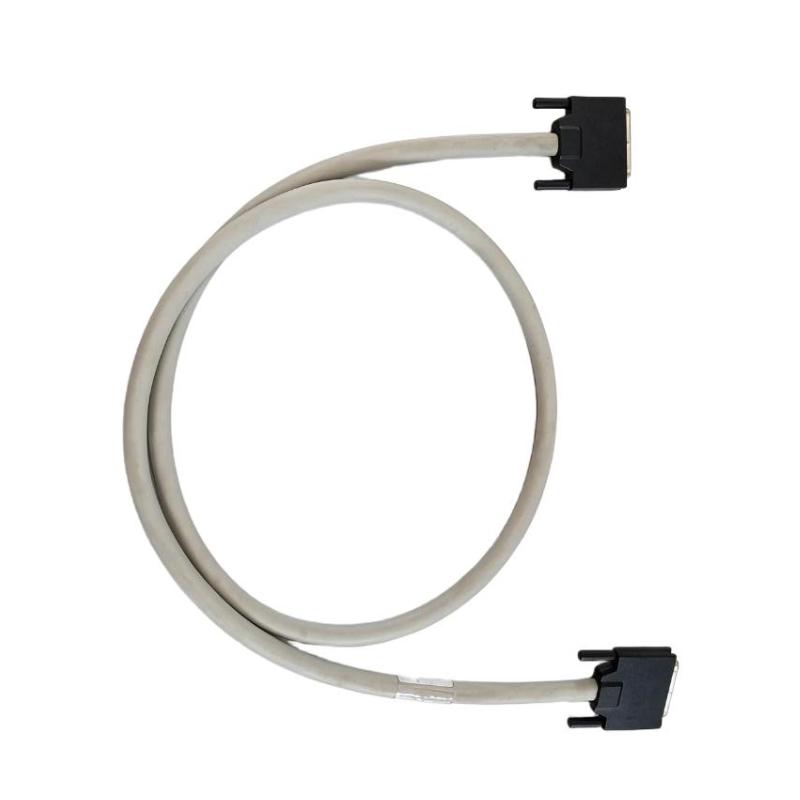

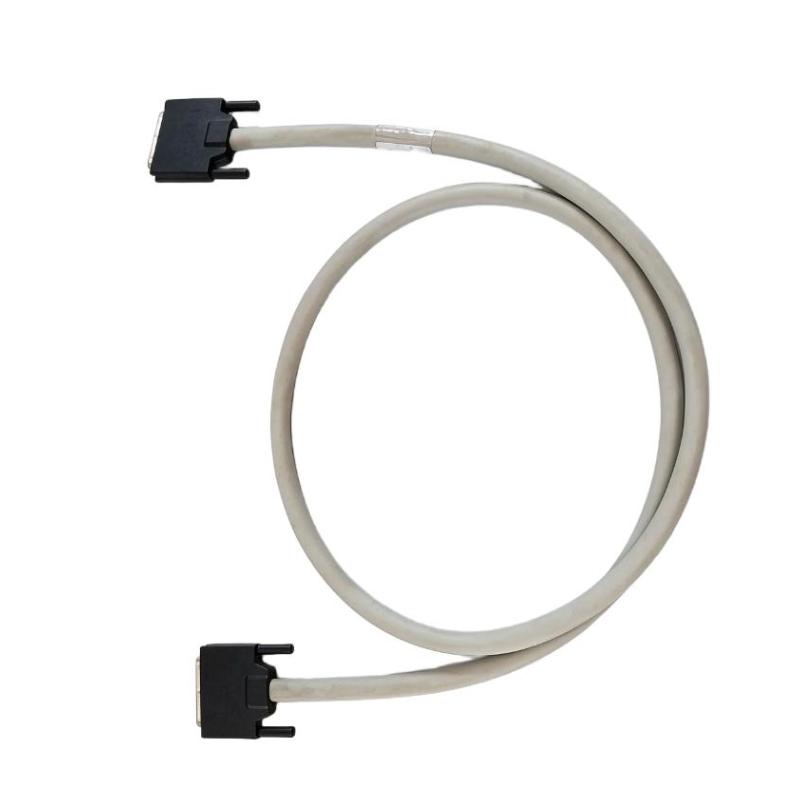

The Honeywell 2MLC-E061 MasterLogic-200 Extension Cable connects compatible I/O expansion bases within the MasterLogic-200 programmable logic controller (PLC) system. It allows the controller’s I/O architecture to extend beyond the main base, supporting installations that require additional I/O modules for machine control, process monitoring, and equipment interlocking.
In a control cabinet containing several expansion bases, the extension cable establishes the connection needed for communication between the associated hardware. This allows additional I/O modules to participate in the PLC system without requiring every module to be installed on the main base.
The 2MLC-E061 has a specified cable length of 0.6 meters. It is one of several cable options in the MasterLogic-200 range, alongside models with lengths from 0.4 meters to 15 meters. Choosing the appropriate cable helps accommodate the physical arrangement of the main and expansion bases while keeping the interconnection within the system’s permitted cable-length limit.
For example, a packaging machine may use a main PLC base in one section of the control cabinet and an expansion base containing additional digital or analog I/O in another section. The 2MLC-E061 can provide the required interconnection when the distance and installation arrangement suit the 0.6-meter cable.
The cable is a dedicated system accessory rather than a general-purpose communication lead. Its model reference should be matched to the MasterLogic-200 hardware configuration and the required connection distance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model / Part Number | 2MLC-E061 |
| Product Family | MasterLogic-200 |
| Product Type | I/O Expansion Cable |
| Cable Length | 0.6 meters |
| Cable Weight | 0.16 kg |
Product Features
- Dedicated expansion connection: Connects compatible MasterLogic-200 I/O expansion hardware.
- 0.6-meter cable length: Suits installations where the required connection distance is relatively short.
- System-specific design: Provides the designated interconnection for supported MasterLogic-200 configurations.
- Expansion-system support: Allows additional I/O bases to be incorporated into a compatible PLC arrangement.
- Multiple length options within the product family: Makes it possible to select a cable according to cabinet layout and system requirements.
- Straightforward spare-parts identification: The 2MLC-E061 model reference distinguishes the 0.6-meter version from other expansion cables.
Working Principle
The 2MLC-E061 provides the physical connection between compatible MasterLogic-200 expansion-system components. Once installed, it carries the signals required for the connected expansion hardware to communicate within the supported PLC architecture.
A simplified arrangement is:
MasterLogic-200 CPU and Main Base → 2MLC-E061 Extension Cable → I/O Expansion Base → Installed I/O Modules
The CPU executes the control program, while the I/O modules acquire field signals or provide control outputs. The expansion connection allows the relevant base to participate in the system so that its installed modules can be used by the PLC application.
For example, a machine may place motor-status inputs, valve feedback, and additional sensor signals on an expansion base. The cable connects that base to the appropriate system hardware, allowing the PLC to incorporate the additional I/O into its control sequence.
Cable length is an important part of the system design. The MasterLogic-200 documentation specifies a maximum total cable length of 15 meters between the CPU and the farthest I/O expansion base for the applicable expansion arrangement. The cable length must therefore be considered together with any other expansion connections in the system.
The 2MLC-E061 does not perform signal conversion, execute control logic, or provide independent network switching. Its function is to establish the required physical interconnection between compatible expansion components.
Role in the MasterLogic-200 PLC Architecture
The 2MLC-E061 occupies the interconnection layer between the main PLC hardware and an expansion base. It supports the addition of I/O capacity while allowing the system to be arranged according to the control cabinet and machine layout.
PLC CPU and Main Base → Expansion Cable → Expansion Base → Digital and Analog I/O Modules
| System Component | Function |
|---|---|
| Honeywell 2MLC-E061 | Connects compatible expansion-system hardware |
| MasterLogic-200 CPU | Executes the PLC program and coordinates system operation |
| Main Base | Houses the CPU and supported main-base modules |
| I/O Expansion Base | Provides slots for additional I/O modules |
| Digital Input Modules | Acquire discrete signals from field devices |
| Digital Output Modules | Control compatible field loads through the designated output circuits |
| Analog Input Modules | Acquire supported process measurements |
| Analog Output Modules | Supply configured analog control signals |
| Field Devices | Provide sensor signals or receive control outputs |
| Control Cabinet | Houses the PLC bases, modules, and associated wiring |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Connecting expansion bases that handle additional sensors and actuators |
| Conveyor Systems | Extending I/O capacity for motor status, photoelectric sensors, and interlocks |
| Assembly Lines | Linking additional I/O bases used by machine stations |
| Material Handling | Connecting expansion hardware for position switches and equipment status |
| Process Control Panels | Extending the I/O arrangement for process monitoring and control |
| Water Treatment Systems | Supporting additional I/O for pumps, valves, and instrumentation |
| Manufacturing Equipment | Connecting expansion bases for machine-level control signals |
| Utility Systems | Incorporating additional field I/O into a compatible PLC installation |
| Machine-Building Projects | Accommodating expansion-base placement within the control cabinet |
| PLC Retrofit Projects | Reconnecting supported expansion hardware during cabinet modifications |
Installation and Maintenance
- Verify the model reference: Confirm that the required cable is 2MLC-E061 and that its 0.6-meter length suits the intended connection.
- Check hardware compatibility: Identify the MasterLogic-200 CPU and expansion-base arrangement before installing the cable.
- Review the cabinet layout: Confirm that the main and expansion bases can be connected without placing the cable under tension.
- Isolate the equipment: Follow the approved PLC shutdown and electrical isolation procedure before disconnecting or installing the cable.
- Inspect the connectors: Check the cable ends for damaged contacts, contamination, or mechanical deformation.
- Check the cable route: Avoid sharp bends, crushing, abrasion, and interference with cabinet doors or moving equipment.
- Verify the connection points: Match both cable ends to the designated interfaces shown in the system wiring and installation documentation.
- Secure the cable arrangement: Route and support the cable so that connectors are not subjected to unnecessary mechanical stress.
- Check total expansion-cable length: Confirm that the applicable CPU-to-farthest-expansion-base cable-length limit is not exceeded.
- Restore the system: Reassemble the cabinet and restore power according to the approved commissioning procedure.
- Verify expansion communication: Check that the PLC recognizes the connected expansion hardware and that the installed I/O modules operate as expected.
- Record the installation: Document the cable model, connected bases, and results of the post-installation checks.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell MasterLogic-200 CPU | Executes the PLC application |
| Honeywell MasterLogic-200 Main Base | Hosts the CPU and supported main-base modules |
| Honeywell MasterLogic-200 Expansion Base | Provides additional I/O module positions |
| Digital Input Modules | Acquire discrete field signals |
| Digital Output Modules | Provide discrete control outputs |
| Analog Input Modules | Acquire process-variable signals |
| Analog Output Modules | Supply analog commands to compatible field devices |
| Control Cabinet Wiring | Connects the PLC system to field equipment |
| Honeywell 2MLC-E061 | Provides the 0.6-meter expansion connection |
Recommended Related Models
| Model | Product Type | Cable Length |
|---|---|---|
| Honeywell 2MLC-E041 | MasterLogic-200 I/O Expansion Cable | 0.4 m |
| Honeywell 2MLC-E061 | MasterLogic-200 I/O Expansion Cable | 0.6 m |
| Honeywell 2MLC-E121 | MasterLogic-200 I/O Expansion Cable | 1.2 m |
| Honeywell 2MLC-E301 | MasterLogic-200 I/O Expansion Cable | 3.0 m |
| Honeywell 2MLC-E501 | MasterLogic-200 I/O Expansion Cable | 5.0 m |
| Honeywell 2MLC-E102 | MasterLogic-200 I/O Expansion Cable | 10 m |
| Honeywell 2MLC-E152 | MasterLogic-200 I/O Expansion Cable | 15 m |
Key Advantages
- Connects compatible MasterLogic-200 expansion hardware.
- Provides a defined 0.6-meter connection length for suitable cabinet layouts.
- Supports expansion of PLC I/O capacity through compatible bases.
- Offers model-specific identification for installation and spare-parts management.
- Fits within the MasterLogic-200 family of expansion-cable options.
Technical FAQs
What distinguishes the 2MLC-E061 from the 2MLC-E041?
The primary difference is cable length. The 2MLC-E061 is 0.6 meters long, while the 2MLC-E041 is 0.4 meters long. The selection should reflect the required connection distance and the installed system arrangement.
Can the 2MLC-E061 connect any two MasterLogic-200 bases?
It should be used for the expansion connections supported by the MasterLogic-200 architecture. Verify the CPU, base types, and designated cable interfaces before installation rather than treating it as a general-purpose cable.
What is the maximum permitted expansion-cable length in the applicable system?
The MasterLogic-200 documentation specifies that the total cable length between the CPU and the farthest I/O expansion base should not exceed 15 meters for the applicable arrangement. The complete cable path must be considered when selecting individual cable lengths.
What should be checked if the PLC does not recognize an expansion base after installation?
Check that the cable is the correct model, both ends are seated correctly, and the connectors are undamaged. Then inspect the expansion-base configuration and module status, and verify that the complete cable arrangement follows the system’s installation requirements.
