Product Overview

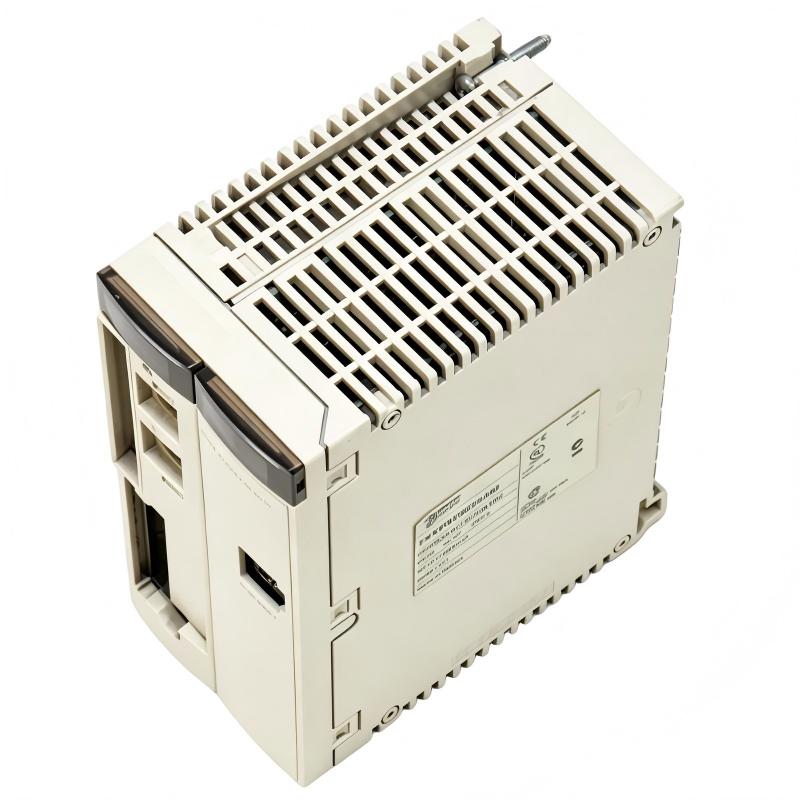

The Schneider Electric TSXP573623AM Dual-Format PL7 Processor is a programmable logic controller (PLC) processor designed for the Modicon Premium automation platform. It serves as the central processing component of a PLC station, executing control logic, processing data, managing communication, and coordinating connected input and output modules.

Designed for industrial automation applications, the TSXP573623AM supports the PL7 Junior/Pro programming environment and Schneider Electric’s Transparent Ready concept. Its integrated Ethernet TCP/IP interface and serial communication ports allow it to exchange information with compatible programming tools, supervisory systems, and industrial automation equipment.

The processor supports complex control tasks involving discrete I/O, analog signals, application-specific functions, and process-control operations. It can be installed in a compatible Modicon Premium rack and used with supported power supplies, I/O modules, communication modules, and other system components.

The TSXP573623AM is a double-format processor intended for systems that require the processing and communication capabilities of the Modicon Premium platform. Its integrated Ethernet interface supports 10/100 Mbps communication, while its serial interfaces provide additional connectivity options for compatible devices.

The processor includes 64 Kwords of internal RAM for program and data storage when no PCMCIA extension card is installed. Compatible PCMCIA cards can expand available storage for application programs and additional data.

Because the TSXP573623AM has been discontinued, it is particularly relevant to maintenance teams managing existing Modicon Premium installations. When purchasing a replacement, engineers should verify the full model number, hardware condition, program compatibility, and communication configuration.

Technical Specifications

Note: Capacity and performance depend on the rack configuration, installed modules, memory options, and application design. The supplied dimensions and weight are retained as listing parameters; verify the exact hardware and packaging before shipping or installation.

Function and Working Principle

The TSXP573623AM acts as the central processing unit of a Modicon Premium PLC station. It executes the application program, processes incoming information, updates control outputs, and coordinates data exchange with supported system components.

1. PLC Program Execution

The processor executes logic developed using the supported PL7 Junior/Pro software environment. Depending on the application, the program may contain interlocking logic, sequencing, timers, counters, arithmetic operations, alarm handling, and process-control routines.

The processor supports a master task, a fast task, and event tasks. These execution structures allow engineers to organize application logic according to response-time and operational requirements.

For example, a packaging machine may use the master task for general sequence control and a faster task for functions requiring more frequent processing. The actual task configuration depends on the application and its timing requirements.

2. Input and Output Processing

A PLC receives information from sensors and other field devices through its input modules. The processor evaluates the input states and executes the programmed logic before updating the relevant outputs.

The Modicon Premium platform supports discrete and analog I/O modules, allowing the controller to manage both on/off signals and measured process values.

Typical input signals may include limit switches, pressure transmitters, temperature measurements, and motor status contacts. Outputs may control relays, contactors, solenoid valves, indicators, and other compatible field devices through the appropriate I/O modules.

3. Data Storage and Memory Expansion

The processor provides internal RAM for application program and data storage. Without a PCMCIA extension card, the documented internal memory is 64 Kwords for program and data.

Compatible PCMCIA memory cards can provide additional storage for application programs and data. The available capacity depends on the card type and system configuration.

For maintenance purposes, engineers should document the installed memory card, program version, and application backup. Replacing a processor without preserving the required application files and configuration may prevent the controller from returning to service as intended.

4. Ethernet Communication

The integrated Ethernet TCP/IP interface supports communication with compatible programming and supervisory equipment over an industrial Ethernet network.

Depending on the system architecture, Ethernet communication may support PLC programming, data exchange, diagnostics, and supervisory monitoring. The actual protocols, services, and network functions available depend on the processor configuration and software environment.

Network addressing, cable routing, and access permissions should be configured according to the plant’s communication standards.

5. Serial Communication

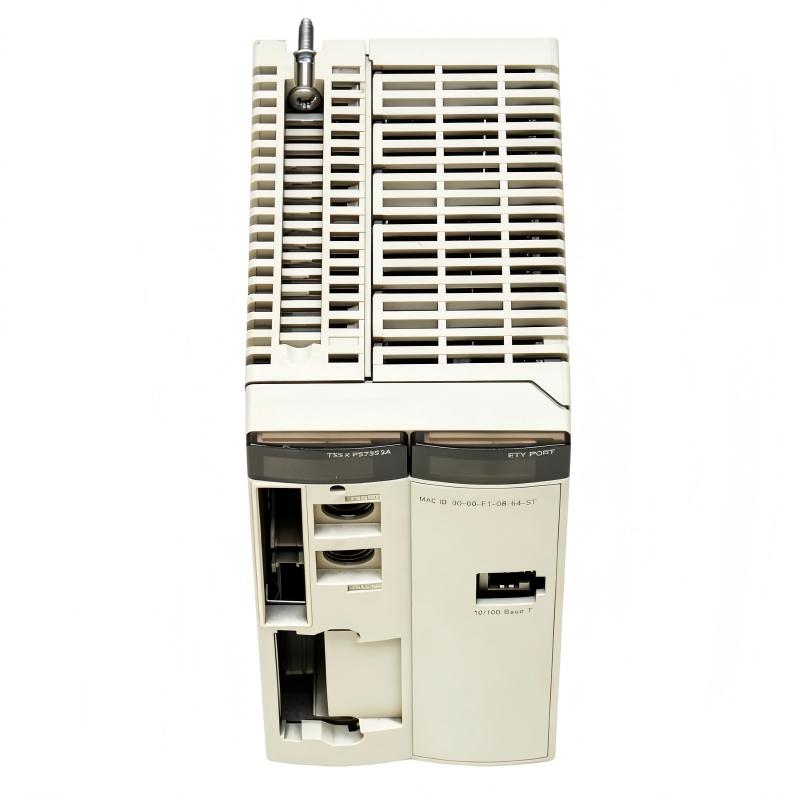

The TSXP573623AM also provides two non-isolated serial communication links using female mini-DIN connectors.

These interfaces can support compatible programming or communication arrangements, depending on the selected connection and device requirements. Engineers should verify the correct cable, port assignment, serial settings, and protocol before connecting external equipment.

Because the serial links are non-isolated, grounding and electrical compatibility require particular attention when integrating devices with different electrical references.

Role in Industrial Control Systems

The TSXP573623AM is the processing core of a Modicon Premium PLC station. It coordinates control logic, communicates with system modules, and provides the processing resources needed to automate industrial equipment.

PLC-Based Machine Control

In manufacturing systems, the processor can execute sequences for conveyors, packaging machinery, assembly equipment, and material-handling systems.

It receives status information from field devices, evaluates operating conditions, and sends control commands through compatible output modules. Interlocks and fault-handling logic help ensure that the machine responds appropriately to changing conditions.

Process Automation

The processor can also be used in industrial process-control systems involving analog measurements, discrete equipment states, and programmed control sequences.

Depending on the application and installed modules, the controller can coordinate pumps, valves, fans, auxiliary equipment, and process alarms.

The number of supported channels and achievable control performance depend on the processor configuration and the system’s engineering design.

Supervisory System Integration

The integrated Ethernet interface allows the processor to participate in a compatible supervisory architecture. A supervisory control and data acquisition (SCADA) system may collect operating data, display alarms, and present process information to operators.

Communication must be configured using the supported interfaces and software. Engineers should verify the exact protocol and system compatibility rather than assume that every modern Ethernet-based automation service is supported.

Legacy System Continuity

The TSXP573623AM is relevant to facilities that continue to operate Modicon Premium systems. Maintaining the original processor may reduce the immediate need for a complete control-system redesign.

However, the discontinued status means that replacement planning should include spare-parts availability, software compatibility, backup procedures, and a longer-term migration strategy.

Industrial Applications

1. Manufacturing and Assembly Lines

The processor can manage machine sequences involving sensors, pneumatic actuators, motor starters, and other field equipment.

In an assembly line, the PLC may verify part presence, control the sequence of operations, monitor equipment status, and coordinate transfers between stations.

The controller’s task structure and I/O capacity allow engineers to organize machine logic according to process requirements.

2. Packaging Machinery

Packaging equipment often requires coordinated operation of conveyors, feeders, sensors, and actuators. The processor can execute the logic that synchronizes these devices and manages machine states.

Ethernet and serial communication may support compatible operator interfaces and supervisory equipment, depending on the installation.

3. Water and Wastewater Systems

In suitable control architectures, the Modicon Premium platform can monitor tank levels, pump states, valve positions, and other process variables.

The processor evaluates sensor information and coordinates control outputs through compatible I/O modules. Alarm logic can identify abnormal conditions and support operator response.

Actual suitability depends on the required I/O capacity, environmental conditions, control strategy, and availability of compatible equipment.

4. Industrial Utilities

Utility systems may use PLCs to coordinate pumps, fans, auxiliary motors, and monitoring devices.

The TSXP573623AM can execute control sequences and exchange information with compatible supervisory systems. Engineers should confirm that its capabilities and lifecycle status meet the requirements of the installation.

5. Material Handling

Material-handling systems may include conveyor sections, transfer mechanisms, sorting devices, and safety interlocks.

A PLC processor coordinates these elements using field inputs and programmed logic. The TSXP573623AM may be suitable for maintaining an existing Modicon Premium installation where the processor, rack, and associated modules remain compatible.

Installation and System Integration

Correct installation and configuration are essential for reliable operation of the TSXP573623AM.

1. Verify Rack Compatibility

The processor must be installed in a compatible Modicon Premium rack. Before replacement, confirm the rack type, slot arrangement, power supply, existing modules, and any hardware restrictions.

A processor with a similar appearance or related model number should not be assumed to be interchangeable without checking the manufacturer’s compatibility information.

2. Confirm Power Requirements

Manufacturer documentation specifies a current consumption of 1,360 mA for this processor configuration. The rack power supply must have sufficient capacity for the processor and all installed modules.

Calculate the total rack load using the requirements of each component. Insufficient power capacity may lead to unstable operation or startup problems.

3. Configure Ethernet and Serial Interfaces

For Ethernet communication, verify the correct network connection, IP configuration, addressing plan, and compatibility with the intended programming or supervisory equipment.

For serial communication, check the required cable, port assignment, communication speed, and device settings. The two serial interfaces are non-isolated, so electrical references and grounding must be evaluated carefully.

4. Manage Application Programs and Memory

Before removing a working processor, back up the application program, configuration, and relevant documentation wherever possible.

Record the installed PCMCIA memory card and confirm that the replacement processor supports the required program and data configuration. After installation, verify the program version and ensure that the controller starts with the intended application.

5. Commission the PLC Station

After installing the processor, verify rack power, module recognition, communication status, and controller diagnostics.

Test representative inputs and outputs, task execution, alarms, interlocks, and communication with connected equipment. Confirm that the machine operates safely before returning the system to normal production.

6. Maintain Environmental and Electrical Conditions

Install the rack in an appropriate control cabinet and protect it from excessive dust, moisture, vibration, and temperature extremes.

Inspect connectors, wiring, grounding, and cabinet conditions during scheduled maintenance. Avoid inserting or removing modules under power unless the specific hardware and procedure explicitly support that operation.

Compatible System Components

The TSXP573623AM is designed to work as part of the Modicon Premium automation platform. Exact compatibility depends on the installed rack, module references, software versions, and communication configuration.

These components are examples of equipment that may be used in a complete system. They are not necessarily included with the processor.

Alternative Models and Replacement Considerations

The TSXP573623AM has been discontinued. Schneider Electric identifies the Modicon M580 BMEP583020 as a replacement direction, but migration requires an engineering assessment rather than a simple module substitution.

Before selecting a replacement, compare the following:

• Rack and backplane compatibility.
• Application program and software version.
• Internal memory and PCMCIA card requirements.
• Ethernet and serial communication functions.
• Discrete and analog I/O capacity.
• Application-specific and process-control requirements.
• Power supply capacity and installed modules.
• Communication with HMI, SCADA, and external devices.
• Mounting and wiring arrangements.
• Lifecycle support and long-term spare-parts availability.

A newer processor may provide greater capacity or newer communication options, but those improvements do not guarantee direct compatibility with an existing Premium rack or application.

Key Advantages

Integrated Ethernet Communication

The built-in Ethernet TCP/IP interface supports compatible networked programming, diagnostics, and supervisory integration.

Flexible PLC Processing

Support for master, fast, and event tasks enables engineers to structure control logic according to application timing and functional requirements.

Expandable Memory

Internal RAM and compatible PCMCIA memory options provide storage for application programs and data, subject to the selected hardware configuration.

Broad I/O Support

The Modicon Premium platform supports discrete and analog I/O as well as application-specific functions through compatible modules.

Serial Connectivity

The two integrated non-isolated serial links provide additional communication options for supported equipment and programming arrangements.

Established Installed Base

The processor remains relevant to maintenance projects involving existing Modicon Premium systems, where accurate identification and configuration management are essential.

Technical FAQs

1. What is the Schneider Electric TSXP573623AM?

It is a dual-format PL7 processor for the Modicon Premium PLC platform. It executes application logic and coordinates communication and I/O operations within a compatible PLC station.

2. Which programming software does it use?

The processor is designed for the PL7 Junior/Pro programming environment. Before maintenance or migration work, confirm that the available software and engineering tools support the installed processor and application.

3. Does the TSXP573623AM have built-in Ethernet?

Yes. It includes an Ethernet TCP/IP RJ45 interface supporting 10/100 Mbps communication. The actual communication services depend on the hardware, software, and network configuration.

4. What is its internal memory capacity?

Without a PCMCIA extension card, the documented internal RAM is 64 Kwords for program and data. With compatible memory options, the available data and program storage can be expanded.

5. What is its maximum I/O capacity?

The documented capacity reaches up to 1,024 discrete I/O and 128 analog I/O, subject to system configuration and supported hardware.

6. Can it be used in a new automation project?

It is a discontinued product, so it is generally more relevant to maintaining existing installations than designing a new long-term system. For new projects, consider a currently supported controller platform that meets the application requirements.

7. Is the TSXP573623AM still available from the manufacturer?

The model has been discontinued. Availability of remaining stock, used units, or refurbished processors depends on suppliers. Confirm the product’s condition, testing status, and applicable warranty before purchase.

8. What is the recommended replacement?

Schneider Electric lists the Modicon M580 BMEP583020 as a replacement direction. However, a transition to M580 may require changes to the rack, I/O architecture, programming environment, and communication configuration.

9. What should be checked before replacing the processor?

Verify the full model number, rack compatibility, application backup, installed memory card, power requirements, communication settings, and connected modules. Test the replacement under controlled conditions before returning the system to service.

10. What are the listed dimensions and weight?

The supplied listing values are 95 × 180 × 260 mm and 0.76 kg. Verify the actual unit and shipping configuration if these figures are being used for logistics or cabinet planning.

Procurement and Maintenance Recommendations

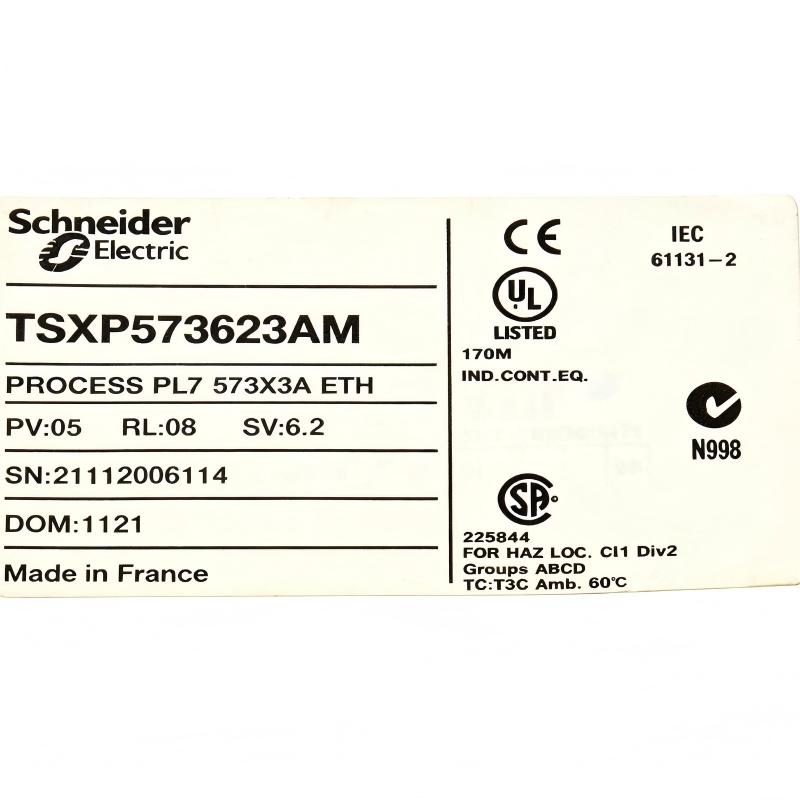

When sourcing the Schneider Electric TSXP573623AM, verify the complete model number and inspect the product label. Because the processor is discontinued, purchasing decisions should consider hardware condition, available testing, software compatibility, and long-term maintenance requirements.

For used or refurbished units, request clear photographs of the front label and connectors, confirm the unit’s condition, and establish the applicable warranty and return terms. Where possible, confirm that the processor can be tested in a compatible Modicon Premium rack.

Before replacing an installed processor, back up the application program and configuration. Record the rack arrangement, communication settings, installed memory card, and connected module references. These records can reduce commissioning time and help prevent configuration errors.

For long-term planning, evaluate whether continued support of the Modicon Premium platform remains practical or whether migration to a supported PLC platform is appropriate. Any migration should include program conversion, I/O and wiring assessment, communication testing, and a controlled commissioning plan.

Conclusion

The Schneider Electric TSXP573623AM Modicon Premium Dual-Format PL7 Processor is an industrial PLC CPU designed for application execution, I/O management, and communication within a compatible Modicon Premium automation station. Its key features include PL7 Junior/Pro support, integrated Ethernet TCP/IP, two non-isolated serial links, internal RAM, and expansion through compatible PCMCIA memory cards.

The model’s discontinued status makes accurate identification and careful replacement planning particularly important. For existing installations, verifying rack compatibility, application backups, communication interfaces, and memory configuration helps support a reliable maintenance process. For modernization projects, the recommended replacement direction should be evaluated as part of a complete system migration rather than treated as a direct plug-in substitute.
