Product Overview

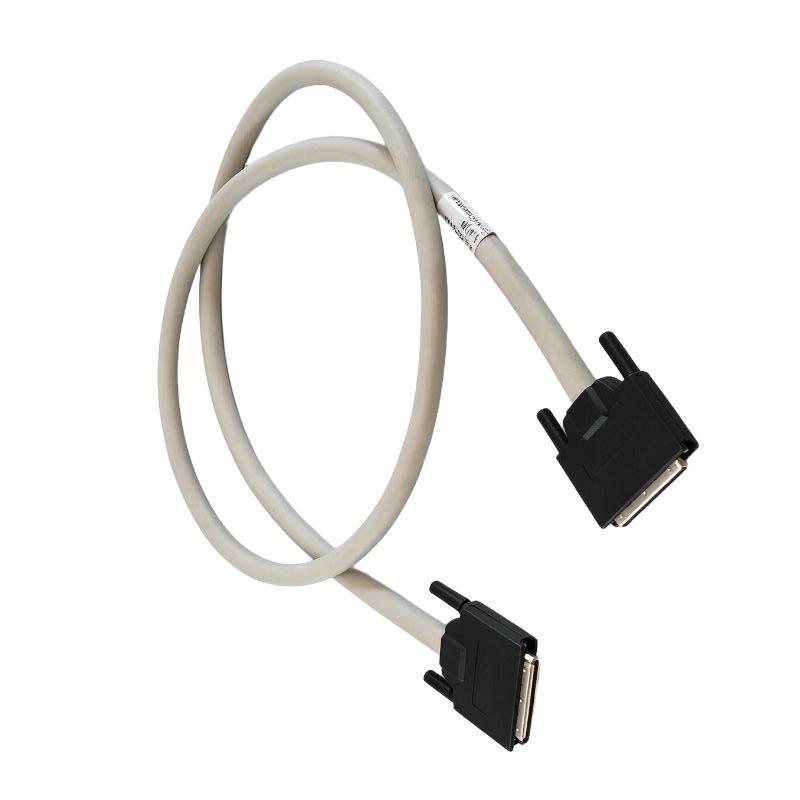

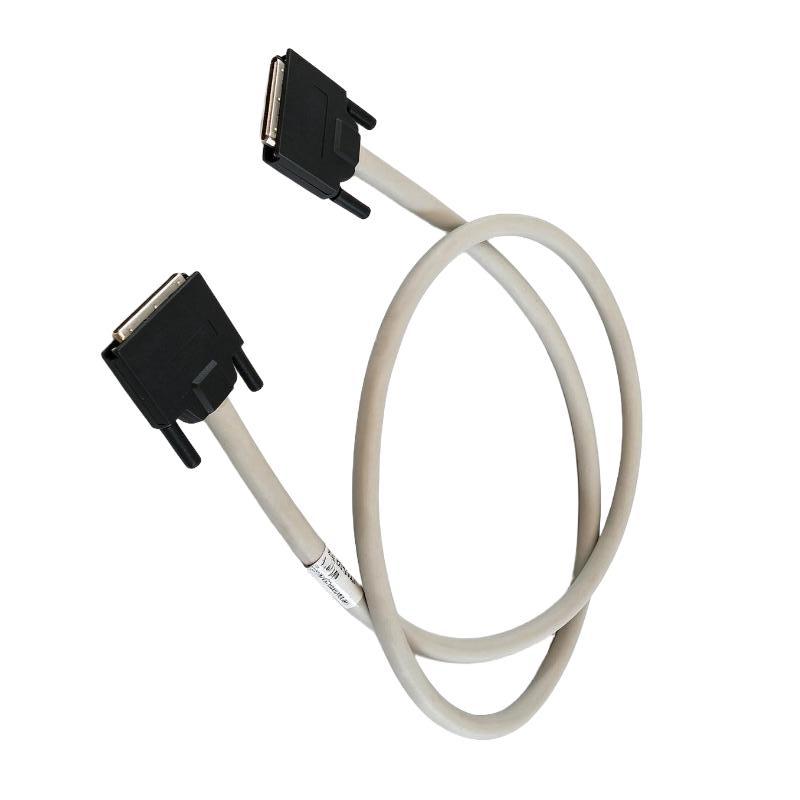

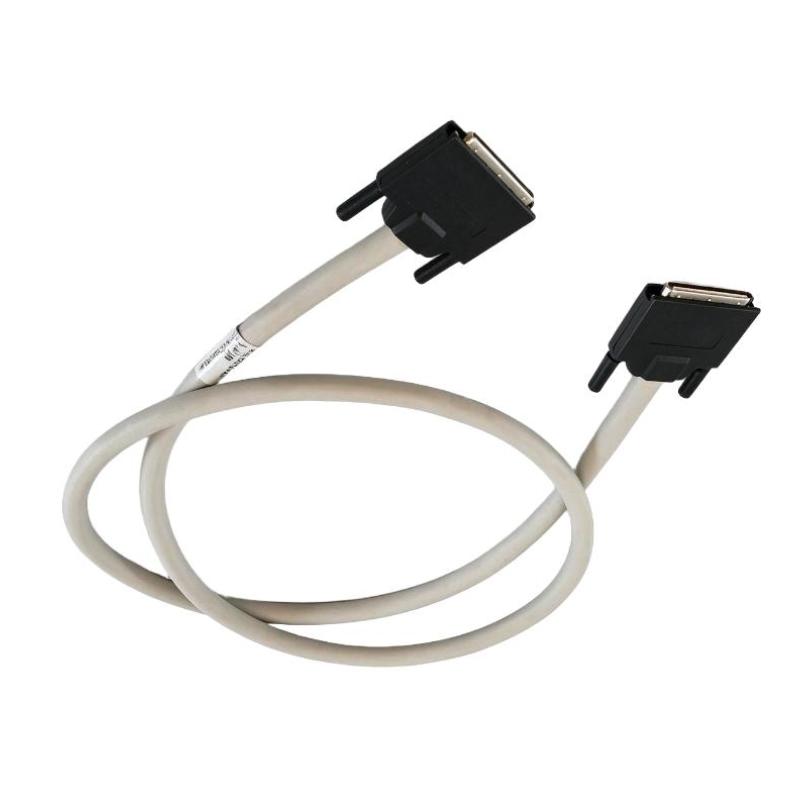

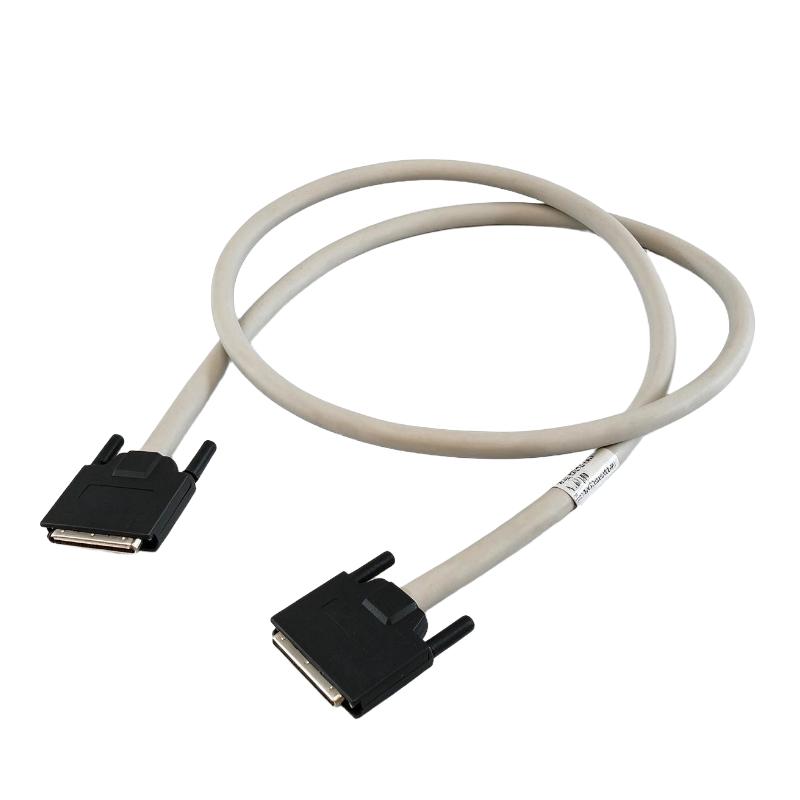

The Honeywell 2MLC-E121 MasterLogic-200 Extension Cable is an I/O expansion cable used to connect compatible expansion hardware in the MasterLogic-200 programmable logic controller (PLC) system. It supports installations that require additional I/O bases beyond the main CPU base, allowing the PLC architecture to accommodate more field signals and control points.
In a machine control cabinet, the CPU and its main base may be installed in one section while additional I/O modules are arranged on an expansion base. The 2MLC-E121 provides the interconnection between compatible hardware, helping the system accommodate this arrangement without relocating all modules to the main base.
The cable has a specified length of 1.2 meters. This option is useful when a shorter cable does not provide sufficient reach between the intended connection points. The selected cable must still comply with the expansion system’s overall distance limit and the installation requirements of the connected hardware.
For example, a packaging line may use the main PLC base for core machine logic while an expansion base handles additional sensor inputs, valve feedback, and actuator commands. The 2MLC-E121 can connect the expansion hardware when the required routing distance suits its length.
The 2MLC-E121 is a dedicated MasterLogic-200 accessory, not a general-purpose communication cable. Its compatibility with the CPU and expansion-base arrangement should be established before installation or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model / Part Number | 2MLC-E121 |
| Product Family | MasterLogic-200 |
| Product Type | I/O Expansion Cable |
| Cable Length | 1.2 meters |
| Cable Weight | 0.22 kg |
Product Features
- Dedicated I/O expansion connection: Connects supported MasterLogic-200 expansion hardware.
- 1.2-meter cable length: Accommodates installations requiring more reach than the shorter expansion-cable options.
- System-specific compatibility: Intended for the designated expansion architecture rather than general-purpose signal connections.
- Expandable PLC arrangement: Supports the addition of I/O bases within the applicable MasterLogic-200 configuration.
- Multiple cable-length options: Allows the interconnection to be selected according to cabinet layout and permitted expansion distance.
- Clear spare-parts identification: The 2MLC-E121 model number distinguishes the 1.2-meter version from other cables in the series.
Working Principle
The 2MLC-E121 establishes the physical connection between compatible MasterLogic-200 expansion components. Once installed, it carries the signals required for the connected expansion hardware to participate in the supported PLC system.
A typical arrangement follows this path:
MasterLogic-200 CPU and Main Base → 2MLC-E121 Extension Cable → I/O Expansion Base → Installed I/O Modules
The CPU executes the control program, while the I/O modules acquire field signals or provide control outputs. The expansion connection allows the additional base to communicate within the supported system architecture, making its installed modules available to the PLC application.
Consider a conveyor installation in which the main base handles the operating sequence and the expansion base collects additional photoelectric sensor signals and motor-status inputs. The extension cable connects the relevant hardware so that the PLC can incorporate those signals into its programmed logic.
Cable length must be considered across the complete expansion arrangement. The specified maximum total distance between the CPU and the farthest I/O expansion base is 15 meters for the applicable MasterLogic-200 configuration. Individual cable selection should account for the complete route rather than treating each connection independently.
The 2MLC-E121 does not process control logic, convert analog signals, or independently manage communication. Its purpose is to establish the required connection between compatible expansion-system components.
Role in the MasterLogic-200 PLC Architecture
The 2MLC-E121 forms part of the physical expansion arrangement between the main PLC hardware and an additional I/O base. It allows the system to accommodate more field connections while keeping the CPU, expansion bases, and installed modules within the supported architecture.
PLC CPU and Main Base → Expansion Cable → Expansion Base → Digital and Analog I/O Modules
| System Component | Function |
|---|---|
| Honeywell 2MLC-E121 | Connects compatible MasterLogic-200 expansion hardware |
| MasterLogic-200 CPU | Executes the PLC application and coordinates system operation |
| Main CPU Base | Hosts the CPU and supported main-base modules |
| I/O Expansion Base | Provides additional module positions |
| Digital Input Modules | Acquire discrete signals from sensors and switches |
| Digital Output Modules | Control compatible field devices through designated output circuits |
| Analog Input Modules | Acquire supported process measurements |
| Analog Output Modules | Supply configured analog control signals |
| Field Devices | Provide sensor feedback or receive control commands |
| Control Cabinet | Houses the PLC bases, modules, and associated wiring |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Connecting expansion bases for additional sensors and actuators |
| Conveyor Systems | Extending I/O capacity for motor feedback and position switches |
| Assembly Lines | Linking additional I/O bases serving separate machine stations |
| Material Handling | Connecting expansion hardware for equipment status and interlocks |
| Process Control Panels | Extending the PLC’s field-signal capacity |
| Water Treatment Systems | Connecting additional I/O for pumps, valves, and instrumentation |
| Manufacturing Equipment | Incorporating extra control points into an existing PLC arrangement |
| Industrial Utility Systems | Connecting compatible expansion bases in utility-control cabinets |
| Machine-Building Projects | Accommodating expansion hardware within the planned cabinet layout |
| PLC Retrofit Projects | Reconnecting supported expansion hardware during control-panel modifications |
Installation and Maintenance
- Verify the model reference: Confirm that the required cable is 2MLC-E121 and that its 1.2-meter length suits the intended connection.
- Check hardware compatibility: Identify the MasterLogic-200 CPU and expansion-base models before installation.
- Review the cabinet layout: Confirm that the cable can reach both connection points without tension or interference with cabinet doors and other equipment.
- Isolate the equipment: Follow the approved PLC shutdown and electrical isolation procedure before disconnecting or installing the cable.
- Inspect the connectors: Check both ends for damaged contacts, contamination, or mechanical deformation.
- Check the cable route: Avoid crushing, sharp bends, abrasion, and contact with moving equipment.
- Verify the connection points: Match both ends to the designated interfaces in the system installation documentation.
- Secure the cable arrangement: Route and support the cable so that its connectors are not subjected to unnecessary mechanical stress.
- Check the total expansion distance: Confirm that the complete CPU-to-farthest-expansion-base cable route remains within the applicable 15-meter limit.
- Restore the system: Reassemble the cabinet and restore power according to the approved commissioning procedure.
- Verify expansion communication: Confirm that the PLC recognizes the connected expansion hardware and that the installed I/O modules operate as expected.
- Record the installation: Document the cable model, connected base references, and post-installation test results.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell MasterLogic-200 CPU | Executes the PLC application |
| Honeywell MasterLogic-200 Main Base | Hosts the CPU and supported main-base modules |
| Honeywell MasterLogic-200 Expansion Base | Provides additional I/O module positions |
| Digital Input Modules | Acquire discrete field signals |
| Digital Output Modules | Provide discrete control outputs |
| Analog Input Modules | Acquire process-variable signals |
| Analog Output Modules | Supply analog commands to compatible field devices |
| Control Cabinet Wiring | Connects the PLC system to field equipment |
| Honeywell 2MLC-E121 | Provides the 1.2-meter expansion connection |
Recommended Related Models
| Model | Product Type | Cable Length |
|---|---|---|
| Honeywell 2MLC-E041 | MasterLogic-200 Expansion I/O Cable | 0.4 m |
| Honeywell 2MLC-E061 | MasterLogic-200 Extension Cable | 0.6 m |
| Honeywell 2MLC-E121 | MasterLogic-200 Extension Cable | 1.2 m |
| Honeywell 2MLC-E301 | MasterLogic-200 Extension Cable | 3.0 m |
| Honeywell 2MLC-E501 | MasterLogic-200 Extension Cable | 5.0 m |
| Honeywell 2MLC-E102 | MasterLogic-200 Extension Cable | 10.0 m |
| Honeywell 2MLC-E152 | MasterLogic-200 Extension Cable | 15.0 m |
Key Advantages
- Connects compatible MasterLogic-200 expansion hardware.
- Provides a 1.2-meter connection option for suitable cabinet layouts.
- Supports additional PLC I/O capacity through compatible expansion bases.
- Simplifies cable identification during installation and spare-parts replacement.
- Fits within the MasterLogic-200 family of expansion-cable options.
Technical FAQs
When is the 2MLC-E121 preferable to the 2MLC-E061?
The 2MLC-E121 is 1.2 meters long, compared with 0.6 meters for the 2MLC-E061. It is appropriate when the required connection route needs the additional reach and remains within the system’s permitted expansion distance.
Which MasterLogic-200 configuration supports this expansion cable?
The documented 2MLC-E121 expansion-cable option is associated with the 2MLI-CPUU-based I/O expansion arrangement. Check the installed CPU and base configuration before selecting the cable for a replacement or system extension.
How should the cable length be calculated when several expansion bases are installed?
Account for the complete cable route from the CPU to the farthest expansion base. For the applicable MasterLogic-200 arrangement, the total distance must not exceed 15 meters.
What could cause an expansion base to remain unavailable after connecting the cable?
Inspect the cable connectors and confirm that the cable is correctly seated at both ends. Also check the CPU and expansion-base compatibility, the installed module configuration, and the PLC’s expansion-system status.
