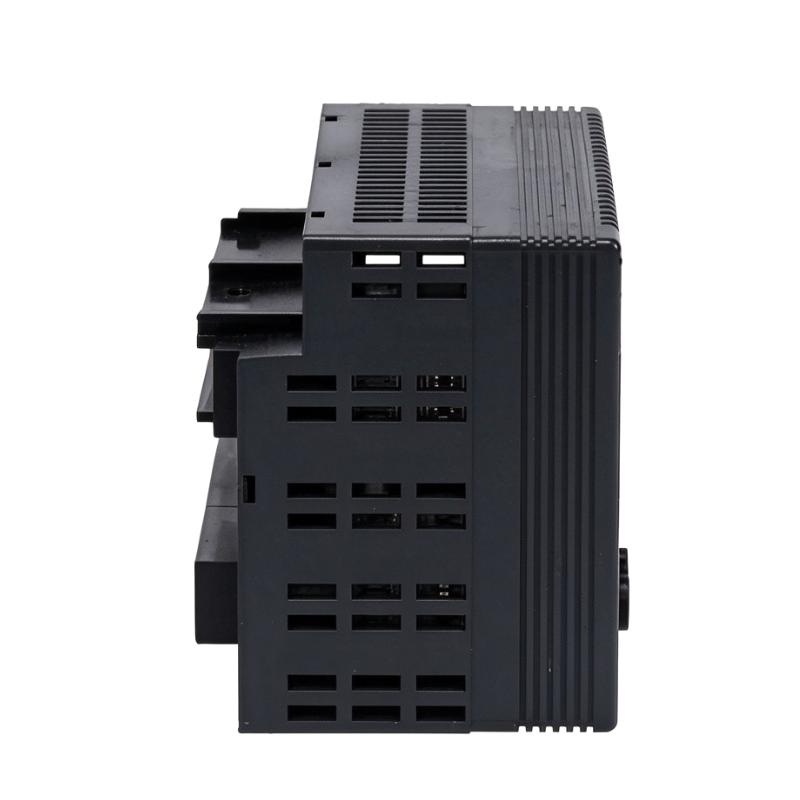

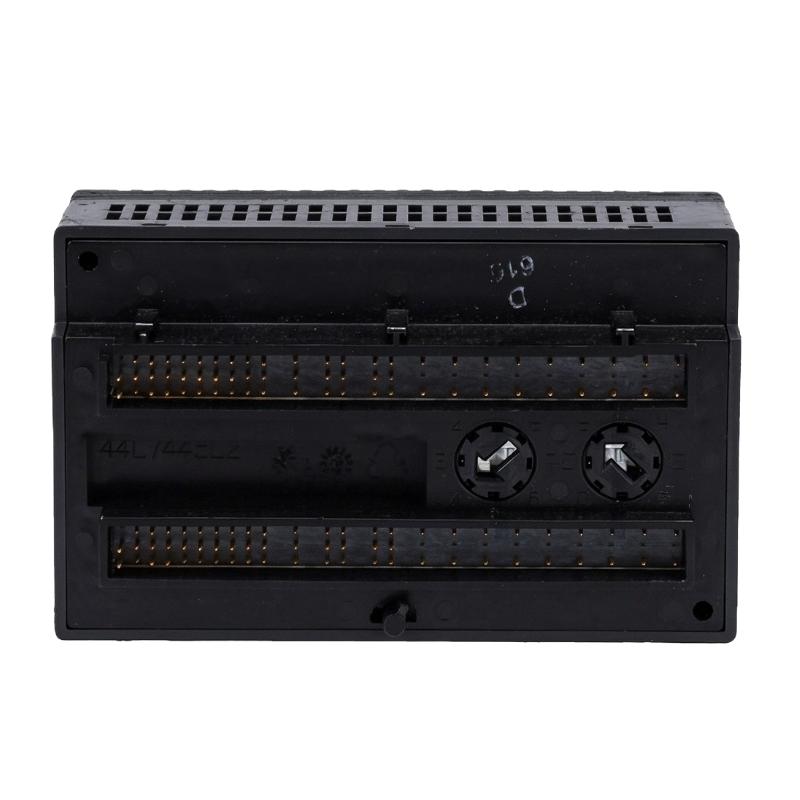

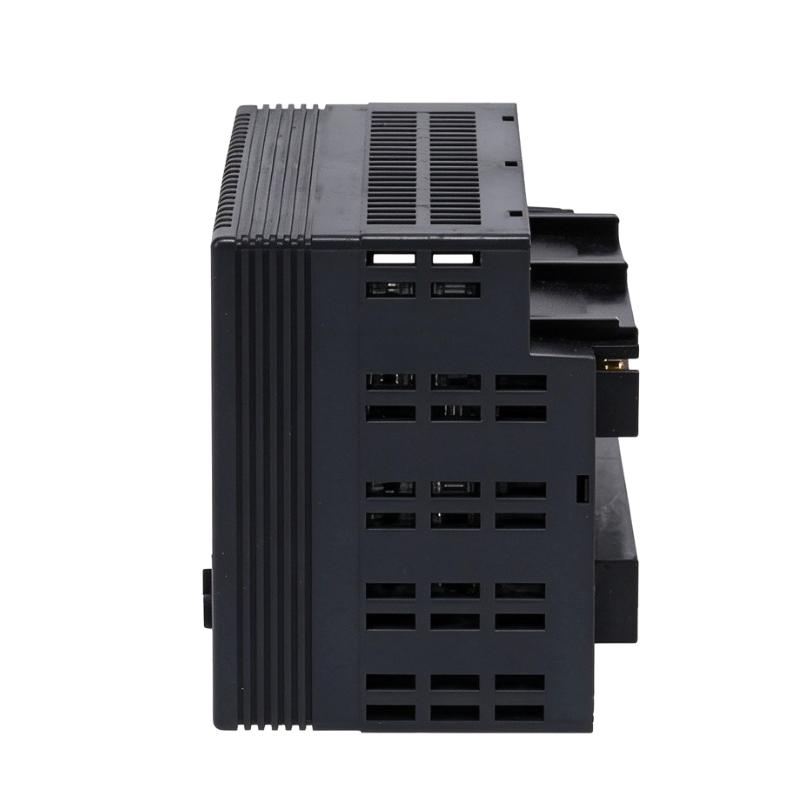

Product Overview

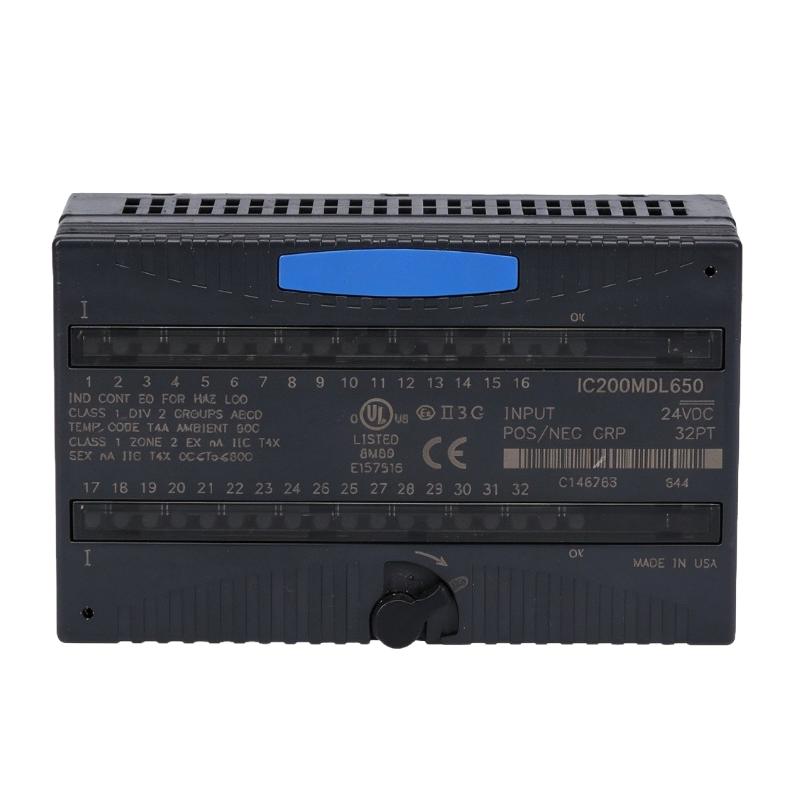

The GE IC200MDL650J VersaMax Discrete Input Module is an industrial automation component designed to collect digital signals from field devices and transfer their status information to a programmable logic controller (PLC). Belonging to the GE Fanuc VersaMax I/O family, this module supports digital signal acquisition in industrial machinery, manufacturing equipment, and distributed control installations.

Digital input modules are essential components of PLC-based automation systems. They allow controllers to detect whether a switch is open or closed, whether a sensor has detected an object, or whether a machine component has reached a particular operating position. The PLC can then use these signals to execute programmed logic, coordinate equipment, and respond to changing process conditions.

The IC200MDL650J is associated with the VersaMax 24 V DC discrete input platform. The corresponding IC200MDL650 model provides 32 digital input points arranged in groups of eight. This high-density configuration allows multiple field signals to be monitored through a single compact module, helping organize control-panel wiring and reduce the space required for digital input acquisition.

Typical input devices include push buttons, limit switches, proximity sensors, selector switches, and auxiliary contacts from industrial equipment. When a field device changes state, the input module detects the electrical signal and communicates the corresponding status to the PLC through the VersaMax I/O architecture.

The module is intended for use with compatible VersaMax carrier and controller arrangements. Correct carrier selection, electrical compatibility, input wiring, and PLC configuration are necessary for reliable operation. When replacing an existing module, the complete part number, including its suffix, should be checked to ensure that the replacement matches the installed hardware.

Technical Specifications

Important: Detailed electrical specifications above are based on the corresponding IC200MDL650 model. Confirm the complete IC200MDL650J suffix and revision against the module label and applicable technical documentation before finalizing a replacement or installation.

Function and Working Principle

The primary function of the IC200MDL650J is to detect discrete electrical signals from field devices and make their states available to the PLC. Unlike an analog input module, which measures continuously varying signals such as voltage or current, a discrete input module processes signals representing distinct states.

1. Digital Signal Acquisition

Industrial field devices commonly communicate basic status information through on/off electrical signals. For example, a limit switch may indicate that a moving component has reached its travel limit, while a proximity sensor may indicate that a workpiece is present.

The input module receives these electrical signals through its field wiring. It conditions and interprets the incoming signals according to its electrical design, allowing the PLC to recognize the corresponding input states.

This process provides the controller with the information needed to execute machine sequences, monitor equipment conditions, and respond to field events.

2. 24 V DC Input Operation

The corresponding IC200MDL650 platform is designed for nominal 24 V DC digital inputs, with a documented input range of 0–30 V DC.

When connecting field devices, engineers must ensure that the signal voltage, polarity, and common-terminal arrangement are compatible with the module. Incorrect voltage levels or wiring can lead to unreliable input detection or damage.

The exact positive-logic or negative-logic arrangement should be confirmed for the specific module revision and system configuration before connecting field wiring.

3. Multiple Input Channels

A 32-point input arrangement enables one module to monitor numerous digital signals. On the corresponding IC200MDL650 model, the inputs are organized into groups of eight.

This arrangement can simplify field wiring in applications with multiple sensors and switches. However, engineers must observe the module’s group wiring and isolation requirements when connecting devices.

For example, a packaging machine may use several inputs to monitor product presence, guard-door status, actuator positions, and equipment-ready signals. A single high-density input module can consolidate these signals into the PLC system.

4. Input Filtering and Signal Stability

Digital input systems must distinguish valid state changes from brief electrical disturbances. The corresponding IC200MDL650 model supports configurable input filter times, documented as 0 ms, 1 ms, and 7 ms.

Filtering can help reject short-duration disturbances or contact bounce. However, a longer filter introduces additional delay before an input transition is recognized.

The appropriate setting depends on the device being monitored. Fast signals may require shorter filtering, while mechanical switches may benefit from a longer setting. Verify the supported configuration parameters for the exact IC200MDL650J revision.

5. Input Status Indication

Individual input indicators help maintenance personnel identify the state of field signals. An additional module-status indicator on the corresponding platform provides information about the module’s operating condition and backplane power.

These indicators are useful during commissioning and troubleshooting. If a sensor changes state but the expected input indicator does not respond, technicians can inspect the sensor supply, wiring, polarity, terminal connections, and module configuration.

Role in Industrial Control Systems

The IC200MDL650J can serve as the field-signal acquisition layer within a VersaMax PLC control architecture. Its role is to collect digital information so that the controller can make decisions based on actual machine and process conditions.

PLC Signal Processing

The PLC reads the states of the configured input points and evaluates them according to the application program. Logic may determine whether a motor is permitted to start, whether a conveyor should stop, or whether an alarm condition should be activated.

The input module does not independently execute the complete machine-control sequence. Instead, it supplies field-state information to the controller, which processes the data and coordinates the rest of the automation system.

Machine Status Monitoring

Digital inputs can be used to monitor equipment-ready contacts, motor auxiliary contacts, limit switches, and other discrete status signals.

By collecting these signals, the PLC can distinguish between normal operation, an incomplete sequence, and a potential fault condition. This information can also be made available to an HMI for operator monitoring.

Interlock and Sequence Control

Many automated machines rely on interlocks to prevent actions from occurring under unsuitable conditions. A PLC may check several digital input states before enabling an actuator or advancing to the next stage of a sequence.

For example, a packaging machine may require a guard-door signal, product-presence signal, and actuator-home signal before initiating the next cycle.

The module supplies the relevant input states, while the PLC program implements the required logic and safety strategy. Where personnel safety is involved, a standard digital input module should not be assumed to replace a properly designed safety-rated control system.

Distributed I/O Architecture

VersaMax supports modular I/O arrangements that allow field signals to be organized according to the requirements of a control system. A discrete input module can be installed with a compatible carrier and controller or interface arrangement.

The final architecture depends on the selected VersaMax hardware, power supply, carrier, controller, and communication components. Compatibility must be verified for the complete installation rather than inferred from the module’s product family alone.

Industrial Applications

The IC200MDL650J can be considered for applications requiring high-density digital input monitoring in a compatible VersaMax control system.

1. Manufacturing Machinery

Manufacturing equipment uses digital signals to report machine positions, operating states, and production conditions. The input module can collect signals from limit switches, push buttons, and compatible sensors.

The PLC uses these signals to coordinate operations, monitor process sequences, and detect conditions that require operator attention.

2. Conveyor and Material Handling Systems

Conveyors may contain sensors that detect product presence, position, accumulation, or the operating status of associated equipment.

A discrete input module can collect these signals for PLC processing. The controller can then coordinate conveyor movement, initiate transfers, and respond to detected conditions.

3. Packaging Equipment

Packaging systems often use multiple digital signals to monitor product entry, package position, guard-door status, and actuator movement.

The module’s high-density input architecture can help consolidate these signals within the control panel, provided the connected devices and wiring arrangement meet the module’s requirements.

4. Assembly and Inspection Stations

Assembly machinery may require confirmation that a component is present, a fixture is in position, or an operation has reached a defined state.

The input module collects these discrete signals and transfers their states to the PLC, allowing the program to determine whether the process can continue.

5. Process Equipment Monitoring

Industrial process equipment frequently uses auxiliary contacts and discrete sensors to report operating states. These may include equipment-ready signals, valve limit switches, local control selections, and alarm contacts.

The module can support this type of monitoring when the field signals are electrically compatible with the input specifications.

6. Industrial Equipment Retrofitting

Existing plants may retain VersaMax PLC systems for many years. When maintaining such equipment, a compatible discrete input module can help preserve the established control architecture without redesigning every field connection.

Before using a replacement, verify the exact module revision, carrier compatibility, wiring, and configuration requirements.

Installation and System Integration

Proper installation is necessary to ensure reliable signal detection and maintain the integrity of the control system.

1. Verify the Exact Module Number

Confirm that the module label reads IC200MDL650J. Do not assume that every suffix variant has identical electrical characteristics or firmware-related behavior.

Compare the existing module’s catalog number with the replacement and check the applicable documentation before installation.

2. Confirm Carrier Compatibility

VersaMax I/O modules use compatible carrier hardware. Confirm that the installed carrier supports the module and that the mechanical connections are secure.

The carrier, backplane connection, and overall I/O architecture must match the intended system configuration.

3. Check Input Voltage and Polarity

The corresponding IC200MDL650 platform uses nominal 24 V DC inputs. Verify the field device’s voltage, polarity, common connections, and switching arrangement before wiring.

Do not apply AC signals or voltages outside the module’s supported range. Incorrect field wiring may result in failed input detection or hardware damage.

4. Organize Field Wiring

Clearly label the input channels and associated field devices. Keep wiring organized so that technicians can trace signals during commissioning and maintenance.

Follow the manufacturer’s terminal and grounding instructions. Where electrical noise is a concern, separate sensitive control wiring from power conductors and use appropriate cable-routing practices.

5. Configure the PLC Hardware

The module must be recognized and configured correctly within the VersaMax system. Verify the I/O configuration, point assignments, program references, and any supported input-filter parameters.

After replacing a module, check that the PLC program reads the expected input points and that the field signals correspond to the correct addresses.

6. Perform Functional Testing

After installation, test each connected field device individually. Confirm that its physical state produces the expected input indication and PLC status.

Check relevant interlocks, alarms, sequence transitions, and operator displays. Document the results and investigate any discrepancy before returning the equipment to normal operation.

Compatible System Components

The IC200MDL650J should be used with components that are compatible with the installed VersaMax architecture.

The table identifies typical system components. It does not imply that these items are supplied with the IC200MDL650J.

Alternative Models and Replacement Considerations

When the IC200MDL650J requires replacement, the alternative must match the electrical requirements and the installed VersaMax hardware.

Before selecting a replacement, compare:

• Full catalog number and hardware revision.
• Number of input points and group arrangement.
• Nominal input voltage and supported signal range.
• Positive-logic or negative-logic requirements.
• Input filtering and response time.
• Isolation characteristics.
• Carrier and backplane compatibility.
• PLC hardware configuration and address mapping.
• Physical dimensions and terminal arrangement.

A module with the same number of channels may still be unsuitable if its electrical logic or hardware interface differs.

Key Advantages

High-Density Digital Input Monitoring

The corresponding IC200MDL650 platform provides 32 digital input points, allowing numerous field signals to be collected through a single module.

Compatibility with VersaMax Automation

The module is designed for the VersaMax I/O ecosystem, supporting established PLC installations that use compatible hardware and configuration tools.

Support for 24 V DC Field Signals

The corresponding model is intended for common 24 V DC industrial digital signals, including those from suitable switches and sensors.

Input Status Diagnostics

Point-level status indicators can help maintenance personnel trace signal paths and identify wiring or field-device issues.

Configurable Input Filtering

The corresponding IC200MDL650 model supports configurable input filtering, allowing engineers to balance signal-noise rejection against response time.

Compact Physical Design

The supplied dimensions of 110 × 66.8 × 50 mm support compact installation planning, subject to the additional space required by the carrier and mating connections.

Practical for Maintenance and Retrofits

The module is relevant to maintenance work involving installed VersaMax systems where retaining the existing I/O architecture is desirable.

Technical FAQs

1. What is the GE IC200MDL650J?

The IC200MDL650J is identified as a GE VersaMax discrete input module. It is used to collect digital signals from field devices and make their states available to a compatible PLC system.

2. How many input points does it provide?

The corresponding IC200MDL650 model provides 32 digital input points arranged in groups of eight. Confirm the exact specification for the IC200MDL650J revision before installation.

3. What is the nominal input voltage?

The corresponding IC200MDL650 model uses nominal 24 V DC inputs, with a documented input range of 0–30 V DC.

4. What devices can be connected to the module?

Compatible devices may include push buttons, selector switches, limit switches, proximity sensors, and auxiliary contacts. The electrical output type and wiring arrangement must match the module’s requirements.

5. Does the module connect directly to a PLC?

It is used within a compatible VersaMax I/O architecture. The module requires the appropriate carrier and system configuration rather than functioning as a standalone controller.

6. Does it support input filtering?

The corresponding IC200MDL650 model supports configurable filter settings of 0 ms, 1 ms, and 7 ms. Verify the available settings for the exact module revision.

7. What are the dimensions and weight?

The supplied dimensions are 110 × 66.8 × 50 mm, and the supplied weight is 0.3 kg. Allow additional installation space for the carrier and mating connectors.

8. Can IC200MDL650J replace IC200MDL650?

Do not assume automatic compatibility based solely on the similar catalog numbers. Verify the full part number, suffix, hardware revision, electrical specifications, and system documentation before substitution.

9. What should be checked before purchasing?

Confirm the complete model number, condition, input specifications, hardware revision, and carrier compatibility. For used or surplus modules, request clear label photographs and available functional test information.

10. What are common causes of input signal problems?

Possible causes include a missing field power supply, incorrect polarity, loose wiring, an incompatible sensor output, incorrect PLC addressing, or a module or carrier fault. Troubleshooting should proceed systematically from the field device to the input terminals and PLC status.

Procurement and Maintenance Recommendations

When purchasing the GE IC200MDL650J, verify the full catalog number and suffix rather than relying solely on the product-family description. Confirm that the module matches the installed VersaMax system and the electrical characteristics of the connected field devices.

For new, surplus, or refurbished units, inspect the housing, terminals, connector surfaces, and identification label. Request available testing information and confirm the supplier’s warranty and return conditions.

During maintenance, keep the control cabinet clean and ensure that wiring labels and PLC address documentation remain accurate. Inspect terminal connections and field-device wiring according to the plant’s maintenance procedures.

After replacement, verify the input state of each connected device and confirm that the PLC program receives the correct signal. Test relevant interlocks, alarms, and machine sequences before returning the equipment to service.

For long-term maintenance planning, retain a record of the module’s complete part number, revision, carrier model, wiring assignments, and PLC configuration. This information can reduce downtime and help avoid incompatible replacement purchases.

Conclusion

The GE IC200MDL650J VersaMax Discrete Input Module is intended for digital signal acquisition in compatible industrial PLC systems. The corresponding IC200MDL650 platform provides 32 input points, nominal 24 V DC operation, grouped input wiring, and diagnostic indicators for monitoring field signals.

With supplied dimensions of 110 × 66.8 × 50 mm and a weight of 0.3 kg, the module is suited to compact I/O installations. For dependable operation and replacement compatibility, engineers should verify the complete IC200MDL650J catalog number, electrical characteristics, carrier interface, and PLC configuration before installation.
