Product Overview

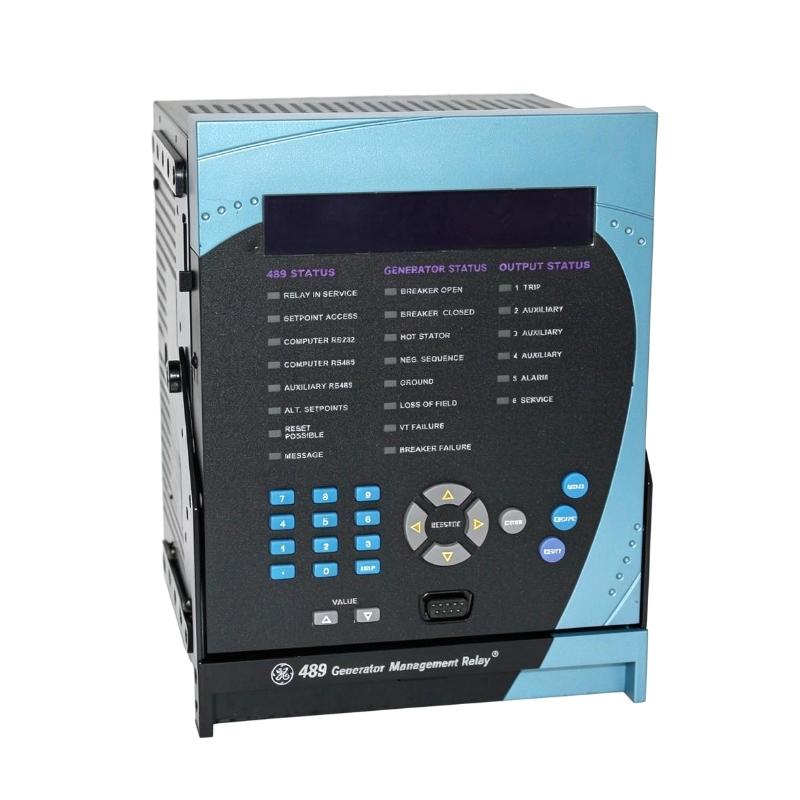

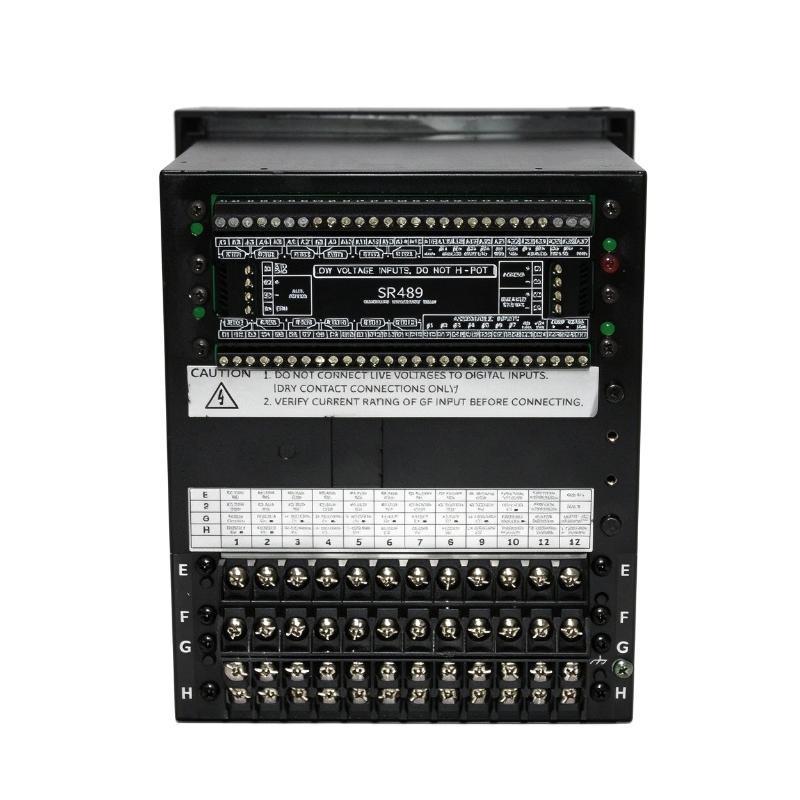

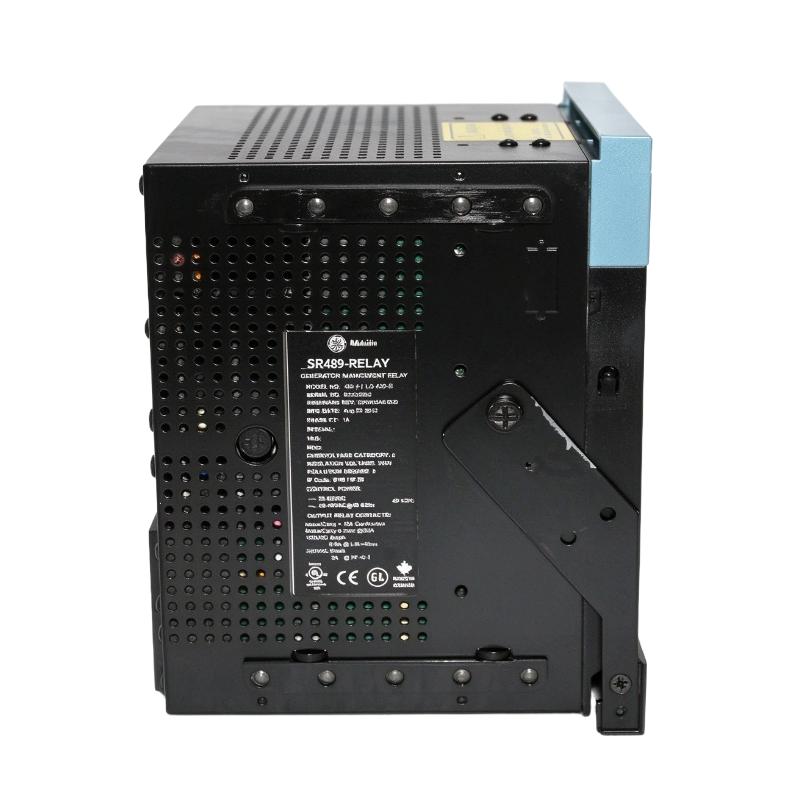

The GE 489-P1-LO-A20-E Multilin 489 Generator Management Relay is used to protect and monitor generators in industrial power-generation systems. It combines electrical protection, temperature supervision, operating measurements, and configurable control logic in a single drawout relay. In a generator control panel, it evaluates incoming measurement signals and initiates alarms or trip commands when configured operating limits are exceeded.

The P1 option is a key consideration when selecting this model: it accepts 1 A phase current transformer secondary inputs. This makes it suitable for installations where the generator’s phase CTs are configured for a 1 A secondary rating. The LO control-power option supports a lower auxiliary supply range, while A20 specifies 4–20 mA analog outputs. The E enhancement provides a larger LCD and improved keypad for local operation, without the additional Ethernet port associated with the T version.

In a standby power installation, the relay can monitor generator current, voltage, frequency, and supported temperature inputs while the machine operates under changing load conditions. If a configured electrical or thermal protection element detects an abnormal condition, the relay can operate an assigned output to initiate an alarm or disconnect the generator through its external trip circuit.

The 489 platform supports protection functions covering several generator fault scenarios, including thermal overload, phase overcurrent, reverse power, loss of excitation, negative-sequence current, and differential protection. The functions enabled and their settings must match the generator’s electrical characteristics and the installed protection scheme.

For replacement projects, matching the 489 family name alone is insufficient. The phase CT input rating, control supply, analog-output range, display option, wiring, and communication requirements must all be checked. In particular, a 1 A CT installation should not be treated as interchangeable with a 5 A input configuration.

Technical Specifications

Product Features

• 1 A phase CT inputs: Matches generator protection installations using 1 A phase-current transformer secondaries.
• Low-range control power: Accepts the specified 20–60 V DC or 20–48 V AC auxiliary supply.
• 4–20 mA analog outputs: Transfers selected measurements to compatible analog input devices.
• Enhanced local display: The larger LCD and improved keypad simplify access to operating values, alarms, and settings.
• Generator-specific protection: Supports multiple electrical and thermal protection elements for generator applications.
• RTD temperature monitoring: Uses compatible temperature sensors to supervise configured generator locations.
• Serial communication: RS232 and RS485 interfaces support configuration and data exchange through supported protocols.
• Configurable logic and outputs: Allows protection responses to be assigned to appropriate alarm and trip circuits.
• Event information: Recorded operating information assists with investigating trips and abnormal conditions.
• Drawout construction: Supports maintenance and replacement procedures appropriate to the installed relay assembly.

Working Principle

The 489-P1-LO-A20-E receives current and voltage measurements from the generator’s instrument transformers. It can also monitor temperature signals from compatible RTDs and status signals from configured digital inputs. The relay evaluates these inputs against its programmed protection settings and determines whether an alarm or trip response is required.

A typical generator protection path is:

Generator CTs / VTs / RTDs → Multilin 489 → Protection Logic → Alarm or Trip Output → Generator Breaker

During normal operation, the relay continuously evaluates the measured electrical quantities and available temperature information. When a protection element detects a qualifying abnormal condition, it applies the relevant pickup threshold, timing characteristic, and logic settings.

For example, if a generator experiences sustained overload, the thermal protection function can evaluate the current and associated thermal model to determine whether the operating condition exceeds the configured limit. In a reverse-power event, the relay evaluates the direction of real power flow and can initiate an alarm or trip when the configured criteria are satisfied. Other enabled functions address conditions such as phase overcurrent, negative-sequence current, loss of excitation, and differential current.

Temperature inputs provide additional information about the machine’s thermal condition. RTDs installed at selected locations supply readings that the relay compares with configured alarm and trip thresholds. Correct sensor selection, wiring, and channel assignment are essential to obtaining meaningful temperature supervision.

The A20 option allows selected measurements to be assigned to 4–20 mA analog outputs. These signals can be connected to compatible PLC or supervisory-system analog inputs for display and monitoring. The E display enhancement supports local operation, while serial interfaces provide supported communication paths. This version should not be assumed to include the 10Base-T Ethernet interface associated with the T enhancement.

The relay’s protection decisions are only one part of the complete protective action. Correct CT and VT wiring, appropriate settings, output assignments, breaker interlocks, and a functioning trip circuit are all necessary for the intended response.

Role in a Generator Protection Architecture

The Multilin 489 serves as the generator protection and monitoring layer between electrical measurement circuits and the external control equipment. It evaluates generator operating conditions and issues the configured alarm or trip signals.

Generator → CTs / VTs / RTDs → Multilin 489 → Trip and Alarm Circuits → Generator Breaker / Supervisory System

The protection settings must be coordinated with generator ratings, instrument-transformer ratios, grounding arrangements, and the surrounding power system. The relay should be tested together with the breaker trip circuit and relevant interlocks before the generator returns to service.

Industrial Applications

This model is particularly relevant where the existing generator protection design requires 1 A phase CT inputs and a low-range control supply. Applications requiring a 5 A CT input or Ethernet connectivity need a configuration that specifically supports those requirements.

Installation and Maintenance

1. Verify the complete model number: Confirm 489-P1-LO-A20-E and distinguish it from P5, HI, A1, and T configurations.
2. Check the generator ratings: Confirm the required nominal voltage, rated current, frequency, and other generator data used by the protection settings.
3. Verify the CT secondary rating: Ensure that the phase-current transformer circuits provide 1 A secondary current and that the configured CT ratios are correct.
4. Inspect voltage-transformer wiring: Check phase identification, polarity, terminal assignments, and VT ratios against the approved drawings.
5. Confirm the control supply: Verify that the available auxiliary supply falls within the LO option’s specified DC or AC input range.
6. Inspect RTD wiring: Check sensor type, channel assignments, terminal connections, and the configured temperature limits.
7. Review protection settings: Confirm enabled functions, pickup thresholds, operating delays, and trip assignments against the generator protection study.
8. Configure analog outputs: Verify which measurements are assigned to each 4–20 mA output and confirm the receiving device’s input scaling.
9. Check serial communication: Verify the selected RS232 or RS485 connection, protocol, addressing, and communication parameters where applicable.
10. Inspect output and breaker wiring: Confirm that alarm and trip outputs connect to the intended circuits and that interlocks operate as expected.
11. Perform functional protection tests: Use approved test equipment to verify relevant electrical protection, temperature inputs, output operation, and the complete trip sequence.
12. Document the final configuration: Record the model code, CT and VT ratios, control supply, protection settings, output assignments, communication parameters, and test results.

Before removing or inserting the drawout relay, follow the equipment’s approved isolation and handling procedures. Never open an energized CT secondary circuit unless it has been made safe using an approved shorting and isolation arrangement. After modifying settings or wiring, verify the affected protection functions and external trip path before returning the generator to operation.

Compatible System Components

The 489-P1-LO-A20-E works with the generator measurement circuits, temperature sensors, breaker controls, and monitoring equipment specified for the installation. Compatibility depends on the selected input ratings, control supply, wiring arrangement, and enabled protection functions.

Recommended Related Models

The following models are related to the Multilin 489 generator protection platform. Their input ratings, power supplies, analog outputs, and interface options differ, so verify the complete order code before selecting a replacement.

Key Advantages

• Generator protection and monitoring in one relay.
• 1 A phase CT inputs for compatible generator installations.
• Low-range AC/DC control-power option.
• 4–20 mA outputs for external measurement monitoring.
• Enhanced LCD and keypad for local operation.
• Serial communication for supported configuration and monitoring tasks.

Technical FAQs

What is the main difference between the 489-P1-LO-A20-E and the 489-P5-HI-A20-T?

The P1-LO-A20-E uses 1 A phase CT inputs and a low-range control supply, with 4–20 mA analog outputs and an enhanced display. The P5-HI-A20-T uses 5 A phase CT inputs and a high-range control supply, and its T enhancement includes a 10Base-T Ethernet port. These differences affect CT compatibility, auxiliary power, and communications.

Can the 489-P1-LO-A20-E operate from a 110 V DC auxiliary supply?

No. The LO option specifies a control-power range of 20–60 V DC or 20–48 V AC at 48–62 Hz. A 110 V DC supply is outside the specified LO DC range, so the auxiliary supply configuration must be addressed before installation.

What needs to be checked if the relay’s current measurements appear incorrect?

Check the phase CT secondary rating, CT ratios entered in the settings, polarity, phase assignment, and terminal wiring. This model requires 1 A phase CT secondaries. A mismatch between the actual CT rating and the relay configuration can cause incorrect measurements and protection behavior.

Does the E version provide Ethernet communication for a plant SCADA system?

The E enhancement specifies the larger LCD and improved keypad. The 10Base-T Ethernet port belongs to the T enhancement. The E version can use its supported serial communication interfaces, but an Ethernet connection should not be assumed for this configuration.
