Product Overview

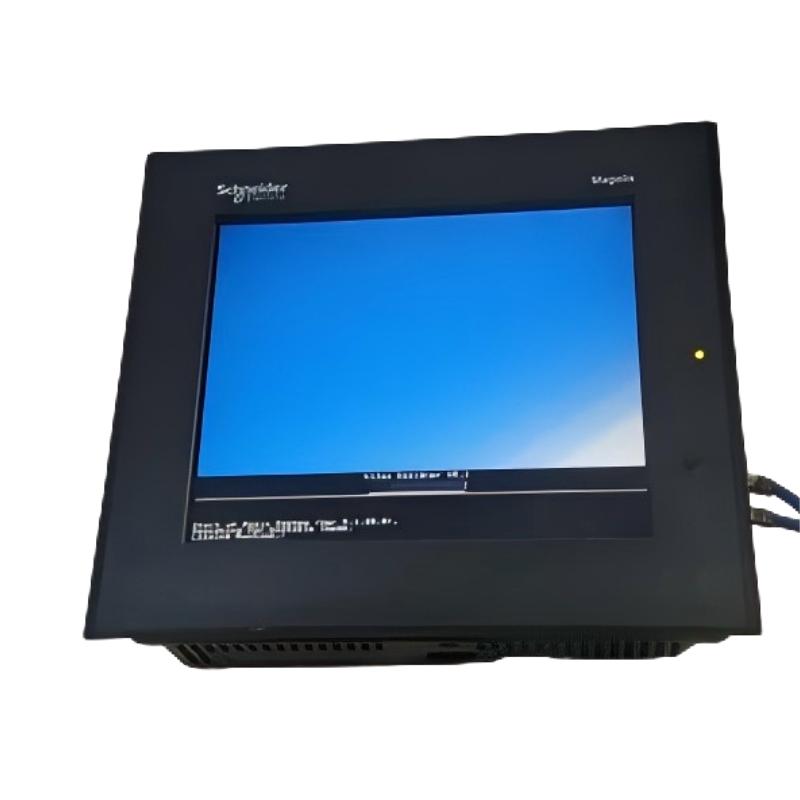

The Schneider Electric XBTGT4330 Magelis Advanced Touchscreen Panel is an industrial human-machine interface (HMI) designed to provide operators with visual access to machine status, process data, alarms, and control commands. As part of the Magelis XBT GT product family, it connects the operator with the underlying automation system through compatible serial and Ethernet communication interfaces.

In industrial environments, an HMI helps translate controller data into practical information that operators can understand and use. Instead of relying exclusively on physical switches and indicator lights, operators can view graphical process screens, monitor equipment conditions, acknowledge alarms, and interact with supported control functions through a touchscreen.

The XBTGT4330 features a 7.5-inch color TFT LCD display with a 640 × 480 VGA resolution and support for 65,536 colors. It operates on a 24 V DC supply and uses Vijeo Designer configuration software. Its communication interfaces include Ethernet TCP/IP, serial connections, and a USB Type-A master port.

This panel can be used in compatible machine-control systems, production equipment, and industrial process installations where a graphical operator interface is required. The application must be designed around the HMI’s communication capabilities and the controller’s supported protocols.

The XBTGT4330 is a discontinued product. For existing installations, it may remain useful as a maintenance spare or like-for-like replacement, provided its condition and compatibility are verified. For modernization projects, a replacement HMI may be more appropriate, but migration requires checking the original project, communication settings, panel cutout, and operating requirements.

Technical Specifications

Note: Confirm the exact unit’s nameplate, connector configuration, and physical condition before purchasing. The listed weight is the supplied product-listing value.

Function and Working Principle

The XBTGT4330 functions as an operator interface between personnel and an industrial control system. It displays information received from a compatible controller and allows operators to interact with configured screens and controls.

1. Process Visualization

The 7.5-inch color display presents process information in graphical form. Depending on the application program, screens may include motor status, equipment operating modes, process values, production counters, alarm messages, and system diagnostics.

The 640 × 480 VGA resolution supports structured screen layouts for applications that need multiple values and operating indicators on a single display.

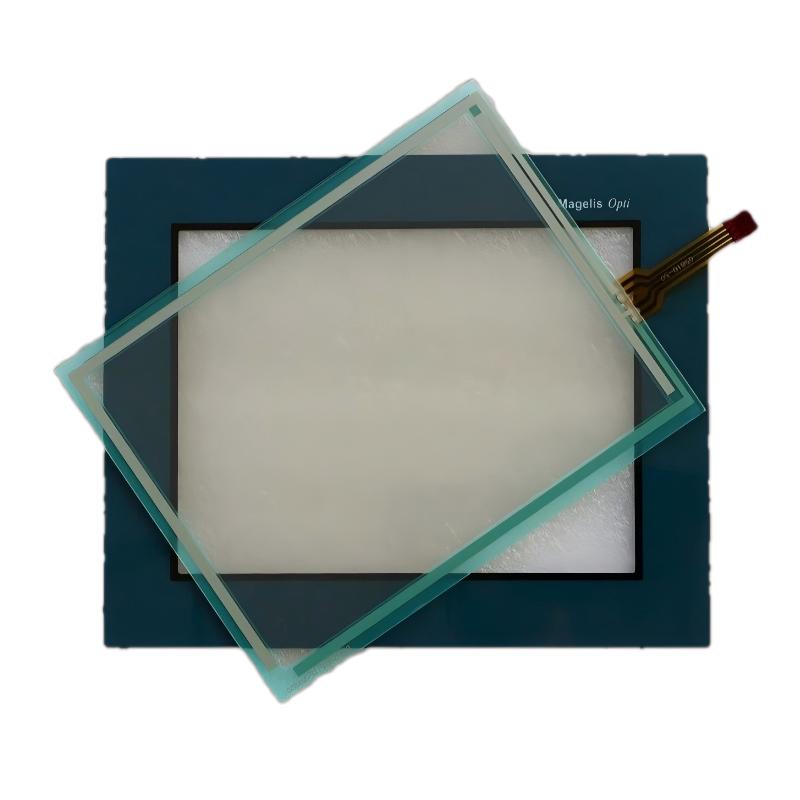

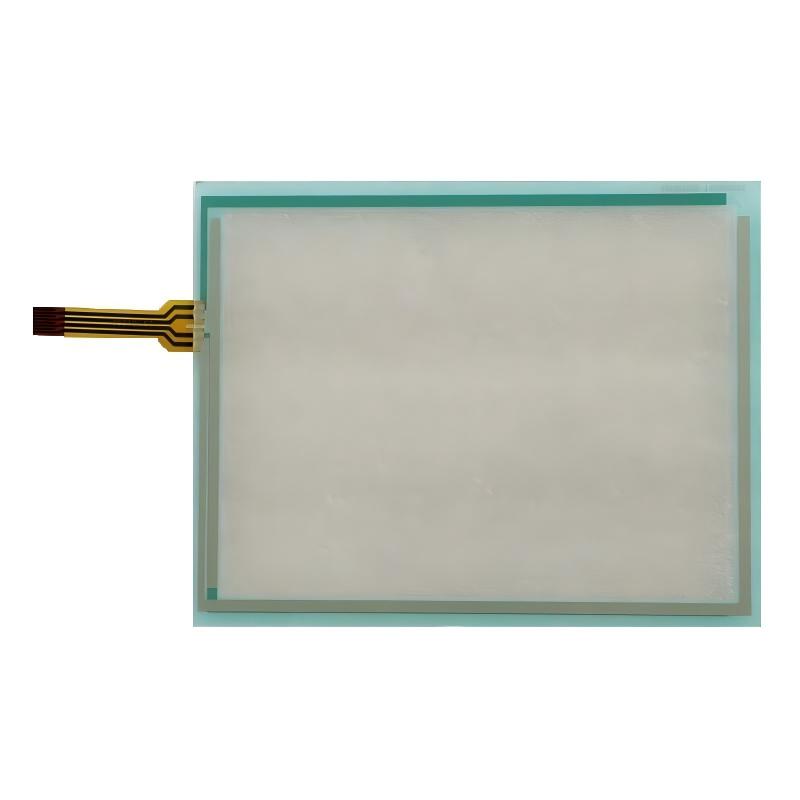

2. Touchscreen Operation

The analog touchscreen allows operators to select screen buttons, navigate menus, enter permitted values, and acknowledge alarms. The actual functions available depend on the project developed in Vijeo Designer and the logic implemented in the connected controller.

For safety-critical commands, the application should include appropriate interlocks, permissions, and confirmation procedures. An HMI screen should not be treated as a substitute for a properly engineered machine-safety system.

3. Controller Communication

The XBTGT4330 exchanges data with supported PLCs and automation equipment through its configured communication interfaces. Ethernet TCP/IP can be used where the controller and project support a compatible protocol. Serial communication is available through the COM1 and COM2 interfaces.

The presence of an Ethernet port does not guarantee compatibility with every industrial Ethernet protocol. Engineers should verify the controller model, protocol, driver, port settings, and project configuration before integrating the panel.

4. Alarm and Event Presentation

A configured HMI project can display alarms and operating messages supplied by the controller or generated by the application. This allows operators to identify abnormal conditions and follow defined troubleshooting procedures.

Alarm quality depends on the PLC program, the HMI project, and the information made available by the equipment. Clear descriptions and practical response instructions can improve operator awareness and reduce troubleshooting time.

5. Operator Data Entry

Where the application permits, the panel can provide fields for entering setpoints, selecting operating modes, or adjusting process parameters. Access permissions and range limits should be implemented so that only authorized users can change appropriate values.

The HMI provides the interface for these actions; the controller and the wider automation system remain responsible for executing and validating the associated control logic.

Role in Industrial Control Systems

The XBTGT4330 is commonly positioned at the operator level of an automation architecture. It works alongside PLCs, motor-control equipment, sensors, and other devices to present process information and support human interaction.

PLC Integration

A PLC typically executes the control logic for machines and production equipment. The HMI displays selected PLC variables and provides operator commands through a compatible communication driver.

During integration, engineers should define the data points, screen navigation, alarm handling, command permissions, and communication settings. Correct tag mapping is essential to ensure that displayed values correspond to the intended controller variables.

Machine Operation and Monitoring

The panel can provide a centralized interface for operating compatible machinery. Depending on the project, operators may view equipment status, select operating modes, initiate permitted actions, and monitor production information.

The actual control functions depend on the connected PLC and the application program. The panel itself does not replace the controller or the electrical and safety systems that operate the machine.

Maintenance and Diagnostics

HMI screens can display fault messages and equipment conditions that assist maintenance personnel during troubleshooting. A well-designed interface can help identify the affected machine section and guide technicians toward relevant checks.

For legacy installations, preserving the original HMI project and communication settings is particularly important when replacing a failed unit.

Industrial Applications

The XBTGT4330 can be used in industrial automation applications where a compatible graphical operator interface is required.

1. Manufacturing Machinery

Production machines often require operators to monitor status, select operating modes, and respond to alarms. The panel can present these functions through application-specific screens connected to the machine’s PLC.

Examples include assembly stations, processing machines, and automated production equipment.

2. Packaging and Material Handling

Packaging and conveying systems may use an HMI to display machine states, production counts, operating speeds, and fault information. Operators can use the touchscreen to navigate status screens and issue permitted commands.

The communication driver and PLC data mapping must be configured for the actual machine architecture.

3. Process Automation

In compatible process systems, the panel can display values such as temperatures, pressures, flow readings, and equipment status when these values are supplied by the control system.

The HMI serves as a visualization and operator-interaction device. Measurement accuracy and process control remain dependent on the sensors, instruments, PLC logic, and control equipment.

4. Utility and Auxiliary Equipment

Industrial utility systems may require an interface for pumps, fans, compressors, or auxiliary machinery. An HMI can consolidate status information and alarms for equipment that is managed by a compatible controller.

Application design should account for operator permissions, alarm priorities, and the consequences of incorrect commands.

5. Legacy Automation Systems

The XBTGT4330 may be relevant to maintenance projects involving existing Magelis installations. Keeping a compatible spare can help reduce downtime where the original panel project and controller configuration are still in use.

Before replacing a failed panel, verify the software project, firmware requirements, serial or Ethernet settings, and mounting arrangement.

Installation and System Integration

Correct installation helps protect the HMI, maintain communication reliability, and ensure that the operator interface remains accessible.

1. Verify Power Requirements

The XBTGT4330 uses a 24 V DC supply. Confirm the supply voltage, current capacity, polarity, grounding arrangement, and wiring requirements before energizing the panel.

The power source should be suitable for the electrical environment and protected according to the installation design. Avoid connecting the panel to a supply outside its specified operating range.

2. Confirm Panel Dimensions and Cutout

The supplied overall dimensions are 215 × 170 × 60 mm. The specified panel cutout is approximately 204.5 × 159.5 mm, subject to the manufacturer’s installation drawing and tolerances.

Check the enclosure opening, mounting clearance, sealing arrangement, and rear space for connectors before installation. Do not use the overall panel dimensions as the cutout dimensions.

3. Configure Communication Interfaces

Select the appropriate Ethernet or serial interface based on the connected controller and the protocol supported by the project.

For Ethernet communication, verify the network settings and the required driver. For serial communication, check the interface type, cable pinout, baud rate, parity, and other applicable parameters.

Where Siemens MPI compatibility is required, verify the exact controller, protocol settings, and supported communication conditions rather than assuming that every Siemens PLC connection will work.

4. Prepare the HMI Project

Vijeo Designer is the documented configuration software for this product family. The HMI project defines screen layouts, variables, navigation, alarms, and operator interactions.

Before commissioning or replacing a panel, preserve a backup of the original project and document the software version and communication settings. Confirm that the project can be transferred to the target hardware before taking a production machine offline.

5. Test Operation

After installation, verify the display, touchscreen response, communication status, and access to required screens. Test representative PLC values and confirm that displayed values match the controller.

Check permitted operator commands, alarm messages, navigation, and recovery behavior. Any command that changes machine operation should be tested under the approved commissioning procedure.

6. Maintain Electrical and Environmental Protection

Keep the panel clean and avoid exposing it to liquids, conductive dust, or environmental conditions outside its rated limits. Inspect connectors and cables periodically for damage or loose connections.

Follow the manufacturer’s installation guidance for enclosure protection, grounding, and electromagnetic compatibility.

Compatible System Components

The XBTGT4330 operates as part of a wider automation system. Compatibility depends on the communication protocol, software project, controller, and installation configuration.

The table identifies typical system components rather than items included with the panel. Confirm the complete installation requirements before ordering cables or accessories.

Alternative Models and Replacement Considerations

Schneider Electric lists the XBTGT4330 as discontinued and identifies replacement paths in its Harmony product families. Depending on the project, possible alternatives include the HMIGTO4310 or a Harmony GTU arrangement using the HMIDT351 display and HMIG3U base unit.

A replacement should be assessed against the following criteria:

• Display size and resolution.
• Panel dimensions and cutout requirements.
• Supply voltage and wiring.
• Ethernet and serial communication requirements.
• Controller compatibility and protocol support.
• Vijeo Designer project availability and migration options.
• Firmware and software compatibility.
• Alarm, screen-navigation, and operator-access requirements.
• Environmental conditions and mounting arrangement.

A replacement model should not be assumed to be a direct drop-in substitute simply because it belongs to the same manufacturer’s HMI range. Confirm the complete system requirements before making a change.

Key Advantages

Clear Color Visualization

The 7.5-inch color TFT display and VGA resolution provide a graphical interface for process values, machine states, and operator controls.

Touchscreen Interaction

The analog touchscreen supports application-defined screen navigation and operator input without requiring a separate keyboard for every function.

Multiple Communication Interfaces

Ethernet TCP/IP and serial interfaces allow integration with compatible automation equipment when the correct protocols and drivers are configured.

Application-Based Flexibility

Vijeo Designer allows application developers to create screens, alarms, navigation, and data-entry functions tailored to the machine or process.

Compact Panel Format

The supplied 215 × 170 × 60 mm dimensions are useful for identifying the panel and planning replacement work, although the actual cutout and clearance requirements must be checked separately.

Value for Legacy-System Maintenance

For facilities that continue to operate compatible Magelis systems, a verified spare may help restore operation without immediately redesigning the full operator interface.

Technical FAQs

1. What is the Schneider Electric XBTGT4330?

It is a Magelis XBT GT advanced touchscreen HMI panel designed for industrial monitoring and operator interaction.

2. What is the display size and resolution?

The panel has a 7.5-inch color TFT LCD display with a resolution of 640 × 480 pixels (VGA) and supports 65,536 colors.

3. What power supply does it require?

The XBTGT4330 uses a 24 V DC supply. Verify the unit’s label and installation documentation before connecting power.

4. Which software is used to configure it?

The documented configuration software is Vijeo Designer. For an existing installation, confirm the original project file and software-version compatibility before attempting to modify or transfer the application.

5. Does the panel support Ethernet?

Yes. It has an RJ45 Ethernet TCP/IP interface. Actual communication with a PLC or other device depends on the protocol, driver, and project configuration.

6. Does it support serial communication?

Yes. COM1 supports RS232C, RS422, and RS485 interfaces, while COM2 provides an RS485 interface with documented Siemens MPI compatibility under supported conditions. Verify the specific connection requirements before wiring.

7. Is the XBTGT4330 still in production?

No. Schneider Electric lists the model as discontinued. Current availability depends on remaining stock and the industrial spare-parts market.

8. What models can replace the XBTGT4330?

Schneider Electric identifies HMIGTO4310 and a Harmony GTU arrangement using HMIDT351 with HMIG3U among the replacement options. Suitability depends on software, communication, mounting, and application requirements.

9. What is the panel cutout size?

The documented cutout is approximately 204.5 × 159.5 mm. Verify the manufacturer’s dimensional drawing and tolerances before modifying a control cabinet.

10. What should be checked when purchasing a used panel?

Inspect the screen, touchscreen response, connectors, power input, and physical condition. Where possible, verify communication with the intended controller and confirm that the required project files and compatible configuration tools are available.

Procurement and Maintenance Recommendations

Because the XBTGT4330 is discontinued, procurement should focus on exact model identification and the requirements of the existing installation.

Before ordering, confirm the complete model number, display condition, connector arrangement, and overall dimensions. For used or refurbished units, request clear photographs, information about testing, and details of any warranty or return terms.

For replacement work, preserve the original Vijeo Designer project and document the PLC model, communication protocol, network settings, and screen behavior. These details can be as important as the hardware itself when restoring a legacy HMI.

During routine maintenance, keep the display clean using a suitable method, inspect the touchscreen for damage, and check cables and connectors for wear. Back up application files and maintain documentation for alarm messages, operator permissions, and communication settings.

If the installation is being modernized, compare the cost and risk of sourcing a compatible legacy panel with the engineering effort required to migrate to a newer HMI. A newer model may offer lifecycle advantages, but project conversion and cabinet modifications should be included in the upgrade plan.

Conclusion

The Schneider Electric XBTGT4330 Magelis Advanced Touchscreen Panel is a 7.5-inch industrial HMI featuring a 640 × 480 VGA color TFT display, 24 V DC power supply, Ethernet TCP/IP, serial communication interfaces, and Vijeo Designer configuration support.

It can provide a practical operator interface for compatible PLC-based machinery and process systems. Since the model is discontinued, buyers and maintenance engineers should verify the hardware condition, communication requirements, project compatibility, and mounting dimensions before purchasing a spare or selecting a replacement.
