Product Overview

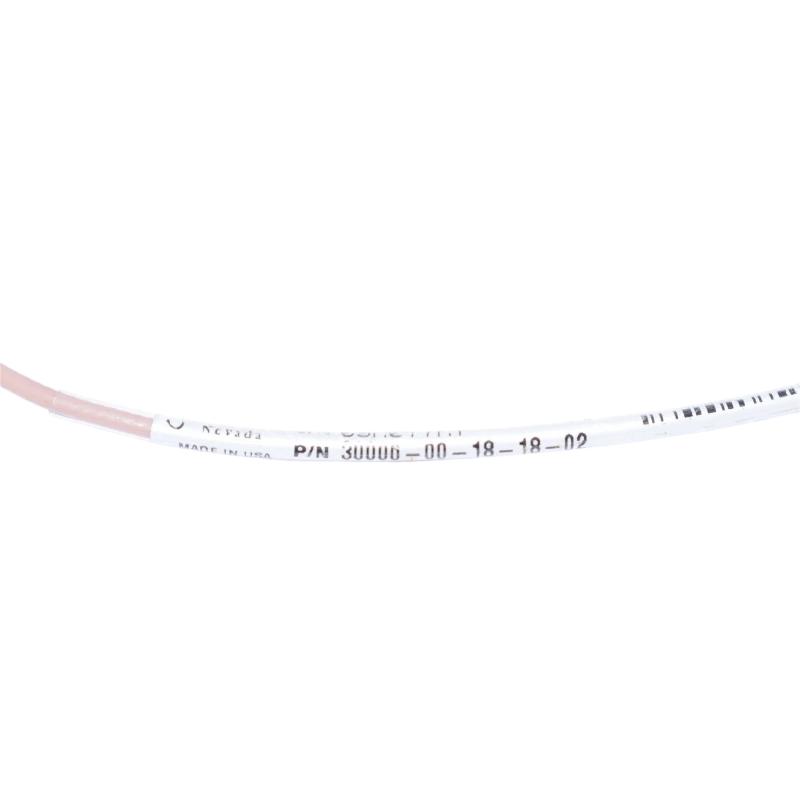

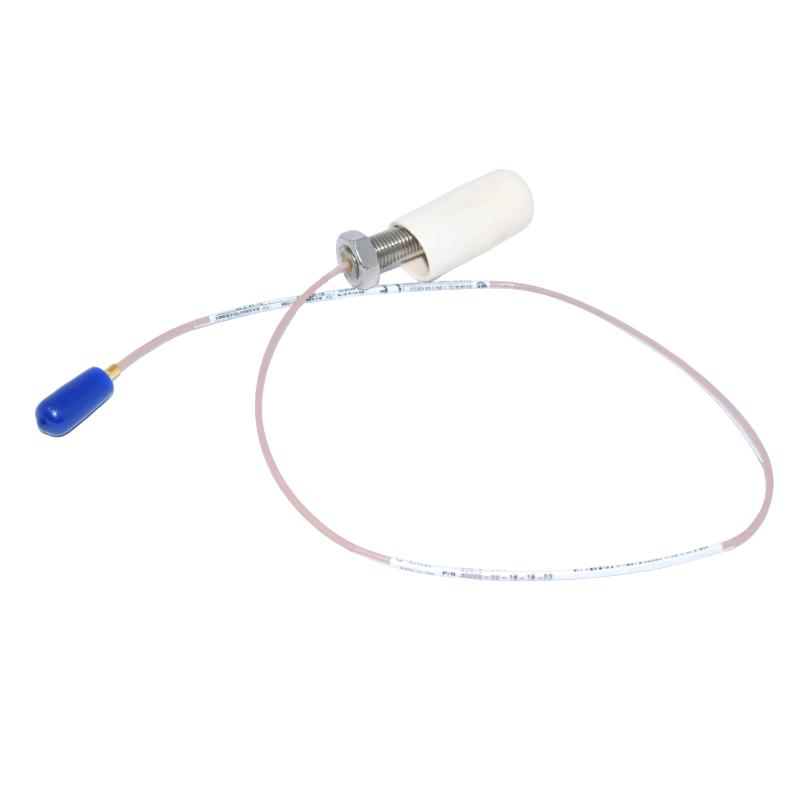

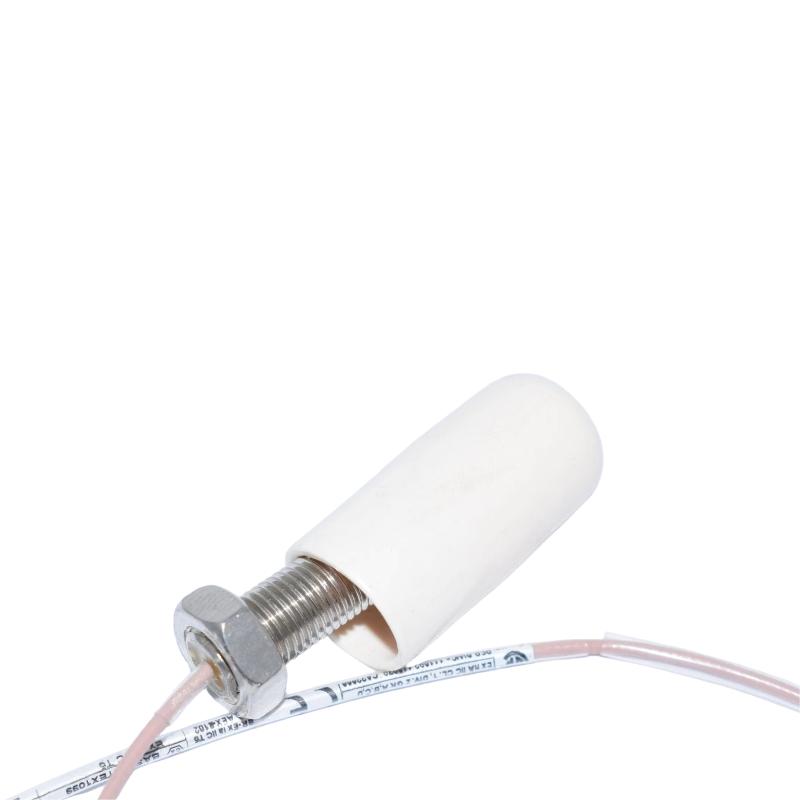

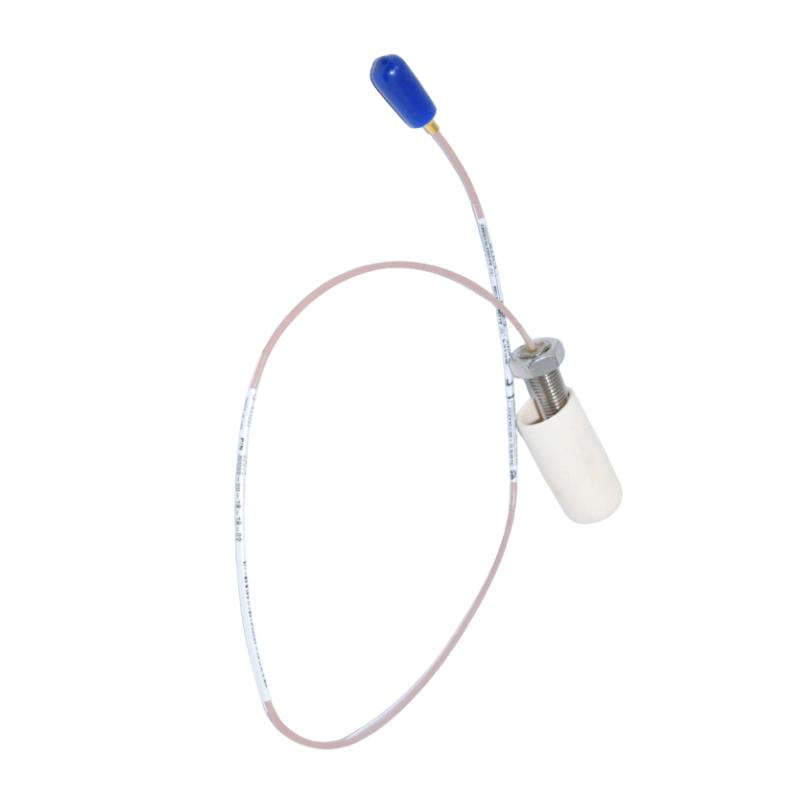

The Bently Nevada 30000-00-18-18-02 is a proximity probe used in non-contact displacement measurement systems for rotating machinery. It forms part of an eddy-current sensing arrangement that detects changes in the distance between a probe tip and a conductive target, typically a machine shaft. The resulting measurement supports monitoring of shaft movement and relative position in compatible industrial installations.
Proximity probes are widely used on compressors, turbines, pumps, and other rotating equipment where shaft movement must be monitored during operation. Unlike contact-based sensors, the probe measures the target without physically touching it. This allows the measurement system to detect small changes in shaft position while the machine is running.
The 30000-00-18-18-02 belongs to the Bently Nevada 30000 Series. Its configuration is intended for use as part of a compatible proximity transducer system rather than as an independent vibration monitoring device. The probe works with the associated signal-conditioning electronics and monitoring equipment to convert changes in the sensing gap into usable machinery measurement data.
In a centrifugal compressor, for example, a proximity probe may be installed near a bearing to measure shaft movement relative to the stationary machine structure. The resulting signal can help maintenance personnel evaluate vibration behavior and identify changes that may warrant further investigation. Similar arrangements are used on turbines and pumps where shaft position and dynamic movement are important operating parameters.
The probe is only one part of the complete measurement channel. The associated probe cable, extension cable where applicable, signal conditioner, and monitoring module must form a compatible system. The electrical characteristics of these components affect measurement response, so a replacement should match the configuration required by the installed monitoring equipment.
The 30000-00-18-18-02 is relevant to maintenance and replacement work where this specific probe reference is required. Maintaining the intended probe configuration helps preserve the relationship between the sensing element and the connected electronics, reducing the risk of measurement errors caused by incompatible components.
Installation quality also affects measurement performance. The probe must be securely mounted, positioned toward the correct target surface, and connected without damaging its cable or connector. A loose mounting arrangement or disturbed sensing gap can produce changes in the measured signal that do not necessarily reflect a corresponding change in machine condition.
For maintenance engineers, the key consideration is the complete transducer arrangement rather than the probe alone. Correct mechanical installation, compatible signal-conditioning electronics, and suitable monitoring-channel configuration are all necessary for meaningful shaft displacement measurements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 30000-00-18-18-02 |
| Product Series | 30000 Series |
| Product Type | Proximity Probe |
| Sensing Principle | Eddy-current proximity sensing |
| Primary Function | Non-contact displacement measurement |
| Typical Applications | Shaft vibration and relative shaft position monitoring |
| Total Length | Optional |
| Shipping Weight | 3 kg |
Product Features
- Non-contact displacement sensing: Detects changes in the gap between the probe tip and a conductive target.
- Rotating machinery monitoring: Supports compatible shaft vibration and relative position measurement systems.
- Eddy-current operating principle: Uses the electrical response of the sensing circuit to detect target movement.
- Transducer-system integration: Works with compatible signal-conditioning electronics and monitoring equipment.
- Maintenance replacement application: Provides a model-specific component for installations requiring this probe reference.
- Continuous measurement support: Supplies the sensing signal used by compatible monitoring systems during machine operation.
- Flexible installation planning: Can be incorporated into suitable probe mounting arrangements for industrial machinery.
Working Principle
The 30000-00-18-18-02 uses an eddy-current sensing principle to detect changes in the distance between its sensing tip and a conductive target. The probe operates as part of a transducer circuit, with compatible signal-conditioning electronics supplying the required excitation and processing the resulting electrical response.
Conductive Shaft → Proximity Probe → Signal-Conditioning Electronics → Machinery Monitoring System
When the probe is positioned near a conductive shaft, its electromagnetic field interacts with the target. As the distance between the probe tip and the shaft changes, the electrical response of the sensing circuit changes as well. The connected signal conditioner converts this response into a measurement signal suitable for the monitoring equipment.
During machine operation, shaft movement changes the measured gap. The resulting signal can be used to evaluate relative shaft position and dynamic movement, depending on the probe installation and the functions supported by the complete measurement system.
In a compressor installation, a probe mounted near a bearing can detect changes in shaft position relative to the surrounding structure. The monitoring equipment processes the signal and displays the resulting measurement. Engineers can then compare the data with operating conditions and other machinery measurements to investigate abnormal behavior.
The probe does not independently calculate vibration severity or issue shutdown commands. Those functions depend on the connected monitoring modules, their configuration, and the machinery protection logic. The probe supplies the measurement input that allows the wider system to perform these tasks.
Electrical compatibility is essential. The probe and associated electronics must be configured as a suitable transducer system, including the required cable arrangement. Substituting a component solely because its connector appears compatible can affect measurement accuracy.
If a measurement becomes unstable, the investigation should include the probe mounting, sensing gap, cable condition, connector integrity, and signal-conditioning equipment. Mechanical movement of the probe or a damaged electrical connection can alter the signal even when the monitored shaft remains unchanged.
Role in the Machinery Monitoring Architecture
The Bently Nevada 30000-00-18-18-02 occupies the sensing stage of a proximity measurement channel. It detects changes in the distance between the probe tip and the monitored target, while the connected electronics process the signal for use by the machinery monitoring system.
Machine Shaft → 30000-00-18-18-02 → Signal Conditioner → Monitoring Module → Monitoring Software
| System Component | Function |
|---|---|
| Bently Nevada 30000-00-18-18-02 | Detects changes in the probe-to-target gap |
| Probe Mounting Hardware | Holds the probe in its intended measurement position |
| Compatible Probe Cable | Connects the probe to the associated transducer circuit |
| Signal-Conditioning Electronics | Processes the probe response into a usable measurement signal |
| Machinery Monitoring Module | Receives and evaluates the measurement |
| Bearing Assembly | Supports the shaft and provides the surrounding mechanical reference |
| Rotating Shaft | Provides the conductive target for proximity sensing |
| Monitoring Software | Displays measurements and supports trend analysis |
| Machinery Protection System | Applies configured alarms and protective actions through the appropriate monitoring architecture |
Industrial Applications
| Application | Typical Use |
|---|---|
| Centrifugal Compressors | Monitoring shaft movement near bearing locations |
| Steam Turbines | Supporting shaft displacement measurements in compatible monitoring systems |
| Gas Turbines | Providing proximity measurements at designated shaft locations |
| Industrial Pumps | Monitoring relative shaft position and movement |
| Power Generation Equipment | Supplying displacement-related signals for machinery condition assessment |
| Petrochemical Plants | Maintaining proximity measurement channels on rotating equipment |
| Refinery Machinery | Supporting shaft monitoring on compressors and other critical machinery |
| Industrial Process Machinery | Providing non-contact measurements for compatible rotating assemblies |
| Machinery Maintenance Programs | Replacing an existing probe in a matching transducer configuration |
| Continuous-Operation Facilities | Supporting ongoing machinery monitoring through compatible instrumentation |
Installation and Maintenance
- Verify the probe reference: Confirm that the required component is Bently Nevada 30000-00-18-18-02.
- Inspect the mounting location: Check the probe holder, mounting threads, and surrounding structure for damage or contamination.
- Prepare the equipment safely: Follow the site’s machinery isolation procedures before working near rotating components.
- Check the target surface: Confirm that the probe faces the intended conductive target and that the mounting location is suitable for the measurement.
- Set the sensing position: Establish the required probe-to-target gap using the applicable installation procedure for the transducer system.
- Secure the probe: Install the probe without damaging the sensing tip, threaded case, or mounting hardware.
- Route the cable: Prevent crushing, sharp bending, abrasion, and contact with hot or moving machine components.
- Inspect the connector: Check for contamination, damage, and secure engagement with the associated cable or electronics.
- Verify transducer compatibility: Confirm that the probe, cable arrangement, and signal conditioner are suitable for the intended measurement channel.
- Check the measurement signal: Follow the commissioning procedure to verify the electrical response and measurement behavior.
- Review monitoring data: Confirm that the connected monitoring equipment displays a plausible measurement under the applicable operating conditions.
- Document the maintenance work: Record the installed model, connection details, measurement checks, and any abnormalities found during commissioning.
If the measurement remains unstable after installation, inspect the mounting arrangement, probe gap, cable, connector, and associated electronics before replacing additional components.
Related Components
| Component | Function |
|---|---|
| Bently Nevada 30000-00-18-18-02 | Proximity probe for compatible non-contact displacement measurement |
| Compatible Proximitor | Supplies the required excitation and processes the probe response |
| Compatible Extension Cable | Provides the connection required by the transducer configuration |
| Probe Mounting Bracket | Holds the probe in the required position relative to the target |
| Machinery Monitoring Module | Receives and evaluates the conditioned measurement signal |
| Bently Nevada 3300 Series Monitoring Equipment | Supports compatible machinery monitoring applications |
| Bently Nevada 3500 Series Monitoring System | Processes compatible transducer signals through installed monitoring modules |
| Machinery Monitoring Software | Supports measurement display, trend review, and diagnostic analysis |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 30000-00-18-18-02 | Proximity Probe | Model-specific replacement in a compatible installation |
| Bently Nevada 3300 XL 8 mm Proximity Probe | Proximity Probe | Shaft vibration and position monitoring in compatible transducer systems |
| Bently Nevada 3300 XL 8 mm Extension Cable | Extension Cable | Probe-to-sensor connection in compatible 3300 XL systems |
| Bently Nevada 3300 XL 8 mm Proximitor Sensor | Signal-Conditioning Sensor | Processing compatible 3300 XL probe signals |
| Bently Nevada 3500 Series | Machinery Protection System | Monitoring supported vibration and position measurements |
Key Advantages
- Supports non-contact measurement of shaft displacement in compatible installations.
- Supplies a sensing signal for machinery vibration and relative position monitoring.
- Integrates with compatible signal-conditioning electronics and monitoring equipment.
- Supports maintenance and replacement of existing proximity measurement channels.
- Can be used in suitable compressor, turbine, pump, and other rotating machinery applications.
Technical FAQs
What is the function of the 30000-00-18-18-02 in a machinery monitoring system?
It detects changes in the distance between the probe tip and a conductive target. The associated signal-conditioning electronics process the probe response, allowing compatible monitoring equipment to evaluate shaft movement and relative position.
Does the probe measure vibration without contacting the shaft?
Yes. The eddy-current sensing principle detects changes in the gap between the probe tip and the conductive target without requiring physical contact. Correct mounting and a suitable sensing gap are necessary for meaningful measurements.
Can this probe be connected to any Bently Nevada Proximitor?
Compatibility depends on the complete transducer configuration, including the probe’s electrical characteristics and the required cable arrangement. A Proximitor intended for a different probe system should not be assumed compatible solely because the physical connection appears similar.
What can cause an abnormal reading after replacing the probe?
Possible causes include an incorrect sensing gap, loose mounting, damaged cable or connectors, an incompatible signal conditioner, or a problem elsewhere in the monitoring channel. Checking the entire measurement chain helps distinguish an installation issue from an actual change in shaft behavior.
