1. Product Overview

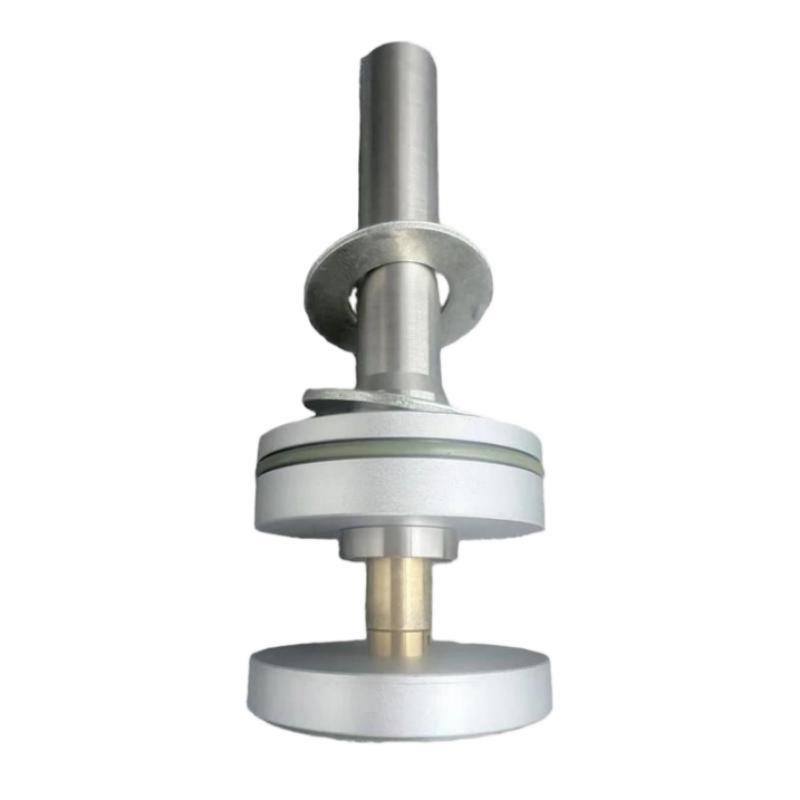

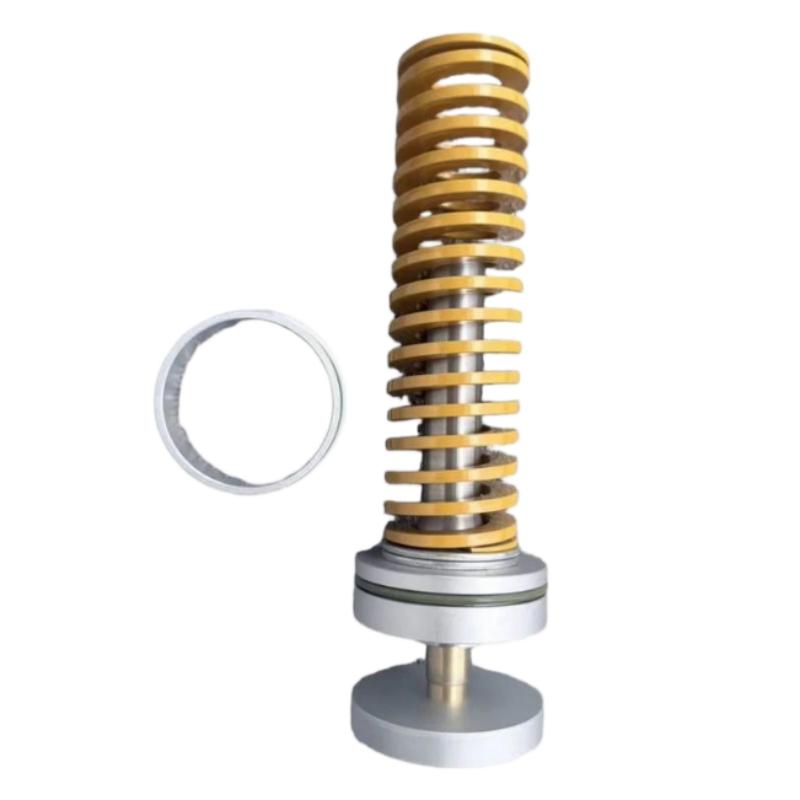

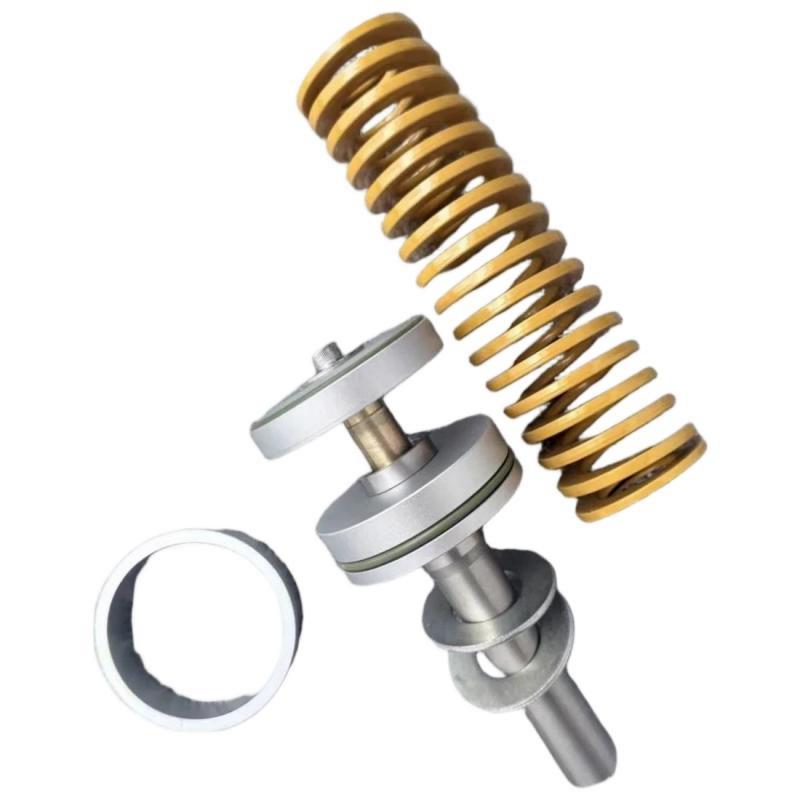

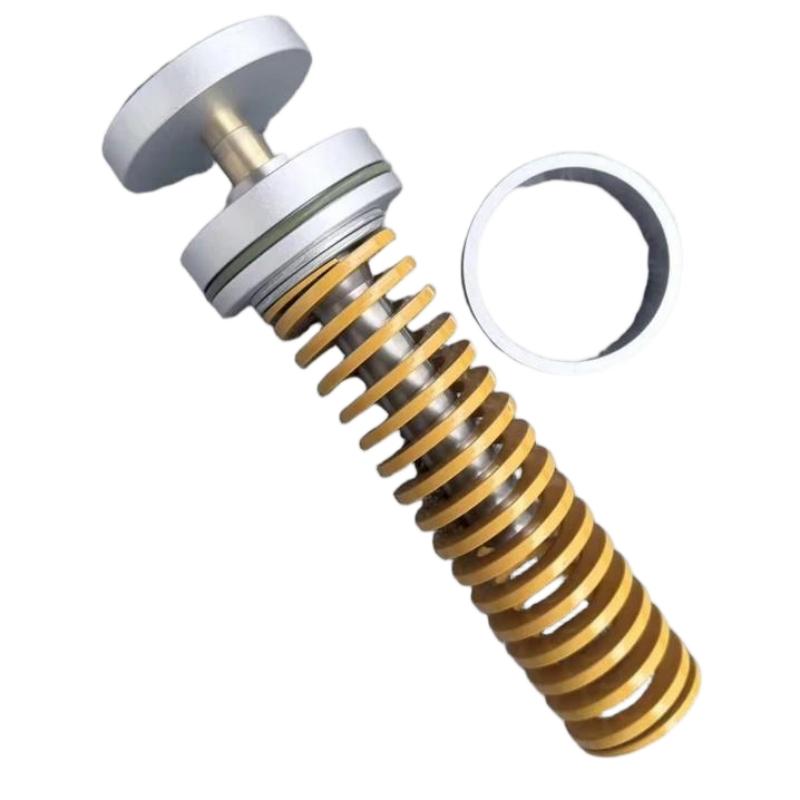

The Ingersoll Rand 47556402001 / 23531577 Minimum Pressure Valve Repair Kit is an air compressor maintenance component intended for servicing compatible minimum pressure valve assemblies. The 23531577 part number is listed in industrial compressor parts catalogs as a minimum pressure valve service kit for Ingersoll Rand compressed-air equipment.

In oil-injected rotary screw compressors, the minimum pressure valve plays an important role in regulating pressure within the compressor’s internal air-oil separation system. It helps maintain the pressure required for proper oil circulation and supports the transition from startup to normal operating conditions. Depending on the compressor design, the valve assembly can also provide a non-return function that helps prevent unwanted reverse airflow.

Over time, valve seals, springs, and other serviceable components may wear, become contaminated, or lose their intended performance. A suitable repair kit allows maintenance personnel to service the valve assembly without automatically replacing the entire assembly, provided that the valve body and other major components remain in acceptable condition.

The 23531577 kit is therefore relevant to preventive maintenance, troubleshooting, and repair work on compatible industrial air compressors. However, repair kits can differ in their internal components, dimensions, and application range. The correct selection should be based on the compressor model, serial number, original parts documentation, and the exact configuration of the valve assembly.

The supplied product information identifies the part numbers as 47556402001 and 23531577, with dimensions of 160 × 100 × 80 mm and a weight of 1.2 kg. These specifications are retained below as supplied. Buyers should confirm that both numbers refer to the intended item before placing an order.

2. Technical Specifications

Note: Dimensions and weight are based on the supplied product information. The relationship between part number 47556402001 and service kit 23531577 should be verified against the supplier’s documentation. Exact contents and compatibility depend on the specific kit version.

3. Function and Working Principle

3.1 Maintaining Minimum System Pressure

The minimum pressure valve helps maintain an appropriate pressure level inside the compressor’s air-oil separation system during startup and operation.

In an oil-injected rotary screw compressor, sufficient internal pressure is important for the designed circulation of lubricating oil. The oil supports cooling, lubrication, and sealing during the compression process. If the system cannot establish the required pressure, the compressor may not operate as intended.

The valve’s opening characteristics are determined by its design and pressure setting. Once the required operating conditions are reached, it allows compressed air to flow toward the downstream system.

The specific pressure setting must follow the compressor manufacturer’s documentation rather than a general value assumed to apply to every machine.

3.2 Supporting Oil Circulation

Lubricating oil performs several functions inside an oil-injected compressor. It helps remove heat, lubricate moving components, and reduce internal leakage.

The minimum pressure valve supports the pressure conditions needed by the compressor’s oil circulation arrangement. If the valve fails to operate correctly, oil circulation and separation performance may be affected.

A repair kit can help restore the intended mechanical operation when the problem is caused by worn or damaged serviceable components and the valve body remains in good condition.

3.3 Check-Valve Function

Depending on the assembly design, the minimum pressure valve also incorporates a non-return function. This helps limit reverse airflow when the compressor stops or when downstream pressure exceeds the pressure on the compressor side.

Unwanted reverse flow can affect pressure stability and may contribute to abnormal operating conditions. The valve’s check function should be inspected as part of a comprehensive diagnosis if the compressor experiences pressure loss or related faults.

3.4 Valve Sealing and Mechanical Operation

A valve assembly relies on suitable sealing surfaces, moving components, and correctly functioning springs or other internal mechanisms. Wear, contamination, corrosion, or damaged seals can prevent the valve from opening and closing as designed.

A repair kit may include selected service components required to restore the valve’s performance. The actual contents should be confirmed before disassembly so that the technician understands which components are intended for replacement.

A repair kit will not correct every possible valve problem. If the valve body, seat, or other non-serviceable parts are cracked, severely worn, or damaged, replacing the complete valve assembly may be necessary.

3.5 Interaction with the Compressor Control System

The minimum pressure valve is primarily a mechanical or pressure-responsive component, although its operation affects the overall behavior of the compressor.

The compressor controller may monitor system pressure, operating status, temperature, and other conditions. A malfunctioning valve can contribute to symptoms that appear to be control or pressure-related faults.

Diagnosis should therefore consider the valve assembly together with the separator vessel, pressure sensors, oil circuit, and compressor operating sequence.

4. Role in Industrial Compressed-Air Systems

The Ingersoll Rand 23531577 Minimum Pressure Valve Repair Kit supports maintenance of the pressure-control and check-valve functions within compatible compressor systems.

Startup performance: A correctly operating minimum pressure valve helps the compressor establish its required internal operating pressure.

Oil circulation support: Maintaining the intended pressure conditions helps support the compressor’s lubrication and cooling arrangements.

Reverse-flow control: Where the valve incorporates a check function, it helps limit unwanted reverse airflow.

Compressor reliability: Replacing worn service components can help restore valve operation and reduce avoidable downtime.

Preventive maintenance: A service kit provides a targeted repair option when the valve assembly is serviceable and the fault has been correctly diagnosed.

The kit does not replace the compressor controller, pressure sensor, separator element, or complete valve assembly. Its function is limited to the components included in the specific repair kit.

5. Industrial Applications

5.1 Manufacturing Facilities

Manufacturing plants depend on compressed air for pneumatic tools, actuators, material handling, and production machinery. A properly functioning compressor pressure system helps maintain a stable supply for connected equipment.

Routine servicing of minimum pressure valves can support reliable compressor operation and help reduce unexpected interruptions.

5.2 Industrial Automation

Pneumatic cylinders, control valves, grippers, and other automation components rely on compressed air delivered at the pressure required by the application.

Although the minimum pressure valve is installed inside the compressor system rather than at each automation device, its condition can affect the compressor’s ability to establish normal operating conditions and deliver air as designed.

5.3 Automotive and Engineering Workshops

Automotive production lines and engineering workshops often operate compressors for extended periods. Valve servicing can form part of a planned maintenance program intended to keep compressed-air equipment available for production and workshop operations.

5.4 Packaging and Processing Equipment

Packaging lines and processing machinery may use compressed air for actuators, conveying systems, and machine sequencing. Maintaining compressor components such as minimum pressure valves helps support dependable operation of the air supply.

Applications with special requirements for air purity or pressure stability may need additional treatment and monitoring beyond the compressor’s internal valve system.

5.5 Continuous-Duty Industrial Compressors

Facilities that operate compressors over long shifts or continuously need to monitor operating pressure, temperature, oil consumption, and fault history.

A planned inspection and repair program can help identify valve deterioration before it causes a major interruption. The replacement interval should follow the compressor manufacturer’s maintenance recommendations and actual operating conditions.

6. Installation and System Integration

Correct installation is essential for restoring the intended function of the minimum pressure valve.

6.1 Confirm the Correct Kit

Before ordering, verify the compressor model and serial number, then compare the service kit number with the manufacturer’s parts documentation.

Confirm whether part numbers 47556402001 and 23531577 refer to the same intended product in the supplier’s catalog. Do not assume that two numbers are interchangeable without supporting documentation.

6.2 Identify the Fault Before Disassembly

A minimum pressure valve problem may present as abnormal pressure buildup, unstable operation, restricted airflow, or other symptoms. Similar symptoms can also result from issues involving the separator, oil-return circuit, pressure sensors, or other compressor components.

Record fault indications and operating conditions before dismantling the valve. This helps prevent unnecessary repairs and improves the likelihood of identifying the actual cause.

6.3 Isolate and Depressurize the Compressor

Shut down the compressor and follow the manufacturer’s lockout, isolation, and depressurization procedures. Prevent automatic restarting and wait for hot components to cool.

The compressor and associated piping may retain hazardous pressure. Never open the valve assembly until the system has been safely isolated and the absence of residual pressure has been verified.

6.4 Inspect the Valve Assembly

After safe removal, inspect the valve body, seat, moving parts, springs, seals, and relevant surfaces. Check for wear, corrosion, deposits, deformation, or other damage.

Compare the removed parts with the contents of the repair kit before beginning reassembly. If the valve body or other major components are damaged beyond the permitted service limits, replacing the complete assembly may be more appropriate.

6.5 Replace Components According to the Service Procedure

Follow the compressor manufacturer’s service instructions for disassembly, cleaning, component replacement, lubrication where specified, and reassembly.

Use the correct replacement components and specified tightening values. Avoid unapproved modifications, sealants, springs, or substitute materials that could alter the valve’s pressure response or sealing behavior.

6.6 Verify Pressure and Check-Valve Operation

After reassembly, verify that the valve operates according to the manufacturer’s procedure. Confirm the intended pressure behavior and non-return function where applicable.

Do not adjust the valve setting based on an assumed generic pressure value. The correct setting depends on the compressor design and must be taken from the relevant technical documentation.

6.7 Return the Compressor to Service

Reinstall the valve assembly and complete the prescribed commissioning checks. Observe startup behavior, pressure buildup, operating stability, leakage, and relevant alarms.

Record the repair date, kit number, replaced components, and observed operating results. If the original symptom remains, investigate the wider compressor system instead of repeatedly replacing the same kit.

7. Compatible Equipment and Related Components

The following components may be relevant when servicing a minimum pressure valve in an industrial compressor.

These components are not necessarily included in the repair kit. Exact compatibility and the scope of the kit should be verified before purchase.

8. Alternative Models and Replacement Considerations

A repair kit and a complete valve assembly serve different purposes. A kit is appropriate when the valve body remains serviceable and the problem can be corrected by replacing the included parts. A complete assembly may be necessary when major mechanical surfaces or the valve body are damaged.

Cross-reference numbers should be treated as leads for verification rather than automatic proof of interchangeability. Compare the exact part number, valve configuration, dimensions, pressure requirements, and compressor application before ordering.

9. Key Advantages

Targeted Valve Maintenance

A repair kit can support a focused repair when the problem is limited to serviceable components within the minimum pressure valve.

Support for Stable Compressor Operation

Restoring the valve’s intended operation helps the compressor establish and maintain the required pressure conditions.

Maintenance of Oil Circulation Conditions

Correct valve function supports the pressure conditions needed by the compressor’s lubrication and cooling arrangements.

Potential Reduction in Downtime

Having the correct kit available can help maintenance teams complete planned service work without waiting to identify individual replacement components.

Support for Preventive Maintenance

The kit can be incorporated into a maintenance program based on operating hours, inspection findings, and the compressor manufacturer’s recommendations.

Flexible Sourcing Options

Original and aftermarket service kits may be available through industrial spare-parts suppliers. Buyers should assess fit, component quality, traceability, testing, and warranty terms before purchasing.

10. Technical FAQs

Q1. What is the Ingersoll Rand 23531577?

It is a minimum pressure valve service or repair kit listed for compatible Ingersoll Rand compressed-air equipment. It is intended to service the relevant valve assembly rather than replace the entire compressor.

Q2. What does a minimum pressure valve do?

It helps maintain the required pressure inside the compressor’s air-oil separation system during startup and operation. Depending on the design, it may also prevent reverse airflow.

Q3. What are the dimensions and weight of this kit?

The supplied specifications list dimensions of 160 × 100 × 80 mm and a weight of 1.2 kg. Confirm these measurements with the supplier before shipping or installation.

Q4. Is 47556402001 the same part number as 23531577?

The product information supplied for this listing includes both numbers, but their exact relationship should be confirmed with the supplier or the applicable parts documentation before purchase.

Q5. What symptoms may indicate a minimum pressure valve problem?

Possible symptoms include abnormal pressure buildup, unstable compressor operation, unexpected pressure loss, or operating faults associated with the compressor’s pressure system. These symptoms can have multiple causes and require systematic diagnosis.

Q6. Can the repair kit be used on every Ingersoll Rand compressor?

No. Compatibility depends on the compressor model, serial number, valve design, and kit configuration. Verify the exact application before ordering.

Q7. Should I replace the kit or the complete valve?

A kit may be suitable when the valve body and major components remain in acceptable condition and the fault is limited to serviceable parts. A complete valve replacement may be needed when the body, seat, or other major components are damaged.

Q8. Can I install the kit without depressurizing the compressor?

No. The compressor must be safely isolated and depressurized according to the manufacturer’s service procedure before the valve assembly is opened.

Q9. How often should the valve be serviced?

The service interval depends on the compressor model, operating hours, environment, and maintenance schedule. Follow the manufacturer’s instructions and investigate abnormal operating symptoms promptly.

Q10. What should buyers confirm before purchasing?

Verify the full part number, compressor model and serial number, kit contents, dimensions, condition, supplier documentation, warranty, and return policy. For a cross-referenced or aftermarket kit, request confirmation of the exact application.

11. Procurement and Maintenance Recommendations

When sourcing the Ingersoll Rand 47556402001 / 23531577 Minimum Pressure Valve Repair Kit, confirm the relationship between the two supplied part numbers before placing an order. Use the compressor model and serial number to verify the intended kit against the relevant parts list.

Ask the supplier to confirm the kit contents and whether the item is genuine OEM, aftermarket, or refurbished. If the listing uses a cross-reference number, request supporting application information rather than relying only on a similar product description.

For maintenance planning, keep the valve repair kit available where the compressor’s service schedule or operating history justifies it. Store replacement components in their original protective packaging and avoid contamination or damage before installation.

During servicing, inspect the entire valve assembly and related pressure system. A new kit may not resolve problems caused by a damaged valve body, blocked oil-return circuit, incorrect pressure sensing, or other compressor faults.

After the repair, record the work performed and monitor the compressor’s operating behavior. Good maintenance records help establish whether the repair resolved the issue and support more accurate planning for future spare-parts requirements.

12. Conclusion

The Ingersoll Rand 23531577 Minimum Pressure Valve Repair Kit is a maintenance solution for servicing compatible industrial air compressor valve assemblies. The minimum pressure valve helps establish the pressure conditions required for normal compressor operation and may also provide a check-valve function to limit reverse airflow.

For buyers and maintenance engineers, the key priorities are correct part identification, verified compressor compatibility, accurate kit contents, and adherence to safe service procedures. The supplied dimensions of 160 × 100 × 80 mm and weight of 1.2 kg should be confirmed against the actual product before ordering.

Selecting the correct repair kit and servicing the valve according to the manufacturer’s instructions can help maintain compressor reliability, reduce avoidable downtime, and support the long-term performance of industrial compressed-air systems.
