1. Product Overview

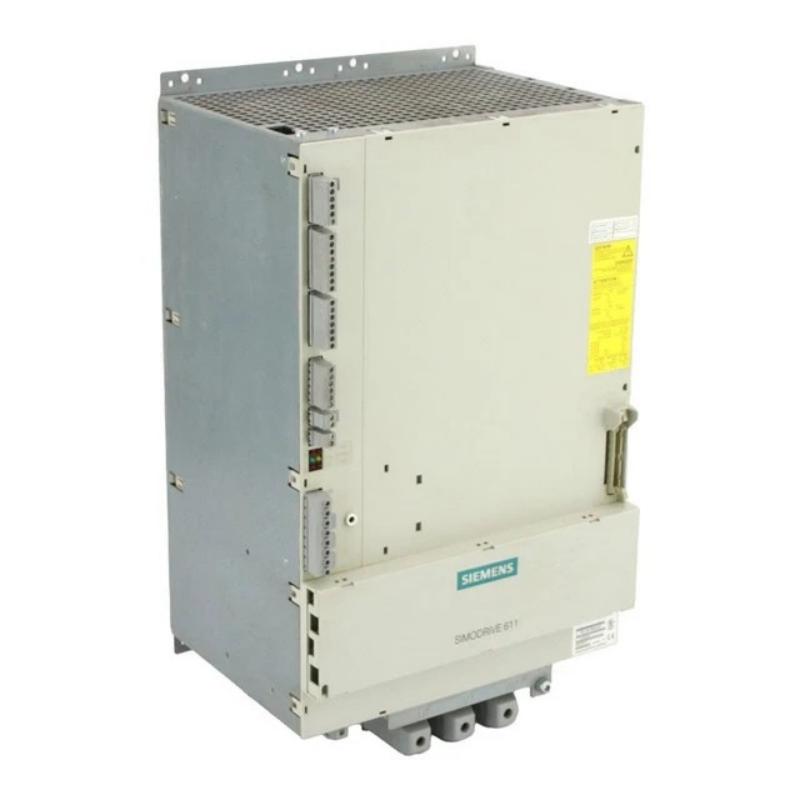

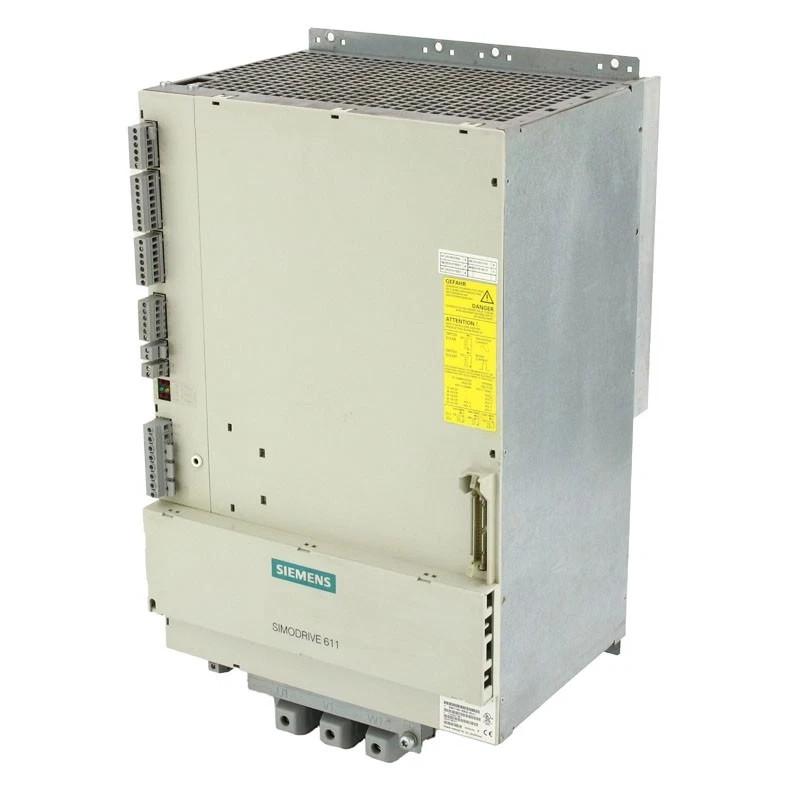

The Siemens 6SN1146-1BB00-0DA1 Infeed and Regenerative Feedback Module is a power component in the SIMODRIVE 611 drive system. It is designed to provide power to the drive system and support the return of regenerative energy to the electrical supply under the appropriate operating conditions.

Unlike a basic unregulated feed module, this model belongs to the infeed and regenerative feedback category. Its closed-loop control architecture helps manage the power interface between the electrical supply and the DC link of a compatible drive group. The module is intended for industrial motion-control applications where multiple servo axes, machine tools, or other electrically driven mechanisms require coordinated and reliable power management.

The 6SN1146-1BB00-0DA1 is commonly listed in the 55/71 kW power class and is designed for external cooling. It also incorporates a mains contactor with a break contact, making the correct electrical integration and control-circuit configuration important during installation and maintenance.

This module may be encountered in legacy Siemens CNC machinery, industrial manufacturing equipment, and production systems built around the SIMODRIVE 611 platform. For maintenance engineers, the exact model number is essential when identifying a replacement, as similar-looking modules can have different power ratings, cooling requirements, and regenerative capabilities.

When sourcing this product, buyers should verify the complete order number, hardware condition, electrical ratings, cooling arrangement, and compatibility with the existing drive cabinet. These checks are especially important when maintaining established equipment or sourcing discontinued industrial automation components.

2. Technical Specifications

Note: Dimensions and weight above are based on the supplied product information. Specifications and mechanical measurements can vary between catalog listings and product configurations. Verify the nameplate, cooling requirements, and applicable technical documentation before installation.

3. Function and Working Principle

3.1 Incoming Power Interface

The Siemens 6SN1146-1BB00-0DA1 provides the electrical interface between the incoming supply and a compatible SIMODRIVE 611 drive group. It is designed to work within the power architecture of the drive system rather than operate as a standalone low-voltage power supply.

The incoming supply must comply with the electrical requirements of the installed equipment. Correct supply configuration, protective devices, grounding, and cable sizing are essential to safe operation.

3.2 DC-Link Power Supply

The module supplies power to the DC link that serves compatible drive modules. Within a multi-axis system, the DC link acts as a shared power source for the connected drive components.

This arrangement supports coordinated motion-control installations in which several axes operate as part of one machine. The module’s role is to manage the power interface; individual drive modules and control units perform the functions required to regulate motor speed, torque, and position.

3.3 Regenerative Energy Feedback

During deceleration or braking, servo motors can operate as generators and return energy to the drive system’s DC link. Depending on the machine’s operating conditions and drive configuration, regenerative energy can be fed back to the electrical supply through a compatible regenerative feedback module.

This function can reduce the amount of braking energy that must otherwise be dissipated as heat. The actual energy savings depend on the machine’s duty cycle, the frequency of deceleration, the amount of regenerated energy, and the operating conditions of the complete system.

Regenerative operation requires the appropriate electrical supply, control configuration, and protective arrangements. It should not be assumed that every operating condition will produce energy savings or that all SIMODRIVE modules provide the same regenerative functionality.

3.4 Closed-Loop Control

The 6SN1146-1BB00-0DA1 is listed as a closed-loop controlled infeed and regenerative feedback module. Its control architecture supports managed operation of the power interface according to the design of the SIMODRIVE system.

This is an important distinction when selecting replacement equipment. An unregulated infeed module and a closed-loop regenerative feedback module are not automatically interchangeable, even when their housings or mounting arrangements appear similar.

3.5 Mains Contactor and Auxiliary Contact

The module is associated with an integrated mains contactor with a break contact. The contactor forms part of the power switching arrangement, while the auxiliary contact can be used within the relevant control or monitoring circuit.

During installation, engineers must verify the required wiring and control logic against the applicable circuit diagrams. The contactor and auxiliary contact should not be treated as substitutes for the machine’s complete safety system or external protective devices.

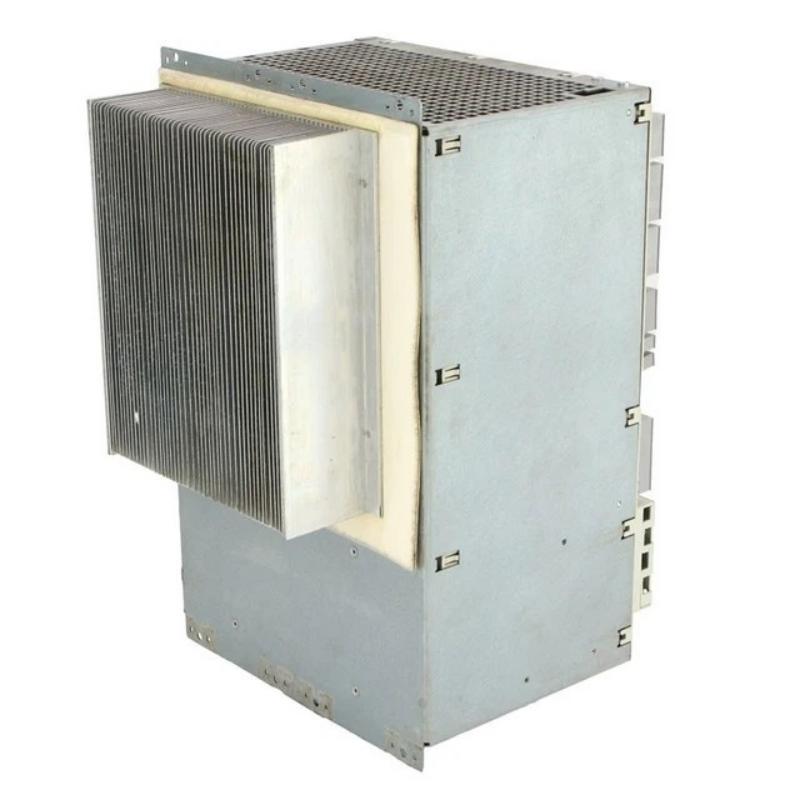

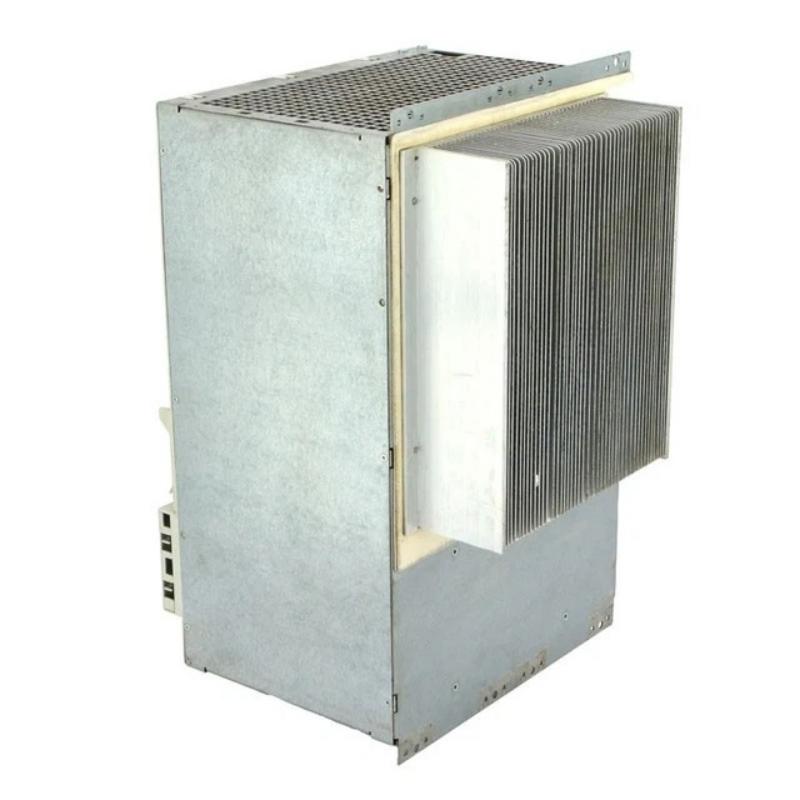

3.6 External Cooling

External cooling is a defining installation requirement for this module. The cabinet and cooling arrangement must provide the airflow or heat-removal path specified for the equipment.

Insufficient cooling can increase internal temperatures and affect the reliability of power electronics. Dust accumulation, obstructed airflow, unsuitable cabinet design, or a failed cooling fan can contribute to thermal problems.

4. Role in Industrial Control Systems

The Siemens 6SN1146-1BB00-0DA1 serves as a power-management component in compatible SIMODRIVE 611 installations.

Drive-system power supply: It supplies the DC-link power required by compatible drive modules.

Regenerative energy management: It supports energy feedback to the supply when the drive system is configured for regenerative operation.

Multi-axis machine support: It can form part of a drive group serving several motors and controlled axes.

Integration with CNC equipment: It supports the power architecture of machine tools that use SIMODRIVE 611 drive technology.

Legacy equipment maintenance: Correct identification of this model can help maintenance teams restore an existing machine without unnecessarily replacing the entire drive system.

The module does not independently execute CNC programs, PLC logic, or individual motor-positioning algorithms. Those functions depend on the associated controllers, drive modules, feedback devices, and machine software.

5. Industrial Applications

5.1 CNC Machine Tools

CNC milling machines, turning centers, machining centers, and other machine tools often use coordinated servo axes to control feed motion and positioning.

A compatible infeed and regenerative feedback module supplies the drive group and supports regenerative energy management during operating cycles. The precise role of the 6SN1146-1BB00-0DA1 depends on the machine’s original electrical design.

5.2 Industrial Manufacturing Equipment

Manufacturing systems that rely on repeated acceleration, deceleration, and coordinated movement may benefit from regenerative drive architectures. These systems can include specialized production machines, automated assembly equipment, and industrial processing machinery.

Maintaining the correct power module helps preserve the established drive configuration and reduces the need for unplanned electrical modifications.

5.3 Material Handling and Transfer Systems

Transfer mechanisms, positioning systems, and other motor-driven equipment can use servo drives for controlled movement. Where the installed system uses a compatible SIMODRIVE 611 configuration, the infeed and regenerative feedback module contributes to the overall power infrastructure.

Application suitability must be checked against the actual power demand, motion profile, and electrical arrangement.

5.4 Printing and Converting Machinery

Certain printing, winding, unwinding, and converting machines require synchronized motor control and frequent changes in speed. Regenerative energy management may be relevant when the machine’s duty cycle produces significant braking energy.

The module must be selected and installed according to the original drive design rather than solely on the basis of the machine’s industry or nominal power rating.

5.5 Legacy Automation Systems

Industrial plants often continue to operate machines whose control programs, mechanical assemblies, and drive systems have been validated over many years. In such cases, the exact replacement of an existing power module can be more practical than a complete system upgrade.

Before reusing or replacing the module, maintenance teams should verify the condition of the surrounding drive components and the availability of suitable technical documentation.

6. Installation and System Integration

Correct installation is essential for safe operation and dependable performance.

6.1 Confirm the Complete Model Number

Check the complete order number on the existing module and the replacement unit. The 6SN1146 series contains several modules with different power classes and operating characteristics.

Do not select a replacement based only on the family name, physical appearance, or nominal power rating. The infeed type, regenerative feedback capability, control architecture, and cooling method must also match the intended application.

6.2 Verify the Electrical Supply

Confirm the incoming supply voltage, phase arrangement, frequency, protection, grounding, and cable requirements specified for the installed system.

Power connections must be made by qualified personnel using the applicable electrical drawings and installation procedures. Incorrect wiring can damage the module and connected equipment or create an electrical hazard.

6.3 Check the External Cooling Arrangement

Because this model is associated with external cooling, verify that the cabinet provides the required airflow and heat-dissipation path.

Inspect cooling equipment, ventilation openings, filters, and nearby components. Make sure that the module is installed with the prescribed clearances and that hot air is not recirculated into the cooling intake.

6.4 Inspect Contactor and Control Wiring

Check the mains contactor connections and associated auxiliary-contact wiring against the system’s electrical diagrams. Confirm that any required monitoring or interlocking circuits operate as designed.

The auxiliary contact must be integrated according to the intended control logic. It should not be assumed to provide every protection or safety function required by the machine.

6.5 Confirm Drive-Group Compatibility

Verify the compatibility of the module with the connected drive units, DC-link arrangement, controller, and protective equipment. Check the electrical ratings and the manufacturer’s requirements for the complete drive group.

If the module is being installed as a replacement, compare the previous configuration with the replacement’s documentation before applying power.

6.6 Commissioning and Functional Checks

Before returning the machine to production, qualified personnel should verify:

• Correct mounting and electrical connections.
• Protective grounding and required electrical protection.
• Cooling operation and cabinet ventilation.
• Correct contactor operation and relevant control feedback.
• Absence of abnormal noises, overheating, or unexpected fault indications.
• Correct operation of the complete drive group under the approved commissioning procedure.

Follow the prescribed isolation procedure before handling the module. Allow the DC link to discharge for the specified period and verify that hazardous voltage is absent before carrying out electrical work.

7. Compatible System Components

The following component categories may be relevant to a SIMODRIVE 611 installation. Compatibility must be confirmed for the specific machine and drive configuration.

These categories describe typical system relationships, not a guarantee that every listed component can be connected directly. Always follow the original system design and the applicable Siemens documentation.

8. Alternative Models and Replacement Considerations

Alternative models should not be treated as drop-in replacements without verification. A module with a higher nominal rating may have different electrical requirements, physical dimensions, cooling arrangements, and control functions.

For legacy equipment, the most reliable approach is to compare the complete order number and hardware details, then obtain confirmation from the machine manufacturer or a qualified Siemens drive specialist if the original unit is unavailable.

9. Key Advantages

Integrated Infeed and Regenerative Feedback Function

The module combines infeed and regenerative feedback functions within the intended SIMODRIVE 611 architecture. This supports power management for compatible drive groups.

Designed for Industrial Drive Systems

Its application in industrial motion-control equipment makes correct identification valuable for maintenance and spare-parts planning.

Supports Regenerative Operation

Under suitable operating conditions, regenerative feedback can return energy to the electrical supply rather than dissipating all braking energy as heat.

Closed-Loop Control Architecture

The closed-loop design distinguishes this module from basic unregulated infeed models and makes correct model selection particularly important.

External Cooling Configuration

The external cooling arrangement can be integrated into a drive cabinet designed to meet the specified heat-removal requirements.

Useful for Legacy Machine Maintenance

Sourcing the correct module can help keep existing CNC machinery and industrial automation equipment in service when a complete system replacement is not practical.

10. Technical FAQs

Q1. What is the Siemens 6SN1146-1BB00-0DA1?

It is a SIMODRIVE 611 infeed and regenerative feedback module. It supplies power to a compatible drive group and supports regenerative energy feedback under suitable operating conditions.

Q2. What is its power rating?

The model is commonly listed in the 55/71 kW power class. The meaning of the two ratings and the permissible operating conditions should be verified against the applicable technical documentation.

Q3. Is it a standard feed module or a regenerative feedback module?

It is classified as an infeed and regenerative feedback module. This is an important distinction when comparing it with a basic unregulated infeed unit.

Q4. What cooling method does it use?

The model is listed with external cooling. The installed cabinet must provide the cooling arrangement required by the module and the complete drive system.

Q5. Does the module include a mains contactor?

Product descriptions identify a mains contactor with a break contact. The contactor and auxiliary-contact wiring must be checked against the applicable electrical diagrams.

Q6. What are the dimensions and weight?

The supplied product information lists dimensions of 305 × 305 × 508 mm and a weight of 20 kg. Verify these values against the physical unit and supplier documentation before installation or shipment.

Q7. Can another SIMODRIVE 611 module replace it?

Not automatically. Differences in power class, regenerative function, control method, cooling arrangement, and contactor configuration can affect compatibility. Verify the exact replacement with the applicable documentation.

Q8. What should I check when buying a used or refurbished unit?

Confirm the full model number, label photographs, physical condition, test history, cooling configuration, warranty, and return policy. For a refurbished module, ask what inspections and functional tests were performed.

Q9. What can cause this type of module to fail?

Potential causes include supply abnormalities, overheating, cooling-system problems, aging electronic components, wiring errors, or faults elsewhere in the drive group. A systematic inspection of the complete system is recommended before replacing parts.

Q10. Is it suitable for a new machine design?

Suitability depends on the required drive architecture, electrical ratings, technical support, and long-term spare-parts availability. For new designs, engineers should evaluate the available supported drive platform and verify the lifecycle status of every selected component.

11. Procurement and Maintenance Recommendations

When purchasing the Siemens 6SN1146-1BB00-0DA1, confirm the complete order number and ensure that the supplied module matches the existing machine’s configuration. Ask for clear label photographs and, where available, documentation of the unit’s inspection and testing.

Clarify whether the offered item is new old stock, used, refurbished, or repaired. These conditions can differ significantly in terms of service history, warranty, and expected operating life. A clean exterior alone does not establish that a power module is electrically sound.

For used or refurbished equipment, request information about functional testing, the condition of the contactor and terminals, and any repairs performed. Confirm the seller’s warranty and return policy before purchasing.

Maintenance teams should retain the original electrical diagrams, module identification details, fault history, and relevant commissioning records. Regular checks of cabinet ventilation, cooling performance, wiring condition, and signs of overheating can help identify problems before they cause extended downtime.

If a replacement is needed urgently, avoid choosing an alternative solely because it has a similar power rating. Verify the infeed and regenerative feedback functions, control method, cooling configuration, and physical installation requirements.

12. Conclusion

The Siemens 6SN1146-1BB00-0DA1 is a SIMODRIVE 611 infeed and regenerative feedback module designed for compatible industrial drive systems. Its commonly listed 55/71 kW power class, closed-loop control, external cooling, and integrated mains contactor distinguish it from simpler infeed modules.

For CNC machinery and industrial automation equipment, correct module identification is essential for maintaining system reliability and managing replacement risk. Before purchasing or installing this unit, verify its complete order number, electrical specifications, cooling requirements, mechanical dimensions, and compatibility with the existing drive group. Careful supplier and technical checks can help reduce downtime and avoid incorrect substitutions.
