- Siemens
- 6SN1118-0DM13-0AA1
- Closed-Loop Plug-In Control Unit
- Germany
- 330 × 51 × 152 mm
- 0.9 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

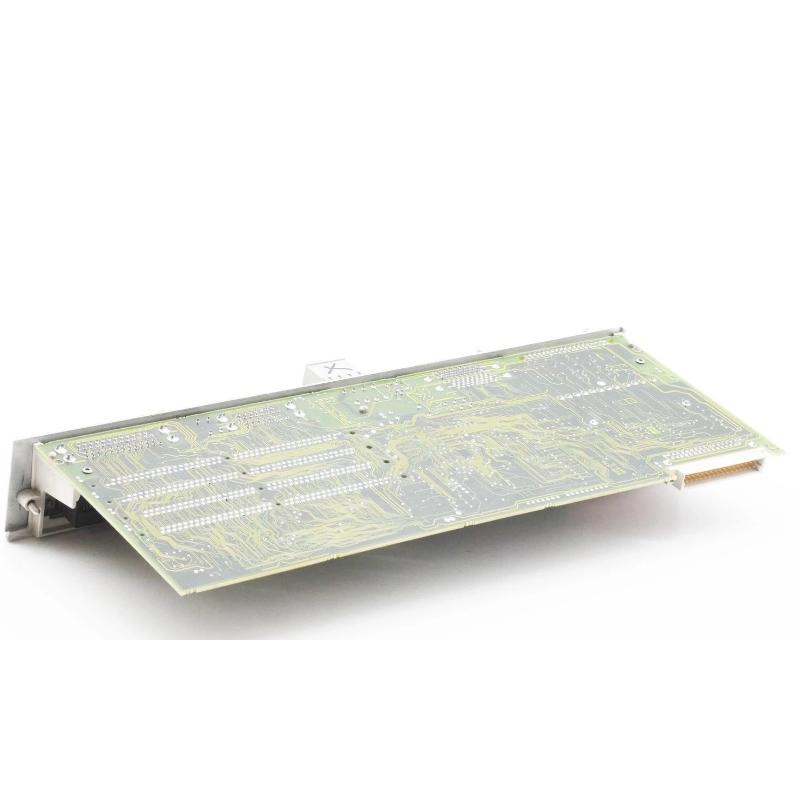

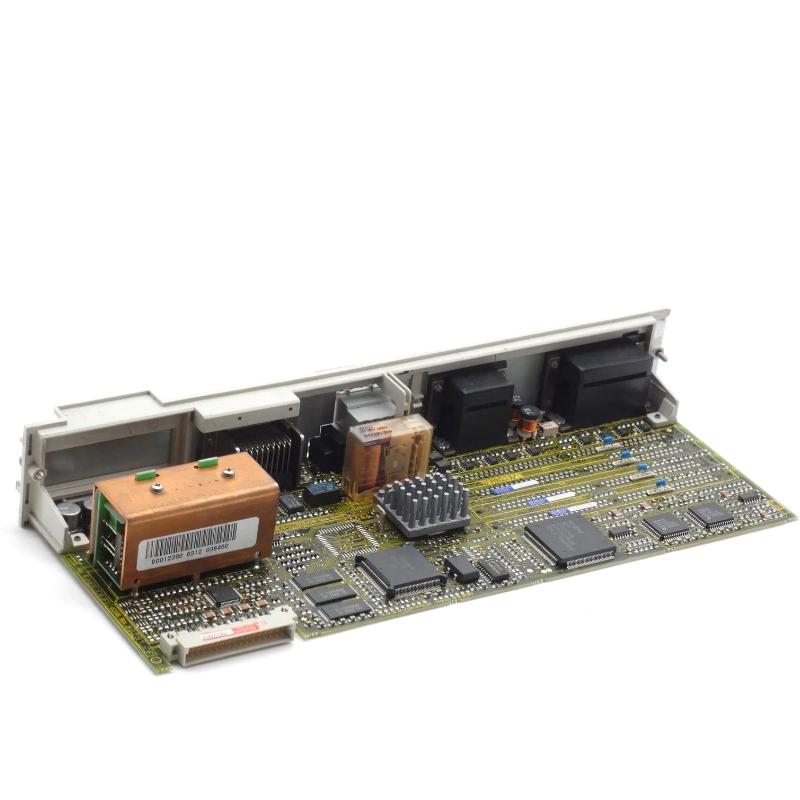

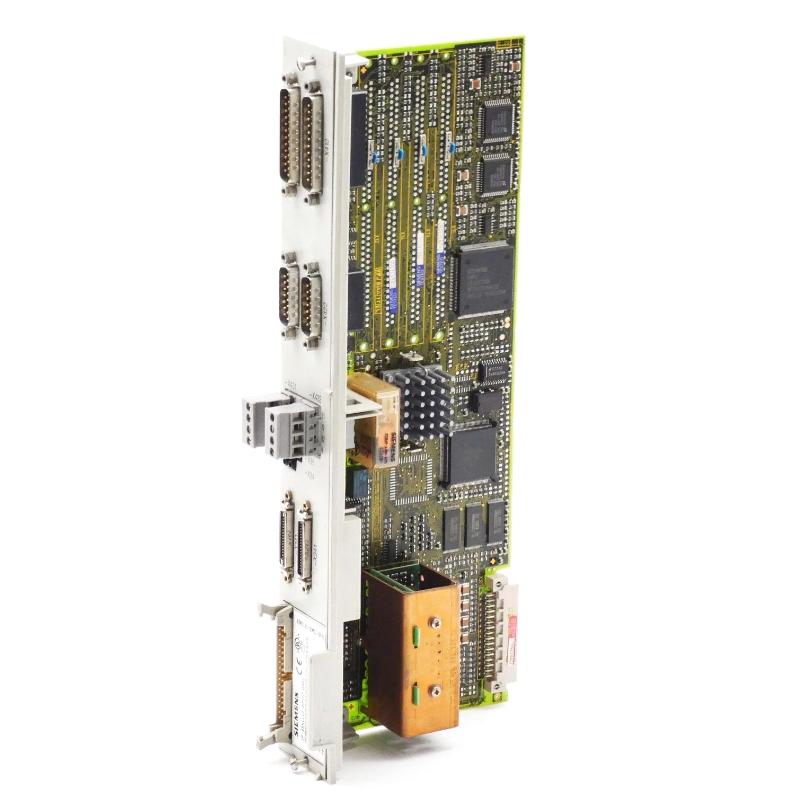

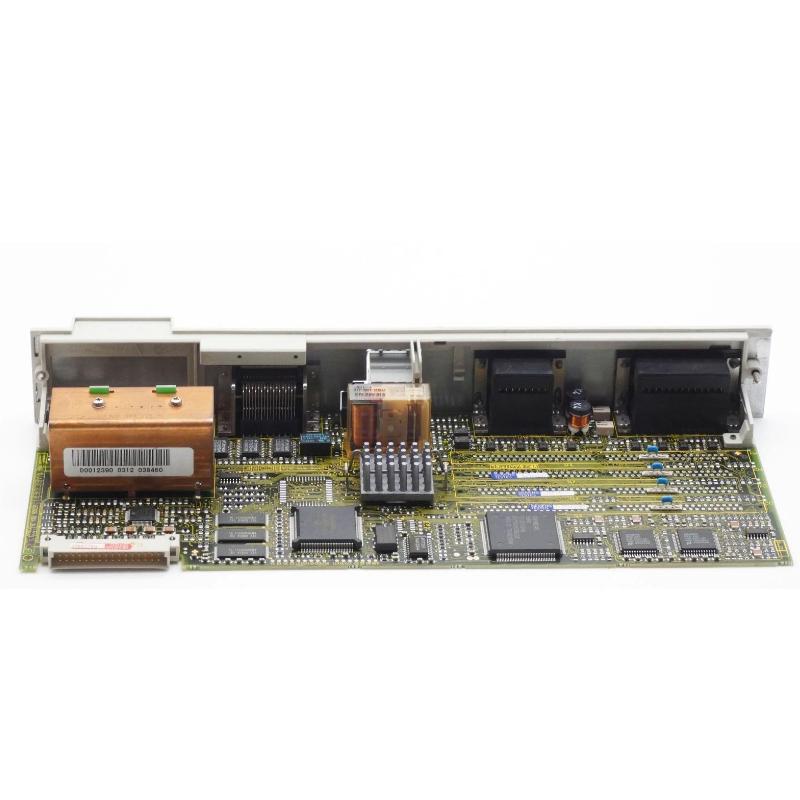

The Siemens 6SN1118-0DM13-0AA1 is a SIMODRIVE 611-D plug-in closed-loop control unit used in CNC drive systems. It is configured for two axes and supports digital feed-drive and main-spindle-drive applications. Within the drive system, the unit processes control commands and feedback information to regulate the assigned drives according to the configured operating mode.
For CNC machine tools, closed-loop control connects commanded movement with feedback from the drive system. The control unit works alongside the numerical control, power modules, motors, and compatible measuring devices. The selected feedback arrangement determines how movement information is supplied to the control loop and how the drive responds to the requested motion.
This model belongs to the standard closed-loop control category rather than the high-performance control variants in the SIMODRIVE 611-D range. Its suitability for a particular machine depends on the axis configuration, feedback interface, drive parameters, and the requirements of the existing CNC installation.
When replacing a unit, technicians should verify the complete article number and the original drive configuration. Modules with similar designations can differ in control performance, measuring-system support, and interface arrangements, so family membership alone is not sufficient to establish interchangeability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Article Number | 6SN1118-0DM13-0AA1 |
| Product Family | SIMODRIVE 611-D |
| Product Type | Closed-Loop Plug-In Control Unit |
| Number of Axes | 2 |
| Control Type | Standard Closed-Loop Control |
| Drive Applications | Feed Drives and Main Spindle Drives |
| Dimensions | 330 × 51 × 152 mm |
| Weight | 0.9 kg |
Product Features
- Two-axis configuration: Supports control functions for two assigned drives within a compatible SIMODRIVE 611-D installation.
- Standard closed-loop control: Processes drive commands and feedback information according to the configured operating mode.
- Digital drive integration: Operates as part of the SIMODRIVE 611-D digital drive architecture.
- CNC coordination: Works with the numerical control system to execute the configured motion-control tasks.
- Modular installation: Fits into the corresponding drive assembly as a dedicated control component.
- Configuration-dependent operation: Requires compatible drive components, feedback arrangements, and parameters.
Working Principle
The 6SN1118-0DM13-0AA1 operates within the closed-loop control path of the SIMODRIVE 611-D system. The CNC controller supplies the motion commands, while the associated feedback devices provide information used by the drive-control process. The control unit processes the relevant signals, and the power module supplies the electrical power required by the motor.
The general control arrangement is:
CNC Controller → 6SN1118-0DM13-0AA1 → SIMODRIVE Power Module → Drive Motor → Feedback System
The exact feedback path depends on the machine’s configuration. Encoder type, signal interface, measuring-system arrangement, and axis assignment must correspond to the installed control hardware. The control unit cannot be treated as an independent drive because its operation depends on the surrounding SIMODRIVE equipment.
During commissioning, technicians should confirm that the control unit receives the expected feedback and that the drive parameters match the machine’s approved configuration. If the axis fails to respond correctly, checks should include the feedback connections, power module, CNC commands, and active drive faults.
Role in the SIMODRIVE 611-D Control Architecture
The 6SN1118-0DM13-0AA1 occupies the control layer between the CNC system and the drive power electronics. It processes the information needed for closed-loop operation of two assigned axes.
CNC Controller → Digital Control Unit → Power Module → Drive Motor → Feedback System
| System Element | Function |
|---|---|
| 6SN1118-0DM13-0AA1 | Performs standard closed-loop control functions for two configured axes |
| CNC Controller | Generates motion commands and coordinates machine operation |
| SIMODRIVE 611-D Power Module | Supplies electrical power to the connected motor |
| Feed Drive Motor | Produces controlled movement along the assigned machine axis |
| Main Spindle Drive | Provides spindle movement in a compatible configuration |
| Feedback Devices | Supply movement or position information required by the control system |
| Drive Parameters | Define axis assignments and relevant operating characteristics |
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Machine Tools | Closed-loop control of configured feed and spindle drives |
| Milling Machines | Coordinating feed-axis movement during machining operations |
| CNC Turning Centers | Managing drive-control functions within the machine’s CNC architecture |
| Automated Machining Equipment | Executing programmed drive movements using configured feedback |
| Multi-Axis CNC Systems | Integrating two assigned drive axes into a compatible SIMODRIVE 611-D installation |
| Machine Tool Maintenance | Replacing a control unit after verifying the original hardware configuration |
| Drive System Refurbishment | Restoring drive-control functions in existing CNC equipment |
Installation and Maintenance
- Verify the article number: Confirm that the replacement is 6SN1118-0DM13-0AA1 and distinguish it from related SIMODRIVE control units with different configurations.
- Check axis assignments: Identify the two axes controlled by the existing module and verify that the replacement matches the machine’s drive arrangement.
- Review the feedback configuration: Confirm the encoder types, measuring-system arrangement, and feedback interfaces used by the original installation.
- Check CNC compatibility: Verify that the numerical control system supports the intended SIMODRIVE 611-D configuration.
- Inspect the drive parameters: Retain the approved configuration records for the assigned axes, motors, and feedback devices.
- Isolate electrical power: Follow the machine’s electrical safety procedures before removing or installing the control unit.
- Inspect the mounting position: Examine the designated slot and connectors for contamination, mechanical damage, or loose contacts.
- Install the module correctly: Fit the control unit into its specified position within the SIMODRIVE assembly and ensure that the connections are seated properly.
- Check feedback wiring: Inspect the relevant cables and connectors for damaged insulation, loose connections, and incorrect assignments.
- Verify the power module: Check that the associated power electronics are suitable for the configured motor and assigned axis.
- Perform a controlled functional test: Check drive enable conditions, feedback signals, axis response, and fault messages before returning the machine to production.
- Record the maintenance results: Document the installed article number, configuration checks, parameter changes, and functional test results.
Compatible System Components
| Component | Function |
|---|---|
| SIMODRIVE 611-D Power Module | Supplies electrical power to the associated motor |
| CNC Controller | Generates motion commands and coordinates machine operation |
| Feed Drive Motor | Produces controlled movement along the assigned axis |
| Main Spindle Drive Components | Support spindle operation within the configured drive system |
| Compatible Feedback Devices | Supply the feedback signals required by the configured control arrangement |
| Feedback Cabling | Carries signals between measuring devices and the corresponding interfaces |
| CNC and Drive Parameters | Establish the operating configuration of the control unit |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6SN1118-0DM13-0AA0 | Closed-Loop Plug-In Control Unit | Compare the complete article number and original system configuration |
| Siemens 6SN1118-0DM11-0AA0 | Closed-Loop Plug-In Control Unit | Verify the measuring-system arrangement before considering substitution |
| Siemens 6SN1118-0DM11-0AA1 | Closed-Loop Plug-In Control Unit | Compare the feedback configuration and control requirements |
| Siemens 6SN1118-0DK23-0AA1 | Digital Closed-Loop Plug-In Performance Control Unit | Check the control-performance category and complete drive configuration before selecting |
Key Advantages
- Two-axis closed-loop control within the SIMODRIVE 611-D architecture.
- Integration with CNC-controlled feed and main spindle drive applications.
- Modular installation within the associated drive assembly.
- Support for configured digital drive-control functions.
- Suitable for maintenance and replacement when hardware compatibility is verified.
Technical FAQs
How many axes does the 6SN1118-0DM13-0AA1 support?
This model is configured for two axes. The specific assignment of feed-drive and spindle-drive functions depends on the machine’s CNC configuration and associated drive components.
What should be verified when matching this unit to an existing encoder system?
Check the encoder type, signal interface, feedback wiring, and measuring-system configuration. These details must match the intended control arrangement before the machine is commissioned.
Can the 6SN1118-0DM13-0AA1 replace a high-performance SIMODRIVE 611-D control unit?
The two units should not be considered interchangeable solely because they belong to the same product family. Control performance, feedback configuration, axis requirements, and the original machine design must be compared.
What checks are useful when a drive fault appears after installation?
Inspect the feedback connections, axis assignments, drive parameters, power-module status, and CNC fault messages. Confirm that the installed article number matches the required configuration before making further changes.
