Product Overview

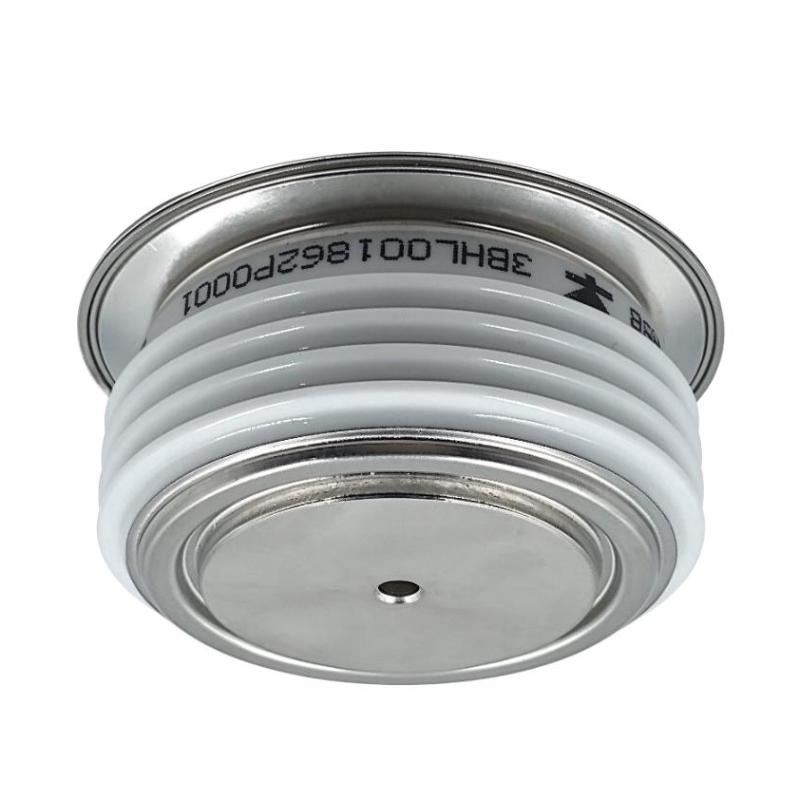

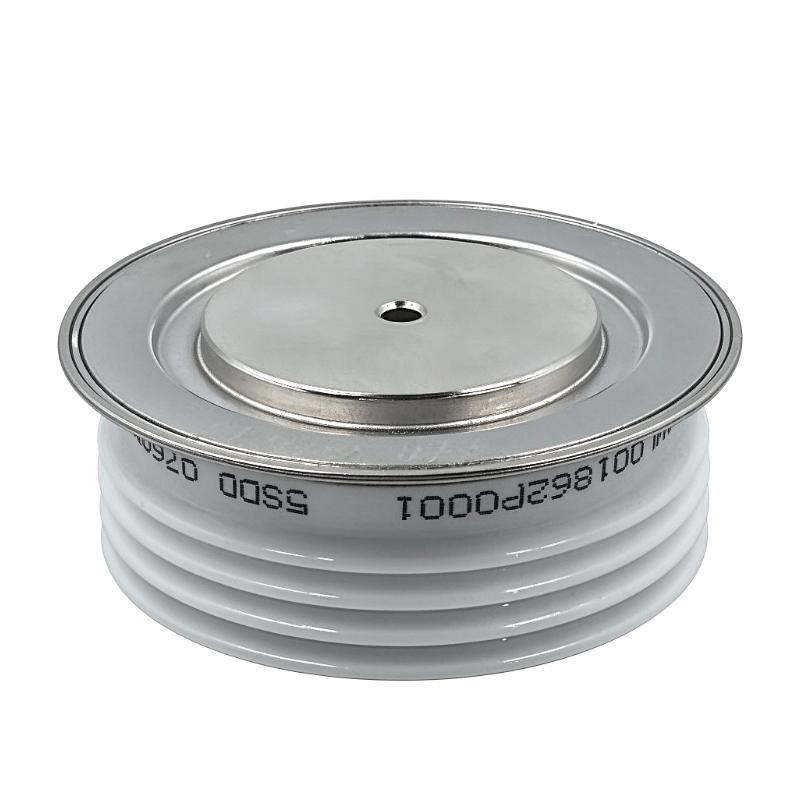

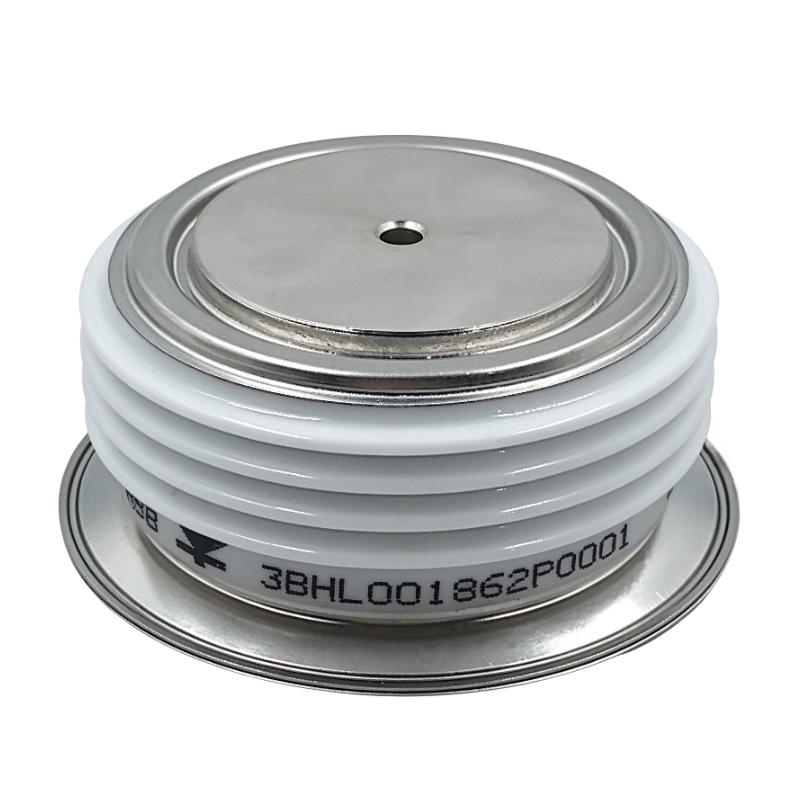

The ABB 5SDD0760D0001, ordering number 3BHL001862P0001, is a 38 mm, 6 kV rectifier diode used in industrial power-conversion equipment. It is listed as a spare component for ABB ACS 1000 medium-voltage drive systems, where high-voltage semiconductor devices form part of the rectifier stage that converts incoming electrical power into DC power for the drive’s subsequent conversion stages. <Cite refs={[“turn901306search1″,”turn901306search3”]}/>

Within a medium-voltage drive, the rectifier diode carries current during the portion of the electrical cycle in which it is forward-biased and blocks reverse current within its rated operating limits. Its behavior contributes to the current path and electrical performance of the rectifier assembly. The diode itself does not control motor speed or regulate the complete drive output; those functions depend on the wider power-conversion system.

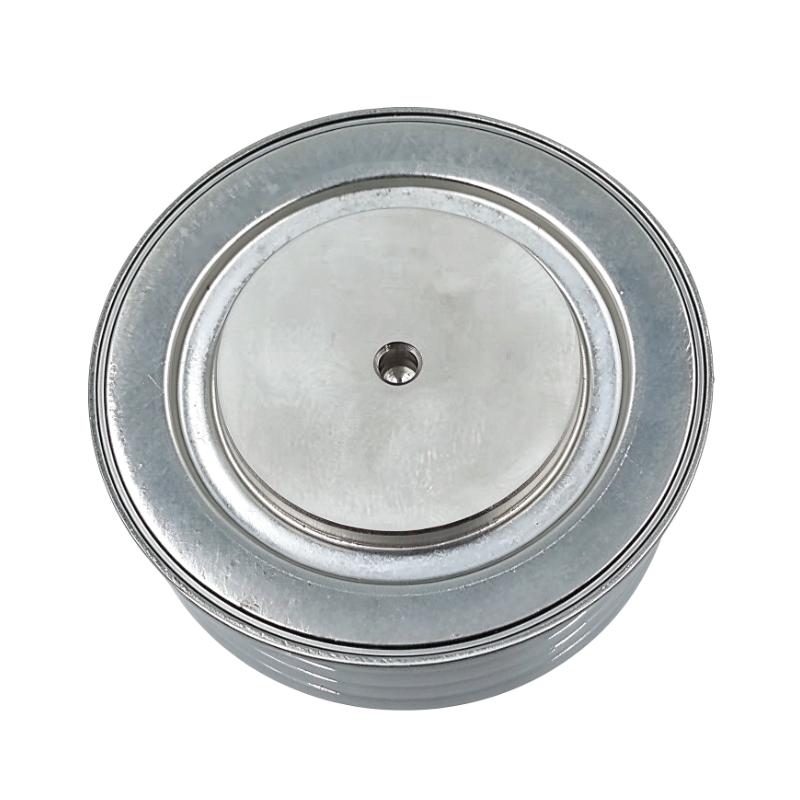

This component is a discrete power semiconductor with a press-pack mounting format. In a typical installation, it is clamped between conductive contact surfaces that provide both the electrical connection and the thermal path into the surrounding assembly. Correct contact pressure, surface condition, and alignment are important because poor mounting can increase contact resistance or interfere with heat transfer.

The full designation matters when maintaining a drive’s rectifier stage. The type designation 5SDD0760D0001 and ordering number 3BHL001862P0001 identify the specified component, while the 38 mm diameter and 6 kV rating provide useful reference points for checking the installation. A diode with a similar appearance is not necessarily suitable unless its electrical and mechanical characteristics match the circuit requirements.

For maintenance engineers, replacement work should include inspection of the diode’s contact surfaces, the associated heatsink or cooling structure, busbar connections, and other devices in the same rectifier circuit. These checks help distinguish an individual semiconductor failure from a wider electrical or thermal problem.

Technical Specifications

Product Features

• 6 kV voltage class: Intended for high-voltage rectifier circuits within the device’s specified electrical limits.
• 38 mm press-pack format: Provides a defined mounting interface for compatible semiconductor stacks.
• Unidirectional conduction: Conducts forward current and blocks reverse current within the diode’s operating ratings.
• Double-sided thermal contact: The press-pack arrangement supports heat transfer through the clamped contact surfaces when installed in a suitable assembly.
• Drive-system integration: Listed for use as a spare component in compatible ABB ACS 1000 drive equipment.
• Identifiable ordering reference: The 5SDD0760D0001 type designation and 3BHL001862P0001 ordering number support accurate parts identification.
• Circuit-specific application: Operates as one component within a rectifier network, with performance determined by the complete electrical and cooling arrangement.

Working Principle

The 5SDD0760D0001 operates through a semiconductor junction that permits current to flow primarily in one direction. When the anode is positive relative to the cathode under suitable conditions, the diode conducts. When the polarity reverses, it blocks current until the reverse-voltage limit is approached.

In a rectifier stage, several semiconductor devices are arranged so that current flows through the required paths during the different portions of the AC cycle. The resulting DC output supplies the downstream power-conversion section. The exact current path depends on the rectifier topology and the complete circuit design.

AC Supply → Rectifier Diode Assembly → DC Link → Drive Inverter → Motor

During conduction, electrical losses generate heat inside the semiconductor. The press-pack mounting interface transfers this heat to the adjoining conductive surfaces and cooling structure. The clamping arrangement must therefore meet the equipment’s specified requirements: insufficient or uneven contact can impair thermal transfer, while incorrect assembly can damage the device.

The 6 kV rating identifies the diode’s nominal voltage class, but selection must consider the specific rated reverse voltage and transient stresses required by the circuit. Surge conditions, current loading, cooling performance, and protection coordination all affect whether the component is suitable for a given installation.

If a drive trips or develops abnormal rectifier behavior after a diode replacement, the investigation should include polarity, contact condition, electrical connections, cooling, and the surrounding semiconductor devices. A failed diode may be the result of an underlying circuit or thermal problem rather than the only defective component.

Role in the Power Conversion Architecture

The ABB 5SDD0760D0001 occupies the rectification stage of the power-conversion system. It provides a defined current path within the semiconductor network, while the remaining drive components manage the DC link, switching stage, motor control, and system protection.

A diode failure can affect current distribution in the rectifier stage and may lead to drive alarms, protective trips, or abnormal electrical measurements. Maintenance should therefore include appropriate testing of the surrounding rectifier circuit before the equipment is returned to operation.

Industrial Applications

Installation and Maintenance

1. Verify both part identifiers: Confirm 5SDD0760D0001 and 3BHL001862P0001 against the equipment parts list and the installed component.
2. Isolate the drive: Follow the approved shutdown, isolation, and DC-link discharge procedure. Verify the absence of hazardous voltage before accessing the rectifier assembly.
3. Inspect the existing diode position: Record the device orientation and location before removal. Confirm the intended polarity and current path from the equipment circuit documentation.
4. Check the clamping arrangement: Inspect the press-pack holder, contact plates, and associated hardware for deformation or damage. The mounting arrangement must meet the requirements specified for the equipment.
5. Prepare the contact surfaces: Check for contamination, corrosion, pitting, or uneven contact. Clean and prepare the surfaces according to the approved maintenance procedure.
6. Verify the replacement dimensions: Confirm the 38 mm diameter and the required contact geometry. Do not assume that another diode with a similar diameter will fit or perform correctly.
7. Follow the specified clamping procedure: Apply the prescribed clamping force and assembly sequence. Do not estimate a force or tightening value when the equipment-specific instructions are unavailable.
8. Inspect busbar connections: Check adjoining conductors and contact points for overheating, discoloration, or loose connections. Correct any defects before reassembly.
9. Check the cooling path: Inspect the heatsink or cooling structure for blockage, damage, or poor contact. Confirm that the assembly can remove heat under the intended operating conditions.
10. Perform suitable electrical tests: Use the approved diode-testing procedure and equipment. Ensure that the applied test voltage and method are appropriate for the high-voltage semiconductor.
11. Inspect the surrounding rectifier circuit: Check associated semiconductor devices and protection components when the original diode has failed. Investigate the cause before energizing the drive again.
12. Record the maintenance work: Document the replacement part number, inspection findings, electrical test results, and relevant commissioning checks for future troubleshooting.

Compatible System Components

Recommended Related Models

Key Advantages

• 6 kV rectifier diode for compatible high-voltage power-conversion circuits.
• 38 mm press-pack format for specified mounting arrangements.
• Defined ABB type designation and ordering number for spare-parts identification.
• Double-sided thermal contact through a suitable clamping assembly.
• Application in compatible ABB ACS 1000 medium-voltage drive equipment.

Technical FAQs

What does the 6 kV designation mean for the 5SDD0760D0001?

The 6 kV designation identifies the diode’s nominal voltage class. The exact repetitive reverse-voltage rating and allowable transient stresses should be checked against the applicable technical specification and the circuit requirements.

Why is the press-pack clamping force important for this diode?

The clamping arrangement establishes the mechanical and electrical contact between the semiconductor and adjoining surfaces. It also affects heat transfer. The specified assembly procedure must be followed to avoid poor contact or mechanical damage.

Is the 5SDD0760D0001 associated with ABB ACS 1000 drives?

The ordering number 3BHL001862P0001 is listed as a spare part associated with ABB ACS 1000 medium-voltage drive equipment. Suitability for a particular drive should still be confirmed against its installed configuration and parts records.

What should be investigated if the replacement diode fails shortly after installation?

Check the polarity, contact surfaces, clamping arrangement, cooling path, busbar connections, and surrounding semiconductor devices. Also investigate possible overcurrent or overvoltage conditions before installing another replacement.
