1. Product Overview

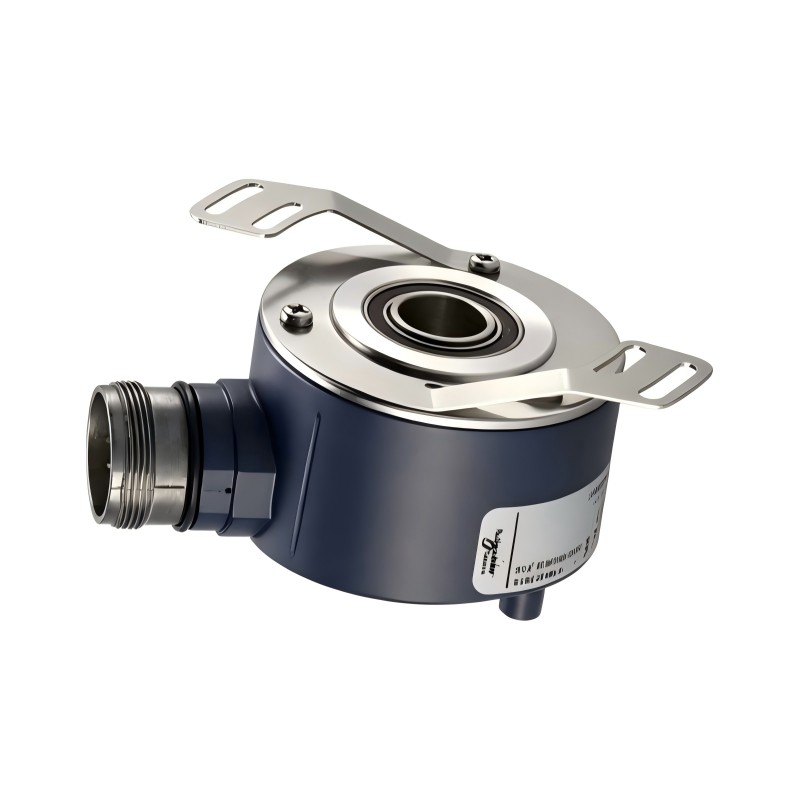

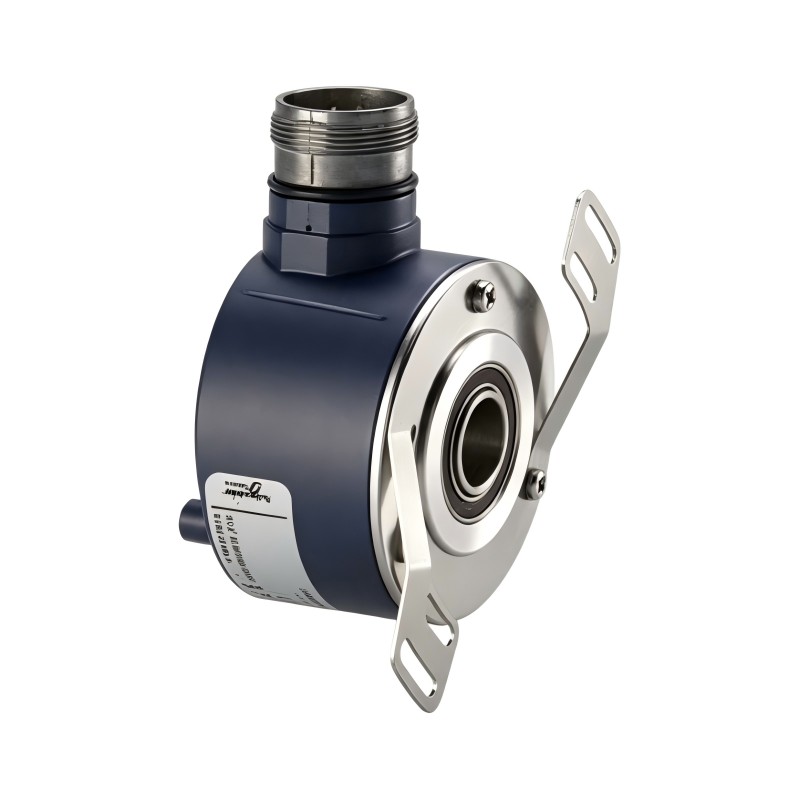

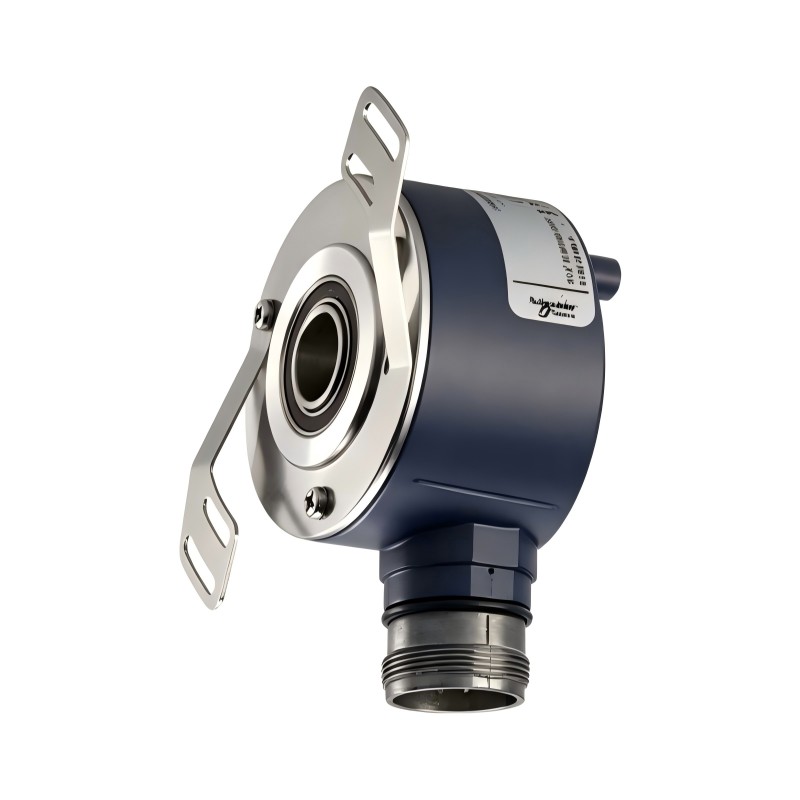

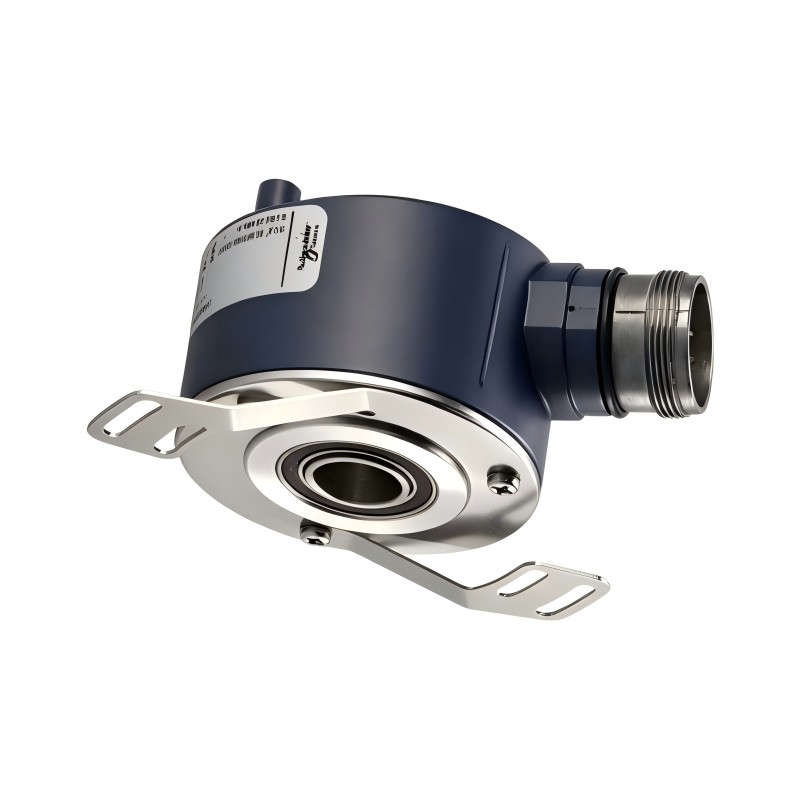

The Schneider Electric XCC-1514TS10Y is an incremental rotary encoder from the OsiSense XCC product family. Designed for industrial automation and motion feedback applications, this encoder converts mechanical rotation into electrical pulse signals that can be processed by programmable logic controllers (PLCs), counter modules, and compatible automation equipment.

Featuring a 58 mm housing and a 14 mm through shaft, the XCC-1514TS10Y is designed for mechanical installations where a hollow mounting arrangement is required. Its 1000-point resolution supports rotational speed monitoring and relative movement measurement in industrial machinery. The Type Y push-pull output stage provides electrical signals for compatible receiving devices, while the 5–30 V DC supply range offers flexibility for different low-voltage control architectures.

The encoder uses a radial M23 male connector with 12 pins, allowing connection to a compatible industrial cable or mating connector. Its Zamak enclosure, aluminium base, and stainless steel shaft are designed for industrial service. With an IP65 protection rating, the unit provides protection against dust ingress and water jets under specified test conditions.

The XCC-1514TS10Y can be considered for applications such as conveyor systems, packaging equipment, printing machinery, material handling installations, and other automated machines that require incremental rotational feedback.

For maintenance engineers and industrial spare-parts buyers, correct model identification is essential. Although the XCC product family contains encoders with similar housing dimensions, their shaft arrangements, resolutions, and output stages can differ. The XCC-1514TS10Y specifically combines a 14 mm through shaft, 1000-point resolution, and Type Y push-pull output. These characteristics should be checked before selecting it as a replacement for an existing encoder.

2. Technical Specifications

Specifications should be checked against the documentation supplied with the exact unit and the requirements of the intended application.

3. Function and Working Principle

3.1 Incremental Rotary Measurement

The primary function of the XCC-1514TS10Y is to detect rotational movement and convert it into electrical pulses. As the connected mechanical assembly rotates, the encoder generates signals that represent changes in angular position.

A compatible controller counts these pulses to determine relative movement and calculate rotational speed. In a machine automation program, the resulting feedback can be used for speed supervision, movement tracking, synchronization, and sequence control.

Unlike an absolute encoder, an incremental encoder does not normally provide a unique absolute position value immediately after power-up. The controller tracks movement by counting incoming pulses and may require a homing or reference procedure when the application needs a known machine position.

3.2 Understanding the 1000-Point Resolution

The XCC-1514TS10Y has a nominal resolution of 1000 points per revolution. Resolution indicates how many measurement increments the encoder generates for each complete shaft revolution under its specified operating configuration.

A higher resolution can provide more detailed rotational feedback. However, it also increases the number of signal transitions the controller must process at a given rotational speed.

For example, when the encoder is used on a conveyor roller, the PLC can use the pulse count together with the roller circumference and mechanical transmission ratio to estimate the distance travelled. The calculation must account for the controller’s counting method and the encoder’s specified resolution.

It is important to distinguish the encoder’s rated resolution from the total number of counts reported by a controller. Depending on the input interface and counting mode, the controller may count selected edges or use quadrature decoding. The resulting count value can therefore differ from the nominal resolution figure.

3.3 Type Y Push-Pull Output

The Type Y output stage uses a push-pull driver. This arrangement actively drives the output signal toward its high and low states, subject to the encoder’s electrical specifications.

Push-pull outputs can be useful in industrial automation because they provide a defined output signal for compatible receiving electronics. However, the receiving PLC input or counter module must support the encoder’s voltage levels, signal arrangement, and output characteristics.

Before installation, engineers should verify the supply voltage, input thresholds, common-reference arrangement, wiring diagram, and maximum permitted counting frequency. The specified maximum output current is 40 mA, but actual operating current should be determined by the connected load and remain within the product’s electrical limits.

3.4 Three-Channel Signal Architecture

The XCC-1514TS10Y is specified with three channels. The signals allow a compatible control system to receive rotational feedback and use the available channels according to the encoder’s wiring configuration.

The controller must be configured to interpret these signals correctly. Incorrect wiring, unsuitable input settings, or a mismatch between the encoder and the receiving interface may result in missed pulses, unstable readings, or incorrect direction and movement calculations.

3.5 Through-Shaft Mechanical Design

The through-shaft design is an important feature of this model. Instead of using a conventional projecting solid shaft, the encoder accommodates a compatible shaft or mounting arrangement passing through its central opening.

This design can simplify integration into certain machine assemblies, particularly where the encoder is mounted around an existing rotating shaft. Correct shaft sizing, mechanical support, alignment, and anti-rotation mounting are still essential.

The through-shaft diameter is 14 mm. Where the application uses a different shaft diameter, a suitable manufacturer-approved reduction collar or mounting accessory may be required. The correct accessory must be selected for the actual mechanical arrangement.

4. Role in Industrial Control Systems

4.1 PLC-Based Automation

In PLC-controlled machinery, an incremental encoder provides movement information that the controller can use in its operating logic. The signal may be connected to a high-speed counter, a dedicated encoder interface, or another compatible input device.

Typical control tasks include monitoring rotational speed, measuring relative movement, coordinating machine sequences, and checking whether a moving component is operating within an expected range.

The XCC-1514TS10Y can be considered for these applications when the PLC hardware supports its Type Y push-pull output and the expected signal frequency.

4.2 Motor and Drive Monitoring

Industrial motors and drive systems often require rotational feedback for speed observation or movement monitoring. An encoder installed on a compatible shaft can supply pulse information to the control system.

The XCC-1514TS10Y is an incremental encoder, so its suitability for a particular motor or drive depends on the receiving device’s feedback interface. It should not automatically be assumed to replace a dedicated servo feedback device or an encoder using a different communication protocol.

Before integrating it into a drive system, confirm that the drive or controller supports the required signal type, resolution, voltage levels, and channel configuration.

4.3 Position and Travel Measurement

When connected to a roller, wheel, or rotating transmission component, the encoder can help a controller estimate linear travel. The controller converts the pulse count into a distance value using the effective circumference of the rotating component and the relevant transmission ratio.

This arrangement can support material feeding, conveyor travel monitoring, and repetitive positioning tasks.

Actual measurement performance also depends on mechanical conditions. Belt slip, coupling movement, backlash, shaft misalignment, and incorrect scaling can introduce errors even when the encoder generates valid signals.

4.4 Speed Monitoring and Process Synchronization

In a production line, several rotating components may need to operate at coordinated speeds. Encoder feedback can help the control system compare actual movement with configured operating values.

For synchronization tasks, the encoder’s resolution and maximum output frequency must be compatible with the speed range and the receiving controller. The control program must also process the signals quickly enough to meet the application’s response requirements.

4.5 Maintenance and Equipment Diagnostics

Encoder feedback can provide useful information when troubleshooting a machine that exhibits unstable speed, inconsistent movement, or inaccurate travel measurements.

Maintenance teams can compare pulse counts and speed readings with expected values to help isolate possible faults. However, encoder feedback alone cannot identify every mechanical or electrical problem. It should be considered alongside drive diagnostics, sensor readings, mechanical inspections, and controller status information.

5. Industrial Applications

5.1 Conveyor Systems

Conveyor equipment uses rotational feedback to monitor rollers, drive shafts, and belt movement. The XCC-1514TS10Y can be considered where its through-shaft arrangement and electrical interface match the machine design.

The controller may use the pulse signal to estimate conveyor speed, track movement, or coordinate the transfer of products between process stages.

For reliable measurements, the encoder must be securely mounted, and the mechanical connection must minimize slip between the measured component and the actual material movement.

5.2 Packaging Machinery

Packaging machines often require repeatable movement for feeding film, positioning containers, controlling indexing mechanisms, and coordinating conveyor sections.

An incremental encoder provides relative movement feedback that can support these tasks. Its 1000-point resolution may suit applications requiring moderate rotational measurement detail, provided the resulting pulse rate is within the controller’s counting capability.

5.3 Printing and Labeling Equipment

Printing and labeling machinery frequently uses encoder signals to track roller movement and coordinate material transport. Accurate feedback can help the control system maintain consistent timing between movement and processing operations.

The selected encoder must be compatible with the machine’s speed range, signal-processing hardware, and mechanical mounting arrangement. High-speed applications should be evaluated against the maximum rotational speed and output-frequency specifications.

5.4 Material Handling Systems

Automated material handling equipment relies on repeatable movement to transfer products, position mechanisms, and coordinate different machine stations.

The XCC-1514TS10Y may be suitable for movement monitoring when the system uses a compatible 14 mm through-shaft installation and a Type Y push-pull receiving interface.

The encoder should be mounted to avoid excessive mechanical loads, vibration, or misalignment that could affect the shaft and bearings.

5.5 Textile and Paper Processing

Textile production and paper processing often involve rotating rollers and continuous material movement. Encoder feedback can support speed monitoring, material-feed calculations, and synchronization between different machine sections.

In these environments, cable routing and protection are important. Electrical interference, vibration, and contamination around the mounting assembly should be considered during installation and maintenance.

5.6 General Manufacturing Equipment

The encoder can also be evaluated for compatible assembly machines, winding equipment, inspection stations, and industrial process machinery. The final selection should be based on the complete application requirements rather than the housing diameter alone.

6. Installation and System Integration

6.1 Confirm the Through-Shaft Dimensions

The XCC-1514TS10Y uses a 14 mm through shaft and a 58 mm housing. Confirm that the machine’s shaft, mounting bracket, available clearance, and anti-rotation arrangement are compatible.

Do not treat a solid-shaft encoder as a direct mechanical replacement without reviewing the installation. Although the external housing dimensions may appear similar, the shaft arrangement can require different couplings and mounting hardware.

Avoid excessive radial or axial force during installation. Correct alignment helps reduce unnecessary bearing loads and supports stable long-term operation.

6.2 Verify the Electrical Supply

The encoder’s rated supply range is 5–30 V DC. Select a supply voltage that is suitable for the encoder and compatible with the receiving electronics.

Check the wiring diagram before energizing the system. Incorrect supply polarity, wiring errors, or an incompatible interface can prevent the encoder from operating correctly.

The specified reverse-polarity and short-circuit protection provide additional protection against certain electrical faults, but correct installation practices are still required.

6.3 Check the Push-Pull Input Interface

Confirm that the PLC input, counter module, or encoder interface supports Type Y push-pull signals.

Do not assume that an input designed for a different output stage will work correctly simply because the connector fits. Verify voltage thresholds, channel configuration, common connections, and maximum counting frequency before commissioning.

6.4 Confirm the M23 Connector Pinout

The XCC-1514TS10Y uses a radial 12-pin M23 male connector. Select a suitable mating connector or cable assembly and confirm its pin assignment against the applicable product documentation.

The connector’s physical compatibility does not guarantee that the cable is wired correctly. Incorrect pin mapping can result in missing signals, incorrect readings, or electrical damage.

6.5 Respect Speed and Frequency Limits

The specified maximum rotational speed is 6000 rpm, and the output frequency is rated up to 300 kHz.

The actual signal frequency depends on rotational speed, resolution, and the encoder’s specified signal characteristics. The controller’s counting capability must also be considered. An installation is not suitable merely because the shaft speed falls below the rotational-speed limit; the generated signal frequency must remain within the permitted operating limits as well.

6.6 Consider Environmental Conditions

The IP65 protection rating indicates protection against dust ingress and water jets under specified conditions. It does not indicate suitability for immersion or every chemical exposure or washdown process.

The documented operating temperature range is -30°C to +100°C. Confirm that the ambient conditions, mounting location, connector interface, and cable insulation are appropriate for the actual environment.

Route the encoder cable away from high-noise power wiring where practical, and follow the equipment manufacturer’s grounding and shielding recommendations.

6.7 Commission the Encoder

After installation, verify the supply voltage and confirm that the controller receives stable signals as the shaft rotates.

Check that the controller’s counting mode and engineering-unit scaling are appropriate for the 1000-point resolution. Compare the measured speed or movement against a known reference where feasible.

If the reading is unstable or incorrect, inspect the mechanical alignment, coupling or shaft mounting, connector seating, cable condition, electrical noise, and input configuration before concluding that the encoder has failed.

7. Compatible System Components

The following component categories are commonly considered when integrating an incremental encoder into an industrial control system. Compatibility must be confirmed for the exact hardware and application.

These categories describe the supporting equipment typically evaluated during integration. They do not establish guaranteed compatibility with every PLC, drive, counter module, or accessory.

8. Recommended Alternatives and Replacement Considerations

When selecting an alternative, compare the shaft arrangement, resolution, output stage, supply voltage, connector, and mechanical dimensions. A product with a similar appearance may have a different electrical interface or measurement resolution.

These are comparison candidates, not guaranteed drop-in replacements. Product availability and status may vary. Before purchasing, review the exact model documentation and confirm whether the replacement requires changes to wiring, mounting, controller settings, or machine software.

9. Key Advantages of the Schneider XCC-1514TS10Y

14 mm Through-Shaft Design

The through-shaft arrangement can support mechanical installations built around an existing shaft. This can be useful when the machine design requires the encoder to mount around a rotating shaft rather than connect through a conventional projecting shaft.

1000-Point Resolution

The 1000-point resolution provides rotational measurement increments suitable for many industrial speed and relative movement monitoring tasks. Application performance depends on controller counting mode, mechanical coupling, and signal-processing capability.

Type Y Push-Pull Output

The push-pull output provides an actively driven signal for compatible receiving electronics. Correct input matching and wiring are essential for reliable pulse transmission.

Flexible DC Supply Range

The 5–30 V DC supply range supports integration into a variety of compatible industrial control arrangements, subject to the requirements of the complete installation.

Industrial Construction

The Zamak enclosure, aluminium base, and stainless steel shaft provide a mechanical construction intended for industrial applications. Proper alignment and loading remain important to the encoder’s service life.

IP65 Protection

The IP65 rating provides protection against dust ingress and water jets under specified test conditions. Appropriate mounting, cable routing, and connector installation are still necessary to maintain the intended protection.

Standardized M23 Connection

The radial 12-pin M23 connector provides a defined interface for connection to compatible industrial wiring. Verifying the correct mating connector and pinout helps reduce installation errors.

10. Technical FAQs

Q1: What is the Schneider XCC-1514TS10Y?

It is an OsiSense XCC incremental rotary encoder designed to convert rotational movement into electrical pulse signals for compatible industrial automation systems.

Q2: What is the housing diameter?

The housing diameter is 58 mm.

Q3: What is the shaft diameter?

The encoder has a 14 mm through shaft. This shaft arrangement should be distinguished from solid-shaft encoder models.

Q4: What is the resolution of the XCC-1514TS10Y?

Its specified resolution is 1000 points per revolution. The controller’s displayed count value may differ depending on its counting mode and signal-decoding method.

Q5: What output type does it use?

It uses a Type Y push-pull output stage. The receiving device must support the encoder’s electrical characteristics.

Q6: What is the required supply voltage?

The rated supply range is 5–30 V DC. Follow the applicable wiring documentation and ensure the selected voltage is suitable for the connected equipment.

Q7: What connector does it use?

It uses a radial M23 male connector with 12 pins. Verify the mating connector and pinout before wiring.

Q8: What is the maximum rotational speed?

The specified maximum rotational speed is 6000 rpm. The output-frequency limit and receiving controller’s input capability must also be respected.

Q9: Is the encoder waterproof?

It has an IP65 protection rating, which indicates protection against dust ingress and water jets under specified conditions. It should not be treated as suitable for immersion unless the applicable documentation explicitly permits it.

Q10: Can it connect directly to any PLC?

No. The PLC or interface module must support Type Y push-pull signals, the supply arrangement, the channel configuration, and the required counting frequency.

Q11: Can it replace an encoder with a 14 mm solid shaft?

Not necessarily. This model uses a through shaft, so the mechanical mounting arrangement may differ. Both mechanical and electrical compatibility must be checked before replacement.

Q12: What should be checked before ordering?

Verify the complete model number, 58 mm housing, 14 mm through shaft, 1000-point resolution, Type Y output, 5–30 V DC supply, M23 12-pin connector, weight, product condition, and compatibility with the existing equipment.

11. Procurement and Maintenance Recommendations

Accurate part identification is important when sourcing industrial encoder replacements. Schneider Electric’s XCC family includes models with similar housing dimensions but different resolutions, shaft types, and output stages. The full reference should therefore be used when requesting quotations or checking inventory.

Before placing an order, compare the label on the installed encoder with the machine’s electrical drawings and maintenance records. Confirm that the application requires a 14 mm through shaft and a 1000-point resolution. If a different output stage or resolution is selected, the replacement may require changes to the wiring, controller configuration, or mechanical assembly.

For installation and maintenance, inspect the mounting hardware, anti-rotation arrangement, shaft interface, connector, and cable condition. Avoid applying excessive mechanical loads to the shaft or bearings. Correct alignment helps reduce wear and supports stable measurement.

When troubleshooting inconsistent readings, check the power supply, output wiring, input compatibility, counting configuration, and mechanical coupling. Electrical interference or incorrect controller scaling can produce symptoms similar to an encoder fault.

After replacing the unit, test it at representative operating speeds and verify the movement readings against a known reference when practical. Record the installed model number, controller settings, and commissioning results to simplify future maintenance.

For industrial buyers, it is also useful to confirm product condition, delivery requirements, and the availability of compatible connectors or mounting accessories before finalizing the purchase. These checks can reduce the risk of delays during equipment repair.

12. Conclusion

The Schneider Electric XCC-1514TS10Y is an OsiSense XCC incremental encoder designed for industrial rotational feedback and relative movement measurement. Its 58 mm housing, 14 mm through shaft, 1000-point resolution, Type Y push-pull output, 5–30 V DC supply, and radial 12-pin M23 connector define its key integration characteristics.

It can be evaluated for compatible conveyor systems, packaging machinery, printing equipment, material handling installations, and other automated machinery requiring incremental pulse feedback.

For dependable operation, confirm the mechanical mounting, output interface, supply voltage, controller counting capability, and required resolution before installation. When the specifications match the application, the XCC-1514TS10Y can serve as a practical encoder option for industrial automation maintenance and equipment integration.
