1. Product Overview

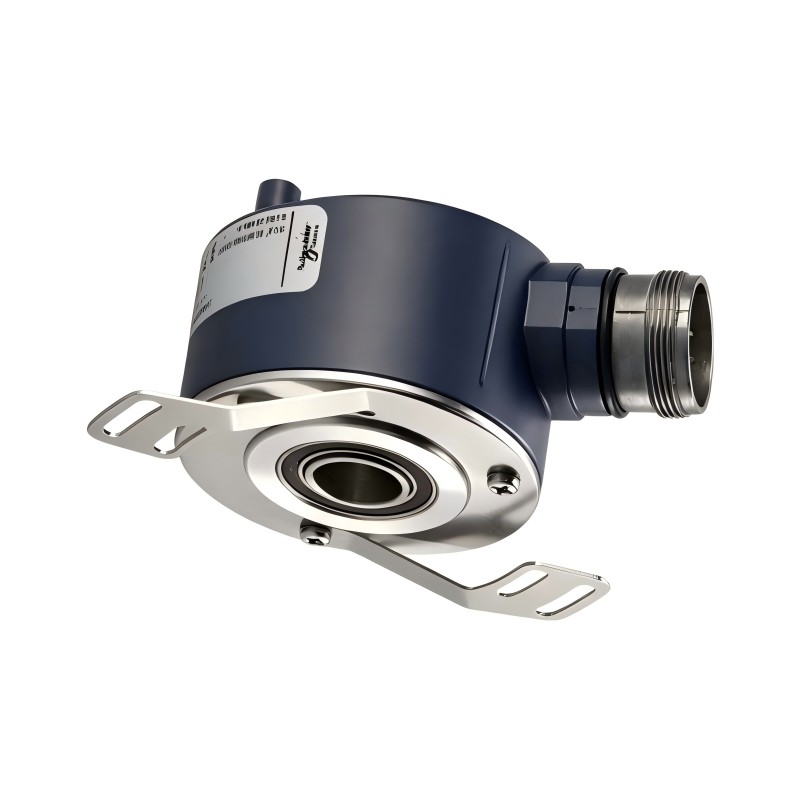

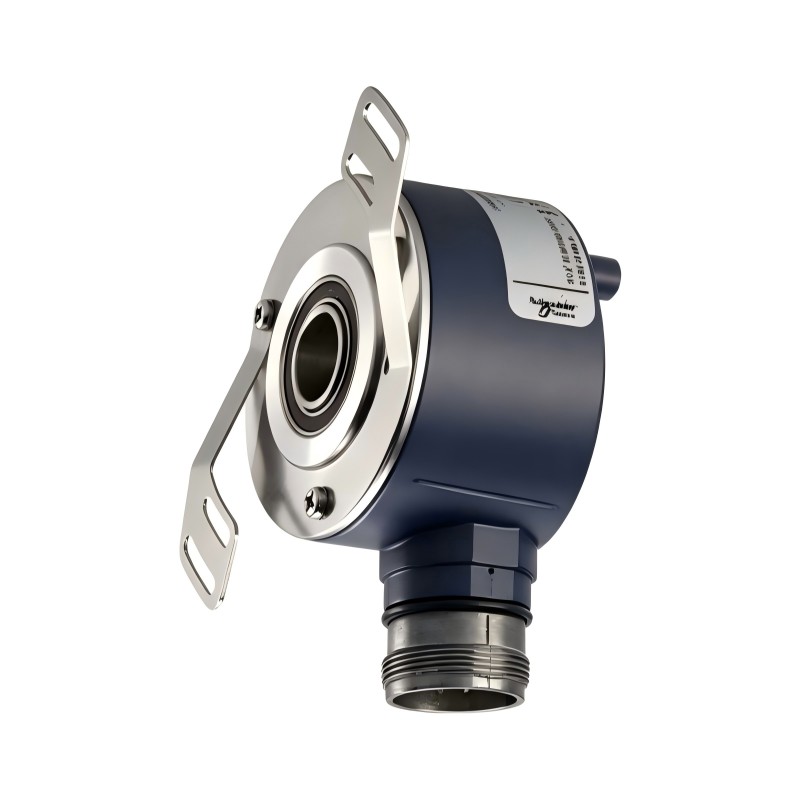

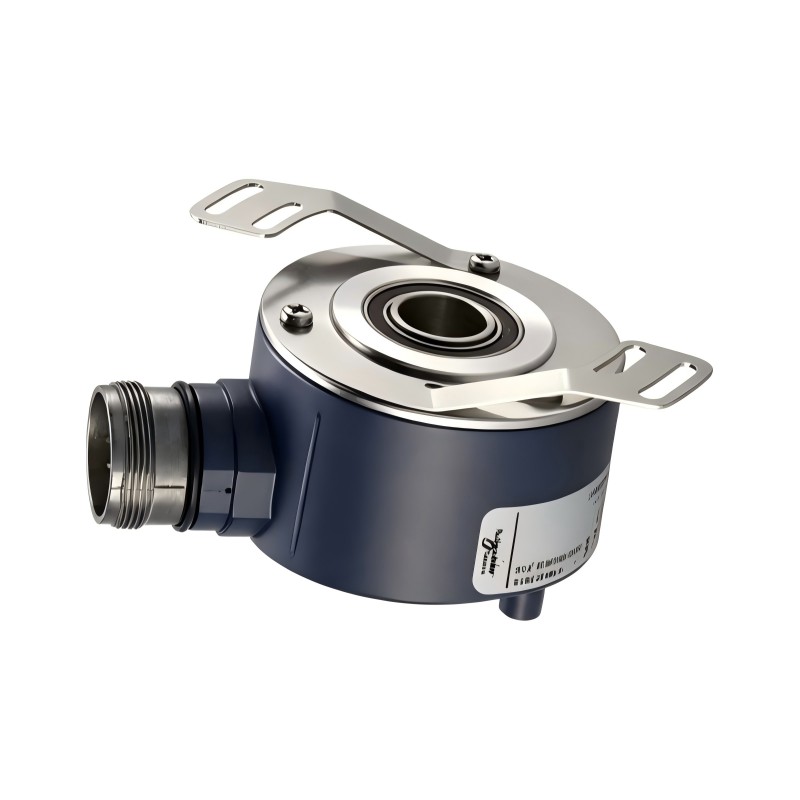

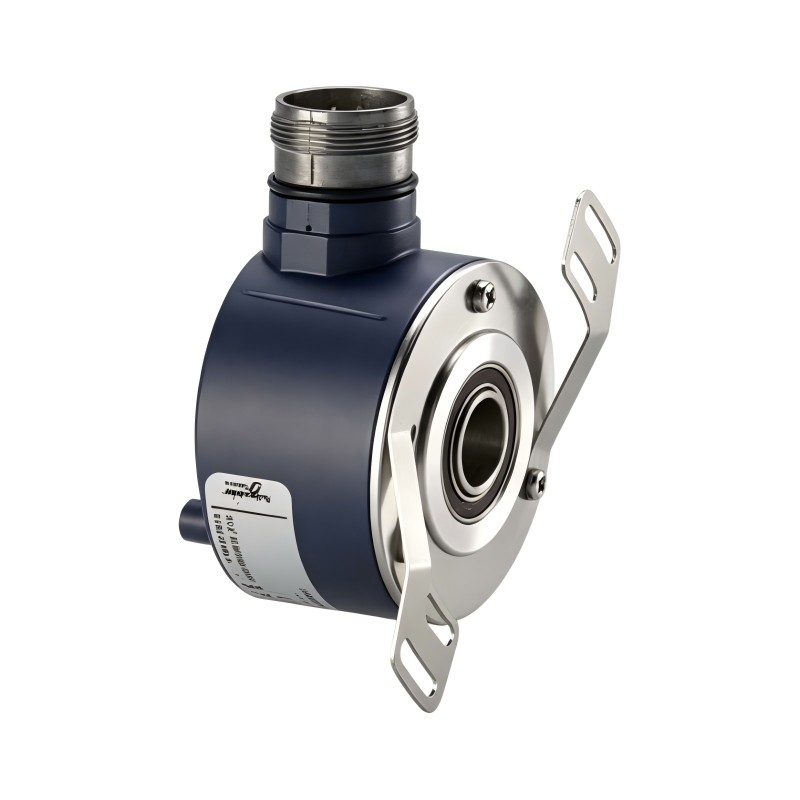

The Schneider Electric XCC1514TS05Y is an incremental rotary encoder designed for industrial automation, rotational measurement, and motion feedback applications. Belonging to the OsiSense XCC encoder family, it converts mechanical rotation into electrical pulse signals that can be processed by compatible programmable logic controllers (PLCs), high-speed counters, motion controllers, and other industrial automation equipment.

The XCC1514TS05Y features a 58 mm housing, a 14 mm through shaft, and a resolution of 500 points per revolution. Its Type Y push-pull output stage supports connection to compatible industrial control interfaces, while its 5–30 V DC supply range allows integration into suitable low-voltage control systems.

The encoder uses a radial M23 male connector with 12 pins. Its through-shaft construction is designed for installations in which a compatible rotating shaft passes through the encoder. This configuration can be useful in conveyor systems, packaging machinery, material-handling equipment, and other machines that require rotational feedback.

Incremental encoders provide information about relative movement rather than independently identifying an absolute position. The XCC1514TS05Y generates pulses as the shaft rotates, enabling a compatible controller to calculate movement, estimate rotational speed, and monitor machine operation.

For maintenance engineers and industrial spare-parts buyers, the complete model number is important when selecting a replacement. The XCC1514TS05Y has a push-pull output and a 500-point resolution. Models with different output interfaces or resolutions may require different controller configurations and should not automatically be treated as direct replacements.

2. Technical Specifications

Verify the applicable technical documentation before installation, particularly the electrical connection diagram, output characteristics, mechanical loading limits, and controller compatibility.

3. Function and Working Principle

The XCC1514TS05Y measures rotational movement by converting shaft rotation into electrical pulse signals. These signals are interpreted by a connected controller to determine relative movement and rotational speed.

Incremental Position Measurement

An incremental encoder produces pulses as its shaft rotates. A compatible PLC or counter counts these pulses to calculate the amount of movement relative to a reference point.

The XCC1514TS05Y provides 500 points per revolution. This means that one complete revolution corresponds to 500 nominal encoder points under the specified counting convention.

The effective count resolution used by a control program may differ depending on whether the controller counts one or both edges of a signal or uses quadrature decoding. Engineers should configure the controller according to the encoder documentation and the receiving device’s counting method.

Unlike an absolute encoder, the XCC1514TS05Y does not independently provide a unique absolute shaft position after power-up. If an application requires a known machine reference position, the control system may need a homing routine, reference sensor, or another position-establishing procedure.

Rotational Speed Measurement

The frequency of the encoder’s output pulses changes with shaft speed. A compatible high-speed counter or motion controller can measure this frequency and calculate rotational speed.

This information can support conveyor speed monitoring, machine synchronization, and process diagnostics. For example, a PLC may compare measured movement against an expected value and identify an abnormal operating condition.

The encoder supplies the feedback signal; it does not independently regulate motor speed. Any corrective action must be performed by the connected control system and drive equipment.

Direction Detection

Incremental encoder systems commonly use phase-related signals to determine the direction of rotation. A compatible receiver can compare the timing relationship between channels to identify forward or reverse movement.

The XCC1514TS05Y has three output channels. Confirm the channel assignments and signal connections using the model-specific wiring diagram before connecting it to a controller.

Push-Pull Output

The Type Y output stage uses push-pull signal drivers. This arrangement actively drives the output signal high and low when operating within the specified electrical limits.

Push-pull output can be suitable for compatible industrial control inputs, but the receiving device must support the encoder’s voltage levels, current requirements, signal format, and pulse frequency.

Correct wiring and cable routing are important for maintaining stable signals, particularly in installations near motor drives, contactors, and other potential sources of electrical interference.

4. Role in Industrial Control Systems

The XCC1514TS05Y functions as a feedback device within a wider automation system. It supplies pulse signals that allow other equipment to monitor and coordinate machine movement.

PLC and High-Speed Counter Integration

A PLC equipped with a compatible high-speed counter or encoder interface can process the encoder’s pulse signals. Depending on the controller’s capabilities, the measured values may be used for movement monitoring, production counting, speed estimation, and sequence control.

Standard digital inputs are not necessarily suitable for high-frequency encoder signals. The input module must support the required pulse frequency and the encoder’s push-pull output characteristics.

Motor and Drive Monitoring

In a compatible system, encoder feedback can help monitor the movement of a motor-driven mechanism. A controller may compare measured speed or movement against expected values and use the results for diagnostics or motion control.

Direct closed-loop control depends on the capabilities of the drive and controller. Confirm that the receiving equipment supports the encoder’s electrical interface before attempting direct integration.

Conveyor Movement Measurement

When coupled to a suitable shaft or roller, the encoder can provide pulse data that a controller translates into movement increments.

To convert encoder counts into linear travel, the control program must account for the roller circumference, transmission ratio, and any mechanical slip. Incorrect scaling can cause measurement errors even when the encoder is functioning correctly.

Machine Diagnostics

Encoder feedback can help maintenance teams identify unexpected movement, missing pulses, or inconsistent speed readings. These symptoms may indicate an electrical connection issue, mechanical misalignment, a coupling problem, an unsuitable input interface, or an encoder fault.

Systematic troubleshooting is recommended before replacing the device.

5. Industrial Applications

Conveyor and Material-Handling Systems

Conveyors use rotational feedback to monitor drive rollers, estimate belt movement, and coordinate material transport. The XCC1514TS05Y can be considered for installations that match its 14 mm through-shaft configuration and electrical requirements.

When connected to a compatible controller, the encoder’s pulse signals can support speed monitoring, distance measurement, and movement counting.

Packaging Machinery

Packaging systems often require coordinated movement between conveyors, feeders, rollers, and other driven mechanisms. Incremental encoder feedback can help the controller monitor movement and coordinate machine cycles.

The 500-point resolution should be evaluated against the required positioning performance, mechanical transmission, and controller counting method.

Printing and Continuous Processing

Printing and continuous-processing machinery may need to monitor rotating rollers and coordinate material movement. Encoder feedback can provide a basis for speed measurement and synchronization between driven sections.

Stable operation depends on correct mounting, appropriate cable routing, and compatibility with the receiving control equipment.

Automated Assembly Lines

Automated assembly equipment may use an incremental encoder to monitor shaft rotation, track machine movement, or count cycles. A PLC can process the resulting signals and trigger programmed actions when a specified movement threshold is reached.

Cutting and Feeding Equipment

Cutting and feeding machines often convert rotating movement into linear material travel. The encoder can provide pulse information that a compatible controller uses to estimate feed distance or coordinate a cutting sequence.

The actual travel per pulse depends on the machine’s mechanical design, including roller circumference, gearing, and possible slip.

General Industrial Machinery

The XCC1514TS05Y may also be suitable for selected winding systems, rotating mechanisms, and other industrial equipment requiring incremental motion feedback. Suitability should be assessed against the application’s operating speed, mechanical mounting, environmental conditions, and required measurement resolution.

6. Installation and System Integration

Correct mechanical installation and electrical integration are essential for reliable encoder feedback.

Mechanical Mounting

The XCC1514TS05Y has a 58 mm housing and a 14 mm through shaft. Before installation, confirm that the shaft dimensions and mounting arrangement match the machine.

Recommended checks include:

• Verify the through-shaft diameter and tolerance requirements.
• Confirm the machine shaft and encoder mounting arrangement.
• Align the encoder and rotating shaft correctly.
• Avoid excessive radial or axial loads.
• Secure the encoder using the appropriate mounting and anti-rotation hardware.
• Prevent unnecessary vibration, shock, and mechanical stress.
• Ensure sufficient clearance for the connector and cable.

The encoder should not be forced onto an incompatible shaft or used as a substitute for proper mechanical support. Follow the manufacturer’s mounting instructions and mechanical load limits.

Electrical Connection

The encoder uses a radial M23 male connector with 12 pins. A compatible mating connector or cable assembly is required.

Before energizing the unit, check:

• The 5–30 V DC supply and correct polarity.
• The connector pin assignments.
• The output channel wiring.
• The receiving device’s push-pull input requirements.
• The cable’s suitability for the installation environment.
• Shielding and grounding arrangements.
• The maximum input frequency supported by the controller.

Do not rely on wire color alone to identify pin assignments. Use the connection diagram for the exact encoder model.

PLC Compatibility

The PLC or counter must support the encoder’s Type Y push-pull output and the pulse frequency required by the application.

A controller designed exclusively for RS-422 differential encoder signals may not accept this push-pull encoder directly. If an interface converter is required, verify its electrical compatibility and supported signal frequency.

Resolution and Scaling

The encoder provides 500 points per revolution. The controller’s effective count resolution depends on the configured counting method.

For linear measurement, the program must also account for the mechanical relationship between encoder rotation and actual movement. This may include roller circumference, gearing ratio, or another transmission factor.

During commissioning, compare the controller’s calculated movement against a known distance or rotation to confirm the scaling settings.

Commissioning and Testing

After installation, rotate the shaft under controlled conditions and confirm that the controller receives stable pulse signals.

Check the direction of rotation, pulse count, speed calculation, and response to machine movement. If signals are missing or unstable, inspect the supply voltage, connector, cable, receiving interface, and mechanical mounting before replacing the encoder.

7. Compatible System Components

The XCC1514TS05Y is normally integrated into a complete automation system. The following component categories may be required depending on the application.

These are component categories rather than a guarantee of direct compatibility with every PLC, drive, or accessory. Check the technical documentation for the complete system before connecting the encoder.

8. Recommended Alternative Models

Related XCC1514TS models share the 58 mm housing and 14 mm through-shaft configuration, but differ in resolution or output interface.

When choosing a replacement, verify the full part number, resolution, output stage, supply voltage, connector pinout, shaft dimensions, and receiving-device compatibility.

A model with the same housing and resolution may still be unsuitable if its output interface differs. Similarly, selecting a higher-resolution model may require changes to the controller’s scaling parameters.

9. Key Advantages

Defined Incremental Resolution

The 500-point resolution provides a basis for monitoring rotational movement. Its suitability depends on the required measurement resolution and the mechanical design of the machine.

Push-Pull Output

The Type Y output stage can operate with compatible industrial input circuits. Correct voltage matching and wiring are necessary to ensure reliable pulse detection.

Through-Shaft Construction

The 14 mm through-shaft design supports installations where a compatible shaft passes through the encoder. This can be useful in machinery designed around a through-shaft mounting arrangement.

Compact Industrial Housing

The 58 mm housing supports integration into equipment designed for this encoder size. Adequate mounting clearance and suitable mechanical support remain essential.

Industrial Environmental Protection

The specified IP65 rating supports use in appropriate industrial environments when the encoder is installed correctly. The complete installation’s protection also depends on the mating connector, cable, and sealing arrangements.

Broad Automation Applications

When paired with compatible control equipment, the encoder can provide feedback for speed monitoring, movement counting, relative position measurement, and machine synchronization.

10. Technical FAQs

What is the Schneider XCC1514TS05Y?

It is an OsiSense XCC incremental rotary encoder designed to convert shaft rotation into electrical pulse signals. It has a 58 mm housing, a 14 mm through shaft, and a nominal resolution of 500 points per revolution.

What is the resolution of this encoder?

The XCC1514TS05Y provides 500 points per revolution. The effective count resolution depends on the receiving controller’s counting and decoding configuration.

What output type does it use?

It uses a Type Y push-pull output stage. This differs from Type X variants, which use an RS-422 differential output interface.

What is the supply voltage?

The specified supply range is 5–30 V DC. Confirm the wiring and electrical requirements against the model-specific documentation before installation.

What is the shaft diameter?

The encoder uses a 14 mm through shaft with an H7 tolerance specification. Verify the machine’s shaft dimensions and mounting arrangement before ordering a replacement.

What connector does it use?

It uses a radial M23 male connector with 12 pins. A compatible mating connector or cable assembly is required.

Can it connect directly to a PLC?

It can connect to a PLC system if the PLC or its input module supports the encoder’s push-pull output and required pulse frequency. A suitable high-speed counter may be necessary.

What is the maximum rotational speed?

The published specification lists a maximum rotational speed of 6000 rpm. The application must also remain within the applicable electrical and mechanical limits.

What is the protection rating?

The specified protection rating is IP65. Correct connector installation and suitable cable arrangements are important to maintain the intended protection.

What is the product weight?

The product weight is 0.435 kg. Packaging and shipping weight may differ.

Can the XCC1514TS05X replace the XCC1514TS05Y?

Not automatically. Both models have a nominal resolution of 500 points per revolution, but the XCC1514TS05X uses a 5 V RS-422 differential output, while the XCC1514TS05Y uses a push-pull output. The receiving device must support the replacement model’s interface.

11. Procurement and Maintenance Recommendations

When purchasing the Schneider XCC1514TS05Y, verify the complete part number and ensure that the through-shaft configuration matches the machine. The resolution, output type, connector, and supply requirements should also be checked against the original encoder and the control-system documentation.

During maintenance, inspect the connector, cable, mounting hardware, shaft coupling, and surrounding machinery. Unstable pulse signals may be caused by loose connections, electrical interference, mechanical misalignment, or incorrect input configuration.

If an encoder fails, investigate the underlying cause before installing a replacement. Correcting a mechanical or electrical issue can help prevent repeat failures and reduce machine downtime.

For international spare-parts procurement, confirm the product identification, unit condition, included accessories, packaging, and warranty terms with the supplier. For existing machinery, comparing the original unit’s nameplate and wiring diagram is a practical way to reduce the risk of selecting an incompatible replacement.

12. Conclusion

The Schneider Electric XCC1514TS05Y is an incremental rotary encoder with a 58 mm housing, a 14 mm through shaft, and a resolution of 500 points per revolution. It features a Type Y push-pull output, a 5–30 V DC supply range, and a radial 12-pin M23 male connector. Its specified weight is 0.435 kg.

When connected to a compatible PLC, high-speed counter, or motion controller, the encoder can support rotational speed monitoring, relative movement measurement, production counting, and machine synchronization.

Before installation or replacement, confirm the shaft dimensions, output interface, supply voltage, connector wiring, and controller configuration. These checks help ensure reliable integration into the intended industrial automation system.
