Product Overview

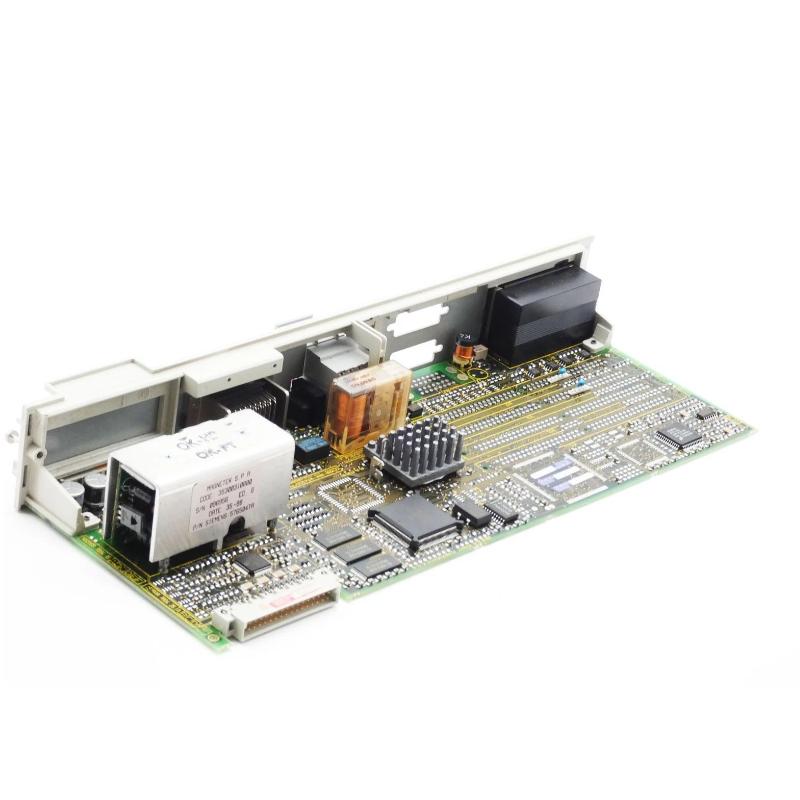

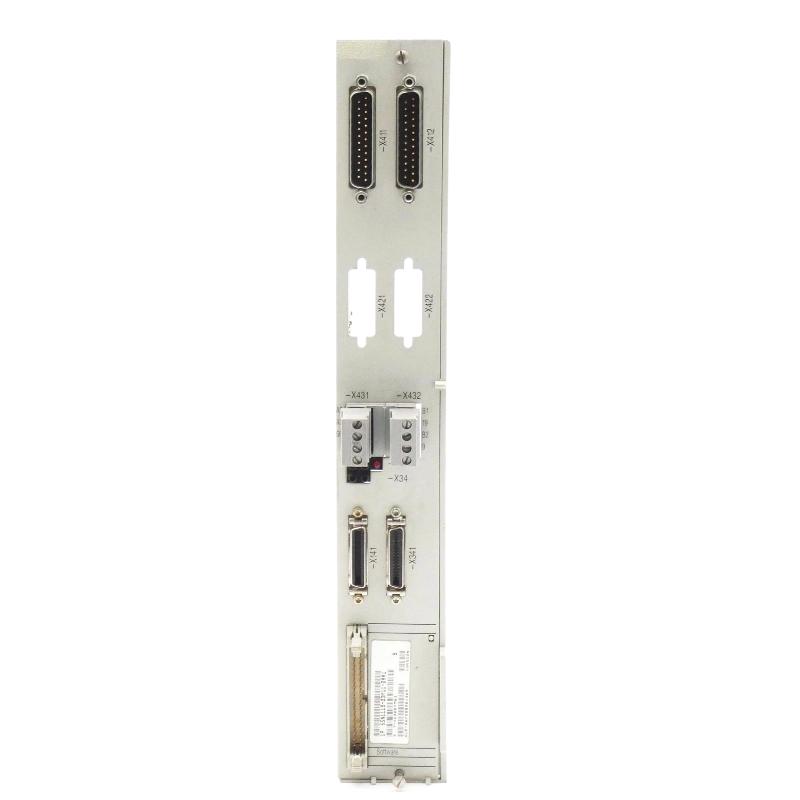

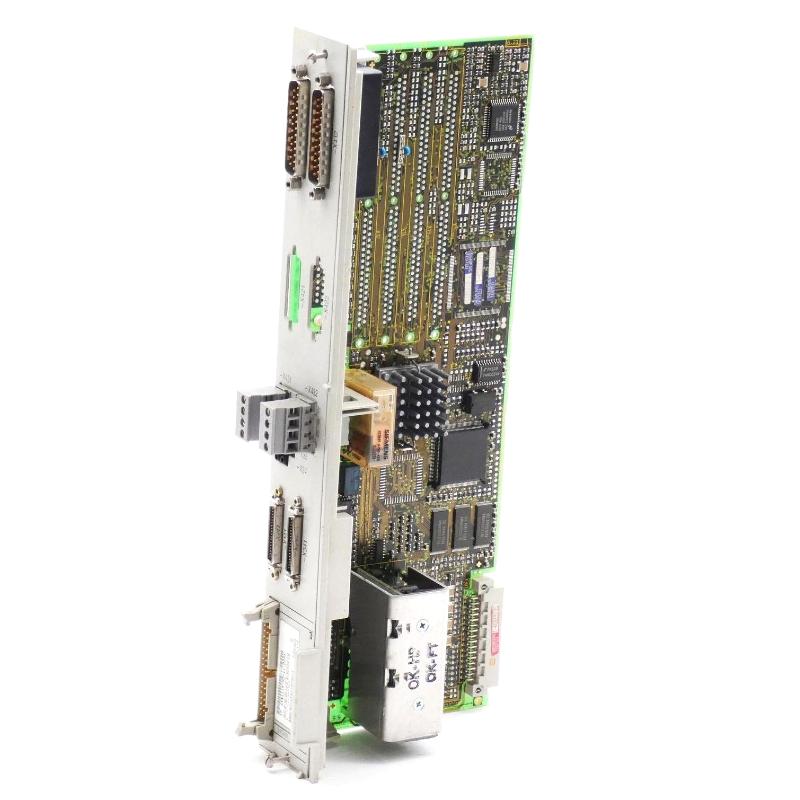

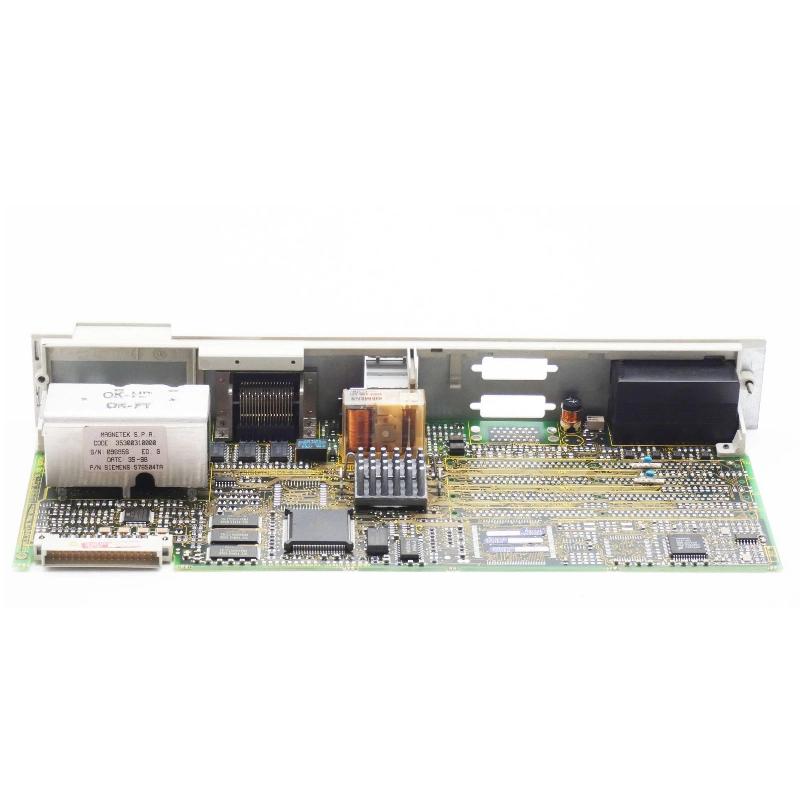

The Siemens 6SN1118-0DM11-0AA1 is a two-axis closed-loop control unit for the SIMODRIVE 611-D digital drive system. It supports standard closed-loop control for compatible feed drives and main spindle drives, processing drive commands and feedback signals within a CNC machine’s motion-control architecture.
This model is configured for operation without a direct measuring system. It supports incremental encoders with sin/cos 1 Vpp signals and absolute encoders using sin/cos 1 Vpp or EnDat interfaces. The control unit also uses a digital speed/torque setpoint interface, allowing it to work within the corresponding SIMODRIVE digital drive configuration.
In a typical machine-tool installation, the CNC controller specifies the required movement, while the control unit processes the associated drive-control information. The power module supplies electrical energy to the motor, and the feedback device provides the information needed for closed-loop regulation. The assigned axes may serve feed-drive or main-spindle-drive functions according to the configured machine architecture.
The 6SN1118-0DM11-0AA1 is a plug-in control component rather than a standalone servo drive. When replacing an existing unit, technicians should verify the encoder interface, axis assignments, setpoint configuration, and associated drive parameters to ensure that the replacement matches the original system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Article Number | 6SN1118-0DM11-0AA1 |
| Product Family | SIMODRIVE 611-D |
| Product Type | Closed-Loop Plug-In Control Unit |
| Number of Axes | 2 |
| Control Method | Standard Closed-Loop Control |
| Drive Applications | Feed Drives and Main Spindle Drives |
| Encoder Compatibility | sin/cos 1 Vpp Incremental Encoders; sin/cos 1 Vpp / EnDat Absolute Encoders |
| Setpoint Interface | Digital Speed/Torque Setpoint |
| Direct Measuring System | Not Used in This Configuration |
| Dimensions | 330 × 51 × 127 mm |
| Weight | 0.735 kg |
Product Features
- Two-axis drive control: Supports closed-loop control for two assigned axes within a compatible SIMODRIVE 611-D system.
- Standard closed-loop regulation: Processes drive commands and feedback information for configured feed and spindle applications.
- Multiple supported encoder interfaces: Accommodates specified sin/cos 1 Vpp incremental encoders and absolute encoders using sin/cos 1 Vpp or EnDat interfaces.
- Digital speed/torque setpoints: Integrates with the digital setpoint architecture of the drive system.
- No direct measuring system: Matches machine configurations that do not use an additional direct axis-measuring system.
- CNC drive integration: Operates with the corresponding power modules, motors, feedback devices, and control parameters.
Working Principle
The 6SN1118-0DM11-0AA1 participates in the closed-loop regulation of two configured drive axes. The CNC controller supplies motion commands, and the connected encoder provides feedback about drive movement. The control unit processes this information within the SIMODRIVE 611-D digital drive architecture.
Its encoder compatibility is important when selecting or replacing the module. Incremental encoders with sin/cos 1 Vpp signals and supported absolute encoders using sin/cos 1 Vpp or EnDat interfaces can be used when the complete system configuration matches the specified requirements.
The general signal path is:
CNC Controller → 6SN1118-0DM11-0AA1 → SIMODRIVE Power Module → Motor → Encoder Feedback
The control unit handles the relevant drive-control functions, while the power module supplies the motor’s electrical power. Feedback signals are incorporated into the configured control process to regulate the commanded movement.
Because this variant operates without a direct measuring system, its feedback arrangement must match the machine’s original design. Incorrect encoder assignments, incompatible signal interfaces, or unsuitable drive parameters can interfere with commissioning. For replacement work, the encoder type and feedback wiring should be verified before the machine is returned to service.
Role in the SIMODRIVE 611-D Control Architecture
The 6SN1118-0DM11-0AA1 occupies the digital control layer between the CNC controller and the associated drive power electronics. It processes the information needed for standard closed-loop control of two assigned axes.
CNC Controller → Digital Control Unit → Power Module → Drive Motor → Encoder Feedback
| System Element | Function |
|---|---|
| 6SN1118-0DM11-0AA1 | Performs standard closed-loop control functions for two configured axes |
| CNC Controller | Generates motion commands and coordinates machine operation |
| SIMODRIVE 611-D Power Module | Supplies electrical power to the connected motor |
| Feed Drive Motor | Produces controlled movement along a machine axis |
| Main Spindle Drive | Provides spindle movement in a compatible configuration |
| Incremental or Absolute Encoder | Supplies feedback through a supported signal interface |
| Digital Setpoint Interface | Carries the configured speed/torque setpoint information |
| Drive Parameters | Define axis assignments and operating characteristics |
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Machine Tools | Standard closed-loop control of configured feed and spindle drives |
| Milling Machines | Regulating feed-axis movement during programmed machining operations |
| CNC Turning Centers | Coordinating feed and spindle functions within the drive architecture |
| Automated Machining Equipment | Processing encoder feedback during programmed movement sequences |
| Multi-Axis CNC Systems | Integrating two assigned drive axes within a compatible SIMODRIVE 611-D installation |
| Machine Tool Maintenance | Replacing a control unit while retaining the existing encoder and drive configuration |
| CNC Drive Refurbishment | Restoring closed-loop control functions after checking the original hardware and parameters |
Installation and Maintenance
- Verify the complete article number: Confirm that the replacement is 6SN1118-0DM11-0AA1 and distinguish it from related SIMODRIVE control units with different configurations.
- Check the axis assignment: Identify the two axes managed by the original unit and confirm that the replacement matches the intended feed or spindle drive arrangement.
- Confirm encoder compatibility: Verify whether the installation uses a sin/cos 1 Vpp incremental encoder or a supported absolute encoder with sin/cos 1 Vpp or EnDat interface.
- Check the measuring-system arrangement: Confirm that the machine configuration does not require a direct measuring system for this control unit.
- Inspect the setpoint configuration: Verify that the digital speed/torque setpoint interface matches the existing CNC and drive arrangement.
- Isolate electrical power: Follow the machine’s safety procedures before removing or installing the plug-in control unit.
- Inspect the installation position: Check the designated SIMODRIVE slot and mating connectors for damage, contamination, or loose connections.
- Install the module correctly: Fit the unit into its specified position and confirm that all required connections are properly seated.
- Inspect encoder wiring: Check the feedback cables for damaged conductors, loose contacts, incorrect assignments, or signs of interference.
- Review drive parameters: Compare axis assignments, encoder settings, motor data, and relevant control parameters with the approved machine configuration.
- Perform a controlled functional test: Verify drive enable conditions, feedback signals, axis response, and fault messages before resuming normal production.
- Document the maintenance work: Record the installed article number, encoder configuration, parameter changes, and functional test results.
Compatible System Components
| Component | Function |
|---|---|
| SIMODRIVE 611-D Power Module | Supplies electrical power to the associated motor |
| CNC Controller | Generates motion commands and coordinates machine movements |
| Compatible Feed Drive Motor | Produces controlled movement along the assigned axis |
| Main Spindle Drive Components | Support spindle operation within the configured drive system |
| sin/cos 1 Vpp Incremental Encoder | Supplies incremental drive feedback |
| Supported Absolute Encoder | Provides absolute feedback through a compatible sin/cos 1 Vpp or EnDat interface |
| Encoder Feedback Cabling | Carries encoder signals to the corresponding interface |
| Drive Parameters | Establish the axis assignments and control configuration |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6SN1118-0DM11-0AA0 | Closed-Loop Plug-In Control Unit | Compare the complete article number and hardware revision before replacement |
| Siemens 6SN1118-0DM13-0AA1 | Closed-Loop Plug-In Control Unit | Check the direct measuring-system and feedback configuration before considering substitution |
| Siemens 6SN1118-0DM21-0AA0 | Closed-Loop Control Plug-In Unit | Verify the control configuration and supported drive arrangement |
| Siemens 6SN1118-0DM31-0AA1 | Digital Control Loop Block, High Standard | Confirm the product configuration and compatibility with the existing SIMODRIVE system |
Key Advantages
- Two-axis standard closed-loop control within the SIMODRIVE 611-D architecture.
- Support for specified sin/cos 1 Vpp incremental and compatible absolute encoder interfaces.
- Digital speed/torque setpoint integration.
- Defined configuration without a direct measuring system.
- Suitable for maintenance and replacement when the original drive configuration is verified.
Technical FAQs
Which encoder types can be connected to the 6SN1118-0DM11-0AA1?
The specified configuration supports incremental encoders with sin/cos 1 Vpp signals and absolute encoders with sin/cos 1 Vpp or EnDat interfaces. The exact encoder and wiring arrangement must match the configured drive system.
Does this control unit support direct measuring-system feedback?
This variant is configured without a direct measuring system. If the machine requires direct axis-position feedback, the control-unit variant and complete feedback architecture must be checked before selection.
What is the role of the digital speed/torque setpoint interface?
It provides the setpoint interface used by the drive-control architecture for the configured speed or torque command. The CNC and drive configuration must match the intended operating mode.
What should be checked if the drive fails to regulate after replacement?
Check the encoder signal type, feedback wiring, axis assignment, digital setpoint configuration, drive parameters, power-module status, and active fault messages. These checks help identify whether the issue comes from a configuration mismatch or another part of the drive system.
