Bently Nevada 330703-000-50-10-11-00 — Technical Specifications, Product Introduction, Applications, Advantages, and Related Models

1. Product Overview

The Bently Nevada 330703-000-50-10-11-00 is the model number specified for this technical product review. Bently Nevada is a recognized industrial instrumentation brand associated with machinery condition monitoring, vibration measurement, proximity sensing, and rotating equipment protection.

The complete part number is important for identifying the intended product configuration. In industrial instrumentation, differences in cable length, probe construction, connector arrangement, mounting options, and electrical characteristics can affect whether a component is suitable for a particular installation.

Technical identification note: The exact manufacturer-defined description and complete configuration of model 330703-000-50-10-11-00 cannot be confirmed with sufficient confidence from the part number alone in this offline response. The report therefore separates general technical information about the relevant product family from details that require verification. Dimensions and weight are identified as unverified where an exact model-specific value cannot be established.

2. Detailed Product Specifications

The 330703-000-50-10-11-00 is identified with the 3300 XL 11 mm Proximity Probe family. It is a non-contact displacement sensor designed to operate as part of a compatible proximity transducer system.

The part number is also commonly written with a three-digit case-length field as 330703-000-050-10-11-00. The actual nameplate should be checked to ensure that the intended 50 mm case configuration and all suffix options match.

2.1 General Technical Parameters

The 50 mm case length and 1.0 m integral lead are separate measurements. The probe’s total physical length also depends on the cable and connector arrangement, so the case length alone should not be used as the shipping length or full installation envelope.

2.2 Measurement Characteristics

The 3300 XL 11 mm probe operates through an electromagnetic sensing principle. The probe generates an alternating electromagnetic field near a conductive target, and changes in the distance between the probe tip and the target affect the electrical response.

When paired with a compatible Proximitor sensor, the system converts these changes into a signal that can be interpreted by suitable monitoring equipment.

The nominal sensitivity of 3.94 V/mm means that a displacement change of 1 mm within the specified linear operating range corresponds to approximately 3.94 V of output change under the defined system conditions.

This is a system-level specification. It should not be interpreted as the output sensitivity of the probe operating independently.

2.3 Cable and System-Length Requirements

The probe has a 1.0 m integral lead. It must be matched with the appropriate extension cable and Proximitor sensor to form a supported measurement system.

Incorrect cable matching can affect measurement performance. A probe that fits mechanically may still be unsuitable if its electrical system length or interface does not match the installed equipment.

3. Product Introduction

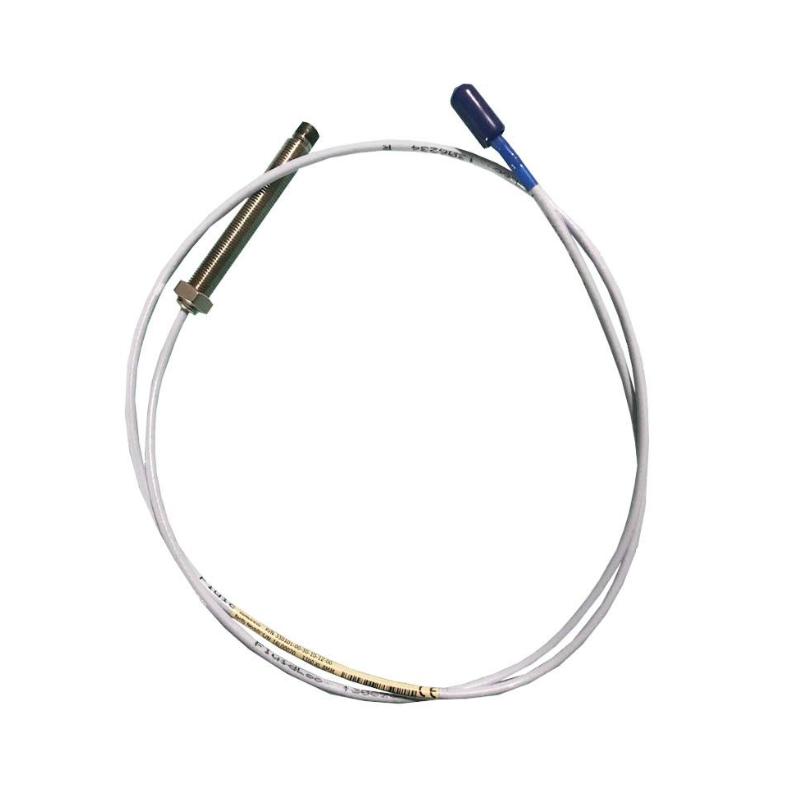

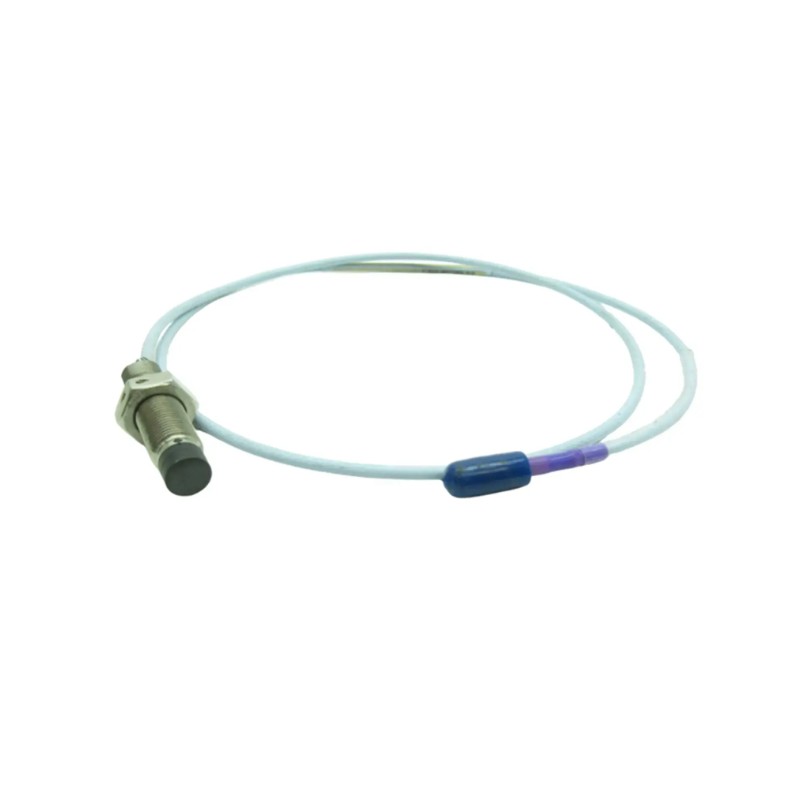

The Bently Nevada 330703-000-50-10-11-00 is a non-contact displacement probe intended for compatible industrial machinery monitoring systems.

It belongs to the 3300 XL 11 mm proximity probe family, which is used to measure the relative position of a conductive target without requiring direct mechanical contact.

In rotating machinery, the target is often a shaft or another conductive surface. As the target moves relative to the probe, the measurement system detects the resulting change in electrical response and converts it into a displacement-related signal.

This measurement method is useful for machinery where continuous observation of shaft movement is important. It can support monitoring of radial vibration, axial position, differential expansion, and other displacement-related conditions when the complete system is configured for the intended application.

3.1 Role Within a Machinery Monitoring System

The probe is one component of a larger measurement chain.

– Proximity probe: Detects changes in the distance between the probe tip and the conductive target.

– Extension cable: Provides the required electrical connection between the probe and the associated sensor.

– Proximitor sensor: Converts the probe’s electrical response into a suitable measurement output.

– Monitoring equipment: Receives the signal and evaluates shaft position, vibration, or other supported parameters.

– Maintenance personnel: Review measurements and trends to investigate changes in machinery condition.

The probe itself does not independently identify the cause of a mechanical fault. Its purpose is to provide a suitable measurement signal to the compatible monitoring system.

3.2 Main Design Characteristics

The 330703 configuration combines a metric M14 × 1.5 threaded case, a 50 mm case length, an unarmored construction, and a 1.0 m FluidLoc lead.

The ClickLoc connector and connector protector provide the specified connection arrangement for the configured probe.

These details are particularly important during replacement work. Selecting a probe based only on its 11 mm sensing family is insufficient because thread size, case length, cable construction, connector type, and total system length must also match.

4. Product Applications

4.1 Shaft Displacement Monitoring

One of the primary uses of proximity probes is measuring the relative movement of a machine shaft.

When installed at a suitable location, the probe can detect changes in shaft position relative to the machine housing. The monitoring system can use this information to identify changes in shaft movement and support mechanical condition assessment.

This is particularly useful in rotating machinery where shaft position and vibration are important operating parameters.

4.2 Radial Shaft Vibration

Radial shaft vibration refers to shaft movement perpendicular to the shaft’s rotational axis.

Proximity probes can be installed in suitable orientations to measure this movement relative to the bearing housing. Multiple probes may be used where the monitoring arrangement requires measurements in different radial directions.

The resulting measurements can support trend analysis and help maintenance personnel investigate possible imbalance, misalignment, bearing-related problems, or changes in rotor dynamics.

The actual diagnostic value depends on sensor placement, machine design, operating speed, and the monitoring system’s configuration.

4.3 Axial Position and Thrust Monitoring

Axial position measurement concerns movement along the shaft’s rotational axis.

In suitable installations, a proximity probe can monitor the position of a shaft or thrust collar relative to a fixed reference point. Changes in the measured position may indicate movement that requires investigation.

The probe’s suitability for this application depends on the required measurement range, target geometry, installation location, and the receiving monitoring channel.

4.4 Differential Expansion Monitoring

Large turbines and other thermal machinery can experience relative expansion between the rotor and stationary casing during startup, shutdown, and changes in operating temperature.

A correctly configured proximity measurement arrangement can contribute to monitoring this relative movement.

The 3300 XL 11 mm system may be considered for suitable differential-expansion applications where the measurement geometry and linear range are appropriate. It should not be assumed that every installation can use the probe without a system-level engineering assessment.

4.5 Compressor and Reciprocating Machinery

Proximity measurements can be useful in selected compressor applications, including monitoring rod position or other mechanically defined displacement parameters.

The appropriate sensor arrangement depends on the machine design, target material, operating conditions, and required measurement range.

For reciprocating machinery, engineers should verify that the selected probe and monitoring channel are intended for the particular rod-position, rod-drop, or related measurement function.

4.6 Machinery Condition Monitoring

Continuous position and vibration measurements can help establish a baseline of normal machine operation.

When readings change over time, maintenance personnel can compare the data with historical trends, operating conditions, and other available measurements to determine whether an inspection is necessary.

A proximity probe can provide important input to a condition-monitoring program, but accurate diagnosis also depends on correct installation, suitable alarm settings, and the quality of the monitoring system.

5. Product Advantages

5.1 Non-Contact Measurement

The probe measures the target without direct mechanical contact.

This is valuable for rotating machinery because it avoids the mechanical wear that would occur if a conventional contact sensor continuously touched a moving shaft.

It also allows the monitoring system to observe relatively small changes in shaft position when the complete probe system is installed and calibrated correctly.

5.2 High-Resolution Displacement Measurement

The 3300 XL 11 mm system is designed for proximity measurement applications requiring a defined linear operating range and calibrated system response.

The nominal matched-system sensitivity of 3.94 V/mm provides a basis for converting electrical output changes into displacement values.

The actual measurement accuracy depends on the compatible probe, cable, Proximitor sensor, target characteristics, installation geometry, and monitoring equipment.

5.3 FluidLoc Cable Construction

The specified FluidLoc cable is an important feature of this configuration.

Its cable construction is intended to help limit fluid migration along the cable assembly in suitable installations. This can be useful in industrial environments where lubricating oil or other fluids may be present.

Correct installation and inspection remain necessary. Cable construction alone does not eliminate the need to protect connectors and follow the applicable environmental requirements.

5.4 Defined Metric Mounting

The M14 × 1.5 threaded case provides a defined mechanical interface for compatible mounting arrangements.

The 50 mm case length and 0 mm unthreaded-length option help identify the physical configuration required for the installation.

These characteristics can simplify replacement planning when the existing mounting arrangement uses the same thread and case dimensions.

5.5 Compatibility With an Established Measurement Family

The 3300 XL 11 mm family provides a structured system of probes, extension cables, and compatible Proximitor sensors.

This makes it easier to identify the components required for a complete installation, provided that the correct model and system length are selected.

A probe from another family should not be substituted merely because the connector or physical dimensions appear similar.

5.6 Support for Predictive Maintenance

Continuous displacement and vibration measurements can help identify changes in machine behavior.

When the data is interpreted alongside historical trends and operating conditions, it can support maintenance planning and reduce reliance on reactive inspections alone.

The probe contributes the measurement signal; it does not independently guarantee fault detection, prevent equipment damage, or replace a properly designed machinery protection system.

6. Brand and Product Series

6.1 Brand Information

6.2 Product Series: 3300 XL 11 mm

The 3300 XL 11 mm series is designed for non-contact measurement of conductive targets in compatible machinery monitoring systems.

Compared with smaller-diameter proximity probe families, an 11 mm system has different sensing geometry and system characteristics. The correct family must be selected according to the required measurement range, target material, installation design, and compatible electronics.

The 330703 configuration is the metric M14 × 1.5 version with an unarmored case.

It should not be treated as directly interchangeable with an 8 mm proximity probe, an armored 11 mm probe, or a probe with a different connector or cable configuration.

7. Five Related Models From the Same Series or Product Family

The following five models are useful candidates for comparison. The first four are related 3300 XL 11 mm configurations, while the final model represents a different proximity-sensing family for applications requiring a different probe configuration.

Exact dimensions and weights can vary by the full ordering code. Values marked as unverified should be checked against the physical unit and its dimensional drawing.

7.1 Model 330703-000-050-10-11-05

This model shares the 330703 family designation and has a closely related physical configuration.

The main distinction is the approval option. The suffix 05 indicates a multiple-approval option in the relevant ordering scheme, whereas the specified model ending in 00 does not select that approval option.

The actual approval status must be confirmed for the delivered unit and intended installation area. A model suffix alone should not replace the necessary certification and installation checks.

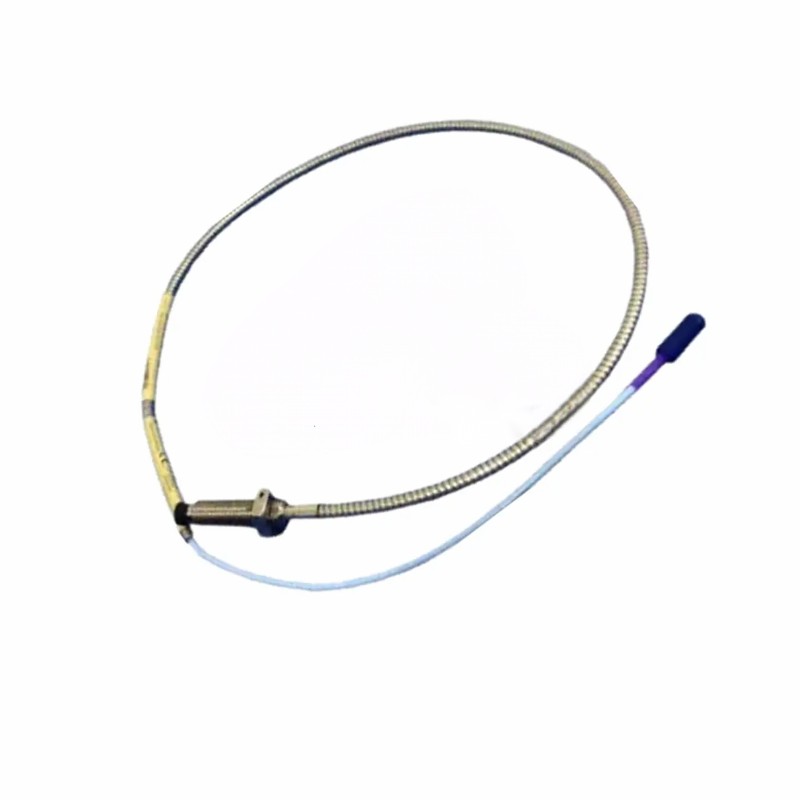

7.2 Model 330704-000-050-10-11-00

The 330704 belongs to the 3300 XL 11 mm metric probe family and uses an armored construction option.

Armoring may provide additional mechanical protection for the cable or lead assembly in installations where physical damage is a concern.

The armored and unarmored versions have different construction characteristics. The correct choice depends on cable routing, available space, mechanical exposure, and the installation’s required configuration.

7.3 Model 330701-000-050-10-11-00

The 330701 is an imperial-thread version of the 3300 XL 11 mm proximity probe family.

Its 1/2-20 UNF mounting thread differs from the M14 × 1.5 metric thread of the specified 330703 configuration.

It is therefore a related product, but not a direct mechanical replacement unless the receiving mounting arrangement is specifically designed for the imperial thread.

7.4 Model 330702-000-050-10-11-00

The 330702 combines the imperial-thread 3300 XL 11 mm probe family with an armored construction option.

It may be relevant when an imperial mounting arrangement is required and additional cable protection is part of the installation specification.

Thread, case length, cable length, connector type, and approvals must all be confirmed before selecting this model.

7.5 Model 330101-00-20-10-02-00

The 330101 belongs to the 3300 XL 8 mm proximity probe family.

It is relevant for applications designed around the 8 mm system. However, an 8 mm probe and an 11 mm probe have different system characteristics and should not be considered interchangeable without a complete engineering assessment.

8. Five Other Bently Nevada Models for Broader Industrial Applications

The following models cover commonly encountered industrial measurement and monitoring requirements. They are useful for comparing different sensor types and system functions, rather than as direct replacements for the 330703.

Model-selection note: The complete ordering codes in this table are comparison candidates, not verified direct replacements. Confirm the availability and exact specifications of each configuration before procurement.

8.1 Model 330103

The 330103 is associated with the 3300 XL 8 mm proximity probe family.

It can be relevant where an installation uses an 8 mm probe system and requires non-contact measurement of shaft displacement or relative movement.

The probe must be matched with the appropriate cable and Proximitor sensor. Its suitability depends on the required range, thread, cable configuration, and monitoring system.

8.2 Model 330180

The 330180 family is associated with the 3300 XL Proximitor sensor.

A Proximitor sensor is an electronic component within the proximity measurement chain. It works with compatible probes and extension cables to provide the signal required by the monitoring equipment.

It performs a different role from the 330703 probe itself, so it should be evaluated as a companion component rather than a replacement sensor.

8.3 Model 330130

The 330130 is associated with the 3300 XL extension-cable family.

The extension cable connects the probe to the compatible Proximitor sensor. Its length and configuration must be chosen so that the total electrical system length meets the requirements of the installed measurement chain.

Cable compatibility is especially important when replacing a probe in an existing installation.

8.4 Model 3500/42M

The 3500/42M is a monitoring module used for supported vibration and position measurements.

It is relevant to applications that require a broader monitoring arrangement for rotating machinery.

Unlike the 330703, which is a physical sensor, the 3500/42M processes supported sensor inputs. It is therefore not a direct substitute for the probe.

8.5 Model 3500/61

The 3500/61 is a temperature-monitoring module.

It provides a different measurement function from the 330703, but temperature data can complement shaft-position and vibration information in a machinery condition-monitoring program.

The correct temperature-sensor type, module configuration, and system integration must be confirmed before installation.

9. Comparison of the Main Product Options

10. Installation and Maintenance Recommendations

10.1 Check the Probe Gap

The gap between the probe tip and the conductive target is a critical installation parameter.

The initial gap should be set according to the applicable 3300 XL 11 mm system instructions and the requirements of the connected Proximitor sensor.

An incorrect gap can affect measurement range, signal scaling, and the ability to monitor shaft movement accurately.

10.2 Confirm Target Compatibility

The probe is intended for use with a suitable conductive target.

Target material, surface finish, geometry, and operating condition can affect the measurement response. The actual installation should therefore be checked against the requirements of the complete measurement system.

10.3 Verify Cable Routing

The 1.0 m FluidLoc lead and ClickLoc connector arrangement should be preserved where the exact configuration is required.

The cable should be routed to prevent mechanical damage, excessive tension, and interference with moving parts. Its connector and routing should also be protected from unsuitable environmental exposure.

10.4 Check Total System Length

The probe must be matched with a compatible extension cable and Proximitor sensor.

Do not select the extension cable based only on the length of the replacement probe. Confirm the intended total electrical system length and the supported monitoring arrangement.

10.5 Confirm Temperature and Approval Requirements

The probe’s stated temperature range is −52°C to +177°C, but the applicable installation precautions must also be observed.

The specified 00 approval option does not select the multiple-agency-approval option. Where hazardous-area approvals are required, confirm that the exact supplied configuration and the complete installation meet those requirements.

10.6 Complete Functional Testing

Following replacement, check the probe identification, cable continuity, connector condition, target gap, signal response, and monitor scaling.

Where applicable, verify that readings behave as expected during a controlled test and that alarms or protection functions operate according to the approved commissioning procedure.

11. Procurement Checklist

12. Final Product Assessment

The Bently Nevada 330703-000-50-10-11-00 is identified as a metric 3300 XL 11 mm proximity probe intended for non-contact displacement measurement in compatible machinery monitoring systems.

Its principal configuration characteristics are an M14 × 1.5 threaded, unarmored case, 50 mm overall case length, 1.0 m integral lead, FluidLoc cable construction, and a ClickLoc connector with connector protector. The nominal matched-system sensitivity is 3.94 V/mm, and the typical system frequency response is 0–8 kHz.

The closest comparison candidates are other 3300 XL 11 mm probe configurations, especially those with matching thread size, case length, cable construction, and connector arrangement. The 3300 XL 8 mm family is a different system, while Proximitor sensors and monitoring modules perform different roles in the measurement chain.

For purchasing and replacement, the most important consideration is matching the complete configuration rather than selecting by model-family name alone. Confirm the nameplate, mounting dimensions, total system length, cable and connector details, operating conditions, and required approvals before installation.
