- Allen Bradley
- 1783-US16T

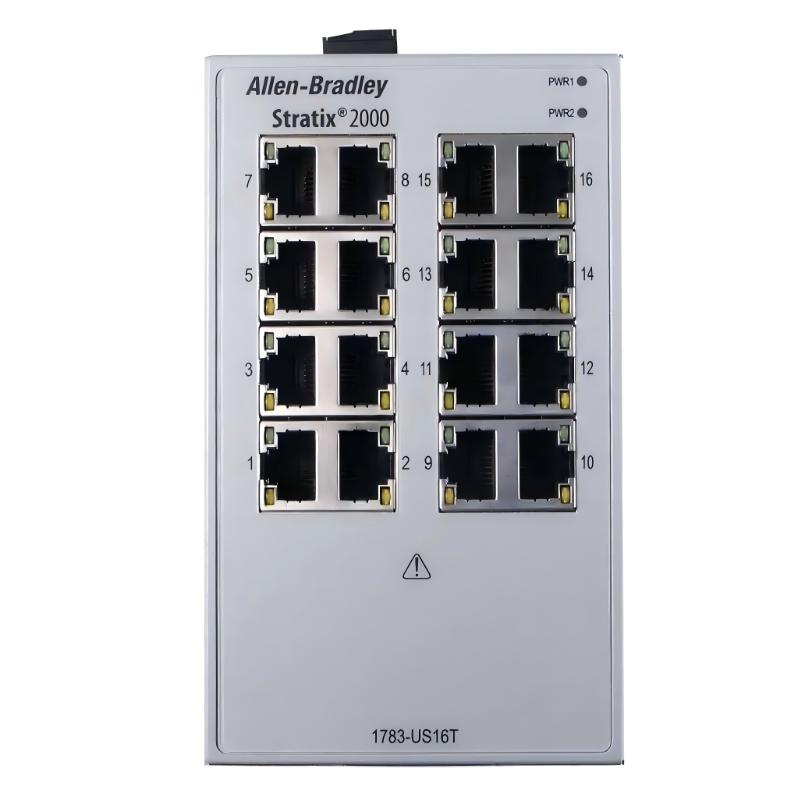

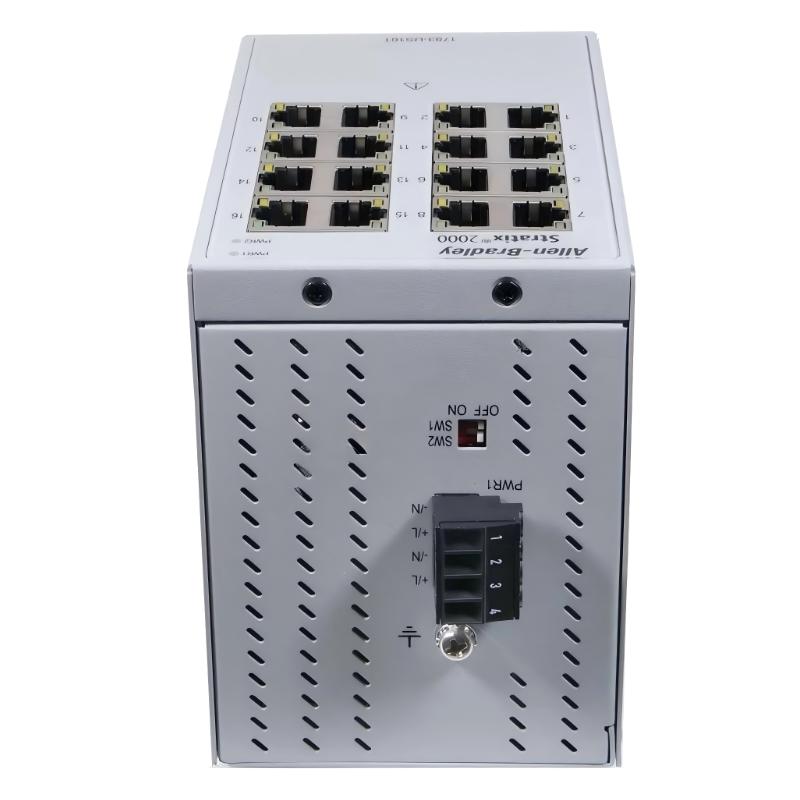

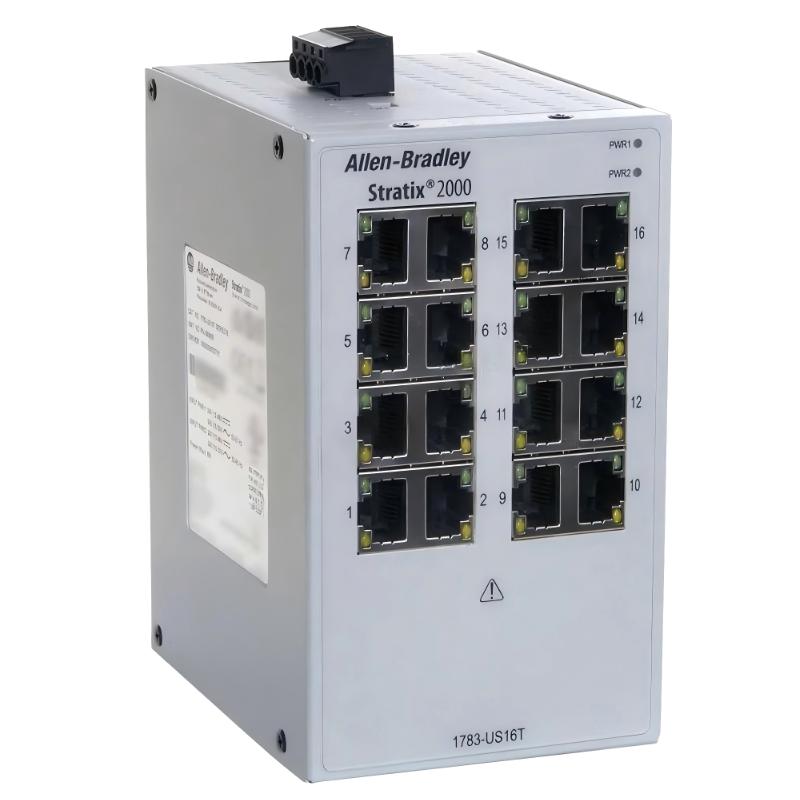

- Stratix 2000 Unmanaged Ethernet Switch
- USA
- 146.3 × 88 × 135 mm
- 0.98 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 31
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Allen-Bradley 1783-US16T is a Stratix 2000 Unmanaged Ethernet Switch designed for high-reliability network connectivity in industrial automation systems. It provides plug-and-play communication for multiple devices, simplifying network setup while ensuring stable and low-latency data transmission.
Ideal for medium-sized industrial networks requiring robust Ethernet connectivity.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1783-US16T |
| Product Type | Unmanaged Ethernet Switch |
| Function | Provides plug-and-play Ethernet connectivity |
| Compatibility | Stratix 2000 series systems, industrial Ethernet networks |
| Operating Environment | Industrial automation, process control networks |
Function and Working Principle
The 1783-US16T operates by:
- Connecting multiple Ethernet-enabled devices within an industrial network
- Automatically forwarding data packets between connected devices
- Providing reliable, low-latency communication
- Eliminating the need for configuration or network management
It functions as a simple, high-capacity network hub, ensuring efficient and consistent communication among devices.
Role in Industrial Automation
The 1783-US16T plays a key role in maintaining network stability:
- Connects controllers, I/O modules, HMIs, and other Ethernet devices
- Supports plug-and-play simplicity for medium-sized networks
- Ensures stable and reliable Ethernet communication in industrial environments
- Reduces network complexity and maintenance requirements
- Facilitates easy integration of multiple devices into automation systems
Industrial Applications
Typical applications include:
- Medium-sized factory automation networks
- Industrial controllers, HMIs, and I/O module connectivity
- Retrofit or expansion of existing Ethernet networks
- Process control networks requiring reliable communication
- Discrete manufacturing, batch processing, and industrial facilities
Installation and System Integration
Installation steps:

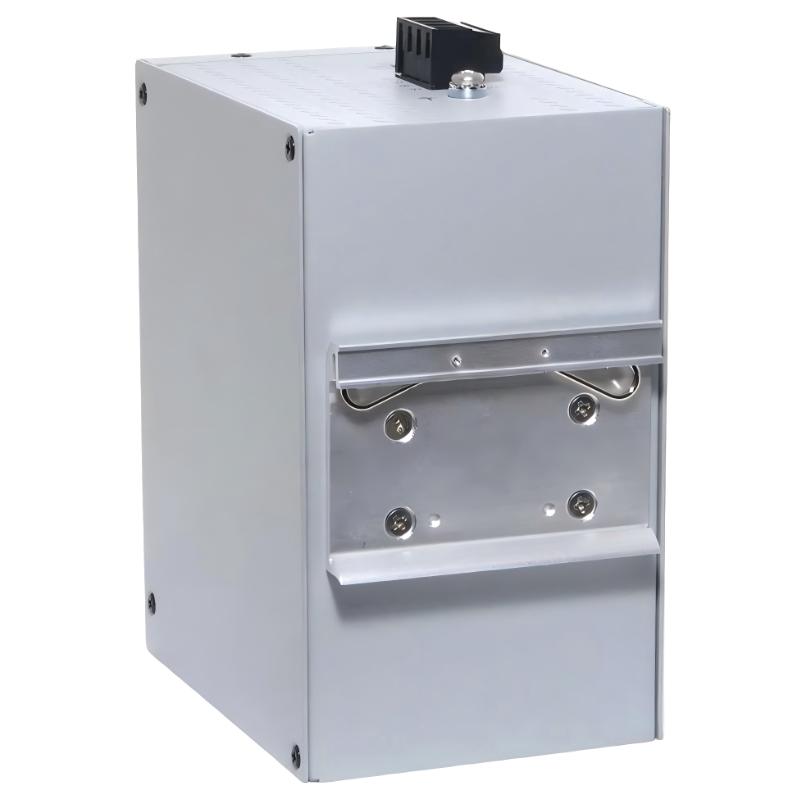

- Mount the 1783-US16T in a DIN rail or suitable industrial enclosure
- Connect Ethernet cables from devices to the switch ports
- Verify network connectivity via LED indicators
- Ensure proper communication between devices with minimal packet loss
- Maintain access for future network expansion and troubleshooting
The plug-and-play design allows fast deployment with minimal setup effort.
Compatible System Components
- Allen-Bradley controllers (CompactLogix, MicroLogix series)
- I/O modules and remote I/O devices
- HMIs and operator panels
- Other Ethernet-enabled industrial devices
- Stratix series managed and unmanaged switches
Supports efficient network integration and reliable communication across devices.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen-Bradley 1783-US16T | Unmanaged Ethernet Switch | High-capacity plug-and-play | Medium industrial networks |
| Allen-Bradley 1783-US08T | Unmanaged Ethernet Switch | Compact and easy-to-use | Small industrial networks |
| Cisco Industrial Unmanaged Switch | Ethernet Switch | Ruggedized design | Industrial automation networks |
Key Advantages
- Provides reliable, plug-and-play Ethernet connectivity
- Supports medium-sized networks with low-latency communication
- Requires no configuration or network management
- Compatible with Allen-Bradley devices and Stratix series networks
- Reduces installation complexity and maintenance effort
Technical FAQs
What is the primary function of the 1783-US16T?
It connects multiple Ethernet-enabled devices, providing simple, reliable network communication.
Does it require configuration?
No, it is an unmanaged switch and works out-of-the-box.
Can it operate in industrial environments?
Yes, it is designed for reliable operation in harsh industrial conditions.
Is it compatible with Allen-Bradley devices?
Yes, it integrates with Ethernet-enabled controllers, I/O modules, and HMIs.
Conclusion
The Allen-Bradley 1783-US16T Stratix 2000 Unmanaged Ethernet Switch is a robust, plug-and-play solution for medium-sized industrial networks. Its high reliability, ease of installation, and compatibility with Allen-Bradley devices make it ideal for industrial automation, process control, and factory networking applications.
