Product Overview

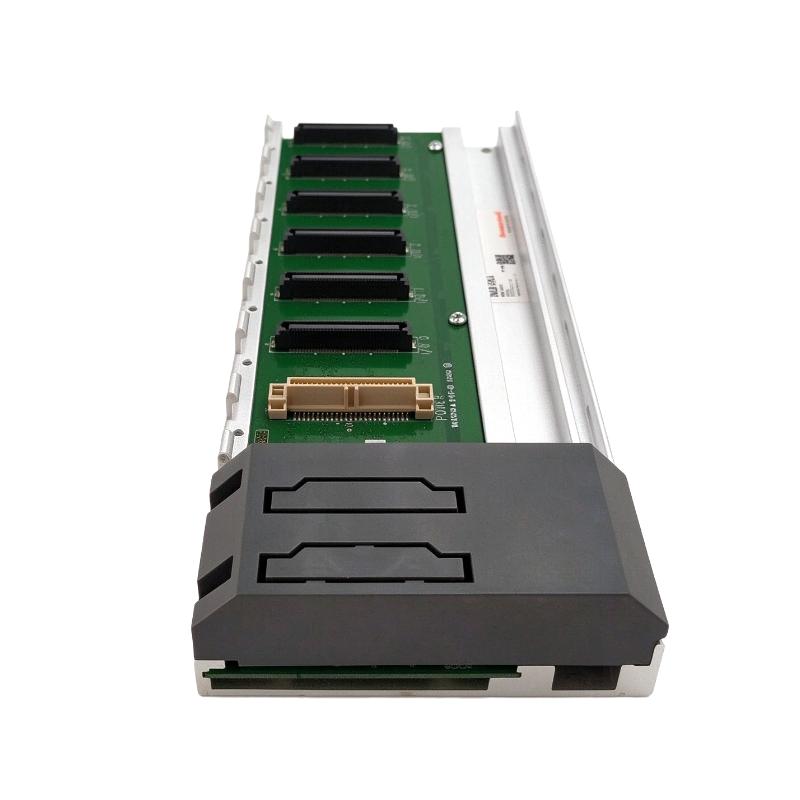

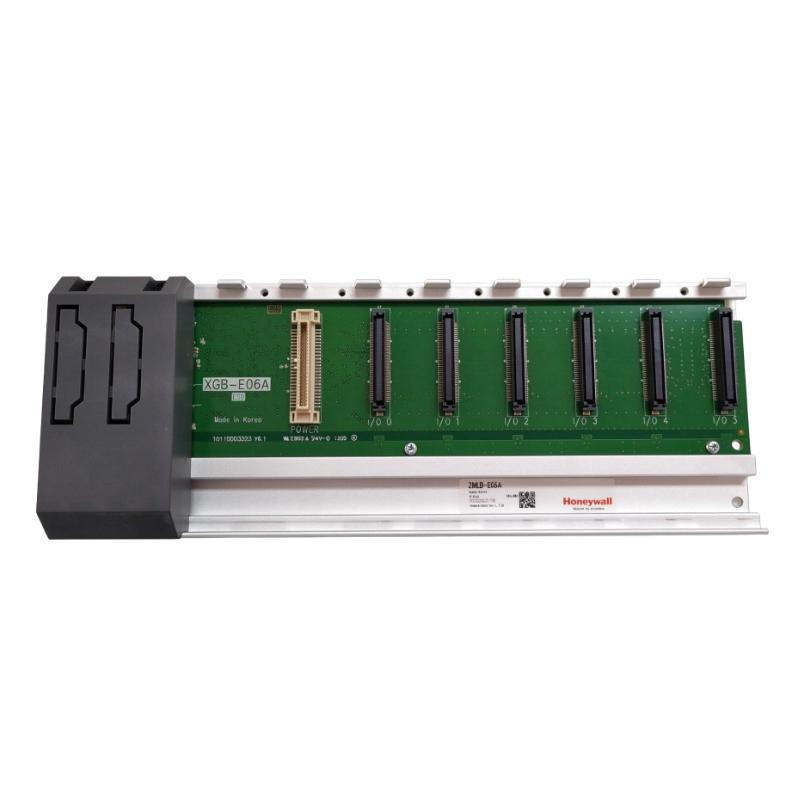

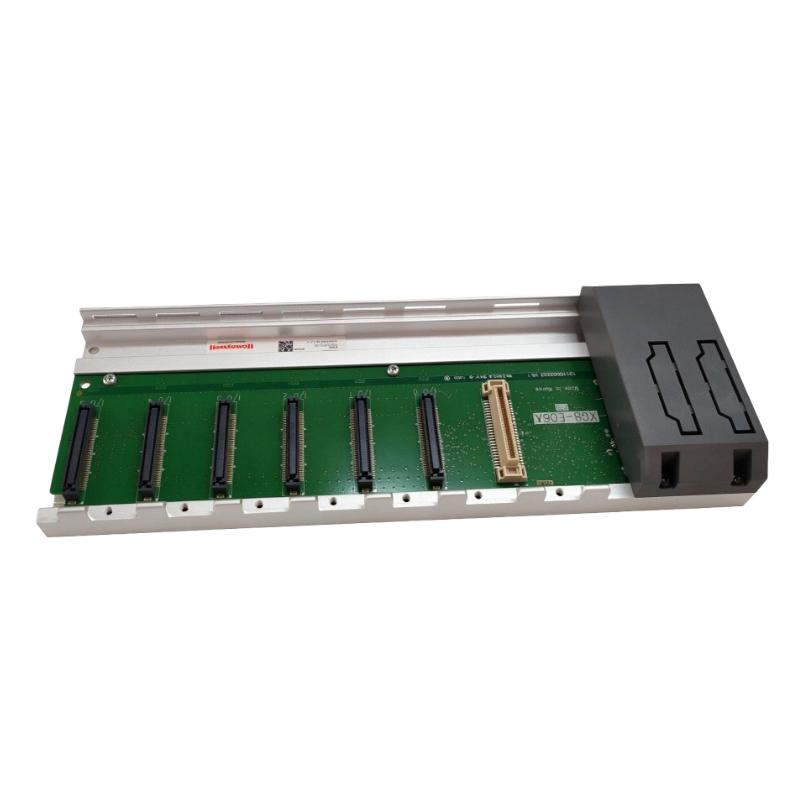

The Honeywell 2MLB-E06A is a six-slot extension base for the MasterLogic-200 programmable logic controller (PLC) platform. It provides additional module installation positions for a compatible controller system, allowing engineers to expand local I/O capacity without replacing the existing main CPU base.

In an industrial control cabinet, the available module positions on the main base can become insufficient as the machine gains additional sensors, actuators, and measurement points. The 2MLB-E06A addresses this requirement by providing six positions for supported expansion modules. For example, a production line may need extra digital inputs for photoelectric sensors and limit switches, together with analog inputs for pressure transmitters and temperature sensors. An extension base allows these interfaces to be organized in a separate module group.

The 2MLB-E06A belongs to the MasterLogic-200 extension-base family, which also includes four-slot, eight-slot, and twelve-slot versions. Selecting the six-slot model is appropriate when the required expansion hardware fits within its available positions and the complete controller configuration supports the additional base.

The extension base works as part of the PLC hardware architecture rather than as an independent controller. Its operation depends on the compatible main base, CPU and expansion interface, interconnection cable, and installed modules. The expansion arrangement must be planned around the supported system topology and the electrical requirements of the selected hardware.

Technical Specifications

Product Features

• Six-slot expansion capacity: Adds six module positions to a supported MasterLogic-200 configuration.
• Modular I/O arrangement: Accommodates compatible input, output, and other supported modules.
• Separate expansion hardware: Allows additional interfaces to be installed independently of the main CPU base.
• Multiple base options: Belongs to a family offering four-, six-, eight-, and twelve-slot expansion configurations.
• Cable-based interconnection: Connects to the supported controller architecture through the designated expansion interface.
• System-level scalability: Helps accommodate changing field I/O requirements without automatically requiring a larger main base.
• Maintenance accessibility: Keeps expansion modules grouped for inspection, wiring checks, and replacement.

Working Principle

The 2MLB-E06A extends the module installation capacity of a compatible MasterLogic-200 PLC. It provides the mounting positions and electrical interconnections needed for supported modules to participate in the controller’s I/O system.

A typical arrangement follows this path:

Main CPU Base → Expansion Interconnection → 2MLB-E06A Extension Base → Additional I/O Modules → Field Devices

The CPU executes the control program and coordinates system operation. Modules installed on the extension base receive field signals, provide output commands, or perform other supported functions. The extension base provides the hardware connections required by these modules but does not independently execute the application program.

The six available positions allow the system designer to allocate additional modules according to the machine’s signal requirements. Digital input modules may be used for discrete sensors and switches, while analog input modules can acquire supported process measurements. Output modules provide the corresponding control interfaces for compatible field equipment.

Expansion depends on the selected CPU architecture, the required interface hardware, and the interconnection cable. The MasterLogic-200 documentation specifies that the total cable length between the CPU and the farthest I/O expansion base must not exceed 15 meters for the documented local expansion arrangement. The applicable system configuration should be checked before installation.

If additional expansion bases are required, their positions and cable routing must be planned as part of the complete controller layout. Module compatibility, power requirements, termination arrangements, and the supported expansion topology should be verified together.

Role in the Honeywell MasterLogic-200 Control Architecture

The 2MLB-E06A occupies the expansion layer of the MasterLogic-200 control system. It increases the available module installation capacity while the main CPU base retains the primary controller hardware.

Main CPU Base → Expansion Interface and Cable → 2MLB-E06A → Additional I/O Modules → Field Equipment

Industrial Applications

Installation and Maintenance

1. Verify the complete model reference: Confirm 2MLB-E06A and ensure that the extension base matches the installed MasterLogic-200 system.
2. Check the controller architecture: Verify CPU, expansion interface, and base compatibility before adding the extension hardware.
3. Plan the six-slot allocation: Determine which supported modules will occupy the available positions and check their installation requirements.
4. Select the expansion cable: Choose the designated cable model and length for the intended connection arrangement.
5. Isolate the controller: Follow the approved electrical isolation procedure before installing or removing the base and connected modules.
6. Inspect the mounting location: Confirm that the cabinet provides suitable support and access for module installation and field wiring.
7. Examine the base connectors: Check the electrical interfaces for contamination, damaged contacts, or deformation before assembly.
8. Secure the extension base: Install the base according to the applicable mounting instructions and verify that it is firmly supported.
9. Install compatible modules: Fit each module in its designated position and check that the retention mechanism is properly engaged.
10. Verify expansion connections: Inspect the cable connections, expansion topology, and any required termination hardware.
11. Test module recognition: Restore power according to the commissioning procedure and check controller diagnostics, module status, and field communication.
12. Record the final configuration: Document the extension base, cable reference, installed modules, and commissioning results for future maintenance.

Compatible System Components

Recommended Related Models

Key Advantages

• Adds six module positions to a compatible MasterLogic-200 system.
• Expands local I/O capacity without replacing the main base solely to obtain additional slots.
• Supports compatible digital, analog, and other designated expansion modules.
• Allows the controller hardware to be organized into separate main and expansion groups.
• Offers a middle-capacity option between the four-slot and eight-slot extension bases.

Technical FAQs

What distinguishes the 2MLB-E06A from the 2MLB-M06A?

The 2MLB-E06A is an extension base for adding module positions, whereas the 2MLB-M06A is a main CPU base. Although both provide six slots, their roles within the MasterLogic-200 architecture are different.

What cable-length restriction applies to the local expansion arrangement?

The documented local expansion configuration specifies a maximum total cable length of 15 meters between the CPU and the farthest I/O expansion base. The cable arrangement must follow the applicable controller configuration requirements.

Can the 2MLB-E06A accommodate a mixture of digital and analog modules?

Compatible digital and analog modules may be used according to the supported system configuration. Check the module specifications, installation restrictions, and power requirements before allocating the six positions.

What could prevent the extension base from operating correctly after installation?

Potential causes include an incompatible expansion arrangement, an incorrect or poorly seated cable, improperly installed modules, power-related issues, or an unsupported hardware configuration. Check the controller diagnostics and expansion connections before replacing the base.
