Product Overview

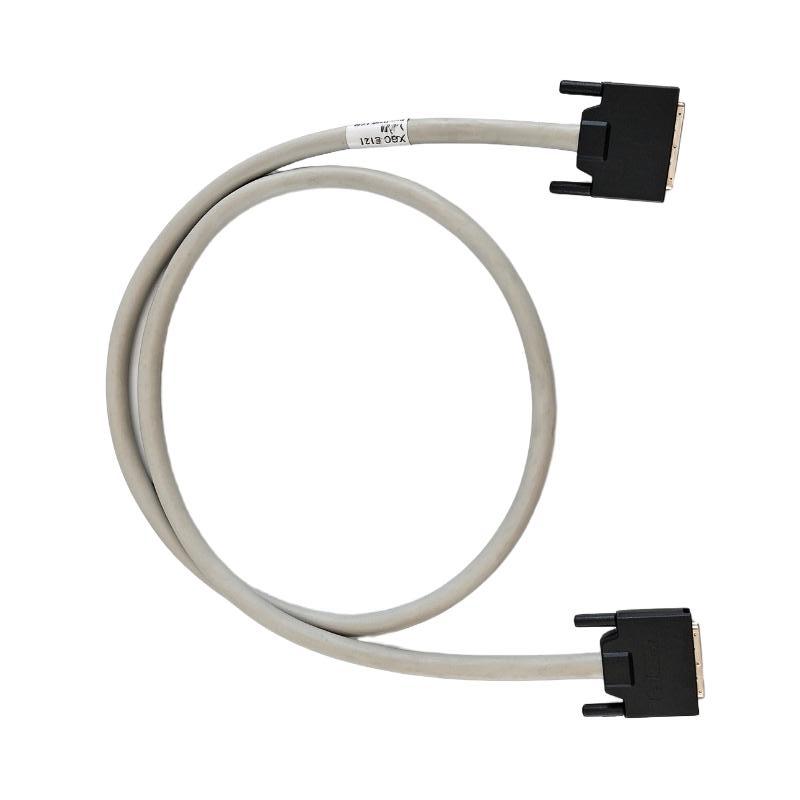

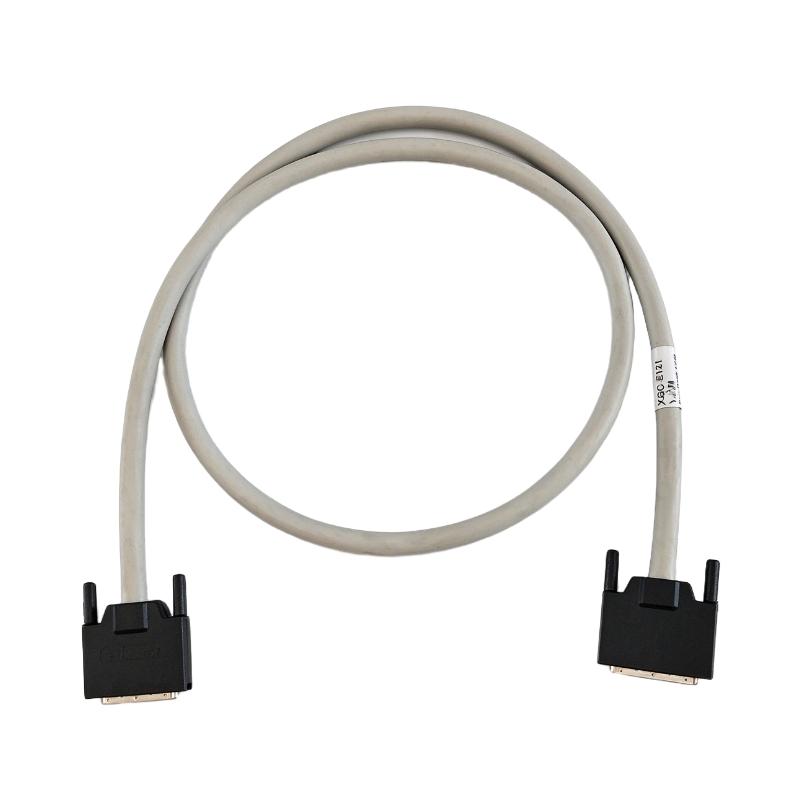

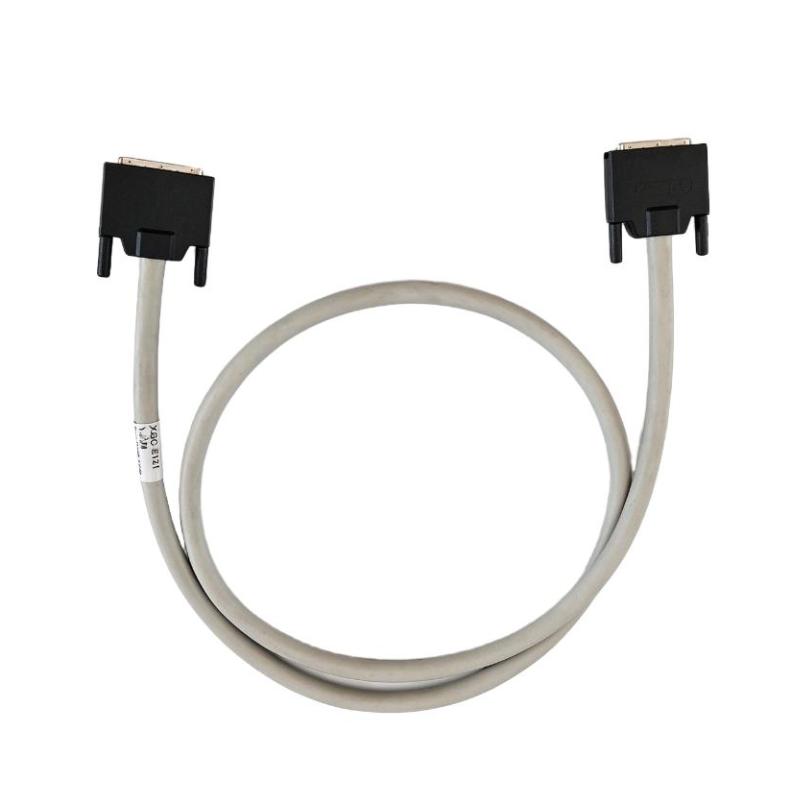

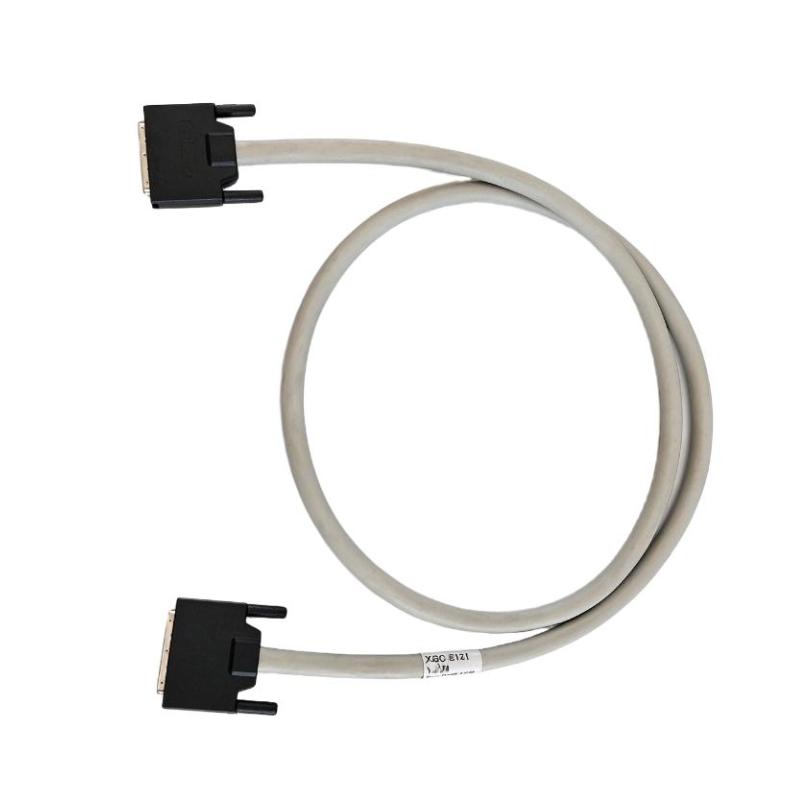

The Honeywell 2MLC-E041 is a 0.4-meter expansion I/O cable for the MasterLogic-200 programmable logic controller (PLC) platform. It connects compatible controller and I/O expansion hardware, providing the interconnection required for a supported local expansion arrangement. The cable is specified for systems using the 2MLI-CPUU CPU. <Cite refs={[“turn321218search12″,”turn321218search13”]}/>

In a machine control cabinet, an expansion cable becomes necessary when the PLC requires additional module installation positions beyond those available on the main CPU base. The 2MLC-E041 provides a short connection between compatible base assemblies, making it suitable for layouts where the main base and expansion base are installed close together.

For example, a packaging machine may use the main base for the CPU and primary control modules, while an extension base accommodates additional digital inputs for sensors and digital outputs for actuators. The 2MLC-E041 connects the designated interfaces so that the expansion hardware can operate within the supported controller architecture.

The cable is part of the MasterLogic-200 hardware arrangement rather than a general-purpose communication cable. Its model, connector configuration, and intended use must match the controller system. Selecting the correct cable length also helps maintain an organized cabinet layout without introducing unnecessary cable slack.

Technical Specifications

Product Features

• 0.4-meter cable length: Suits closely positioned controller and expansion-base assemblies.
• MasterLogic-200 compatibility: Belongs to the designated expansion I/O cable family.
• 2MLI-CPUU system support: Specified for the corresponding MasterLogic-200 controller architecture.
• Base-to-base interconnection: Supports the connection required for compatible I/O expansion arrangements.
• Compact cabinet routing: Helps connect nearby base assemblies without selecting a longer cable unnecessarily.
• Multiple cable-length options: Part of a family that includes longer cables for different installation distances.
• Configuration-specific selection: Requires matching the cable reference to the controller hardware and expansion layout.

Working Principle

The 2MLC-E041 provides the physical interconnection between compatible MasterLogic-200 controller and expansion hardware. It carries the signals required by the designated expansion interface, allowing the connected I/O base to participate in the supported PLC system.

A typical arrangement follows this path:

MasterLogic-200 CPU → Main Base Interface → 2MLC-E041 Expansion Cable → Extension Base → Additional I/O Modules

The CPU executes the application program and coordinates controller operation. Modules installed on the extension base handle their assigned input, output, or other supported functions. The cable provides the connection between the designated interfaces; it does not independently process control logic or replace the PLC’s communication hardware.

The 0.4-meter cable is most appropriate when the planned installation allows the connected bases to be positioned within the cable’s reach. During cabinet design, engineers should account for connector locations, cable routing, access for maintenance, and the physical arrangement of the expansion hardware.

The complete expansion configuration must follow the supported MasterLogic-200 architecture. The manufacturer’s specifications identify a maximum total cable distance of 15 meters between the CPU and the farthest I/O expansion base for the documented local expansion arrangement. The selected cable and any additional expansion connections must remain within that limit.

Role in the Honeywell MasterLogic-200 Control Architecture

The 2MLC-E041 serves as the interconnection component between compatible main-base and expansion-base hardware. It allows the system to extend its module installation capacity while the CPU continues to manage the control program and overall PLC operation.

CPU and Main Base → Expansion I/O Cable → Extension Base → Additional Modules → Field Devices

Industrial Applications

Installation and Maintenance

1. Verify the cable reference: Confirm that the cable is model 2MLC-E041 and is intended for the installed MasterLogic-200 configuration.
2. Check CPU compatibility: Verify that the controller uses the supported 2MLI-CPUU system architecture.
3. Confirm the connection points: Identify the designated interfaces on the main base and expansion hardware before installation.
4. Measure the installation route: Ensure that the 0.4-meter cable can reach the intended connection points without excessive tension or an unsuitable bend.
5. Isolate the controller: Follow the approved electrical isolation procedure before connecting or disconnecting the cable.
6. Inspect the connectors: Check for bent contacts, contamination, damaged housings, or other visible defects.
7. Route the cable correctly: Keep the cable clear of sharp edges, moving components, and locations where cabinet doors or module retainers could damage it.
8. Connect the cable securely: Fit both ends into their designated interfaces and confirm that the connections are fully seated.
9. Check the expansion topology: Verify that the connected bases and any additional expansion hardware follow the supported system arrangement.
10. Inspect the total cable distance: Confirm that the distance from the CPU to the farthest I/O expansion base remains within the specified 15-meter limit.
11. Test the expansion system: Restore power according to the commissioning procedure and check controller diagnostics and recognition of the installed modules.
12. Document the installation: Record the cable model, connected bases, expansion arrangement, and any commissioning issues for future maintenance.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a dedicated expansion connection for compatible MasterLogic-200 hardware.
• Offers a short cable option for closely positioned base assemblies.
• Supports local I/O expansion in the specified 2MLI-CPUU architecture.
• Helps maintain an organized cabinet layout when the connection distance is short.
• Forms part of a cable family with multiple lengths for different installation requirements.

Technical FAQs

Which MasterLogic-200 CPU system is the 2MLC-E041 intended for?

The 2MLC-E041 is specified for the 2MLI-CPUU system. Confirm the CPU model and expansion architecture before using it in a controller installation based on a different CPU family.

When should the 0.4-meter cable be selected instead of the 0.6-meter version?

The 2MLC-E041 is appropriate when the designated interfaces can be connected within its available length and the cable can be routed without tension. Choose the 2MLC-E061 when the installation requires the additional reach of a 0.6-meter cable.

Does the 15-meter limit apply to each cable or the complete expansion arrangement?

The documented limit applies to the total cable distance between the CPU and the farthest I/O expansion base in the specified local expansion arrangement. When several expansion connections are used, assess the complete topology rather than considering each cable independently.

What should be checked if the expansion modules are not detected after connecting the cable?

Check the cable model, connector seating, interface condition, expansion-base compatibility, and controller diagnostics. Also verify the expansion topology and total cable distance before replacing the cable or base.
