Product Overview

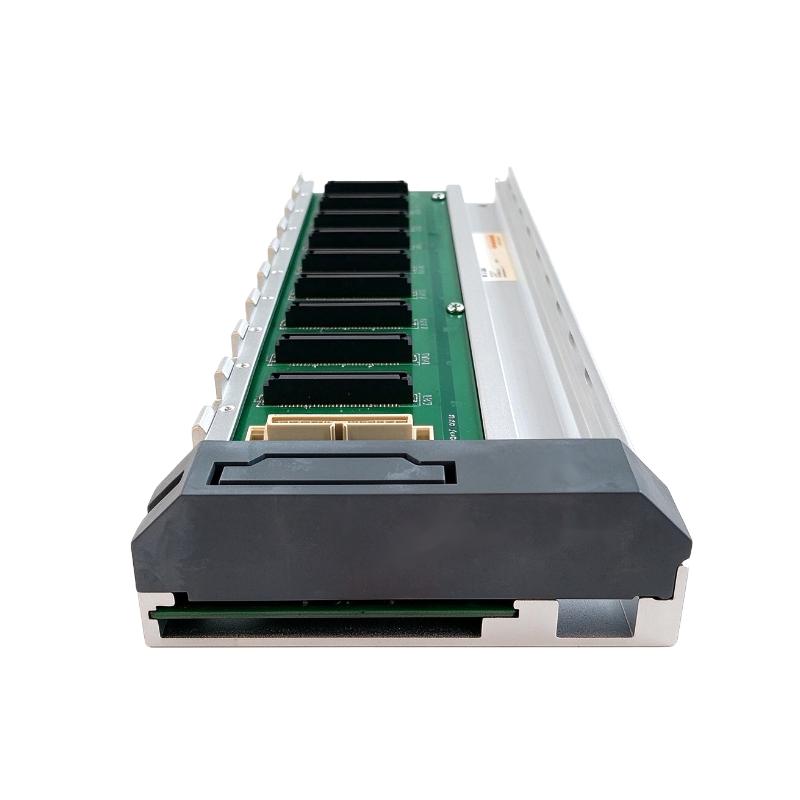

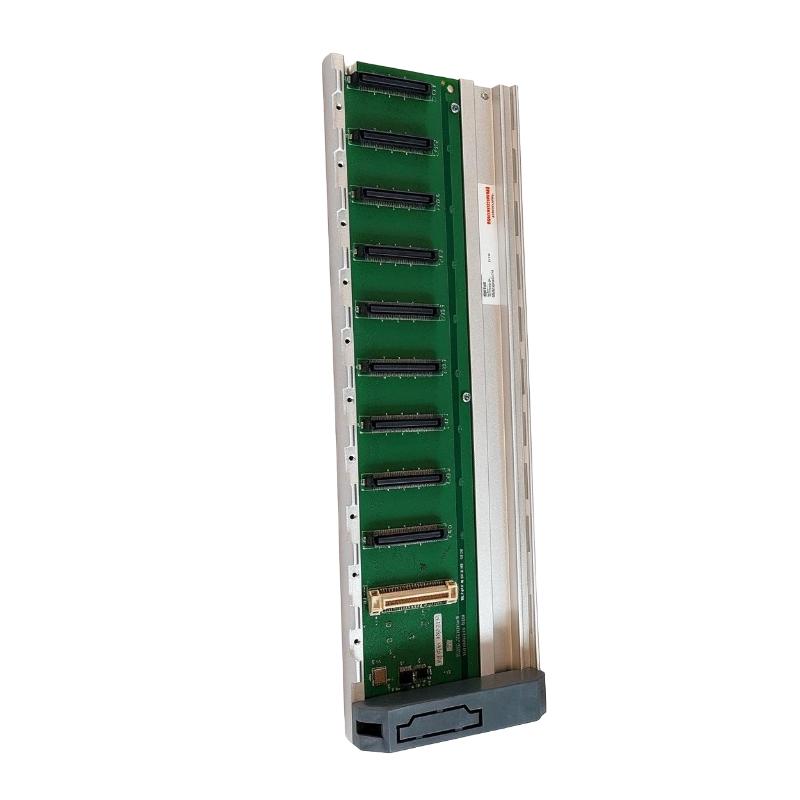

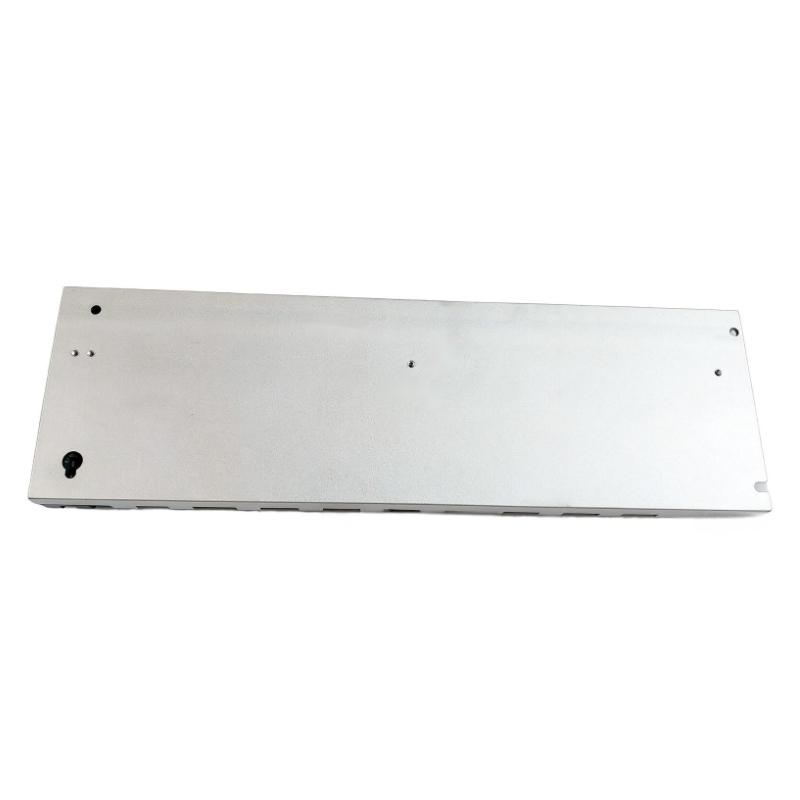

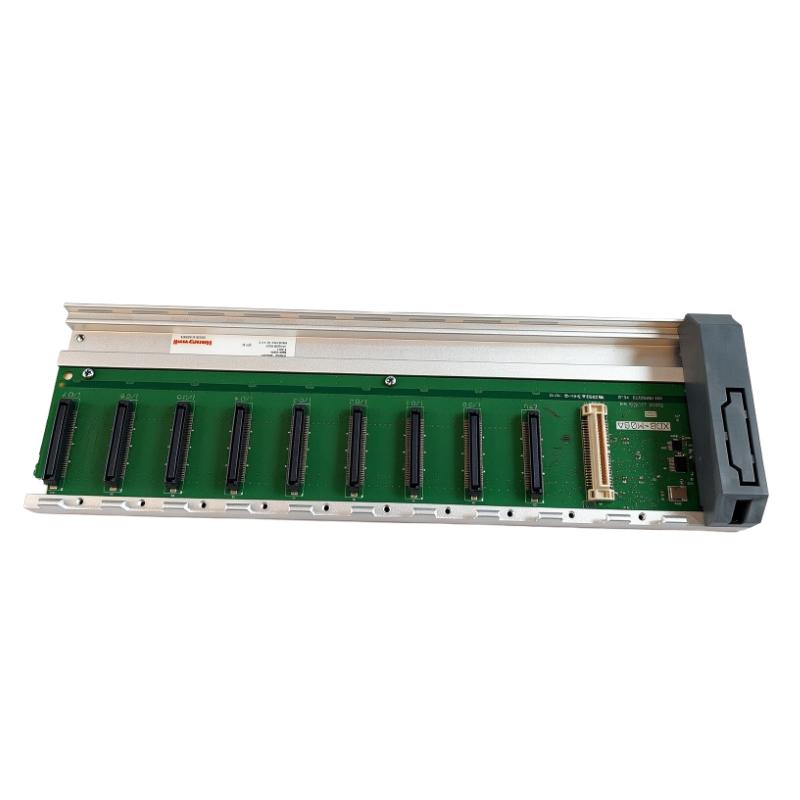

The Honeywell 2MLB-E08A is an eight-slot extension base for the MasterLogic-200 programmable logic controller (PLC) platform. It expands the module installation capacity of a compatible controller system, allowing additional I/O and supported special-function modules to be installed beyond the positions available on the main CPU base. Honeywell classifies this model within the MasterLogic-200 extension-base family. <Cite refs={[“turn892593search12″,”turn892593search0”]}/>

In an industrial control cabinet, expansion becomes necessary when the number of field signals exceeds the capacity planned for the main base. A production line, for example, may require additional digital inputs for proximity switches and machine interlocks, along with analog inputs for pressure and temperature transmitters. The 2MLB-E08A provides eight module positions for a compatible expansion arrangement, giving engineers more room to group these interfaces without replacing the main base solely to gain additional slots.

The eight-slot version is particularly useful when the expansion requirement is larger than a four-slot or six-slot base can accommodate. It can support a broader collection of compatible modules, subject to the controller’s hardware limits, expansion interface requirements, and module-specific installation rules.

The 2MLB-E08A is an extension base rather than a standalone CPU base. Its operation depends on the compatible MasterLogic-200 controller architecture, the designated expansion connection, and the modules installed on the base. The complete configuration should be planned before installation to ensure that module capacity, power requirements, and interconnection limits are satisfied.

Technical Specifications

Product Features

• Eight-slot expansion capacity: Adds eight module installation positions to a supported MasterLogic-200 configuration.
• Modular I/O arrangement: Accommodates compatible digital, analog, and other supported modules.
• Separate expansion group: Allows additional field interfaces to be organized independently of the main CPU base.
• Higher-capacity expansion option: Provides more positions than the four-slot and six-slot extension-base variants.
• Designated interconnection: Works through the supported expansion cable and interface arrangement.
• Scalable controller hardware: Helps accommodate additional I/O requirements as a machine or process system develops.
• Serviceable module layout: Allows technicians to inspect and maintain the expansion hardware as a distinct part of the PLC assembly.

Working Principle

The 2MLB-E08A extends the module installation capacity of a compatible MasterLogic-200 PLC. It provides the mounting positions and electrical interconnections required for supported modules to participate in the controller’s I/O architecture.

A typical arrangement follows this path:

Main CPU Base → Expansion Interface and Cable → 2MLB-E08A Extension Base → Additional I/O Modules → Field Devices

The CPU executes the control program and coordinates the operation of the PLC. Modules installed on the extension base receive signals from field devices, send output commands, or perform other supported functions. The extension base provides the hardware connections for these modules but does not independently execute the application program.

The eight available positions allow engineers to distribute additional I/O according to the machine’s requirements. Digital input modules can handle discrete signals from switches and sensors, while analog input modules acquire supported process measurements. Output modules provide interfaces for actuators, solenoid valves, and other compatible equipment.

The expansion arrangement must use the appropriate interface hardware and interconnection cable. For the documented MasterLogic-200 local expansion configuration, the total cable length between the CPU and the farthest I/O expansion base must not exceed 15 meters. Cable routing, module compatibility, power requirements, and any required termination hardware must be checked before commissioning.

If several expansion bases are installed, the complete arrangement must comply with the controller’s supported expansion topology and module capacity.

Role in the Honeywell MasterLogic-200 Control Architecture

The 2MLB-E08A occupies the expansion layer of the MasterLogic-200 control system. It adds module positions beyond those provided by the main CPU base, allowing the PLC to interface with additional field devices without changing the primary controller arrangement.

Main CPU Base → Expansion Interface and Cable → 2MLB-E08A → Additional I/O Modules → Field Equipment

Industrial Applications

Installation and Maintenance

1. Verify the model reference: Confirm 2MLB-E08A and ensure that the extension base matches the installed MasterLogic-200 system.
2. Check the controller architecture: Verify CPU compatibility, expansion interface requirements, and the supported base configuration before adding hardware.
3. Plan the eight-slot allocation: Determine which compatible modules will occupy the available positions and check their individual installation requirements.
4. Select the expansion cable: Choose the designated cable model and length for the intended connection arrangement.
5. Isolate the controller: Follow the approved electrical isolation procedure before installing or removing the base and connected modules.
6. Inspect the mounting location: Confirm that the cabinet provides suitable mechanical support and access for module installation and field wiring.
7. Examine the base connectors: Check the electrical interfaces for contamination, damaged contacts, or deformation before assembly.
8. Secure the extension base: Install the base according to the applicable mounting instructions and verify that it is firmly supported.
9. Install compatible modules: Fit each module in its designated position and check that the retention mechanism is properly engaged.
10. Verify expansion connections: Inspect the cable connections, expansion topology, and any required termination hardware.
11. Test module recognition: Restore power according to the commissioning procedure and check controller diagnostics, module status, and field communication.
12. Document the final configuration: Record the extension base, cable reference, installed modules, and commissioning results for future maintenance.

Compatible System Components

Recommended Related Models

Key Advantages

• Adds eight module positions to a compatible MasterLogic-200 system.
• Expands local I/O capacity without replacing the main base solely to gain additional slots.
• Supports compatible digital, analog, and other designated expansion modules.
• Allows additional field interfaces to be organized in a separate hardware group.
• Provides a higher-capacity option than the four-slot and six-slot extension bases.

Technical FAQs

How does the 2MLB-E08A differ from the eight-slot 2MLB-M08A?

The 2MLB-E08A is an extension base for additional modules, whereas the 2MLB-M08A is a main CPU base for the primary controller assembly. Both have eight slots, but their roles and supported hardware arrangements differ.

What limits the number of expansion bases that can be connected?

The supported controller architecture, CPU configuration, expansion interfaces, module capacity, and cable arrangement determine the permissible system configuration. Check the applicable MasterLogic-200 specifications before adding multiple bases.

Can the extension base accommodate both analog and digital modules?

Compatible analog and digital modules can be used according to the supported system configuration. Confirm each module’s compatibility, installation requirements, and power needs before assigning the eight positions.

What should be investigated if the CPU cannot communicate with modules on the extension base?

Check the expansion cable connections, interface hardware, module seating, power arrangement, and controller diagnostics. Also verify that the installed expansion topology and module combination are supported before replacing the base.
