Product Overview

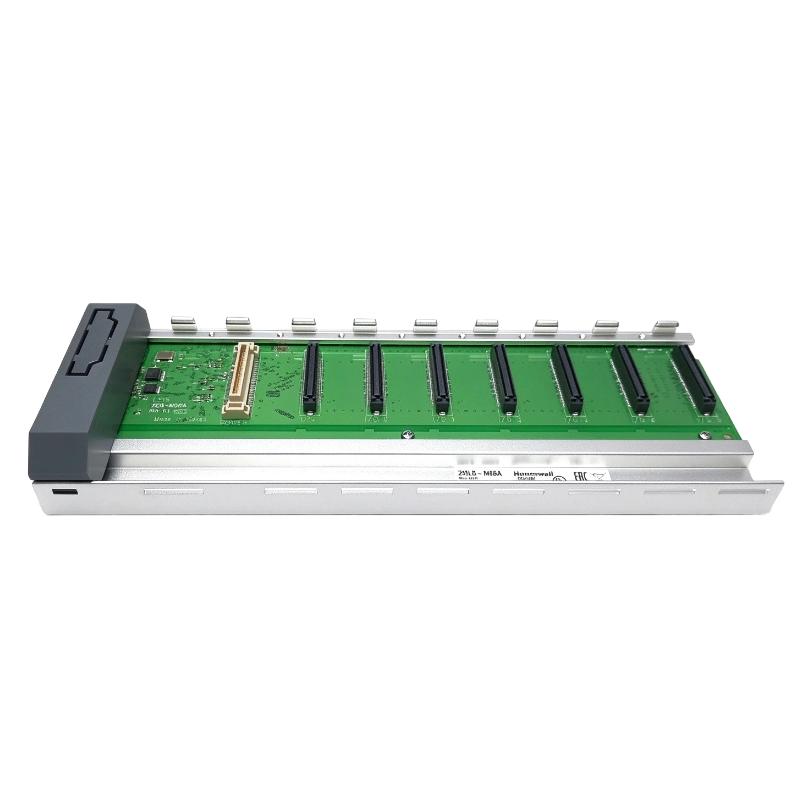

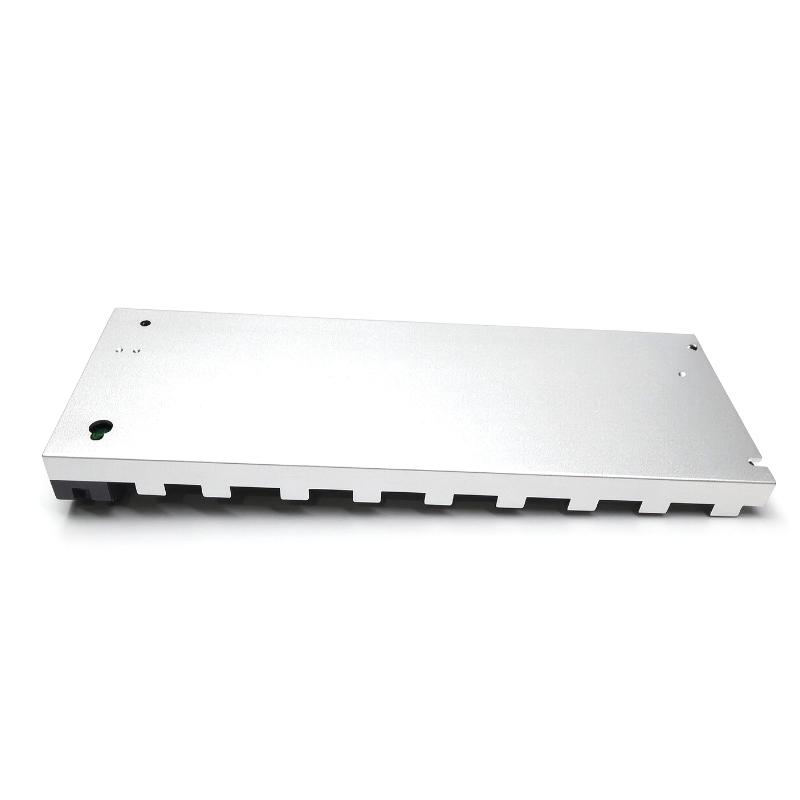

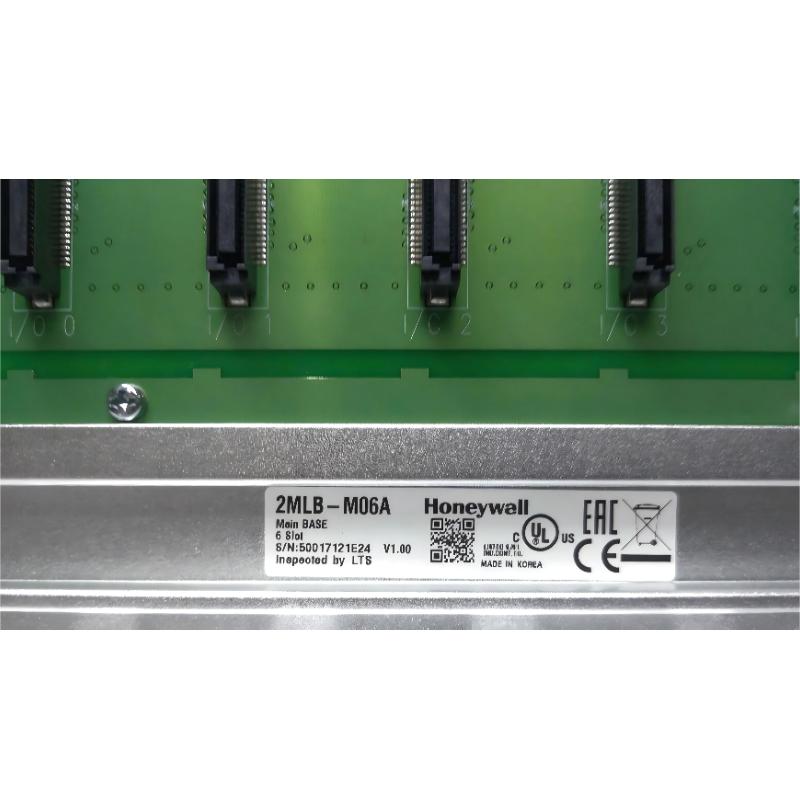

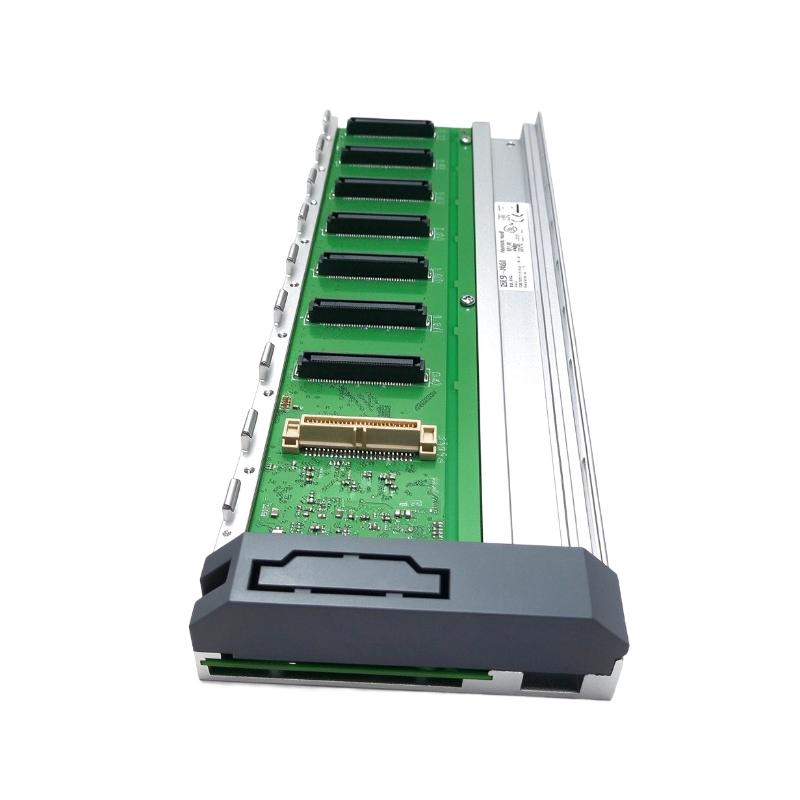

The Honeywell 2MLB-M06A is a six-slot main base for the MasterLogic-200 programmable logic controller (PLC) platform. It provides the mounting positions and electrical interconnections for a compatible controller assembly, allowing the CPU and supported modules to be organized within a single main-base structure. The model is specified for the 2MLI-CPUU CPU configuration. <Cite refs={[“turn376680search18″,”turn376680search20”]}/>
In a machine control cabinet, the main base establishes the hardware layout for the controller. The CPU executes the control program, while installed input and output modules exchange signals with sensors, actuators, and other field equipment. The 2MLB-M06A provides six module installation positions, giving engineers more room for a local control assembly than the four-slot 2MLB-M04A.
The six-slot configuration is useful when a machine requires several types of I/O, such as digital inputs for limit switches, digital outputs for solenoid valves, and analog inputs for pressure or temperature measurements. Reserving the necessary positions during the initial design can also make later hardware changes easier, provided the CPU, power supply, and selected modules remain within the supported configuration.
The 2MLB-M06A is a main CPU base, not an independent controller or a standalone expansion rack. It forms the hardware foundation for the supported CPU arrangement, while separate expansion bases are used when additional I/O installation capacity is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 2MLB-M06A |
| Product Family | MasterLogic-200 |
| Product Type | Main Base, 6-Slot |
| Base Configuration | Main CPU Base |
| Slot Capacity | 6 modules |
| Compatible CPU | 2MLI-CPUU |
| System Type | Modular programmable logic controller |
| Installation Function | Mounting and interconnection of supported controller modules |
| Dimensions | 264 × 19 × 98 mm |
| Weight | 0.34 kg |
Product Features
- Six module positions: Accommodates the supported MasterLogic-200 main-base configuration.
- 2MLI-CPUU compatibility: Specified for use with the corresponding CPU configuration.
- Integrated module interconnection: Provides the electrical connection structure for compatible installed modules.
- Expanded local I/O capacity: Offers two more module positions than the four-slot main-base model.
- Modular control architecture: Supports organized installation of the CPU and associated modules.
- Expansion-system support: Can form part of a larger configuration using compatible I/O expansion bases and cables.
Working Principle
The 2MLB-M06A provides the physical and electrical foundation for a compatible MasterLogic-200 controller assembly. It holds the supported modules in their designated positions and provides the interconnections required for the installed hardware to operate as a coordinated PLC system.
A typical control arrangement follows this path:
Power Supply → 2MLB-M06A Main Base → CPU and I/O Modules → Field Devices
The CPU runs the user program and processes control logic. Digital and analog I/O modules acquire field signals or issue commands to external equipment. The main base supports these modules and their electrical interconnections, but does not independently execute control logic.
Its six-slot capacity determines the available installation positions for the supported module arrangement. During system design, engineers must account for the CPU and any other components that occupy positions, as well as the power and wiring requirements of the selected modules.
If the local base does not provide enough positions for the required I/O, compatible expansion bases can extend the installation. The expansion arrangement, cable lengths, and total supported system configuration must be checked against the controller specifications before commissioning.
Role in the Honeywell MasterLogic-200 Control Architecture
The 2MLB-M06A serves as the main hardware base for a compatible MasterLogic-200 PLC assembly. It supports the CPU and associated modules, while the installed CPU and I/O modules perform processing and field interfacing.
Power Supply → Main CPU Base → CPU and I/O Modules → Sensors, Actuators, and Process Equipment
| System Element | Function |
|---|---|
| 2MLB-M06A Main Base | Provides six module installation positions and the main-base interconnection structure |
| 2MLI-CPUU CPU | Executes the PLC program and manages controller operations |
| Compatible Power Module | Supplies operating power according to the selected configuration |
| Digital Input Module | Receives discrete signals from switches and sensors |
| Digital Output Module | Sends discrete commands to compatible field devices |
| Analog Input Module | Receives supported analog measurement signals |
| Analog Output Module | Provides configured analog command signals |
| I/O Expansion Base | Adds supported module installation positions |
| Expansion Cable | Connects the main base and compatible expansion base |
| Engineering Software | Supports program development, configuration, and troubleshooting |
Industrial Applications
| Application | Practical Use |
|---|---|
| Machine Automation | Providing the main base for a PLC with several I/O modules |
| Packaging Machinery | Organizing digital and analog control interfaces |
| Pump Control Skids | Supporting local automation of pumping equipment |
| Conveyor Systems | Connecting the PLC hardware used for conveyor sequencing |
| Manufacturing Cells | Providing a modular controller base for machine-level control |
| Process Equipment | Accommodating supported measurement and actuator interfaces |
| Utility Control Panels | Organizing controller hardware for plant utility systems |
| Production Line Controls | Supporting local PLC assemblies with multiple field signals |
| Machine Retrofit Projects | Replacing a matching main base in an existing MasterLogic-200 installation |
| Modular PLC Installations | Providing a main base that can be combined with compatible expansion hardware |
Installation and Maintenance
- Verify the model reference: Confirm 2MLB-M06A and ensure that the base matches the intended MasterLogic-200 controller configuration.
- Check CPU compatibility: Verify that the planned controller uses the supported 2MLI-CPUU configuration.
- Plan the six-slot arrangement: Allocate positions for the CPU and other required modules before mounting the base.
- Inspect the cabinet location: Ensure that the mounting area provides suitable support and access for module installation and wiring.
- Isolate the controller assembly: Follow the approved electrical isolation procedure before installing or removing the base and connected modules.
- Inspect the connectors: Check the module interfaces and electrical contacts for contamination, deformation, or visible damage.
- Secure the base: Install the base according to the applicable mounting instructions and verify that it is firmly supported.
- Install compatible modules: Fit the CPU and other modules into their designated positions, following the required orientation and retention procedure.
- Verify the power arrangement: Check that the selected power module and its connections match the controller configuration.
- Check wiring and expansion connections: Confirm that field wiring and any expansion-base connections follow the system design.
- Test the controller assembly: Restore power according to the commissioning procedure and check CPU status, module recognition, and communication with the engineering environment.
- Document the configuration: Record the main-base model, CPU reference, installed modules, and expansion connections for future maintenance.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell 2MLB-M06A | Six-slot main base for a compatible MasterLogic-200 controller |
| Honeywell 2MLI-CPUU | CPU configuration specified for this main-base family |
| Honeywell 2MLP-ACF1 | MasterLogic-200 power module option |
| Honeywell 2MLP-ACF2 | Alternative MasterLogic-200 power module option |
| Honeywell 2MLP-AC23 | AC-input power module for supported configurations |
| Honeywell 2MLP-DC42 | DC-input power module for supported configurations |
| Honeywell 2MLB-E06A | Six-slot I/O expansion base |
| Honeywell 2MLC-E061 | Expansion cable option with a nominal length of 0.6 m |
| Honeywell MasterLogic-200 Digital I/O Modules | Interface discrete field signals with the PLC |
| Honeywell MasterLogic-200 Analog I/O Modules | Interface supported analog field signals with the PLC |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Honeywell 2MLB-M04A | Main CPU Base, 4-Slot | Compact main-base configuration with four module positions |
| Honeywell 2MLB-M08A | Main CPU Base, 8-Slot | Main-base configuration requiring eight module positions |
| Honeywell 2MLB-M12A | Main CPU Base, 12-Slot | Main-base configuration requiring twelve module positions |
| Honeywell 2MLB-E04A | I/O Expansion Base, 4-Slot | Expanding the supported local I/O arrangement |
| Honeywell 2MLB-E06A | I/O Expansion Base, 6-Slot | Adding six module positions through a compatible expansion arrangement |
| Honeywell 2MLB-E08A | I/O Expansion Base, 8-Slot | Expansion configuration requiring eight module positions |
Key Advantages
- Provides six module positions for a compatible MasterLogic-200 controller assembly.
- Supports the specified 2MLI-CPUU CPU configuration.
- Accommodates a broader local I/O arrangement than the four-slot main base.
- Provides the mounting and electrical interconnection structure for supported modules.
- Supports compatible I/O expansion when the application requires additional module positions.
Technical FAQs
Which CPU is supported by the 2MLB-M06A main base?
The documented main-base configuration specifies the 2MLI-CPUU CPU. Confirm the full controller architecture before combining the base with other CPU models or controller families.
How does the 2MLB-M06A differ from the 2MLB-E06A?
The 2MLB-M06A is a six-slot main CPU base, while the 2MLB-E06A is a six-slot I/O expansion base. They serve different roles and should be selected according to whether the installation requires the main CPU assembly or additional I/O positions.
Can all six positions be assigned to I/O modules?
The six-position capacity describes the base’s module installation capacity, but the usable arrangement depends on the CPU and the system’s installation requirements. Confirm the required CPU, power module, and supported module placement before allocating the positions.
What should be checked if a module installed on the base is not recognized?
Check that the module is compatible with the CPU configuration, correctly seated, and installed in an allowed position. Also inspect the base connectors, power arrangement, and controller diagnostics before replacing the base itself.
