Product Overview

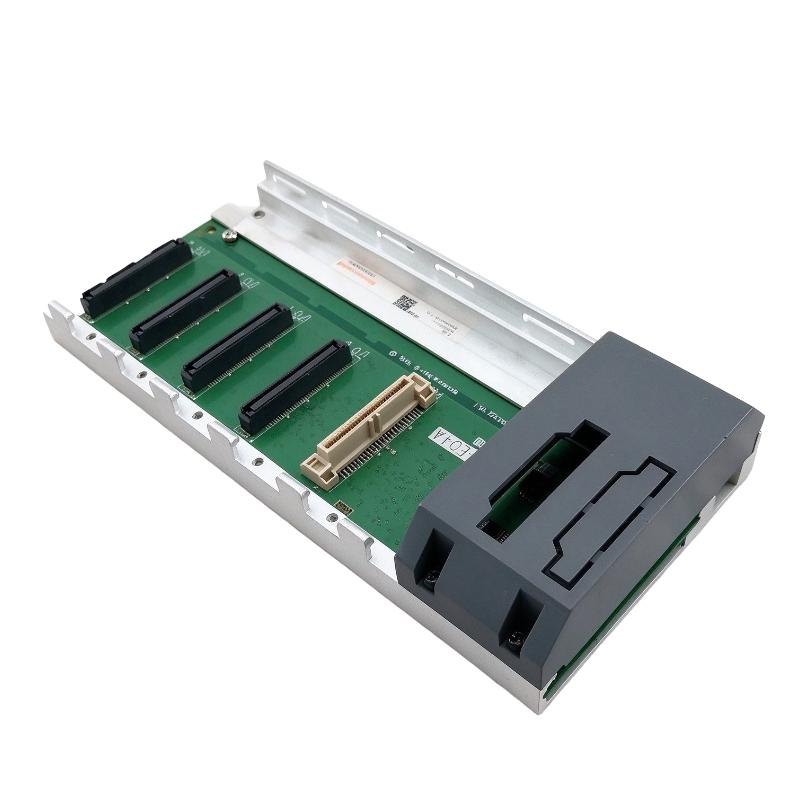

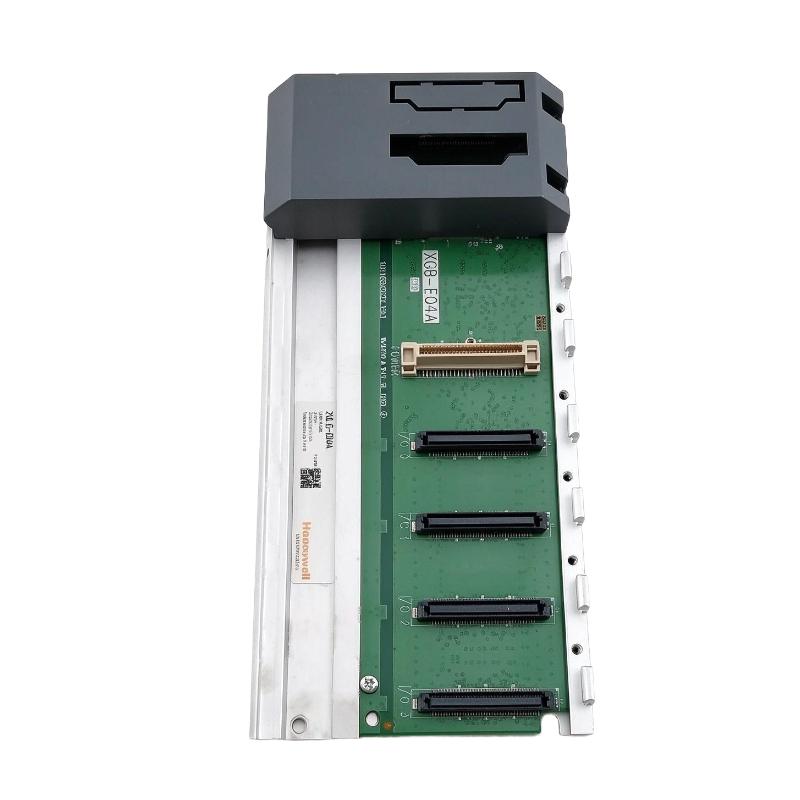

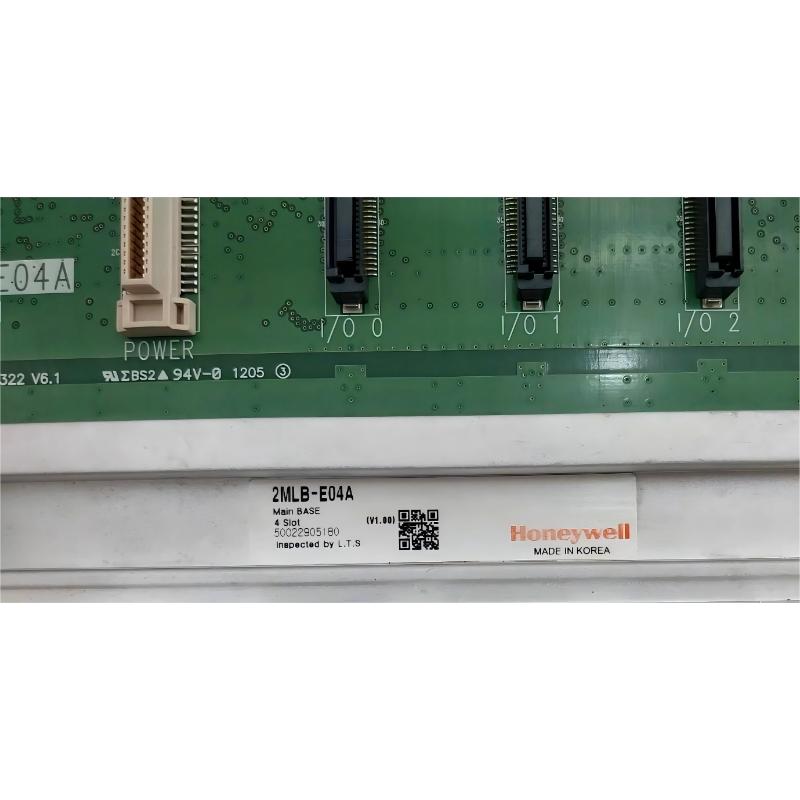

The Honeywell 2MLB-E04A is a four-slot extension base for the MasterLogic-200 programmable logic controller (PLC) platform. Unlike the 2MLB-M04A main CPU base, which supports the primary controller assembly, the 2MLB-E04A provides additional module installation positions for expanding a compatible PLC system. It accommodates supported I/O, power, and special modules according to the applicable system configuration. <Cite refs={[“turn435547search12″,”turn435547search4″,”turn435547search17”]}/>
In a machine control cabinet, the extension base is useful when the main base no longer has enough available positions for the required field interfaces. For example, a packaging line may need additional digital input modules for sensors and interlocks, or a pump control panel may require extra analog input channels for pressure and temperature transmitters. Adding an extension base allows the hardware layout to grow without replacing the existing main base solely to obtain more module positions.
The 2MLB-E04A belongs to a family of MasterLogic-200 extension bases available in different slot capacities. The four-slot version suits smaller expansion groups where only a limited number of additional modules are required. Its use depends on the compatible CPU architecture, expansion driver arrangement, interconnection cable, and the total system configuration.
The extension base does not execute the PLC program independently. It provides the mounting and electrical interconnection structure for supported modules, while the CPU and associated control-system hardware manage processing, communication, and machine operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 2MLB-E04A |
| Product Family | MasterLogic-200 |
| Product Type | Extension Base, 4-Slot |
| Base Configuration | I/O Expansion Base |
| Slot Capacity | 4 modules |
| System Type | Modular programmable logic controller |
| Installation Function | Expansion of supported module installation capacity |
| Compatible System | Honeywell MasterLogic-200 |
| Dimensions | 210 × 19 × 98 mm |
| Weight | 0.33 kg |
Product Features
- Four-slot expansion capacity: Adds module positions to a compatible MasterLogic-200 configuration.
- Modular hardware arrangement: Provides mounting and electrical interconnections for supported expansion modules.
- Flexible I/O allocation: Allows additional digital and analog interfaces to be arranged outside the main base.
- Compact expansion group: Suits applications requiring a limited number of additional module positions.
- Expansion-cable connectivity: Works within a supported architecture using the designated interconnection cable.
- Multiple slot-capacity options: Belongs to a family that includes six-, eight-, and twelve-slot extension bases.
Working Principle
The 2MLB-E04A extends the physical module arrangement of a compatible MasterLogic-200 PLC. It provides the designated slots and internal connections required for supported modules to participate in the controller’s I/O and communication architecture.
A typical arrangement is:
Main CPU Base → Expansion Interconnection Cable → 2MLB-E04A Extension Base → Additional Modules
The CPU executes the control program and coordinates system operation. Supported modules installed on the extension base interface with field signals or perform other designated functions. The extension base itself does not process the application logic; it provides the hardware structure through which the installed modules connect to the larger system.
The expansion arrangement requires the correct interconnection cable and supported hardware configuration. Cable length must be selected according to the distance between bases, while the overall cable route must remain within the system’s permitted limits. For the documented MasterLogic-200 expansion cable family, the total distance between the CPU and the farthest I/O expansion base must not exceed 15 meters. <Cite refs={[“turn435547search12″,”turn435547search14”]}/>
Before adding the extension base, engineers should check the CPU type, required expansion interface, module compatibility, power requirements, and system capacity. A base with four slots does not automatically mean that every module type can be installed in any position.
Role in the Honeywell MasterLogic-200 Control Architecture
The 2MLB-E04A occupies the expansion layer of a MasterLogic-200 PLC installation. It adds module positions beyond those provided by the main base, allowing the controller to interface with additional field devices while retaining the existing main CPU assembly.
Main CPU Base → Expansion Cable → Extension Base → Additional I/O Modules → Field Equipment
| System Element | Function |
|---|---|
| Honeywell 2MLB-E04A | Provides four additional module installation positions |
| Main CPU Base | Houses the primary controller assembly |
| CPU Module | Executes control logic and manages controller operations |
| Expansion Driver or Interface | Supports communication with the expansion hardware as required |
| Expansion Cable | Connects the main and expansion base assemblies |
| Digital I/O Modules | Interface discrete sensors, switches, and actuators |
| Analog I/O Modules | Interface supported process measurement and control signals |
| Expansion Base Terminator | Provides the required termination in configurations that specify it |
Industrial Applications
| Application | Practical Use |
|---|---|
| Packaging Machinery | Adding digital I/O for sensors, actuators, and machine interlocks |
| Pump Control Panels | Accommodating additional pressure and level monitoring channels |
| Conveyor Systems | Expanding the controller’s interface for position sensors and control devices |
| Manufacturing Cells | Adding local I/O modules as equipment requirements increase |
| Process Skids | Integrating additional analog measurement and discrete control points |
| Utility Automation | Expanding interfaces for pumps, fans, and auxiliary equipment |
| Assembly Machines | Connecting additional field devices without replacing the main base |
| Production Line Retrofits | Extending an existing MasterLogic-200 hardware arrangement |
| Industrial Control Cabinets | Organizing a small group of additional modules on a separate base |
| Modular PLC Installations | Supporting a distributed arrangement of compatible controller modules |
Installation and Maintenance
- Verify the model reference: Confirm 2MLB-E04A and ensure that the extension base matches the installed MasterLogic-200 platform.
- Check the CPU architecture: Verify that the controller and expansion arrangement support the selected extension base.
- Plan the module allocation: Determine which supported modules will occupy the four available positions.
- Select the expansion cable: Choose the correct cable model and length for the planned connection between the main and extension bases.
- Isolate the controller: Follow the approved electrical isolation procedure before installing or removing the base or its modules.
- Inspect the mounting location: Confirm that the cabinet provides suitable support and access for module installation and wiring.
- Examine the connectors: Check the base interfaces for damaged contacts, contamination, or deformation.
- Secure the extension base: Mount the base according to the applicable installation instructions.
- Install compatible modules: Fit each module into its designated position and verify the required orientation and retention.
- Check expansion connections: Confirm that the cable is securely connected and that the expansion topology follows the system design.
- Verify system operation: Restore power according to the commissioning procedure and check module recognition, controller diagnostics, and field communication.
- Document the configuration: Record the extension base, cable reference, installed modules, and commissioning results for future maintenance.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell 2MLB-E04A | Four-slot extension base for compatible MasterLogic-200 systems |
| Honeywell 2MLB-M04A | Four-slot main CPU base |
| Honeywell 2MLB-M06A | Six-slot main CPU base |
| Honeywell 2MLC-E041 | 0.4-meter expansion cable |
| Honeywell 2MLC-E061 | 0.6-meter expansion cable |
| Honeywell 2MLC-E121 | 1.2-meter expansion cable |
| Honeywell 2MLT-TERA | Extension baseboard terminator for configurations that require it |
| Honeywell MasterLogic-200 Digital I/O Modules | Interface discrete field signals |
| Honeywell MasterLogic-200 Analog I/O Modules | Interface supported analog signals |
| Compatible Expansion Interface Hardware | Supports communication between the main and expansion assemblies |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Honeywell 2MLB-E06A | Extension Base, 6-Slot | Expansion arrangements requiring six module positions |
| Honeywell 2MLB-E08A | Extension Base, 8-Slot | Expansion arrangements requiring eight module positions |
| Honeywell 2MLB-E12A | Extension Base, 12-Slot | Expansion arrangements requiring twelve module positions |
| Honeywell 2MLB-M04A | Main CPU Base, 4-Slot | Compact main controller assembly |
| Honeywell 2MLB-M06A | Main CPU Base, 6-Slot | Main controller assembly with six module positions |
| Honeywell 2MLC-E041 | Expansion Cable, 0.4 m | Short-distance connection between compatible bases |
Key Advantages
- Adds four module positions to a compatible MasterLogic-200 configuration.
- Supports expansion without replacing the existing main base solely to gain additional slots.
- Accommodates supported digital, analog, and other compatible modules.
- Provides a modular approach to increasing controller I/O capacity.
- Supports different expansion layouts through the compatible cable family.
Technical FAQs
How does the 2MLB-E04A differ from the 2MLB-M04A?
The 2MLB-E04A is an extension base for adding module positions, whereas the 2MLB-M04A is a main CPU base used for the primary controller assembly. Their four-slot capacities do not make them interchangeable.
What determines the maximum distance between the CPU and this extension base?
The expansion cable selection and the complete system topology determine the connection arrangement. The documented MasterLogic-200 expansion cable configuration specifies a maximum total distance of 15 meters between the CPU and the farthest I/O expansion base.
Can the 2MLB-E04A accommodate analog and digital I/O modules together?
It can support compatible module types according to the MasterLogic-200 configuration. Confirm each module’s compatibility, position requirements, and power needs before finalizing the installation.
What should be checked if modules on the extension base are not recognized?
Check the expansion cable connections, supported interface hardware, module seating, power arrangement, and CPU diagnostics. Also verify the configured expansion topology and confirm that the selected modules are supported by the installed controller.
