Product Overview

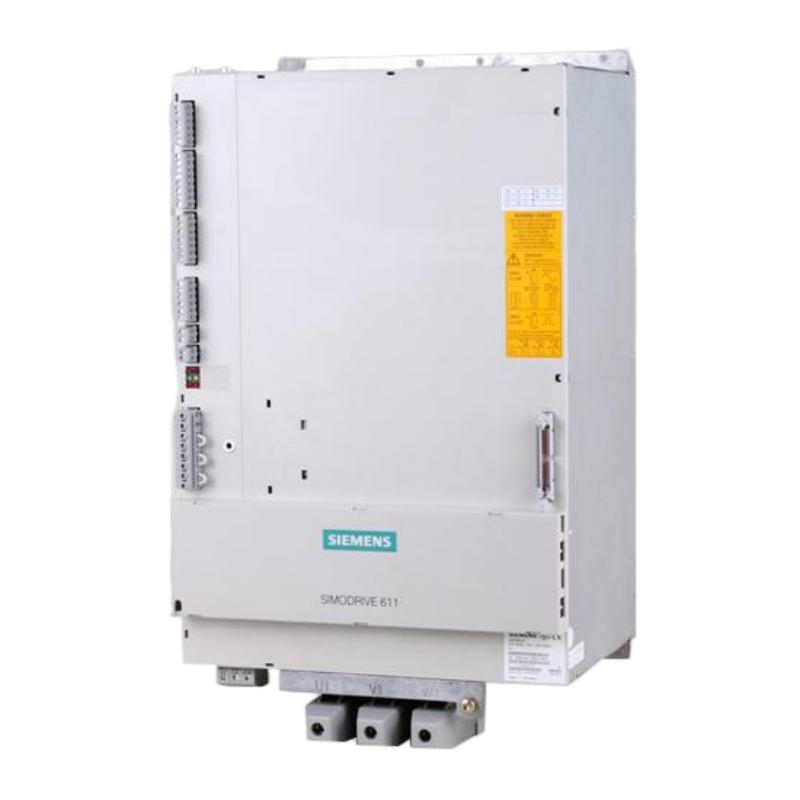

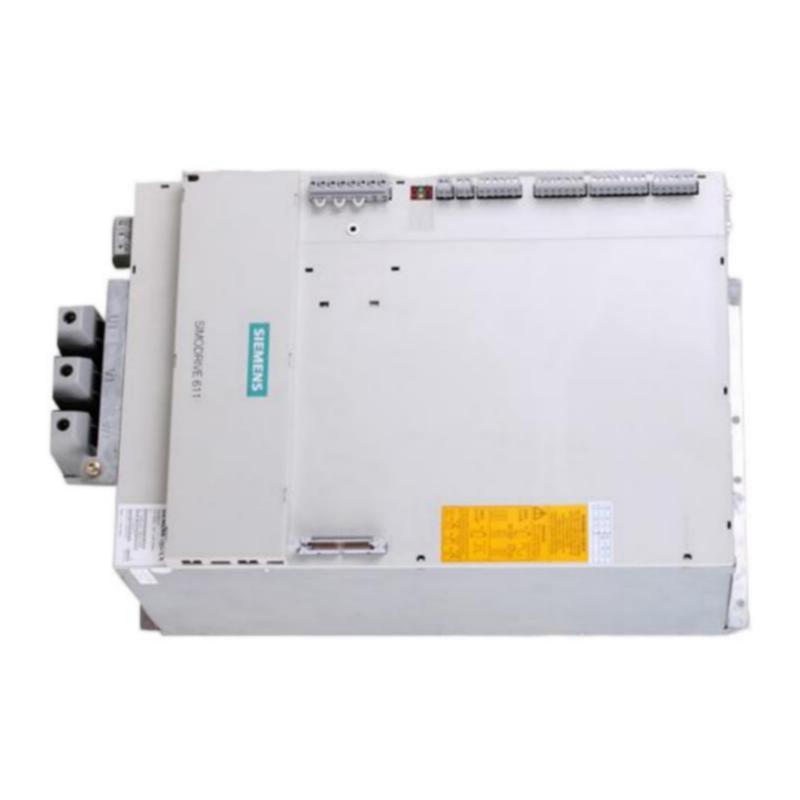

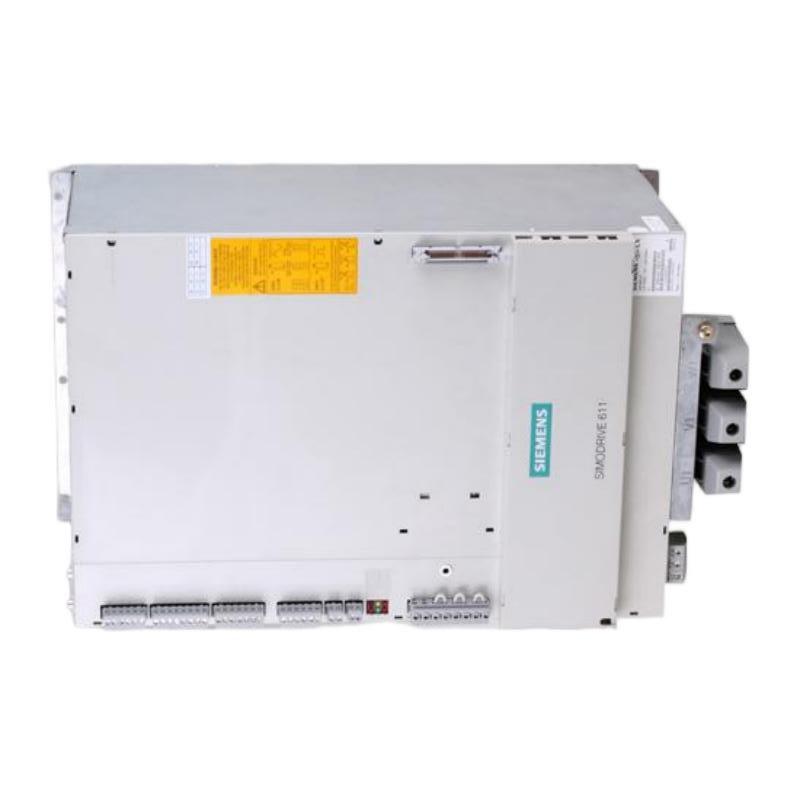

The Siemens 6SN1146-1BB00-0EA0 SIMODRIVE 611 Infeed/Regenerative Feedback Module is a high-power drive-system component designed to supply electrical energy to the DC link of an industrial motion-control system and return regenerative energy to the electrical supply when supported by the system configuration. It is part of the Siemens SIMODRIVE 611 drive family, which is used in demanding motion-control applications, including CNC machine tools and multi-axis industrial machinery.

In a multi-axis drive installation, the infeed module provides the electrical interface between the incoming AC supply and the drive system’s DC link. Connected motor and power modules draw energy from this DC link to operate servo and spindle motors. During braking or deceleration, motors may return energy to the drive system. A compatible regenerative infeed module can process this energy and feed it back to the supply, helping reduce the need to dissipate all braking energy as heat.

The 6SN1146-1BB00-0EA0 is specified as a regulated infeed/regenerative feedback module with external cooling and an 80/104 kW power rating. Its role is different from that of an individual servo amplifier: it supports the shared power infrastructure of the drive system rather than directly replacing every axis-specific power module.

Because this module operates within a high-power drive architecture, correct selection depends on the supply voltage, DC-link requirements, connected drive modules, cooling arrangement, and overall system configuration. It should be installed and commissioned by personnel familiar with Siemens SIMODRIVE 611 equipment and the applicable electrical safety procedures.

Technical Specifications

The dimensions and weight above are the supplied listing values. Confirm the exact module version, cooling configuration, and physical measurements before installation or shipment.

Function and Working Principle

The 6SN1146-1BB00-0EA0 serves as an infeed and regenerative feedback unit in a SIMODRIVE 611 drive system. Its principal responsibilities include supplying power to the DC link, regulating the infeed operation, and supporting the return of regenerative energy to the supply.

1. AC Infeed and Power Conversion

Industrial servo systems require a suitable electrical power source for their drive modules. The infeed unit receives power from the AC supply and converts it into the electrical form required by the drive system’s DC link.

The DC link acts as a shared energy source for compatible power modules. These modules then provide controlled electrical power to the connected servo or spindle motors according to the requirements of each axis.

The exact electrical ratings, protection requirements, and supply connections must be determined from the module’s technical documentation and the overall SIMODRIVE system design.

2. Regulated DC-Link Operation

The regulated infeed design supports controlled power conversion and DC-link operation. Maintaining appropriate electrical conditions is important for stable operation of connected drive modules.

A stable and correctly configured power infrastructure helps the drive system respond to changing motor loads. However, overall performance also depends on the connected power modules, motor characteristics, control configuration, and the electrical installation.

3. Regenerative Energy Feedback

During deceleration, braking, or certain load conditions, a motor can return electrical energy to the drive system. This energy may be available through the DC link.

A regenerative feedback module is designed to return suitable regenerative energy to the electrical supply rather than relying exclusively on a braking resistor to dissipate it as heat. This can improve energy utilization in applications with frequent deceleration or changing mechanical loads.

The amount of recoverable energy depends on the operating cycle, the connected motors, the drive configuration, and the conditions of the electrical supply. Regenerative operation must follow the manufacturer’s specified system configuration.

4. Closed-Loop Regulation

The module is specified for regulated or closed-loop operation. This means its control system manages the infeed process using feedback and configured operating conditions.

Closed-loop regulation is important in high-power drive systems because the power supply must support changing loads while maintaining appropriate DC-link behavior. The module must be matched to the intended SIMODRIVE system rather than treated as a standalone general-purpose power supply.

5. External Cooling

The 6SN1146-1BB00-0EA0 uses an external cooling arrangement. Heat generated during power conversion must be managed through the specified cooling installation.

Cooling components, airflow paths, and cabinet arrangements must meet the manufacturer’s requirements. Insufficient cooling can increase operating temperatures, cause protective shutdowns, and shorten component service life.

Role in Industrial Control Systems

The 6SN1146-1BB00-0EA0 provides the power infrastructure for compatible SIMODRIVE 611 motion-control installations. It is typically integrated with axis power modules, control electronics, servo motors, spindle motors, and machine-level control equipment.

CNC Machine Tool Power Supply

CNC machines may operate several axes and a spindle simultaneously. The infeed module supplies the common drive-system DC link used by compatible power modules.

This shared arrangement supports coordinated motion across the machine. Correct infeed selection is important because the combined electrical demands of the connected axes must remain within the designed system limits.

Multi-Axis Servo Systems

In multi-axis machinery, individual servo axes may accelerate and decelerate at different times. The drive system’s DC link provides a common electrical connection for compatible power modules.

The regenerative infeed can support energy recovery when one or more axes return energy during deceleration, subject to the system configuration and operating conditions.

Machine-Level Control Integration

A CNC controller or motion controller issues commands for axis movement, spindle operation, acceleration, and deceleration. The SIMODRIVE power system executes the electrical power-conversion functions required by the connected motors.

The infeed module is not a substitute for the CNC controller or individual servo amplifiers. It performs a specific power-system role within the larger control architecture.

Industrial Maintenance and Replacement

In existing installations, the infeed module may be essential to the operation of several connected axes. A failure can therefore affect more than one motor or machine function.

When replacing the unit, maintenance personnel should verify the full Siemens order number, cooling arrangement, power rating, compatible drive modules, and required system accessories.

Industrial Applications

1. CNC Machine Tools

CNC milling machines, turning centers, and machining systems use servo axes and spindle drives to control tool movement and cutting operations.

The SIMODRIVE 611 infeed module supplies power to compatible drive components. Its regenerative feedback function can be useful in machine cycles involving frequent acceleration and deceleration.

2. Multi-Axis Manufacturing Equipment

Automated manufacturing machines may coordinate several servo axes to position, feed, transfer, or process materials. A shared drive power system can support these axes through a common DC link.

The infeed module must be selected according to the combined power requirements and the configuration specified for the installation.

3. Industrial Spindle Drives

Spindle systems may experience changing load demands during machining. The infeed module supports the power architecture serving compatible spindle and servo drive components.

Its suitability depends on the system’s voltage, power, cooling, and control requirements.

4. Automated Production Lines

Some production systems use synchronized servo motion for feeding, cutting, positioning, and material transfer. These applications may include multiple motors with frequent changes in speed.

Where compatible SIMODRIVE 611 equipment is installed, a regenerative infeed module can form part of the shared power infrastructure supporting these operations.

5. Legacy Motion-Control Installations

The 6SN1146-1BB00-0EA0 may be relevant to maintenance projects involving existing Siemens SIMODRIVE 611 systems. Accurate part identification helps avoid unnecessary modifications to the original drive architecture.

For legacy equipment, replacement decisions should account for the availability of compatible modules, cooling assemblies, wiring, and commissioning documentation.

Installation and System Integration

High-power infeed modules require careful installation and integration. Electrical ratings, thermal management, grounding, and system compatibility should be confirmed before the equipment is energized.

1. Verify the Complete Order Number

Check that the installed or replacement module is exactly 6SN1146-1BB00-0EA0. Similar Siemens SIMODRIVE 611 modules may have different power ratings, cooling arrangements, or electrical configurations.

Do not select a replacement based only on appearance or the general description of an infeed/regenerative feedback module.

2. Confirm Supply and Drive-System Compatibility

Verify the incoming supply requirements and the electrical specifications of the connected drive system. The infeed module must be suitable for the intended DC-link architecture and the connected servo or spindle power modules.

Check the system design documentation before changing any power component. Differences in rated power, connection arrangements, or protection requirements can affect the entire installation.

3. Plan Cabinet Installation

The supplied dimensions are 356 × 330 × 533 mm. Verify these dimensions against the physical module and the manufacturer’s installation drawing before preparing the cabinet.

Provide the required mounting support, access for electrical connections, and clearance for cooling components. Ensure that the cabinet layout allows heat to be removed according to the specified external cooling arrangement.

4. Provide the Correct Cooling Arrangement

External cooling is a key installation consideration for this module. Confirm the required cooling components, airflow path, fan arrangement, and any associated mounting hardware.

Inspect cooling equipment for obstruction, damage, or contamination during maintenance. Cooling must be maintained within the specified operating conditions.

5. Grounding and Electrical Safety

Grounding, power wiring, protective devices, and electrical connections must follow the manufacturer’s instructions and applicable electrical codes.

Before servicing the drive system, isolate the incoming supply and follow the prescribed lockout procedures. Allow the specified discharge time for the DC link and verify the absence of hazardous voltage using an appropriate measuring method.

High-power drive equipment should only be installed, commissioned, and serviced by qualified personnel.

6. Commissioning and Functional Checks

Before returning the system to operation, inspect power connections, grounding, cooling components, and the physical installation. Confirm that the connected modules and system configuration match the approved design.

Commissioning should include the appropriate electrical checks, system diagnostics, and operational tests specified by Siemens. Record relevant parameters and configuration details for future maintenance.

Compatible System Components

The 6SN1146-1BB00-0EA0 operates as part of a compatible SIMODRIVE 611 drive system. The following component categories may be relevant to an installation, subject to the specific system design.

This table identifies typical component categories rather than a guaranteed package. The exact accessories and compatible modules must be verified against the machine’s original Siemens documentation.

Alternative Models and Replacement Considerations

The SIMODRIVE 611 family includes multiple infeed and regenerative feedback modules. They are not automatically interchangeable because they may differ in rated power, cooling method, electrical configuration, and control characteristics.

Before choosing an alternative, compare the following:

• Complete Siemens order number and hardware version.
• Rated and peak power requirements.
• Supply voltage and electrical connection details.
• DC-link specifications and connected power modules.
• Regenerative feedback requirements.
• External cooling configuration.
• Cabinet dimensions and mounting arrangements.
• Protection and commissioning requirements.
• Machine-control compatibility and service documentation.

A higher-rated module should not be assumed to be a direct replacement. Changes to cooling, wiring, power distribution, or system configuration may be necessary.

Key Advantages

High-Power Drive-System Support

The 80/104 kW rating makes the module relevant to high-power SIMODRIVE 611 installations when correctly matched to the drive system.

Regenerative Energy Feedback

The regenerative feedback function can return suitable braking energy to the supply, reducing reliance on dissipating all recovered energy as heat.

Regulated Infeed Operation

The regulated infeed design supports controlled electrical power conversion for compatible drive-system applications.

Integration with SIMODRIVE 611 Systems

The module is designed for the SIMODRIVE 611 drive architecture and can support installations that use compatible servo and spindle drive modules.

External Cooling Design

The specified cooling arrangement supports heat management in the intended high-power installation. Correct cooling-system design and maintenance remain essential.

Support for Legacy Equipment Maintenance

The exact model number is useful when identifying replacement parts for existing SIMODRIVE 611 equipment, helping maintenance teams preserve the original system architecture where feasible.

Technical FAQs

1. What is the Siemens 6SN1146-1BB00-0EA0?

It is a SIMODRIVE 611 infeed/regenerative feedback module designed to supply the drive-system DC link and support regenerative energy feedback in compatible industrial motion-control systems.

2. What is its rated power?

The module is specified with an 80/104 kW rating. Confirm the applicable rating and operating conditions using the exact product documentation for the installed system.

3. What does regenerative feedback mean?

Regenerative feedback allows suitable electrical energy returned by motors during braking or deceleration to be fed back to the supply. This can improve energy utilization in applications with frequent changes in motor speed.

4. Does this module directly control an individual servo motor?

Its primary function is to provide infeed and regenerative feedback for the drive system. Individual servo or spindle power modules perform the motor-specific power-control functions.

5. What cooling method does it use?

The 6SN1146-1BB00-0EA0 is specified for external cooling. The cooling equipment and cabinet arrangement must meet the manufacturer’s requirements.

6. Can it replace another SIMODRIVE 611 infeed module?

Not automatically. Modules may differ in rated power, electrical design, cooling method, and system configuration. Verify the complete order number and technical documentation before substitution.

7. What should be checked before purchasing a used module?

Verify the full model number, physical condition, terminal condition, cooling configuration, available test results, and warranty terms. For critical machinery, confirm that the module has been tested appropriately for the intended application.

8. Why is the exact model number important?

The final characters of a Siemens order number can identify significant hardware differences. Selecting an incorrect variant may cause electrical incompatibility, cooling problems, or commissioning difficulties.

9. What should be checked during maintenance?

Inspect electrical connections, grounding, cooling components, and the cabinet environment. Follow the manufacturer’s procedures for diagnostics, maintenance intervals, and safe isolation.

10. Is the 26 kg weight suitable for a product listing?

The supplied value of 26 kg is retained for this listing. Because related SIMODRIVE 611 modules can have different weights depending on their cooling and hardware configurations, confirm the actual unit’s weight before using it for freight calculations or installation planning.

Procurement and Maintenance Recommendations

When purchasing the Siemens 6SN1146-1BB00-0EA0, verify the full order number and compare it with the nameplate of the installed module. Confirm the 80/104 kW rating, external cooling arrangement, and compatibility with the existing SIMODRIVE 611 power architecture.

For used, refurbished, or surplus equipment, request clear nameplate photographs and information about the unit’s operating history, inspection, and test status. Confirm the condition of electrical connections and cooling components, and clarify whether mounting hardware or other accessories are included.

For replacement projects, assess the complete drive system rather than treating the infeed module as an isolated component. Check the connected power modules, motors, DC-link arrangement, cooling equipment, cabinet layout, and control configuration before approving a substitute.

During maintenance, keep cooling paths clear, inspect the cabinet environment, and follow the manufacturer’s electrical safety procedures. Record relevant system configuration details to support future troubleshooting and replacement planning.

Conclusion

The Siemens 6SN1146-1BB00-0EA0 SIMODRIVE 611 Infeed/Regenerative Feedback Module is a high-power drive-system component rated at 80/104 kW and designed for regulated infeed operation with external cooling. It supplies the drive-system DC link and supports regenerative energy feedback in compatible multi-axis servo and spindle applications.

For CNC machinery and legacy industrial motion-control systems, correct model identification and system-level compatibility checks are essential. Verifying the electrical ratings, cooling arrangement, connected drive modules, and physical dimensions can help ensure that the module is suitable for the intended installation and maintenance requirements.
