Product Overview

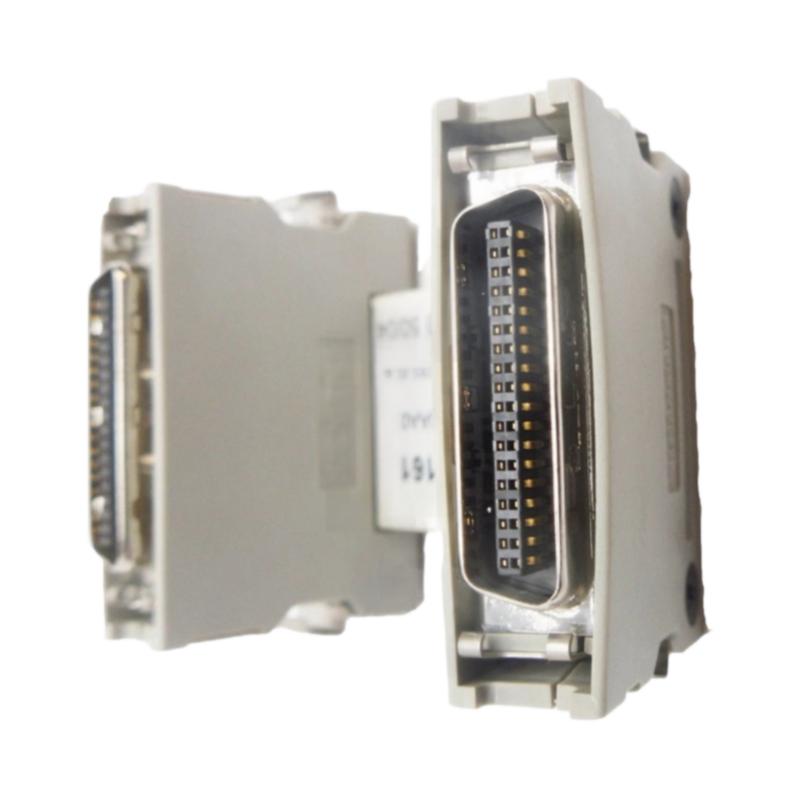

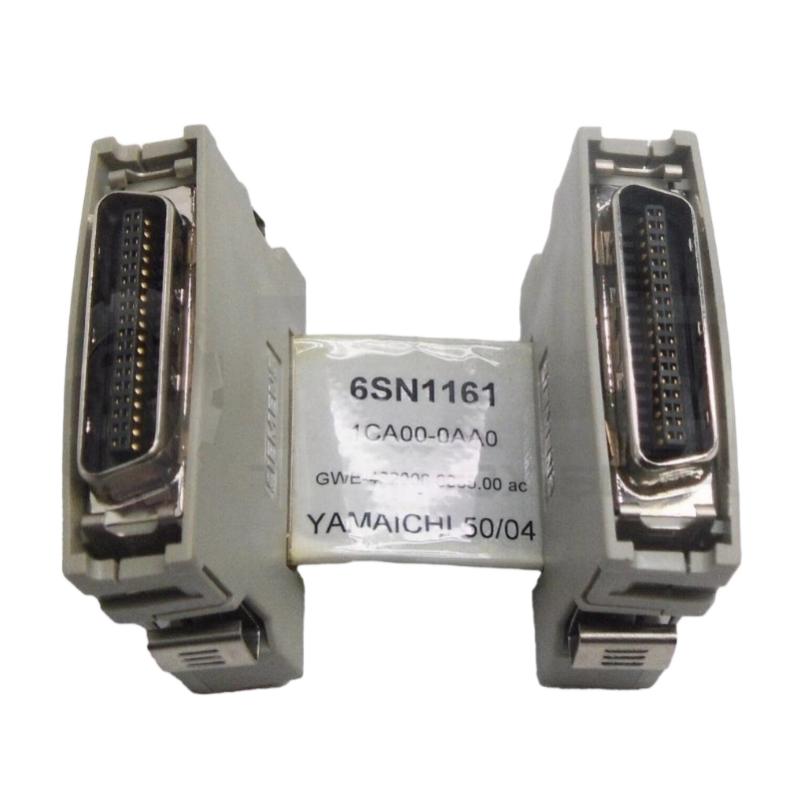

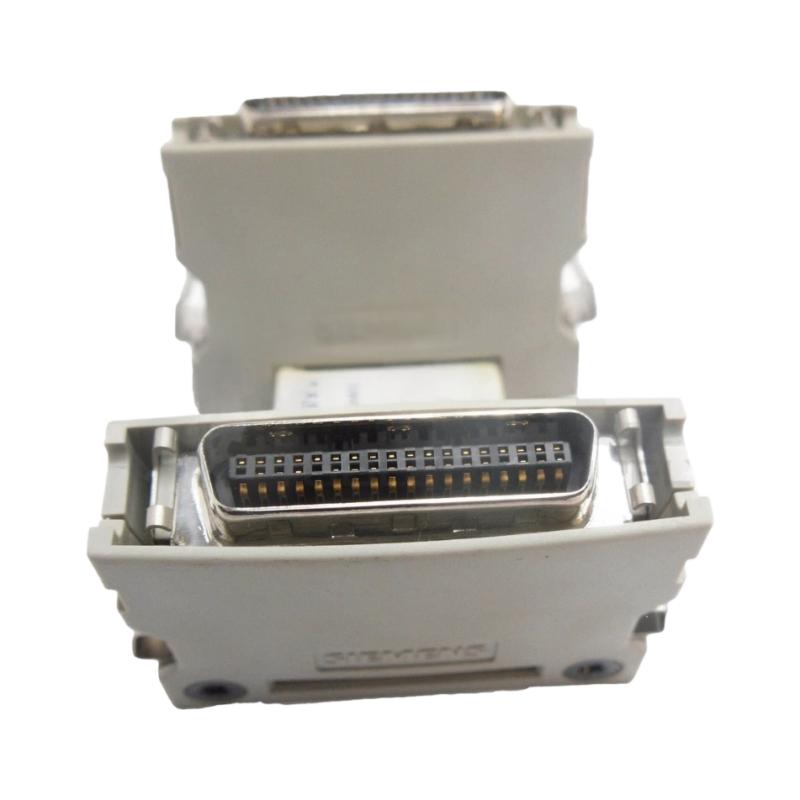

The Siemens 6SN1161-1CA00-0AA0 Drive Bus Cable is a dedicated interconnection cable designed for Siemens SIMODRIVE 611-D digital drive systems. It provides a drive bus connection between compatible modules, supporting the control and communication functions required in industrial motion-control and CNC automation installations.

In a modular drive system, reliable communication between control components and drive modules is essential for coordinated motor operation. The drive bus cable forms part of this interconnection architecture, allowing compatible components to exchange the information required by the system’s digital control interface.

Unlike a standard electrical cable, a dedicated drive bus cable is designed for a specific equipment family and module arrangement. Its connector configuration, cable construction, length, and intended module width must match the system design. Selecting the correct cable is therefore important when installing, maintaining, or replacing components in an existing SIMODRIVE 611-D cabinet.

The 6SN1161-1CA00-0AA0 is identified as a SIMODRIVE 611-D drive bus cable for a module width of 50 mm. The suffix configuration identifies the ribbon-cable version. It is particularly relevant to industrial maintenance teams working with legacy Siemens CNC and drive installations where preserving the original module arrangement and connection design is important.

This cable is a connection component rather than an active electronic module. It does not independently perform motor control, generate drive power, or execute positioning commands. Instead, it supports the communication architecture of the larger drive system.

For procurement, the complete Siemens order number should be checked against the installed cable and the relevant system documentation. Similar SIMODRIVE cable part numbers may be intended for different module widths, cable constructions, or connection arrangements.

Technical Specifications

Note: The dimensions and weight above are the supplied listing values. Verify the actual cable, connector arrangement, and packaging dimensions before finalizing a product listing or shipping specification.

Function and Working Principle

The Siemens 6SN1161-1CA00-0AA0 supports the drive bus connection used in compatible SIMODRIVE 611-D installations. Its primary function is to provide a suitable physical communication link between designated components in the drive system.

1. Drive Bus Communication

Digital drive systems rely on communication links to exchange control information between their associated components. Depending on the overall configuration, this information can include commands, operating states, and data used by the drive-control architecture.

The 6SN1161-1CA00-0AA0 provides the cable connection required by the designated system arrangement. It does not process the communication data itself; that function is performed by the connected control and drive electronics.

2. Connection Between Compatible Modules

SIMODRIVE 611-D systems use modular hardware arrangements. The correct interconnection cable helps establish the intended relationship between the relevant modules.

The 50 mm module-width designation is an important selection parameter. A cable intended for a different module width may not provide the appropriate physical connection or cable routing for the installation.

Before fitting a replacement, compare the existing cable’s order number, connector orientation, cable construction, and installation position with the system documentation.

3. Support for Digital Motion Control

Industrial CNC and motion-control systems require coordinated operation between control electronics and drive hardware. A correctly installed drive bus cable helps maintain the communication path needed for the configured system to operate.

The cable does not independently regulate motor speed, control torque, or determine axis position. Those functions depend on the drive electronics, control units, feedback devices, and application software.

4. Reliable Signal Transmission

A purpose-designed interconnection cable provides the physical connection expected by its intended equipment. Correct routing and installation help avoid unnecessary strain, connector damage, and interference-related problems.

Reliable communication depends on the entire connection arrangement, including the cable, connectors, grounding practices where applicable, module condition, and system configuration.

Role in Industrial Control Systems

The 6SN1161-1CA00-0AA0 can play an important supporting role in industrial automation installations based on the Siemens SIMODRIVE 611-D platform.

CNC Machine Tool Systems

Computer numerical control systems coordinate machine axes according to programmed movements. The drive bus cable supports the connection architecture between compatible drive-system components used in such installations.

A correctly connected drive system helps the control architecture communicate with the relevant hardware. However, machine accuracy and motion performance also depend on the controller, drive modules, motor feedback, mechanical transmission, and machine calibration.

Modular Servo Drive Systems

SIMODRIVE 611-D is a modular drive platform used in industrial motion-control applications. The drive bus cable supports the required interconnection within compatible module arrangements.

When maintaining a modular drive cabinet, technicians should confirm that each cable corresponds to the intended module position and width. Incorrect routing or an incompatible cable can prevent the system from being assembled according to its original design.

Control Unit and Drive Module Coordination

Drive systems may contain control units, power modules, and other supporting components. Their interconnections must follow the manufacturer’s configuration rules.

The 6SN1161-1CA00-0AA0 should be treated as a system-specific cable rather than a universal communication lead. Its use should be based on the applicable SIMODRIVE documentation and the actual hardware configuration.

Legacy Equipment Maintenance

Many industrial facilities continue to operate established CNC machines and production equipment. When an original drive bus cable becomes damaged, an exact replacement can help preserve the existing system architecture.

Accurate part-number identification is particularly important in older installations, where visually similar cables may have different electrical or mechanical specifications.

Industrial Applications

1. CNC Machine Tools

CNC machines depend on coordinated communication between their control system and drive electronics. The 6SN1161-1CA00-0AA0 may be used in compatible SIMODRIVE 611-D installations to provide the required drive bus interconnection.

Potential applications include machining centers, milling machines, turning equipment, and other machine tools that use the corresponding Siemens drive platform.

The exact cable position and system compatibility must be confirmed from the machine’s electrical drawings.

2. Industrial Servo Motion Systems

Servo drive systems coordinate motor operation according to commands from the motion controller. A suitable drive bus cable supports the communication infrastructure connecting the relevant control and drive components.

Its use is particularly important when maintaining an existing modular installation where the original cable arrangement must be preserved.

3. Automated Manufacturing Equipment

Automated manufacturing equipment may contain multiple controlled axes, synchronized mechanical movements, and coordinated production sequences.

Within a compatible SIMODRIVE system, the drive bus cable provides a connection required by the drive architecture. System performance depends on the correct installation of all related control, drive, feedback, and mechanical components.

4. Industrial Machinery Retrofits

During machinery refurbishment, maintenance engineers may replace damaged cables while retaining the original drive platform. Using the correct cable helps reduce the risk of incompatible connections and unnecessary changes to the cabinet layout.

Before completing a retrofit, verify the cable order number, module width, connector type, routing, and compatibility with the installed hardware.

5. Spare Parts for Legacy Siemens Systems

The cable is relevant to spare-parts inventories supporting older Siemens SIMODRIVE installations. Keeping accurately identified cables available can help maintenance teams respond to cable damage and reduce delays associated with sourcing specialized components.

Because cable part numbers can differ by configuration, inventory records should include the complete order number rather than a generic description such as “Siemens drive cable.”

Installation and System Integration

Correct installation is essential for reliable drive bus communication and for preserving the intended SIMODRIVE system arrangement.

1. Verify the Complete Order Number

Before installation, confirm that the existing cable or system documentation specifies 6SN1161-1CA00-0AA0.

Do not select a replacement based only on the Siemens brand or the general description “drive bus cable.” Related part numbers may be intended for different module widths or cable constructions.

2. Confirm Module Width and Cable Type

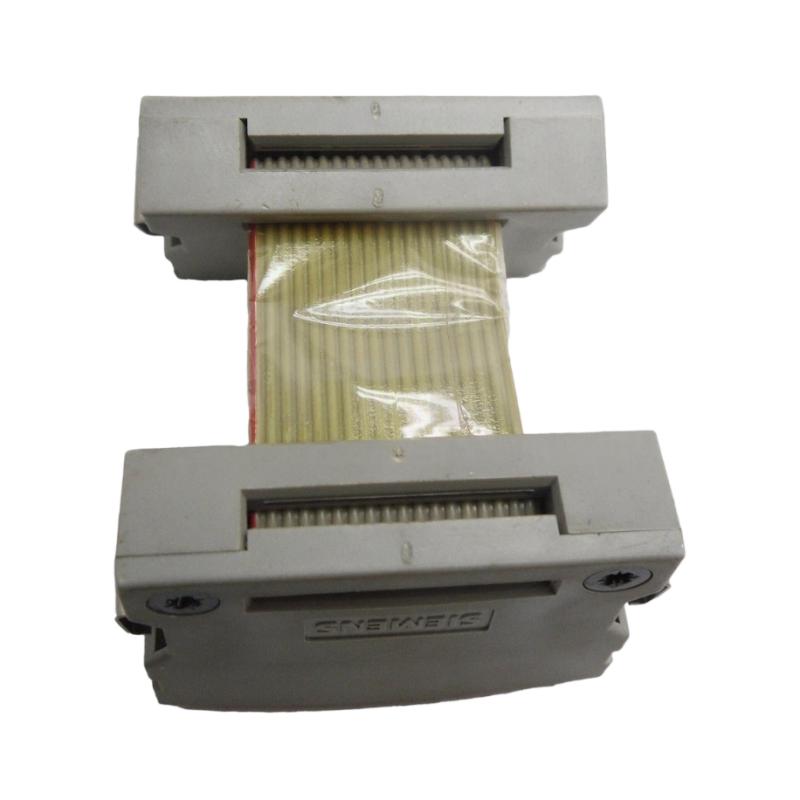

This model is designated for a module width of 50 mm and uses ribbon-cable construction.

Check the module arrangement, connector locations, and routing requirements before fitting the cable. If the original installation uses a round cable or a different module-width designation, verify the correct replacement number rather than assuming interchangeability.

3. Inspect Connectors and Cable Condition

Before installation, examine the cable for damaged conductors, worn insulation, bent connector contacts, contamination, or signs of mechanical stress.

The connectors should align with their intended mating interfaces without excessive force. A cable that appears physically similar may still be incompatible with the installed components.

4. Follow Electrical Safety Procedures

Before opening the drive cabinet or handling interconnection cables, follow the machine’s isolation and lockout procedures. Ensure that hazardous electrical energy has been removed in accordance with the applicable service instructions.

Do not disconnect or reconnect the cable while the system is energized unless the manufacturer explicitly permits the operation under the specific conditions.

5. Route the Cable Correctly

Route the cable according to the original cabinet layout and the manufacturer’s instructions. Avoid sharp bends, excessive pulling force, crushing, and unnecessary mechanical tension.

Keep the cable away from potential sources of damage and observe any applicable separation or routing requirements for drive-system wiring.

6. Verify the System After Installation

After installing the replacement cable, inspect the connection and confirm that all relevant modules are seated and secured correctly.

Restore power according to the approved commissioning procedure and check for drive-system alarms or communication faults. If a fault remains, inspect the complete connection path, module configuration, and relevant diagnostics rather than immediately assuming that the new cable is defective.

Compatible System Components

The 6SN1161-1CA00-0AA0 is intended for use within a compatible SIMODRIVE 611-D installation. The following components describe the surrounding system architecture rather than a guaranteed list of items supplied with the cable.

Not every SIMODRIVE installation uses the same combination of components. The machine’s electrical drawings and system documentation should determine the required connections.

Alternative Models and Replacement Considerations

The 6SN1161-1CA00-0AA0 should be replaced with the same part number whenever possible. If the original cable is unavailable, an alternative must be verified against the exact system configuration.

These related models illustrate why complete part-number verification matters. A different suffix or module-width designation can indicate a different physical configuration. Use the manufacturer’s documentation to confirm any proposed substitution.

Key Advantages

Purpose-Designed System Connection

The cable is intended for the SIMODRIVE 611-D drive bus architecture, supporting the interconnection requirements of compatible equipment.

Defined Module-Width Application

The 50 mm module-width designation helps identify the intended cable configuration when selecting spare parts for a modular drive cabinet.

Ribbon-Cable Construction

The specified ribbon-cable design is suitable for the corresponding installation arrangement and should be retained where required by the original system configuration.

Support for Legacy Equipment

The cable is relevant to maintenance and refurbishment projects involving existing Siemens SIMODRIVE 611-D installations.

Simplified Spare-Part Identification

Using the complete order number helps distinguish this cable from related models with different widths or cable constructions.

Integration with Industrial Motion-Control Systems

When installed correctly, the cable supports the physical communication path required by compatible drive-system components.

Technical FAQs

1. What is the Siemens 6SN1161-1CA00-0AA0?

It is a SIMODRIVE 611-D drive bus cable designed for a 50 mm module-width configuration. It provides a dedicated interconnection for compatible industrial drive-system components.

2. What is the primary function of this cable?

Its main function is to support the drive bus connection used for control and communication in compatible SIMODRIVE 611-D systems. It is a passive cable, not an active drive or controller.

3. Is the 6SN1161-1CA00-0AA0 a ribbon cable or a round cable?

The 0AA0 version is identified as a ribbon cable. The related 0AA1 version is designated as a round cable for the same nominal module width.

4. What module width is this cable designed for?

It is specified for a module width of 50 mm. Confirm the installed module arrangement before ordering or installing a replacement.

5. Can this cable be used with any Siemens drive?

No. It is a system-specific component intended for compatible SIMODRIVE 611-D configurations. Compatibility with other Siemens drive families should not be assumed.

6. Can I replace it with 6SN1161-1CA00-0AA1?

Not automatically. The 0AA1 version uses round-cable construction, whereas the 0AA0 version is a ribbon cable. The correct choice depends on the equipment configuration and manufacturer’s documentation.

7. What should I check before purchasing this cable?

Verify the complete order number, module-width requirement, cable construction, connector arrangement, physical condition, and supplier’s product identification. For critical equipment, confirm compatibility against the original system documentation.

8. What are the listed dimensions and weight?

The supplied product data lists dimensions of 63 × 63 × 38 mm and a weight of 0.036 kg. Confirm whether these dimensions refer to the cable itself or its packaging before using them for cabinet layout or shipping calculations.

9. What can cause drive bus communication problems?

Possible causes include a damaged cable, improperly seated connectors, incompatible cable configuration, a faulty connected module, or another system-level problem. Check the cable and the associated drive diagnostics before replacing additional components.

10. Is this cable suitable for maintaining older CNC equipment?

It may be suitable where the installed machine uses the corresponding SIMODRIVE 611-D configuration. Verify the original part number and system requirements before purchasing, especially when maintaining legacy equipment.

Procurement and Maintenance Recommendations

When sourcing the Siemens 6SN1161-1CA00-0AA0, prioritize exact part-number matching. Record the complete order number, module-width requirement, ribbon-cable construction, and relevant machine or drive-system information.

For used, refurbished, or surplus stock, request clear photographs of the cable and connectors. Inspect the cable for damage, deformation, contamination, and signs of improper storage. Confirm whether the quoted dimensions and weight refer to the cable or its shipping package.

During maintenance, avoid pulling on the cable conductors or forcing connectors into position. Follow the applicable electrical isolation procedures before working inside the drive cabinet, and inspect related connections if communication faults occur after replacement.

For inventory management, distinguish the 50 mm ribbon-cable version from related round-cable and wider-module versions. Keeping accurate part-number records helps reduce procurement errors and supports faster maintenance response.

Conclusion

The Siemens 6SN1161-1CA00-0AA0 Drive Bus Cable is a dedicated interconnection component for compatible SIMODRIVE 611-D digital drive systems. Designed for a 50 mm module-width configuration, it uses ribbon-cable construction to support the drive bus connection required by the intended equipment arrangement.

For industrial CNC maintenance, drive-system servicing, and legacy equipment refurbishment, correct cable identification is essential. Verifying the complete order number, module width, cable construction, and connector arrangement helps ensure that the replacement matches the original installation and supports reliable system integration.
