Product Overview

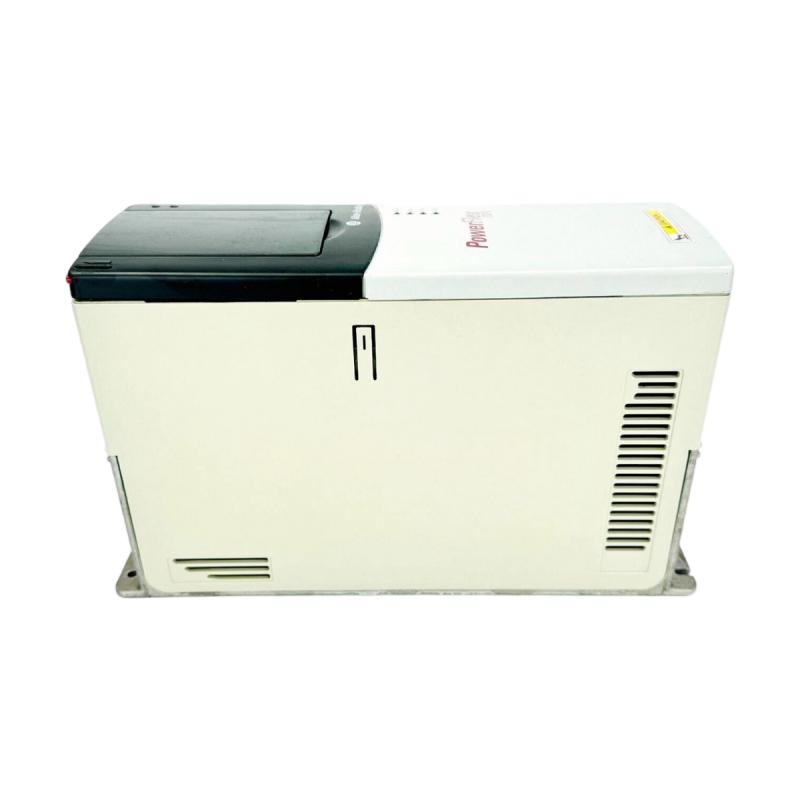

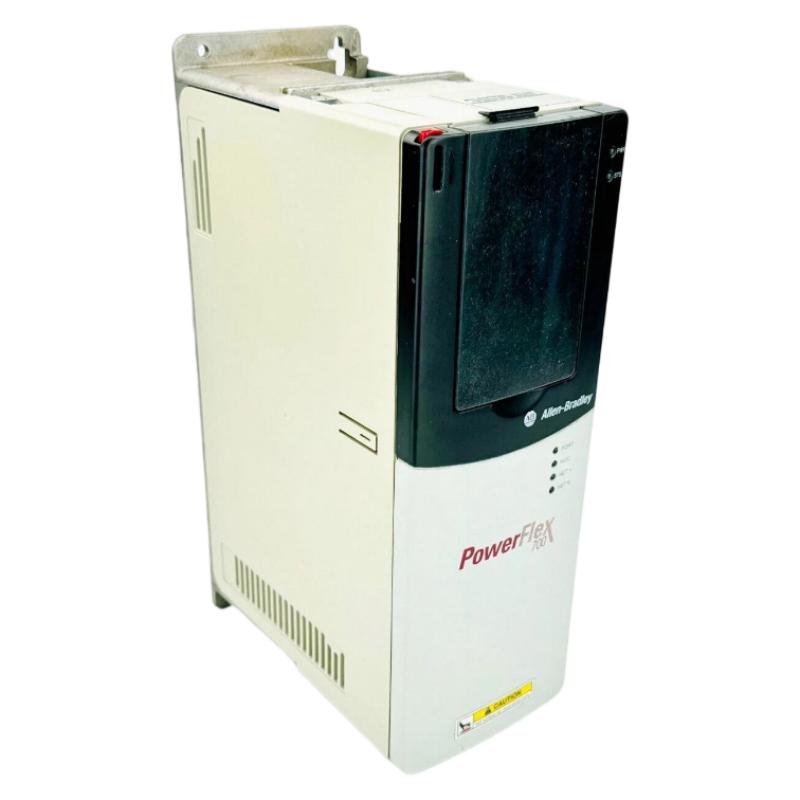

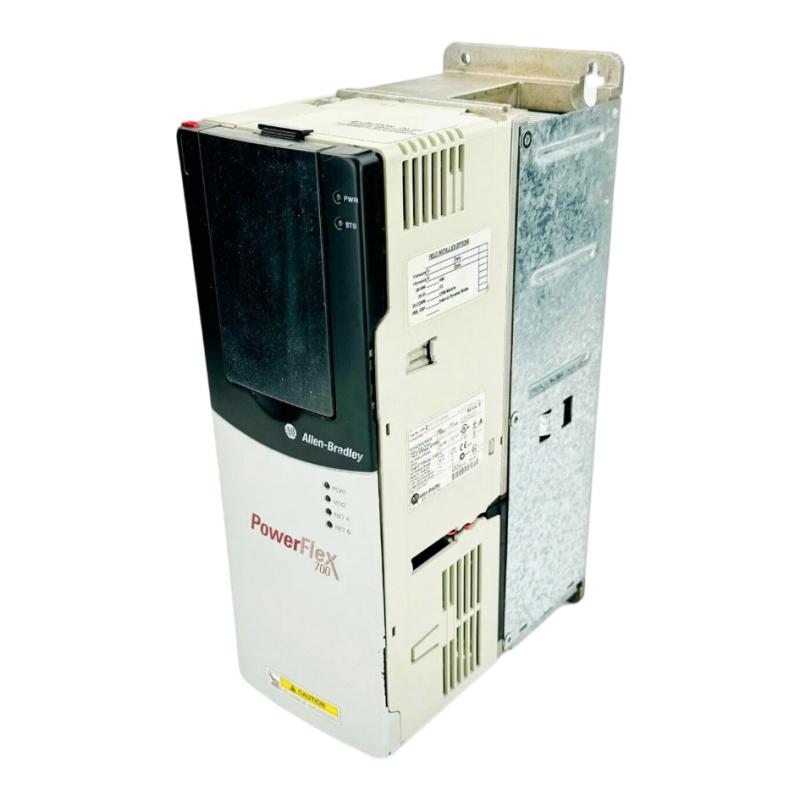

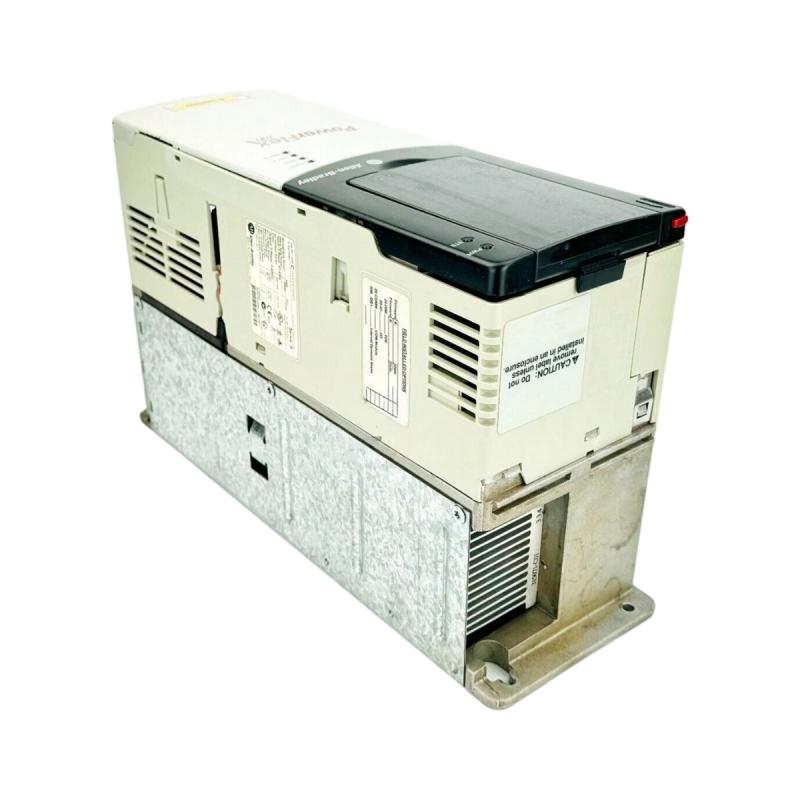

The Allen-Bradley 20BC1P3A0AYNANC0 PowerFlex 700 AC Drive is an adjustable-frequency drive designed for controlling the speed and operation of three-phase AC motors in industrial automation systems. Manufactured by Allen-Bradley, a product brand of Rockwell Automation, this drive belongs to the PowerFlex 700 family, which was developed for applications requiring flexible motor control, configurable operating parameters, and integration with industrial control equipment.

Variable frequency drives regulate motor speed by adjusting the frequency and voltage supplied to the motor. This allows industrial equipment to operate at speeds appropriate for the production process rather than running continuously at a fixed speed. Depending on the application, variable-speed control can help improve process stability, reduce mechanical stress, and support more efficient equipment operation.

The 20BC1P3A0AYNANC0 is a 400 V AC, three-phase model with a continuous output current rating of 1.3 A. Its published power ratings are 0.37 kW for normal-duty applications and 0.25 kW for heavy-duty applications. These ratings make it relevant to appropriately sized motors used in small industrial machines, auxiliary equipment, and compact process-control installations.

This catalog number identifies a particular configuration of the PowerFlex 700 drive. Its documented features include vector control with 24 V DC I/O, a blank human-interface module position, an installed braking IGBT, and an EMC filter with a common-mode choke. The configuration does not include an internal braking resistor, an internal communication module, or a feedback option.

Because these configuration details affect installation and operation, the complete catalog number should be checked before ordering a replacement. A drive with a similar appearance or power rating may have different control interfaces, braking hardware, filtering, or communication capabilities.

Technical Specifications

Note: Dimensions and weight above are the supplied listing values. Verify the actual unit, packaging configuration, and manufacturer’s dimensional data before finalizing shipping or panel-layout calculations.

Function and Working Principle

The PowerFlex 700 AC drive controls motor operation by converting incoming electrical power into a controlled output suitable for a three-phase AC motor. Its power-conversion and control functions allow the motor to accelerate, operate at a commanded speed, and decelerate according to programmed settings.

1. Variable-Frequency Motor Control

Motor speed is closely related to the frequency of the electrical supply and the motor’s design. By varying the output frequency, the drive can adjust motor speed to match changing process requirements.

For example, a conveyor may need to run slowly while products are being positioned and faster during normal transportation. A variable frequency drive can provide the required speed commands without relying entirely on mechanical speed-reduction devices.

The actual operating range depends on the motor, drive parameters, load characteristics, cooling requirements, and application design.

2. Vector Control

The 20BC1P3A0AYNANC0 configuration is specified with vector control. This control method provides more sophisticated management of motor operation than a basic frequency-only control approach.

When correctly configured for the connected motor, vector control can support improved torque response and speed regulation. These characteristics are useful when the load changes during operation or when a machine requires predictable acceleration and deceleration.

Performance depends on correct motor data, tuning, control settings, and the characteristics of the driven equipment.

3. Acceleration and Deceleration Management

The drive supports programmable acceleration and deceleration times. These parameters determine how quickly the motor moves between operating speeds.

Appropriate ramp settings can help reduce abrupt mechanical movement, limit unnecessary stress on couplings and belts, and improve the handling of products on automated production lines.

The ramp settings must be selected according to the load’s inertia, the process requirements, and the drive’s electrical limits. Extremely short deceleration times may also cause DC bus overvoltage if the application regenerates energy and the installed braking arrangement cannot dissipate it adequately.

4. Electronic Protection and Monitoring

PowerFlex 700 drives include protection and diagnostic functions intended to help manage operating conditions and identify faults. Depending on the configured application, relevant conditions may include overcurrent, bus voltage abnormalities, motor overload, and drive temperature.

Correct parameter setup and wiring are essential for these functions to work as intended. Protection provided by the drive does not eliminate the need for correctly rated upstream protective devices, suitable grounding, and application-specific electrical safeguards.

Role in Industrial Control Systems

The 20BC1P3A0AYNANC0 can operate as a motor-control device within a broader industrial automation system. It typically sits between the incoming electrical supply and the motor, while receiving operating commands and providing status information through its configured control interfaces.

PLC Integration

A programmable logic controller can coordinate motor operation with sensors, actuators, interlocks, and other machine components. In a suitable installation, PLC logic can command the drive to start or stop, select an operating speed, or respond to process conditions.

The exact control method depends on the available I/O, the drive configuration, and the machine’s electrical design. Since this model is specified with 24 V I/O and no internal communication module, engineers should not assume that a network connection is available without checking the installed hardware.

HMI and Operator Control

A human-machine interface can provide operators with a central place to monitor process conditions and control equipment. Depending on the system design, the HMI may communicate with a PLC that manages the drive, rather than connecting directly to the drive.

The specified model has a blank HIM position and no installed local human-interface module. Therefore, commissioning and maintenance personnel should verify which local programming or operator-access method is supported by the installed configuration.

Motor and Process Coordination

The drive can be used as part of a coordinated machine-control strategy. For example, a PLC may adjust conveyor speed based on upstream product flow, or regulate a pump motor in response to process demand.

The benefit comes from combining appropriate motor control with correct sensing, interlocking, and process logic. The drive alone does not replace the PLC or the broader machine-control system.

Industrial Applications

The PowerFlex 700 series is designed for industrial motor-control duties. The 20BC1P3A0AYNANC0’s low current and power ratings make it suitable only for applications whose motor requirements fall within its published electrical ratings.

1. Conveyor Systems

Conveyors often require controlled starting, stopping, and speed adjustment. A correctly sized drive can help synchronize material movement with packaging equipment, inspection stations, or downstream processing machines.

For this particular model, motor current, starting torque, conveyor inertia, and braking requirements must be checked carefully before selection.

2. Small Pumps

Some industrial auxiliary pumps require variable-speed operation to match changing flow demands. A compatible drive can regulate pump speed and help reduce unnecessary throttling in suitable systems.

The pump’s minimum operating speed, fluid characteristics, motor cooling, and required pressure must be evaluated before configuring the drive.

3. Fans and Ventilation Equipment

Small fans and ventilation motors may benefit from adjustable-speed operation where airflow requirements vary over time. Reducing motor speed can reduce energy consumption in suitable fan applications.

The drive must be matched to the motor’s electrical ratings and the fan’s load characteristics. Ventilation requirements for the drive enclosure must also be maintained.

4. Packaging and Assembly Machines

Packaging lines and assembly equipment may use small motors for feeding, positioning, or auxiliary motion. Adjustable-speed control can help coordinate equipment movement with the production sequence.

Where precise positioning or closed-loop speed regulation is required, engineers should confirm whether the available control method and lack of a feedback option meet the application’s performance requirements.

5. General Industrial Machinery

The drive may be considered for compatible auxiliary motors in manufacturing facilities, material-handling equipment, and process machinery. Suitability should be assessed against motor nameplate data, duty cycle, environmental conditions, and the required control functions.

The 0.37 kW normal-duty and 0.25 kW heavy-duty ratings should be treated as selection limits, not merely descriptive values.

Installation and System Integration

Correct installation is important for electrical safety, drive reliability, and stable motor operation.

1. Verify Electrical Compatibility

Before installation, confirm that the incoming supply matches the drive’s specified 400 V AC, three-phase rating. Check the supply frequency, motor voltage, motor rated current, and protective-device requirements.

Do not select the drive solely from the motor’s kilowatt rating. Motor current, overload requirements, load inertia, and operating duty also affect selection.

2. Confirm Panel Space and Mounting

The supplied dimensions are 336 × 200 × 110 mm. These values should be verified against the exact hardware and the manufacturer’s dimensional drawing before designing the panel.

Allow the clearances required for airflow, wiring access, maintenance, and heat dissipation. Avoid installing the drive where dust, conductive debris, moisture, or corrosive contaminants could compromise its operation.

The IP20 rating does not provide protection against water ingress and should not be treated as a sealed enclosure rating. Where environmental protection is necessary, use a suitable cabinet or enclosure designed for the installation conditions.

3. Check Wiring and Grounding

Power wiring, motor wiring, control wiring, and grounding should follow the applicable installation instructions and local electrical codes. Keep sensitive control wiring separated from power conductors where required to reduce electrical interference.

Use appropriately rated conductors and protective devices. Before connecting or disconnecting components, isolate the supply and follow the required lockout and verification procedures.

4. Configure Motor Parameters

Enter the correct motor nameplate information and configure the control method, acceleration and deceleration times, command sources, and applicable protection settings.

For vector-control operation, follow the manufacturer’s motor setup and tuning procedures. Incorrect motor parameters can result in poor speed regulation, inadequate torque response, or nuisance trips.

5. Verify Braking Requirements

This model has a braking IGBT installed but does not include an internal braking resistor. These are different functions: the IGBT is a switching component used in a braking circuit, while a resistor may be needed to dissipate regenerated energy.

If the application requires rapid deceleration or regularly drives a high-inertia load, engineers should determine whether an appropriate external braking resistor or another braking arrangement is required. Compatibility, resistor sizing, duty cycle, wiring, and protection must be checked against the manufacturer’s documentation.

6. Test Before Returning to Service

After installation, inspect all connections, confirm the grounding arrangement, and verify that the motor can rotate safely. Test start and stop commands, direction, speed references, acceleration and deceleration, interlocks, and fault responses.

Document the final parameters so that maintenance personnel can restore the intended configuration if the drive is replaced or reset.

Compatible System Components

The 20BC1P3A0AYNANC0 is intended to work within a properly engineered motor-control installation. Compatibility depends on electrical ratings, hardware configuration, and the control strategy.

The presence of a component in this table does not mean it is automatically included with the drive. Confirm the bill of materials and the installed configuration before ordering accessories.

Alternative Models and Replacement Considerations

The PowerFlex 700 20B family has been discontinued. When maintaining an existing installation, a replacement should be selected based on both electrical performance and the original configuration.

Before replacing the drive, compare the following:

• Input voltage and phase configuration.
• Continuous output current and overload capability.
• Motor power and duty classification.
• Vector-control and speed-regulation requirements.
• Control I/O voltage and signal assignments.
• Communication and feedback requirements.
• Braking IGBT and resistor arrangements.
• Mounting dimensions, ventilation, and wiring access.
• PLC program, parameter settings, and commissioning requirements.

A replacement with a higher power rating is not necessarily a direct substitute. Changes to terminal assignments, protection settings, control interfaces, or braking arrangements may require engineering modifications.

Key Advantages

Adjustable Motor Speed

The drive enables speed control for compatible three-phase motors, supporting production processes that require more than fixed-speed operation.

Vector-Control Capability

Its specified vector-control configuration can provide improved motor response when correctly matched and configured for the application.

Configurable Acceleration and Deceleration

Programmable ramps help engineers adapt motor starts and stops to the mechanical and process requirements of the machine.

Integrated Braking IGBT

The installed braking IGBT provides a braking-circuit capability, although the application may require additional braking hardware.

EMC Filtering

The configured EMC filter with common-mode choke supports electromagnetic compatibility when installed and wired according to the manufacturer’s instructions.

Industrial Control Integration

The drive can form part of a PLC-based motor-control system using the available 24 V I/O and a suitable control architecture.

Established Installed Base

The PowerFlex 700 series is found in legacy industrial installations. Replacement and maintenance projects may therefore require accurate identification of the original catalog number and configuration.

Technical FAQs

1. What is the Allen-Bradley 20BC1P3A0AYNANC0?

It is a PowerFlex 700 AC drive designed for variable-speed control of compatible three-phase AC motors. Its catalog number identifies a 400 V AC model with a 1.3 A continuous output rating and a specific set of control and braking features.

2. What is the rated power of this drive?

The documented rating is 0.37 kW for normal duty and 0.25 kW for heavy duty. The correct rating depends on the application and its overload requirements.

3. What input voltage does the 20BC1P3A0AYNANC0 use?

Its nominal input rating is 400 V AC, three-phase, at 50 Hz. Verify the actual drive nameplate and installation documentation before connecting power.

4. Does this model include a braking resistor?

No. The specified configuration has a braking IGBT installed but does not include an internal braking resistor. An external resistor may be required for applications that need braking-energy dissipation.

5. Does it have a built-in communication module?

No internal communication module is included in the specified configuration. Confirm the required control interface before planning PLC integration.

6. Can it work with a PLC?

Yes, it can be incorporated into an appropriate PLC-based control system. The design must account for its 24 V I/O configuration and the absence of an internal communication module. The exact wiring and command method depend on the application.

7. Is the 20BC1P3A0AYNANC0 still in production?

The PowerFlex 700 20B family was discontinued on November 30, 2023. Availability of this specific catalog number should be checked with suppliers, and any replacement should be reviewed for technical compatibility.

8. Can I replace it with another PowerFlex 700 model?

Not without checking the full catalog number and ratings. Models within the same family can differ in voltage, current, power, control mode, I/O, braking hardware, filtering, and communication options.

9. What should be checked before purchasing a used unit?

Confirm the complete catalog number, series, nameplate ratings, physical condition, terminal condition, cooling fan operation, fault history where available, and any included accessories. For critical equipment, request a suitable functional test and confirm the return or warranty terms.

10. Why is the supplied weight different from the manufacturer’s listing?

The supplied weight of 5.22 kg differs from the approximately 8.16 kg figure published for the related manufacturer-listed configuration, which is identified as drive-and-packaging weight. Differences may arise from measurement method, packaging, or a mismatch in product data. Confirm the exact unit and weighing basis before using the figure for logistics.

Procurement and Maintenance Recommendations

Because the PowerFlex 700 20B family is discontinued, procurement should begin with exact model identification rather than a search based only on the product family name.

When sourcing the 20BC1P3A0AYNANC0, verify the complete catalog number and compare it with the label on the installed drive. Confirm the voltage rating, current rating, control configuration, braking hardware, EMC filter, and I/O arrangement. A visually similar drive may not provide the same functions.

For used or surplus equipment, request clear photographs of the nameplate and terminals, details of the unit’s condition, and available test information. Confirm whether the drive is supplied as a standalone unit or with accessories. Shipping dimensions and weight should be verified separately from the drive’s nominal dimensions.

For maintenance, keep the drive clean and ensure cooling airflow is not obstructed. Inspect fans, terminals, wiring, grounding, and the cabinet environment according to the applicable maintenance schedule. Back up parameter settings and document changes after commissioning or troubleshooting.

When planning a replacement, assess whether the existing motor, PLC logic, control wiring, and braking arrangement can be retained. A newer drive may require parameter conversion, wiring changes, software updates, or a new commissioning procedure.

Conclusion

The Allen-Bradley 20BC1P3A0AYNANC0 PowerFlex 700 AC Drive is a 400 V AC, three-phase variable-speed drive with a 1.3 A continuous output rating, 0.37 kW normal-duty rating, and 0.25 kW heavy-duty rating. Its specified configuration includes vector control with 24 V I/O, an installed braking IGBT, and EMC filtering, while omitting an internal braking resistor, communication module, and feedback option.

For industrial maintenance and replacement projects, accurate catalog-number verification is essential. Since the PowerFlex 700 20B family is discontinued, buyers and engineers should check the actual unit’s condition, confirm the electrical and control requirements, and carefully evaluate replacement compatibility before returning equipment to service.
