Product Overview

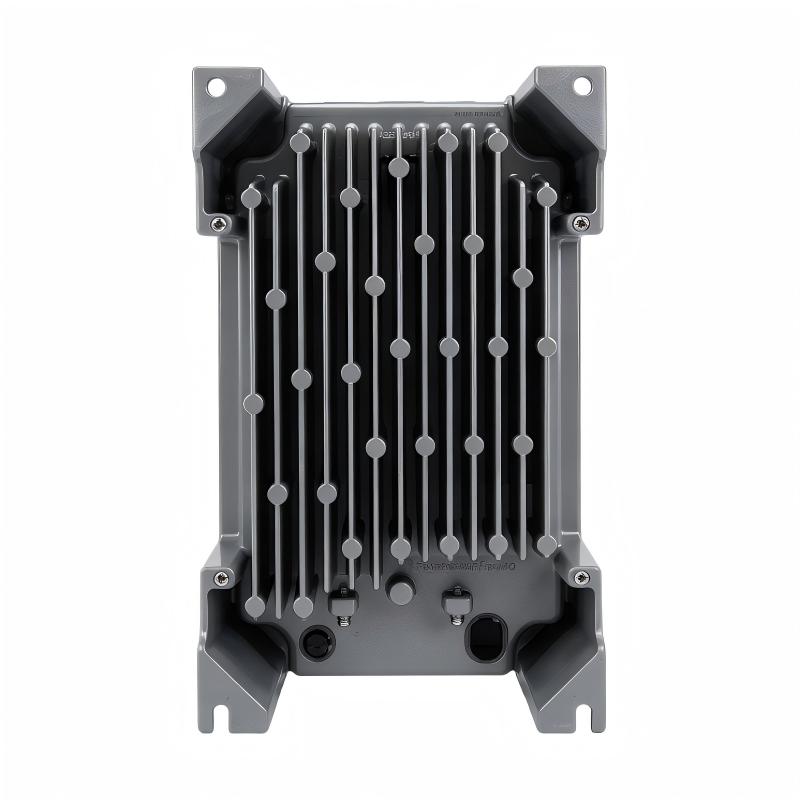

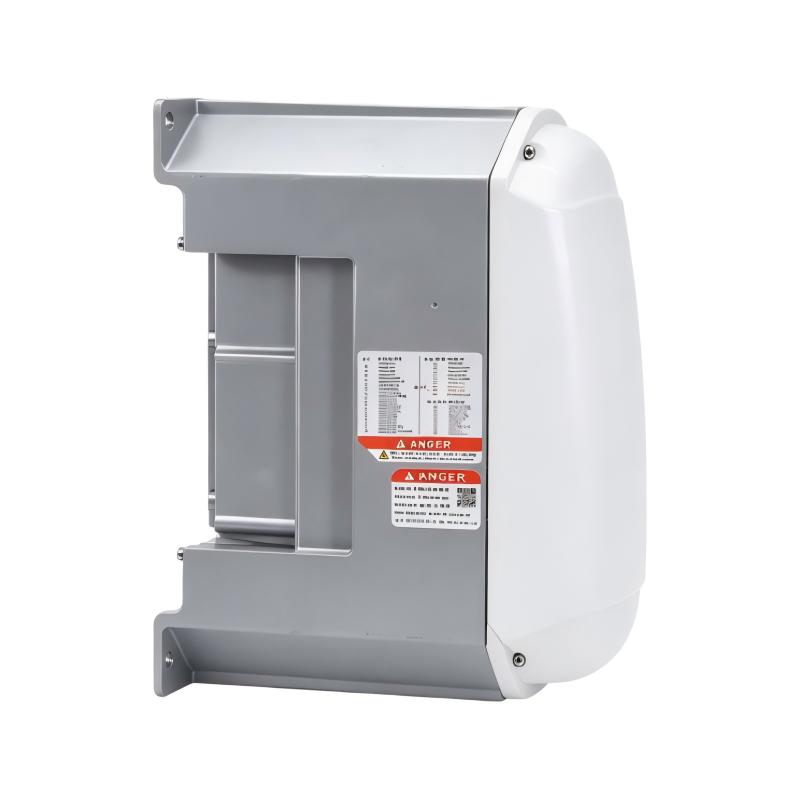

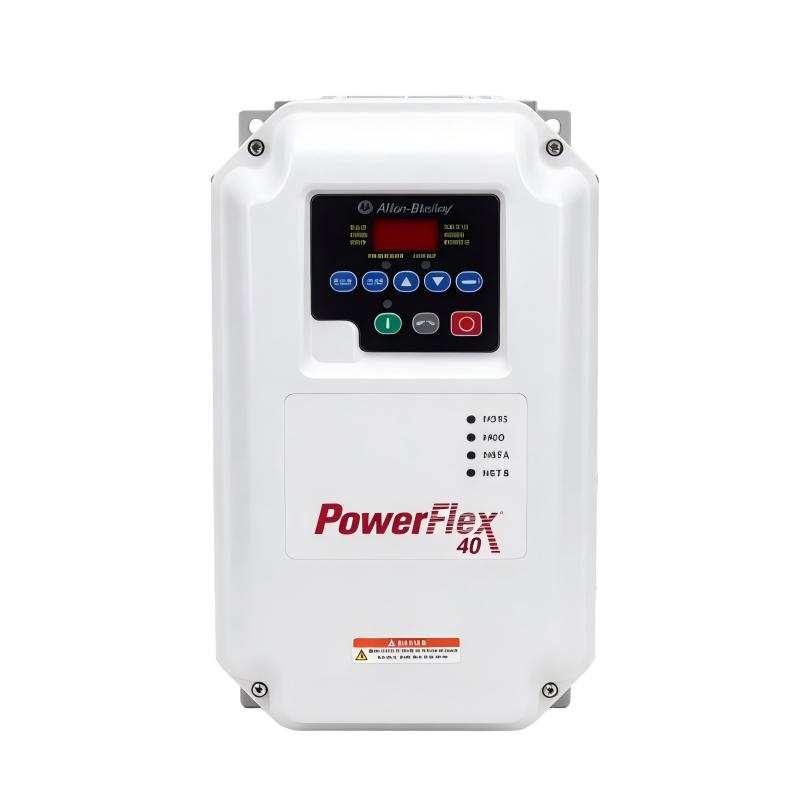

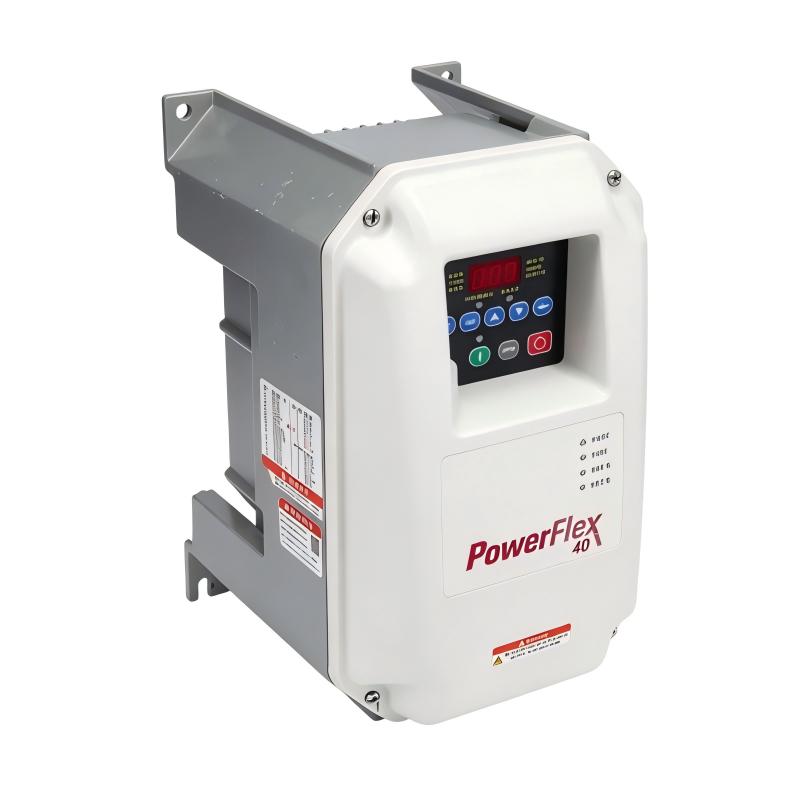

The Allen-Bradley 22B-V5P0C104 PowerFlex 40 AC Drive is a compact variable frequency drive designed for adjustable-speed control of AC motors in industrial machinery and automation applications. Manufactured by Rockwell Automation, this model belongs to the PowerFlex 40 series and is configured for 100–120 V AC single-phase input, a 0.75 kW (1 HP) power rating, and a rated output current of 5.0 A.

A key characteristic of the 22B-V5P0C104 is its IP66-rated enclosure, corresponding to NEMA/UL Type 4X protection. This enclosure configuration makes the drive suitable for appropriately designed installations where resistance to dust and water exposure is important. The exact environmental suitability still depends on installation conditions and the manufacturer’s requirements.

The drive provides variable-frequency motor control, allowing compatible motors to operate at different speeds according to process requirements. It can be used in small conveyors, packaging equipment, pumping systems, fans, and other machinery where the electrical ratings and operating characteristics match the application.

The PowerFlex 40 series incorporates an integral digital keypad and LED display for local configuration and operating information. This model also supports RS-485 communication, enabling integration with compatible control equipment when the required communication protocol and settings are supported.

The 22B-V5P0C104 includes a braking IGBT and does not include a CE-compliant EMC filter in this catalog configuration. These details are important when designing a motor-control panel or replacing an existing drive.

For industrial maintenance teams, machine builders, and automation equipment suppliers, the Allen-Bradley 22B-V5P0C104 provides a compact motor-control option with a more protective enclosure than open-type drive configurations. Correct selection requires checking the supply voltage, motor current, load characteristics, environmental conditions, and communication requirements.

Technical Specifications

Note: Verify the drive nameplate and applicable technical manual before installation. Dimensions, weight, mounting requirements, and electrical ratings should be confirmed against the actual unit and its specific revision.

Function and Working Principle

The primary function of the Allen-Bradley 22B-V5P0C104 is to regulate AC motor speed by controlling the frequency and voltage supplied to a compatible motor. This provides more flexible motor operation than running a motor continuously at a fixed supply frequency.

1. AC Input and Power Conversion

The drive receives single-phase AC power within its specified input range. Its internal rectifier converts the incoming AC supply into DC power, which is managed by an internal DC bus.

The inverter section then converts this DC power into a controlled three-phase AC output. By regulating the output frequency and voltage, the drive can control motor operation according to its configured settings.

Correct supply voltage, grounding, branch circuit protection, and wiring are essential for reliable operation.

2. Variable-Frequency Motor Speed Control

The speed of an AC induction motor is related to the frequency of its electrical supply and the number of motor poles. By adjusting the output frequency, the PowerFlex 40 can regulate the speed of a compatible motor.

This function is useful in machinery where operating speed needs to change according to material flow, production rate, or process demand.

Actual shaft speed also depends on motor slip and mechanical load. Therefore, the required operating range should be determined from the motor specifications and application requirements.

3. Acceleration and Deceleration Control

The drive supports configurable acceleration and deceleration parameters. These settings determine how quickly the motor moves between different operating speeds.

A suitable acceleration ramp can help reduce abrupt mechanical loading during startup. Controlled deceleration can improve stopping behavior when configured for the machine and its load.

The appropriate settings depend on motor characteristics, load inertia, process timing, and braking requirements. Excessively short ramps can trigger drive faults or create unnecessary mechanical stress.

4. Motor Control and Parameter Configuration

The integral digital keypad and LED display provide a local interface for configuration and operating information.

Technicians can configure supported operating parameters, including command sources, speed references, ramp times, and relevant motor settings. The exact available functions depend on the drive configuration and control method.

Correct configuration helps prevent unexpected operation, inadequate motor performance, and avoidable trips.

5. RS-485 Communication

The 22B-V5P0C104 provides an RS-485 communication interface for compatible external control equipment.

Depending on the supported protocol and system configuration, communication may be used to exchange operating commands, speed references, drive status, and diagnostic information.

RS-485 defines an electrical interface rather than a complete communication protocol. Before integrating the drive with a PLC or supervisory controller, confirm protocol compatibility, addressing, wiring, and communication settings.

6. Braking IGBT Function

The drive includes a braking IGBT, which can be part of a dynamic braking arrangement when the application and associated hardware support it.

During deceleration, a motor may return energy to the drive’s DC bus. A compatible braking circuit and correctly selected braking resistor can help dissipate this energy as heat when required.

The presence of a braking IGBT does not necessarily mean that a braking resistor is included. Confirm the required braking components and ratings for the intended application.

Role in Industrial Control Systems

The Allen-Bradley 22B-V5P0C104 operates as the motor-control component between the electrical supply, a compatible AC motor, and the machine’s automation system.

It regulates the motor’s electrical output while receiving commands from an operator interface or compatible external control equipment. The surrounding control system coordinates the motor with the rest of the machine.

Motor Speed Regulation

The drive enables a compatible motor to operate at adjustable speeds. This supports process flexibility in applications where a fixed motor speed is unsuitable.

Controlled Motor Starting

Configurable acceleration can help limit abrupt changes in motor speed and mechanical torque. The actual starting behavior depends on the motor, load, and drive configuration.

Integration with PLC-Based Automation

A PLC can coordinate drive operation with sensors, switches, operator panels, and other industrial devices. Where the required communication protocol is supported, RS-485 can be used for exchanging control and status data.

The PLC typically manages machine sequencing, while the drive performs the motor-control function.

Environmental Protection in Equipment Design

The IP66 / NEMA Type 4X enclosure is a significant feature of this model. It can support installations where protection against dust and water exposure is required, subject to the manufacturer’s specified limits.

The enclosure rating does not eliminate the need for proper mounting, cable entry, grounding, and maintenance practices.

Maintenance and Troubleshooting

The keypad and display provide local access to operating information and supported fault indications. Technicians can use this information to investigate abnormal conditions.

Troubleshooting should include checks of the power supply, motor, wiring, load, environmental conditions, and parameter configuration rather than repeatedly resetting faults without identifying their cause.

Industrial Applications

The 22B-V5P0C104 is designed for applications where its 0.75 kW power rating, 5.0 A output rating, 100–120 V AC single-phase input, and IP66 enclosure meet the installation requirements.

1. Small Conveyor Systems

Small conveyors are used in packaging, product handling, assembly, and material transfer operations.

The drive can regulate conveyor motor speed to suit different production rates. Adjustable speed can also help coordinate product movement between adjacent process stations.

Before selecting the drive, check conveyor load, startup torque, motor current, and the required acceleration and deceleration times.

2. Packaging Machinery

Packaging equipment may use small motors to operate rollers, feed mechanisms, belts, and auxiliary devices.

Variable-frequency control can help adjust operating speed to match production requirements. The drive’s stopping behavior and command configuration should be coordinated with the machine’s sequencing and safety design.

3. Pumping Equipment

Compatible small pumps may use variable-speed operation to adjust flow or pressure according to process demand.

The drive can provide adjustable motor speed when the pump and motor are suitable for this method of control. Pump type, minimum operating speed, cooling, lubrication, and process protection must be considered.

Additional pressure, flow, or dry-run protection may be needed depending on the system.

4. Fans and Ventilation Systems

The drive can regulate the speed of compatible small fan motors. Adjusting fan speed may help match airflow to process requirements and can reduce energy consumption in suitable applications.

Actual energy savings depend on the fan curve, system resistance, operating schedule, and control strategy.

5. Machinery in Demanding Environments

The IP66 / NEMA Type 4X enclosure may make this model relevant to equipment installed in environments where dust and water exposure are a concern.

However, the enclosure rating should not be interpreted as universal suitability for every washdown, chemical, outdoor, or corrosive environment. Confirm the manufacturer’s environmental limitations and the requirements of the specific installation.

6. Compact Industrial Machines

Small mixers, feeders, material-handling mechanisms, and auxiliary machine drives may benefit from adjustable-speed control.

The drive should be selected only after checking the motor’s voltage and current, the load’s torque characteristics, and the expected operating cycle.

7. Equipment Maintenance and Replacement

Facilities using existing PowerFlex 40 installations may require a replacement drive that matches the original electrical and enclosure configuration.

The full catalog number is particularly important because PowerFlex 40 drives are available with different input voltages, current ratings, enclosure styles, and filtering options.

Installation and System Integration

Proper installation is essential for maintaining the drive’s performance and ensuring safe operation.

1. Verify the Input Supply

Confirm that the available supply is compatible with the drive’s 100–120 V AC single-phase input and specified voltage range.

Use appropriately rated branch circuit protection, conductors, disconnecting equipment, and grounding arrangements according to the manufacturer’s documentation and applicable electrical codes.

Do not connect the drive to a different voltage class based only on the PowerFlex 40 series name.

2. Confirm Motor Compatibility

Check the motor nameplate for rated voltage, full-load current, power, and frequency.

The motor must be compatible with the drive’s three-phase output and 5.0 A current rating. The horsepower rating alone is not sufficient to establish compatibility.

For applications involving high starting torque, frequent acceleration, or extended low-speed operation, evaluate the motor and load characteristics before commissioning.

3. Install According to the Enclosure Requirements

The 22B-V5P0C104 uses an IP66 / NEMA Type 4X enclosure configuration. Install the unit according to its specified mounting arrangement and environmental limitations.

Inspect enclosure surfaces, covers, cable entries, and seals as applicable. Damaged or incorrectly installed sealing components can compromise the intended environmental protection.

The drive should not be assumed suitable for every chemical, outdoor, or washdown condition without checking the manufacturer’s guidance.

4. Complete Power and Control Wiring

Follow the wiring diagrams for the exact catalog number. Verify the input terminals, motor output terminals, grounding points, and control connections.

Use suitable conductor sizes and routing practices. Where required, separate motor power wiring from sensitive control and communication wiring to help reduce electrical interference.

Always isolate power and follow the prescribed safety procedures before wiring or servicing the drive.

5. Configure Operating Parameters

Before starting the motor, verify the required motor and application settings. These may include motor nameplate data, command source, speed reference, acceleration time, deceleration time, and operating limits.

Start commissioning under controlled conditions. Check motor direction, response to commands, stopping behavior, and the absence of unexpected faults before returning the machine to normal production.

6. Configure RS-485 Communication

For installations using external communication, verify the supported protocol and interface configuration.

Check addressing, baud rate, parity, wiring polarity, cable routing, and termination requirements as applicable. Confirm that the external controller can exchange the required data with the drive.

7. Evaluate EMC Requirements

This catalog configuration does not include a CE-compliant EMC filter. If the installation requires electromagnetic compatibility compliance, assess the applicable requirements and determine whether external filtering or other mitigation measures are necessary.

Correct grounding, cable routing, and separation of power and signal wiring can also contribute to electromagnetic compatibility.

8. Commission and Document the Installation

After installation, verify supply voltage, grounding, motor connections, control commands, communication, and fault response.

Record the final parameter settings and relevant motor data. Maintaining this information can simplify future troubleshooting and replacement work.

Compatible System Components

The 22B-V5P0C104 is generally integrated with other electrical and automation components. The following table describes typical component categories used in a compatible motor-control system.

These are general system component categories rather than a guarantee that every component connects directly to a specific terminal. Use the product documentation to determine the required interfaces and ratings.

Alternative Models and Replacement Considerations

Selecting an alternative requires more than matching the horsepower rating. The input voltage, output current, enclosure rating, communication interface, and available options must also match the application.

How to Select a Replacement

Start by recording the original drive’s complete catalog number and the connected motor’s nameplate data. Verify input voltage, phase, output current, horsepower, enclosure requirements, and communication needs.

For installations exposed to water or dust, do not substitute an open-type drive without reviewing the enclosure design and environmental requirements of the machine.

Also compare terminal assignments, mounting arrangements, parameter settings, and control behavior. A drive with a similar power rating may require changes to the wiring, enclosure, or control program.

Why the Enclosure Configuration Matters

The letter in the PowerFlex 40 catalog number can identify important configuration differences. The 22B-V5P0C104 is the IP66 / NEMA Type 4X version, whereas other catalog numbers may have open-type enclosures or different features.

Before ordering, verify the complete catalog number and all relevant nameplate information rather than relying only on the product family name.

Key Advantages

IP66 / NEMA Type 4X Enclosure

The enclosure configuration is designed to provide a higher level of environmental protection than an open-type drive. This can be useful where the installation is exposed to dust or water, subject to the manufacturer’s specified limitations.

Compact Motor-Control Design

The PowerFlex 40 series is designed for compact motor-control applications. The 22B-V5P0C104 combines a 1 HP rating with an enclosure configuration suitable for appropriately designed installations.

Adjustable Motor Speed

Variable-frequency output allows compatible motors to operate at different speeds according to process requirements.

Integral Operator Interface

The digital keypad and LED display provide local access to drive operation and configuration.

RS-485 Communication

The communication interface supports integration with compatible external control equipment when the required protocol and configuration are available.

Braking IGBT Included

The integrated braking IGBT supports an appropriate dynamic braking arrangement when the required external components and application settings are provided.

Practical Maintenance and Integration

The complete catalog number identifies a specific voltage, current, enclosure, and option configuration, helping maintenance teams specify the correct product for an existing installation.

Technical FAQs

1. What is the rated power of the Allen-Bradley 22B-V5P0C104?

The drive is rated at 0.75 kW, equivalent to 1 HP.

2. What input voltage does this drive require?

It is designed for 100–120 V AC single-phase input, with a specified operating range of 90–132 V AC.

3. What is the rated output current?

The rated output current is 5.0 A. The motor must be compatible with the drive’s output voltage and current capabilities.

4. What is the enclosure rating?

The 22B-V5P0C104 has an IP66 rating and a NEMA/UL Type 4X enclosure configuration. Confirm the exact environmental conditions permitted by the manufacturer’s documentation.

5. Does the drive include an operator keypad?

Yes. It includes an integral digital keypad and LED display.

6. Does the 22B-V5P0C104 support communication?

Yes. The model includes an RS-485 communication interface. The supported protocol and settings must be confirmed before connecting it to a PLC or supervisory controller.

7. Does this model include an EMC filter?

No. The catalog configuration does not include a CE-compliant EMC filter. Evaluate the installation’s EMC requirements and determine whether external filtering or additional mitigation is necessary.

8. Does the drive include a braking resistor?

The model includes a braking IGBT, but this does not mean that a braking resistor is supplied. Check the applicable parts list and technical documentation for the required braking arrangement.

9. Can it control a three-phase motor?

Yes. The drive accepts single-phase AC input and provides controlled three-phase output for a compatible motor. Verify motor voltage, current, and operating requirements before installation.

10. What should be checked before purchasing this model?

Verify the complete catalog number, input voltage, output current, enclosure configuration, product condition, and included accessories. If the drive is intended as a replacement, compare its specifications and terminal arrangement with the installed unit.

Procurement and Maintenance Recommendations

When purchasing the Allen-Bradley 22B-V5P0C104, confirm the complete catalog number and make sure the drive’s electrical and enclosure configurations match the application. Similar PowerFlex 40 models may have different power ratings, input requirements, filtering options, and environmental protection.

For industrial maintenance inventory, record the catalog number, connected motor data, installation location, parameter settings, and relevant communication configuration. This information helps technicians identify the correct drive during troubleshooting or replacement.

Inspect the enclosure and associated cable entries for damage before installation. Since environmental protection depends on the integrity of the complete installation, damaged seals or unsuitable connections should be addressed before the unit is exposed to the intended operating environment.

During maintenance, isolate electrical power and follow the required safety procedures. Allow the specified discharge time and verify that hazardous voltage is absent before touching power terminals.

For export procurement, buyers should confirm product condition, included accessories, packaging, and the exact catalog number before shipment. If the unit is intended to replace an existing drive, provide the original model number and motor information so that compatibility can be assessed in advance.

Conclusion

The Allen-Bradley 22B-V5P0C104 PowerFlex 40 AC Drive is a 0.75 kW (1 HP) variable frequency drive designed for compatible small industrial motor-control applications. Its 100–120 V AC single-phase input, 5.0 A output rating, IP66 / NEMA Type 4X enclosure, integral digital keypad, LED display, and RS-485 communication interface make it a practical option for suitable machinery and industrial installations.

The enclosure configuration is a particularly important selection factor for installations where dust and water exposure must be considered. To achieve reliable operation, users should verify the complete catalog number, motor compatibility, environmental conditions, braking requirements, and communication settings before installation or replacement.
