Product Overview

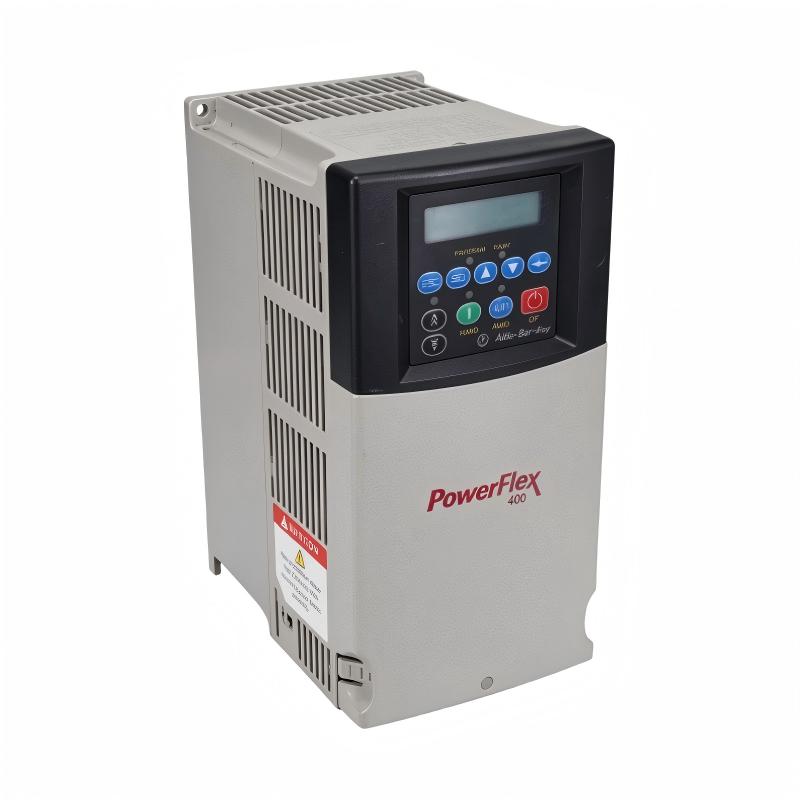

The Allen-Bradley 22C-B012N103 PowerFlex 400 AC Drive is an adjustable-frequency drive designed primarily for fan and pump applications in commercial and industrial facilities. As part of the Allen-Bradley PowerFlex 400 series, this variable frequency drive (VFD) regulates AC motor speed by adjusting the frequency and voltage supplied to the motor.

The drive is designed to support applications that require reliable motor speed control, reduced mechanical stress during starting, and improved process flexibility. It can be integrated into HVAC systems, water circulation installations, industrial ventilation equipment, and other auxiliary systems that use compatible three-phase AC motors.

With a rated output power of 2.2 kW (3 HP) and a rated output current of 12 A, the 22C-B012N103 provides a practical solution for controlling small- to medium-capacity motors in suitable low-voltage applications. Its fixed integral keypad allows operators and maintenance personnel to access drive parameters, monitor operating conditions, and perform basic commissioning tasks.

The drive includes an RS-485 communication interface, supporting communication with compatible control equipment and supervisory systems. Its IP20 open-type enclosure is intended for installation inside a suitable electrical cabinet or protected control enclosure.

For industrial equipment buyers, maintenance engineers, and automation system integrators, the 22C-B012N103 can be considered for original equipment installations, maintenance inventory, and replacement projects where the electrical ratings, control requirements, and physical installation are compatible.

Technical Specifications

The specifications above combine model-specific electrical ratings with the dimensions and weight supplied for this product listing. Actual installation dimensions, terminal arrangements, and nameplate details should be confirmed before ordering or replacing an installed drive.

Function and Working Principle

The primary function of the 22C-B012N103 is to regulate the operating speed of a compatible AC motor. Rather than running a motor continuously at a fixed supply frequency, the drive adjusts the output frequency to match the operating requirements of the connected equipment.

1. AC Power Conversion

The drive receives three-phase AC power within its specified input range. Its internal power-conversion circuitry rectifies the incoming AC supply into a DC bus. The inverter stage then converts the DC bus voltage into a controlled three-phase output for the motor.

This conversion process allows the drive to control motor operating frequency and voltage rather than relying solely on the fixed frequency of the incoming power supply.

2. Motor Speed Regulation

For a conventional AC induction motor, synchronous speed is related to the supply frequency and the number of motor poles. By changing the output frequency, the drive can change the motor’s operating speed.

This function is particularly useful for fans and pumps, where the required flow rate or air volume may vary throughout the day. The motor can operate at a suitable speed rather than continuously running at full speed when the process does not require it.

3. Acceleration and Deceleration Control

The drive can use configured acceleration and deceleration ramps to control how quickly the motor changes speed. Properly configured ramps can reduce abrupt starting and stopping, helping limit mechanical shock in connected equipment.

For pump applications, the selected stopping method and ramp settings should be evaluated carefully. A drive does not automatically eliminate all hydraulic pressure surges or water hammer; system design and parameter configuration remain important.

4. Operating Parameter Configuration

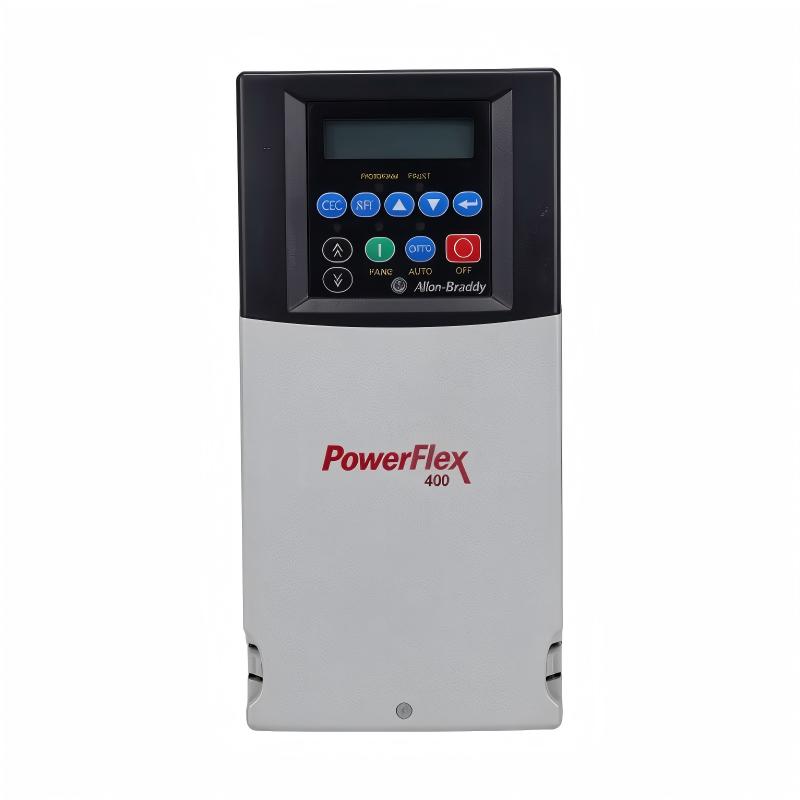

The integral keypad provides a local interface for drive setup and operation. Authorized personnel can configure supported parameters such as speed references, acceleration and deceleration times, stop behavior, and motor-related settings.

Correct parameter configuration is essential to ensure that the drive operates within the motor’s rated current, voltage, and frequency limits.

5. Communication and Monitoring

The RS-485 interface supports communication with compatible devices using the appropriate supported protocol and configuration. Depending on the application and control architecture, the drive can be incorporated into a broader monitoring or automation arrangement.

Communication compatibility should be checked against the intended controller, network settings, and installed firmware or interface requirements before integration.

Role in Industrial Control Systems

The PowerFlex 400 drive can function as the motor-control component between the electrical supply and a compatible fan or pump motor. In a typical installation, the drive receives operating commands from local controls or a supervisory control system and adjusts motor speed according to the configured reference.

Motor Control in HVAC Systems

Heating, ventilation, and air-conditioning systems frequently require variable airflow to maintain temperature, pressure, and ventilation conditions. A suitable VFD allows fan speed to respond to changing demand rather than relying exclusively on mechanical dampers or constant-speed operation.

Pumping and Water Circulation

In water circulation systems, motor speed may be adjusted according to process demand. When correctly designed and configured, variable-speed operation can help reduce unnecessary pumping energy and support more consistent flow or pressure control.

The actual benefits depend on pump characteristics, piping resistance, operating schedules, and the control strategy.

Integration with PLC-Based Automation

A programmable logic controller can coordinate motor operation with sensors, valves, pressure transmitters, flow instruments, and other field devices. The drive provides the variable-speed motor-control function, while the PLC executes the broader process logic.

The 22C-B012N103 should be connected to the selected control system using compatible control terminals or a supported communication arrangement. Signal types, wiring diagrams, parameter settings, and interlocks must be verified for the specific installation.

Maintenance and Equipment Replacement

In an existing facility, a drive of this type may be required when servicing an installed PowerFlex 400 system. Before replacement, technicians should confirm the complete catalog number, voltage class, rated current, frame size, control configuration, and communication requirements.

Matching the product family alone is not sufficient to establish interchangeability.

Industrial Applications

1. Industrial Ventilation Fans

The drive can regulate the speed of compatible ventilation fans used in production facilities, warehouses, workshops, and equipment rooms. Speed adjustment can help match airflow to changing ventilation demand.

2. HVAC Air Handling Systems

In suitable air-handling applications, variable-frequency control supports adjustable fan operation. This can improve operating flexibility and reduce unnecessary motor speed when full airflow is not required.

3. Water Supply and Circulation Pumps

The drive can be applied to compatible pump motors in circulation, water transfer, and utility systems. System-level pressure or flow control requires appropriate sensors and a suitable control strategy where automatic regulation is needed.

4. Cooling Water Systems

Industrial cooling systems often include pumps and fans that operate under varying thermal loads. A compatible drive can adjust motor speed to support changing cooling requirements.

5. Auxiliary Equipment in Manufacturing Plants

Many manufacturing facilities use auxiliary fans and pumps that do not require the full functionality of a high-end motion controller. A PowerFlex 400 drive may be suitable where its power rating, control functions, and electrical characteristics meet the application requirements.

6. Building Services and Utility Equipment

The drive may also be used in compatible building utility systems where controlled fan or pump operation is required. Installation must follow applicable electrical codes and the manufacturer’s environmental requirements.

Installation and System Integration

Proper installation is essential for dependable operation and long service life.

Electrical Supply Verification

Confirm that the available supply is compatible with the drive’s 200–240 V three-phase input rating and specified voltage range. Verify the supply frequency, grounding arrangements, branch-circuit protection, and conductor sizing against the applicable installation documentation.

Do not connect the drive to a supply voltage class that does not match its nameplate.

Motor Compatibility

Check the motor nameplate before commissioning. Important values include rated voltage, current, frequency, power, and rated speed. The motor current must be compatible with the drive’s output-current rating and the selected application duty.

The drive’s 12 A output rating should not be interpreted as a guarantee that it can operate every 3 HP motor under all conditions. Ambient temperature, load characteristics, motor type, and operating duty must also be considered.

Cabinet Installation and Ventilation

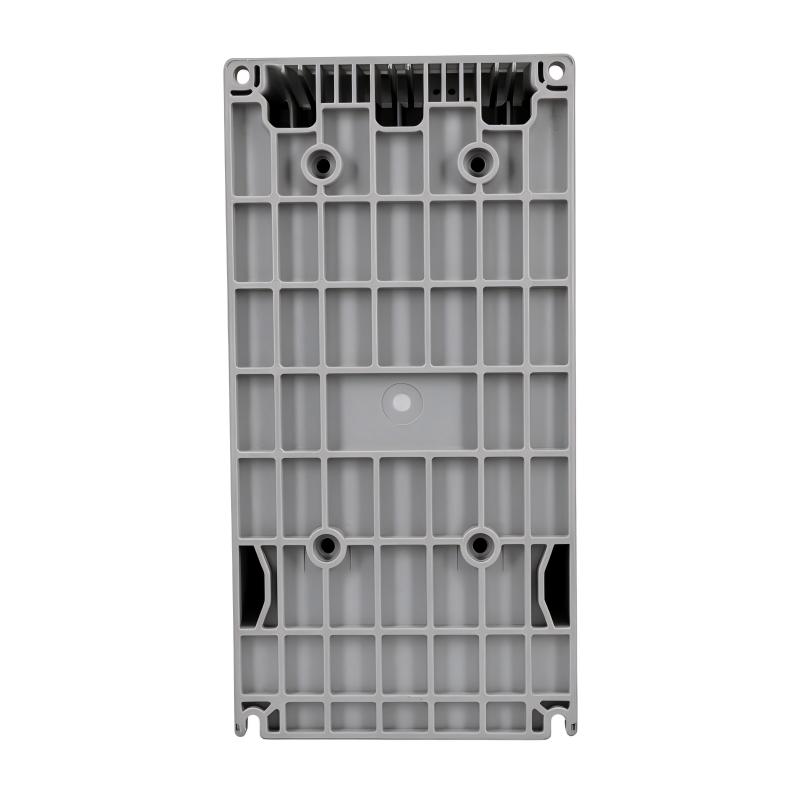

The IP20 enclosure is intended for a protected installation environment. Install the drive inside an appropriate cabinet or electrical enclosure, with adequate clearance and ventilation according to the manufacturer’s instructions.

The dimensions of 260 × 130 × 180 mm and weight of 4.33 kg supplied for this listing should be verified against the actual unit before preparing a mounting plate or replacement enclosure. Allow additional space for wiring, terminal access, cooling airflow, and maintenance.

Wiring and Grounding

Follow the applicable wiring diagram when connecting input power, motor output, protective earth, control signals, and communication wiring. Keep power wiring and low-level control or communication wiring appropriately separated to help limit electrical interference.

All electrical installation and maintenance work should be performed by qualified personnel after the equipment has been isolated and verified safe.

Parameter Setup

Before running the motor, configure the relevant motor data and operating parameters. Confirm the selected start source, stop mode, speed reference, acceleration time, deceleration time, and any required protective settings.

Begin commissioning under controlled conditions and verify motor rotation, current, operating response, and fault behavior before returning the equipment to normal service.

Communication Configuration

When using RS-485 communication, confirm the supported protocol, node or device addressing, communication speed, wiring polarity, termination requirements, and controller configuration. These details depend on the complete system architecture and the communication method being used.

Commissioning Checks

Before placing the drive into service:

• Confirm that the catalog number and voltage rating match the application.
• Inspect the drive for shipping damage or signs of overheating.
• Verify input and motor wiring against the wiring diagram.
• Confirm protective grounding and branch-circuit protection.
• Check motor parameters and speed-reference settings.
• Test start, stop, and fault-response functions.
• Verify communication with the supervisory controller, if used.
• Record the final configuration for future maintenance.

Compatible System Components

The following components may be used in a PowerFlex 400 installation, depending on the system design. Compatibility must be confirmed against the exact drive revision and application requirements.

These are general system-level components rather than a guaranteed accessory package. The required items depend on the machine design, control method, and installation environment.

Alternative Models and Replacement Considerations

The PowerFlex 400 family includes different voltage classes and current ratings. Other models may look similar but are not automatically interchangeable with the 22C-B012N103.

The models above are comparison examples, not universal direct replacements. A higher-rated drive may require different wiring, protection, parameter settings, or enclosure arrangements. A model with the same horsepower but a different voltage class should not be substituted without checking the entire electrical system.

For replacement projects, verify the following:

• Complete catalog number and product series.
• Input voltage and phase.
• Rated output current and motor power.
• Enclosure type and frame dimensions.
• Control terminals and start/stop logic.
• Communication requirements.
• Required safety functions and protection coordination.
• Parameter backup and commissioning procedures.

When replacing an existing drive, document the original settings before removal whenever the unit remains accessible and safe to inspect.

Key Advantages

Variable-Speed Motor Control

The drive enables adjustable motor speed for compatible fan and pump loads. This can improve the ability to match motor operation to actual process demand.

Application-Focused Design

The PowerFlex 400 series is intended for fan and pump applications, making it relevant to HVAC, water circulation, and industrial utility systems.

Integrated Local Interface

The fixed keypad provides a local method for configuration and operating access, supporting commissioning and routine maintenance.

Serial Communication Capability

The RS-485 interface allows integration with compatible control and monitoring equipment when the required communication configuration is supported.

Compact Installation Format

The Frame C design is suitable for installations where a compact open-type drive is appropriate. Final cabinet layout should account for the manufacturer’s mounting and cooling requirements.

Maintenance and Spare-Parts Support

A clearly identified catalog number helps maintenance teams source the appropriate replacement equipment and reduce the risk of selecting a drive with incompatible electrical ratings.

Technical FAQs

1. What is the rated power of the Allen-Bradley 22C-B012N103?

The 22C-B012N103 has a rated output power of 2.2 kW, equivalent to 3 HP.

2. What input voltage does this drive require?

This model is designed for a 200–240 V AC three-phase supply, with a documented input voltage range of 180–265 V AC. Always confirm the nameplate and installation documentation for the actual unit.

3. What is its rated output current?

The rated output current is 12 A. Motor selection and drive loading must take account of the motor’s nameplate current and the application’s operating conditions.

4. Is the 22C-B012N103 suitable for fan and pump applications?

Yes. The PowerFlex 400 series is designed primarily for fan and pump control. Suitability for a specific machine depends on the motor, load, electrical supply, and required control functions.

5. Does this model support communication with a PLC?

The model includes an RS-485 communication interface. Actual PLC integration depends on the supported protocol, wiring, configuration, and controller capabilities. Confirm these details before designing the connection.

6. Can this drive replace another PowerFlex model?

Not automatically. The replacement must match the required voltage class, current rating, motor power, frame and enclosure requirements, I/O functions, and communication setup. The complete catalog number should be checked before purchase.

7. What enclosure protection does it provide?

The 22C-B012N103 uses an IP20 open-type enclosure. It is intended for installation in a suitable protected environment rather than direct exposure to water or dust.

8. What dimensions and weight should be used for procurement?

The dimensions supplied for this listing are 260 × 130 × 180 mm, with a weight of 4.33 kg. Verify these values against the actual product or its mechanical drawing before finalizing cabinet dimensions, shipping arrangements, or replacement planning.

9. What should be checked before installing a replacement unit?

Confirm the input supply, motor data, branch-circuit protection, grounding, control wiring, communication setup, cabinet ventilation, and required operating parameters. Commissioning should be performed by qualified personnel.

10. What information should buyers provide when requesting a quotation?

Provide the complete model number, required quantity, intended application, required delivery location, and any condition or documentation requirements. For replacement orders, photographs of the nameplate and terminal arrangement can help confirm the correct version.

Procurement and Maintenance Recommendations

When sourcing the Allen-Bradley 22C-B012N103 PowerFlex 400 AC Drive, verify the complete catalog number rather than relying only on the product family or horsepower rating. Drives with similar appearances may have different voltage classes, current ratings, enclosure types, and control interfaces.

For maintenance inventory, record the model number, serial number, installed parameter configuration, motor nameplate data, and any relevant controller or communication settings. This information can help reduce downtime if the drive needs to be replaced.

For stored spare units, keep the product in a clean, dry environment and follow the manufacturer’s storage recommendations. Before installation, inspect the packaging and drive for damage, corrosion, contamination, or other signs of improper storage.

When evaluating a replacement, compare both the electrical specifications and the physical installation requirements. Confirm the mounting dimensions, wiring access, ventilation clearance, and control-system compatibility before removing the existing drive.

Buyers should also clarify whether the requested unit must be new, unused, refurbished, or tested. Availability, lead time, warranty coverage, and included documentation should be confirmed for the specific unit being offered.

Conclusion

The Allen-Bradley 22C-B012N103 PowerFlex 400 AC Drive is a 2.2 kW (3 HP) variable frequency drive designed for compatible three-phase fan and pump applications. With a 12 A output rating, an integral fixed keypad, RS-485 communication capability, and an IP20 open-type enclosure, it can serve as a motor-control component in HVAC, water circulation, ventilation, and industrial utility systems.

For procurement, maintenance, and replacement projects, the most important checks are input voltage, output current, motor compatibility, enclosure requirements, communication configuration, and mounting dimensions. Verifying these details against the installed system helps ensure that the selected drive meets the electrical and operational requirements of the application.
