Product Overview

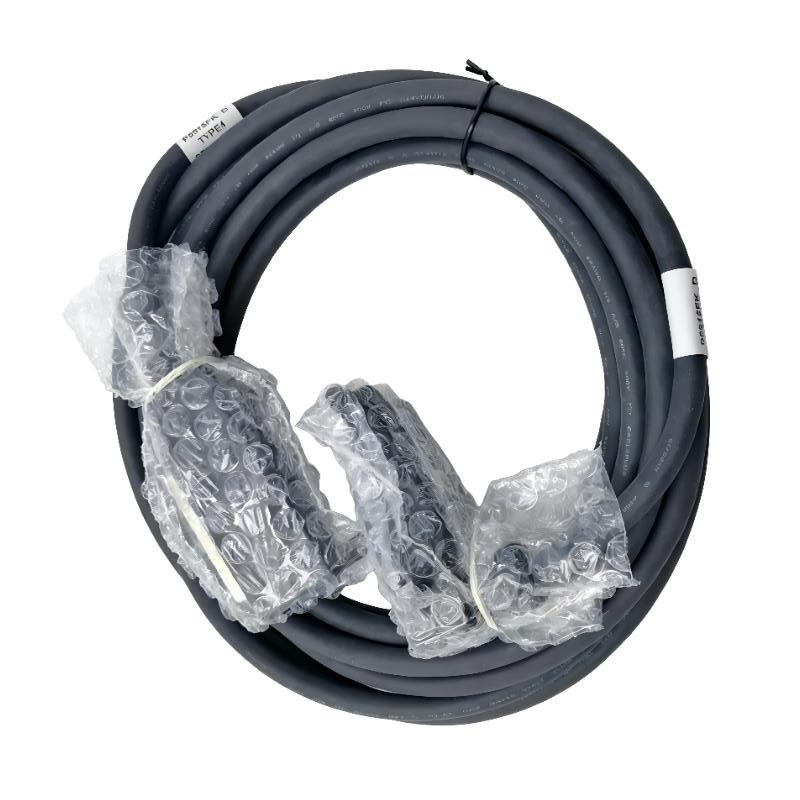

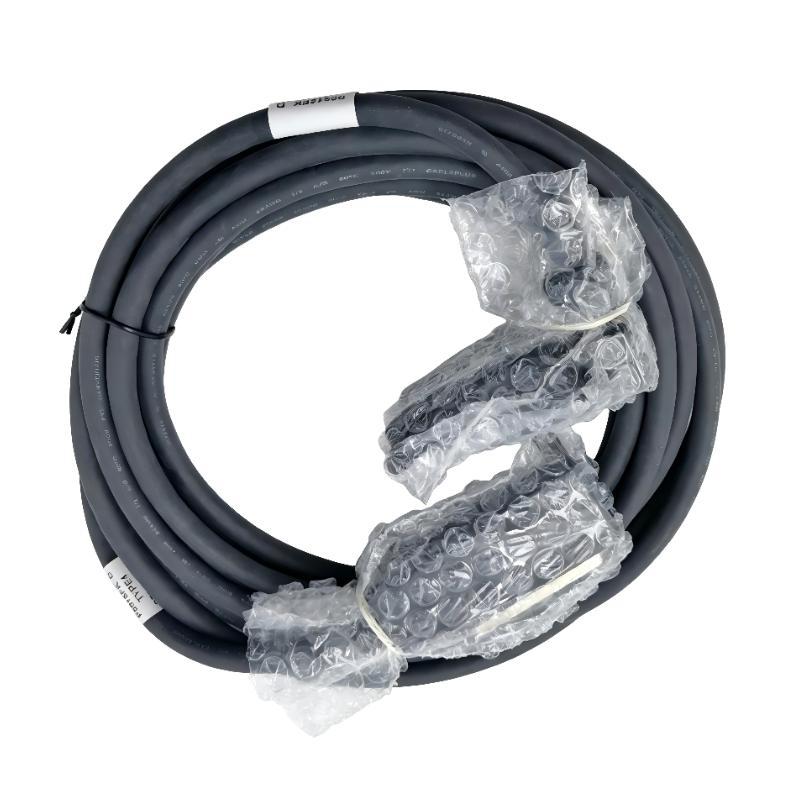

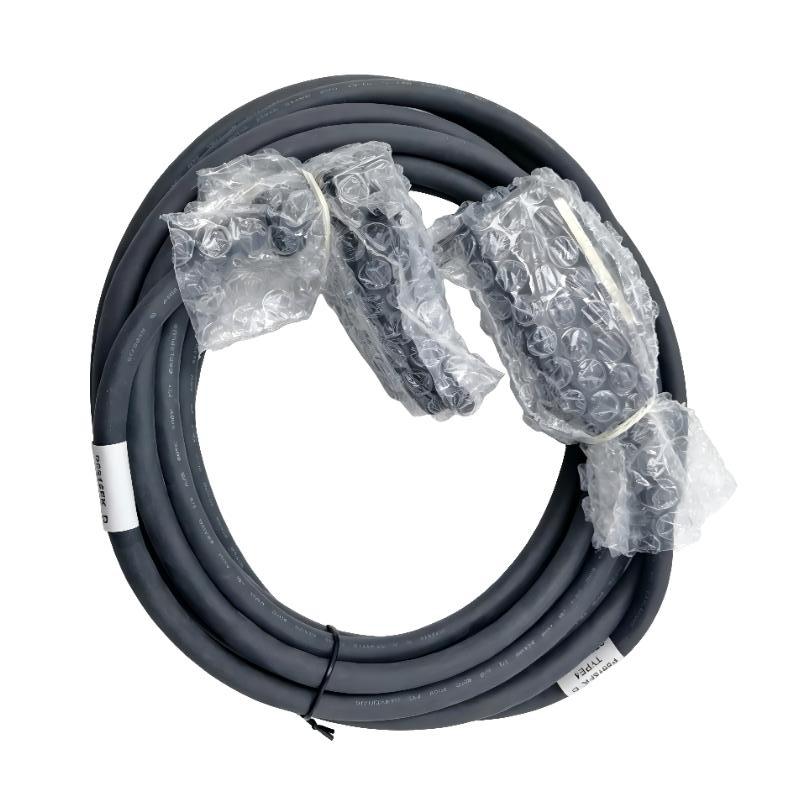

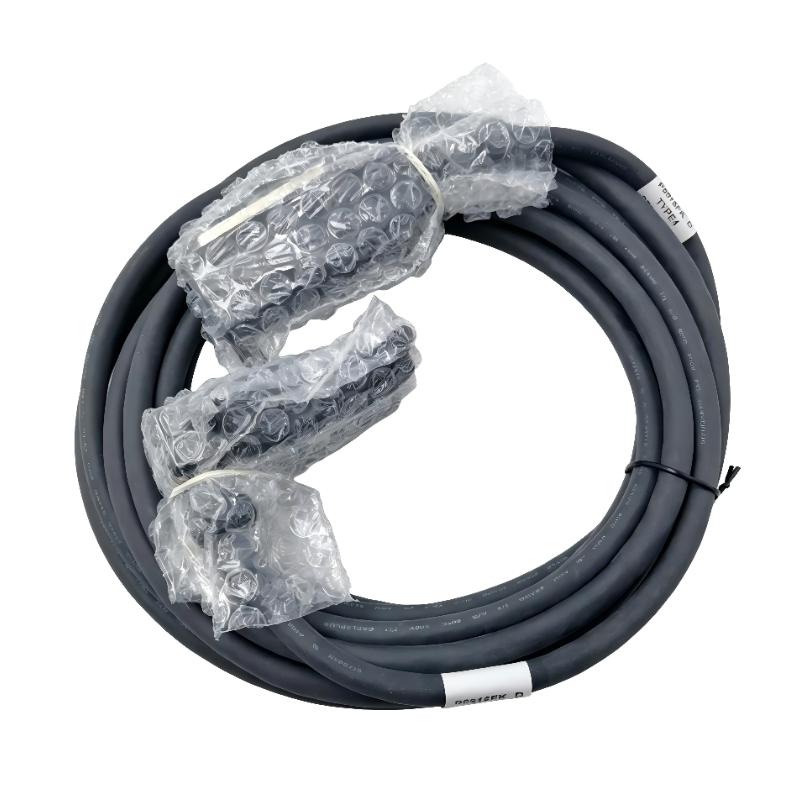

The Foxboro RH916FK I/A Series 200 Type 4 P/PVC Termination Cable is an industrial control-system cable associated with Foxboro I/A Series 200 equipment. It is used to establish the required electrical connections between compatible system components, supporting signal transmission within an installed control architecture.
In process automation systems, termination cables help connect field interface equipment, termination assemblies, and control-system hardware according to the system’s wiring arrangement. Correct cable selection is important because the connection must match the intended interface, signal requirements, and termination points. An incorrect cable or wiring arrangement can result in communication faults, missing signals, or difficulties during commissioning.
The RH916FK is identified as a Type 4 P/PVC termination cable. When integrating it into an existing I/A Series installation, engineers should verify the cable’s intended connection points and wiring configuration before installation. Its role is determined by the equipment interfaces and termination scheme used in the specific control system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Foxboro |
| Model | RH916FK |
| Product Series | I/A Series 200 |
| Product Type | Type 4 P/PVC Termination Cable |
| Component Category | Industrial Control-System Cable |
| Cable Construction Designation | P/PVC |
| Cable Type | Type 4 |
| Primary Function | Electrical Connection and Signal Transmission |
| Application | Industrial Process Control Systems |
| System Compatibility | Applicable Foxboro I/A Series 200 Configurations |
| Installation Context | Control-System Wiring and Termination |
| Connection Requirements | Must Match the Intended Equipment Interfaces |
| Cable Length | 5 meters |
| Shipping Weight | 3 kg |
Product Features
- I/A Series 200 integration: Intended for use within the relevant Foxboro control-system wiring arrangement.
- Termination cable configuration: Supports connections between compatible system components according to the required wiring layout.
- Type 4 designation: Identifies the cable configuration specified for the applicable installation.
- P/PVC construction designation: Retains the cable construction designation associated with the product model.
- Industrial control applications: Suitable for consideration in process-control installations where the corresponding cable configuration is required.
- Equipment interconnection: Supports the electrical connection of designated interfaces within a control-system assembly.
- Maintenance and replacement use: Can be used when replacing a matching cable in an existing installation, provided the connection details are verified.
- Wiring consistency: Helps maintain the intended connection arrangement when installed according to the system’s wiring plan.
Working Principle
The RH916FK functions as a physical electrical connection between designated points in a control system. The conductors carry the electrical signals required by the connected equipment, while the cable’s termination arrangement establishes the intended connection between interfaces.
In a process-control installation, a cable of this type may form part of the wiring between control-system hardware and a compatible termination point. The connected devices determine the signal type and operational behavior; the cable provides the electrical path needed for those signals to pass between the designated connections.
During operation, the integrity of the conductors and terminations affects signal continuity. Loose connections, damaged insulation, incorrect pin assignments, or an unsuitable replacement cable can interrupt the electrical path and create faults that appear elsewhere in the control system.
A simplified connection path is:
Foxboro Control-System Equipment → RH916FK Termination Cable → Designated Termination Interface → Connected Control-System Hardware
The actual connection points and signal assignments depend on the installed equipment and its wiring configuration.
Role in an I/A Series 200 Control Architecture
Within an I/A Series 200 control architecture, the RH916FK provides a cable connection between the designated interfaces for which this termination cable is specified. It supports the physical wiring layer that allows compatible control-system components to exchange the required electrical signals.
| Control-System Component | Function | Relationship to the RH916FK |
|---|---|---|
| I/A Series 200 Control Hardware | Executes control and process-related functions | Connects through the applicable wiring interface |
| Termination Assembly | Organizes electrical connections between system components | Provides the designated termination point where applicable |
| RH916FK Termination Cable | Carries electrical signals between specified connection points | Establishes the physical connection required by the wiring arrangement |
| I/O Interface | Exchanges signals between the control system and connected equipment | May be connected through the relevant termination arrangement |
| Field Instrumentation | Measures process conditions or provides control signals | Participates in the signal path when included in the configured system |
| Control Cabinet | Houses control hardware and wiring assemblies | Provides the installation environment for the cable and connected components |
| System Wiring Documentation | Defines connection points and signal assignments | Supports correct cable installation and troubleshooting |
The cable’s position in the architecture should be determined by the specific hardware configuration. During replacement, preserving the original connection arrangement and confirming the required termination points helps avoid wiring errors and unnecessary commissioning work.
Industrial Applications
| Application | Typical Requirement | Role of the RH916FK |
|---|---|---|
| Process Automation | Electrical connections between control-system components | Provides the specified cable connection within the control architecture |
| Chemical Processing | Organized wiring for distributed process-control equipment | Supports the required connection between designated interfaces |
| Oil and Gas Facilities | Control-system wiring in process equipment installations | Can be used where the applicable termination configuration calls for this cable |
| Power Generation | Electrical signal connections within control-system cabinets | Supports the designated wiring path |
| Water and Wastewater Treatment | Connections between process-control hardware and related interfaces | Provides the physical cable connection where specified |
| Industrial Control Cabinets | Internal interconnection of control-system components | Maintains the intended wiring arrangement |
| Control-System Maintenance | Replacement of a damaged or worn cable | Provides a matching replacement when the model and connection requirements are verified |
| Existing I/A Series Installations | Continued operation of established control-system configurations | Supports maintenance of the original cabling arrangement |
Installation and Maintenance
- Confirm the cable model. Check that RH916FK matches the required cable designation in the existing control-system installation.
- Identify the connection points. Determine the intended source and destination interfaces before disconnecting or installing the cable.
- Review the wiring arrangement. Check the applicable wiring diagram, connector assignments, and termination layout to avoid incorrect connections.
- Apply electrical safety procedures. Follow the site’s isolation and work-permit procedures before handling control-system wiring.
- Inspect the cable before installation. Check the outer jacket, connectors, and accessible termination points for damage or contamination.
- Verify connector compatibility. Ensure that the cable ends match the designated equipment interfaces and can be secured correctly.
- Route the cable appropriately. Avoid sharp edges, excessive bending, crushing, and unnecessary mechanical tension.
- Separate wiring where required. Maintain appropriate separation from power conductors and other potential interference sources according to the installation requirements.
- Secure the terminations. Confirm that connectors or terminal connections are fully seated and secured according to the applicable hardware arrangement.
- Check continuity when necessary. If the cable is being installed as a replacement or a fault is suspected, perform suitable continuity and wiring checks with the circuit safely isolated.
- Test the connected system. After installation, verify that the relevant signals or system functions operate as expected and that no new wiring faults have appeared.
- Record the maintenance work. Document the cable replacement, connection points, inspection results, and any changes made to the wiring arrangement.
If a signal fault occurs after installation, check the cable seating, connector condition, conductor continuity, and termination assignments. Confirm that the replacement cable matches the required configuration before investigating more complex control-system issues.
Related Components
| Component | Function | Relationship to the RH916FK |
|---|---|---|
| Foxboro I/A Series 200 Control Hardware | Performs control-system functions | Provides the applicable equipment interface |
| Foxboro Termination Assembly | Organizes system wiring and electrical connections | May serve as the cable’s designated termination point |
| Foxboro I/O Module | Handles input or output signals within the control system | Connects through the relevant system wiring arrangement |
| Control-System Connector | Establishes the electrical connection between cable and equipment | Must match the cable’s connector configuration |
| Industrial Control Cabinet | Houses control hardware and wiring | Provides the physical installation environment |
| Field Signal Wiring | Carries signals between instruments and control interfaces | Forms part of the wider signal path where applicable |
| Cable Identification Labels | Identify wiring and connection destinations | Help prevent incorrect reconnection during maintenance |
| Wiring Documentation | Defines connection assignments and routing | Supports installation, testing, and fault diagnosis |
Recommended Related Models
| Model | Product Name | Typical Application |
|---|---|---|
| RH916FK | Foxboro I/A Series 200 Type 4 P/PVC Termination Cable | Specified termination cable connection |
| FBM203d | Foxboro I/A Series Fieldbus Module | Industrial process-control signal interfacing |
| FBM204 | Foxboro I/A Series Fieldbus Module | Control-system I/O applications, subject to configuration |
| FBM205 | Foxboro I/A Series Fieldbus Module | Control-system I/O applications, subject to configuration |
| FBM206 | Foxboro I/A Series Fieldbus Module | Control-system I/O applications, subject to configuration |
| FBM207 | Foxboro I/A Series Fieldbus Module | Control-system I/O applications, subject to configuration |
| RH914SV | Foxboro I/A Series Control-System Component | Related I/A Series installation and maintenance context |
These products serve different roles within the broader control-system environment. The listed modules are not direct substitutes for a termination cable. When selecting a replacement cable, the exact model designation, connector arrangement, wiring assignments, and intended termination points must match the installed configuration.
Key Advantages
- Supports the specified electrical connection within an I/A Series 200 installation.
- Maintains the intended wiring path between designated system interfaces.
- Can simplify maintenance when replacing a matching cable.
- Supports organized control-cabinet wiring and connection identification.
- Helps restore signal continuity when the original cable is damaged or defective.
- Fits into established industrial process-control wiring arrangements when correctly matched.
Technical FAQs
1. What is the Foxboro RH916FK used for?
The RH916FK is identified as an I/A Series 200 Type 4 P/PVC termination cable. Its purpose is to provide the specified electrical connection between compatible control-system interfaces within the applicable wiring arrangement.
2. What should be checked before replacing an RH916FK cable?
Verify the exact model, connector configuration, intended connection points, and wiring assignments. A cable that appears physically similar may not have the same termination arrangement or electrical application.
3. How can cable-related signal faults be diagnosed?
Inspect the cable and connectors, verify that the terminations are secure, and perform appropriate continuity checks with the circuit safely isolated. If the cable passes these checks, review the connected interfaces and the wider signal path.
4. Can the RH916FK be used with any Foxboro I/A Series 200 module?
Not automatically. Compatibility depends on the particular equipment interfaces and wiring configuration. The cable should be used only where its model designation and termination arrangement match the intended installation.
