Product Overview

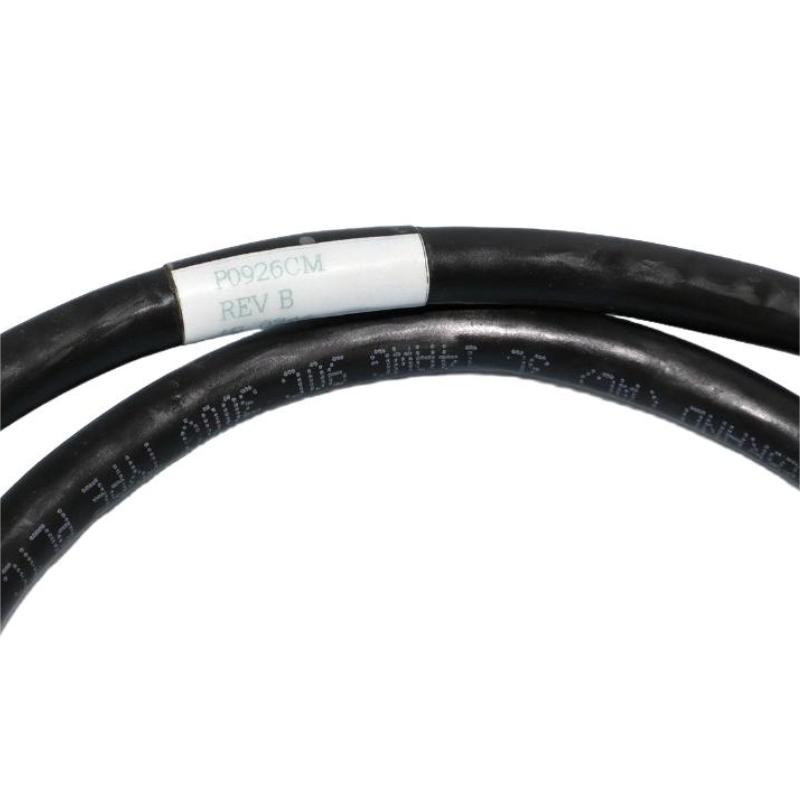

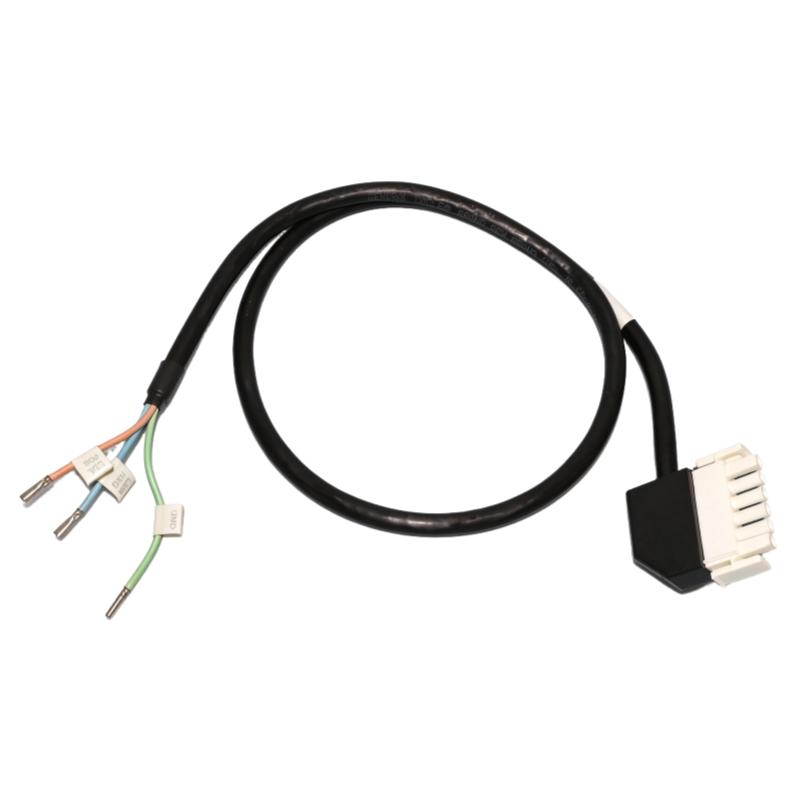

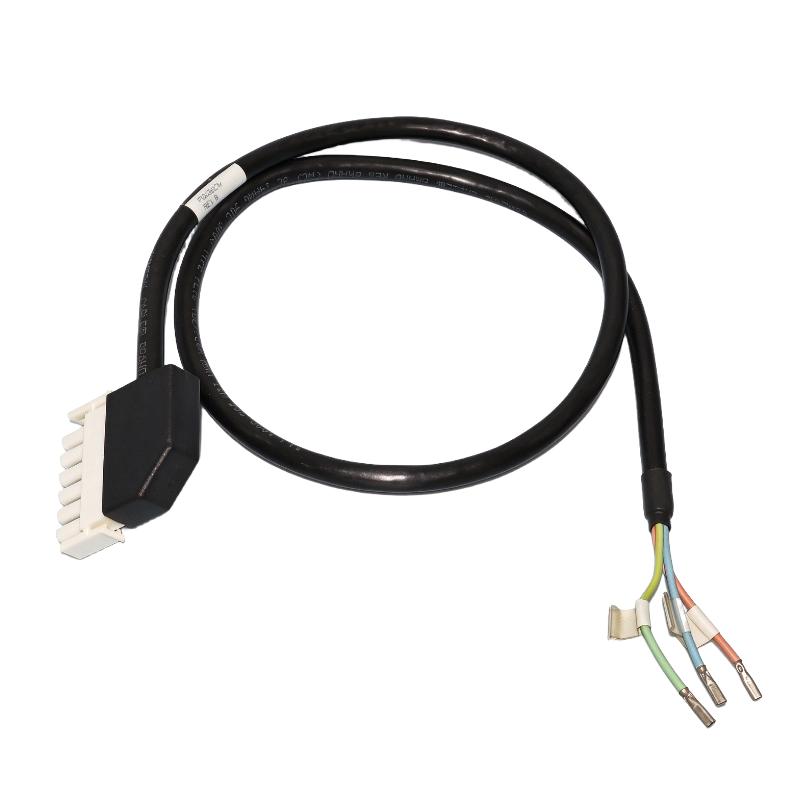

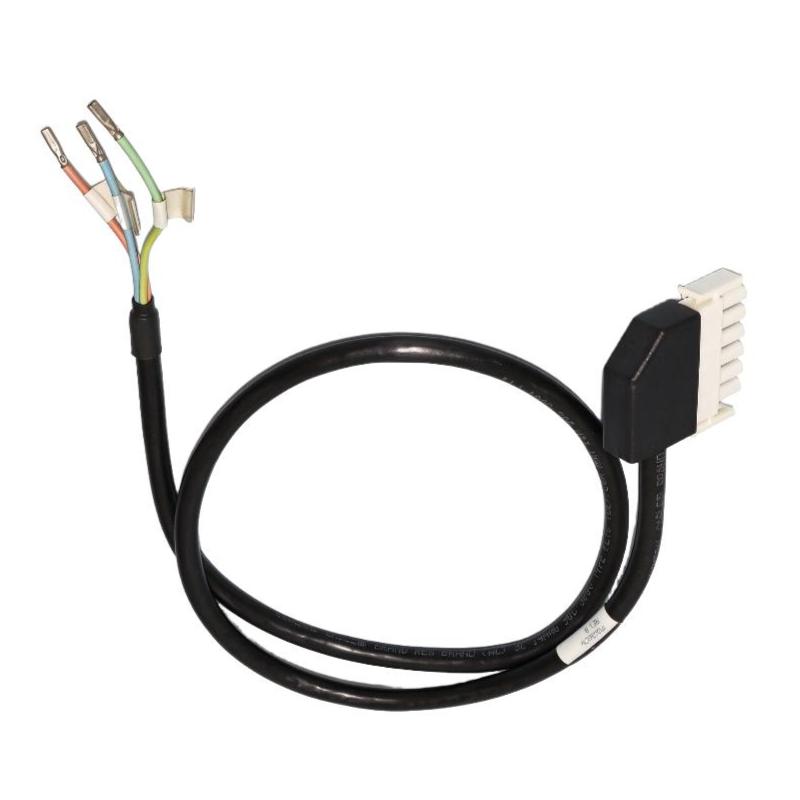

The Foxboro P0926CM Standard 200 Series AC Input Terminal Block Cable connects an AC/DC input terminal block to a compatible Foxboro FPS400 power supply. It belongs to the power-entry wiring arrangement used in Standard 200 Series control cabinets, where incoming electrical power must pass through the designated terminal block before reaching the power supply.
The P0926CM has a cable length of 0.8 meters. Its intended connection is between the P0926DZ input terminal block and the P0922YU power supply, which accepts 120/240 V AC or 125 V DC input. Although the P0926CM is identified as an AC input terminal block cable, the associated terminal block arrangement supports the specified input configuration; the cable should not be confused with the separate DC input cable used with the P0922YC power supply.
In a control cabinet, the terminal block provides the connection point for incoming power wiring, while the cable links that terminal block to the power supply. This arrangement helps keep the power-entry connection separate from the low-voltage output distribution serving the control hardware. The 0.8-meter length is useful when the terminal block and power supply are mounted within the same cabinet section but are not immediately adjacent.
The P0926CM is the earlier part reference, superseded by RH926CM. When maintaining an existing installation, technicians should confirm the power supply model and input terminal block before choosing a replacement, since cables for AC-input and DC-input configurations are not interchangeable solely because their lengths are similar.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model / Part Number | P0926CM |
| Replacement Part Number | RH926CM |
| Product Family | Standard 200 Series |
| Product Type | AC Input Terminal Block Cable |
| System Application | Foxboro I/A Series / Evo control systems |
| Associated Power Supply | P0922YU, FPS400-24 |
| Compatible Input Terminal Block | P0926DZ |
| Cable Function | Connects the input terminal block to the power supply |
| Cable Length | 0.8 meters |
| Shipping Weight | 3 kg |
Product Features
- Terminal block-to-supply connection: Links the designated input terminal block to the compatible power supply.
- 0.8-meter cable length: Accommodates cabinet layouts where the terminal block and supply are installed apart.
- Standard 200 Series application: Fits the specified power-entry arrangement for compatible Foxboro control systems.
- Defined connection path: Separates incoming power wiring at the terminal block from the power supply’s output distribution.
- Replacement identification: Uses the P0926CM part reference, with RH926CM as its replacement reference.
- Input-configuration distinction: Must be selected according to the supply’s input arrangement rather than cable length alone.
- Cabinet wiring support: Helps organize the connection between the input terminal block and the power supply.
Working Principle
The P0926CM carries the incoming power connection from the P0926DZ terminal block to the P0922YU power supply. The terminal block serves as the designated interface for the incoming AC or supported DC input arrangement, while the power supply converts the accepted input into the DC output required by the control system.
For example, a process automation cabinet may receive its incoming supply through a dedicated wiring section. The terminal block is mounted near the power entry, and the FPS400-24 supply is installed on a DIN rail nearby. The P0926CM bridges these components, allowing the input connection to follow the cabinet’s planned wiring route.
The cable itself does not perform voltage conversion, regulate the supply output or distribute power to the downstream baseplates. Those functions belong to the power supply and the associated distribution components. The cable’s role is to maintain the specified electrical connection between the input terminal block and the supply.
Correct cable selection is especially important where AC-input and DC-input power supply variants are installed in the same equipment family. The P0926CM should be used with the applicable P0922YU input arrangement; the corresponding DC-input cable family is different.
Role in a Foxboro Standard 200 Series Power Architecture
The P0926CM belongs to the power-entry section of the control system. It connects the input terminal block to the power supply, which then delivers regulated DC power to the control hardware through the appropriate output connections.
Incoming Power → P0926DZ Input Terminal Block → P0926CM Cable → P0922YU / FPS400-24 Power Supply → Baseplate Power Distribution
| System Component | Function | Relationship to the P0926CM |
|---|---|---|
| Incoming AC/DC Supply | Provides electrical input to the cabinet | Feeds the designated input terminal block |
| P0926DZ Input Terminal Block | Provides the input connection point | Connects incoming power to the cable |
| P0926CM Cable | Links the input terminal block to the power supply | Establishes the specified input connection |
| P0922YU Power Supply | Accepts the applicable AC or DC input and supplies regulated DC output | Receives input power through the cable |
| FPS400-24 Power Supply Assembly | Supplies power to compatible Standard 200 Series equipment | Uses the connected input arrangement to operate |
| RH926K-Series Output Cables | Carry power from the supply to compatible baseplates | Serve the downstream power distribution path |
| Modular Baseplates | Support compatible control modules | Receive power through the separate output cables |
Industrial Applications
| Application | Typical Equipment | Role of the Cable |
|---|---|---|
| Process Automation | Foxboro Standard 200 Series cabinets | Connects the input terminal block to the system power supply |
| Chemical Processing | Distributed control system power assemblies | Supports the designated power-entry wiring arrangement |
| Oil and Gas Facilities | Process monitoring and control cabinets | Connects incoming power wiring to the compatible supply |
| Power Generation | Plant control and monitoring equipment | Forms part of the cabinet’s power-entry connection |
| Manufacturing Plants | Modular industrial control cabinets | Accommodates the connection between separately mounted components |
| Water and Wastewater Treatment | Process automation panels | Supports the power supply input connection |
| Control Cabinet Refurbishment | Existing Foxboro I/A Series installations | Replaces a matching terminal block cable during maintenance |
| System Expansion | Additional compatible power supply assemblies | Supports installation where the input arrangement matches the specified configuration |
Installation and Maintenance
- Verify the part reference: Confirm that P0926CM or its replacement reference RH926CM matches the required AC input terminal block cable.
- Check the power supply model: Verify that the installed supply is P0922YU and that its input arrangement matches the cable application.
- Identify the terminal block: Confirm that P0926DZ is the intended input terminal block for the installation.
- Isolate incoming power: Follow the applicable electrical isolation and lockout procedure before disconnecting the cable.
- Inspect the cable and connectors: Check for damaged insulation, loose contacts, deformation or contamination before installation.
- Plan the routing path: Position the cable between the terminal block and supply without excessive tension or sharp bends.
- Connect the terminal block end: Fit the cable to the designated terminal block interface according to the equipment’s connection requirements.
- Connect the power supply end: Attach the opposite end to the specified input interface on the P0922YU supply.
- Secure the cable route: Keep the cable clear of sharp cabinet edges, moving components and unsuitable heat sources.
- Check the input configuration: Confirm that the incoming voltage and input type match the power supply’s permitted ratings before energizing the system.
- Restore power and verify operation: Follow the approved startup procedure and check the power supply’s status indicators and output condition.
- Record the maintenance: Document the installed part reference, power supply model, terminal block identification and any observed cable damage.
Compatible System Components
| Component | Function | Compatibility Consideration |
|---|---|---|
| Foxboro P0926DZ | AC/DC input terminal block | Used as the input connection point for the compatible supply arrangement |
| Foxboro P0922YU | FPS400-24 power supply with AC/DC input capability | The specified power supply for the P0926CM connection |
| Foxboro FPS400-24 | Standard 200 Series power supply | Verify the installed input variant and connection requirements |
| Foxboro RH926CM | AC Input Terminal Block Cable | Replacement reference for P0926CM; cable length 0.8 meters |
| Foxboro RH923DA | AC Input Terminal Block Cable | Shorter 0.4-meter option for supported installations |
| Foxboro RH927AQ | AC Input Terminal Block Cable | 1.83-meter option for supported installations |
| Foxboro RH927AR | AC Input Terminal Block Cable | 2.44-meter option for supported installations |
| Foxboro P0923DG / RH923DG | DC Input Terminal Block Cable | Used with the P0922YC DC-input power supply configuration, not as a direct substitute for P0926CM |
| Foxboro RH926K-Series Cables | Power Supply-to-Baseplate Cables | Carry power from the supply to compatible baseplates after the input stage |
Recommended Related Models
| Model / Product | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Foxboro RH926CM | Standard 200 Series AC Input Terminal Block Cable | Replacement reference for P0926CM | Verify the terminal block and P0922YU connection arrangement |
| Foxboro RH923DA | AC Input Terminal Block Cable | Shorter cable variant, 0.4 meters | Consider when the terminal block and supply are mounted closer together |
| Foxboro RH927AQ | AC Input Terminal Block Cable | Longer cable variant, 1.83 meters | Check the required routing distance and installation configuration |
| Foxboro RH927AR | AC Input Terminal Block Cable | Longer cable variant, 2.44 meters | Consider where the cabinet layout requires additional cable length |
| Foxboro P0926DZ | AC/DC Input Terminal Block | Mating input terminal block | Confirm the terminal block interface before selecting the cable |
| Foxboro P0922YU | FPS400-24 Power Supply | Associated power supply | Verify the permitted input voltage and power supply configuration |
Key Advantages
- Connects the specified input terminal block to a compatible Foxboro power supply.
- Provides a 0.8-meter cable length for cabinet power-entry wiring.
- Supports the designated input connection in Standard 200 Series systems.
- Has a clear replacement reference for maintenance and spare-parts identification.
- Keeps the power-entry connection separate from downstream baseplate distribution.
Technical FAQs
Which power supply is compatible with the Foxboro P0926CM?
The P0926CM is associated with the P0922YU version of the FPS400-24 power supply. The input arrangement and terminal block connection should be verified before installation.
What is the function of the P0926DZ terminal block in this arrangement?
The P0926DZ provides the designated connection point for incoming power. The P0926CM links that terminal block to the P0922YU power supply, which then supplies regulated DC power to the control system.
Can P0926CM be used with the P0922YC DC-input power supply?
It should not be selected as the direct DC-input cable for the P0922YC. That supply uses a separate DC input terminal block cable configuration, including the P0923DG/RH923DG family. Confirm the supply variant before ordering or installing a replacement.
What should be checked if the power supply does not start after cable replacement?
Check the incoming supply, the P0926DZ terminal block connections, cable seating and the power supply input configuration. Confirm that the incoming voltage is within the supply’s permitted range before restoring operation.
