Product Overview

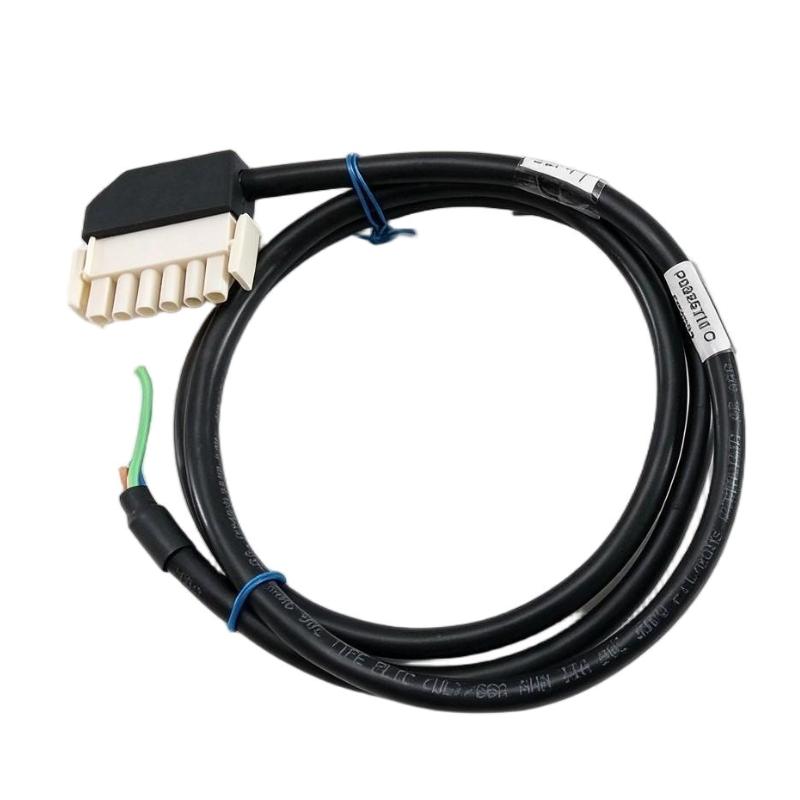

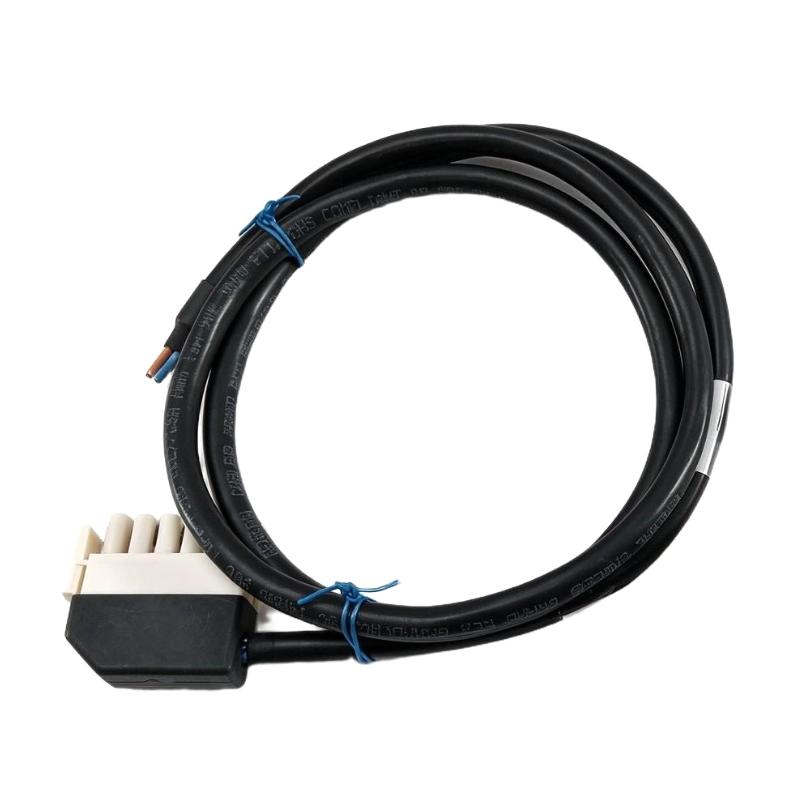

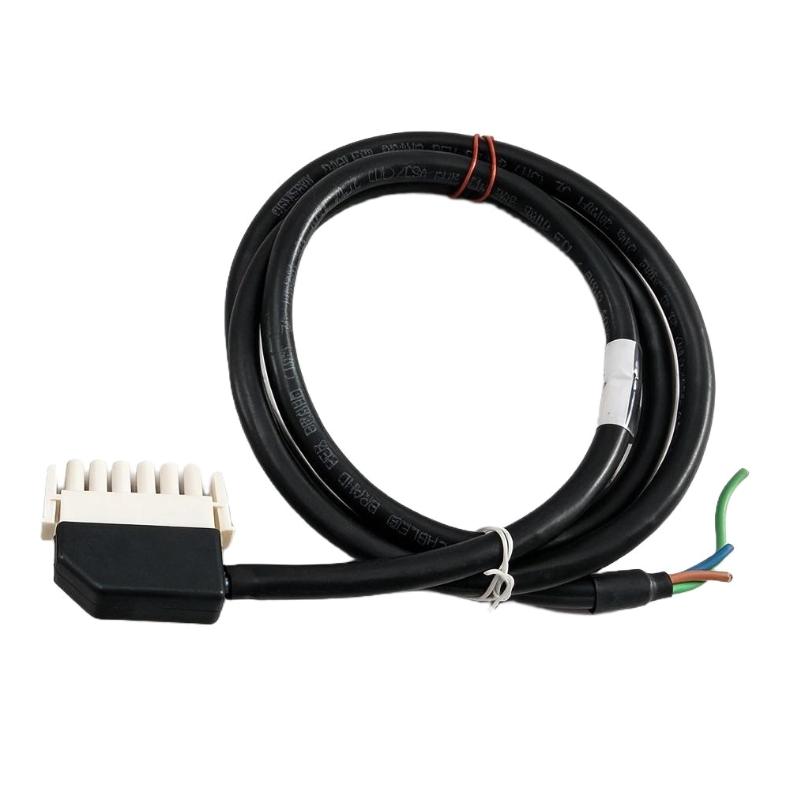

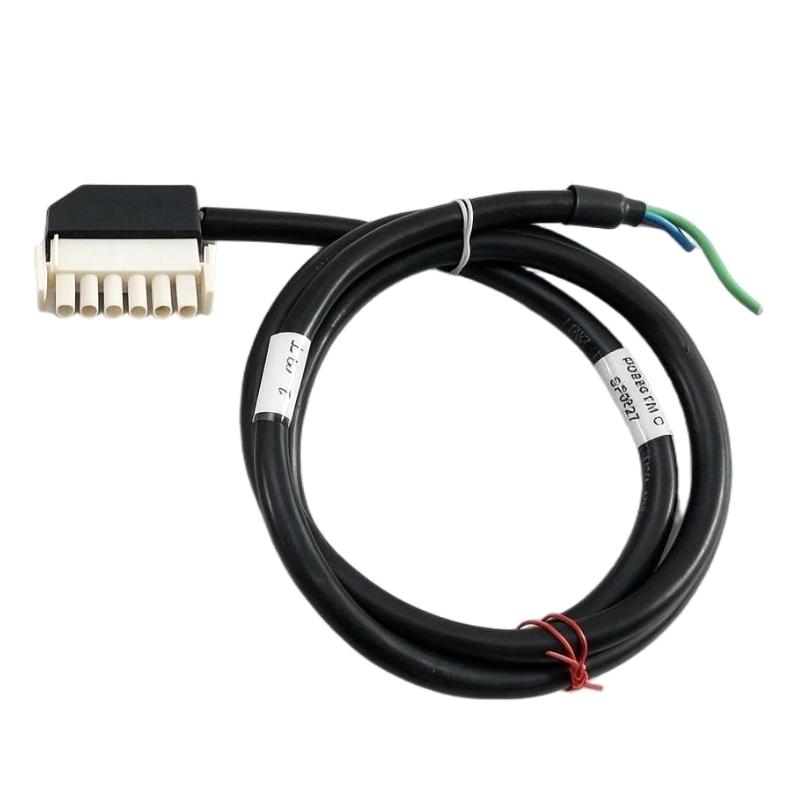

The Foxboro RH926TM Standard 200 Series AC Input Power Cable is an AC input power cable assembly used in compatible Foxboro industrial automation installations. It belongs to the power-entry wiring arrangement for control equipment, where the correct cable connects designated power components without confusing the input circuit with downstream power distribution.
The RH926TM has a cable length of 1.2 meters and is identified as an AC Input Power Cable Assembly. It is intended for compatible AC input power connections in industrial control cabinets. The cable length allows the connection to be routed between the designated connection points while accommodating the physical arrangement of installed equipment.
When servicing a Foxboro control cabinet, it is important to distinguish this cable from the RH926CM AC Input Terminal Block Cable and the RH926KQ Power Supply Output Cable. These products serve different connection functions. Choosing a replacement by product family or cable length alone can result in an incorrect connection.
The corresponding earlier part reference is P0926TM. For maintenance planning, both references are useful when identifying the cable specified in existing equipment records. The installed power arrangement and connector configuration should be confirmed before the cable is replaced.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model / Part Number | RH926TM |
| Previous Part Number | P0926TM |
| Product Family | Standard 200 Series |
| Product Type | AC Input Power Cable Assembly |
| Primary Function | AC input power connection |
| Application | Compatible Foxboro industrial automation and process control systems |
| Specified Input Voltage | 120–240 V AC |
| Cable Length | 1.2 meters |
| Shipping Weight | 3 kg |
Product Features
- AC input power connection: Serves the designated input power connection in compatible Foxboro installations.
- 1.2-meter cable length: Accommodates cabinet layouts where the connection points are separated.
- Dedicated cable assembly: Provides a defined connection for the specified input power arrangement.
- Part-number continuity: RH926TM is associated with the earlier P0926TM reference.
- Cabinet routing: Allows the cable to follow the planned route around installed equipment and wiring ducts.
- Input-specific selection: Requires confirmation of the connected equipment’s input interface and electrical requirements.
- Maintenance identification: Supports spare-parts tracking and replacement records.
Working Principle
The RH926TM carries electrical power through the designated AC input connection between compatible system components. Once correctly connected, it establishes the intended electrical path for the equipment’s input power.
In an industrial control cabinet, power-entry components may be positioned separately from the equipment they supply. The cable can follow the cabinet’s planned routing path, allowing the connection to be maintained without placing every component immediately beside one another.
The cable itself does not convert AC voltage into DC, regulate output voltage or distribute power to individual control modules. Those functions belong to the connected power supply and associated distribution components. The RH926TM serves the specific input connection for which it is identified.
During replacement, the cable reference, connector arrangement and connected equipment must be checked together. A terminal block cable or baseplate output cable may belong to the same overall power system but cannot automatically replace an AC input power cable.
Role in a Foxboro Standard 200 Series Power Architecture
The RH926TM is associated with the input power side of a compatible Foxboro installation. It should be distinguished from the cables that connect an input terminal block to a power supply and those that distribute power from the supply to modular baseplates.
Incoming Power → Designated AC Input Connection → RH926TM Cable Assembly → Compatible Equipment Input
| System Component | Function | Relationship to the RH926TM |
|---|---|---|
| Incoming AC Supply | Provides electrical input to the installation | Supplies the power carried through the designated input path |
| Input Connection Interface | Provides the mating electrical connection | Connects the cable to the intended equipment |
| RH926TM Cable Assembly | Carries input power through the specified connection | Establishes the designated cable path |
| Compatible Power Supply | Converts accepted input power into the required output where applicable | Uses the input connection to receive electrical power |
| RH926CM Terminal Block Cable | Connects a compatible input terminal block to a designated power supply | Serves a different connection function |
| RH926KQ Output Cable | Connects a power supply to a compatible baseplate | Carries power downstream of the supply |
| Modular Baseplates | Support compatible control modules | Receive power through the appropriate output cable arrangement |
Industrial Applications
| Application | Typical Equipment | Role of the Cable |
|---|---|---|
| Process Automation | Foxboro industrial control cabinets | Supports the designated AC input power connection |
| Chemical Processing | Process monitoring and control equipment | Connects compatible power-entry components |
| Oil and Gas Facilities | Industrial process control installations | Forms part of the specified equipment input wiring |
| Power Generation | Plant monitoring and control cabinets | Supports input power wiring for compatible equipment |
| Manufacturing Plants | Industrial automation cabinets | Accommodates cable routing between installed components |
| Water and Wastewater Treatment | Process control panels | Supports the designated power input connection |
| Control Cabinet Refurbishment | Existing Foxboro installations | Replaces a matching input power cable during maintenance |
| Equipment Replacement | Compatible power assemblies | Maintains the required input connection when the replacement matches the original configuration |
Installation and Maintenance
- Verify the part reference: Confirm that RH926TM or the earlier P0926TM reference matches the required AC input power cable assembly.
- Identify the connected equipment: Check the equipment model and its specified input connection before removing the existing cable.
- Isolate incoming power: Follow the applicable shutdown and electrical isolation procedures before handling the cable.
- Inspect the connectors: Check the mating ends for contamination, deformation, loose contacts or visible damage.
- Examine the cable jacket: Look for cuts, abrasion, crushing or other signs of mechanical damage.
- Plan the routing path: Position the cable so it reaches the connection points without excessive tension or sharp bends.
- Connect the input end: Fit the cable to the designated input interface according to the equipment’s connection requirements.
- Secure the mating connection: Ensure that the connector is properly seated and retained according to the specified arrangement.
- Organize the wiring route: Keep the power cable away from sharp cabinet edges, moving components and unsuitable heat sources.
- Check the electrical configuration: Confirm that the incoming voltage and input type match the connected equipment’s ratings before energizing the system.
- Verify operation: Restore power according to the approved procedure and check the connected equipment for normal startup and input-related alarms.
- Record the maintenance: Document the cable reference, connection points, replacement date and any damage found during inspection.
Compatible System Components
| Component | Function | Compatibility Consideration |
|---|---|---|
| Foxboro P0926TM | AC Input Power Cable Assembly | Earlier reference associated with RH926TM |
| Foxboro RH926CM | AC Input Terminal Block Cable | Connects the designated terminal block to a compatible power supply |
| Foxboro P0926CM | AC Input Terminal Block Cable | Earlier reference for RH926CM |
| Foxboro P0926DZ | AC/DC Input Terminal Block | Used in the applicable power-entry arrangement |
| Foxboro P0922YU | FPS400-24 Power Supply | Accepts 120/240 V AC or 125 V DC input in the specified configuration |
| Foxboro P0922YC | FPS400-24 Power Supply | 24 V DC input variant with a separate input connection arrangement |
| Foxboro RH923DG | DC Input Terminal Block Cable | Used with the corresponding DC input arrangement; not a direct substitute for an AC input cable |
| Foxboro RH926KQ | Power Supply Output Cable | Connects a compatible power supply to a modular baseplate |
| Foxboro RH923NG | Power Supply Y-Cable | Branches the power connection for compatible baseplate installations |
Recommended Related Models
| Model / Product | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Foxboro P0926TM | AC Input Power Cable Assembly | Earlier part reference for RH926TM | Useful when matching older equipment documentation |
| Foxboro RH926CM | AC Input Terminal Block Cable | Related power-entry cable with a different connection function | Select when the required connection is between the terminal block and power supply |
| Foxboro RH923DA | AC Input Terminal Block Cable | 0.4-meter cable option for the supported terminal block arrangement | Verify the required connection type and length |
| Foxboro RH927AQ | AC Input Terminal Block Cable | 1.83-meter cable option for the supported terminal block arrangement | Consider only when the equipment interface matches |
| Foxboro RH927AR | AC Input Terminal Block Cable | 2.44-meter cable option for the supported terminal block arrangement | Check the required routing distance and connector configuration |
| Foxboro RH926KQ | Power Supply Output Cable | 2.1-meter cable for compatible modular baseplates | Select only for a power supply-to-baseplate connection |
| Foxboro RH923NG | Power Supply Y-Cable | Branching cable for compatible baseplate power connections | Select when a Y-cable connection arrangement is required |
Key Advantages
- Provides a dedicated AC input power cable assembly for compatible Foxboro equipment.
- Offers a 1.2-meter cable length for cabinet routing.
- Maintains a clear distinction between input wiring and downstream power distribution.
- Provides identifiable part references for replacement and inventory records.
- Supports organized power wiring in industrial control cabinets.
Technical FAQs
What is the specified input voltage for the RH926TM?
The available product specification identifies a 120–240 V AC input application. The connected equipment’s permitted voltage and input interface must be verified before installation.
How does RH926TM differ from RH926CM?
RH926TM is identified as an AC Input Power Cable Assembly, while RH926CM is an AC Input Terminal Block Cable. Their connection functions differ, so the installed equipment and mating interfaces must be checked before choosing a replacement.
Can RH926TM replace a power supply output cable such as RH926KQ?
No. RH926TM is associated with an AC input power connection, whereas RH926KQ connects a compatible power supply to a modular baseplate. They serve different parts of the power distribution arrangement.
What should be checked before restoring power after installation?
Confirm the cable reference, connector seating, input voltage and compatibility with the connected equipment. Inspect the cable route for damage or strain, then follow the approved energization procedure.
