Product Overview

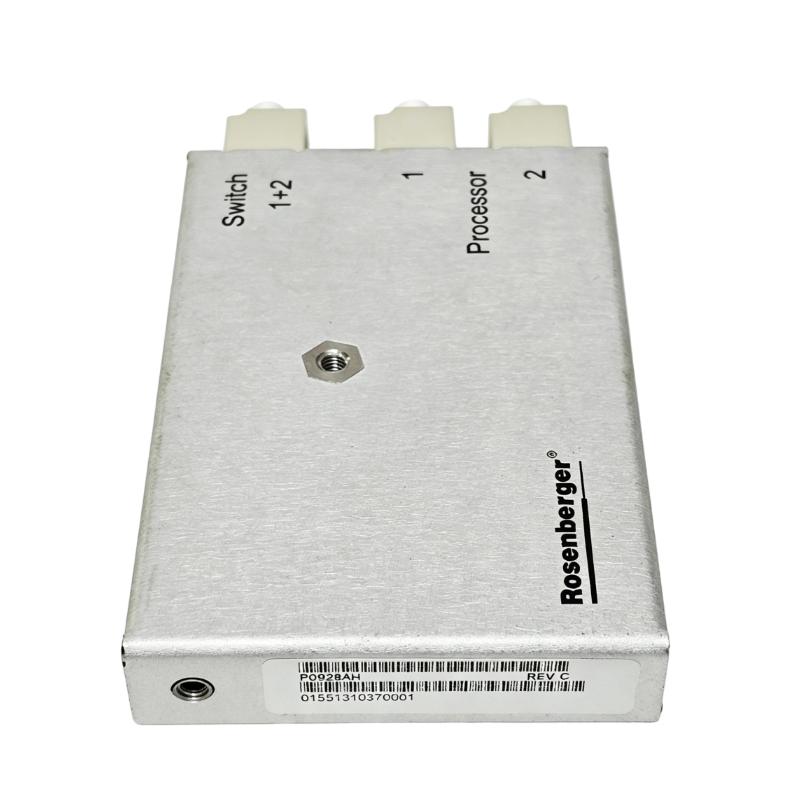

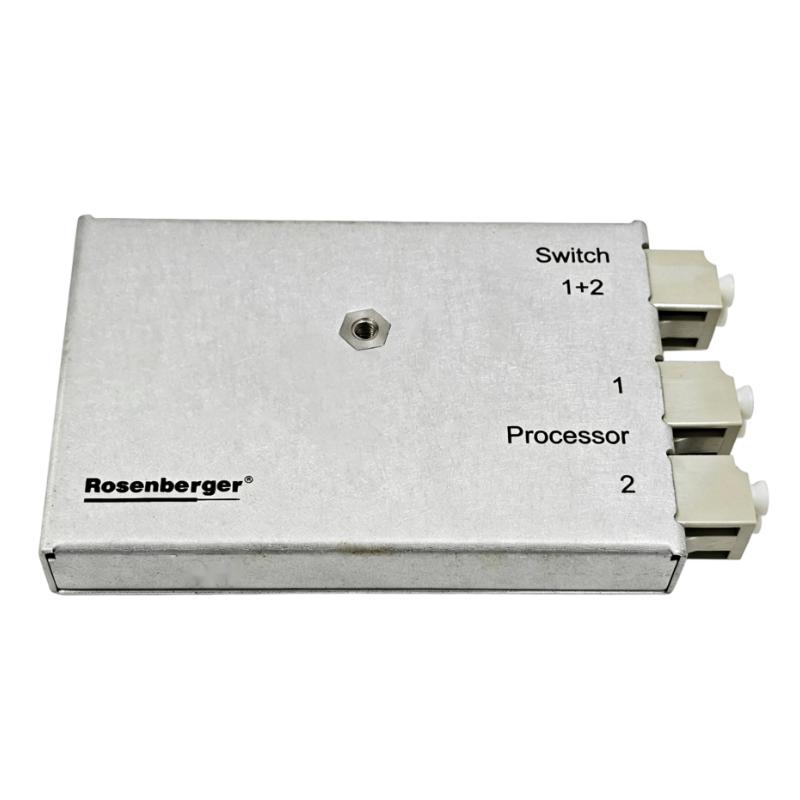

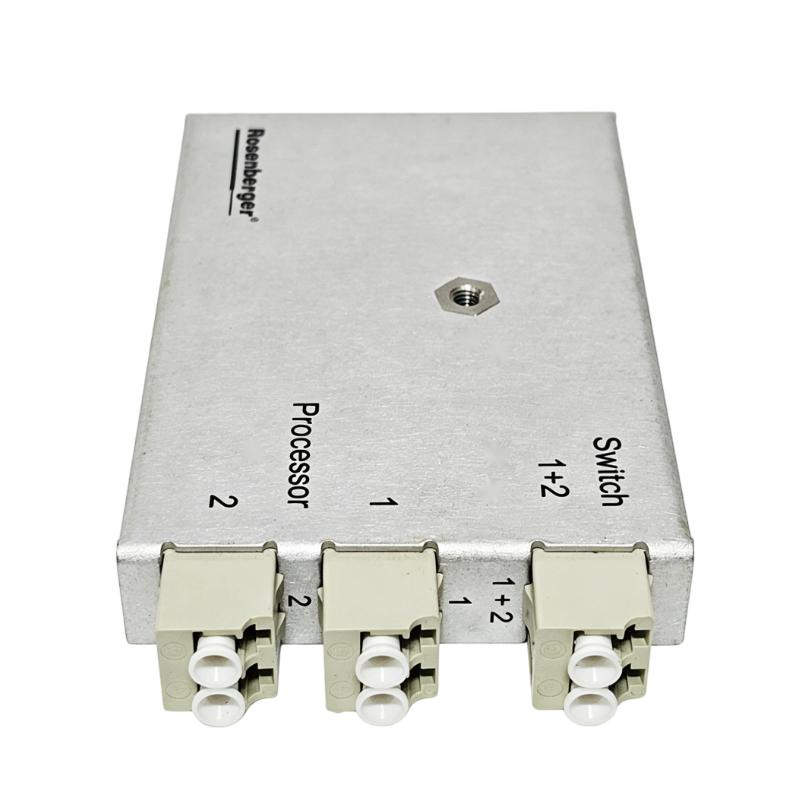

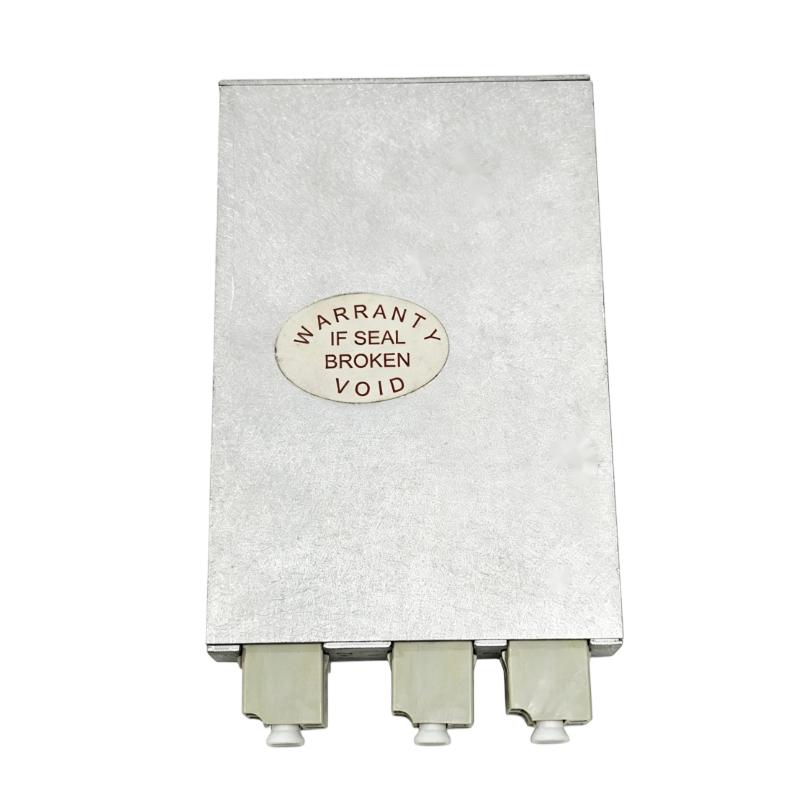

The Foxboro P0926AH Fiber Optic Splitter/Combiner is a fiber-optic communication component intended for use in compatible Foxboro industrial automation and distributed control system architectures. It provides a passive optical interface for splitting or combining fiber-optic communication paths within an applicable control-system network.
Unlike an active communication processor, the P0926AH does not execute control logic or independently process field signals. Its role is associated with the physical optical communication layer, where proper fiber routing and optical signal distribution are essential to reliable network operation.
The supplied product information identifies the P0926AH as a Fiber Optic Splitter/Combiner, with dimensions of 150 × 25 × 100 mm and a weight of 0.4 kg.
In an industrial DCS environment, fiber-optic components are particularly useful where electrical isolation and resistance to electromagnetic interference are important. A properly installed splitter/combiner can help establish the intended optical communication topology between compatible system sections.
Product Information
- Manufacturer: Foxboro
- Model: P0926AH
- Product Type: Fiber Optic Splitter/Combiner
- Dimensions: 150 × 25 × 100 mm
- Weight: 0.4 kg
- Communication Medium: Fiber Optic
- Primary Function: Optical Signal Splitting / Combining
- Application: Industrial DCS and Automation Systems
- Component Category: Passive Optical Communication Component
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model Number | P0926AH |
| Product Type | Fiber Optic Splitter/Combiner |
| Dimensions | 150 × 25 × 100 mm |
| Weight | 0.4 kg |
| Main Function | Optical Splitting / Combining |
| Communication Medium | Fiber Optic |
| Application | Industrial Automation / DCS |
| Component Type | Optical Communication Accessory |
| Installation Role | Fiber Network Interconnection |
| Maintenance Type | Installation, Inspection, Replacement |
The dimensions and weight above are based on the supplied product information.
Function and Working Principle
The P0926AH is used to support an optical communication arrangement in which fiber signals need to be distributed between compatible communication paths or combined into a common optical path.
A simplified arrangement can be represented as:
Optical Communication Source
↓
P0926AH
↙ ↘
Fiber Path A Fiber Path B
Depending on the actual network architecture, the optical paths may operate in the opposite direction, with multiple optical paths being combined toward a common communication interface.
The fundamental function is optical rather than electrical. The splitter/combiner works with light transmitted through optical fiber instead of conventional copper electrical signals.
This provides important advantages for industrial automation:
- Electrical isolation
- Resistance to electromagnetic interference
- Reduced susceptibility to ground potential differences
- Suitable communication over extended distances
- Stable optical data transmission when correctly installed
The actual optical behavior depends on the compatible system architecture and optical components connected to the P0926AH.
Role in Foxboro DCS Systems
Industrial control systems often contain equipment distributed across different cabinets, control rooms, process areas, or plant sections.
Fiber-optic communication can be used to connect these areas while reducing the effects of electrical interference.
A simplified architecture may look like:
Control Processor
↓
Optical Communication Interface
↓
Fiber Network
↓
P0926AH
↙ ↘
Optical Branch A Optical Branch B
↓
Remote Control / I/O Equipment
The P0926AH can therefore form part of the optical infrastructure connecting different sections of a compatible control system.
Its importance becomes greater in systems where a communication path needs to be distributed or combined without converting the optical signal into a conventional electrical signal.
Fiber Optic Splitter and Combiner Principle
A splitter and combiner perform complementary optical functions.
Splitting Function
A single optical path can be distributed toward multiple compatible optical paths.
Input Fiber
↓
P0926AH
↙ ↘
Output A Output B
The available optical power is distributed between the output paths according to the optical design.
Combining Function
Multiple optical paths can be combined toward a common optical path where the system architecture supports such operation.
Input A
↘
P0926AH
→ Common Optical Path
↗
Input B
The exact optical configuration must correspond to the intended Foxboro system architecture.
Optical Signal Loss Considerations
One important difference between an ordinary fiber connector and a splitter/combiner is that optical splitting can introduce additional insertion loss.
When an optical signal passes through a passive optical component, part of the available optical power is distributed between the connected paths.
Therefore, technicians should consider:
- Optical power budget
- Fiber length
- Connector loss
- Coupling loss
- Splitter/combiner loss
- Fiber attenuation
- Receiver sensitivity
A communication link that works correctly without additional optical components may require additional analysis after a splitter/combiner is introduced.
Industrial Applications
Distributed Control Systems
The P0926AH can be used as part of a compatible fiber-optic communication infrastructure in DCS installations.
Process Automation
Fiber-optic networks are useful in process plants where long communication distances and electrical noise can affect conventional communication systems.
Oil and Gas
Optical communication can provide electrical isolation between different plant areas.
Chemical Processing
Fiber-optic infrastructure can reduce the influence of electromagnetic interference from industrial electrical equipment.
Power Generation
Fiber networks are useful in environments containing generators, motors, transformers, and high-voltage switching equipment.
Remote I/O Communication
A fiber-optic splitter/combiner can support suitable optical architectures connecting remote sections of an automation system.
Installation Guide
1. Verify the P0926AH
Before installation, confirm:
Foxboro P0926AH
Fiber Optic Splitter/Combiner
Check:
- Model number
- Physical condition
- Optical interfaces
- Connector configuration
- Kit or assembly completeness
- Intended system application
Do not install a component with damaged optical interfaces.
2. Review the Fiber Network Topology
Before replacing or installing the splitter/combiner, identify the complete optical path.
Determine:
- Optical transmitter
- Optical receiver
- Fiber cables
- Existing couplers
- Branch connections
- Remote communication nodes
- Direction of optical signal flow
A clear topology diagram is strongly recommended for systems containing multiple optical branches.
3. Place the System in a Safe Maintenance State
Disconnecting an optical communication path can cause remote equipment to lose communication.
Before installation:
- Follow the approved maintenance procedure.
- Place affected process equipment in a safe operating condition.
- Isolate affected communication sections as required.
- Prevent unintended equipment operation.
- Follow applicable plant safety procedures.
4. Document Existing Connections
Before removing an existing component, document:
- Fiber connector positions
- Input/output arrangement
- Fiber cable identification
- Branch connections
- Coupler location
- Network direction
Correct documentation is particularly important because optical connectors can look similar while performing different network functions.
5. Inspect Fiber Cables
Inspect each connected fiber cable for:
- Crushed sections
- Cuts
- Damaged jackets
- Excessive bending
- Broken connector housings
- Mechanical stress
- Loose strain relief
Do not bend fiber cables beyond their allowable bend radius.
6. Inspect Optical Connectors
Optical connectors must be clean.
Look for:
- Dust
- Oil
- Fingerprints
- Moisture
- Scratches
- Damaged alignment components
Contaminated optical interfaces can significantly increase optical loss.
7. Clean Optical Interfaces
Use an approved fiber-optic cleaning procedure before connection.
Avoid touching optical end faces with bare fingers.
Do not use inappropriate materials that could scratch the optical surface.
8. Install the P0926AH
Install the splitter/combiner according to the intended network topology.
Confirm:
- Correct orientation
- Correct optical connection
- Correct branch assignment
- Full connector engagement
- Proper mechanical mounting
Do not force optical connectors into place.
9. Route Fiber Cables Correctly
Fiber cables should be protected from:
- Sharp edges
- Crushing
- Excessive bending
- Pulling
- Vibration
- High-temperature surfaces
- Moving equipment
Adequate cable management reduces the possibility of future optical communication problems.
10. Verify the Optical Network
Before restoring the system, confirm that all optical paths correspond to the documented network architecture.
Check:
- Input connection
- Output connections
- Branch routing
- Connector seating
- Fiber identification
- Mechanical mounting
Commissioning Procedure
Step 1 — Visual Inspection
Confirm that the P0926AH is securely installed.
Step 2 — Verify Fiber Connections
Check every connected optical interface.
Step 3 — Verify Fiber Routing
Confirm correct bend radius and mechanical protection.
Step 4 — Restore the System
Restore communication according to the approved procedure.
Step 5 — Check Communication
Monitor:
- Optical link status
- Communication alarms
- Remote node status
- Network errors
- Communication interruptions
Step 6 — Verify Each Branch
If the P0926AH is part of a branched optical network, verify each connected communication path separately.
Step 7 — Monitor Stability
Continue monitoring the system for intermittent communication problems.
Troubleshooting Guide
Problem 1: Complete Optical Communication Failure
Possible causes include:
- Incorrect fiber connection
- P0926AH installed incorrectly
- Dirty connector
- Damaged fiber
- Optical transmitter failure
- Optical receiver failure
- Network topology error
- Power failure at an active communication device
Diagnostic Procedure
- Verify the network topology.
- Check all fiber connections.
- Inspect optical connectors.
- Clean contaminated interfaces.
- Inspect fiber cables.
- Check optical link status.
- Verify active optical interfaces.
Problem 2: One Optical Branch Does Not Communicate
If one branch fails while another branch remains operational, investigate the affected branch first.
Possible causes:
- Damaged fiber cable
- Loose connector
- Incorrect branch connection
- Dirty optical interface
- Damaged optical connector
- Remote communication equipment fault
The P0926AH should not automatically be considered defective.
Problem 3: Multiple Branches Fail
If multiple optical branches fail simultaneously, investigate the shared components.
Potential causes:
- P0926AH connection problem
- Incorrect input connection
- Common fiber cable fault
- Optical source failure
- Shared communication interface failure
- Incorrect topology
A common-point failure can affect multiple downstream branches.
Problem 4: Intermittent Communication
Possible causes include:
- Contaminated connector
- Loose optical connection
- Damaged fiber
- Excessive fiber bending
- Mechanical vibration
- Marginal optical power
- Poor connector alignment
Intermittent optical faults require careful inspection because the system may appear normal during a short test.
Problem 5: Communication Becomes Unstable After Installing P0926AH
Possible causes:
- Incorrect optical connection
- Incorrect branch assignment
- Additional optical loss
- Dirty connector
- Fiber cable damage
- Incorrect network configuration
Check the complete optical power budget when required.
Problem 6: Communication Works at Short Distance but Fails on the Installed Network
Possible causes include:
- Excessive fiber attenuation
- Excessive splitter loss
- Too many optical connections
- Dirty connectors
- Damaged fiber
- Insufficient receiver optical power
The addition of a splitter/combiner can change the total optical loss of the network.
Problem 7: Remote Device Frequently Drops Offline
Potential causes:
- Marginal optical signal
- Intermittent fiber connection
- Damaged fiber
- P0926AH connection problem
- Remote communication module issue
- Environmental vibration
Monitor the communication path while checking the affected branch.
Problem 8: Fiber Connector Cannot Be Connected
Possible causes:
- Incorrect connector type
- Incorrect orientation
- Damaged connector
- Contamination
- Foreign material
- Mechanical deformation
Never force the connector.
Problem 9: Replacing P0926AH Does Not Correct the Problem
If the communication fault remains after replacing the splitter/combiner, inspect:
- Fiber cables
- Optical connectors
- Optical transmitter
- Optical receiver
- Remote communication module
- Power supply
- Network topology
- Optical signal level
The splitter/combiner is only one component of the complete optical communication system.
Optical Fault Diagnosis
A systematic diagnostic path is:
Control Processor
↓
Optical Interface
↓
Main Fiber
↓
P0926AH
↙ ↘
Branch A Branch B
↓
Remote Communication Devices
When multiple branches fail, investigate the common section first.
When only one branch fails, investigate the individual branch first.
This simple distinction can greatly improve troubleshooting efficiency.
Optical Power Budget Considerations
Fiber networks must maintain sufficient optical power between the transmitter and receiver.
A simplified relationship is:
Available Optical Power − Total Optical Loss ≥ Receiver Requirement
Total optical loss may include:
- Fiber attenuation
- Connector insertion loss
- Coupler loss
- Splitter loss
- Splice loss
- Other passive optical components
If the total loss becomes too high, the receiver may not reliably detect the transmitted optical signal.
Therefore, adding optical components should always be evaluated as part of the complete network design.
Preventive Maintenance
| Inspection Item | Recommended Check |
|---|---|
| P0926AH | Inspect physical condition |
| Optical Connectors | Check cleanliness |
| Fiber Cable | Inspect for damage |
| Cable Routing | Check bend radius |
| Connector Engagement | Verify secure connection |
| Branch Connections | Confirm correct routing |
| Optical Link | Monitor stability |
| Optical Power | Check when required |
| Communication Diagnostics | Review recurring errors |
| Environment | Check dust, moisture and vibration |
| Maintenance Records | Document changes |
Common Maintenance Mistakes
Installing the Wrong Fiber Component
Fiber-optic components are not universally interchangeable. Connector type and optical characteristics must be compatible with the system.
Connecting the Wrong Fiber Branch
Incorrect fiber identification can cause communication paths to be connected incorrectly.
Ignoring Optical Connector Cleanliness
Contamination can produce significant optical loss.
Excessive Fiber Bending
Sharp bends can increase attenuation or damage the fiber.
Replacing the Splitter Without Testing the Cable
A damaged fiber cable can cause the same symptoms as a defective optical component.
Ignoring Optical Power Budget
Adding passive optical components increases total optical loss and may affect communication reliability.
Replacement Procedure
Phase 1 — Preparation
- Verify P0926AH.
- Confirm optical compatibility.
- Review the fiber network topology.
- Identify all connected branches.
- Place the system in a safe maintenance condition.
Phase 2 — Removal
- Document existing connections.
- Label fiber cables if necessary.
- Disconnect optical connectors carefully.
- Protect exposed optical interfaces.
- Remove the existing component.
Phase 3 — Installation
- Inspect the replacement P0926AH.
- Clean optical interfaces.
- Connect the main optical path.
- Connect branch fibers.
- Verify connector seating.
- Secure the component.
- Route cables correctly.
Phase 4 — Commissioning
- Restore the communication system.
- Verify optical link status.
- Test each branch.
- Check communication alarms.
- Monitor network stability.
Post-Maintenance Checklist
- Correct Foxboro P0926AH confirmed
- Dimensions verified: 150 × 25 × 100 mm
- Weight verified: 0.4 kg
- Optical interface compatibility confirmed
- Network topology documented
- Fiber connections identified
- Existing component removed carefully
- Optical connectors inspected
- Optical interfaces cleaned
- Fiber cables inspected
- P0926AH installed correctly
- Main optical connection verified
- Branch connections verified
- Fiber bend radius maintained
- Cable strain relief checked
- Optical communication restored
- Each branch tested
- Communication diagnostics checked
- Network stability monitored
- Final configuration documented
Key Advantages
- Designed for compatible Foxboro fiber-optic communication architectures
- Provides optical signal splitting/combining functionality
- Supports electrical isolation
- Suitable for industrial DCS environments
- Helps establish flexible fiber communication paths
- Supplied dimensions of 150 × 25 × 100 mm
- Supplied weight of 0.4 kg
- Suitable for fiber network maintenance
- Useful in electrically noisy industrial environments
- Supports structured optical communication architectures
Technical FAQs
What is the Foxboro P0926AH?
The P0926AH is a Fiber Optic Splitter/Combiner used as part of compatible Foxboro industrial control-system optical communication infrastructure.
What is the main function of P0926AH?
Its primary function is to split or combine compatible optical communication paths according to the network architecture.
What are the dimensions of P0926AH?
The supplied dimensions are 150 × 25 × 100 mm.
What is the weight of P0926AH?
The supplied weight is 0.4 kg.
Is P0926AH an active communication module?
The product is identified as a fiber-optic splitter/combiner rather than an active control processor or communication controller.
Why is fiber used in industrial control systems?
Fiber provides electrical isolation and strong resistance to electromagnetic interference, making it useful for industrial communication networks.
Can contamination cause optical communication problems?
Yes. Dust, oil, fingerprints, and other contamination can increase optical loss.
Why can adding a splitter cause communication problems?
A passive splitter/combiner can introduce additional optical loss. If the existing network has limited optical power margin, the additional loss may reduce communication reliability.
Why does only one branch fail?
A single failed branch can be caused by a damaged fiber, connector problem, incorrect branch connection, or fault in the remote optical interface.
Why do all branches fail?
If all branches fail simultaneously, investigate the common optical input, P0926AH connection, upstream fiber, and optical transmitter first.
Should I replace P0926AH when communication fails?
Not automatically. Inspect fiber cables, optical connectors, optical interfaces, and network topology before replacing the component.
What should be checked after installing P0926AH?
Check optical connections, branch routing, connector cleanliness, fiber bend radius, optical link status, and communication with all connected devices.
Can P0926AH repair a damaged fiber cable?
No. A splitter/combiner provides an optical connection but does not repair physically damaged fiber.
Conclusion
The Foxboro P0926AH Fiber Optic Splitter/Combiner is a compact optical communication component for compatible Foxboro industrial automation and DCS architectures. Based on the supplied specifications, the unit measures 150 × 25 × 100 mm and weighs 0.4 kg.
Its primary role is to support the splitting or combining of compatible optical communication paths. This makes it useful in fiber-based control-system architectures where communication paths need to be distributed between different system sections while maintaining the advantages of optical transmission.
Correct installation requires careful attention to fiber identification, connector cleanliness, optical alignment, cable routing, bend radius, and the overall optical network topology. Because passive optical components can introduce additional signal loss, the complete optical power budget should also be considered when diagnosing marginal communication performance.
For troubleshooting, technicians should first determine whether the fault affects one optical branch or multiple branches. A single-branch failure generally points toward the affected cable, connector, or remote interface, while simultaneous failure of multiple branches suggests investigating the common optical path and P0926AH connection.
With correct installation, optical cleanliness, proper cable management, and systematic preventive maintenance, the P0926AH can support stable and reliable fiber-optic communication within compatible Foxboro control-system networks.
