Product Overview

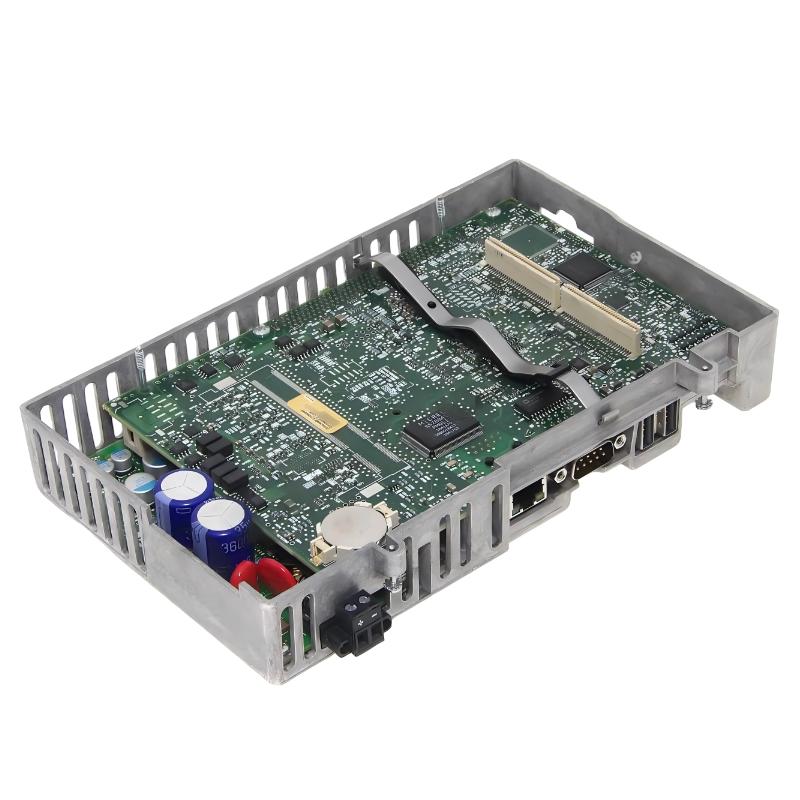

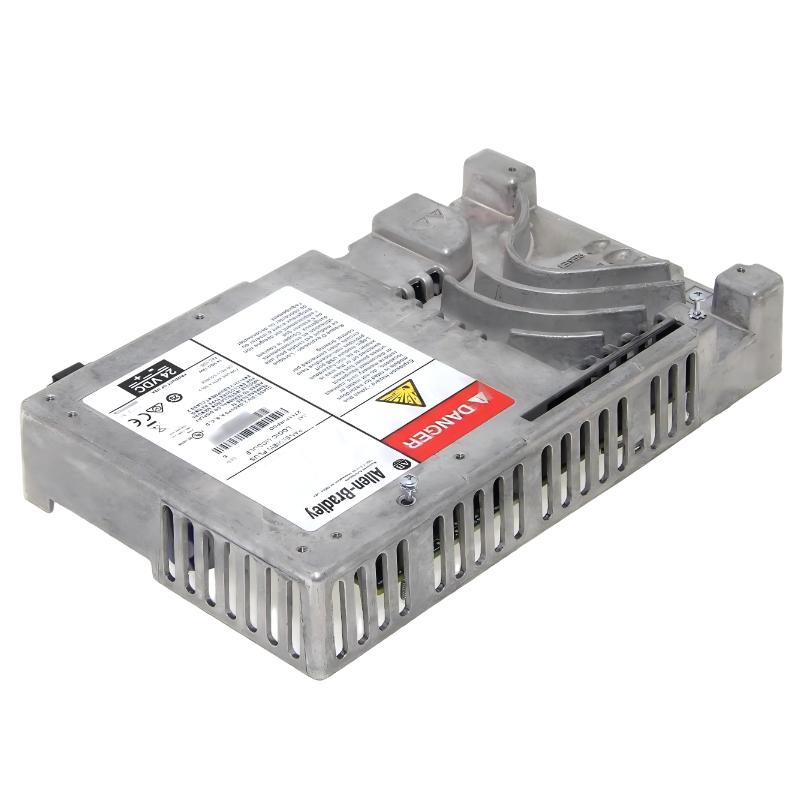

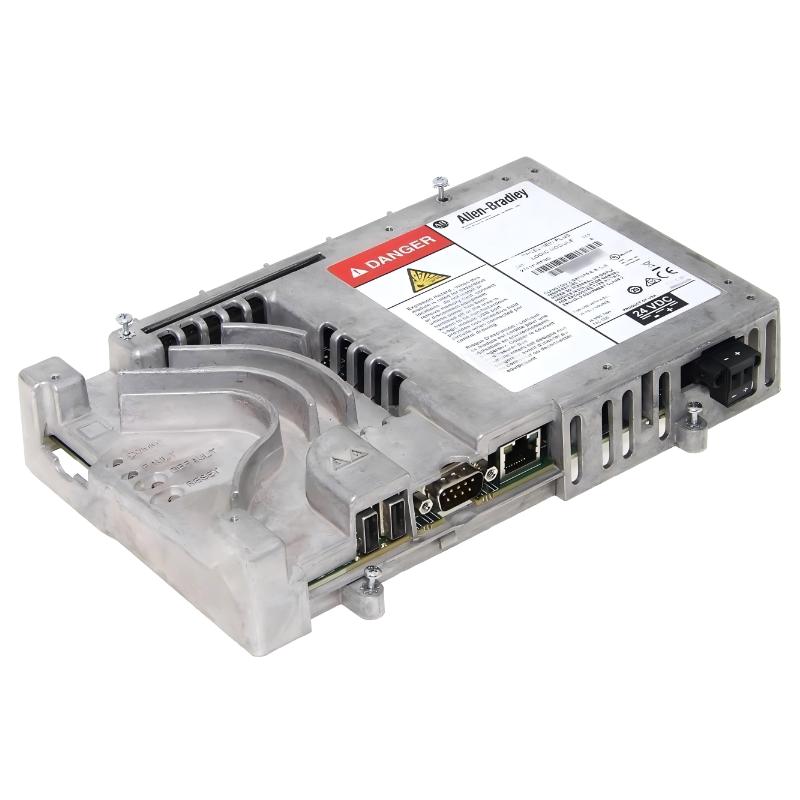

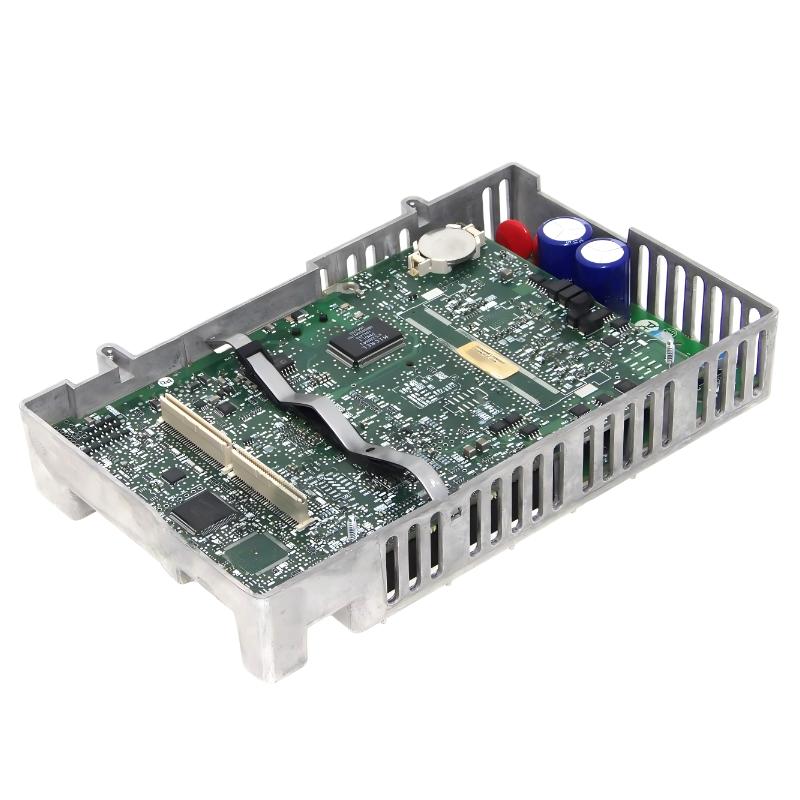

The 2711P-RP8D is a PanelView Plus 6 logic module used in PanelView Plus 700–1500 terminals.
It is the main processing unit (CPU) of the HMI system and is responsible for:
- Running FactoryTalk View ME runtime applications
- Managing communication with PLC systems
- Processing alarms, tags, trends, and operator input
- Driving the HMI display module
It is part of the PanelView Plus 6 generation (Windows CE 6.0 platform).
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model | 2711P-RP8D |
| Product Type | Logic Module |
| System Platform | PanelView Plus 6 |
| Compatible Displays | 700 / 1000 / 1250 / 1500 |
| Operating System | Windows CE 6.0 |
| Memory | ~80 MB non-volatile application storage |
| RAM | ~512 MB class architecture (variant dependent) |
| Communication Ports | Ethernet, RS-232, USB |
| Power Supply | 24 VDC |
| Mounting | Rear-mounted internal module |
| Operating Temperature | 0–55 °C |
| Weight | 0.57 kg |
| Dimensions | 155 × 35 × 105 mm |
Function and Working Principle
The RP8D acts as the core controller of the PanelView system:
- Receives 24 VDC power from terminal base
- Boots Windows CE operating system
- Loads FactoryTalk View ME runtime application
- Communicates with PLC via Ethernet / serial
- Processes HMI logic, alarms, and data
- Sends display output to touchscreen module
Without this module, the PanelView terminal cannot operate.
Role in Automation Systems
- Executes HMI runtime applications
- Handles PLC communication (ControlLogix, CompactLogix, etc.)
- Manages alarms and process visualization
- Supports industrial operator control interfaces
- Provides real-time monitoring capability
Industrial Applications
- Manufacturing automation
- Packaging systems
- Power plant control rooms
- Oil & gas process monitoring
- Water treatment systems
- Pharmaceutical production
- General industrial machinery HMI systems
Installation Guidelines
- Power off system before installation
- Use ESD protection
- Insert into rear logic module slot firmly
- Ensure firmware compatibility with display module
- Test communication after installation
Key Advantages
- Dedicated CPU for HMI system
- Stable Windows CE 6.0 industrial platform
- Reliable PLC communication
- Modular replacement design
- Widely used in existing industrial installations
Technical FAQs
Is RP8D still in production?
No, it belongs to older PanelView Plus 6 generation and is discontinued.
Can it run without display module?
No, it must be paired with a PanelView display unit.
Is it interchangeable with RP1/RP2?
Only within compatible PanelView Plus 6 hardware families and firmware constraints.
Conclusion
The 2711P-RP8D logic module is the central processing unit of PanelView Plus 6 systems, responsible for executing HMI applications and managing industrial communication. It remains widely used in legacy automation systems due to its reliability and integration within Rockwell architectures.
