Product Overview

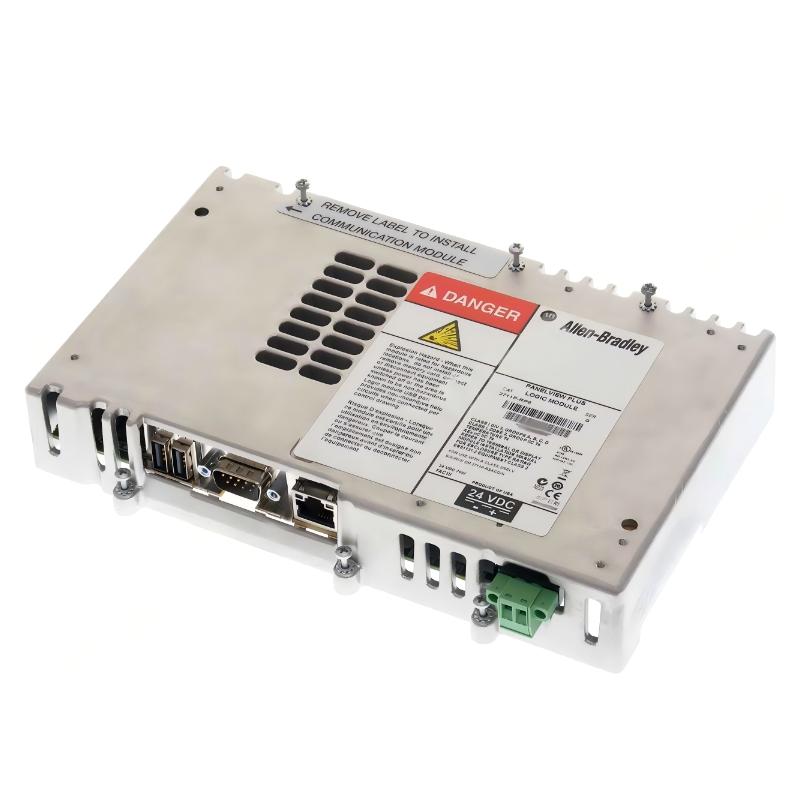

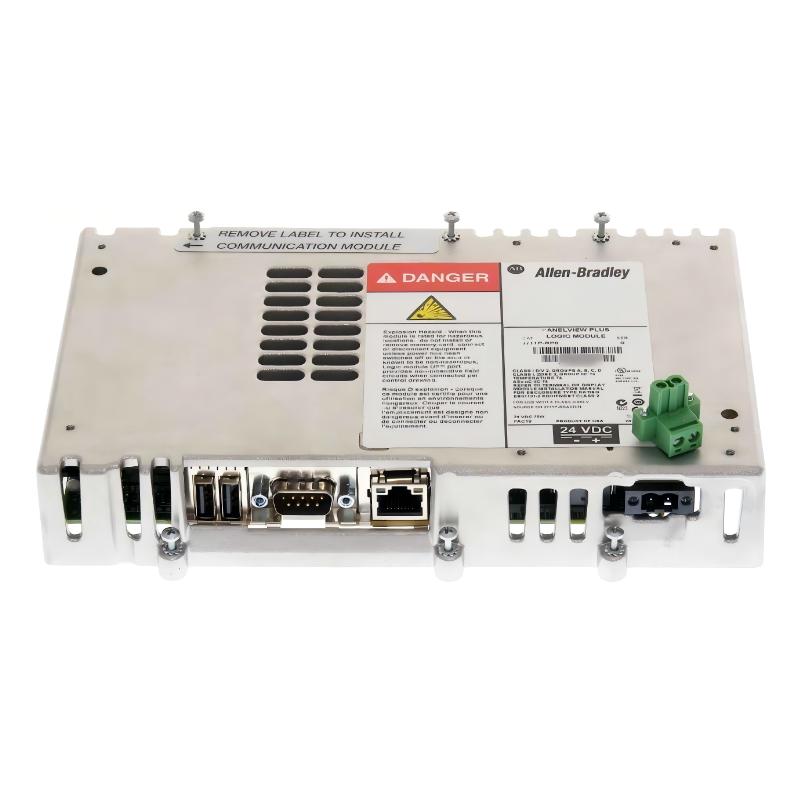

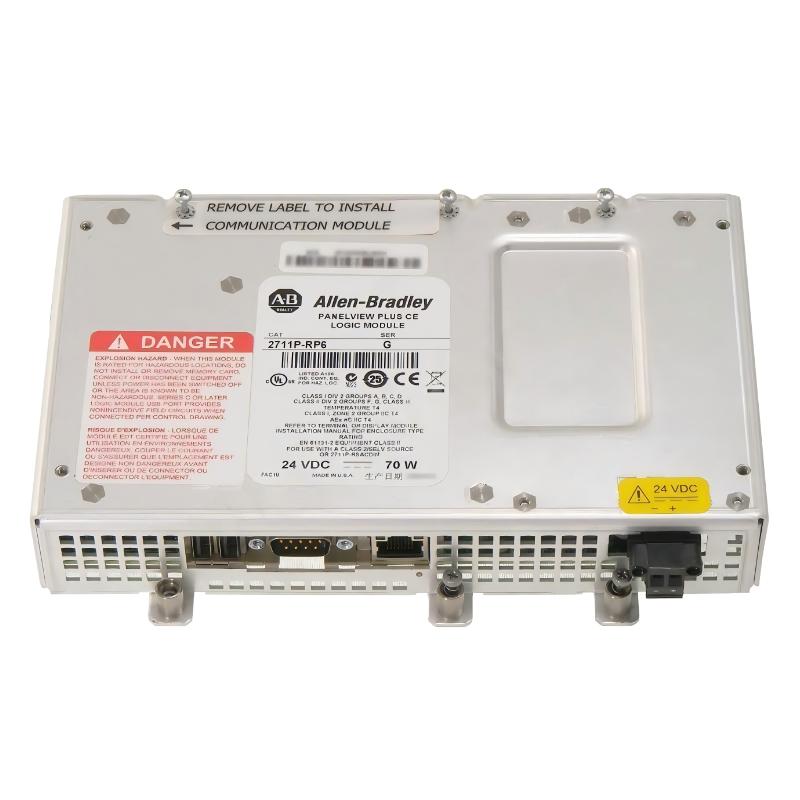

The Allen Bradley 2711P-RP6 is a logic module (processor module) for PanelView Plus CE operator terminals. It serves as the core processing unit for the HMI system, executing FactoryTalk View ME runtime applications and managing communication with PLCs and networked devices.
With dimensions of 155 × 35 × 105 mm and a weight of 0.79 kg, the RP6 is slightly larger than the earlier RP1/RP2A modules, reflecting its capability to support the CE-based PanelView Plus terminals with improved processing and network handling.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model | 2711P-RP6 |
| Product Type | Logic Module (CE Version) |
| Compatible Systems | PanelView Plus CE terminals (PanelView Plus 600, 1250, or 1500 CE models) |
| Memory | Typically 128 MB Flash / 64 MB RAM |
| Processor | Embedded industrial processor |
| Communication Interfaces | Ethernet, serial (RS-232), USB ports |
| Power Input | 24 VDC via PanelView Plus terminal |
| Mounting | Rear-mounted to display module via internal connector |
| Operating System | Windows CE-based embedded system |
| Application Runtime | FactoryTalk View ME |
| Operating Temperature | 0–55 °C |
| Weight | 0.79 kg |
Function and Working Principle
The 2711P-RP6 module acts as the “brain” of the PanelView Plus CE terminal:
- Powers up via 24 VDC from the HMI terminal.
- Boots the embedded Windows CE operating system.
- Loads the FactoryTalk View ME runtime application from flash memory.
- Processes operator commands, alarms, trends, and logic.
- Communicates with PLCs and networked devices via Ethernet or serial interfaces.
- Sends processed graphics and information to the display module for operator interaction.
Without this module, a PanelView Plus CE terminal cannot run applications or communicate with industrial systems.
Role in Industrial Automation Systems
The RP6 module is essential for:
- Running HMI runtime applications
- Managing PLC and network communication (EtherNet/IP, serial, or USB)
- Processing alarms, events, and operator inputs
- Storing HMI configuration and runtime data
- Providing a robust, reliable interface between the operator and industrial processes
Industrial Applications
- Manufacturing production lines
- Packaging and material handling systems
- Power generation and distribution control rooms
- Water and wastewater treatment plants
- Oil & gas process monitoring
- Pharmaceutical and food processing automation
- General industrial automation requiring CE-based HMI terminals
Installation Guidelines
- Install behind compatible PanelView Plus CE display modules
- Follow ESD precautions during handling
- Ensure the terminal is powered off before installation
- Seat the module firmly into the internal connector
- Verify firmware and application compatibility
- Test HMI operation and PLC communication after installation
Compatible Components
- PanelView Plus CE display modules (600, 1250, 1500 series)
- Allen Bradley communication modules (EtherNet/IP, ControlNet, DeviceNet)
- FactoryTalk View Studio ME software
- PLCs (ControlLogix, CompactLogix, MicroLogix)
- Industrial Ethernet and serial networks
Key Advantages
- CE-based logic module for PanelView Plus terminals
- Compact and lightweight design for easy integration
- Executes HMI applications and manages network communication
- Supports FactoryTalk View ME runtime
- Modular design allows easy replacement and maintenance
- Reliable operation in industrial environments
Technical FAQs
Which PanelView Plus terminals are compatible?
PanelView Plus CE terminals, including 600, 1250, and 1500 series CE models.
Can the HMI operate without this module?
No, the RP6 is required for processing and running HMI applications.
Does it store the runtime application?
Yes, application files and system configuration are stored in flash memory.
Is it suitable for harsh industrial environments?
Yes, it is designed for robust industrial operation.
Conclusion
The Allen Bradley 2711P-RP6 Logic Module is a high-performance, CE-based processor module for PanelView Plus terminals. It provides the necessary computing power to run HMI applications, process operator input, and communicate with PLCs, making it a critical component for reliable and efficient industrial automation.
