Product Overview

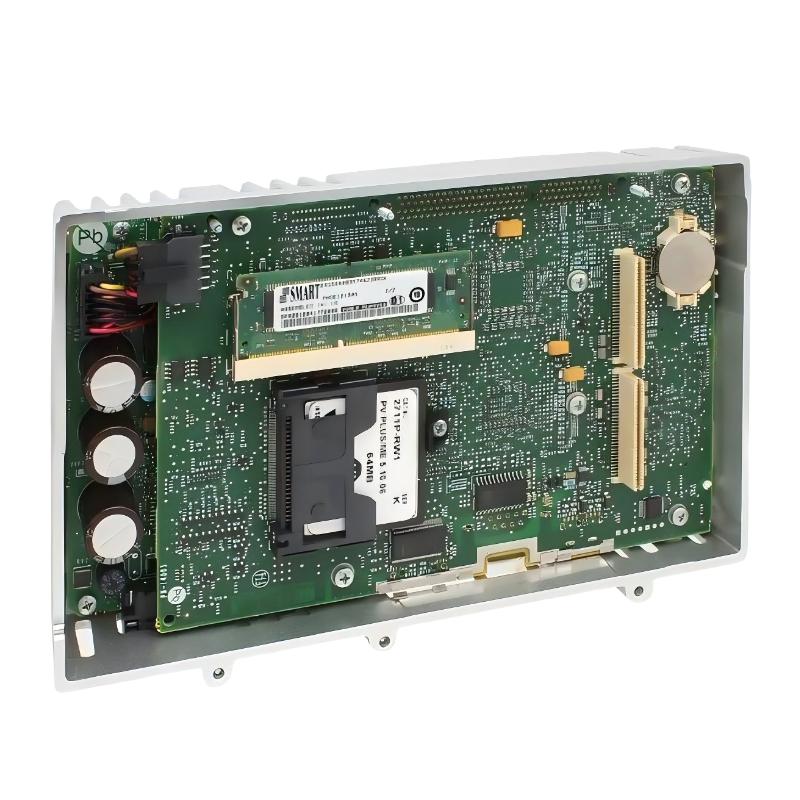

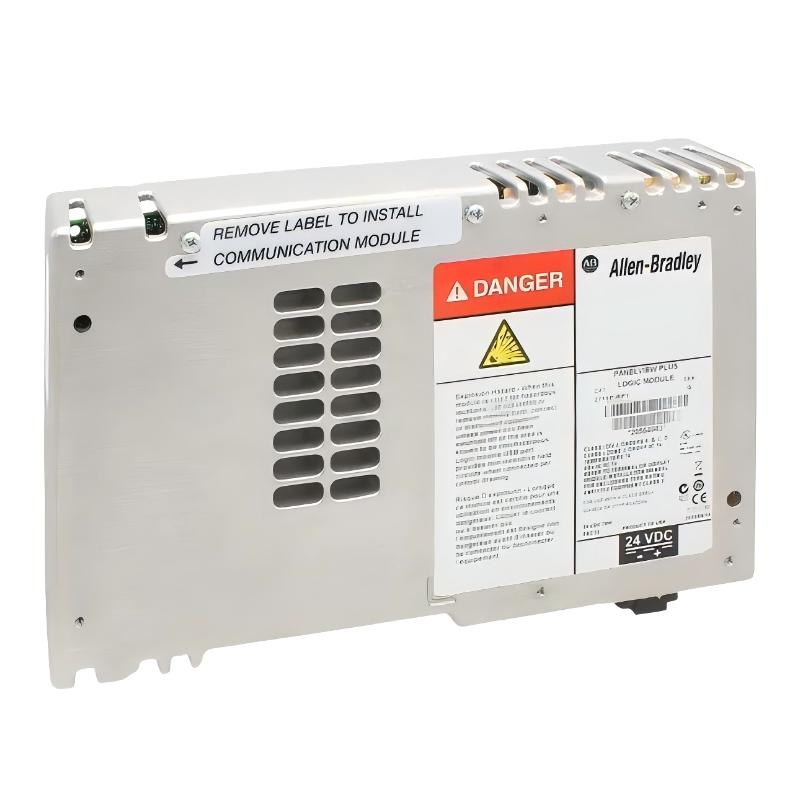

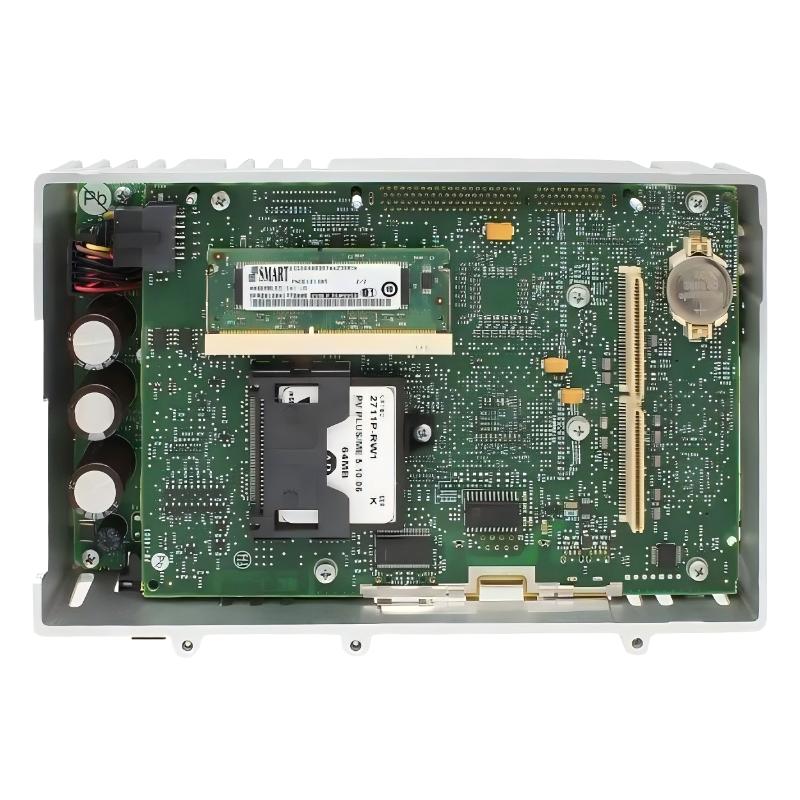

The Allen Bradley 2711P-RP1 is a logic module (processor module) used in PanelView Plus 700–1500 operator terminals. It serves as the “core computing unit” of the HMI system, containing the processor, memory, operating system, and communication interfaces required to run FactoryTalk View ME runtime applications.
In a PanelView Plus system, the logic module works together with the display module:
- Display module = screen & touch interface
- Logic module (2711P-RP1) = processing + communication + application execution engine
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model | 2711P-RP1 |
| Product Type | Logic Module |
| Compatible System | PanelView Plus 700 / 1000 / 1250 / 1500 |
| Memory | 64 MB RAM / 64 MB Flash |
| Processor | Embedded industrial processor (PanelView Plus architecture) |

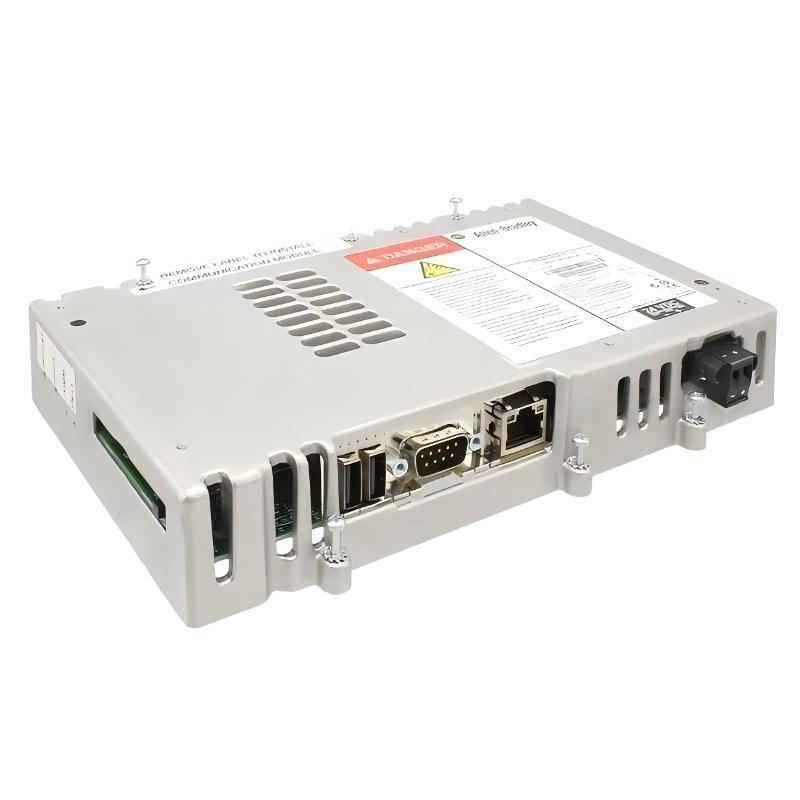

| Communication Interfaces | Ethernet, serial (RS-232), USB ports |
| Power Input | 24 VDC (via terminal system) |
| Mounting | Rear-mounted to display module via internal connector |
| Operating System | Windows CE-based embedded system |
| Application Runtime | FactoryTalk View ME |
| Operating Temperature | 0–55 °C |
| Weight | ~0.9 kg |
Function and Working Principle
The 2711P-RP1 logic module acts as the central control unit of the HMI system.
Working Process:
- The module powers on with 24 VDC supply from the PanelView terminal.
- It boots the embedded OS (Windows CE-based environment).
- FactoryTalk View ME runtime application is loaded from flash memory.
- It communicates with PLCs and controllers via Ethernet/serial links.
- It processes HMI logic, alarms, tags, and visualization data.
- It sends rendered graphics to the display module for operator interaction.
Without the logic module, the PanelView Plus terminal cannot function.
Role in Industrial Automation Systems
The 2711P-RP1 is essential for:
- Running HMI runtime applications (.MER files)
- Managing PLC communication (EtherNet/IP, serial protocols)
- Processing alarms, trends, and operator inputs
- Storing application data and system configuration
- Enabling real-time visualization of industrial processes
Industrial Applications
- Manufacturing production lines
- Packaging and material handling systems
- Power generation control rooms
- Water and wastewater treatment plants
- Oil & gas process monitoring systems
- Pharmaceutical and food processing automation
- General PLC-based industrial control systems
Installation Guidelines
- Install behind compatible PanelView Plus 700–1500 display modules
- Ensure correct electrostatic discharge (ESD) handling
- Power down the unit before replacement
- Firmly seat the module into the internal connector (PCI-style interface)
- Verify firmware compatibility with the HMI application
- Test communication with PLC after installation
Compatible Components
- PanelView Plus 700 / 1000 / 1250 / 1500 display modules
- Allen Bradley communication modules (ControlNet, Ethernet/IP, etc.)
- FactoryTalk View Studio ME software
- PLC systems (ControlLogix, CompactLogix, etc.)
- Industrial Ethernet networks
Key Advantages
- Central processing unit for PanelView Plus HMIs
- Supports modular replacement (easy field servicing)
- Reliable industrial-grade embedded system
- Supports FactoryTalk View ME applications
- Flexible communication interfaces (Ethernet, serial, USB)
- Long lifecycle in industrial environments
Technical FAQs
What does the 2711P-RP1 do?
It runs the HMI system, including logic, communication, and display processing.
Can the PanelView work without it?
No. The logic module is required for operation.
Is it interchangeable with other RP modules?
Only within compatible PanelView Plus 700–1500 systems and firmware constraints.
Does it store the HMI project?
Yes, it stores runtime application data and system files in flash memory.
Is it the same as a communication module?
No. It is the main processor module, not a network-only module.
Conclusion
The Allen Bradley 2711P-RP1 Logic Module is the core processing component of PanelView Plus 700–1500 systems. It enables execution of FactoryTalk View ME applications, manages communication with PLCs, and provides the computing power required for industrial HMI operation. Its modular design allows straightforward replacement and maintenance in industrial automation environments.
