Product Overview

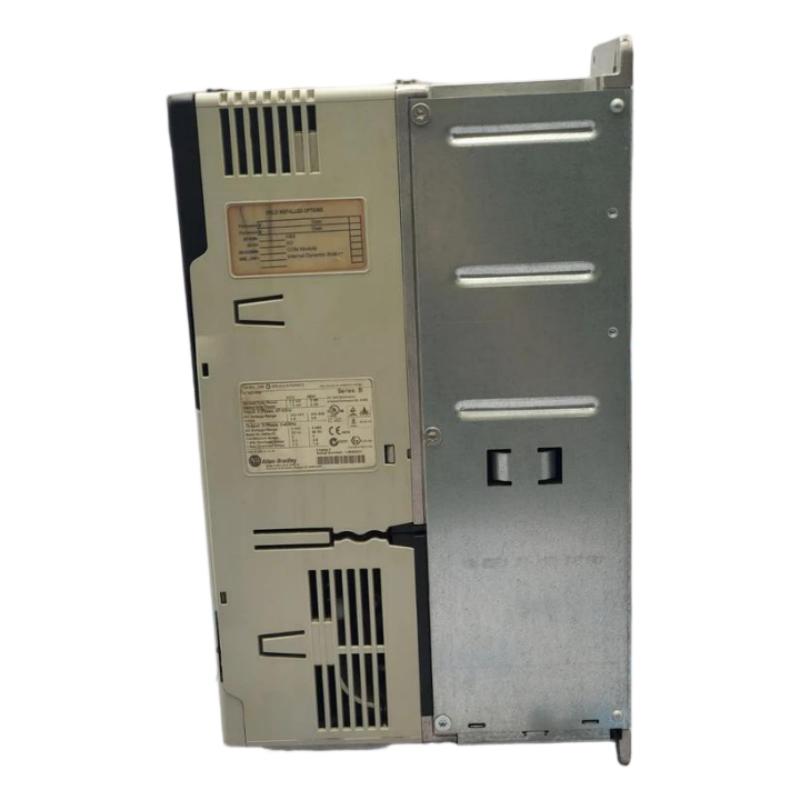

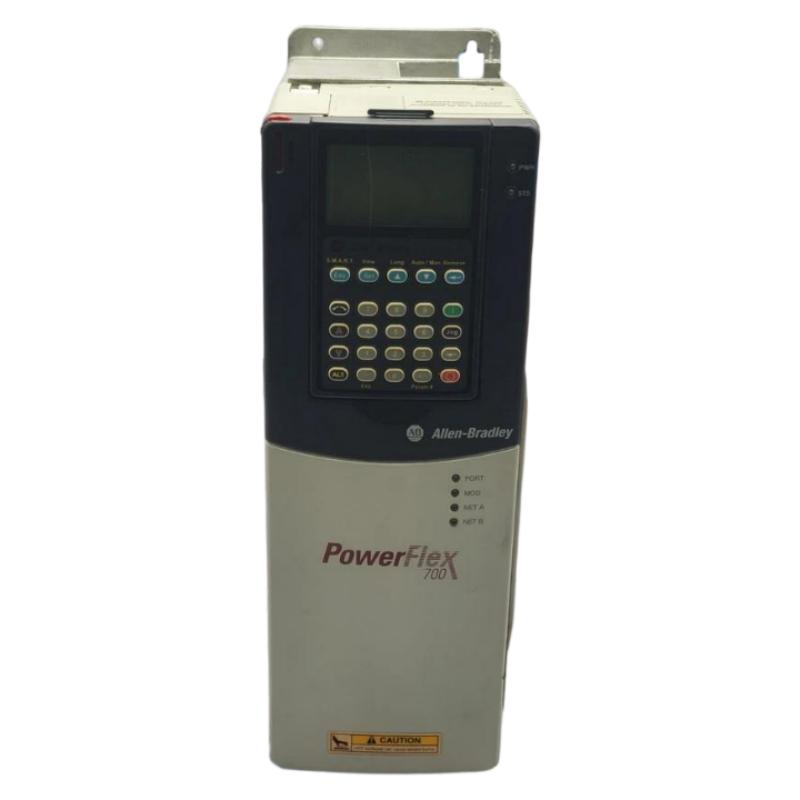

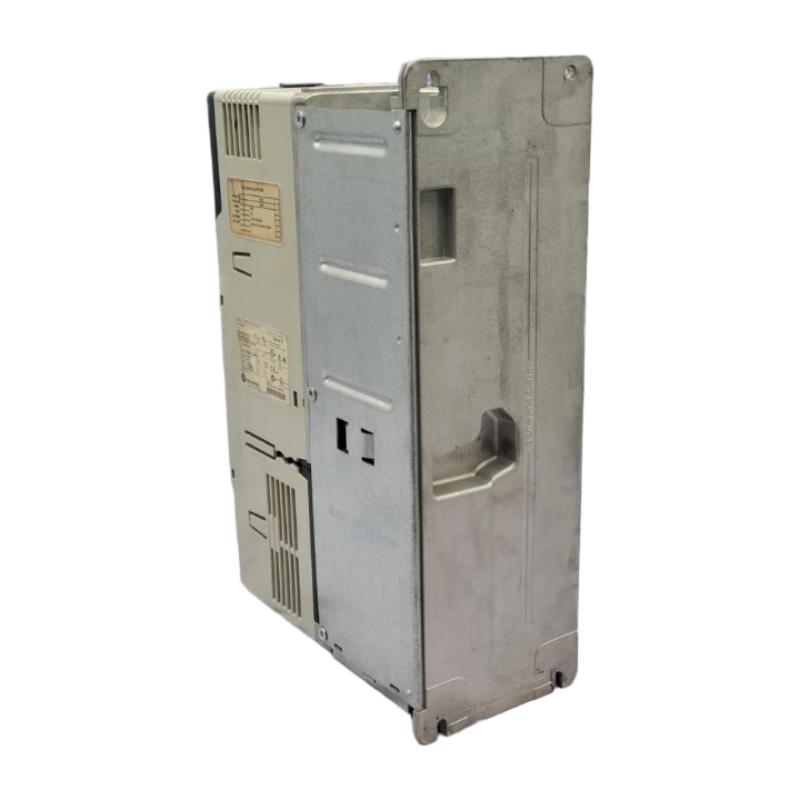

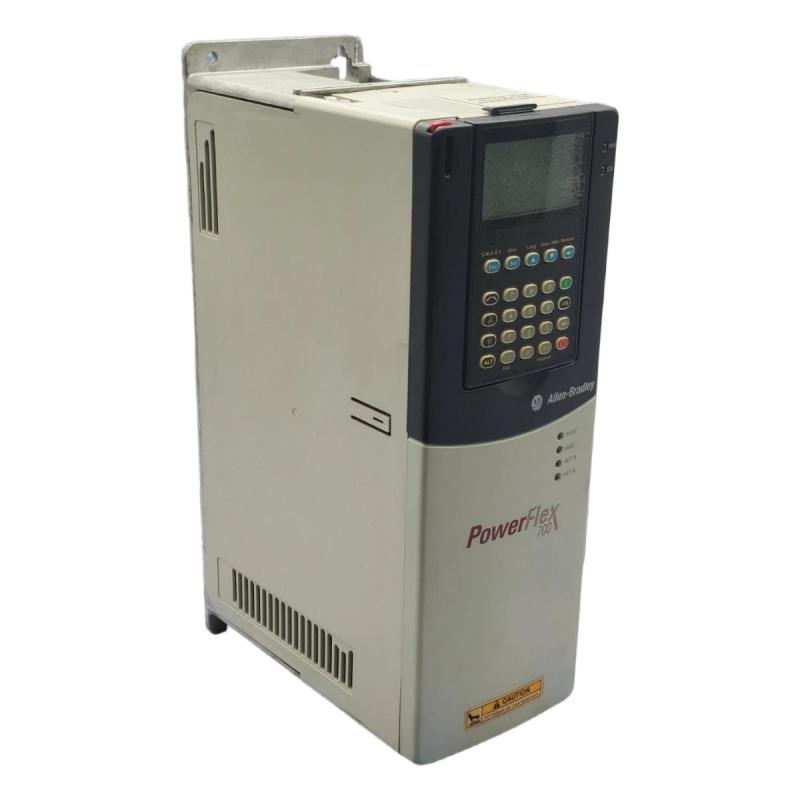

The Allen-Bradley 20BD5P0A0AYNANC0 PowerFlex 700 AC Drive is an industrial adjustable-frequency drive designed to control the speed and operation of compatible three-phase AC motors. Manufactured by Rockwell Automation under the Allen-Bradley brand, this drive belongs to the PowerFlex 700 family, which has been widely used in industrial motor-control systems and automated production equipment.

Variable frequency drives regulate motor speed by adjusting the frequency and voltage supplied to the motor. This allows industrial machinery to operate according to process requirements rather than relying exclusively on fixed-speed operation. In suitable applications, variable-speed control can improve process flexibility, support smoother acceleration and deceleration, and reduce unnecessary mechanical stress.

The 20BD5P0A0AYNANC0 is designed for a nominal 480 V AC three-phase supply. It provides a continuous output current of 5.0 A and supports a normal-duty power rating of 3 HP, approximately 2.24 kW, and a heavy-duty rating of 2 HP, approximately 1.5 kW. These ratings make it suitable for compatible small industrial motors whose electrical characteristics and operating requirements fall within the drive’s limits.

This particular catalog number identifies a specific PowerFlex 700 configuration. It features vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and an EMC filter with a common-mode choke. It does not include an installed human interface module (HIM), an internal braking resistor, an internal communication module, or a feedback option.

These configuration details are important when selecting a replacement or integrating the drive into an existing control cabinet. Two PowerFlex 700 drives with similar current ratings may have different communication interfaces, braking arrangements, or control options. The complete catalog number should therefore be checked before ordering.

The PowerFlex 700 20B series has been discontinued. Nevertheless, this model may remain relevant to industrial maintenance, legacy equipment support, and spare-parts procurement. Buyers should verify the exact catalog number, condition, electrical ratings, and configuration before installing a replacement unit.

Technical Specifications

Specifications should be confirmed against the actual drive nameplate and revision. The stated dimensions and weight are the supplied product-listing values.

Function and Working Principle

The PowerFlex 700 drive converts incoming AC electrical power into a controlled output for a three-phase AC motor. Its control system adjusts the output according to the selected operating mode, speed reference, motor parameters, and application requirements.

Variable-Frequency Motor Control

The operating speed of an AC motor is related to the frequency of its electrical supply and the motor’s design. By adjusting output frequency, the drive can regulate motor speed over an appropriate operating range.

For example, a conveyor may need to operate slowly while products are positioned and faster during normal transportation. A variable frequency drive allows the motor speed to change according to production requirements without relying entirely on mechanical speed-adjustment equipment.

The achievable speed range depends on the motor, load characteristics, cooling conditions, and configured control parameters.

Vector Control

The 20BD5P0A0AYNANC0 uses a vector-control configuration. This control approach manages motor operation with consideration for torque-producing and magnetic components of motor current.

When correctly configured for the connected motor, vector control can provide improved torque response and speed regulation compared with simpler frequency-only control methods. These characteristics can be beneficial when a machine experiences changing loads or requires predictable motor response during acceleration and deceleration.

The actual control performance depends on correct motor data, commissioning, tuning, and application conditions.

Acceleration and Deceleration Control

The drive supports programmable acceleration and deceleration times. These parameters determine how quickly the motor moves between operating speeds.

Appropriate ramp settings can reduce sudden mechanical movement, limit stress on couplings and belts, and improve process stability. In packaging and material-handling systems, controlled speed changes may also help maintain consistent product movement.

Deceleration settings must account for load inertia and regenerative energy. This model includes a braking IGBT but does not have an internal braking resistor, so applications requiring frequent or rapid stopping may need an appropriately designed external braking arrangement.

Protection and Diagnostic Functions

The PowerFlex 700 family provides protective and diagnostic functions for monitoring drive and motor operation. Depending on the operating configuration, these functions can help detect abnormal current, voltage, temperature, and overload conditions.

Proper motor data and parameter configuration are essential for reliable protection. The drive’s internal functions do not replace correctly selected upstream protective devices, suitable grounding, or the machine’s required safety systems.

Electromagnetic Compatibility

This model includes an EMC filter with a common-mode choke. The filtering arrangement supports electromagnetic compatibility when the drive is installed according to the applicable wiring and grounding requirements.

Correct cable routing, motor-cable shielding, grounding, and separation of control and power wiring remain important for minimizing electrical interference.

Role in Industrial Control Systems

The 20BD5P0A0AYNANC0 can operate as a motor-control component within a broader industrial automation system. It is normally installed between the electrical supply and a compatible motor, receiving operating commands from the control architecture.

PLC Integration

A programmable logic controller can coordinate motor operation with sensors, actuators, interlocks, and other machinery. Depending on the system design, the PLC may issue start and stop commands, select speed references, and respond to process conditions.

The specified drive uses 24 V DC I/O and does not include an internal communication module. Therefore, the control method must be selected according to the available terminals and the requirements of the PLC application.

Engineers should not assume that a particular industrial network is available without verifying the installed hardware and catalog number.

HMI and Operator Control

A human-machine interface allows operators to monitor production information, view alarms, and interact with machine-control functions. In many installations, the HMI communicates with a PLC that coordinates the drive.

The 20BD5P0A0AYNANC0 is supplied without an installed HIM. If local programming or direct operator access is required, verify the supported interface and commissioning method for the actual hardware configuration.

Motor and Process Coordination

The drive can be incorporated into a control strategy that adjusts motor speed according to production requirements. For example, a PLC may regulate conveyor speed based on product flow or coordinate auxiliary motors with upstream and downstream machinery.

Successful integration requires appropriate coordination between the drive, motor, control logic, sensors, and mechanical equipment.

Industrial Applications

The PowerFlex 700 series is intended for industrial motor-control applications. The 20BD5P0A0AYNANC0 provides a 5.0 A continuous output rating, with a 3 HP normal-duty rating and a 2 HP heavy-duty rating. Actual suitability depends on the motor nameplate, overload requirements, and operating conditions.

Conveyor Systems

Conveyors often require controlled starting, stopping, and speed adjustment. A correctly selected drive can help synchronize material movement with inspection, sorting, packaging, and downstream processing equipment.

For this model, engineers should verify motor current, starting torque, conveyor inertia, and stopping requirements before installation.

Small Pumping Equipment

Some auxiliary pumps require variable-speed operation to match changing flow or pressure demands. A compatible drive can regulate motor speed and may help reduce unnecessary throttling in suitable installations.

Pump type, fluid characteristics, minimum operating speed, motor cooling, and required pressure should be considered during drive selection.

Fans and Ventilation Systems

Small industrial fans and ventilation motors may benefit from adjustable-speed operation where airflow demand varies. Reducing fan speed can lower energy consumption in suitable applications, although actual savings depend on the system’s operating profile.

The motor must remain within its permitted operating range, and the drive must be installed in an enclosure with adequate cooling and environmental protection.

Packaging and Assembly Machinery

Packaging and assembly equipment may use compact motors for feeding, conveying, and auxiliary movement. Adjustable-speed control can help coordinate these processes with production cycles.

Where precise positioning or closed-loop speed regulation is required, the engineering team should confirm whether the drive’s control configuration and lack of a feedback option meet the application requirements.

General Manufacturing Equipment

The drive may be used with compatible motors in manufacturing machinery, material-handling systems, and auxiliary production equipment. Its suitability should be evaluated against electrical ratings, load profile, duty cycle, and environmental conditions.

A drive should not be selected on motor power alone. Output current, overload capability, acceleration requirements, and braking needs are also important.

Installation and System Integration

Correct installation supports safe operation, reliable motor control, and equipment longevity.

Electrical Supply Verification

Confirm that the incoming supply matches the drive’s nominal 480 V AC three-phase rating. Check the supply frequency, motor voltage, motor current, and upstream protective-device requirements.

The motor’s nameplate information should be used when selecting and configuring the drive. A motor with a similar horsepower rating may still be unsuitable if its current or overload requirements exceed the drive’s capabilities.

Mounting and Cabinet Design

The supplied dimensions are 336 × 200 × 110 mm, and the listed weight is 5.22 kg. Verify the actual drive dimensions and mounting drawing before designing a cabinet or preparing mounting hardware.

Allow adequate clearance for cooling airflow, wiring access, maintenance, and heat dissipation. Avoid placing the drive where conductive dust, moisture, or corrosive contaminants could compromise its operation.

The IP20 / NEMA Type 1 enclosure configuration is intended for suitable indoor installations and is not a sealed, water-resistant enclosure. Where environmental protection is required, use an appropriately rated cabinet.

Wiring and Grounding

Power wiring, motor wiring, control wiring, and grounding should follow the manufacturer’s installation instructions and applicable electrical codes. Separate sensitive control wiring from power conductors where required to reduce electrical interference.

Use correctly rated conductors and protective devices. Before installation or servicing, isolate the power supply, follow lockout procedures, and verify that hazardous voltage has been removed.

Motor Parameter Configuration

Enter the correct motor nameplate data and configure the control method, speed reference, command source, acceleration and deceleration times, and protection settings.

For vector control, follow the manufacturer’s motor setup and tuning procedures. Incorrect motor parameters may result in poor speed regulation, inadequate torque response, or unnecessary trips.

Braking Circuit Assessment

This drive has an installed braking IGBT but does not include an internal braking resistor. The IGBT is a switching component used in the braking circuit; it does not itself dissipate regenerated energy.

If the application requires rapid deceleration, frequent stopping, or control of a high-inertia load, determine whether an approved external braking resistor or another braking solution is required. Confirm compatibility, resistance value, power rating, duty cycle, wiring, and protection according to the applicable technical documentation.

Commissioning and Functional Testing

Before returning the equipment to service, inspect the wiring and grounding, verify motor connections, and confirm that the motor can operate safely.

Test start and stop commands, rotation direction, speed references, acceleration and deceleration, interlocks, and fault responses. Record the final parameter settings so that maintenance personnel can restore the intended configuration after replacement or troubleshooting.

Compatible System Components

The 20BD5P0A0AYNANC0 is typically installed as part of an engineered motor-control system. Compatibility depends on the electrical ratings, control architecture, and installed options of each component.

These components are examples of equipment that may be used in a complete installation. They are not necessarily included with the drive.

Alternative Models and Replacement Considerations

The PowerFlex 700 20B series has been discontinued. When maintaining an existing installation, replacement selection should consider electrical compatibility, control functionality, and the original configuration.

Before selecting a replacement, compare:

• Input voltage and phase configuration.
• Continuous output current and overload capability.
• Normal-duty and heavy-duty ratings.
• Control method and speed-regulation requirements.
• Control I/O voltage and terminal assignments.
• Communication and feedback requirements.
• Braking IGBT and braking-resistor configuration.
• EMC filtering and enclosure requirements.
• Mounting dimensions, ventilation, and wiring access.
• PLC program, parameter settings, and commissioning procedures.

A drive with the same horsepower rating may not provide equivalent functionality. Differences in terminal assignments, control interfaces, braking arrangements, and protection settings may require engineering modifications.

Key Advantages

Adjustable Motor Speed

The drive allows compatible AC motors to operate at different speeds according to process requirements, supporting flexible production and machine operation.

Vector-Control Capability

The specified vector-control configuration supports advanced motor-control strategies when correctly configured for the connected motor and application.

Programmable Acceleration and Deceleration

Adjustable ramp settings allow motor response to be matched to mechanical and process requirements, helping reduce abrupt movement.

Integrated Braking IGBT

The installed braking IGBT provides a braking-circuit capability. External braking hardware may still be needed depending on the application’s stopping requirements.

EMC Filtering

The EMC filter with common-mode choke supports electromagnetic compatibility when the drive is correctly installed and wired.

Conformal Coating

The specified configuration includes conformal coating, which provides additional protection for electronic assemblies under suitable environmental conditions. It does not make the drive suitable for unrestricted exposure to moisture or corrosive substances.

Support for Legacy Industrial Systems

The PowerFlex 700 series remains relevant to maintenance and spare-parts requirements in existing industrial installations. Accurate catalog identification helps users source the correct configuration and plan future upgrades.

Technical FAQs

1. What is the Allen-Bradley 20BD5P0A0AYNANC0?

It is a PowerFlex 700 AC drive designed for variable-speed control of compatible three-phase motors. It is rated for 480 V AC input, 5.0 A continuous output, and 3 HP normal-duty operation.

2. What is the heavy-duty power rating?

The documented heavy-duty rating is 2 HP, approximately 1.5 kW. The applicable rating depends on the load, operating conditions, and required overload performance.

3. What input voltage does this drive require?

The nominal input voltage is 480 V AC, three-phase. The documented input frequency is 50/60 Hz. Always confirm the actual nameplate and installation documentation before connecting power.

4. Does the drive include a braking resistor?

No. The 20BD5P0A0AYNANC0 includes a braking IGBT but does not include an internal braking resistor. An external braking solution may be required for applications that regenerate energy during deceleration.

5. Does it have an installed communication module?

No internal communication module is included in the specified configuration. Verify the required PLC interface and any additional hardware before designing the control system.

6. Can this drive be integrated with a PLC?

Yes. It can be integrated into a suitable PLC-based control system using the available 24 V DC I/O and an appropriate control arrangement. The exact wiring and control method must be confirmed for the installation.

7. Is the 20BD5P0A0AYNANC0 still in production?

No. The PowerFlex 700 20B series was discontinued on November 30, 2023. Availability may vary among suppliers, so buyers should verify stock, unit condition, and warranty terms.

8. Can it replace another PowerFlex 700 drive?

Not automatically. Different catalog numbers may have different voltage ratings, output currents, I/O arrangements, braking hardware, communication options, and feedback capabilities. Compare the complete model numbers before substitution.

9. What should be checked when buying a used unit?

Confirm the complete catalog number, nameplate ratings, series or revision, physical condition, terminal condition, cooling fan operation, and available test information. For critical applications, request suitable functional testing and establish clear warranty or return terms.

10. Are the listed dimensions and weight suitable for a product listing?

The supplied dimensions of 336 × 200 × 110 mm and weight of 5.22 kg match the product listing data for this model. For shipping or installation planning, verify the physical unit and distinguish the drive’s net weight from the total weight with packaging.

Procurement and Maintenance Recommendations

Because the PowerFlex 700 20B series is discontinued, procurement should begin with the exact catalog number rather than the product-family name alone.

When sourcing the 20BD5P0A0AYNANC0, verify the nameplate and confirm the 480 V AC input rating, 5.0 A output current, 3 HP normal-duty rating, 2 HP heavy-duty rating, vector-control configuration, 24 V DC I/O, conformal coating, EMC filtering, and braking arrangement.

For new-old-stock, used, or refurbished equipment, request clear photographs of the nameplate and terminals. Confirm the unit’s condition, test status, revision, included accessories, and applicable warranty or return terms. Verify the shipping dimensions and weight separately if freight calculations are required.

During maintenance, keep the drive and cabinet clean, maintain adequate cooling airflow, and inspect wiring, grounding, terminals, and cooling components according to the applicable maintenance schedule. Back up drive parameters and document changes made during commissioning or troubleshooting.

For replacement projects, evaluate whether the existing motor, PLC logic, control wiring, braking circuit, and cabinet layout can be retained. A newer drive may require parameter conversion, wiring changes, software updates, or recommissioning.

Conclusion

The Allen-Bradley 20BD5P0A0AYNANC0 PowerFlex 700 AC Drive is a 480 V AC three-phase variable frequency drive with a continuous output current of 5.0 A, a 3 HP normal-duty rating, and a 2 HP heavy-duty rating. Its specified configuration includes vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and EMC filtering.

The drive does not include an internal braking resistor, an installed human interface module, or an internal communication module. Since the PowerFlex 700 20B series has been discontinued, accurate model identification and technical compatibility checks are essential for maintenance, spare-parts procurement, and replacement planning.
