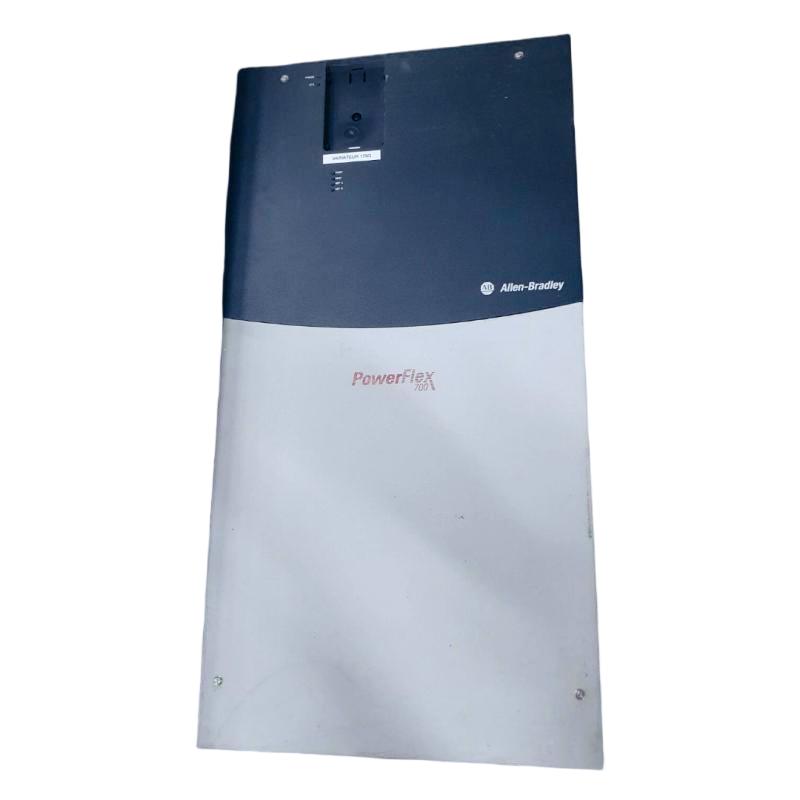

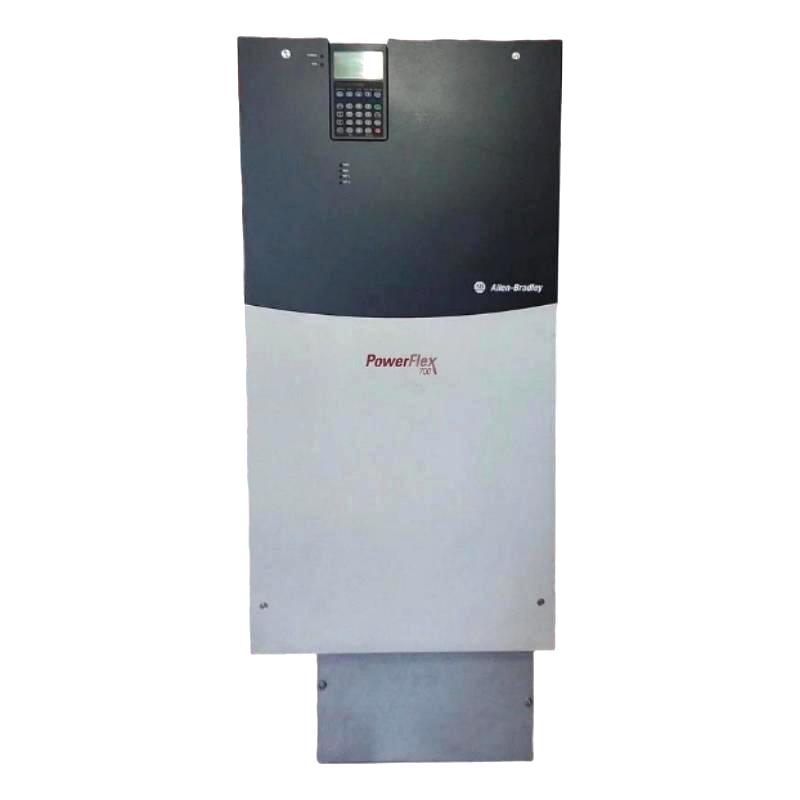

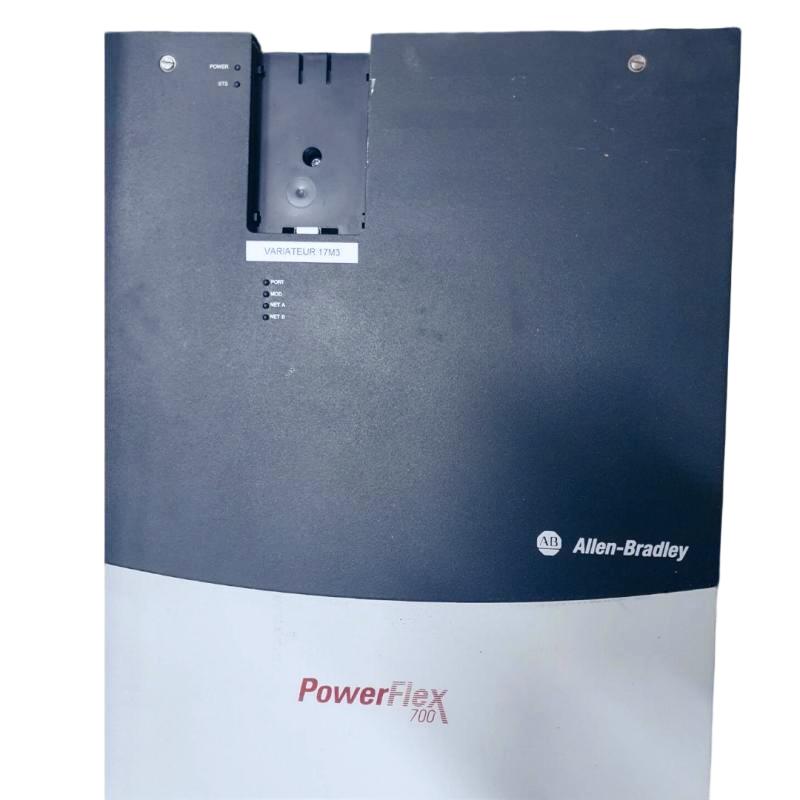

Product Overview

The Allen-Bradley 20BC205A0AYNANC0 PowerFlex 700 AC Drive is a high-power industrial variable frequency drive designed to regulate the speed, torque, and operation of compatible three-phase AC motors. Manufactured by Rockwell Automation under the Allen-Bradley brand, this PowerFlex 700 model is intended for demanding industrial motor-control applications requiring adjustable speed, configurable operating parameters, and integration with automation systems.

The drive operates with a nominal 400 V AC three-phase supply and provides a continuous output current rating of 205 A. Its published power ratings are 110 kW for normal-duty operation and 90 kW for heavy-duty operation. These ratings make it suitable for appropriately selected motors used in industrial processing, material handling, large conveyors, and other applications requiring substantial motor power.

Variable frequency drives regulate motor operation by adjusting the frequency and voltage supplied to the motor. This allows machinery to operate according to production requirements instead of relying exclusively on fixed-speed operation. When properly sized and commissioned, a drive can support controlled acceleration, adjustable speed, improved process coordination, and reduced mechanical stress during starting and stopping.

The 20BC205A0AYNANC0 features vector control with 24 V I/O, conformal coating, an installed braking IGBT, and an EMC filter with a common-mode choke. It does not include an installed human interface module (HIM), an internal braking resistor, an internal communication module, or a feedback option.

These configuration details are important for replacement and maintenance projects. A PowerFlex 700 drive with a similar current rating may have different communication hardware, control I/O, braking components, or feedback capabilities. The complete catalog number should be verified before ordering.

The PowerFlex 700 20B series has been discontinued. Nevertheless, this model remains relevant to industrial facilities maintaining existing equipment, sourcing spare drives, and evaluating migration to newer motor-control platforms.

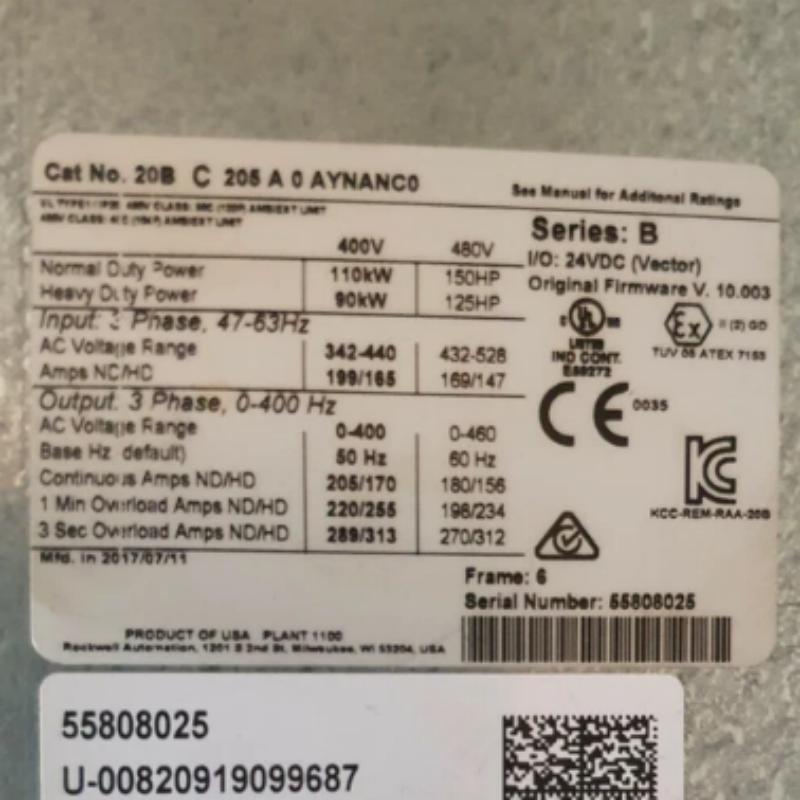

Technical Specifications

Specifications should be confirmed against the actual drive nameplate and product documentation before installation. Dimensions and weight are the supplied listing values.

Function and Working Principle

The PowerFlex 700 AC drive converts incoming electrical power into a controlled output for an AC motor. Its power electronics and control system regulate motor operation according to the configured speed reference, motor parameters, and application requirements.

1. Variable-Frequency Speed Control

The rotational speed of an AC motor is related to the frequency of the electrical supply and the motor’s design. By changing the output frequency, the drive allows a motor to operate at different speeds within its permitted operating range.

For example, a material-handling conveyor may require different speeds during loading, transportation, and unloading. The drive can adjust motor speed to support these operating stages without relying exclusively on mechanical speed-control mechanisms.

In large industrial systems, variable-speed operation can also help coordinate equipment with changing production demand. The actual benefits depend on the motor, load characteristics, process requirements, and drive configuration.

2. Vector Control and Torque Regulation

The 20BC205A0AYNANC0 uses a vector-control configuration. Vector control provides more advanced regulation of motor flux and torque than a basic frequency-only control method.

When the drive is correctly configured for the connected motor, vector control can support improved torque response and speed regulation under changing loads. This is useful in applications where motor performance must remain predictable during acceleration, deceleration, or changes in mechanical resistance.

Correct motor nameplate data, parameter configuration, and commissioning are essential. The drive’s capabilities should be evaluated against the actual load and the required speed-control performance.

3. Acceleration and Deceleration Control

Industrial machinery often requires controlled changes in speed rather than abrupt starting and stopping. The PowerFlex 700 supports programmable acceleration and deceleration settings.

Appropriate ramp settings can reduce mechanical shock, limit unnecessary stress on couplings and gearboxes, and help maintain stable product movement. In high-inertia applications, however, deceleration must be planned carefully because the motor may return energy to the drive’s DC bus.

This model includes a braking IGBT but does not include an internal braking resistor. Applications requiring rapid or frequent braking must therefore be evaluated to determine whether an approved external resistor or another braking arrangement is needed.

4. Electrical Protection and Diagnostics

The drive provides monitoring and protection functions intended to detect abnormal operating conditions. Depending on the application and settings, these functions can help identify overcurrent, bus-voltage abnormalities, thermal problems, and motor overload conditions.

Protection settings must be configured correctly for the connected motor and load. Appropriate upstream circuit protection, grounding, isolation, and machine safety measures remain necessary.

5. Electromagnetic Compatibility

The specified model includes an EMC filter with a common-mode choke. This configuration helps manage conducted electromagnetic interference when the drive is installed according to the applicable wiring and grounding requirements.

For large drives, cable routing, grounding connections, motor-cable selection, and cabinet layout are particularly important. An installed filter does not guarantee compliance in every installation without correct system design.

Role in Industrial Control Systems

The 20BC205A0AYNANC0 can serve as the motor-control element within a larger industrial automation architecture. It connects the electrical supply to a compatible AC motor and receives commands from a control system according to the installed configuration.

PLC Integration

A programmable logic controller can coordinate drive operation with sensors, actuators, interlocks, and production equipment. The PLC may issue run and stop commands, manage speed references, and respond to process conditions.

The specified drive has 24 V I/O but does not include an internal communication module. Therefore, engineers should verify the available terminals and intended control method before designing PLC integration. Network communication should not be assumed without the required hardware.

HMI and Operator Control

A human-machine interface can provide operators with access to process information, alarms, and machine commands. In many installations, the HMI communicates with the PLC, which coordinates drive operation.

This model is specified without an installed HIM. If local access to drive parameters is required, maintenance personnel should confirm the appropriate interface and programming method for the installed hardware.

Motor and Process Coordination

The drive can support coordinated operation of high-power motors in production lines and process equipment. A PLC may adjust motor speed according to material flow, process demand, or the operating state of related machines.

Effective coordination depends on correctly configured drive parameters, suitable feedback from the process, and well-designed interlocking and control logic.

Integration with Legacy Equipment

Because the PowerFlex 700 20B series is discontinued, many applications involve maintaining an existing installation rather than designing a new system around this model.

In these situations, engineers should document the original parameters, control wiring, protective-device settings, and motor information. Such records can simplify troubleshooting and reduce commissioning time when a drive is replaced.

Industrial Applications

The 20BC205A0AYNANC0 is intended for applications where its electrical ratings and control features match the connected motor and mechanical load.

1. Large Conveyor Systems

Industrial conveyors may transport bulk materials, packaged goods, or components across production facilities. Variable-speed control can help coordinate material flow, reduce abrupt starts, and support different operating speeds.

Before selecting this drive, engineers should assess conveyor inertia, starting torque, expected load changes, braking requirements, and the motor’s rated current.

2. Industrial Pumps

Large pumps are used in water treatment, manufacturing, process industries, and utility systems. A compatible drive can regulate pump speed to match changing flow or pressure requirements.

The suitability of the drive depends on pump characteristics, minimum operating speed, fluid conditions, motor ratings, and the required control response. Pump protection and process interlocks should be integrated into the control design.

3. Fans and Blowers

Industrial ventilation, combustion-air systems, and process-air equipment may require adjustable motor speed. A variable frequency drive can help match airflow to operating demand in suitable applications.

The drive must be selected according to the motor’s electrical requirements and the fan’s load characteristics. Enclosure ventilation and thermal management are also important because high-power drives produce significant heat.

4. Material-Handling Equipment

Heavy material-handling systems may use large motors to move products or bulk materials. Controlled acceleration and deceleration can help reduce mechanical stress and support predictable equipment movement.

For high-inertia loads, braking-energy management must be considered. The installed braking IGBT does not eliminate the need to assess external braking components.

5. Industrial Process Machinery

Mixing systems, processing equipment, and other industrial machines may require controlled motor speed to maintain process consistency. The drive can provide adjustable operation when its ratings and control functions match the application.

The motor, gearbox, coupling, and driven load should be assessed as a complete system rather than treating the drive’s power rating as the only selection criterion.

6. Existing PowerFlex 700 Installations

This model may be used as a spare or replacement unit in facilities that already operate PowerFlex 700 equipment. Maintaining the original configuration can simplify restoration of an established machine-control system.

Before replacing a failed unit, verify the catalog number, series, control configuration, wiring, parameters, and braking arrangement.

Installation and System Integration

Correct installation is essential for electrical safety, reliable operation, and the long-term performance of a high-power drive.

1. Verify the Electrical Supply

Confirm that the incoming supply matches the nominal 400 V AC three-phase rating. Check the supply frequency, motor voltage, motor current, and applicable protection requirements.

The drive’s 205 A continuous output rating and 110 kW normal-duty rating should not be interpreted as proof that it is suitable for every motor of similar power. Heavy-duty applications have a lower published power rating of 90 kW, and load characteristics can affect selection.

2. Confirm Cabinet Dimensions and Mounting

The supplied dimensions are 850.0 × 403.9 × 275.5 mm, with a weight of 71.44 kg. Confirm the manufacturer’s dimensional drawing and mounting-hole locations before designing the enclosure or support structure.

The drive’s mass requires suitable mounting hardware and a structure capable of supporting the equipment safely. Allow adequate clearance for ventilation, wiring, inspection, and maintenance.

The IP20 / NEMA Type 1 rating does not provide protection against water ingress or unrestricted exposure to dust and contaminants. Use a suitable enclosure when the installation environment requires additional protection.

3. Power Wiring and Grounding

Power wiring, motor cables, control wiring, and grounding must follow the applicable manufacturer instructions and electrical codes. Select conductors and protective devices according to the drive rating, installation method, cable length, and local requirements.

Keep control and power wiring separated where required to reduce electrical interference. For a high-power drive, grounding quality and correct termination are particularly important.

Before servicing, isolate the supply, follow lockout procedures, and verify that hazardous voltage has been removed. Allow the specified discharge time for the DC bus and verify its safe condition before touching internal components.

4. Motor Parameter Configuration

Enter the connected motor’s nameplate data and configure the control method, command sources, speed references, acceleration and deceleration times, and applicable protection parameters.

For vector-control operation, follow the manufacturer’s motor setup and tuning procedures. Incorrect parameters can cause poor torque response, unstable operation, or nuisance trips.

5. Braking System Evaluation

The 20BC205A0AYNANC0 includes a braking IGBT but no internal braking resistor. The IGBT is a switching component used in the braking circuit; a resistor, when required, dissipates regenerated energy.

Applications involving rapid stopping, frequent deceleration, or high-inertia loads may require an approved external braking solution. Engineers must verify the braking hardware, resistor rating, duty cycle, wiring, and protection requirements against the manufacturer’s instructions.

6. Commissioning and Operational Testing

After installation, inspect wiring, grounding, protective devices, and cooling arrangements. Confirm the motor connections and verify safe rotation before placing the equipment into normal operation.

Test run and stop commands, rotation direction, speed references, ramp settings, interlocks, and fault responses. Record the final drive parameters and retain them with the machine documentation.

For critical machinery, commissioning should be performed by personnel qualified to work with high-power industrial drive systems.

Compatible System Components

The 20BC205A0AYNANC0 is normally integrated with other electrical and automation components. Compatibility depends on the actual hardware, motor requirements, and system architecture.

The table describes typical system components, not a list of accessories supplied with the drive.

Alternative Models and Replacement Considerations

The PowerFlex 700 20B series has been discontinued. Rockwell Automation identifies the PowerFlex 755 family as a potential replacement direction for affected PowerFlex 700 products. However, a newer drive is not automatically a direct, drop-in replacement.

Before selecting a replacement, compare the following:

• Nominal input voltage and phase configuration.
• Continuous output current and overload ratings.
• Normal-duty and heavy-duty power ratings.
• Motor-control method and required torque response.
• Control I/O voltage and terminal assignments.
• Communication and feedback requirements.
• Braking IGBT and braking-resistor arrangements.
• EMC filtering and enclosure requirements.
• Physical dimensions, mounting holes, and ventilation.
• PLC program, parameter settings, and commissioning procedures.

A replacement drive may require wiring modifications, parameter conversion, changes to control logic, and recommissioning. A formal compatibility review is recommended before changing equipment in a critical production system.

Key Advantages

High-Power Motor Control

With a continuous output current rating of 205 A, the drive is designed for appropriately rated industrial motor applications requiring substantial electrical power.

Adjustable Speed and Torque Control

Its vector-control configuration supports advanced motor regulation when the drive is correctly configured for the motor and load.

Configurable Acceleration and Deceleration

Programmable ramp settings allow engineers to adapt motor operation to mechanical and process requirements.

Integrated Braking IGBT

The installed braking IGBT provides a braking-circuit capability, although an external braking resistor or another solution may be necessary for the application.

EMC Filtering

The included EMC filter and common-mode choke support electromagnetic compatibility when the drive is installed and wired according to the manufacturer’s requirements.

Conformal Coating

The conformal coating provides additional protection for electronic assemblies under suitable environmental conditions. It does not make the drive waterproof or suitable for unrestricted exposure to corrosive environments.

Support for Legacy System Maintenance

The complete catalog number helps maintenance teams identify the intended drive configuration for existing installations and assess suitable spare parts or migration options.

Technical FAQs

1. What is the Allen-Bradley 20BC205A0AYNANC0?

It is a PowerFlex 700 AC drive designed for three-phase industrial motor control. It has a nominal 400 V AC input rating and a continuous output current rating of 205 A.

2. What is the rated power of this drive?

The published rating is 110 kW for normal-duty operation and 90 kW for heavy-duty operation. The correct rating depends on the load, motor requirements, and applicable duty classification.

3. Does the drive support three-phase motors?

Yes. It is designed for compatible three-phase AC motors, subject to the motor’s voltage, current, power, and operating requirements.

4. Does this model include a braking resistor?

No. It has a braking IGBT installed but does not include an internal braking resistor. An external braking solution may be needed when the application generates significant regenerated energy.

5. Does it include a communication module?

The specified 20BC205A0AYNANC0 configuration does not include an internal communication module. Confirm the required PLC interface before planning the control system.

6. Can the drive be integrated with a PLC?

Yes. It can be integrated into an appropriately designed PLC-based system using the available control I/O and a compatible control arrangement. Verify the actual terminals and intended command method.

7. Is the PowerFlex 700 20B series still manufactured?

The series was discontinued on November 30, 2023. Existing units may remain in service, and replacement or surplus equipment may be available through industrial suppliers.

8. What should be checked before purchasing a replacement?

Verify the complete catalog number, nameplate ratings, control configuration, braking hardware, physical condition, and available test records. Confirm whether the supplied unit includes any additional accessories.

9. Can the PowerFlex 755 replace this drive directly?

Not necessarily. The PowerFlex 755 family may be a suitable upgrade direction, but compatibility depends on motor ratings, control architecture, communications, braking requirements, physical installation, and commissioning needs.

10. Why are the dimensions and weight important?

The drive measures 850.0 × 403.9 × 275.5 mm and weighs 71.44 kg according to the supplied listing values. These parameters affect cabinet design, mounting strength, transportation, and installation planning. Verify the actual unit and mounting arrangement before final engineering approval.

Procurement and Maintenance Recommendations

Because the PowerFlex 700 20B series is discontinued, purchasing decisions should begin with the exact catalog number and a review of the existing system requirements.

For the 20BC205A0AYNANC0, verify the nominal 400 V AC supply, 205 A continuous output current, normal-duty and heavy-duty ratings, 24 V I/O, vector-control configuration, EMC filtering, and braking arrangement. Confirm that the absence of an internal communication module and HIM is consistent with the intended application.

When sourcing new-old-stock, used, or refurbished equipment, request clear nameplate photographs, confirmation of the catalog number and series, details of the unit’s condition, and available functional test information. Confirm warranty and return terms before purchasing.

For maintenance, inspect the cooling system, terminals, grounding, power connections, and cabinet environment according to the applicable service instructions. Keep the drive free of accumulated dust and ensure that ventilation is not obstructed. Maintain a backup of drive parameters and document changes after commissioning or troubleshooting.

For a replacement project, assess the complete motor-control system rather than the drive alone. Review the motor, PLC logic, control wiring, protective devices, braking circuit, cabinet space, and communication requirements. Where a newer drive is selected, plan for any necessary wiring changes, parameter conversion, and commissioning.

Conclusion

The Allen-Bradley 20BC205A0AYNANC0 PowerFlex 700 AC Drive is a high-power industrial variable frequency drive rated for 400 V AC three-phase input, 205 A continuous output current, 110 kW normal-duty operation, and 90 kW heavy-duty operation. Its specified configuration includes vector control with 24 V I/O, conformal coating, an installed braking IGBT, and EMC filtering.

The model does not include an internal braking resistor, an installed HIM, or an internal communication module. Since the PowerFlex 700 20B series has been discontinued, exact catalog-number verification and a thorough compatibility assessment are essential when sourcing spare equipment or planning a system upgrade.
