Product Overview

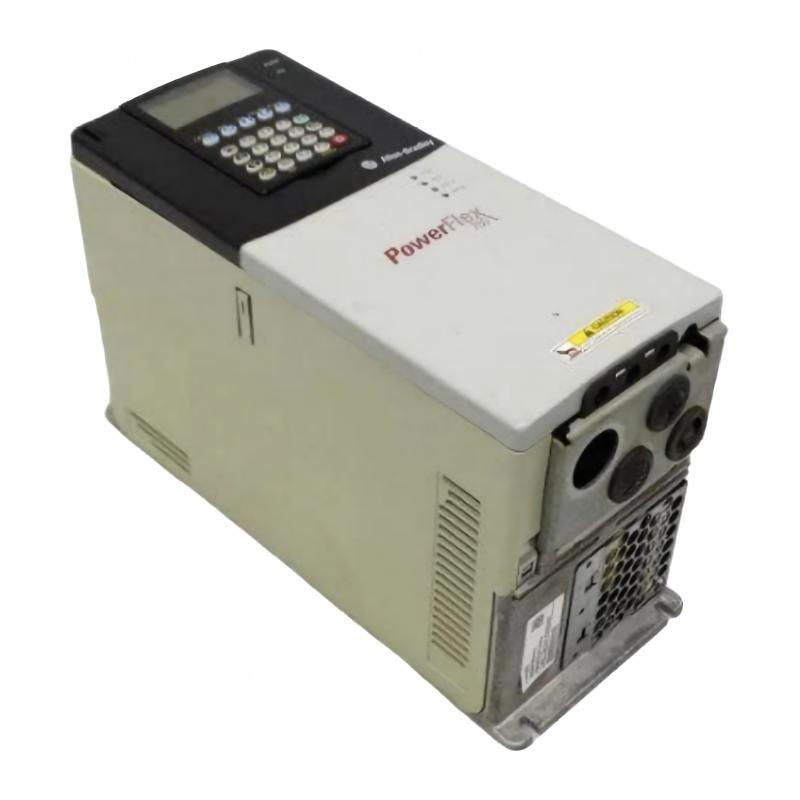

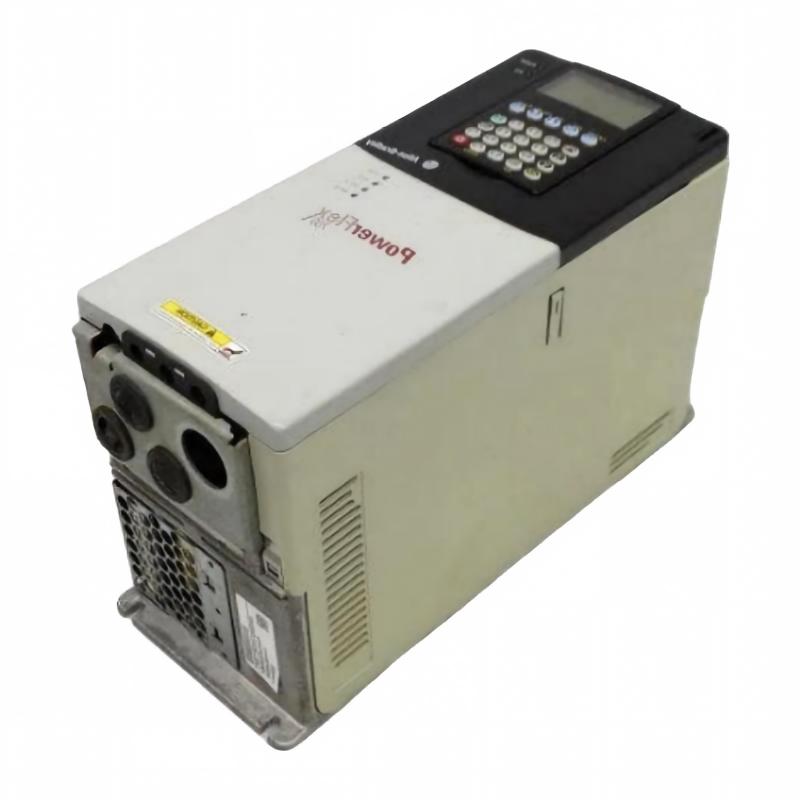

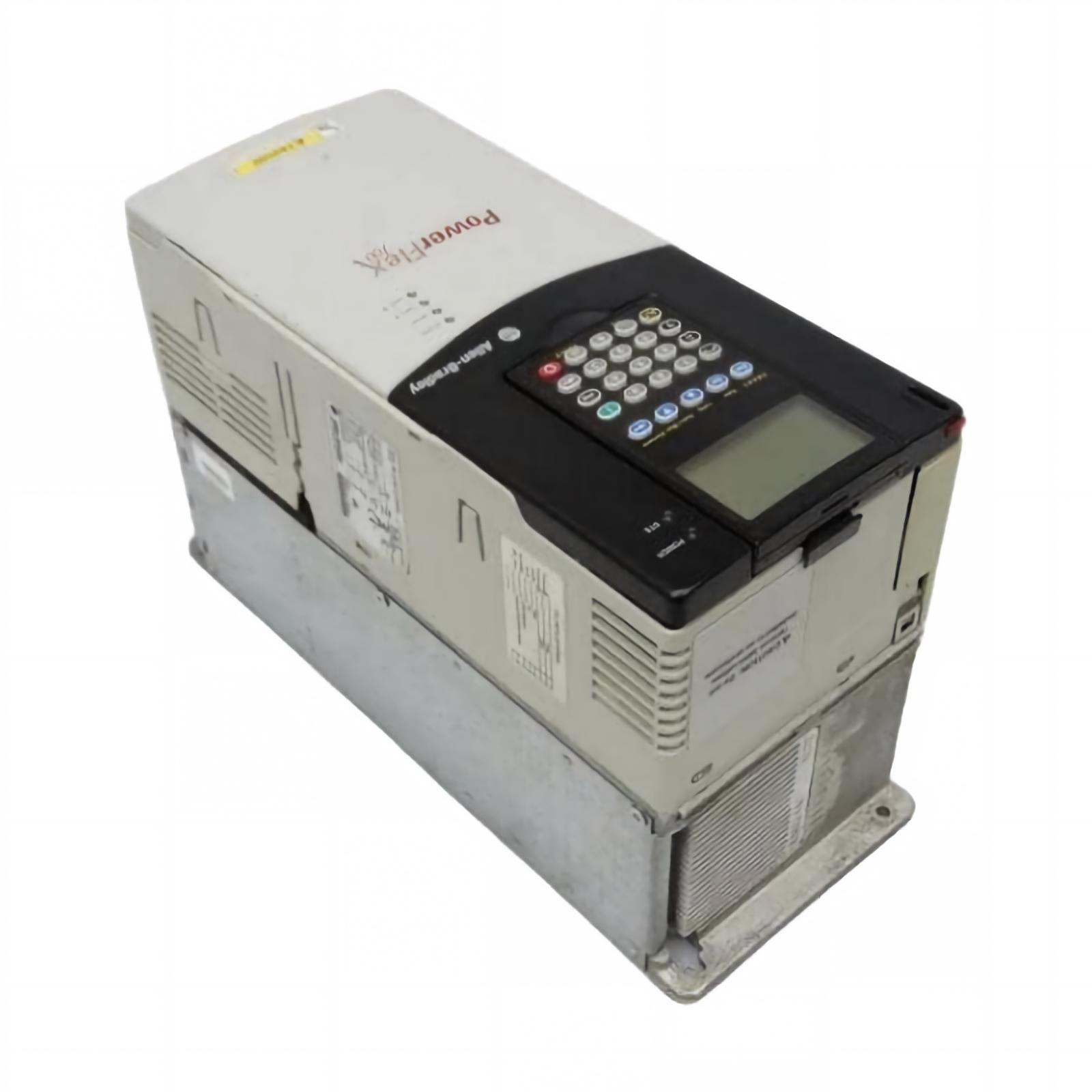

The Allen-Bradley 20BD022A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable frequency drive designed to control the speed and operation of compatible three-phase AC motors. Manufactured by Rockwell Automation under the Allen-Bradley brand, this drive belongs to the PowerFlex 700 family, which is used in industrial motor-control systems requiring adjustable speed, configurable operating parameters, and integration with automation equipment.

Variable frequency drives regulate motor operation by adjusting the frequency and voltage delivered to the motor. This enables machinery to operate at speeds appropriate for production requirements rather than relying exclusively on fixed-speed operation. When correctly selected and configured, a drive can support smoother motor starting, controlled stopping, improved process coordination, and reduced mechanical stress.

The 20BD022A0AYNANC0 is designed for a nominal 480 V AC three-phase supply. It provides a continuous output current of 22 A and supports a rated power of 15 HP under normal-duty conditions and 10 HP under heavy-duty conditions. Its performance characteristics make it suitable for appropriately rated industrial motors used in conveyors, pumps, fans, and other manufacturing equipment.

This model features vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and an EMC filter with a common-mode choke. The specified configuration does not include an installed human interface module (HIM), an internal braking resistor, an internal communication module, or a feedback option.

These configuration details are important when purchasing a replacement drive. PowerFlex 700 models with similar electrical ratings may differ in communication interfaces, control I/O, braking hardware, and feedback functionality. The complete catalog number should be verified before ordering or installing a replacement.

The PowerFlex 700 20B series has been discontinued. Existing installations may still require maintenance, spare parts, or replacement drives, making accurate identification and compatibility assessment essential for industrial equipment lifecycle management.

Technical Specifications

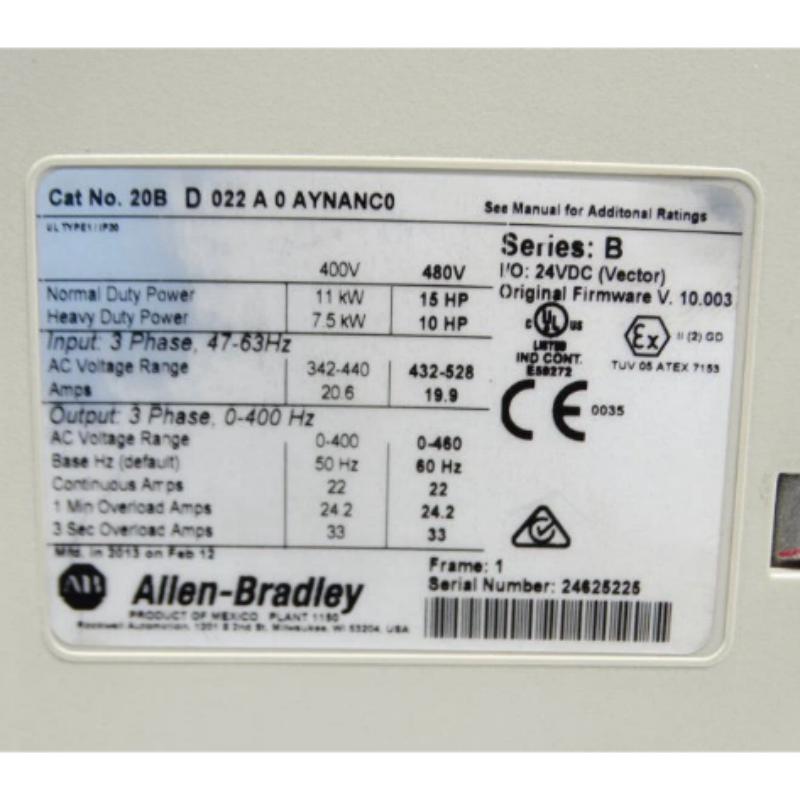

Specifications should be checked against the drive nameplate and applicable manufacturer documentation before installation. Dimensions and weight above are the supplied listing values.

Function and Working Principle

The PowerFlex 700 AC drive controls the electrical power supplied to an AC motor. Its power-conversion and control circuitry adjusts the output according to the selected operating mode, speed reference, and configured motor parameters.

1. Variable-Frequency Motor Control

The rotational speed of an AC motor is related to the frequency of the electrical supply and the motor’s design. By changing the output frequency, the drive can regulate motor speed to match the operating requirements of a machine.

For example, a conveyor may need to run slowly during product positioning and faster during normal material transportation. A variable frequency drive allows the speed to be adjusted through control commands rather than requiring mechanical speed changes.

The available speed range depends on the connected motor, load characteristics, control parameters, and cooling requirements.

2. Vector Control

The 20BD022A0AYNANC0 uses vector control, a method designed to provide more sophisticated motor regulation than basic frequency-only control.

When the drive is correctly configured for the connected motor, vector control can support improved torque response and speed regulation. These characteristics are useful in applications where the load changes during operation or where controlled acceleration and deceleration are required.

Proper motor data entry and commissioning are important. Performance depends on the motor’s characteristics, parameter settings, and the mechanical load.

3. Acceleration and Deceleration Control

The drive supports programmable acceleration and deceleration settings. These determine how quickly the motor moves between operating speeds.

Appropriate ramp settings can reduce sudden mechanical movement, limit stress on belts and couplings, and help coordinate equipment with production cycles.

The settings should be selected according to load inertia, required stopping time, and the machine’s mechanical limitations. Rapid deceleration can generate regenerative energy that raises the DC bus voltage. Because this configuration has no internal braking resistor, the application should be evaluated to determine whether external braking hardware is required.

4. Motor Protection and Fault Monitoring

The PowerFlex 700 provides protection and diagnostic functions to help identify abnormal operating conditions. Depending on the application and configuration, these functions can help detect overcurrent, voltage abnormalities, overheating, and motor overload conditions.

The drive’s protection features do not replace appropriate upstream electrical protection, correct grounding, or machine safety measures. Proper wiring and parameter configuration remain essential for safe operation.

5. Electromagnetic Compatibility

The specified configuration includes an EMC filter and common-mode choke. These components help manage electromagnetic interference when the drive is installed according to the applicable wiring and grounding requirements.

Cable routing, shielding, grounding, and cabinet layout also influence electromagnetic compatibility. The installed filter does not guarantee compliance under every installation condition.

Role in Industrial Control Systems

The 20BD022A0AYNANC0 can operate as a motor-control component within a wider industrial automation system. It is typically installed between the electrical supply and a compatible motor and receives operating commands from a PLC or another suitable control arrangement.

PLC Integration

A programmable logic controller coordinates motor operation with sensors, actuators, interlocks, and other production equipment. In a suitable configuration, PLC logic can issue start and stop commands, provide speed references, and respond to drive status or fault conditions.

This model uses 24 V DC I/O but does not include an internal communication module. Engineers should therefore verify the intended command and feedback arrangement before designing the control interface.

HMI and Operator Control

A human-machine interface can provide operators with access to process information, alarms, and machine commands. In many industrial installations, the HMI communicates with the PLC, which coordinates the drive.

The 20BD022A0AYNANC0 has a blank HIM position and no installed local human interface module. Maintenance personnel should confirm the appropriate programming and operator-access method for the installed configuration.

Coordination with Motors and Machinery

The drive can be integrated into a machine-control strategy that adjusts motor speed according to production requirements. A PLC, for example, may regulate conveyor speed in response to product flow or coordinate a pump with changing process demand.

Reliable operation depends on the correct configuration of the drive, motor, PLC, sensors, mechanical load, and protective interlocks.

Industrial Applications

The PowerFlex 700 family is designed for industrial motor-control duties. The 20BD022A0AYNANC0 provides a 22 A continuous output rating and supports 15 HP normal-duty or 10 HP heavy-duty operation. Application suitability must be confirmed using motor current, overload requirements, and the characteristics of the driven equipment.

1. Conveyor and Material-Handling Systems

Industrial conveyors often require adjustable speed to coordinate material flow between production stages. A correctly sized drive can support controlled starting, stopping, and speed adjustment.

In applications involving frequent starts or high-inertia loads, engineers should evaluate the required torque, acceleration profile, braking requirements, and motor current before selecting the drive.

2. Pumping Systems

Industrial pumping equipment may operate under changing flow and pressure requirements. Variable-speed control can help match pump output to process demand and reduce unnecessary throttling in suitable systems.

The pump’s operating range, motor ratings, fluid characteristics, and minimum speed requirements should be considered during commissioning.

3. Fans and Ventilation Equipment

Fans and ventilation motors may require different operating speeds as airflow demand changes. Adjusting motor speed can help optimize operation in suitable applications.

The drive must be correctly matched to the motor and installed with adequate ventilation. Motor cooling requirements should also be evaluated when operating at reduced speeds for extended periods.

4. Packaging and Manufacturing Machinery

Packaging equipment and manufacturing lines often use variable-speed motors for conveying, feeding, mixing, and auxiliary operations. The drive can help coordinate motor speed with production cycles.

Where accurate positioning or closed-loop speed regulation is essential, verify whether the selected control configuration and absence of a feedback option meet the machine’s requirements.

5. General Industrial Equipment

The drive may be suitable for compatible motors used in process equipment, auxiliary machinery, and material-handling systems. Its suitability depends on the motor’s voltage, current, power, duty cycle, environmental conditions, and control requirements.

A drive should not be selected by horsepower alone. Current rating and overload capability are equally important when evaluating motors subject to changing loads or frequent acceleration.

Installation and System Integration

Correct installation is essential for electrical safety, reliable motor operation, and long-term drive performance.

1. Verify the Electrical Supply

Confirm that the incoming supply matches the drive’s nominal 480 V AC three-phase rating. Check the supply frequency, motor voltage, motor rated current, and upstream protection requirements.

The drive should be selected using the motor nameplate and application duty. A motor with a similar horsepower rating may still be unsuitable if its current or overload requirements exceed the drive’s capabilities.

2. Confirm Mounting Dimensions and Clearances

The supplied dimensions are 336 × 200 × 135 mm. Verify these values against the manufacturer’s dimensional drawing for the exact unit before fabricating a panel or designing a replacement enclosure.

Allow the clearances needed for airflow, wiring, maintenance access, and heat dissipation. Avoid installing the drive where moisture, conductive dust, or corrosive contaminants could damage its electronics.

The IP20 / NEMA Type 1 configuration is not a sealed, water-resistant enclosure. Use an appropriately designed cabinet where additional environmental protection is required.

3. Wiring and Grounding

Install power, motor, control, and grounding conductors according to the applicable instructions and local electrical codes. Keep sensitive control wiring separated from power conductors where required to reduce electrical interference.

Use correctly rated conductors and protective devices. Before servicing, isolate the power supply, follow lockout procedures, and verify that hazardous voltage has been removed.

4. Configure Motor Parameters

Enter the motor nameplate information and configure the control mode, command source, speed reference, acceleration and deceleration times, and relevant protection parameters.

For vector-control operation, follow the manufacturer’s motor setup and tuning procedures. Incorrect motor parameters may result in poor speed regulation, inadequate torque response, or nuisance trips.

5. Evaluate Braking Requirements

This model has a braking IGBT installed but does not include an internal braking resistor. The IGBT is a switching component used in the braking circuit; it does not itself dissipate the energy regenerated during motor deceleration.

Applications involving frequent stopping, rapid deceleration, or high-inertia loads may require an approved external braking resistor or another suitable braking arrangement. Verify resistor sizing, duty cycle, wiring, and protective requirements against the manufacturer’s documentation.

6. Commission the Installation

Before returning equipment to service, inspect the wiring, verify grounding, and confirm that the motor is connected correctly.

Test start and stop commands, direction of rotation, speed references, acceleration and deceleration, interlocks, and fault responses. Record the final parameters so that maintenance personnel can restore the intended configuration after troubleshooting or replacement.

Compatible System Components

The 20BD022A0AYNANC0 is typically used as part of an engineered motor-control system. Component compatibility depends on electrical ratings, control requirements, and the exact installed configuration.

These are examples of components that may be used in a complete installation. They are not necessarily included with the drive.

Alternative Models and Replacement Considerations

The PowerFlex 700 20B series has been discontinued. When maintaining an existing installation, replacement selection should consider both the electrical ratings and the original control configuration.

Before approving a replacement, compare:

• Input voltage and phase configuration.
• Continuous output current and overload capability.
• Normal-duty and heavy-duty power ratings.
• Vector-control and speed-regulation requirements.
• Control I/O voltage and terminal assignments.
• Communication and feedback requirements.
• Braking IGBT and braking-resistor arrangements.
• EMC filtering and environmental protection.
• Mounting dimensions, ventilation, and wiring access.
• PLC program, parameter settings, and commissioning requirements.

A replacement with a similar power rating is not necessarily a drop-in substitute. Changes to terminal assignments, control interfaces, braking arrangements, or protection settings may require engineering modifications.

Key Advantages

Adjustable Motor Speed

The drive allows compatible AC motors to operate at variable speeds, supporting production processes that require flexible motor operation.

Vector-Control Capability

The specified vector-control configuration supports more advanced motor regulation when correctly configured for the connected motor and application.

Programmable Acceleration and Deceleration

Adjustable ramp settings help match motor response to the process and can reduce abrupt mechanical movement.

Integrated Braking IGBT

The installed braking IGBT supports braking-circuit functionality, although an external resistor may still be required depending on the application.

EMC Filtering

The included EMC filter and common-mode choke help manage electromagnetic interference when the drive is installed and wired correctly.

Conformal Coating

The specified configuration includes conformal coating on electronic assemblies. This can provide additional protection under appropriate environmental conditions, but does not make the drive suitable for unrestricted exposure to moisture or corrosive substances.

Established Industrial Use

The PowerFlex 700 family is used in legacy industrial installations. Accurate catalog identification helps maintenance teams source appropriate spare parts and plan equipment replacements.

Technical FAQs

1. What is the Allen-Bradley 20BD022A0AYNANC0?

It is a PowerFlex 700 AC drive designed for variable-speed control of compatible three-phase AC motors. It has a nominal 480 V AC input rating, a 22 A continuous output rating, and a 15 HP normal-duty rating.

2. What is the heavy-duty power rating?

The documented heavy-duty rating is 10 HP. The applicable rating depends on motor requirements, overload conditions, and the driven equipment.

3. What input voltage does this model use?

The drive is rated for 480 V AC three-phase input. Confirm the nameplate and installation documentation before connecting it to the electrical supply.

4. Does the drive include a braking resistor?

No. The specified configuration includes a braking IGBT but does not include an internal braking resistor. An external braking arrangement may be required if the application generates significant regenerative energy.

5. Does it have a built-in communication module?

No internal communication module is included in the specified configuration. Confirm the control interface required by the PLC or automation system before installation.

6. Can the drive be integrated with a PLC?

Yes. It can be integrated into a suitable PLC-based motor-control system using the available 24 V DC I/O and an appropriately designed control arrangement. The exact wiring and command method must be verified for the installation.

7. Is the 20BD022A0AYNANC0 still in production?

No. The PowerFlex 700 20B series was discontinued on November 30, 2023. Buyers should confirm stock status, product condition, and warranty arrangements when sourcing this model.

8. Can it replace another PowerFlex 700 drive?

Not automatically. Different catalog numbers may have different voltage ratings, output currents, control I/O, communications, feedback options, and braking configurations. Compare the complete catalog number and technical specifications before substitution.

9. What should be checked when purchasing a used drive?

Check the complete catalog number, nameplate, visible condition, terminals, cooling fan, and available test information. Confirm whether accessories are included and request functional testing when the drive will be used in a critical application.

10. What are the dimensions and weight of this drive?

The supplied listing dimensions are 336 × 200 × 135 mm, with a weight of 7.03 kg. Confirm whether a shipping or packaged-weight figure is needed separately.

Procurement and Maintenance Recommendations

Because the PowerFlex 700 20B series is discontinued, procurement should begin with exact catalog-number identification rather than a search based solely on the product family.

When sourcing the 20BD022A0AYNANC0, verify the complete nameplate information and confirm the 480 V AC input rating, 22 A continuous output current, normal-duty and heavy-duty ratings, vector-control configuration, conformal coating, EMC filtering, and braking arrangement.

For new-old-stock, used, or refurbished units, request clear photographs of the nameplate and terminals, confirm the unit’s condition and test status, and establish warranty and return terms. Check whether accessories are included and verify shipping dimensions and weight separately where necessary.

During maintenance, keep the drive and surrounding cabinet clean, maintain the required airflow, and inspect wiring, grounding, terminals, and cooling components according to the applicable maintenance schedule. Back up parameter settings and document changes made during troubleshooting or commissioning.

For replacement projects, assess whether the existing motor, PLC logic, control wiring, braking circuit, and cabinet layout can be retained. A newer drive may require parameter conversion, wiring changes, control-program updates, or a complete recommissioning process.

Conclusion

The Allen-Bradley 20BD022A0AYNANC0 PowerFlex 700 AC Drive is a 480 V AC three-phase variable frequency drive with a continuous output current of 22 A, a 15 HP normal-duty rating, and a 10 HP heavy-duty rating. Its specified configuration includes vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and EMC filtering with a common-mode choke.

The drive does not include an internal braking resistor, an installed HIM, or an internal communication module. Since the PowerFlex 700 20B series has been discontinued, accurate model identification and compatibility checks are essential for maintenance, procurement, and replacement projects.
