Product Overview

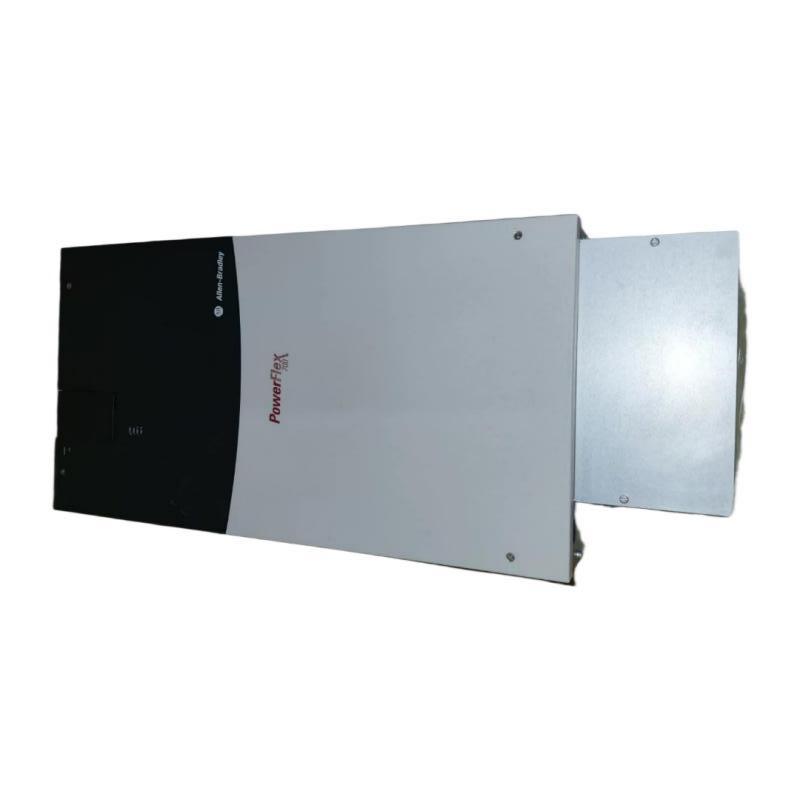

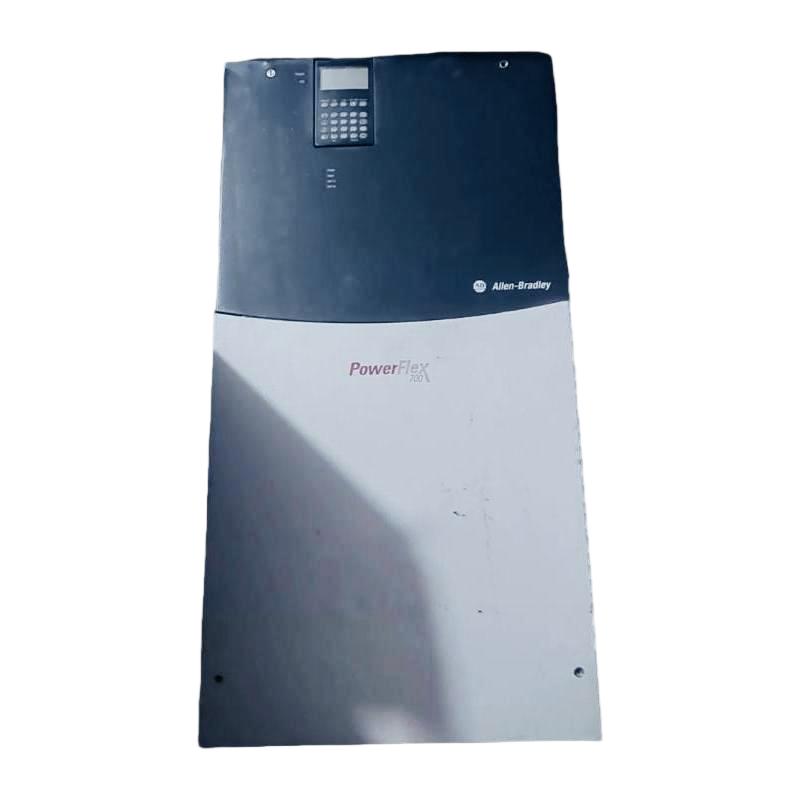

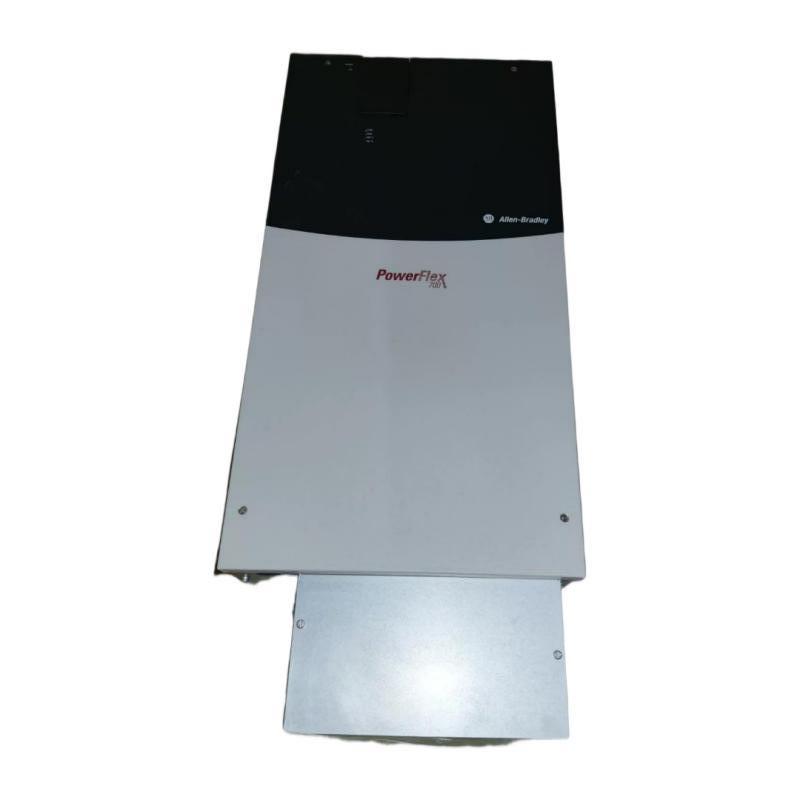

The Allen-Bradley 20BC260A0AYNANC0 PowerFlex 700 AC Drive is a high-power industrial variable frequency drive designed to control the speed, torque, and operating performance of compatible three-phase AC motors. Manufactured by Rockwell Automation under the Allen-Bradley brand, this drive is intended for demanding industrial applications that require adjustable motor speed, controlled acceleration and deceleration, and integration with automated production systems.

The PowerFlex 700 family provides configurable motor-control capabilities for industrial machinery, material-handling equipment, pumps, fans, and other motor-driven processes. By adjusting the frequency and voltage supplied to an AC motor, a variable frequency drive allows equipment to operate according to process requirements instead of relying exclusively on fixed-speed operation.

The 20BC260A0AYNANC0 is designed for a nominal 400 V AC, three-phase power supply and has a continuous output current rating of 260 A. Its published power ratings are 132 kW for normal-duty applications and 110 kW for heavy-duty applications. The correct rating depends on the load characteristics, overload requirements, ambient conditions, and the manufacturer’s application guidelines.

This configuration includes vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and an EMC filter with a common-mode choke. It does not include an installed human interface module (HIM), an internal braking resistor, an internal communication module, or a feedback option.

These configuration details are particularly important when maintaining large industrial motor-control systems. A replacement drive must match not only the voltage and current ratings but also the control method, braking requirements, available interfaces, and installation constraints.

The PowerFlex 700 20B series has been discontinued. The 20BC260A0AYNANC0 may therefore be relevant to legacy-equipment maintenance, spare-parts procurement, and replacement planning in facilities that continue to operate compatible PowerFlex 700 installations.

Technical Specifications

Note: Dimensions and weight are the supplied listing values. Confirm the exact drive configuration and manufacturer’s dimensional drawing before finalizing panel design, lifting arrangements, or shipping documentation.

Function and Working Principle

The PowerFlex 700 drive converts incoming electrical power into a controlled output for a three-phase AC motor. By adjusting output frequency and voltage, it regulates motor speed and supports controlled changes in operating conditions.

1. Variable-Frequency Motor Speed Control

Motor speed is closely related to the frequency of the electrical supply and the motor’s design. A variable frequency drive changes the output frequency to adjust motor speed according to process requirements.

In a large conveyor system, for example, motor speed may need to change in response to material flow or production demand. A properly configured drive can provide these adjustments without requiring mechanical speed changes for every operating condition.

For pumps and fans, variable-speed operation can also help match equipment output to changing process requirements. Potential energy savings depend on the application, system characteristics, and operating profile.

2. Vector Control

The 20BC260A0AYNANC0 is specified with vector control. This method provides more advanced motor regulation than a basic frequency-only control approach.

When correctly configured for the connected motor, vector control can support improved torque response and speed regulation. This is valuable in applications where loads change during operation or where machinery requires controlled acceleration and stable speed.

Performance depends on motor data, tuning, drive parameters, and the mechanical characteristics of the driven equipment. Correct commissioning is essential for achieving the intended control response.

3. Acceleration and Deceleration Management

The drive supports programmable acceleration and deceleration times. These parameters determine how quickly the motor moves between operating speeds.

For heavy machinery, controlled acceleration can reduce sudden torque changes and mechanical stress on couplings, gearboxes, belts, and connected equipment. Appropriate deceleration settings can help the process stop in a predictable manner.

High-inertia loads and frequent stopping may return energy to the drive’s DC bus. Since this model does not include an internal braking resistor, the braking circuit must be evaluated carefully when rapid deceleration is required.

4. Motor Protection and Fault Monitoring

The PowerFlex 700 provides drive protection and diagnostic functions designed to help identify abnormal operating conditions. Depending on the configured application, relevant conditions may include overcurrent, voltage abnormalities, excessive temperature, and motor overload.

Protection functions must be supported by correct parameter settings, suitable upstream protective devices, and proper electrical installation. They do not replace the need for an engineered safety system where personnel or machinery hazards are present.

5. Electromagnetic Compatibility

The specified configuration includes an EMC filter with a common-mode choke. This helps manage conducted electromagnetic interference when the drive is installed and wired according to the manufacturer’s requirements.

Correct grounding, cable shielding, conductor routing, and cabinet layout remain important. The presence of an EMC filter does not automatically guarantee compliance in every installation.

Role in Industrial Control Systems

The 20BC260A0AYNANC0 serves as a motor-control component within a broader industrial automation system. It operates between the incoming electrical supply and the motor while receiving operating commands from the selected control architecture.

PLC Integration

A programmable logic controller can coordinate drive operation with sensors, valves, contactors, interlocks, and other equipment. Depending on the control design, the PLC may issue start and stop commands, select speed references, or adjust motor operation according to process conditions.

This model includes 24 V DC I/O but does not include an internal communication module in the specified configuration. Engineers should verify the available terminals and intended control method before planning the PLC interface.

Where network communication is required, the necessary compatible hardware and system configuration must be confirmed rather than assumed.

HMI and Operator Control

A human-machine interface provides operators with a way to view process information, manage commands, and respond to alarms. In many industrial installations, the HMI communicates with the PLC, which coordinates drive operation.

The 20BC260A0AYNANC0 is supplied without an installed HIM. Therefore, the local operator interface and maintenance-access method should be reviewed before commissioning or replacing the drive.

Integration with Industrial Power Systems

A drive of this capacity requires careful coordination with the facility’s electrical distribution system. Incoming power, upstream protection, grounding, motor cables, and cabinet thermal management must all be appropriate for the installation.

The drive’s rated current and power make correct equipment selection especially important. Undersized conductors, unsuitable protective devices, or inadequate ventilation can compromise system reliability and safety.

Industrial Applications

The 20BC260A0AYNANC0 is intended for compatible industrial motors whose electrical and operating requirements fall within the drive’s ratings.

1. Large Conveyor and Material-Handling Systems

Large conveyor systems require controlled motor operation to move bulk materials, manufactured products, or packaged goods. Variable-speed control can support changes in material flow and coordination between production stages.

The drive may be suitable for appropriately rated conveyor motors where the current, starting torque, and overload requirements match its specifications.

2. Industrial Pumping Systems

Large pumps are used in water treatment, manufacturing, process industries, and utility installations. Variable-speed operation can help regulate flow or pressure when supported by the overall process design.

Pump selection must account for the motor’s current, pump characteristics, minimum operating speed, and process requirements. The drive should be commissioned with appropriate acceleration, deceleration, and protection parameters.

3. Industrial Fans and Blowers

Large ventilation and process-air systems may require different airflow rates as operating conditions change. A compatible variable frequency drive can regulate motor speed to meet demand.

In suitable fan systems, reducing speed may lower energy consumption. Actual savings depend on the system curve, control strategy, operating hours, and equipment condition.

4. Process Machinery

Industrial process equipment often requires stable motor operation under varying loads. The drive’s vector-control capability can support applications where torque response and speed regulation are important.

Engineers should verify that the required control performance can be achieved without a feedback option, especially where the process demands precise closed-loop speed regulation.

5. Heavy Manufacturing Equipment

Large manufacturing facilities may use high-power motors in material processing, production machinery, and auxiliary systems. The 132 kW normal-duty rating and 110 kW heavy-duty rating provide a basis for evaluating compatible applications.

Actual suitability must be determined using motor nameplate data, load profile, overload conditions, ambient temperature, and installation requirements.

Installation and System Integration

Correct installation is essential for electrical safety, thermal performance, and reliable operation.

1. Verify the Incoming Power Supply

Confirm that the incoming supply matches the drive’s nominal 400 V AC three-phase rating. Verify the actual nameplate, supply frequency, motor voltage, motor rated current, and protective-device requirements.

Do not select a drive solely by comparing kilowatt ratings. Output current, overload requirements, operating duty, and load characteristics must also be considered.

2. Confirm Mounting Dimensions and Cabinet Space

The supplied dimensions are 850.0 × 403.9 × 275.5 mm. Before designing or modifying a cabinet, compare these figures with the manufacturer’s dimensional drawing for the exact unit.

Allow sufficient space for ventilation, electrical connections, maintenance access, and heat dissipation. A drive of this capacity can generate substantial heat, so cabinet cooling and airflow planning are important.

The IP20 / NEMA Type 1 configuration does not provide sealed protection against water or unrestricted environmental contamination. If the installation requires greater environmental protection, an appropriately rated enclosure should be selected.

3. Electrical Wiring and Grounding

Incoming power conductors, motor cables, control wiring, and protective grounding must be installed according to the applicable instructions and electrical codes.

Use conductors and protective devices rated for the installation. Separate sensitive control wiring from power wiring where required to minimize electrical interference.

Because this is high-power equipment, installation and servicing should be performed by qualified personnel. Follow lockout/tagout procedures and verify that hazardous voltage has been removed before working on the drive or connected equipment.

4. Motor Parameter Configuration

Configure the drive using the motor’s nameplate information and the requirements of the driven equipment. Relevant parameters include motor voltage, current, frequency, speed, control mode, acceleration and deceleration times, and command references.

For vector-control operation, follow the applicable motor setup and tuning procedure. Incorrect parameter values can reduce control performance or trigger unnecessary trips.

5. Braking Circuit Assessment

The 20BC260A0AYNANC0 includes a braking IGBT but does not include an internal braking resistor. The IGBT is a switching component used in a braking circuit; it does not itself dissipate the regenerated energy.

Applications involving high inertia, frequent stopping, or rapid deceleration may require an external braking resistor or another engineered braking solution. Verify the permitted hardware, resistor sizing, duty cycle, thermal requirements, and protective arrangements before implementation.

6. Commissioning and Functional Testing

Before placing the drive into service, inspect the installation, confirm power and motor connections, and verify grounding.

Test the start and stop commands, rotation direction, speed reference, acceleration and deceleration, interlocks, and fault response. Confirm that the drive behaves correctly under representative load conditions.

Record the final parameter settings and configuration information. These records can reduce commissioning time during future maintenance or replacement.

Compatible System Components

The 20BC260A0AYNANC0 operates as part of a complete industrial motor-control installation. Compatibility depends on electrical ratings, control requirements, and the design of the overall system.

These components are examples of equipment used in an engineered system. They are not necessarily included with the drive.

Alternative Models and Replacement Considerations

The PowerFlex 700 20B series has been discontinued. Replacement planning should consider the original drive’s electrical ratings, control configuration, braking requirements, and physical installation.

Before selecting a replacement, compare:

• Input voltage and phase configuration.
• Continuous output current and overload capability.
• Normal-duty and heavy-duty power ratings.
• Motor-control method and required speed regulation.
• Control I/O and terminal assignments.
• Communication and feedback requirements.
• Braking IGBT and resistor configuration.
• EMC filtering and environmental requirements.
• Mounting dimensions, cooling, and wiring access.
• PLC logic, parameter settings, and commissioning requirements.

A replacement drive with a similar power rating is not necessarily a direct substitute. Changes to wiring, communication, braking, protection, or control logic may require engineering work.

Key Advantages

High-Power Motor Control

The 260 A continuous output rating and 132 kW normal-duty rating support compatible large industrial motor applications.

Vector-Control Capability

The specified vector-control configuration supports advanced motor regulation when correctly configured for the connected motor and load.

Adjustable Speed and Ramping

Programmable speed references and acceleration/deceleration settings help match motor behavior to process requirements.

Integrated Braking IGBT

The installed braking IGBT supports a braking-circuit arrangement, although additional braking hardware may be necessary for the application.

EMC Filtering

The included EMC filter with common-mode choke helps manage electromagnetic interference when the drive is properly installed and grounded.

Conformal Coating

The specified configuration includes conformal coating for additional protection of electronic assemblies under appropriate operating conditions. This does not make the drive suitable for unrestricted exposure to moisture or corrosive environments.

Support for Legacy Equipment Maintenance

The PowerFlex 700 family remains relevant to facilities maintaining existing installations. Exact catalog identification can help reduce the risk of ordering a drive with incompatible control or electrical options.

Technical FAQs

1. What is the Allen-Bradley 20BC260A0AYNANC0?

It is a PowerFlex 700 AC drive designed for high-power industrial motor control. It has a nominal 400 V AC three-phase input and a continuous output current rating of 260 A.

2. What is its rated motor power?

The published ratings are 132 kW for normal-duty applications and 110 kW for heavy-duty applications. Selection depends on the load and the applicable operating conditions.

3. What input voltage does this model require?

The nominal input rating is 400 V AC, three-phase, at 50 Hz. Confirm the exact nameplate and installation requirements before connecting the drive.

4. Does it include a braking resistor?

No. The specified model has a braking IGBT installed but does not include an internal braking resistor. An external braking solution may be required, depending on the load and stopping requirements.

5. Does it have a built-in operator panel?

No. The specified configuration has a blank plate instead of an installed HIM. Verify the appropriate programming and operator-access method for the installation.

6. Can it be integrated with a PLC?

Yes, it can be incorporated into a suitable PLC-based control system. The exact interface depends on the available I/O, control architecture, and any additional hardware required.

7. Is the 20BC260A0AYNANC0 still in production?

No. The PowerFlex 700 20B series was discontinued on November 30, 2023. Buyers should verify stock status, condition, and warranty terms with the supplier.

8. What should be checked before replacing this drive?

Verify voltage, current, power rating, control mode, I/O configuration, braking arrangement, EMC filtering, dimensions, and communication requirements. Confirm that the replacement will work with the existing motor and control system.

9. What should buyers check when purchasing a used unit?

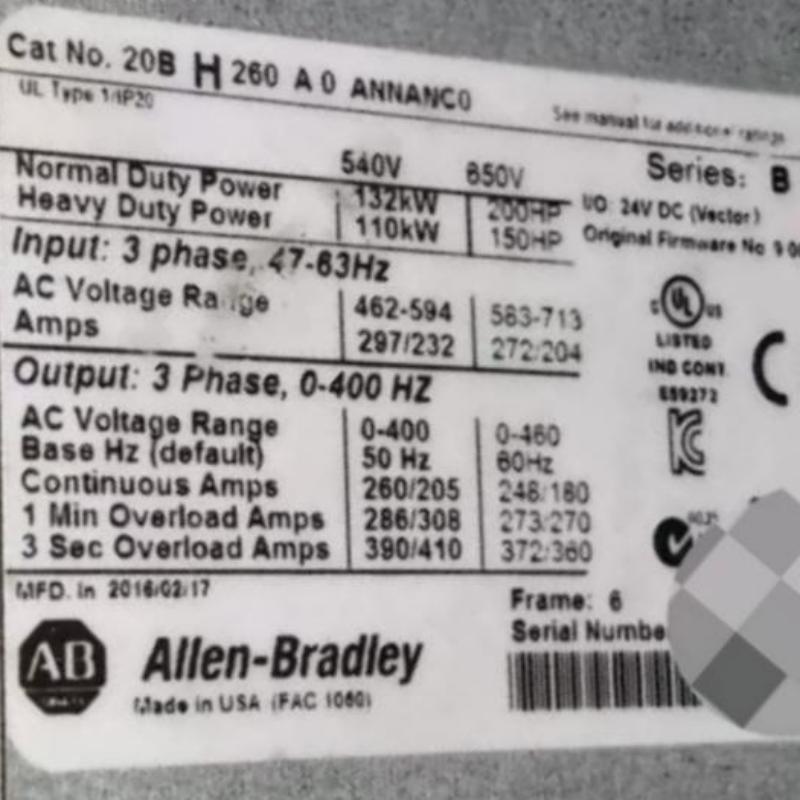

Request clear nameplate photographs and confirm the complete catalog number, visible condition, terminal condition, cooling components, available test results, and included accessories. For critical applications, obtain suitable functional-test information and clarify return or warranty conditions.

10. Are the supplied dimensions and weight suitable for shipping calculations?

The supplied values are 850.0 × 403.9 × 275.5 mm and 71.44 kg. Verify these figures against the actual unit and packaging before arranging freight, lifting equipment, or cabinet modifications.

Procurement and Maintenance Recommendations

Because the PowerFlex 700 20B series has been discontinued, procurement should begin with exact model identification. Do not rely only on the PowerFlex 700 family name or a similar-looking catalog number.

When sourcing the 20BC260A0AYNANC0, confirm the full nameplate designation, voltage and current ratings, control configuration, conformal coating, EMC filter, and braking arrangement. Check whether the supplied unit is new-old-stock, used, or refurbished, and request appropriate condition and testing information.

For a drive of this capacity, installation planning should include electrical protection, cable sizing, grounding, ventilation, heat dissipation, and safe access for maintenance. Verify dimensions and weight before shipping or cabinet design.

During maintenance, inspect cooling components, electrical connections, grounding, and the surrounding cabinet environment according to the applicable procedures. Keep parameter backups and document changes made during commissioning or troubleshooting.

For replacement projects, assess the existing motor, PLC program, control wiring, braking circuit, and electrical distribution system together. A newer drive may require wiring changes, control-program updates, parameter conversion, and recommissioning before returning the machinery to service.

Conclusion

The Allen-Bradley 20BC260A0AYNANC0 PowerFlex 700 AC Drive is a high-power variable frequency drive with a 400 V AC three-phase input, a continuous output current rating of 260 A, a 132 kW normal-duty rating, and a 110 kW heavy-duty rating. Its specified configuration includes vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and EMC filtering.

The drive does not include an internal braking resistor, an installed HIM, an internal communication module, or a feedback option. Since the PowerFlex 700 20B series is discontinued, accurate catalog-number verification and a thorough compatibility assessment are essential when sourcing spare parts or planning a replacement for existing industrial equipment.
