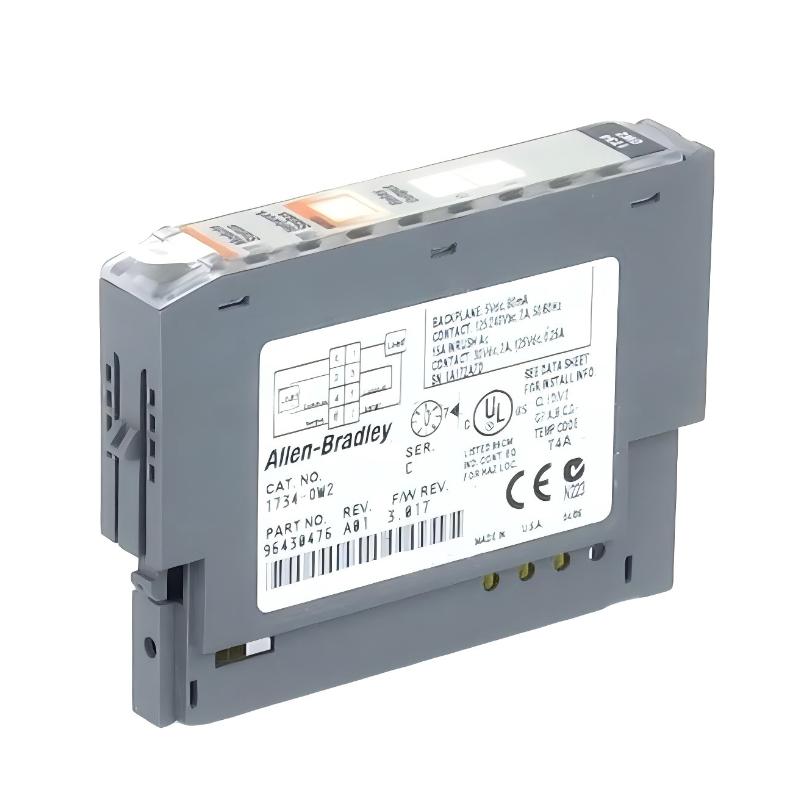

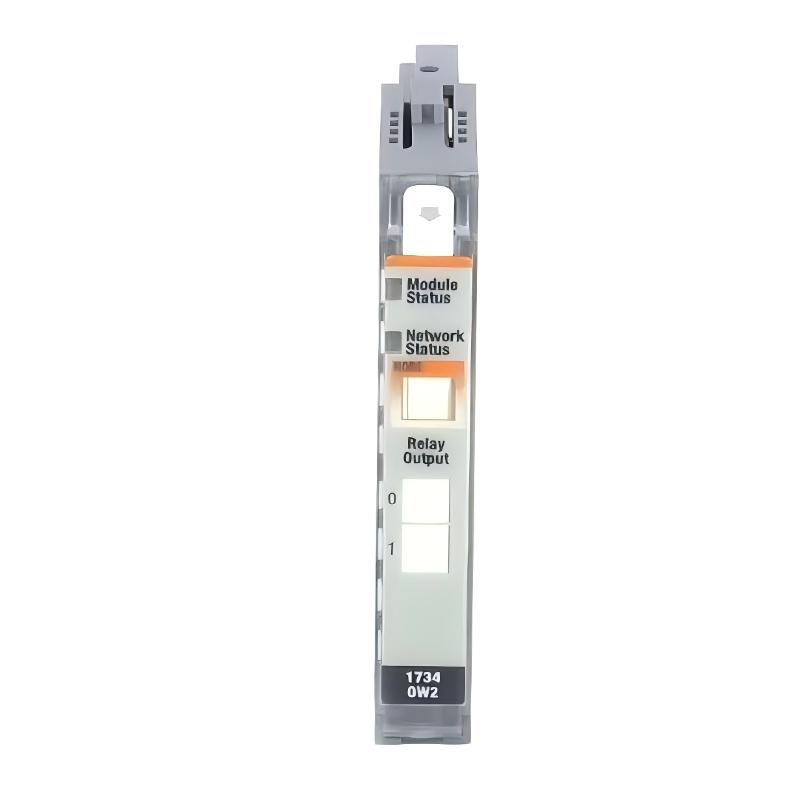

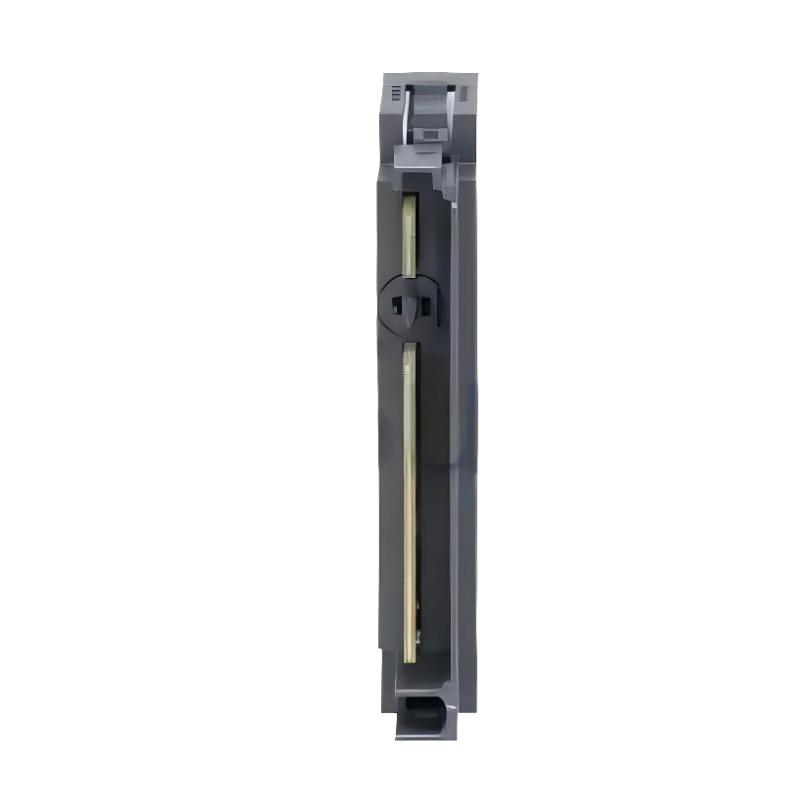

Allen Bradley 1734-OW2 Detailed Technical Overview
1. Product Overview
The Allen Bradley 1734-OW2 is a 2-channel relay output module designed for distributed industrial automation systems. It uses electromechanical relay contacts to switch loads, making it suitable for both AC and DC applications where transistor-based outputs are not appropriate.
This module provides two independent normally open relay outputs, allowing it to control devices such as contactors, solenoid valves, alarms, and lighting circuits. Because it uses relay contacts, it offers inherent electrical isolation between the control system and the field devices, improving safety and compatibility.
Its compact DIN rail-mounted design makes it ideal for modular control panels, especially where space is limited and flexible I/O expansion is required.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1734 Series
- Platform: POINT I/O
- Module Type: Relay Output Module
The POINT I/O system is built for distributed automation, allowing I/O modules to be installed closer to field devices. This reduces wiring complexity and improves system efficiency.
3. Technical Specifications
Parameter Table
| Parameter | Specification |
|---|---|
| Model | 1734-OW2 |
| Output Type | Relay Output (Electromechanical) |
| Channels | 2 |
| Contact Type | Normally Open (Form A) |
| Coil Voltage | 24V DC |
| Contact Rating | Up to 2 A per channel |
| Switching Voltage | Up to 240V AC / 125V DC |
| Isolation Voltage | 250V continuous |
| Switching Frequency | Low frequency (relay-based) |
| Mechanical Life | ≥ 1 million operations |
| Electrical Life | ≥ 100,000 operations (rated load) |
| Output Response Time | Approx. 10–30 ms |
| Bus Current | Approx. 75–80 mA @ 5V DC |
| Power Dissipation | Approx. 0.5–1 W |
| Mounting | DIN Rail |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | Approx. 56 × 12 × 75 mm |
| Weight | ≈ 0.09 kg ( 0.09 ) |
4. Product Features
The 1734-OW2 is designed for flexible and reliable switching in industrial environments.
- Two independent relay output channels
- Suitable for both AC and DC load switching
- Electrical isolation between control and field circuits
- Normally open contact configuration for safe operation
- Compact and space-saving design
- DIN rail mounting for easy installation
- Modular structure for system expansion
These features make it well suited for applications requiring mixed voltage switching.
5. Product Applications
The module is widely used in industrial automation systems where relay outputs are needed.
Typical applications include:
- Motor starter and contactor control
- Solenoid valve switching
- Alarm and signaling systems
- Lighting control circuits
- Industrial equipment control panels
- Mixed AC/DC switching environments
It is particularly useful in situations where electrical isolation and flexible voltage handling are required.
6. Product Advantages
Multi-Voltage Compatibility
Relay outputs allow switching of both AC and DC loads, providing greater flexibility.
Electrical Isolation
Protects control circuits from field voltage variations and faults.
Reliable Operation
Electromechanical relays provide stable switching performance.
Compact Design
Slim module saves space in control cabinets.
Flexible Integration
Can be easily integrated into distributed I/O systems for scalable automation solutions.
7. Recommended Models (Same Series or Related)
POINT I/O Series Models
| Model | Type | Channels | Signal Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1734-OW4 | Relay Output | 4 | Relay (NO) | 75 × 12 × 56 | 0.12 ( 0.12 ) |
| 1734-OB2 | Digital DC Output | 2 | 24V DC | 56 × 12 × 75 | 0.023 ( 0.023 ) |
| 1734-OB4E | Protected DC Output | 4 | 24V DC | 75 × 12 × 56 | 0.04 ( 0.04 ) |
| 1734-OV8E | DC Output (Sink) | 8 | 24V DC | 75 × 12 × 56 | 0.04 ( 0.04 ) |
| 1734-IB4 | Digital Input | 4 | 24V DC | 75 × 12 × 56 | 0.10 ( 0.10 ) |
These modules can be combined within a distributed I/O system to create flexible automation configurations.
