Product Overview

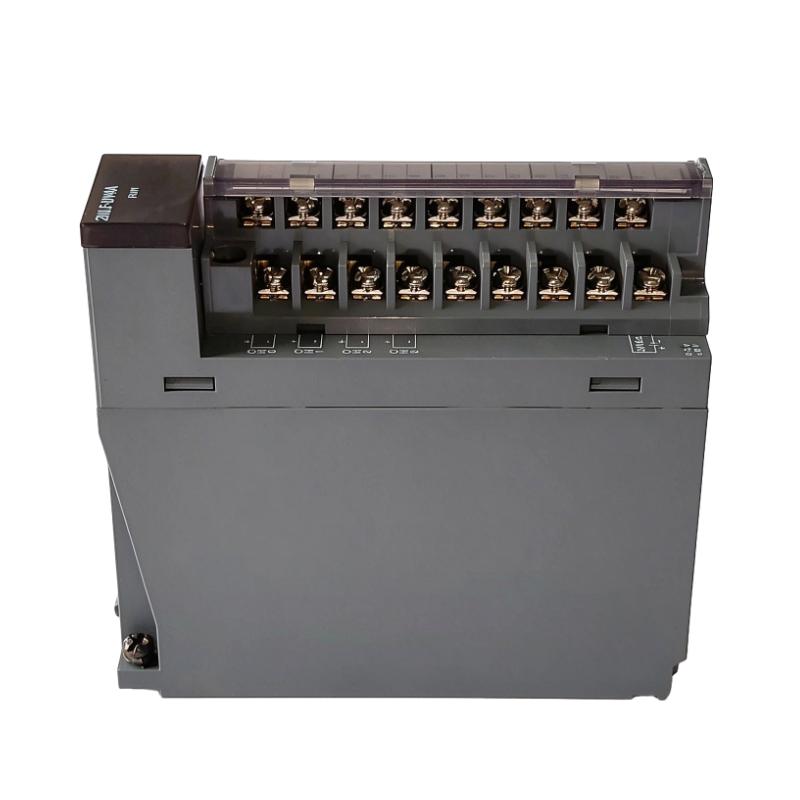

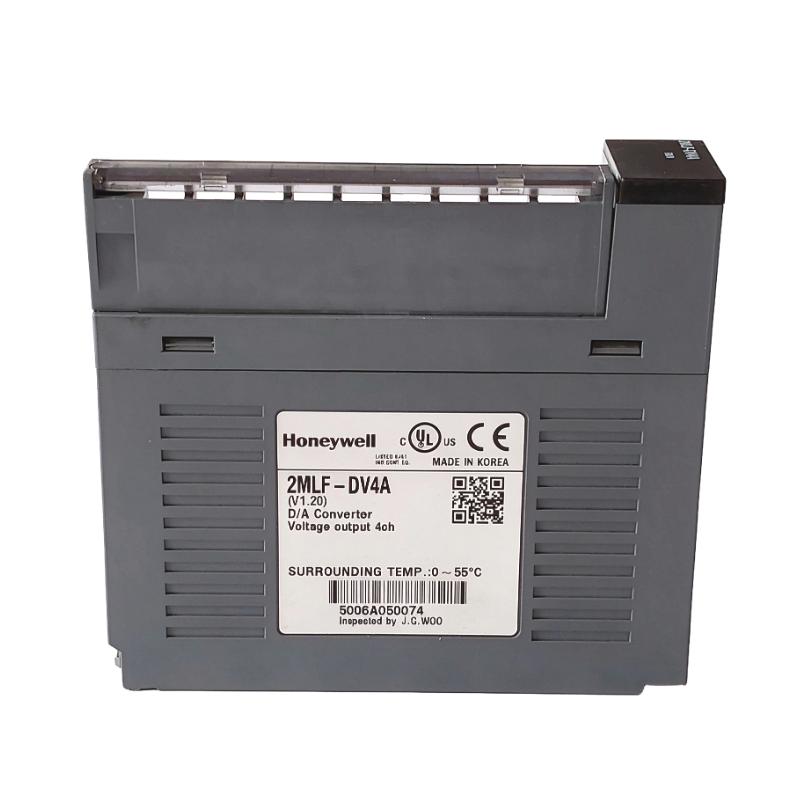

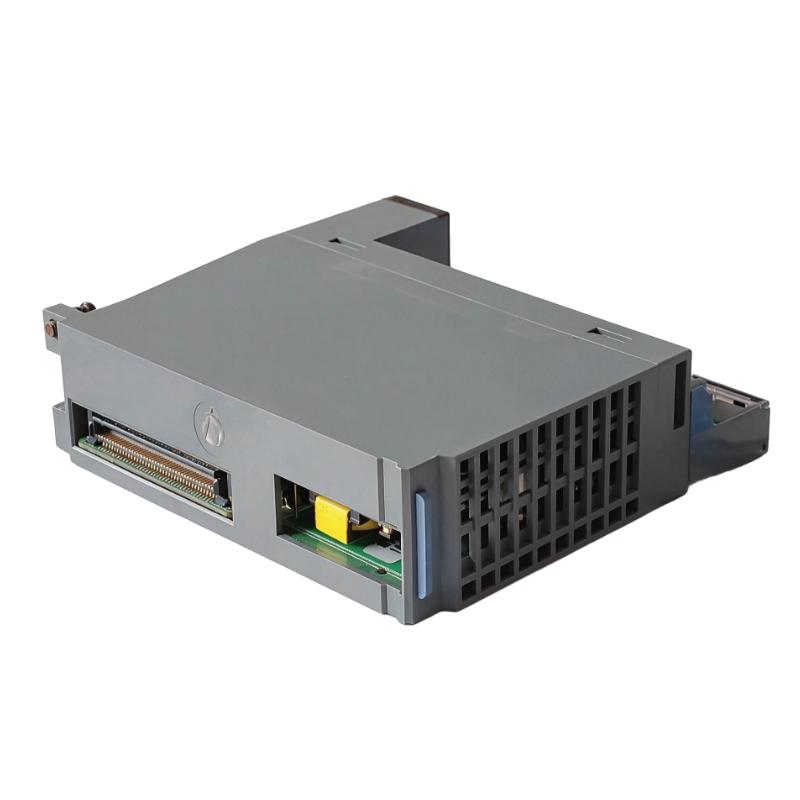

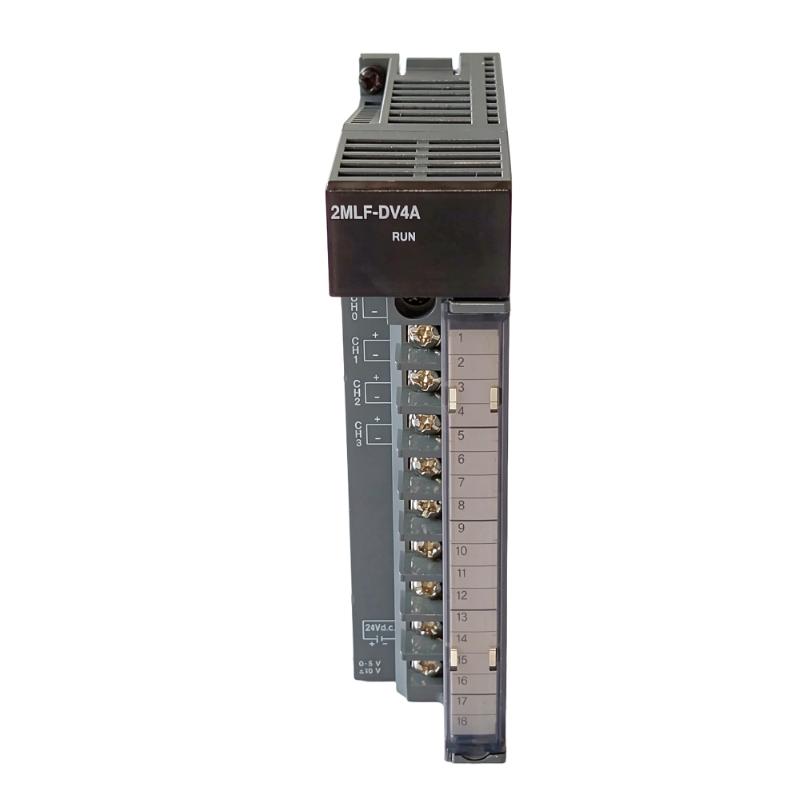

The Honeywell 2MLF-DV4A MasterLogic-200 Voltage Output Module is a four-channel analog output module used in compatible MasterLogic-200 programmable logic controller systems. It converts digital values generated by the PLC into voltage signals that regulate field devices equipped with compatible analog voltage inputs.

The module supports four selectable output ranges: 1–5 V DC, 0–5 V DC, 0–10 V DC, and −10–10 V DC. Each channel can be configured for the required range through the applicable program or module parameters, allowing different voltage-control requirements to be accommodated within the same installation.

In a typical process-control application, the PLC calculates a control demand and sends a digital value to the 2MLF-DV4A. The module converts that value into an analog voltage reference for a connected device, such as a compatible actuator controller, signal interface, or other equipment designed to accept voltage commands.

The 2MLF-DV4A is particularly relevant to installations where voltage-reference control is required instead of a current loop. Before selecting or replacing the module, engineers should confirm the field device’s accepted voltage range, input impedance, signal polarity, and required scaling. These details determine whether the module can provide the intended control signal without introducing measurement errors or incorrect equipment response.

Technical Specifications

Product Features

• Four-channel voltage output: Generates four independent analog voltage commands for compatible field equipment.
• Multiple voltage ranges: Supports 1–5 V, 0–5 V, 0–10 V, and −10–10 V DC outputs.
• Individual channel configuration: Allows the required output range to be selected for each channel through the applicable program or parameters.
• Digital-to-analog conversion: Translates PLC control values into continuous voltage signals for field-device regulation.
• High-resolution output: Supports a maximum resolution of 1/16,000 for the configured output range.
• Fast conversion: Provides a specified conversion speed of 250 μs per channel.
• Defined load requirements: Supports voltage-output circuits with a load resistance of at least 1 kΩ.
• MasterLogic-200 integration: Fits into the modular I/O architecture of compatible Honeywell PLC systems.
• Flexible control-signal application: Supports positive-only and bipolar voltage references for field devices that accept the corresponding ranges.

Working Principle

The 2MLF-DV4A converts digital control values from the MasterLogic-200 CPU into analog voltage signals. Its output is determined by the selected voltage range and the digital value supplied by the PLC program.

The CPU calculates the required command according to the control logic and process feedback. The module receives the digital value, interprets it using the configured data format, and generates the corresponding voltage at the assigned output channel. The connected field device uses that voltage as a reference for its own control function.

A typical signal path is:

PLC Control Program → Digital Output Value → 2MLF-DV4A Conversion Circuit → Analog Voltage Signal → Field Device

The module supports four output ranges, each suited to different control conventions.

• 1–5 V DC: Used by devices that interpret 1 V and 5 V as the lower and upper endpoints of a configured control range.
• 0–5 V DC: Used where the receiving equipment accepts a zero-based 5 V reference.
• 0–10 V DC: Commonly used for proportional control of compatible industrial equipment.
• −10–10 V DC: Supports bipolar voltage commands where the receiving device requires positive and negative references.

The module’s digital values must be scaled to match the selected output range. For example, a control program using the 0–10 V range must not apply scaling intended for the 1–5 V range. An incorrect configuration can produce an offset, limit the available control range, or cause the field device to respond incorrectly.

The receiving circuit must also meet the specified load requirement of at least 1 kΩ. The complete application should be checked for correct wiring, signal reference, grounding, and input compatibility before the system is commissioned.

Role in the MasterLogic-200 Control Architecture

The 2MLF-DV4A provides the analog voltage interface between the MasterLogic-200 PLC and connected voltage-controlled field equipment. It converts the control program’s digital commands into electrical signals that can be interpreted by compatible devices.

A typical control arrangement is:

Process Sensors → PLC Input Modules → MasterLogic-200 CPU → 2MLF-DV4A → Voltage-Controlled Field Devices

The module generates the output signal but does not independently determine the process-control strategy. Its operation depends on the PLC program, channel configuration, signal scaling, and receiving device’s electrical characteristics.

Industrial Applications

Application suitability depends on the field device’s voltage-input specification, input impedance, signal reference, and control requirements. The module should only be used where the selected output range matches the receiving equipment.

Installation and Maintenance

1. Verify the module identity: Confirm the 2MLF-DV4A model and its intended position in the MasterLogic-200 configuration before installation.
2. Check the PLC configuration: Verify the CPU, base, module position, and assigned I/O addresses against the system configuration.
3. Select the voltage range: Determine whether each field device requires 1–5 V, 0–5 V, 0–10 V, or −10–10 V DC.
4. Confirm digital scaling: Ensure that the PLC program uses the correct digital data format and scaling for the selected voltage range.
5. Verify the load resistance: Confirm that each output circuit meets the specified minimum load resistance of 1 kΩ.
6. Inspect field wiring: Check terminal assignments, conductor condition, signal references, and grounding arrangements before energizing the system.
7. Review output polarity: For applications using the −10–10 V range, verify that the receiving device supports bipolar signals and that the wiring is correct.
8. Check the module installation: Ensure that the module is correctly seated in its designated position and that its connections are secure.
9. Inspect the receiving equipment: Verify that the connected device accepts the selected voltage range and that its input circuit is operating correctly.
10. Test each output channel: Use an appropriate measuring instrument to compare the measured voltage with the PLC command at representative operating points.
11. Verify field-device response: Confirm that the connected equipment responds correctly throughout the configured voltage range.
12. Record commissioning results: Document channel assignments, output ranges, digital scaling, measured voltages, field-device responses, and corrective actions.

Follow the applicable Honeywell safety and installation procedures before removing or installing the module. If an output is incorrect, check the PLC program, channel configuration, wiring, load resistance, and receiving device before concluding that the module is defective.

Compatible System Components

The 2MLF-DV4A belongs to the Honeywell MasterLogic-200 modular I/O family. The following components support related control-system functions, although each module must be selected according to its own electrical characteristics.

Recommended Related Models

Key Advantages

• Provides four configurable voltage outputs from one PLC module.
• Supports four commonly used industrial voltage ranges, including bipolar output.
• Offers high-resolution digital-to-analog conversion.
• Supports rapid conversion for channel-level output updates.
• Integrates voltage-based field-device control into the MasterLogic-200 architecture.
• Allows engineers to select output ranges according to individual channel requirements.

Technical FAQs

Which voltage ranges can be configured on the 2MLF-DV4A?

The module supports 1–5 V DC, 0–5 V DC, 0–10 V DC, and −10–10 V DC. The appropriate range must be selected according to the receiving device’s input specification and the PLC program’s scaling.

What is the minimum load resistance required for a voltage output?

The specified load resistance is 1 kΩ or greater. Confirm the receiving device’s input impedance and the complete output-circuit arrangement before connecting the module.

Can the 2MLF-DV4A provide a negative voltage command?

Yes. The supported −10–10 V DC range allows bipolar output for compatible equipment. The receiving device must support this range, and the signal wiring and reference connections must be configured correctly.

Why might the measured voltage not match the PLC command?

Possible causes include incorrect digital scaling, an incorrect output-range selection, wiring errors, unsuitable load resistance, or a problem with the receiving device. Compare the configured digital value with the measured output voltage and verify the channel configuration before replacing the module.
