Product Overview

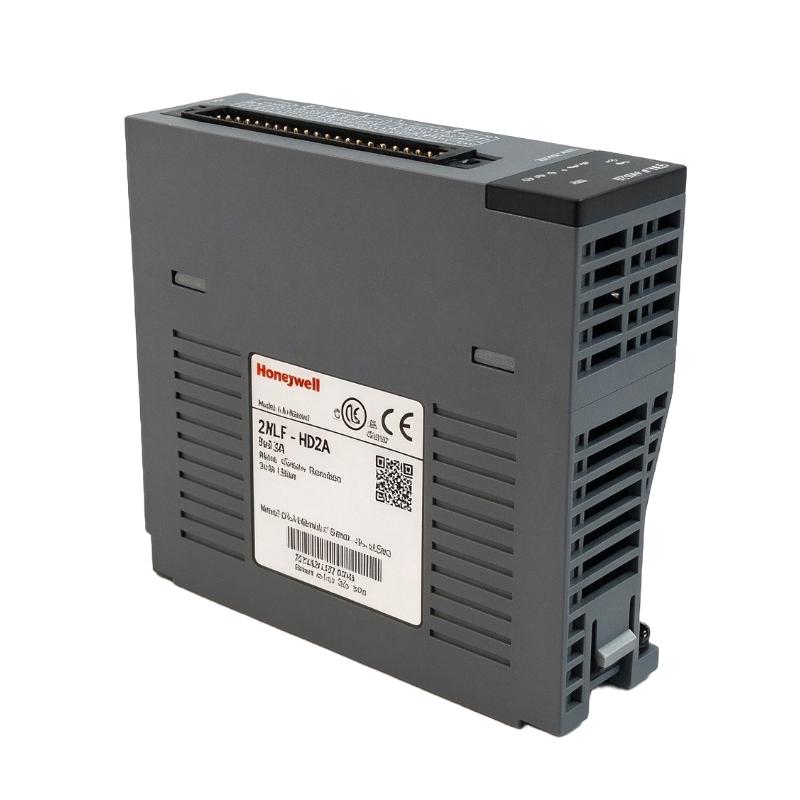

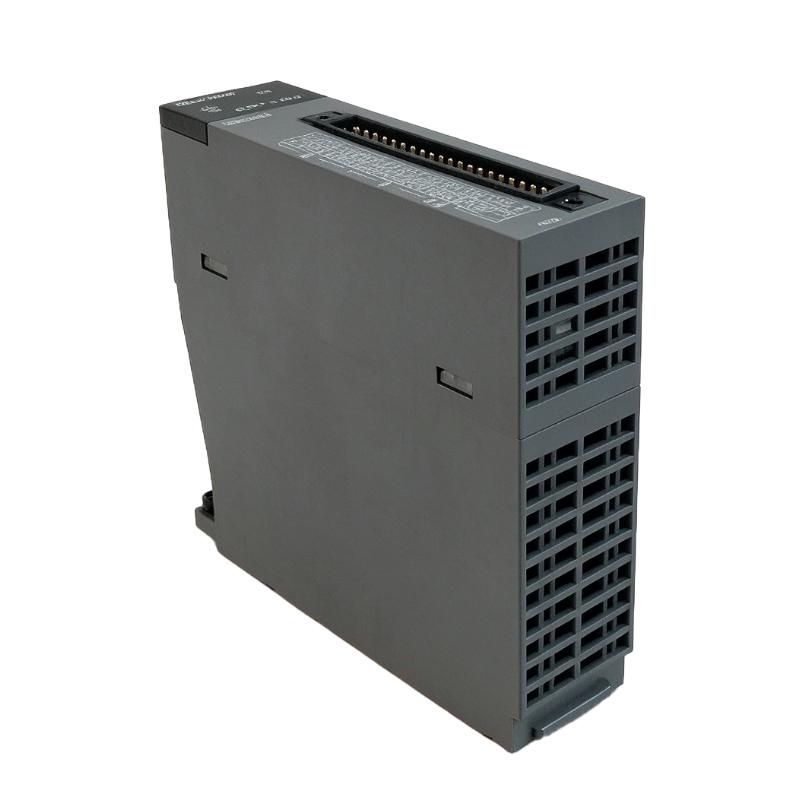

The Honeywell 2MLF-HD2A MasterLogic-200 High-Speed Counter Module is a specialized PLC module for counting high-frequency pulse signals from incremental encoders and other compatible pulse-generating devices. It uses differential line-driver inputs to receive A-phase and B-phase signals, making it suitable for applications where pulse acquisition must keep pace with rapidly changing machine movement or rotational speed.

Unlike a conventional digital input module, the 2MLF-HD2A is intended for dedicated pulse-counting tasks. It supports two counting channels and a signed 32-bit counting range. Its input architecture accepts RS-422A line-driver signals or HTL-level line-driver signals, with the maximum counting speed depending on the selected signal type.

The module can support applications such as encoder feedback, rotational-speed measurement, position tracking, and pulse-based production monitoring. Its counting modes and auxiliary functions can be configured through the PLC program, allowing the control system to handle different counting requirements without relying entirely on repeated CPU-level processing of individual pulses.

For replacement or new installations, engineers should confirm the encoder’s output interface, A/B phase wiring, signal level, counting mode, and required operating frequency. The 2MLF-HD2A should not be treated as a universal replacement for the 2MLF-HO2A, because the two models use different input architectures.

Technical Specifications

Product Features

• Two high-speed counting channels: Handles pulse-counting tasks through dedicated hardware rather than relying solely on ordinary PLC digital inputs.
• Differential line-driver input: Accepts compatible RS-422A or HTL line-driver signals from encoders and other pulse sources.
• High-frequency pulse acquisition: Supports counting speeds up to 500 kpps with RS-422A input and 250 kpps with HTL input.
• Signed 32-bit counting range: Accommodates positive and negative count values for position tracking and bidirectional movement.
• Multiple counting modes: Supports 1-phase, 2-phase, and clockwise/counterclockwise counting configurations.
• Configurable multiplication: Provides selectable pulse multiplication according to the input mode.
• Programmable comparison outputs: Supports count comparisons and section-based comparison functions using open-collector sink outputs.
• Preset and count-management functions: Supports presetting, clearing, latching, and enabling or disabling counting.
• Auxiliary measurement functions: Supports input-frequency measurement and revolution or unit-time measurement through program configuration.

Working Principle

The 2MLF-HD2A receives pulse signals through its differential A-phase and B-phase inputs. The module processes these signals using its dedicated high-speed counting circuitry and makes the resulting count information available to the MasterLogic-200 PLC.

For an incremental encoder, the A/B phase relationship provides information about pulse progression and, when configured appropriately, the direction of movement. The PLC program selects the counting mode and associated parameters according to whether the application requires simple pulse accumulation, quadrature counting, or clockwise/counterclockwise operation.

The basic signal path is:

Incremental Encoder → Differential A/B Pulse Signals → 2MLF-HD2A → Count Data and Status → MasterLogic-200 CPU

The module supports a signed 32-bit counting range. In linear counting mode, the count can carry or borrow when the range boundary is exceeded. Ring-count mode instead repeats counting within the configured limits. The appropriate mode depends on whether the application tracks accumulated movement or repeatedly cycles through a defined count interval.

Input multiplication can also be configured. In 2-phase counting, the selected ×1, ×2, or ×4 mode determines how the A/B phase transitions contribute to the count. This setting affects the relationship between encoder pulses and the reported count, so it must match the encoder specification and the position or speed calculations used in the PLC program.

The module also supports preset operations and auxiliary functions. Depending on the configuration, these can include clearing or latching the count, sampling, measuring input frequency, calculating revolution or unit-time values, and disabling counting through an internal or external condition.

Two comparison outputs are available per channel. These open-collector sink outputs can be configured for single-value comparisons or comparison against a defined section. They allow selected counting conditions to trigger an output without requiring the CPU to evaluate every incoming pulse individually.

The input interface must match the encoder’s electrical output. RS-422A and HTL line-driver signals have different electrical characteristics, and the module’s maximum counting speed also differs between these input types. Correct signal selection, wiring, and counting configuration are therefore essential for accurate high-speed operation.

Role in the MasterLogic-200 Control Architecture

The 2MLF-HD2A provides dedicated pulse acquisition and counting within the MasterLogic-200 PLC architecture. It allows the controller to use encoder information for motion monitoring, production counting, and speed-related calculations.

A typical system arrangement is:

Incremental Encoder → 2MLF-HD2A → MasterLogic-200 CPU → Control Logic → Machine Control Outputs

The counter module performs pulse acquisition and counting; the overall machine-control strategy remains the responsibility of the PLC program and associated control equipment. Applications requiring closed-loop motion control must also account for the response characteristics of the drive, controller, and mechanical system.

Industrial Applications

Application suitability depends on encoder signal type, maximum pulse frequency, counting mode, and the required response of the control system. The 2MLF-HD2A is intended for differential line-driver input and should not be selected solely on the basis of its high-speed counting capability.

Installation and Maintenance

1. Verify the module identity: Confirm the full 2MLF-HD2A model designation and distinguish it from the voltage-input 2MLF-HO2A before installation or replacement.
2. Check the encoder interface: Verify that the encoder provides a compatible RS-422A or HTL line-driver output.
3. Confirm the pulse frequency: Ensure that the expected input frequency remains within the applicable limit of 500 kpps for RS-422A or 250 kpps for HTL input.
4. Identify the A/B phase signals: Check the encoder wiring diagram and assign the A-phase and B-phase signals to the correct input terminals.
5. Select the counting mode: Configure 1-phase, 2-phase, or CW/CCW operation according to the encoder signal arrangement and application requirements.
6. Configure pulse multiplication: Select the appropriate multiplication factor and verify that the resulting count corresponds to the encoder’s pulse specification.
7. Set the counting range and type: Choose linear counting or ring counting according to the required count behavior and configure any applicable boundaries.
8. Verify preset and enable conditions: Check the program logic and external signals used for presetting, clearing, enabling, or disabling counting.
9. Review comparison output settings: Confirm the comparison conditions, output assignments, and external circuit requirements before using the open-collector outputs.

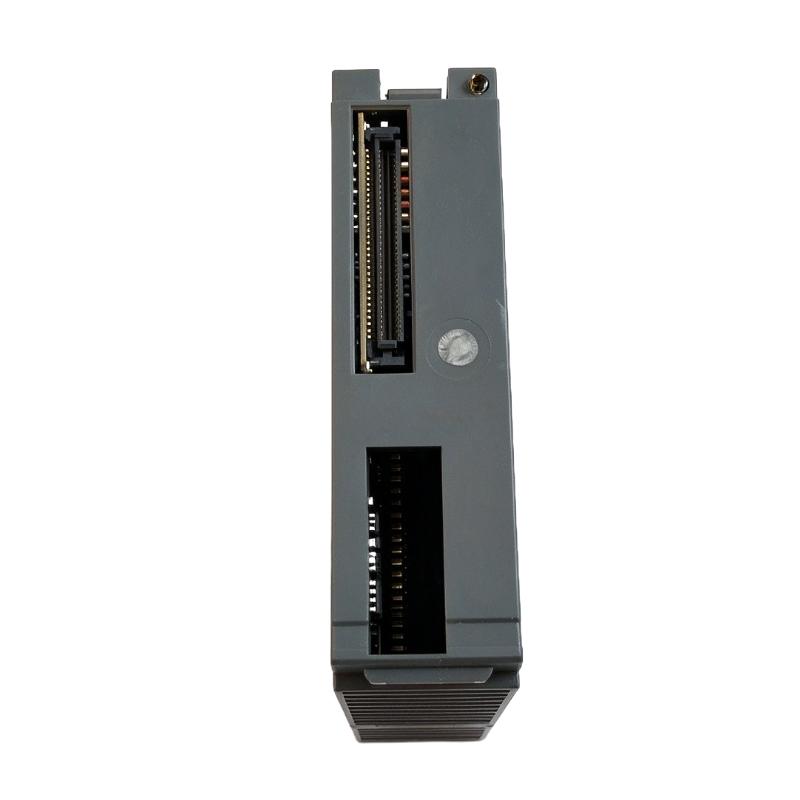

10. Inspect the connector and wiring: Check the 40-pin connection, cable condition, signal routing, and grounding arrangements before commissioning.
11. Test counting accuracy: Apply a known pulse source or controlled encoder movement and compare the module count with the expected value and direction.
12. Record operating parameters: Document the encoder type, input interface, pulse frequency, counting mode, multiplication factor, preset values, and comparison-output settings.

Follow the applicable Honeywell electrical safety and installation procedures before removing or installing the module. If the count is unstable or incorrect, inspect the input signal quality, A/B phase wiring, electrical-interface selection, pulse frequency, and program configuration before replacing the counter.

Compatible System Components

The 2MLF-HD2A is part of the Honeywell MasterLogic-200 special-function I/O family. Its surrounding system components should be selected according to the encoder interface, counting application, and PLC configuration.

Recommended Related Models

Key Advantages

• Provides dedicated high-speed pulse counting for encoder-based applications.
• Supports differential RS-422A and HTL line-driver input interfaces.
• Offers two counting channels with a signed 32-bit count range.
• Supports multiple counting modes and configurable pulse multiplication.
• Includes preset, latch, clear, frequency-measurement, and comparison functions.
• Integrates high-speed counting into the MasterLogic-200 PLC control architecture.

Technical FAQs

What is the difference between the 2MLF-HD2A and the 2MLF-HO2A?

The 2MLF-HD2A uses differential line-driver inputs and supports RS-422A or HTL line-driver signals. The 2MLF-HO2A uses a voltage-input, open-collector interface. Encoder output type must be checked before selecting between the two models.

How does the selected counting mode affect encoder feedback?

The 1-phase, 2-phase, and CW/CCW modes interpret incoming pulse signals differently. The selected mode and multiplication factor must match the encoder’s signal arrangement and the PLC program’s count calculations to avoid incorrect position or speed values.

When should ring counting be used instead of linear counting?

Ring counting is appropriate when the application requires the count to repeat within a configured range. Linear counting is more suitable for accumulated counts that continue through the signed 32-bit range using carry or borrow behavior.

What should be checked if the module misses high-frequency pulses?

First verify that the pulse frequency is within the limit for the selected input type. Then inspect the encoder’s line-driver output, A/B phase wiring, connector condition, electrical noise, and counting configuration. Also confirm that the signal level and interface match the 2MLF-HD2A input requirements.
