Product Overview

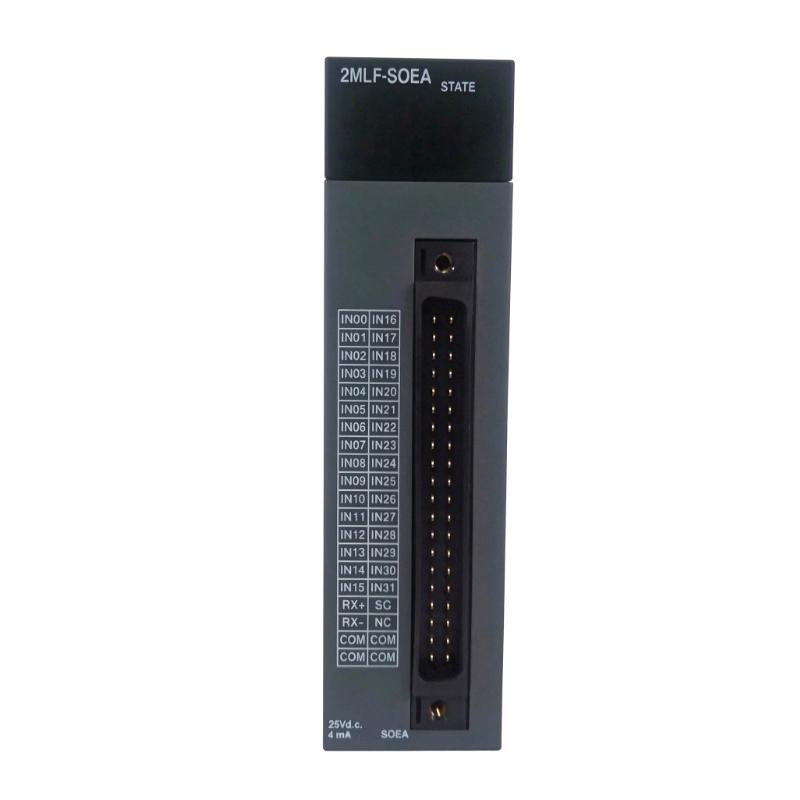

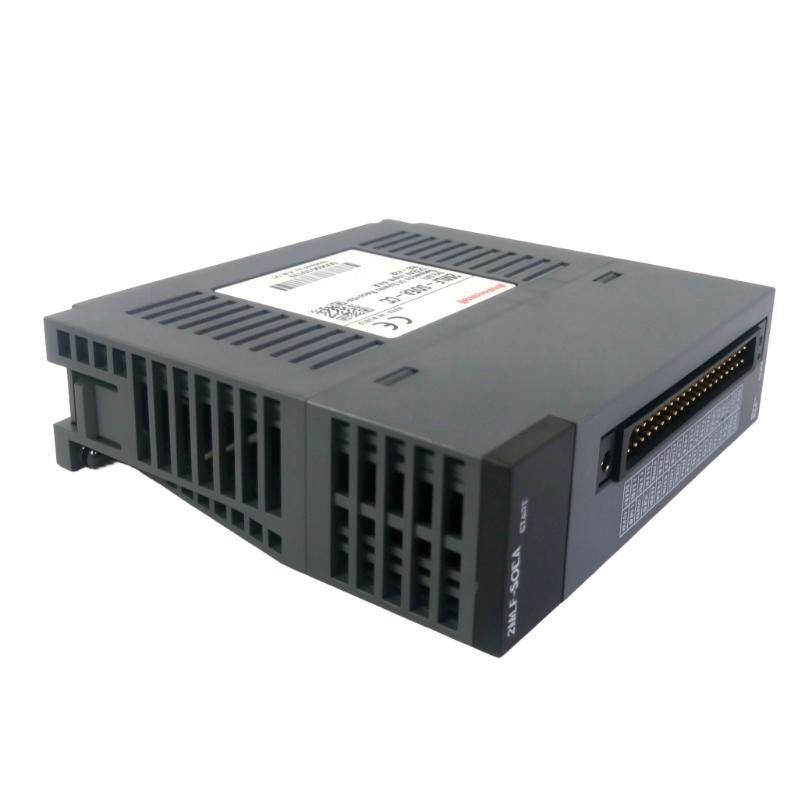

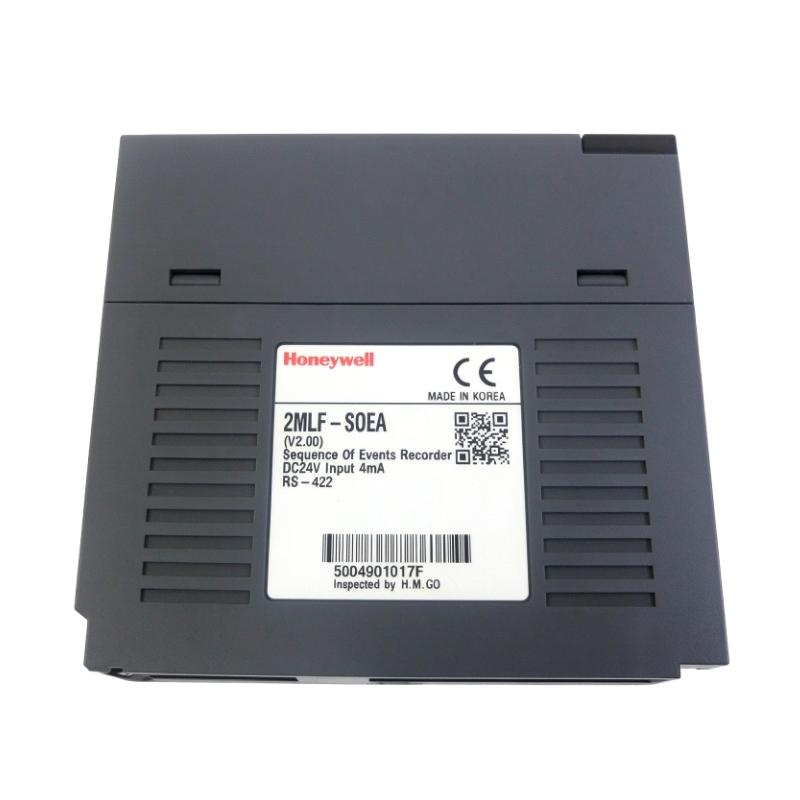

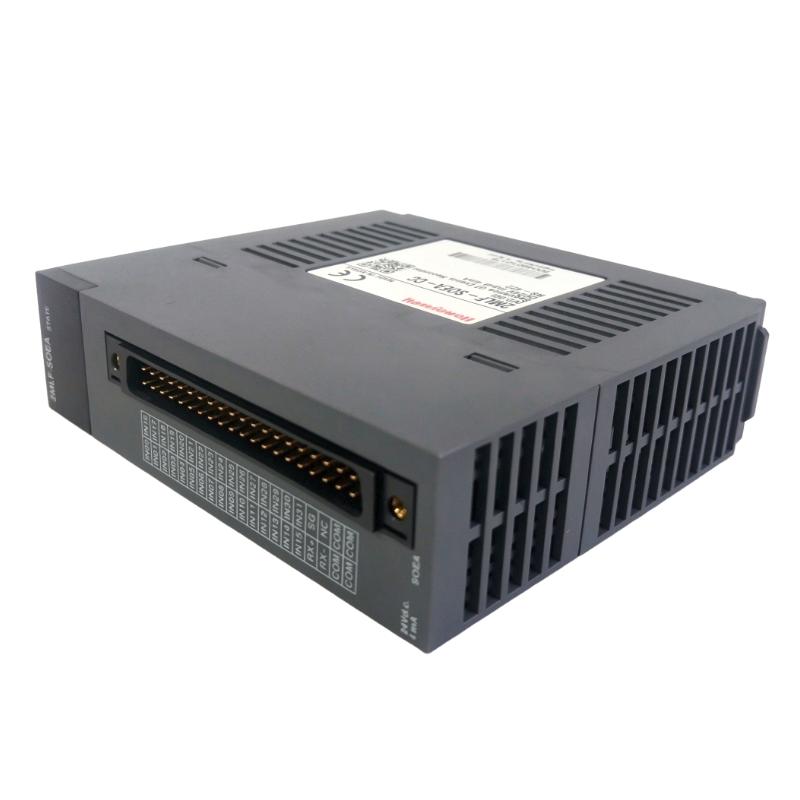

The Honeywell 2MLF-SOEA MasterLogic-200 Event Input Module is a 32-channel Sequence of Events (SOE) input module used to capture changes in external digital signals with millisecond-level timing resolution. It is intended for industrial control systems where knowing the order and timing of discrete events is important for operational monitoring, alarm investigation, and fault analysis.

Unlike a standard digital input module used primarily to provide current equipment status to PLC logic, the 2MLF-SOEA records event information, including input state and event timing. Its built-in memory can retain up to 300 event records per module, allowing operators and maintenance engineers to examine recent changes rather than relying solely on the current state of an input.

The module accepts 32 digital input points using a 24 V DC interface and photocoupler isolation. Its event-recording precision is 1 ms, with a specified inter-module timing error of ±2 ms. These characteristics make it suitable for applications where the sequence of contact changes, equipment trips, interlock activations, or other discrete signals must be reconstructed after an abnormal event.

The 2MLF-SOEA works with the MasterLogic-200 PLC environment and its dedicated SOE monitoring tools. The recorded history can be monitored and saved for later review. Engineers should distinguish this event-recording function from ordinary PLC scan-based monitoring, particularly when investigating events that occur close together in time.

Technical Specifications

Product Features

• 32-channel event acquisition: Monitors 32 discrete input points within one SOE module.
• Millisecond event recording: Records event information with 1 ms precision for sequence analysis.
• Built-in event memory: Stores up to 300 event records per module for subsequent monitoring and review.
• 24 V DC input interface: Supports industrial digital signals within the specified operating voltage range.
• Photocoupler isolation: Provides electrical isolation between the input circuits and internal logic.
• Configurable input filtering: Allows the input filter to be adjusted from 0 to 100 ms according to signal conditions.
• Source/sink input configuration: Supports the specified digital input interface for compatible field circuits.
• Per-point status indication: Uses an LED to indicate when an input is ON.
• SOE monitoring support: Works with dedicated monitoring software to view and save recorded event history.
• Event-history management: Supports different history-retention behaviors, including retaining recent events or preserving the initial history, depending on the configured SOE settings.

Working Principle

The 2MLF-SOEA monitors external 24 V DC digital signals and records changes in their states as sequence-of-events information. When a qualifying input transition occurs, the module captures the event information and stores it in its internal memory for subsequent monitoring.

The basic signal path is:

Field Contact or Digital Signal → 2MLF-SOEA Input Circuit → Event Detection and Time Recording → Internal Event Memory → SOE Monitoring Software

Each input point can represent a discrete condition such as a circuit-breaker status, protection relay contact, equipment trip signal, or interlock change. When an input transition meets the configured input-filter criteria, the module identifies the change and records the corresponding event information.

The module provides a recording precision of 1 ms. The specified timing error between modules is ±2 ms, which should be considered when comparing events captured by separate modules. Applications requiring precise correlation across several modules should account for the system’s clock synchronization and event-timing configuration.

The input filter is adjustable from 0 to 100 ms. This setting helps suppress brief transitions caused by contact bounce or electrical interference, but it also affects which changes are accepted as valid events and when they are recognized. A long filter setting can prevent short pulses from being recorded, so the filter must be selected according to the signal characteristics and the event-recording requirements.

The module has 1 Mbit of event memory and can retain up to 300 event records. When the configured history mode retains the most recent events, older records are removed as new events arrive after the storage limit is reached. A different history mode can preserve the initial event history instead. Engineers should select the appropriate behavior before commissioning.

The recorded event history is accessed through the dedicated SOE monitoring environment, where events can be monitored and saved for analysis. The module is intended for event monitoring and historical review; it should not be treated as a replacement for the PLC’s ordinary control logic or as a stand-alone protection device.

Role in the MasterLogic-200 Control Architecture

The 2MLF-SOEA provides a dedicated event-recording interface within the MasterLogic-200 control system. It supplements normal PLC input processing by preserving the sequence of selected digital input changes for troubleshooting and operational analysis.

A typical arrangement is:

Field Contacts and Status Signals → 2MLF-SOEA → SOE Event Memory → Monitoring Software → Event Review and Fault Analysis

The SOE module and the ordinary PLC input modules serve complementary purposes. Standard digital inputs support control decisions and status monitoring, while the 2MLF-SOEA preserves a dedicated history of selected events. This distinction is particularly useful when several signals change within a short period and the order of occurrence must be established during an investigation.

Industrial Applications

Application suitability depends on the event timing requirements, input signal characteristics, retention settings, and SOE monitoring configuration. The module is most useful when the order and timing of digital state changes provide information that ordinary status monitoring cannot adequately preserve.

Installation and Maintenance

1. Verify the module identity: Confirm that the installed or replacement unit is the Honeywell 2MLF-SOEA and that the intended application requires sequence-of-events recording.
2. Check the PLC configuration: Verify the module position, base configuration, I/O assignment, and relevant system parameters before installation.
3. Confirm input voltage: Ensure that the field signals use the specified 24 V DC input interface and remain within the permitted operating voltage range.
4. Verify source/sink wiring: Check the field circuit arrangement, common connections, and input polarity against the applicable wiring diagram.
5. Inspect the 40-pin connector: Check connector alignment, terminal accessories, cable condition, and contact integrity before energizing the system.
6. Review input thresholds: Confirm that the field signal’s ON and OFF levels satisfy the module’s input requirements.
7. Configure the input filter: Select an appropriate filter setting between 0 and 100 ms based on contact behavior, pulse duration, and the required event-recognition timing.
8. Configure event-history retention: Select the appropriate history mode and understand how the module handles new events when its 300-record storage capacity is reached.
9. Verify SOE monitoring access: Confirm that the dedicated monitoring software can communicate with the system and display recorded events correctly.
10. Test representative input transitions: Apply controlled ON and OFF changes to selected input points and verify that the corresponding events are recorded.
11. Check timing interpretation: When correlating events from multiple modules, account for the specified inter-module timing error and verify the system’s clock synchronization arrangements.
12. Document commissioning results: Record input assignments, filter settings, history-retention mode, timing configuration, and the results of event-recording tests.

Follow the applicable Honeywell safety and installation procedures before removing or installing the module. If an event is missing or its timing appears incorrect, inspect the field signal, input filter, wiring, history settings, and monitoring configuration before concluding that the module is defective.

Compatible System Components

The 2MLF-SOEA operates as part of a compatible Honeywell MasterLogic-200 system. The surrounding components should be selected according to the required digital input, output, and event-monitoring functions.

Recommended Related Models

Key Advantages

• Records discrete input events with 1 ms precision.
• Monitors 32 digital input points through a dedicated SOE module.
• Stores up to 300 event records for monitoring and investigation.
• Supports configurable input filtering to suit different field-signal characteristics.
• Helps engineers reconstruct the sequence of equipment status changes and fault indications.
• Integrates event monitoring into the MasterLogic-200 PLC environment.

Technical FAQs

How many event records can the 2MLF-SOEA retain?

The module has 1 Mbit of event memory and supports up to 300 event records per module. The configured history-retention mode determines whether the system retains the most recent events or preserves the initial history when the record limit is reached.

Does the 1 ms recording precision mean all events from separate modules have identical timestamps?

No. The specified timing error between modules is ±2 ms. When comparing events from separate modules, engineers should account for this timing tolerance and verify the system’s clock synchronization arrangements.

How does the input filter affect sequence-of-events recording?

The input filter can be configured from 0 to 100 ms. It determines how input changes are qualified before being accepted as valid events. A setting that is too long may suppress brief transitions, while a shorter setting may allow more contact bounce or electrical noise to be recorded.

Can the 2MLF-SOEA replace a standard digital input module?

Not automatically. The 2MLF-SOEA is specifically intended for sequence-of-events recording, while standard digital input modules primarily provide input status for PLC control logic. The replacement decision must account for the required event-history functions, input configuration, wiring, and PLC program.
